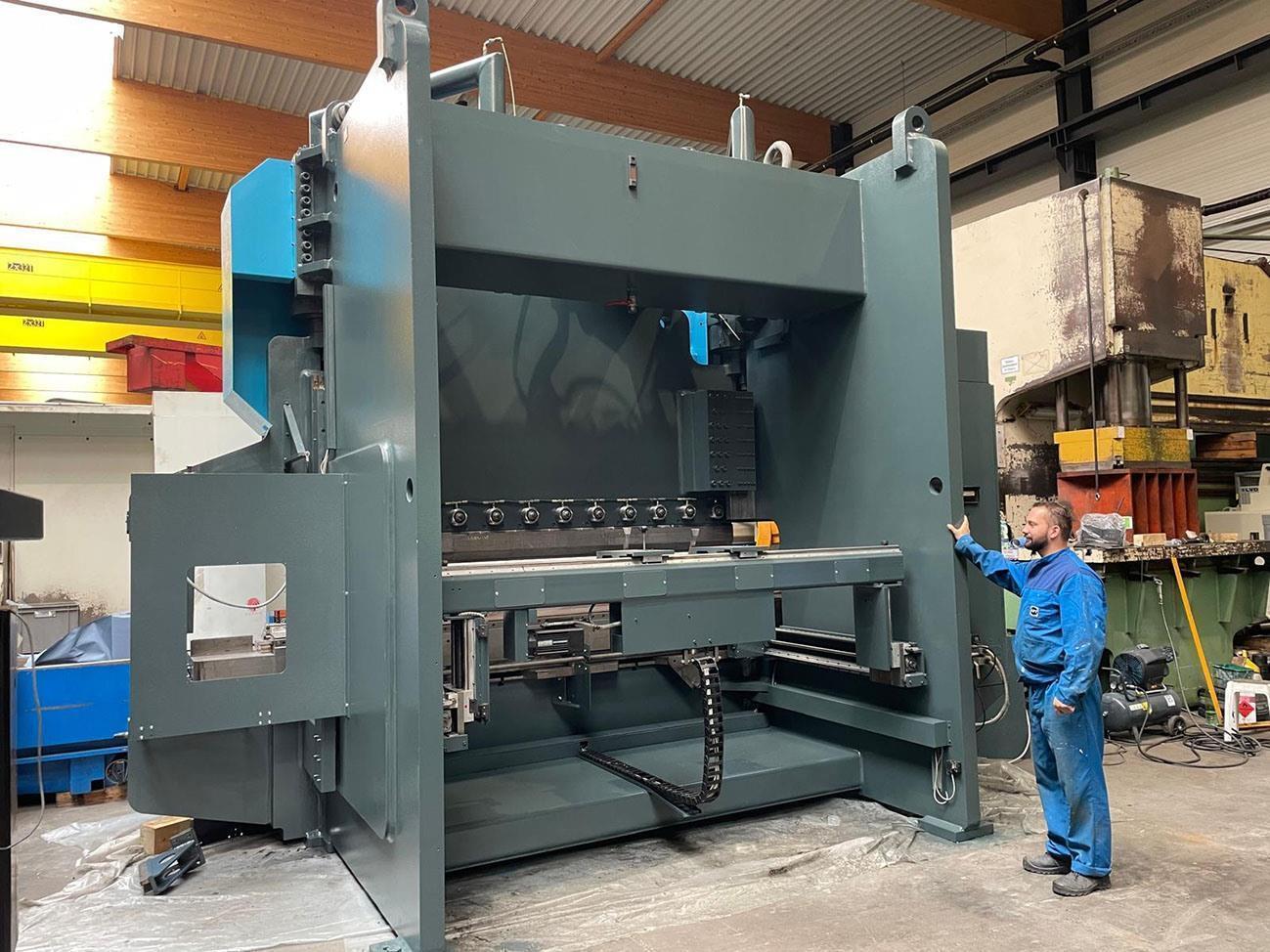

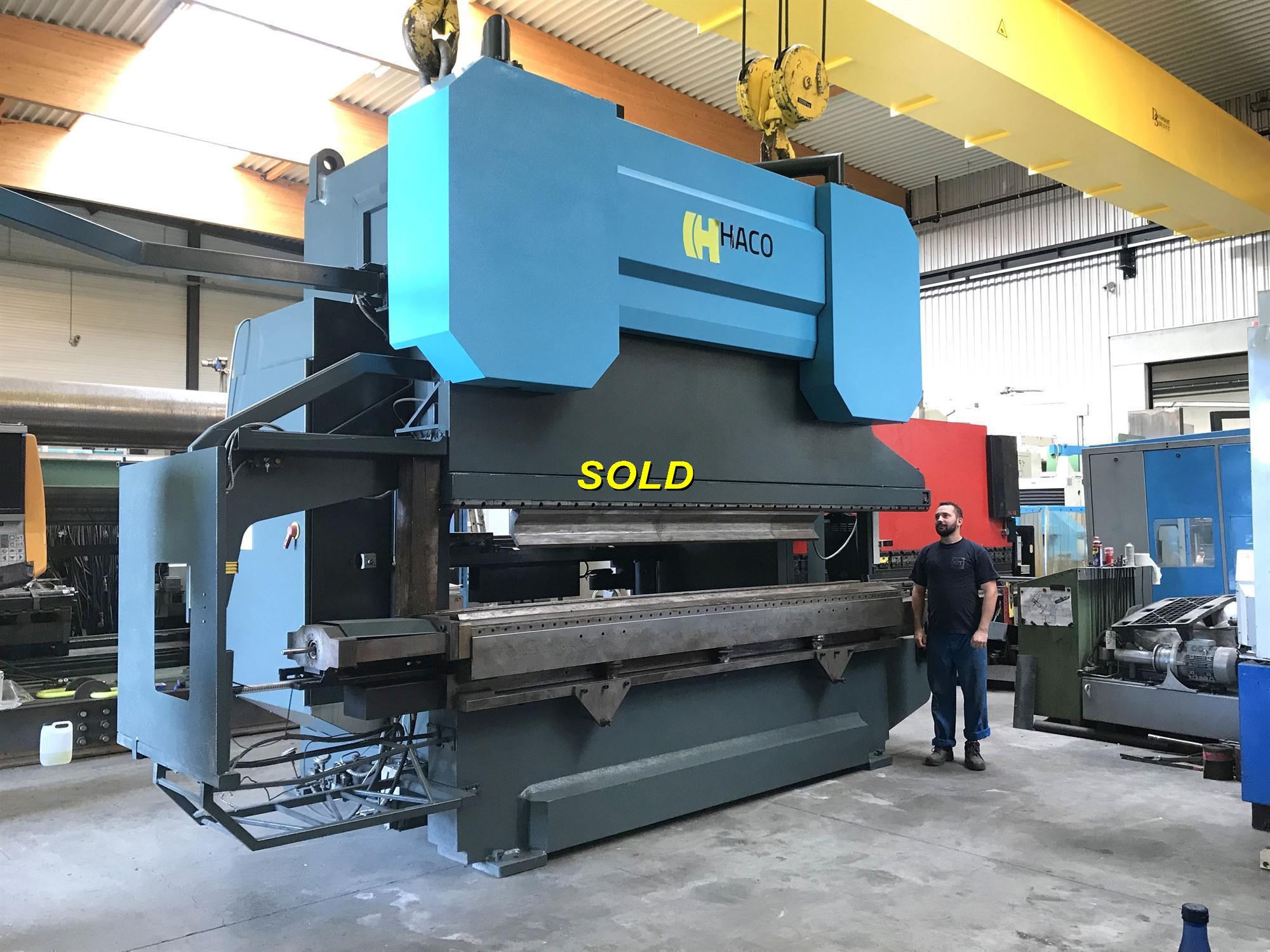

Haco ERM 500 ton x 4100 mm CNC heavy duty

Technical information

  • Capacity500 ton x 4100 mm

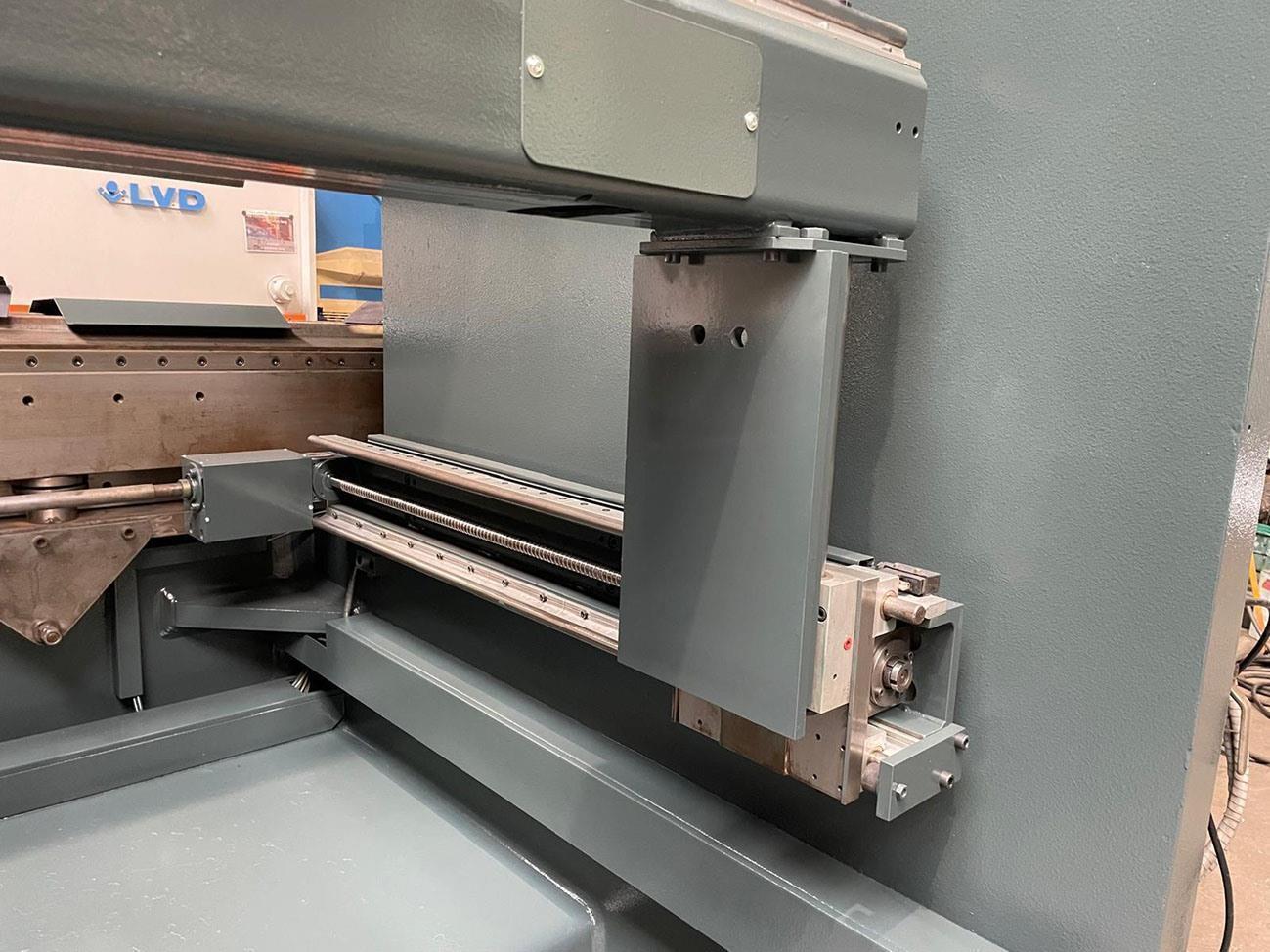

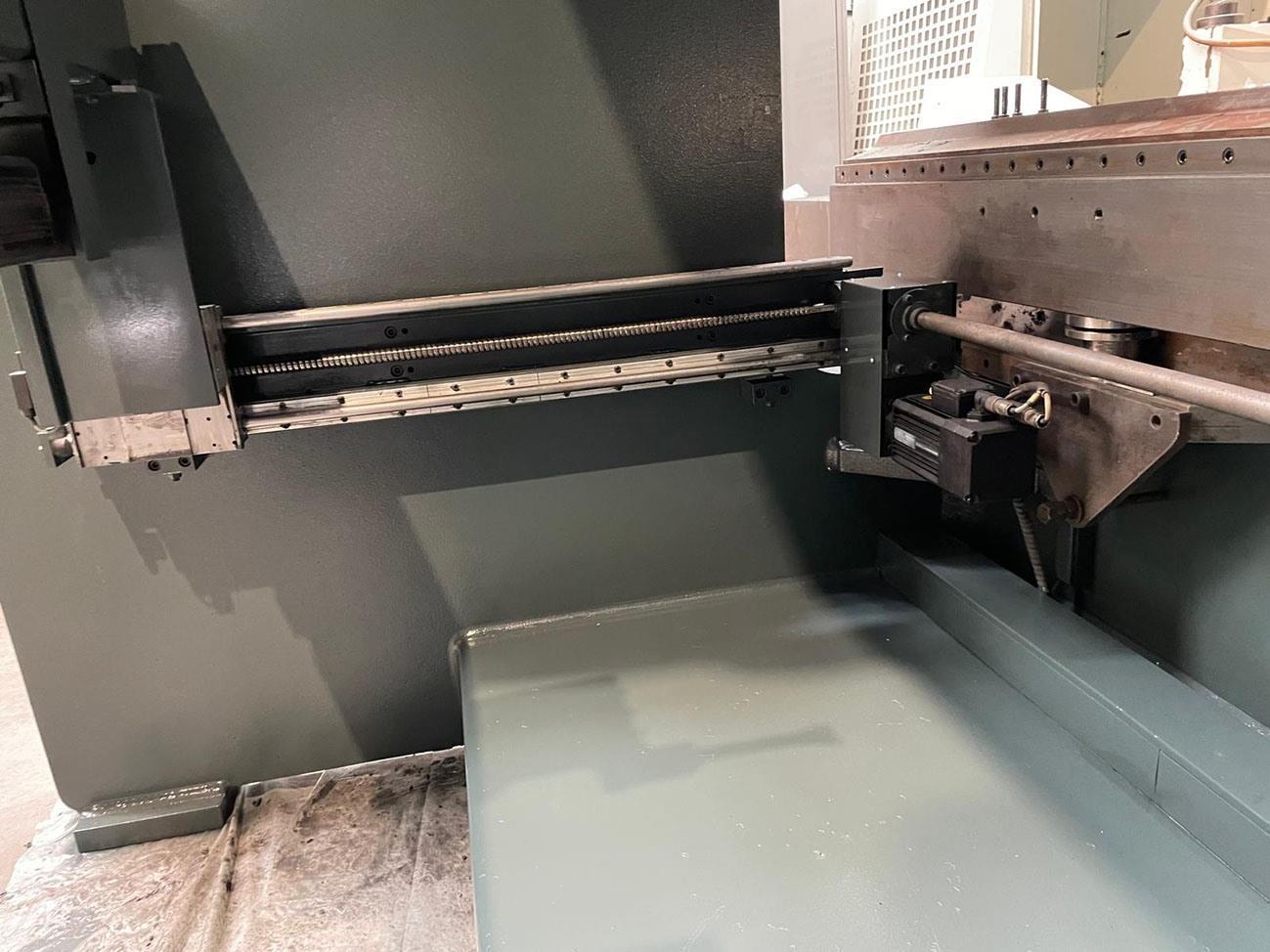

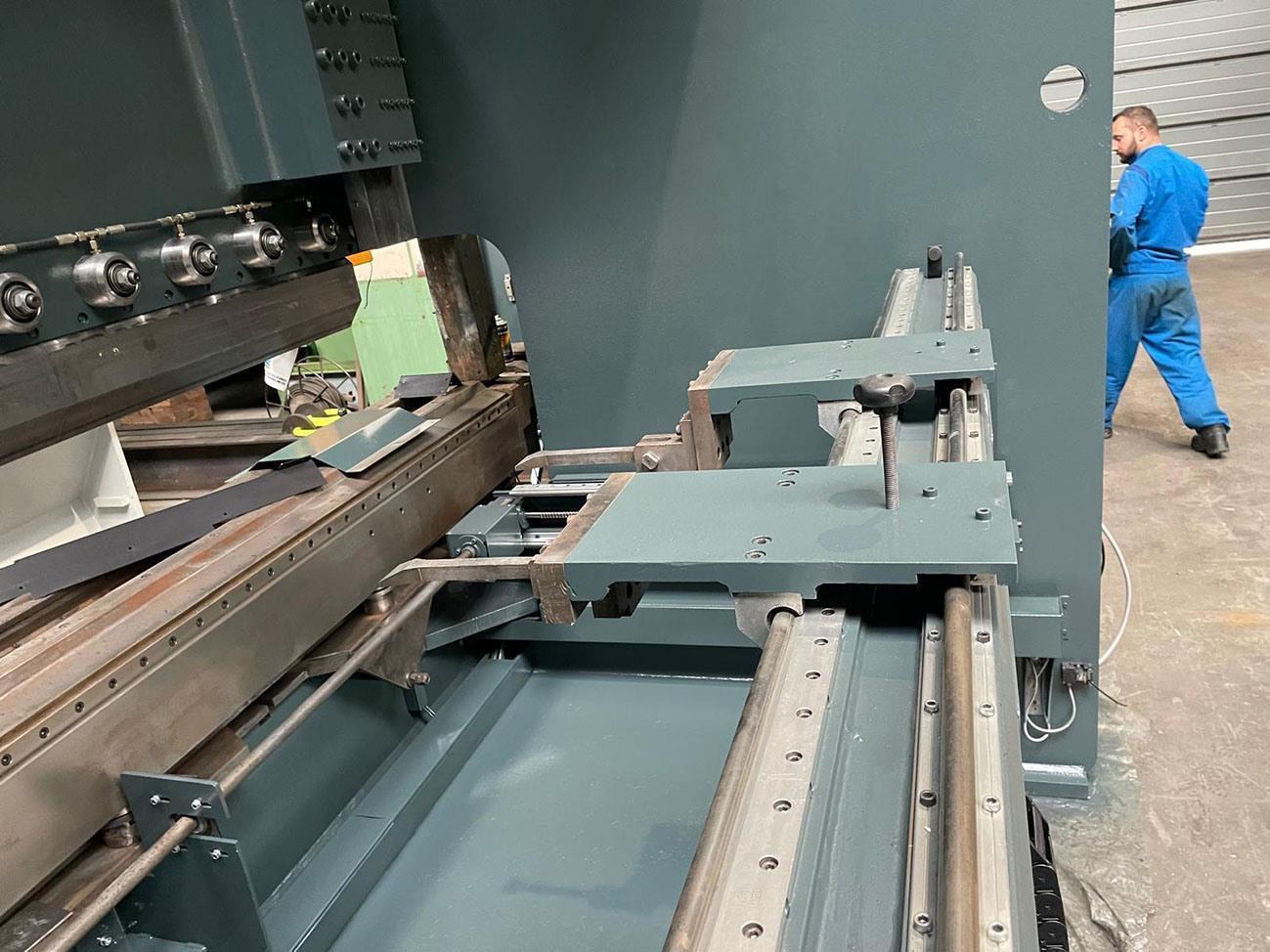

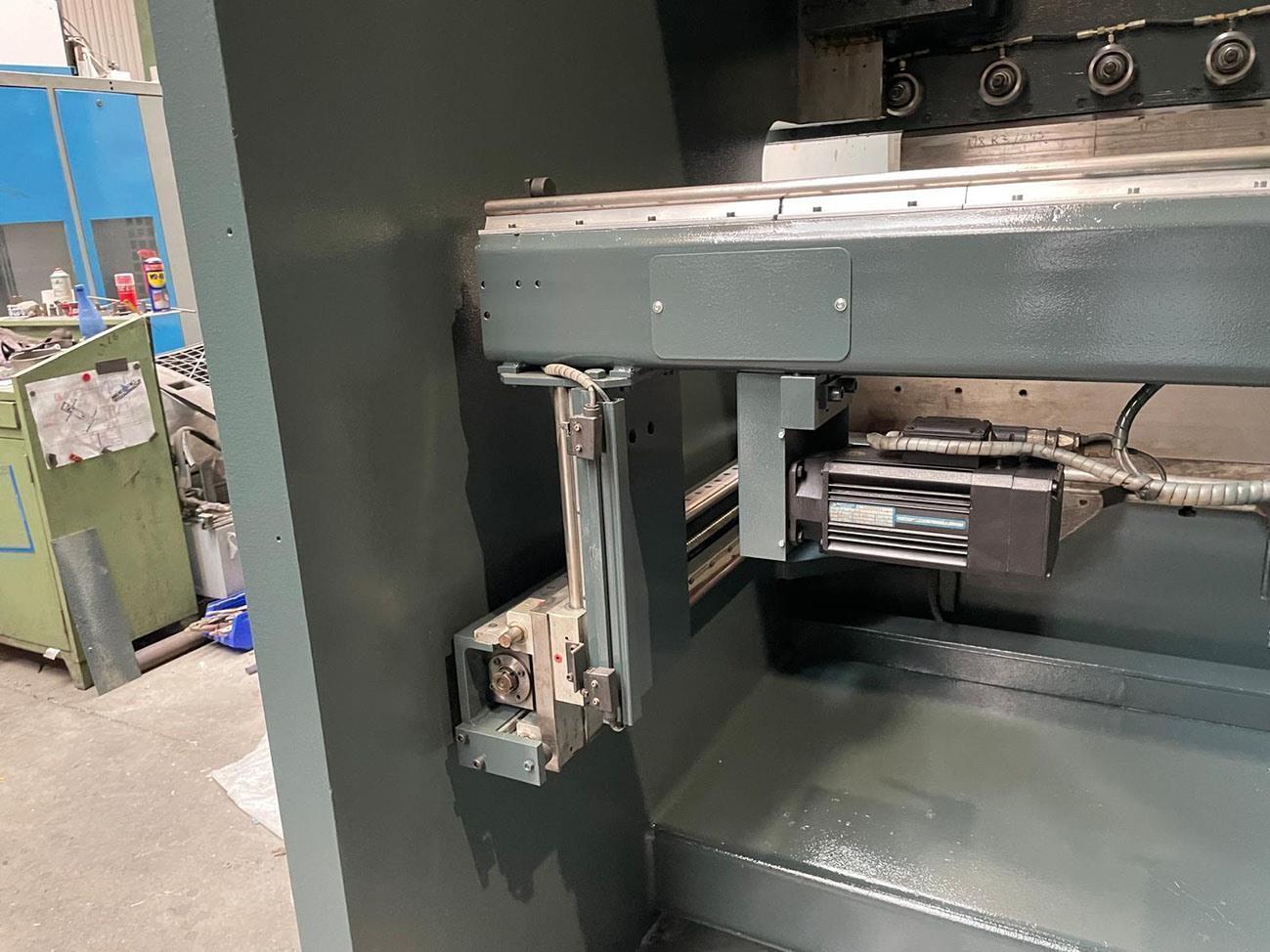

  • BackgaugeCNC

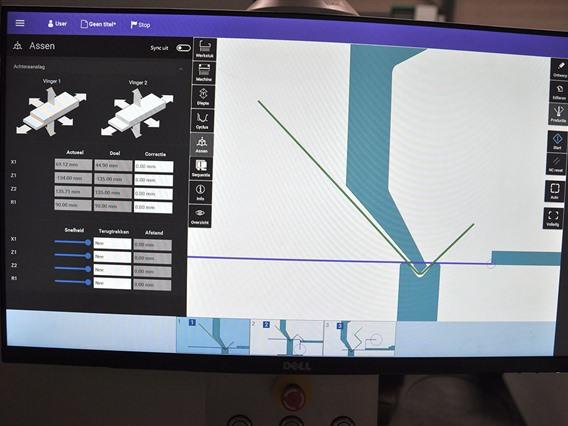

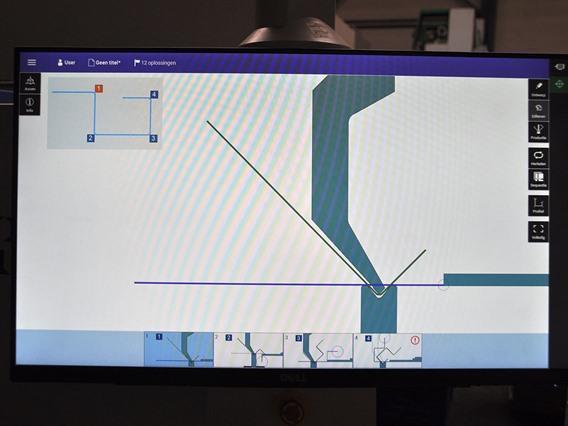

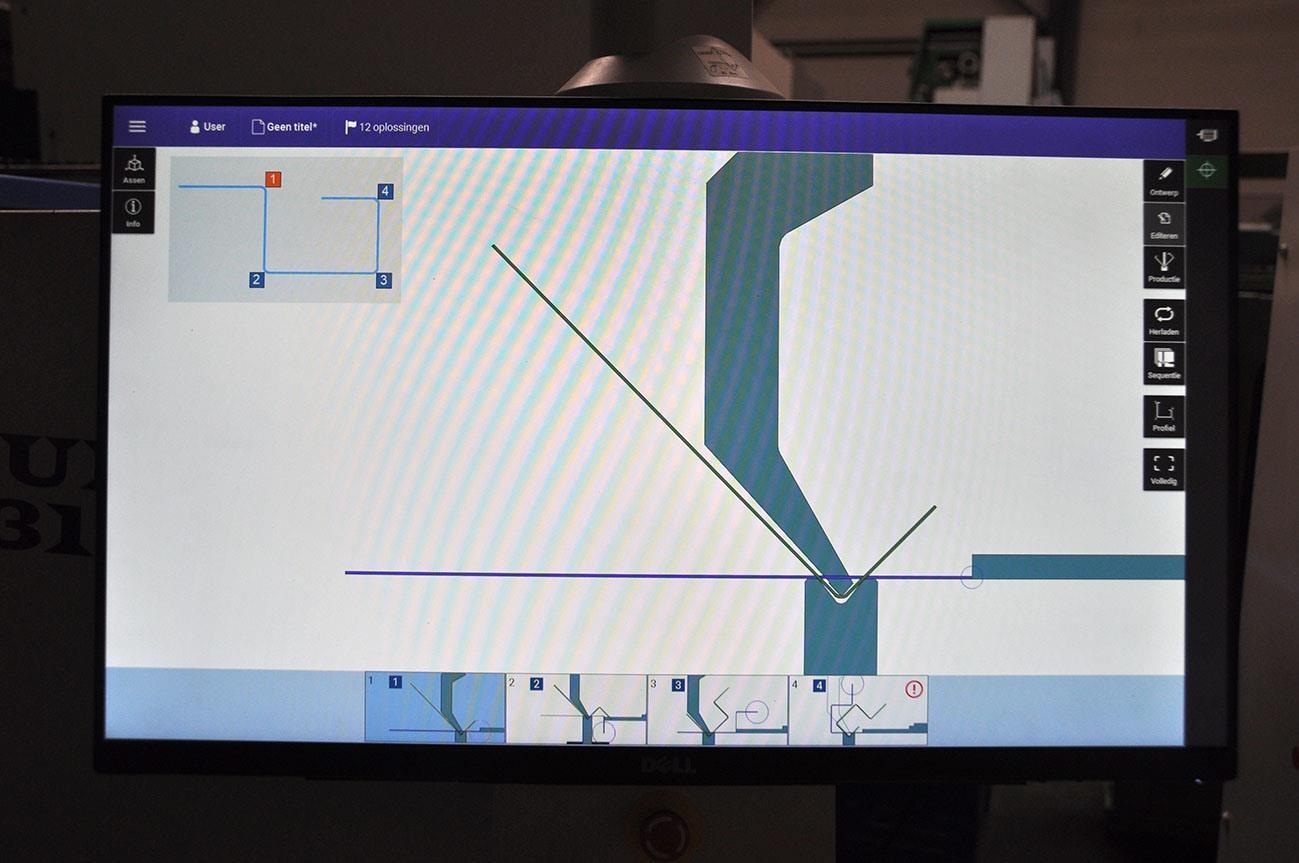

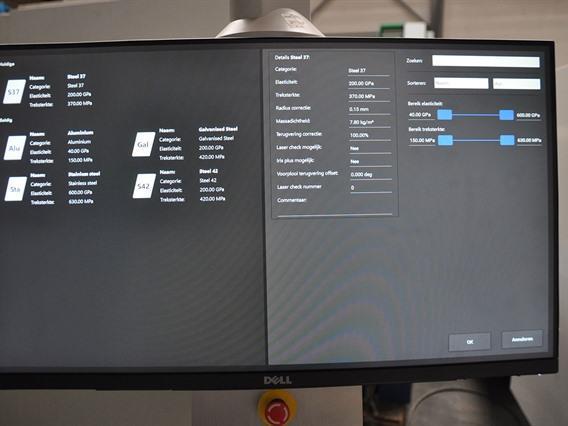

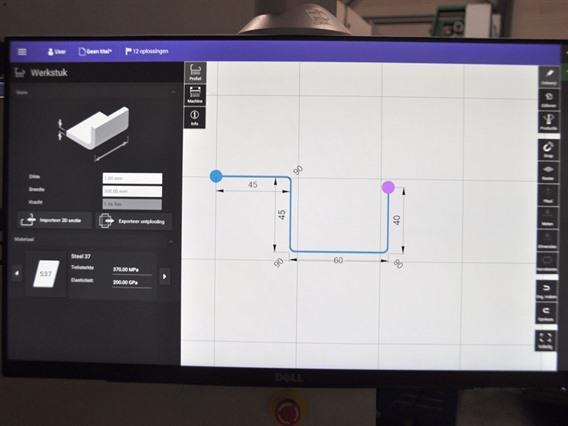

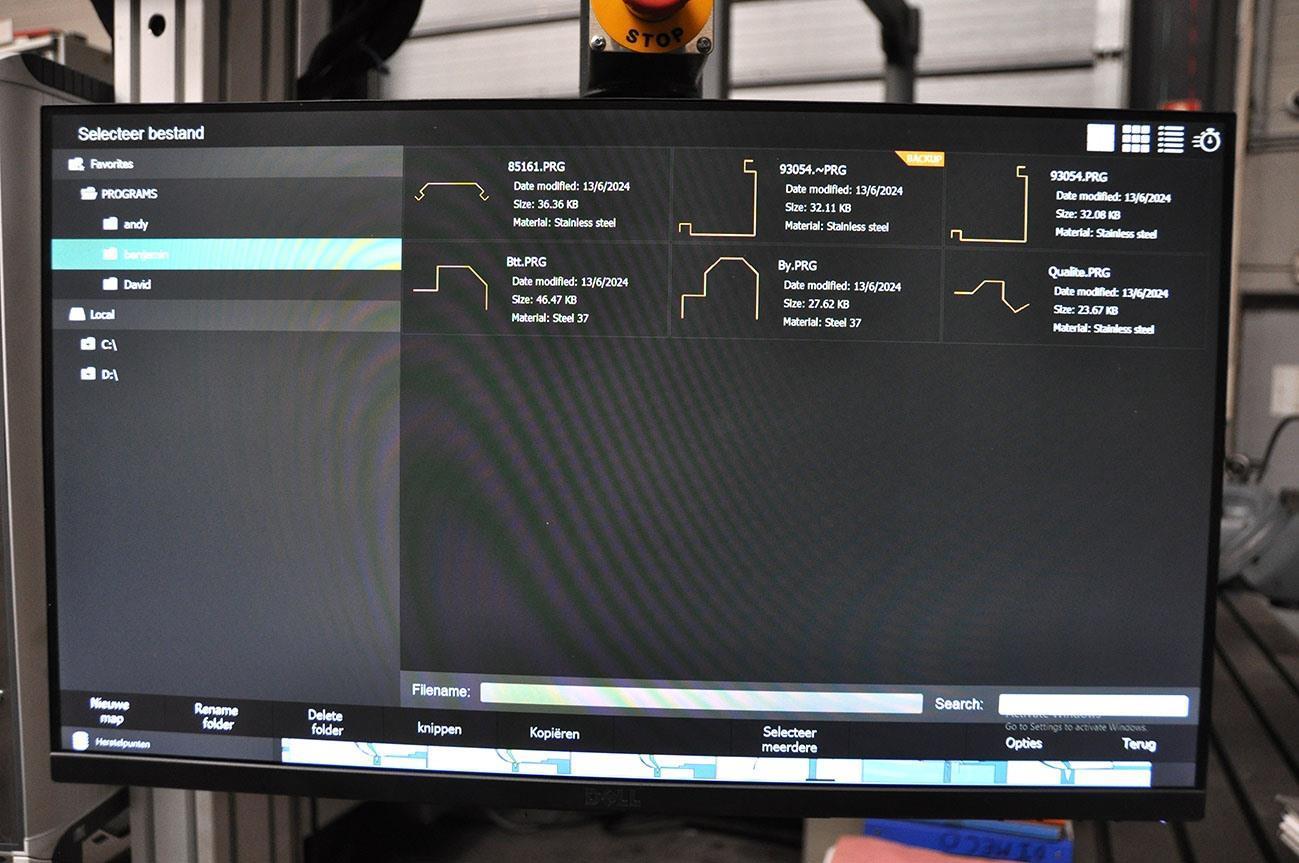

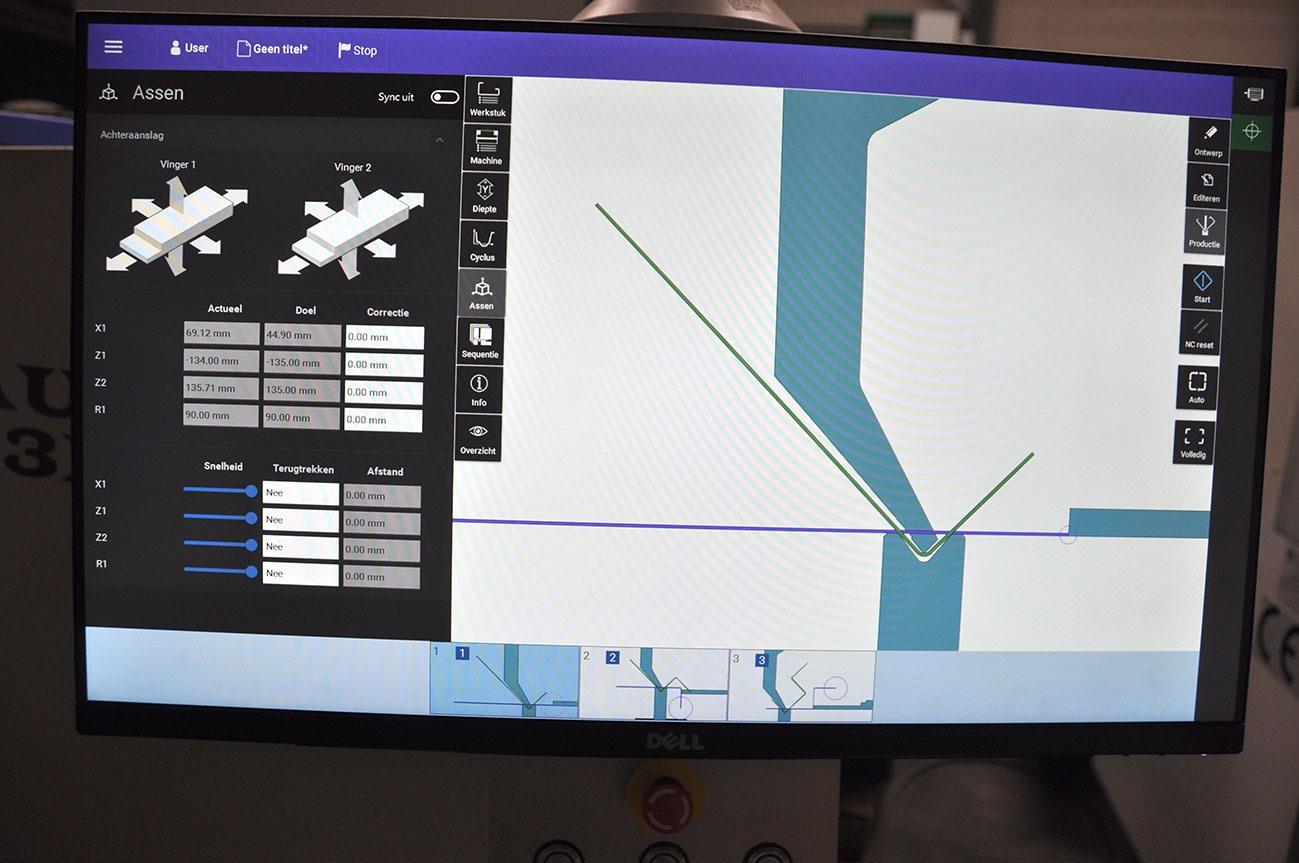

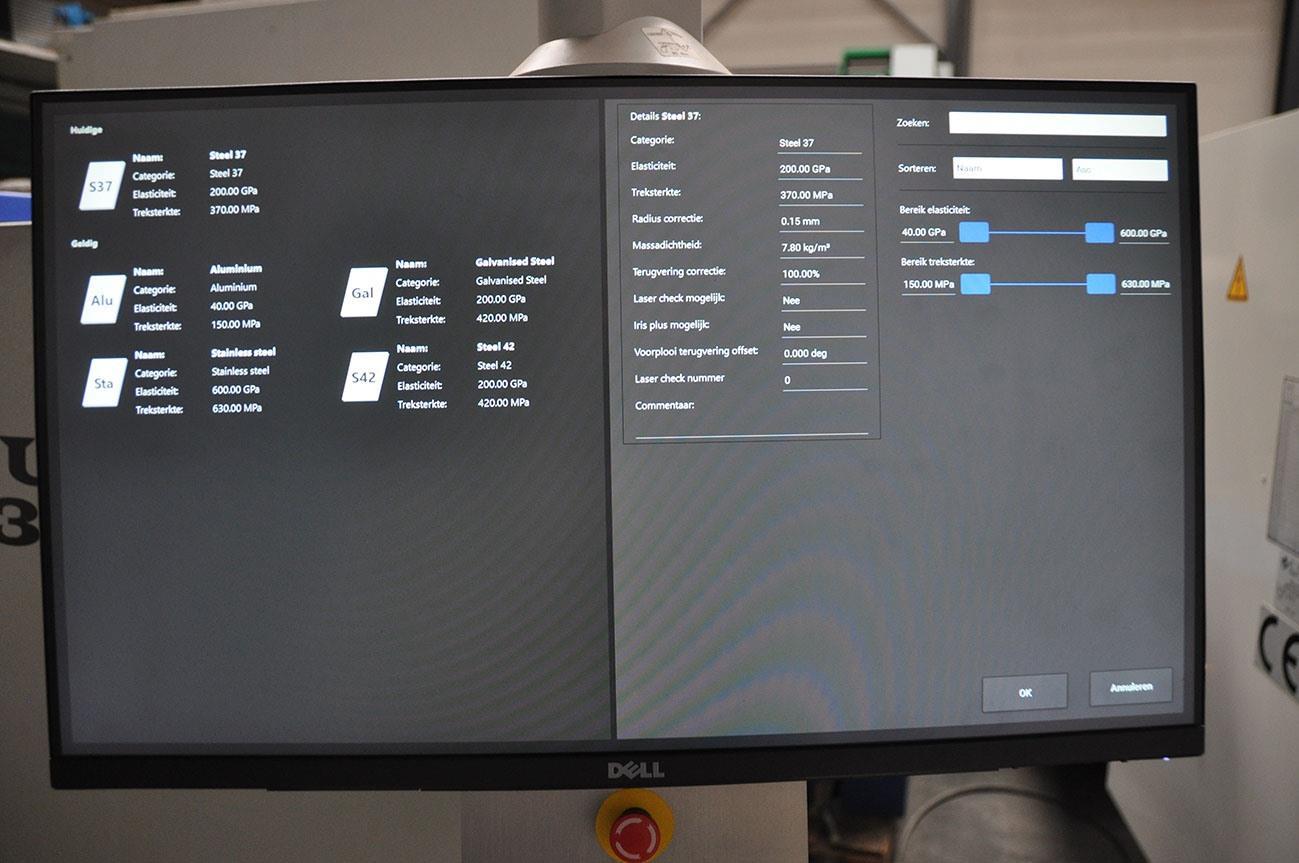

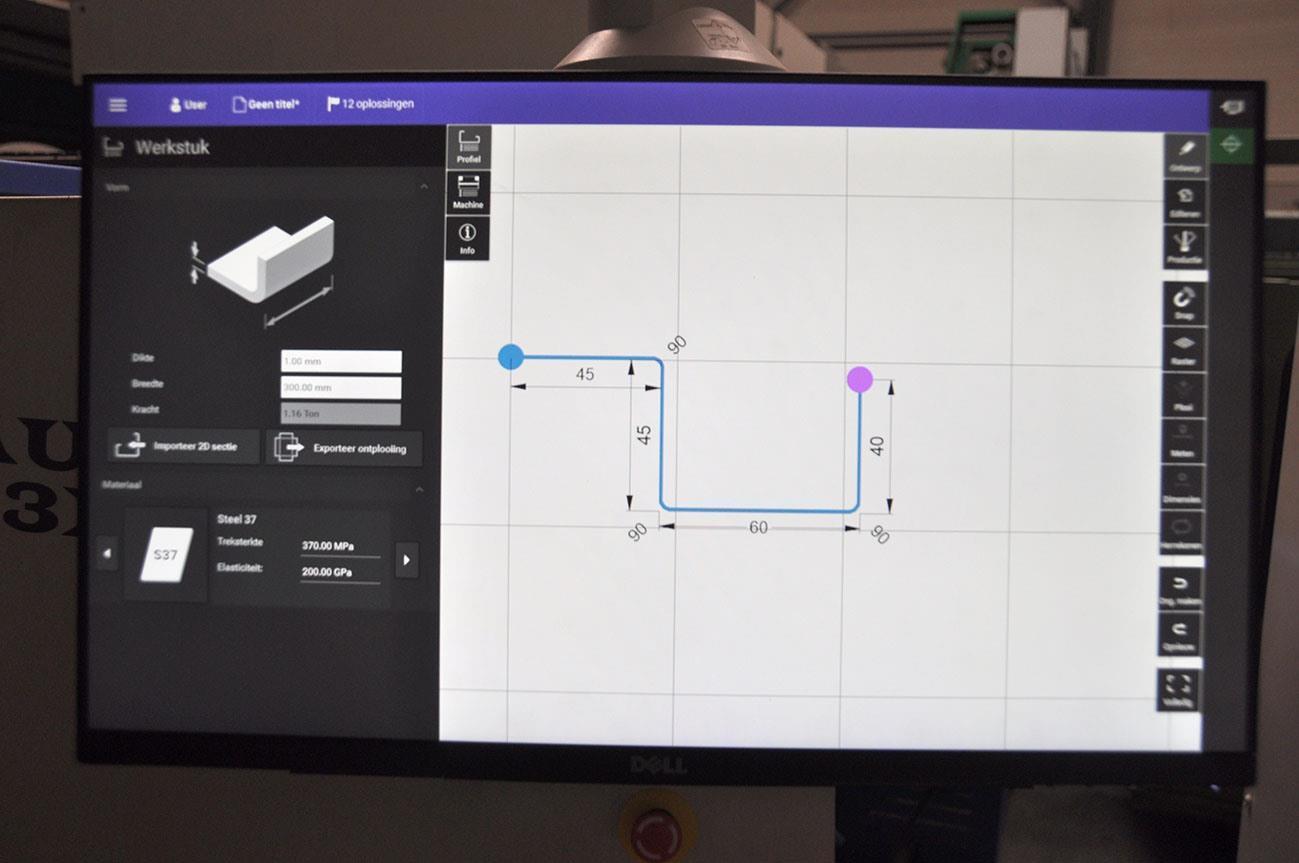

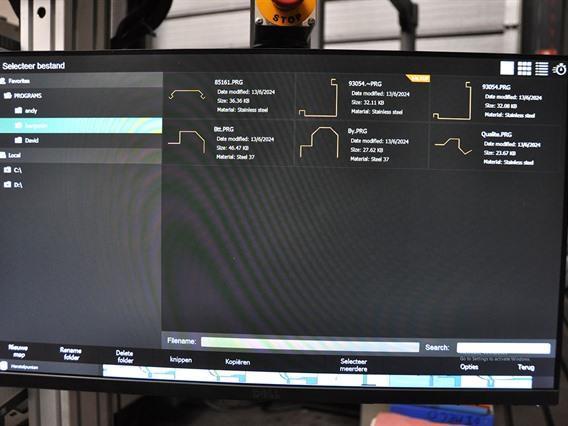

  • Control2D Touch
  • Passage between uprights2850 mm
  • Max stroke400 mm
  • Max distance between table -- ram890 mm
  • Depth of throat500 mm
  • Table width530 mm
  • Locking speed90 mm/sec
  • Working speed7 mm/sec
  • Returning speed60 mm/sec
  • Electric motor (power)37,5 kW
  • Weight42 ton
  • Multi V-shaped clampV-matic adjustable (V40 > V160 max)

Additional info

  • Heavy duty pressbrake > 300 ton capacity per 1 meter > ideally suited for high strength alloy steel
    6 axes: Y1 / Y2 / X / R / Z / V

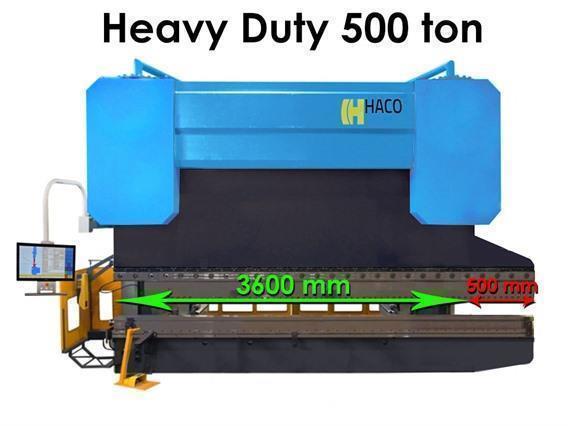

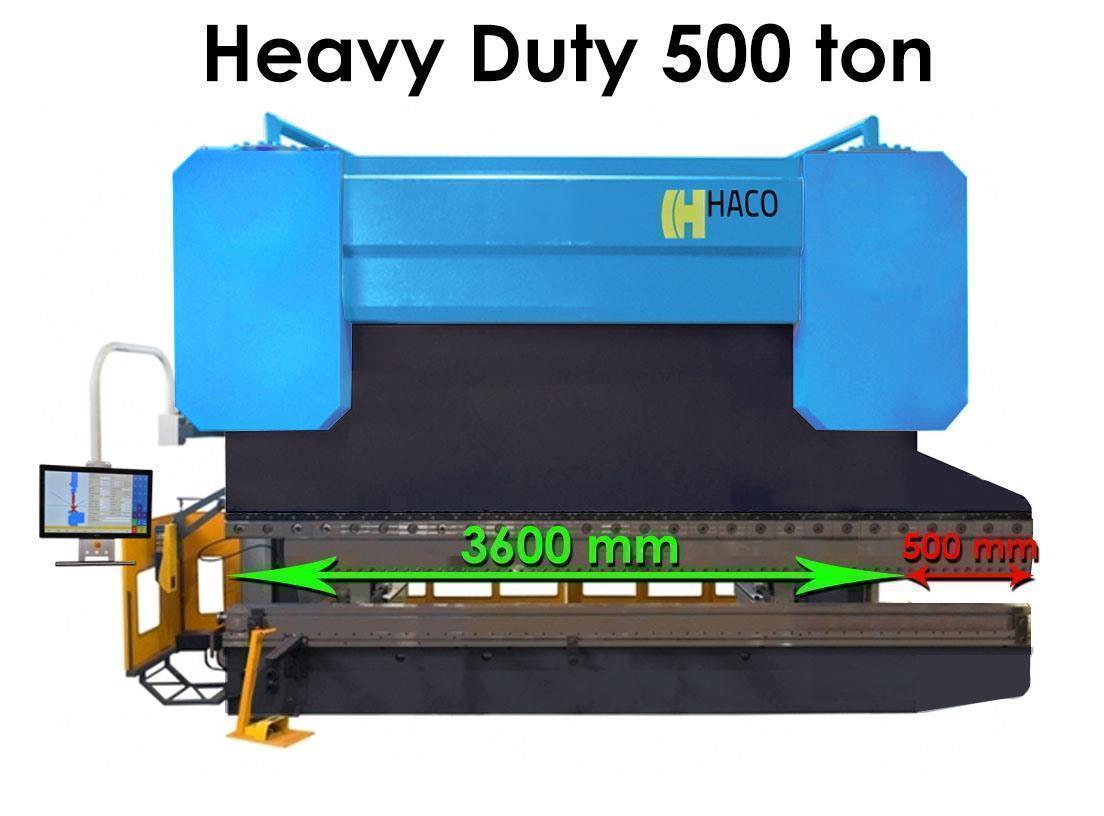

    Upper ram has an extension (horn) of 500 mm > total bending length is 4100 mm

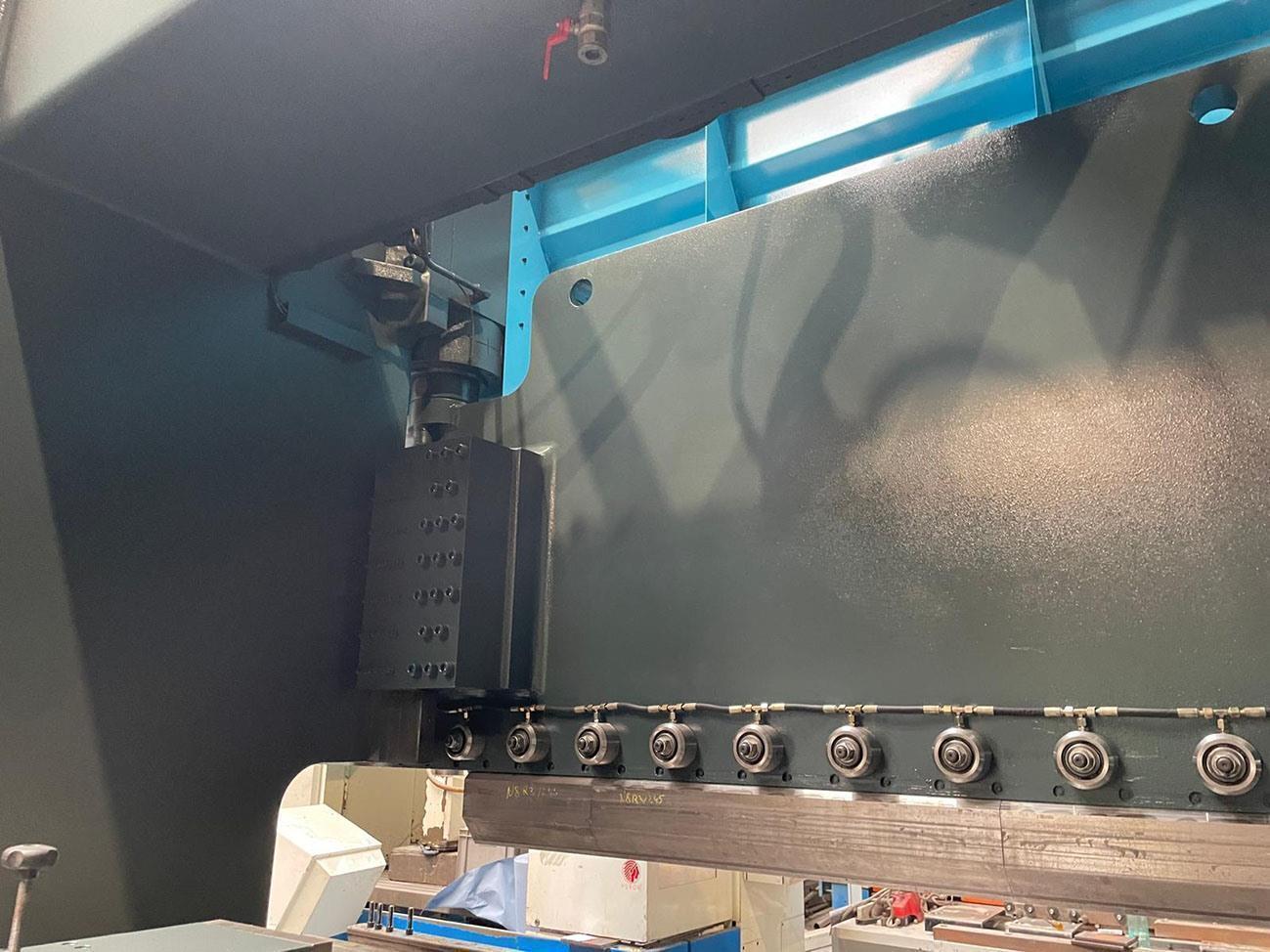

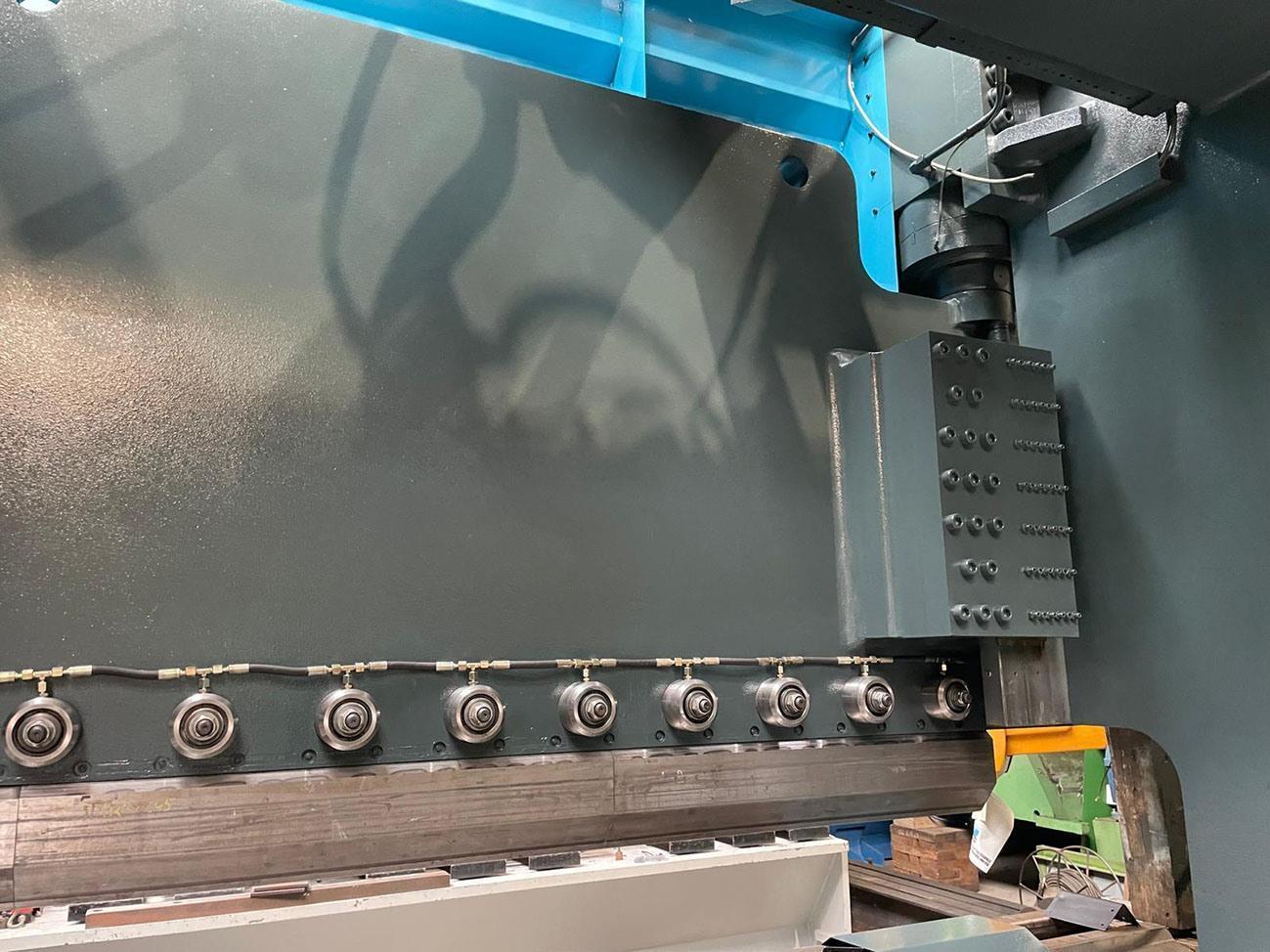

    Upper hydraulic clamping of tools
    Conical bending!
    Akas security laser system
    CNC bombation

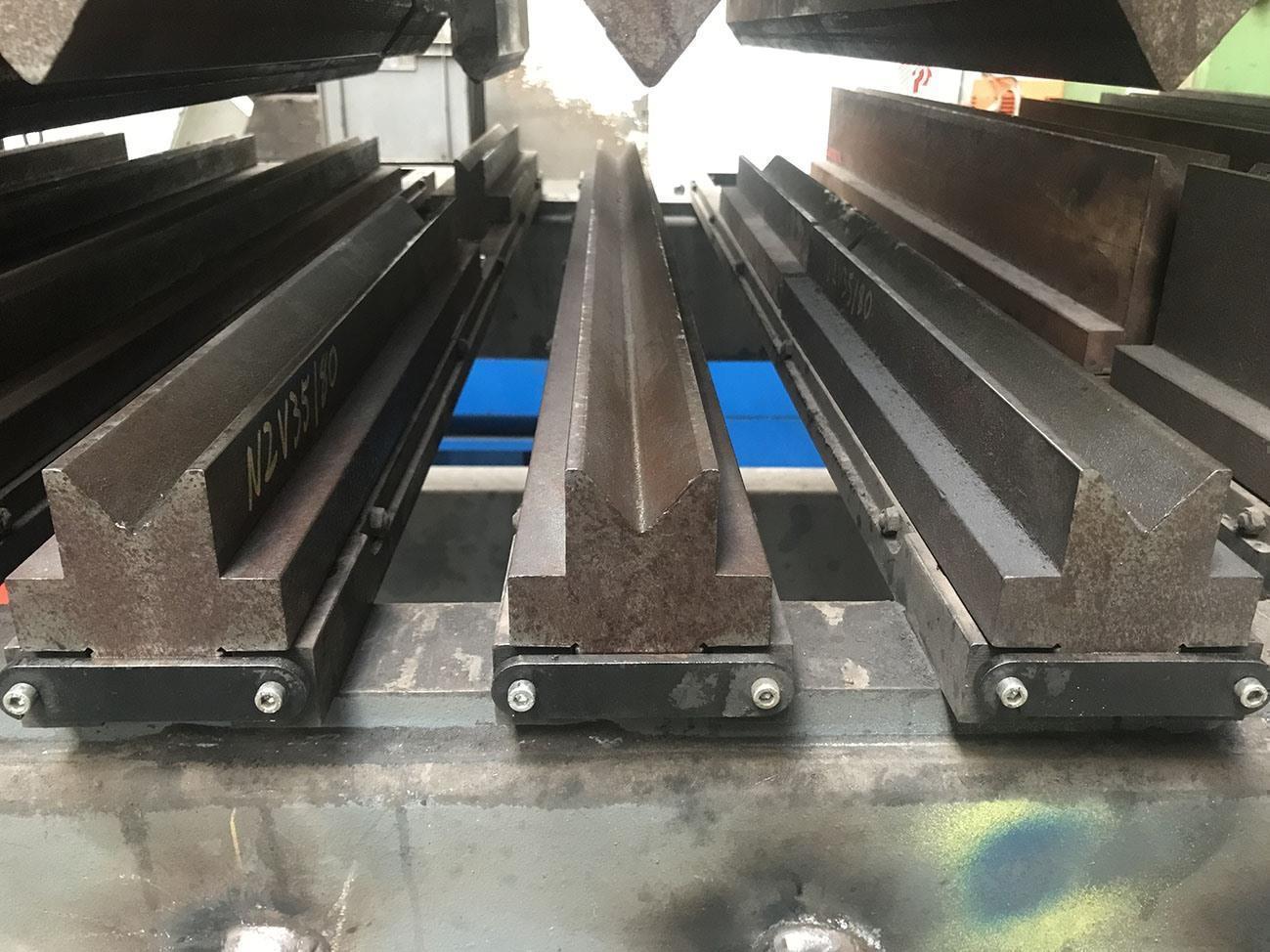

    Equipped with a V-Matic variable bending die (CNC controlled); V40 up to V160 max
    Machine sits on top of the ground, no foundation is required

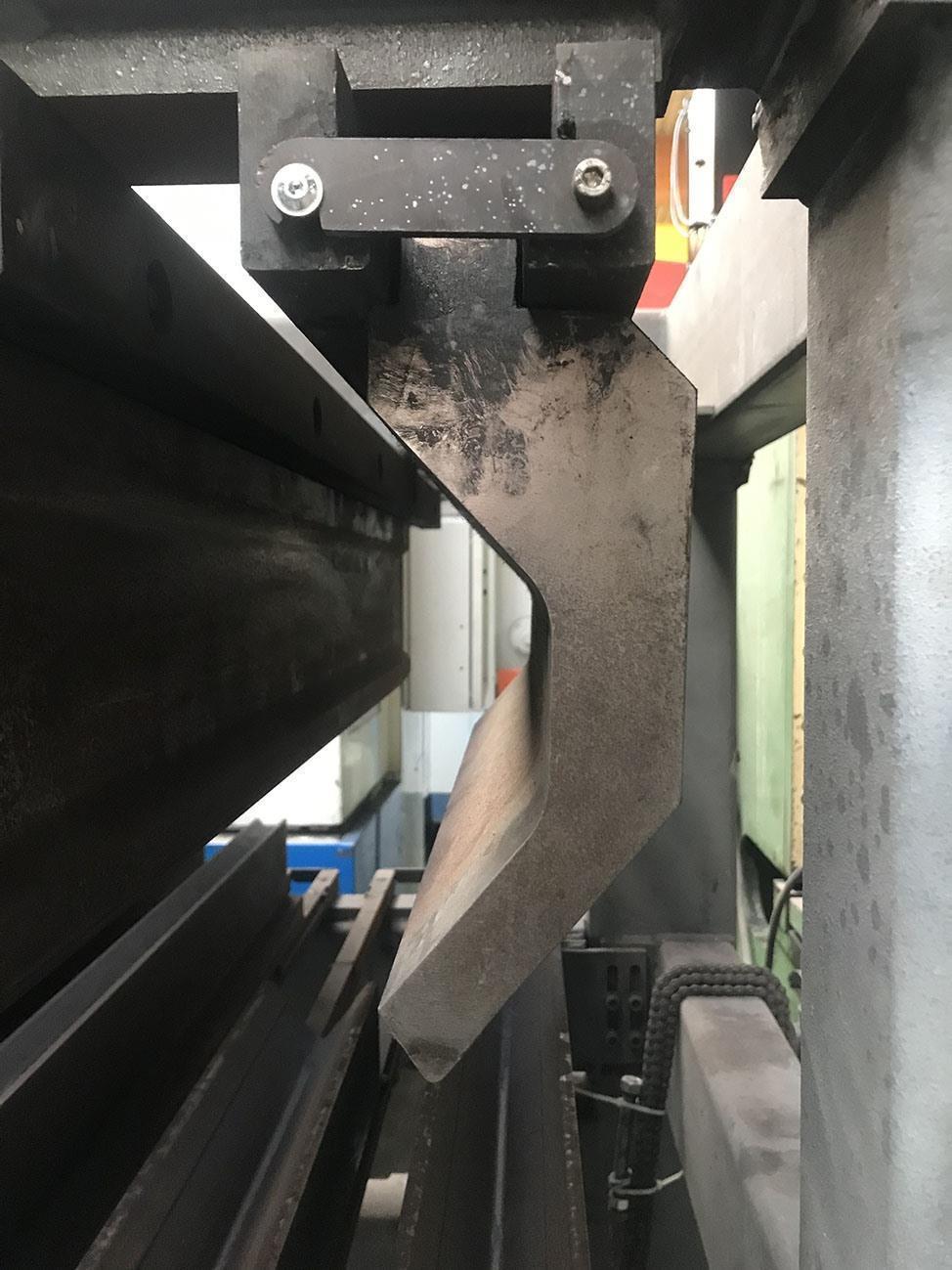

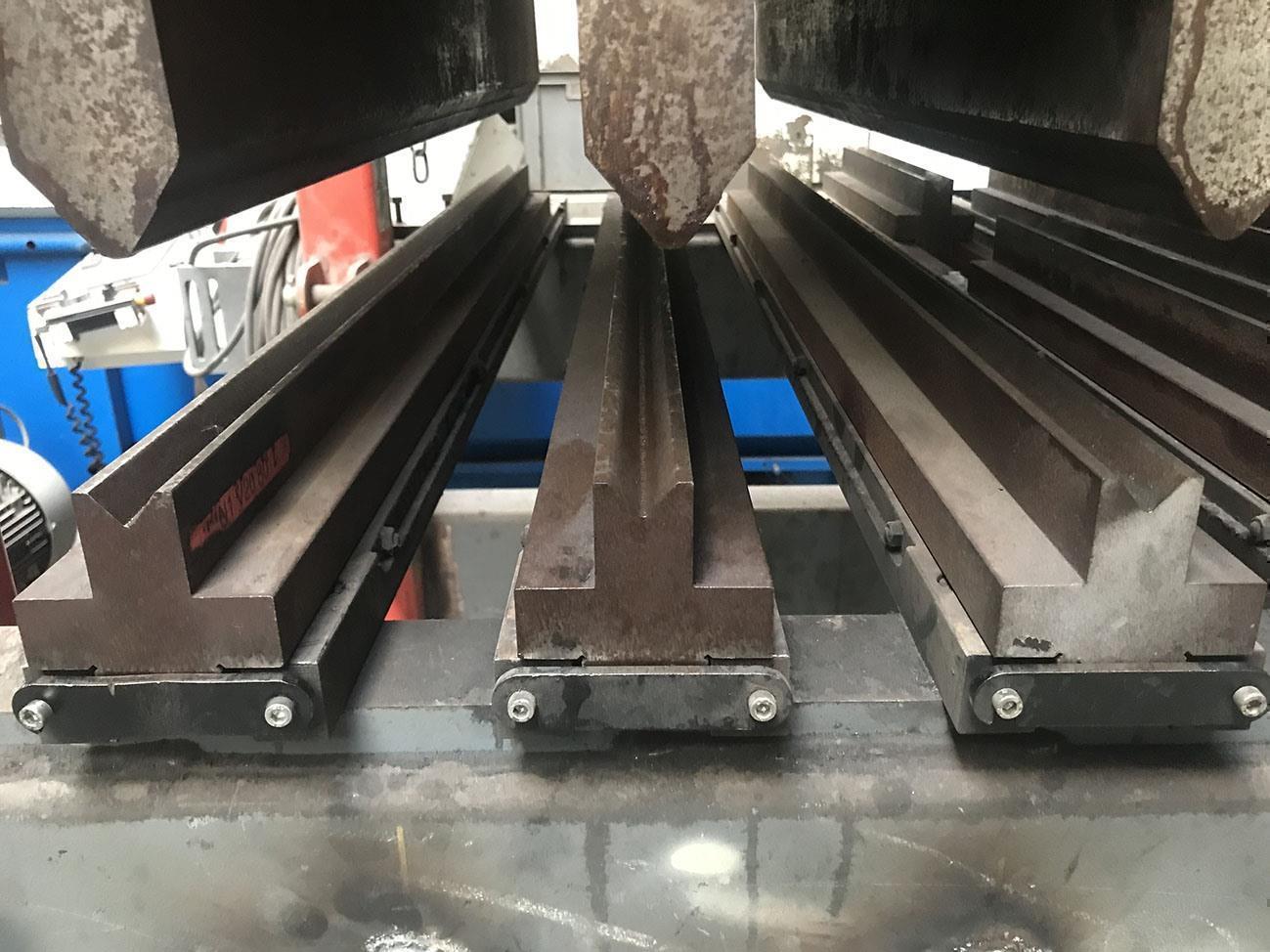

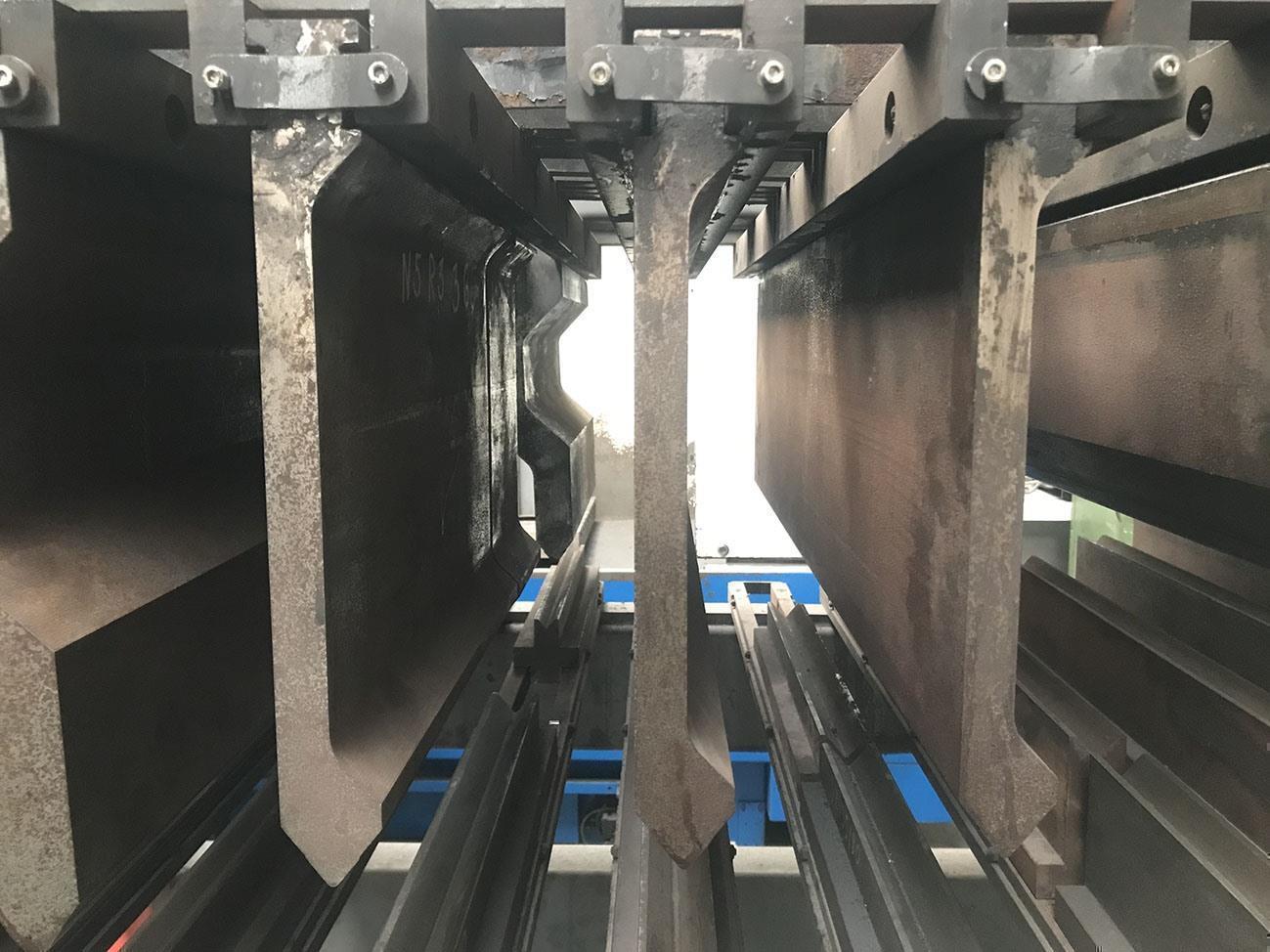

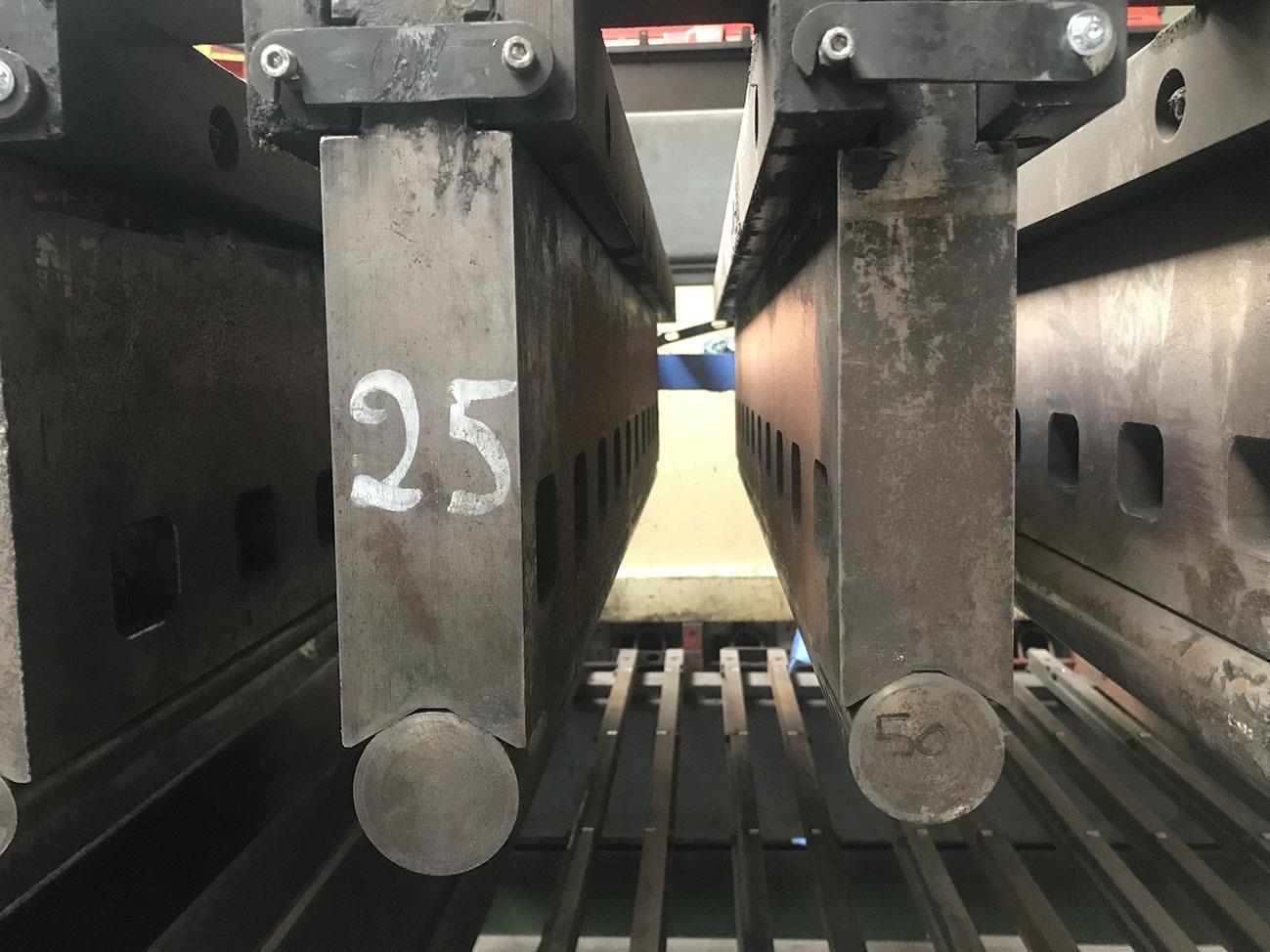

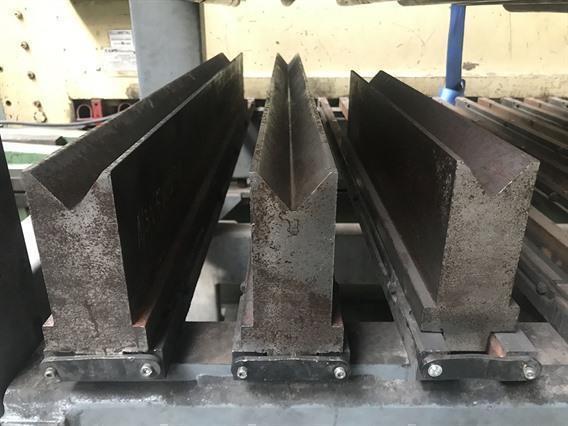

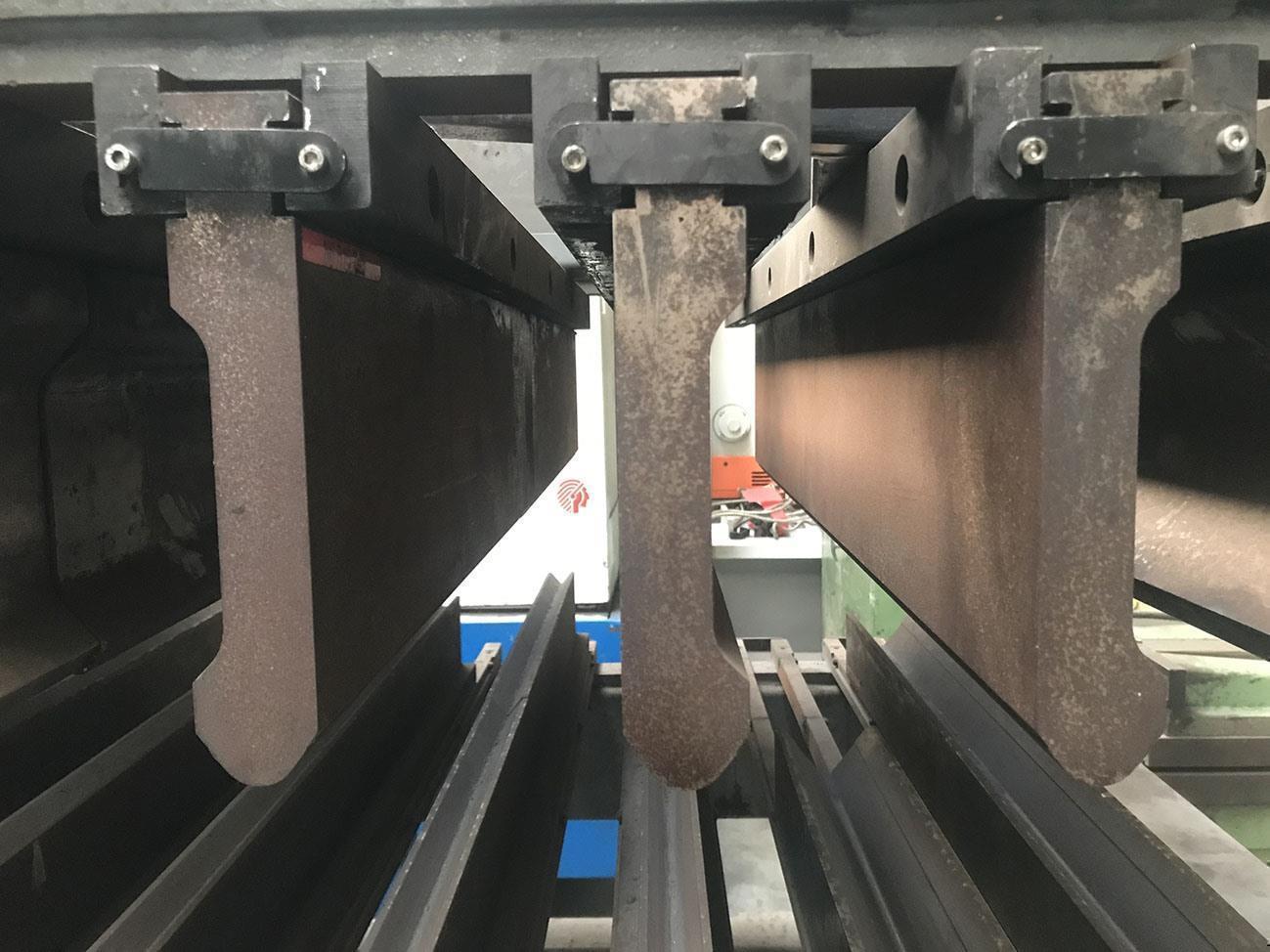

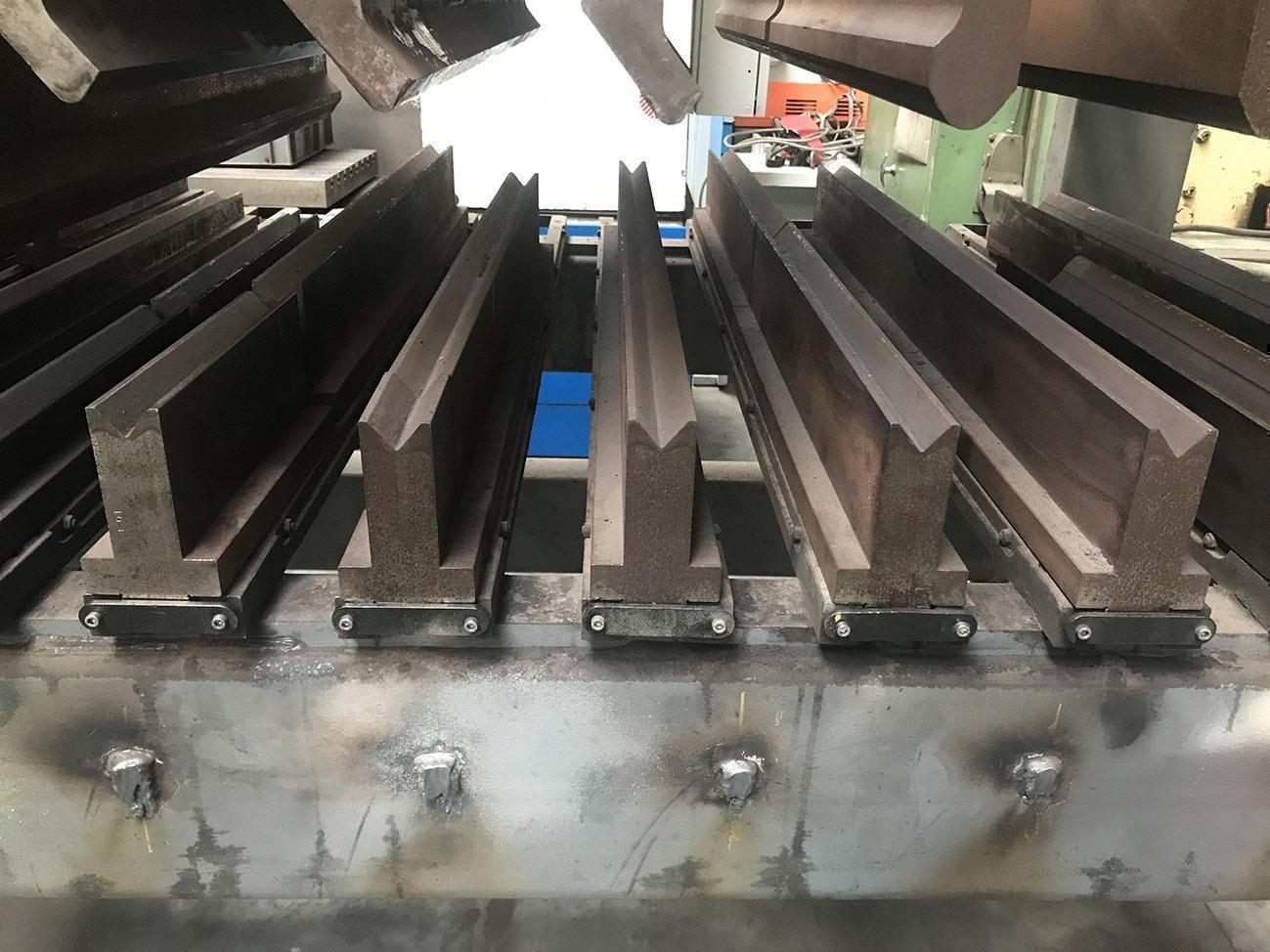

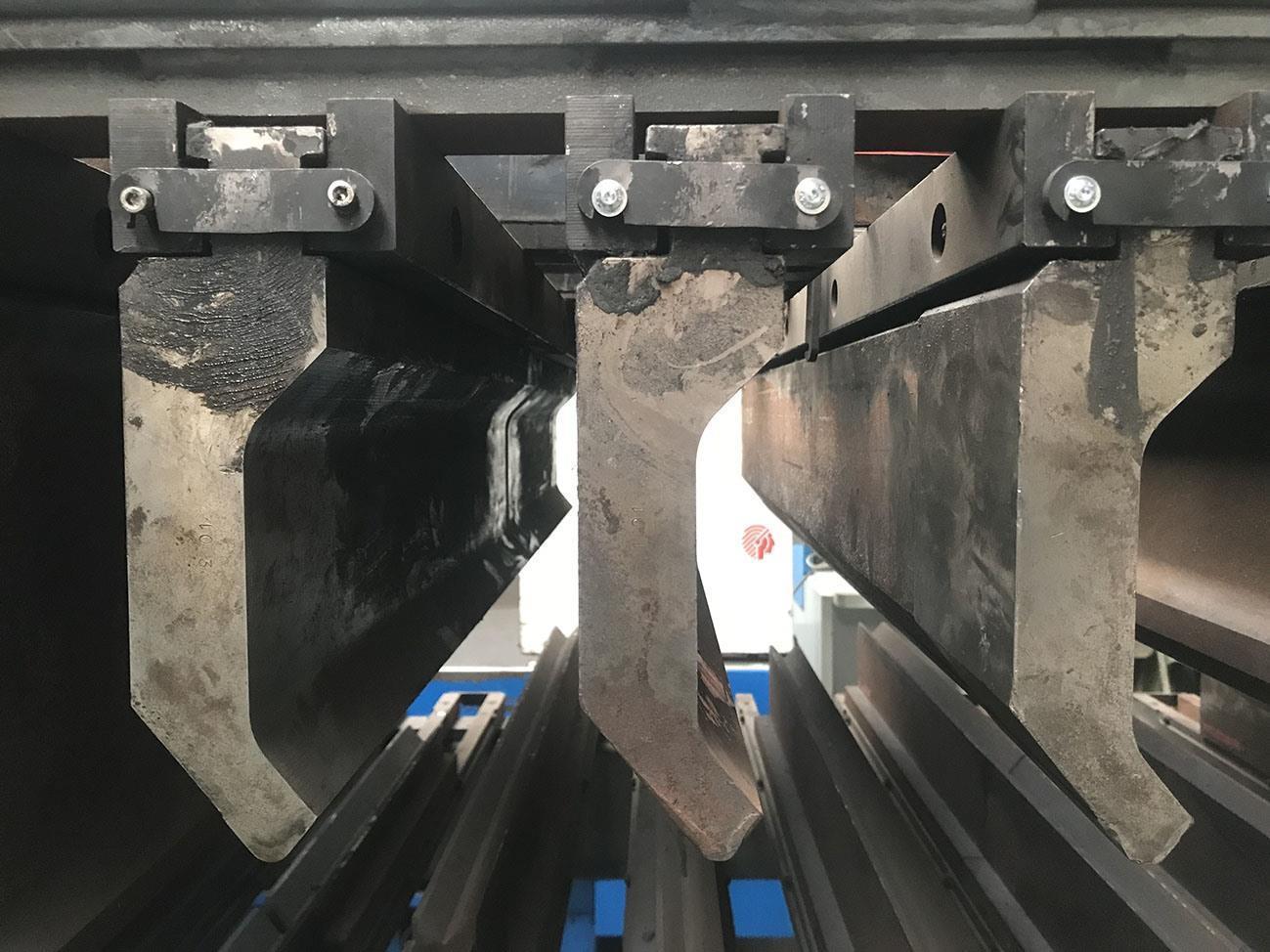

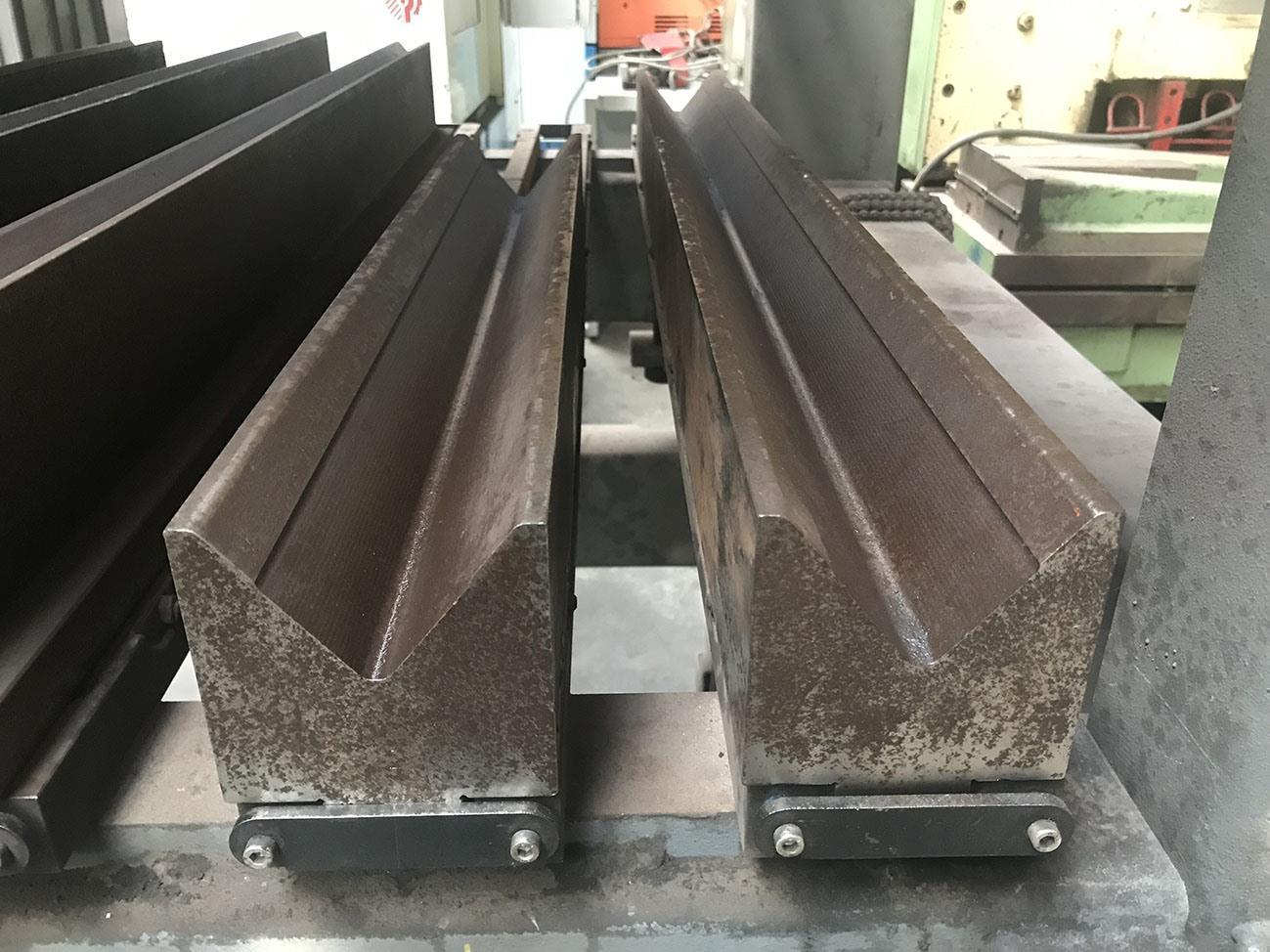

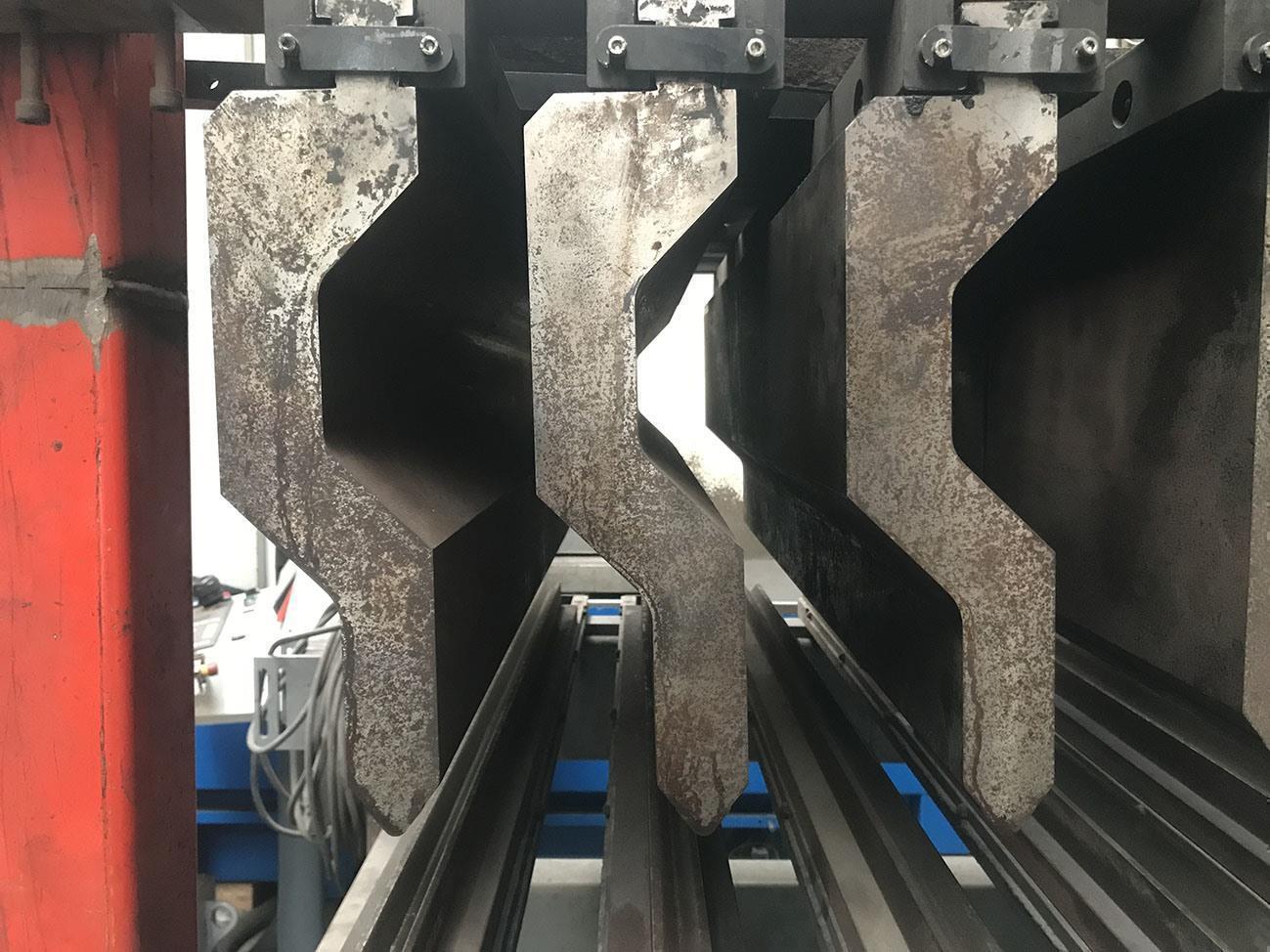

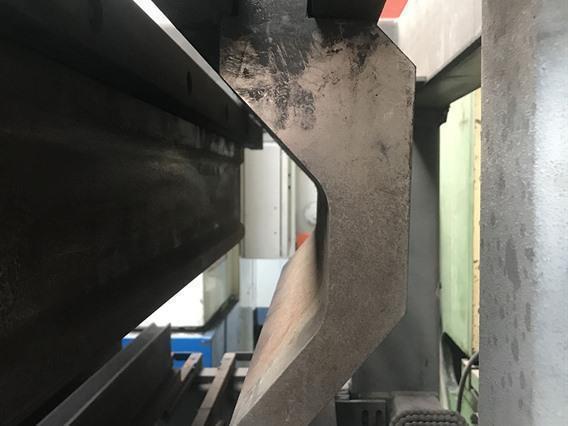

    Many heavy duty tools for high alloy steels included!

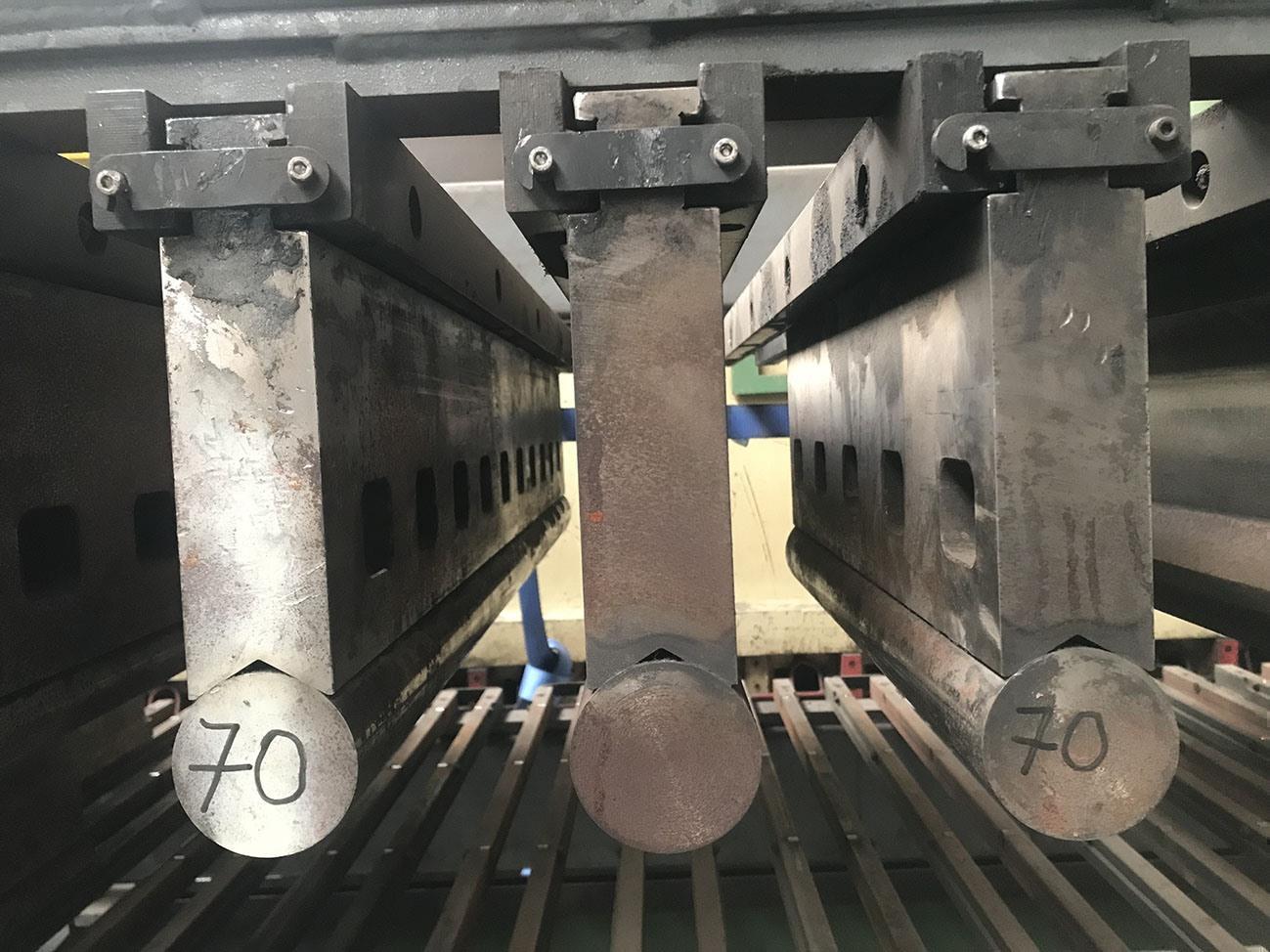

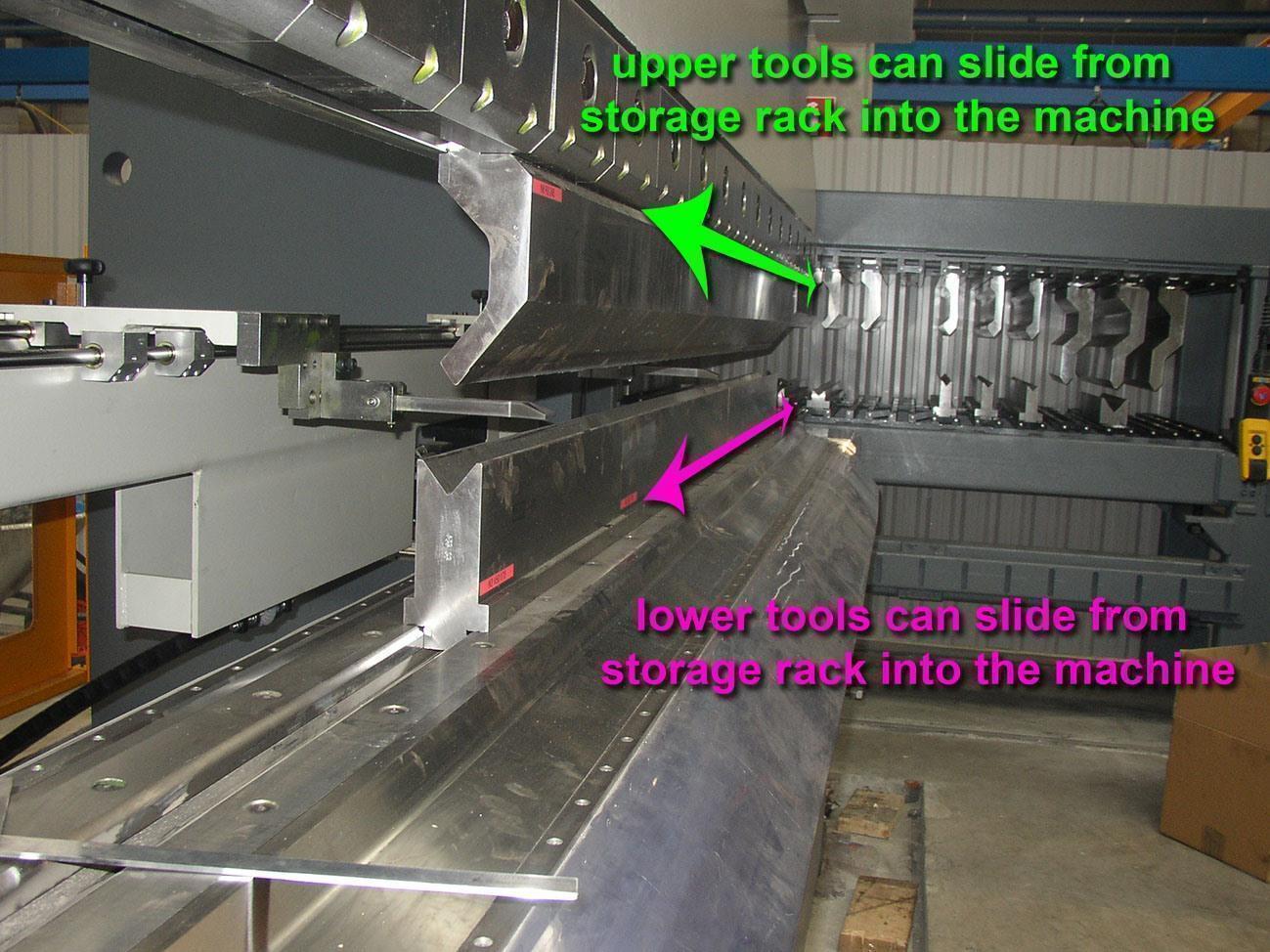

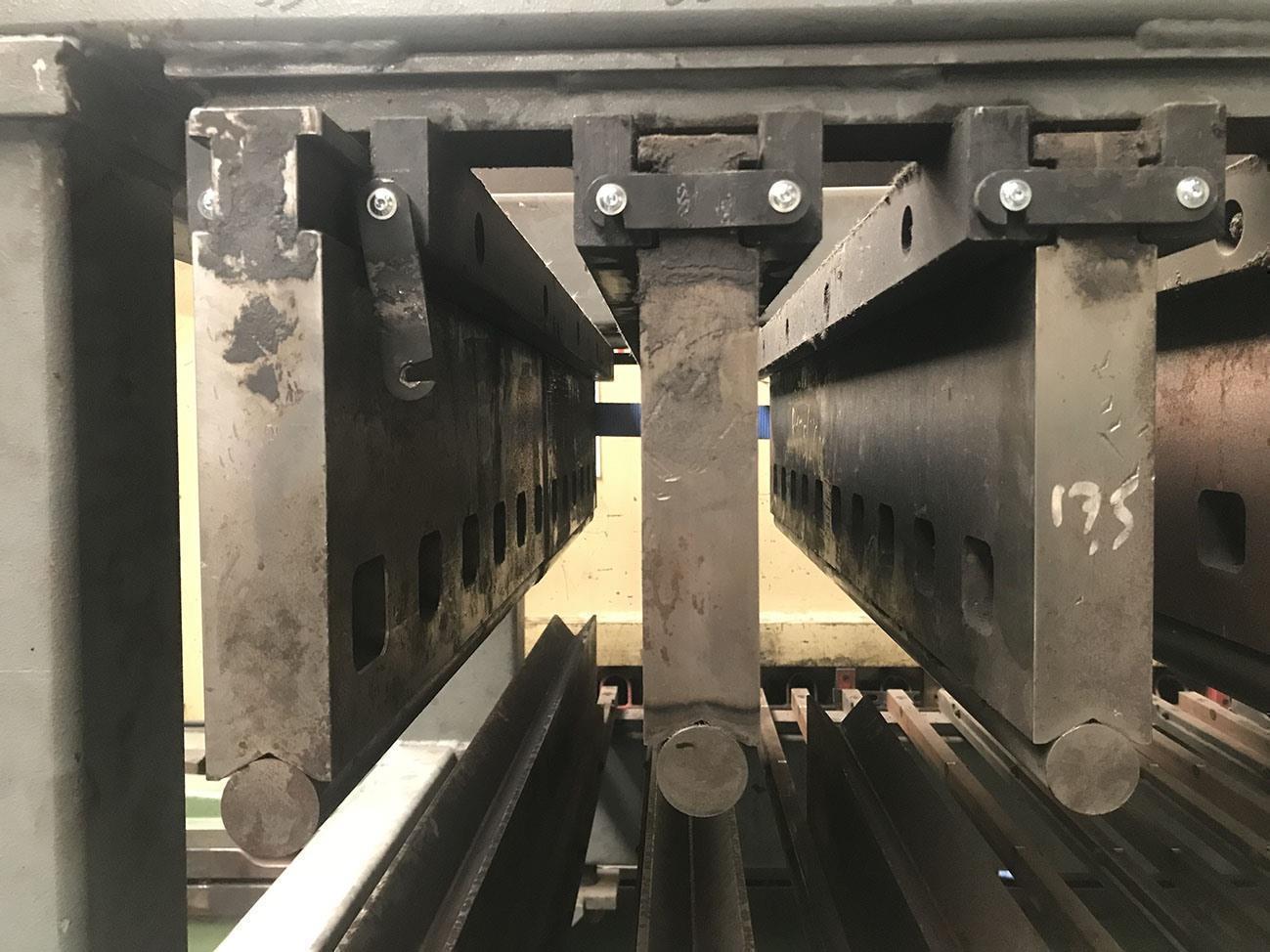

    Tools are stored in a movable rack which can be connected to the machine which then allows the operator to manually insert and remove upper and lower tools into the machine.



  • Type/Model: 500 ton x 4100 mm CNC heavy duty
  • Stocknumber: O.01 14071
  • Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines,  Laser cutting machines & Flamecutting machines and Roll forminglines
  • Sub category: [O.01] Hydraulic pressbrakes
  • Brand: Haco ERM

Stocknumber: O.01 14071
