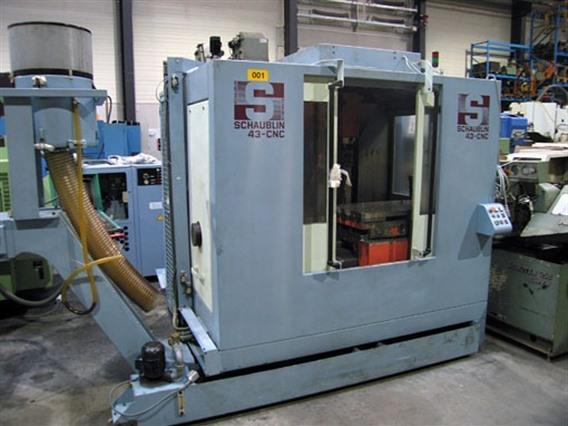

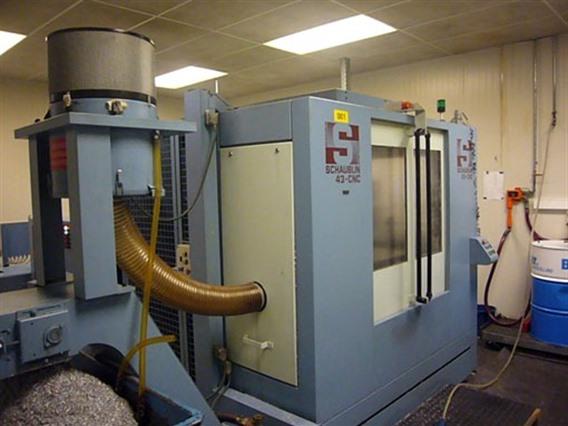

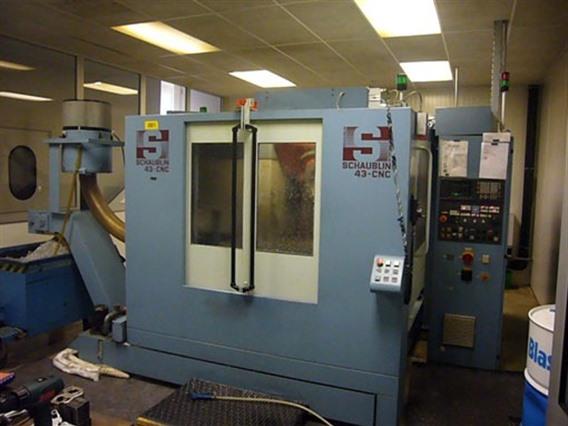

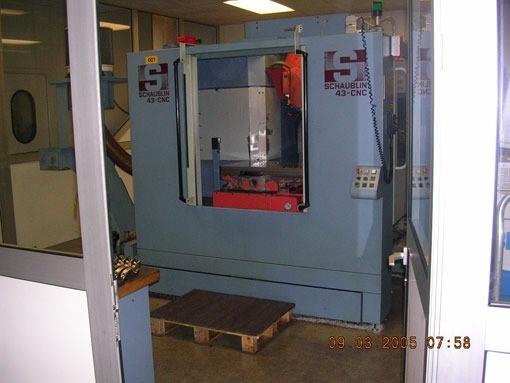

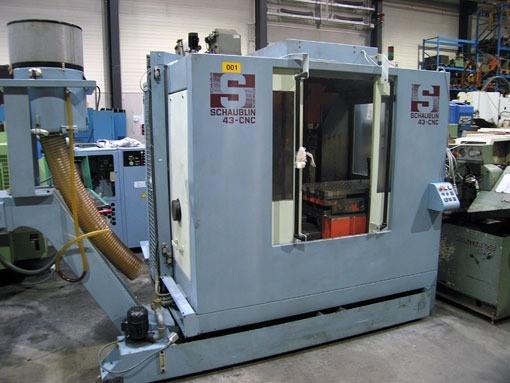

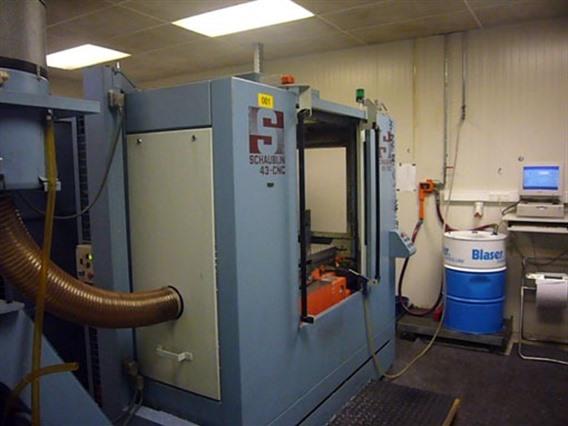

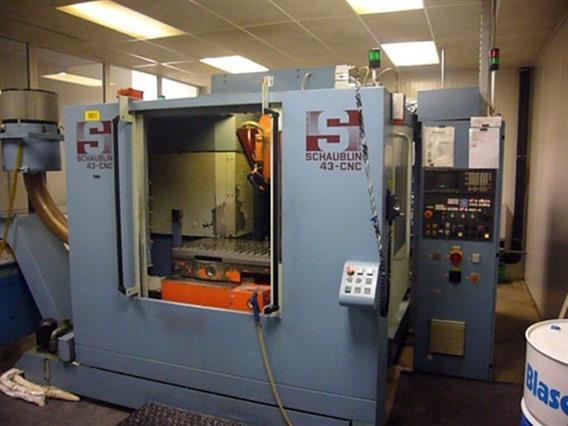

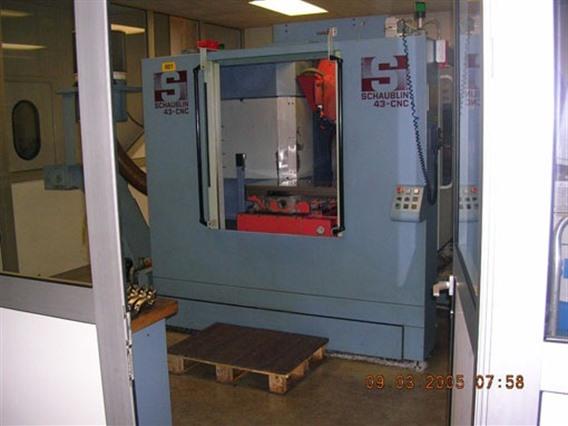

Horizontal machining centers Schaublin 43 CNC UGV X:720 - Y:520 - Z:420mm
Technical information

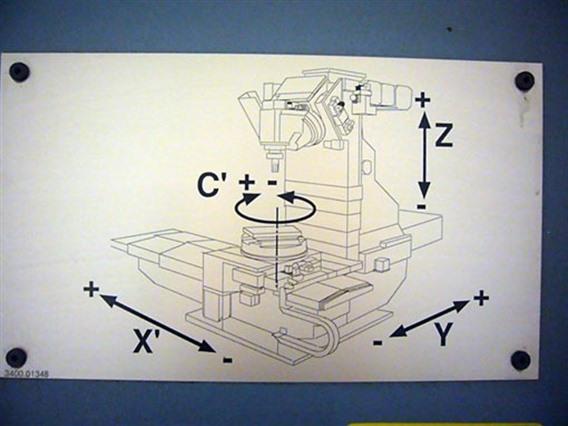

- X-axes720 mm
- Y-axes520 mm
- Z-axes420 mm

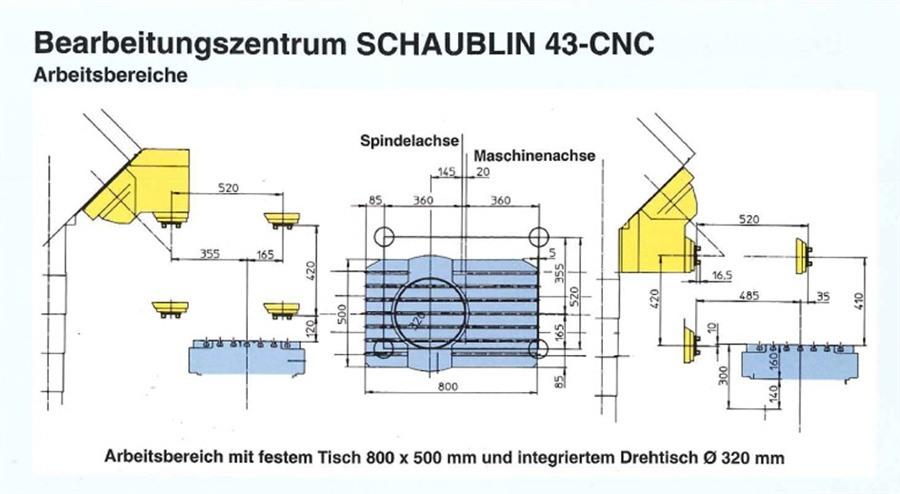

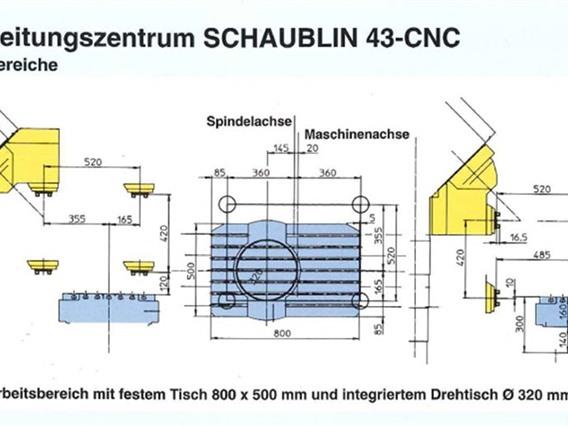

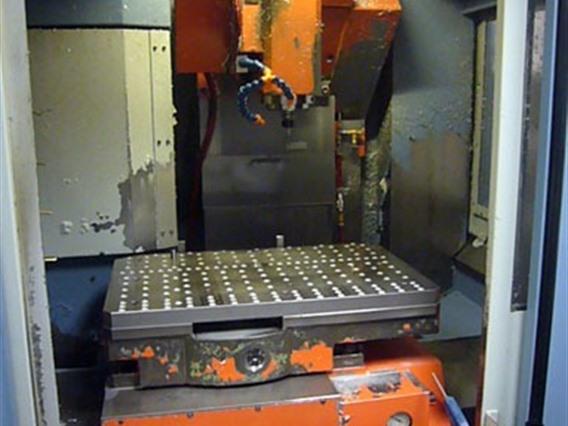

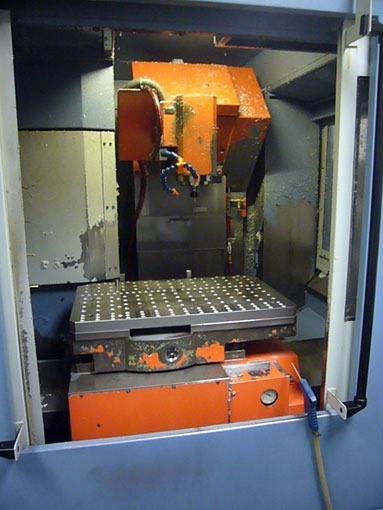

- Table dimensions800 x 500 mm

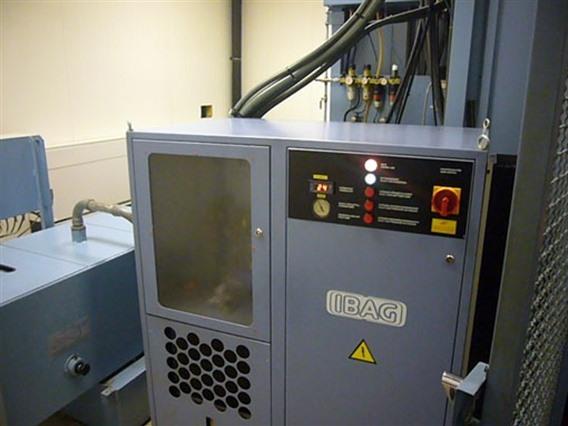

- Admission in spindle (ISO)SKI 30 - IBAG - High Speed
- Power on the spindle14 kW

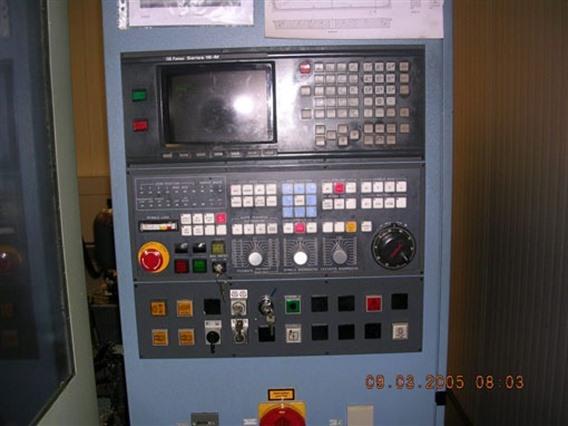

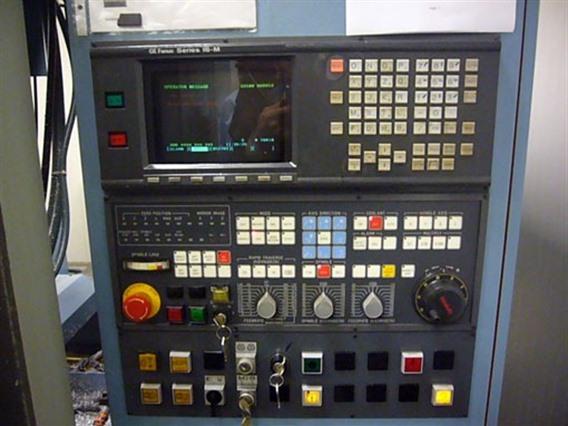

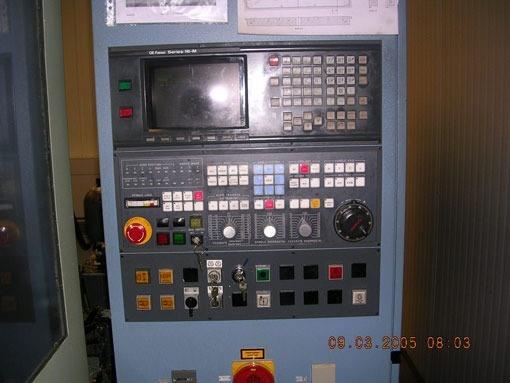

- ControlCNC Fanuc 16-M

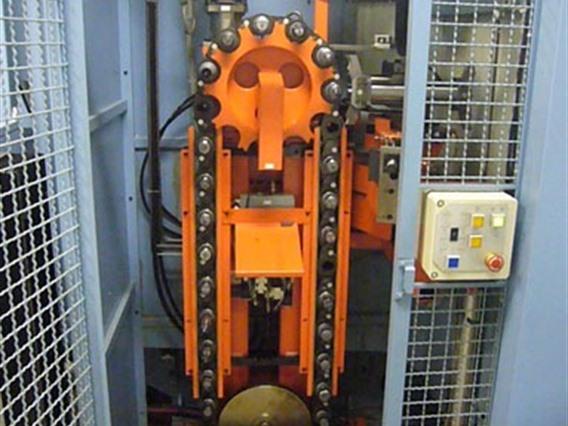

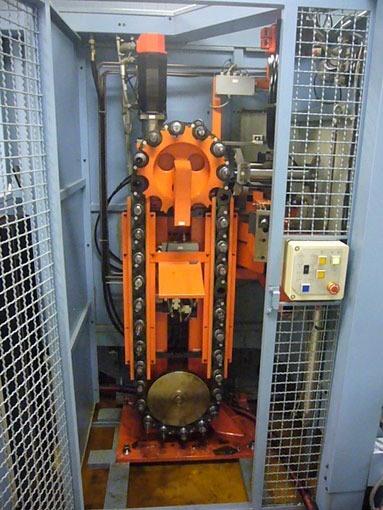

- Toolstoreyes
- Tools32

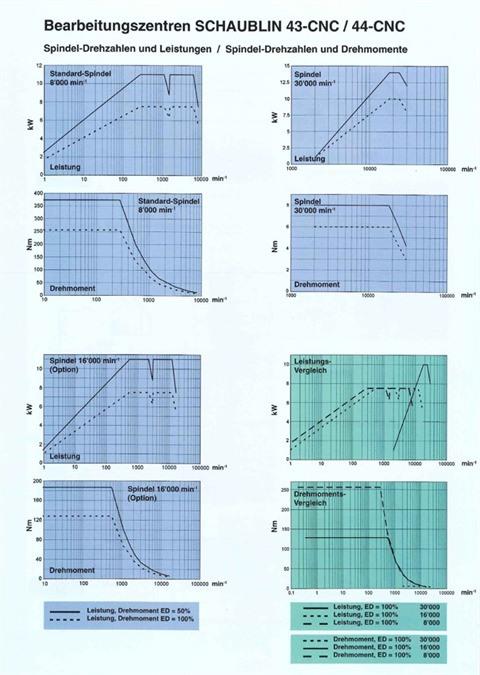

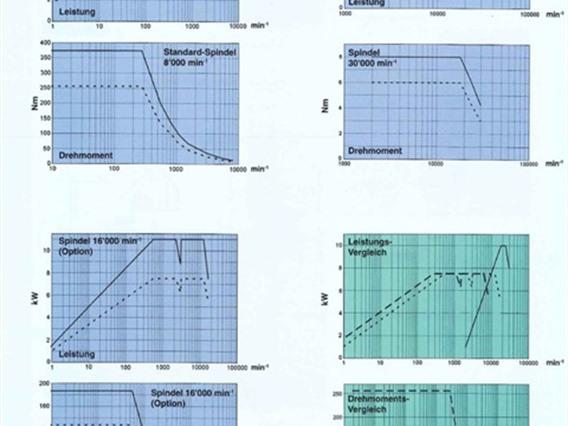

- Frequency -> 30000 rpm
- Power principal motor11 kW
- Length4750 mm
- Depth4220 mm
- Height2300 mm
- Weight4800 kg
Additional info

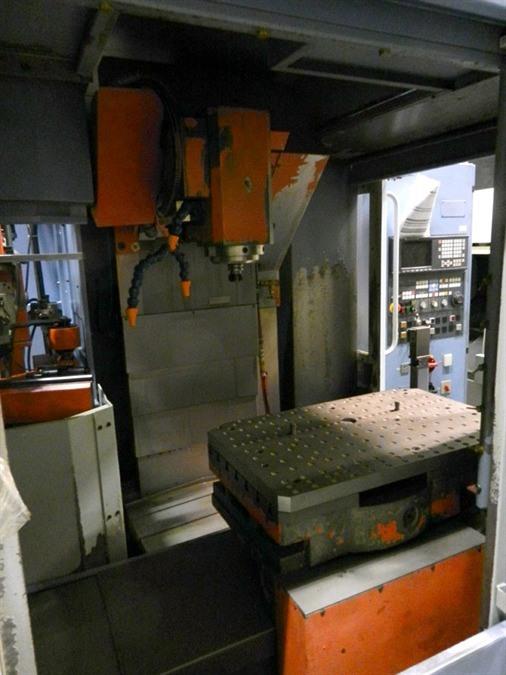

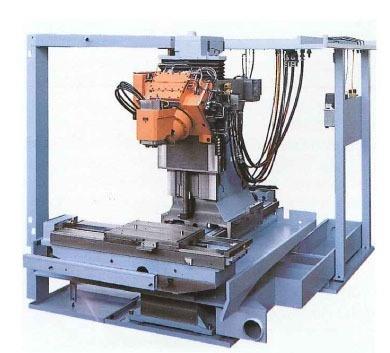

- High-Precision Machining centre Horizontal & Vertical

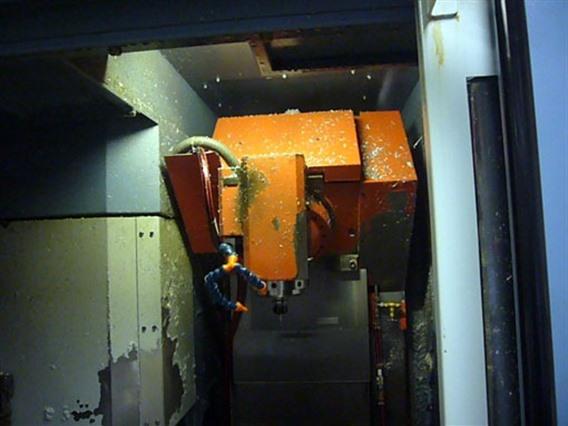

automatic Head

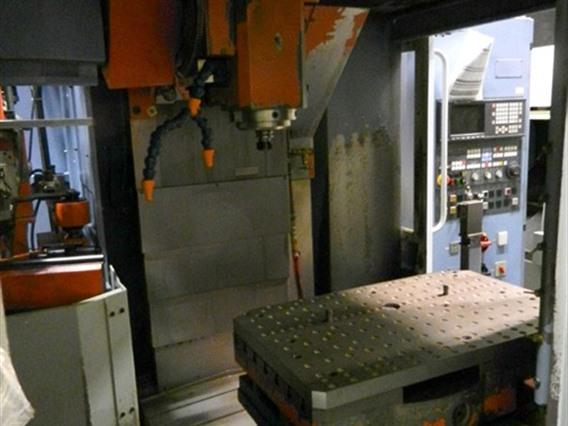

Continu Turning Table includes a high-speed spindle in spare
- Type/Model: 43 CNC UGV X:720 - Y:520 - Z:420mm
- Stocknumber: D.02 3668
- Main category: [D] Machining centres
- Sub category: [D.02] Horizontal machining centers
- Brand: Schaublin
