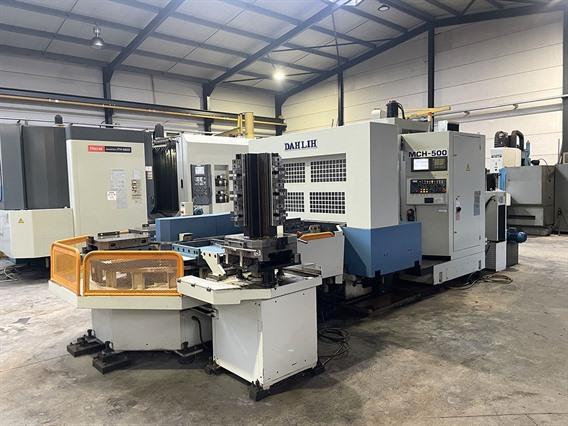

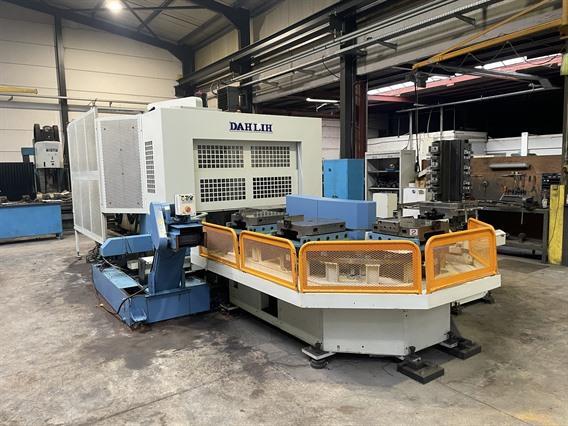

Dahlih MCH 500 X: 750 - Y: 680 - Z: 600 mm CNC

Product added to your favorites

» Request a personalised quote

Technical information

X-axes750 mm
Y-axes680 mm
Z-axes600 mm
Table dimensions500 x 500 mm (indexing 1°)
Admission in spindle (ISO)BT50
Power on the spindle18,5 kW

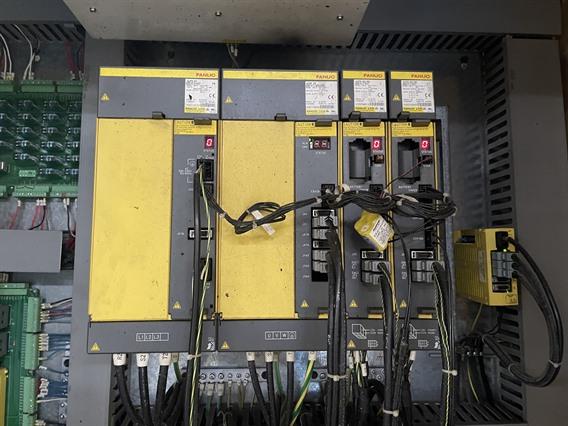

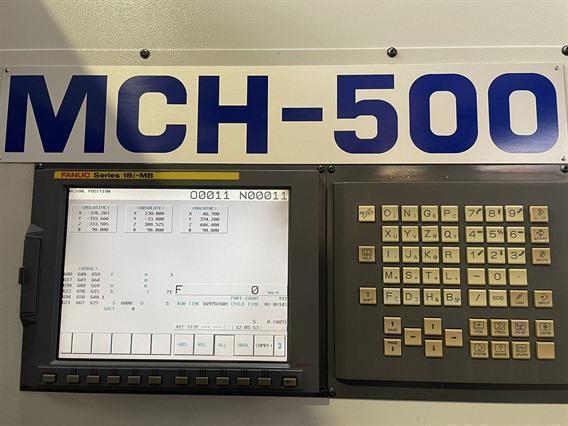

ControlFanuc 18i

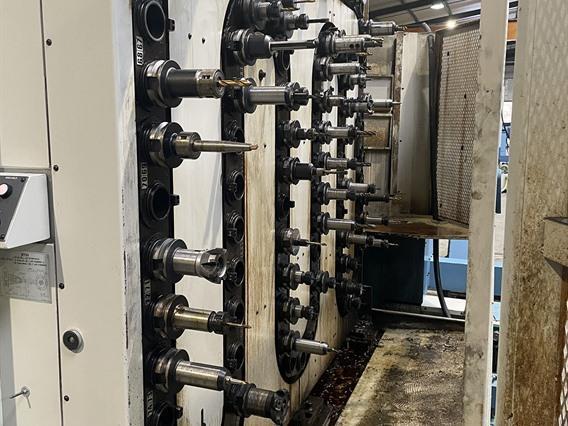

Toolstoreyes
Tools90 positions
Frequency 1 > 6000 rpm (option!!)
Number of pallets 6

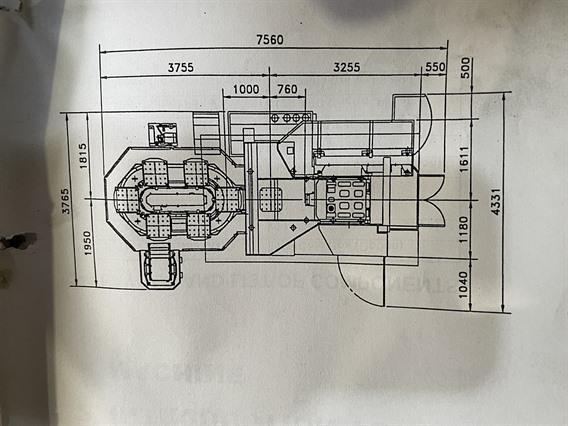

Length8400 mm
Depth4000 mm
Height2950 mm
Weight18 ton

Additional info

Type: MCH-500 + 6APC

extra tools inclusive

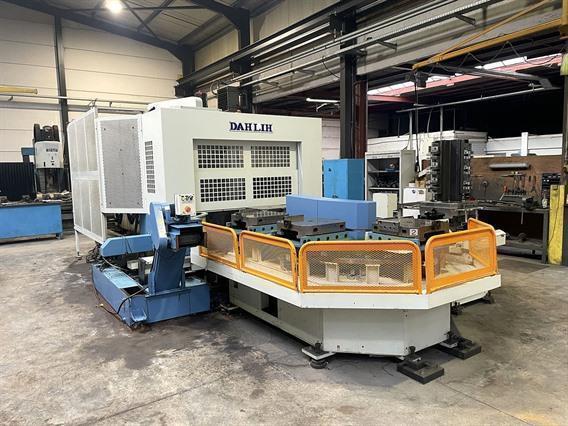

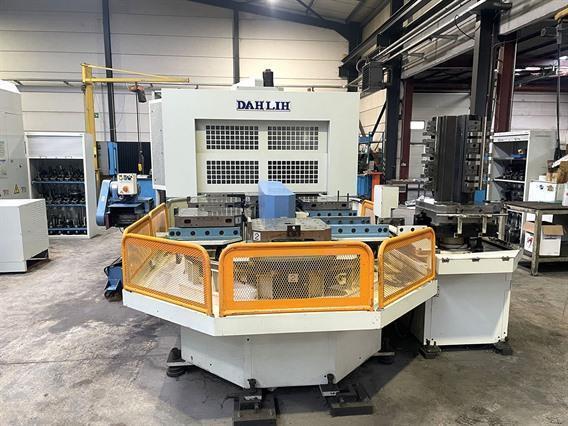

automatic pallet changer with manual rotation
high pressure cooling through spindle
chipconveyor
Type/Model: MCH 500 X: 750 - Y: 680 - Z: 600 mm CNC
Stocknumber: D.02 13987
Main category: [D] Machining centres
Sub category: [D.02] Horizontal machining centers
