MicroStep DS automatic process line
Additional info

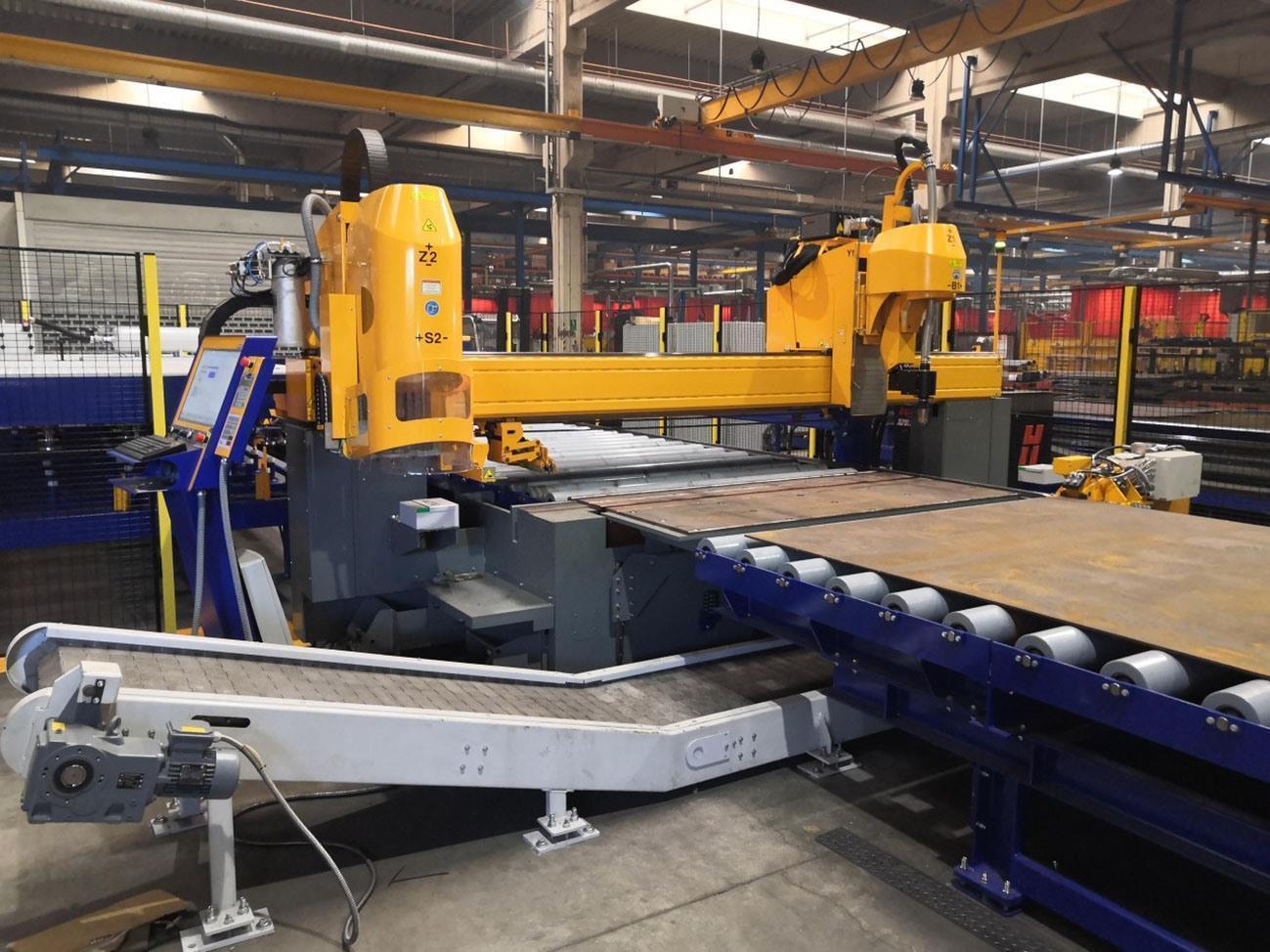

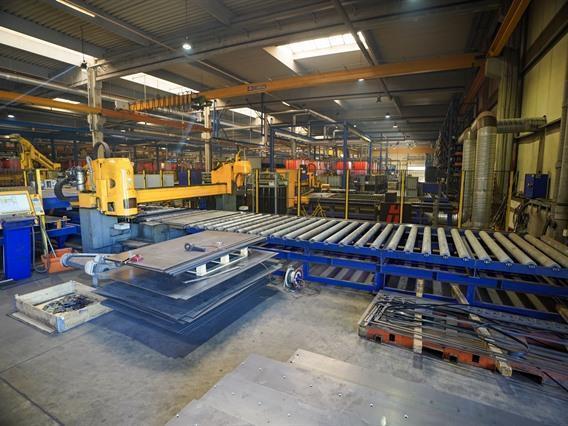

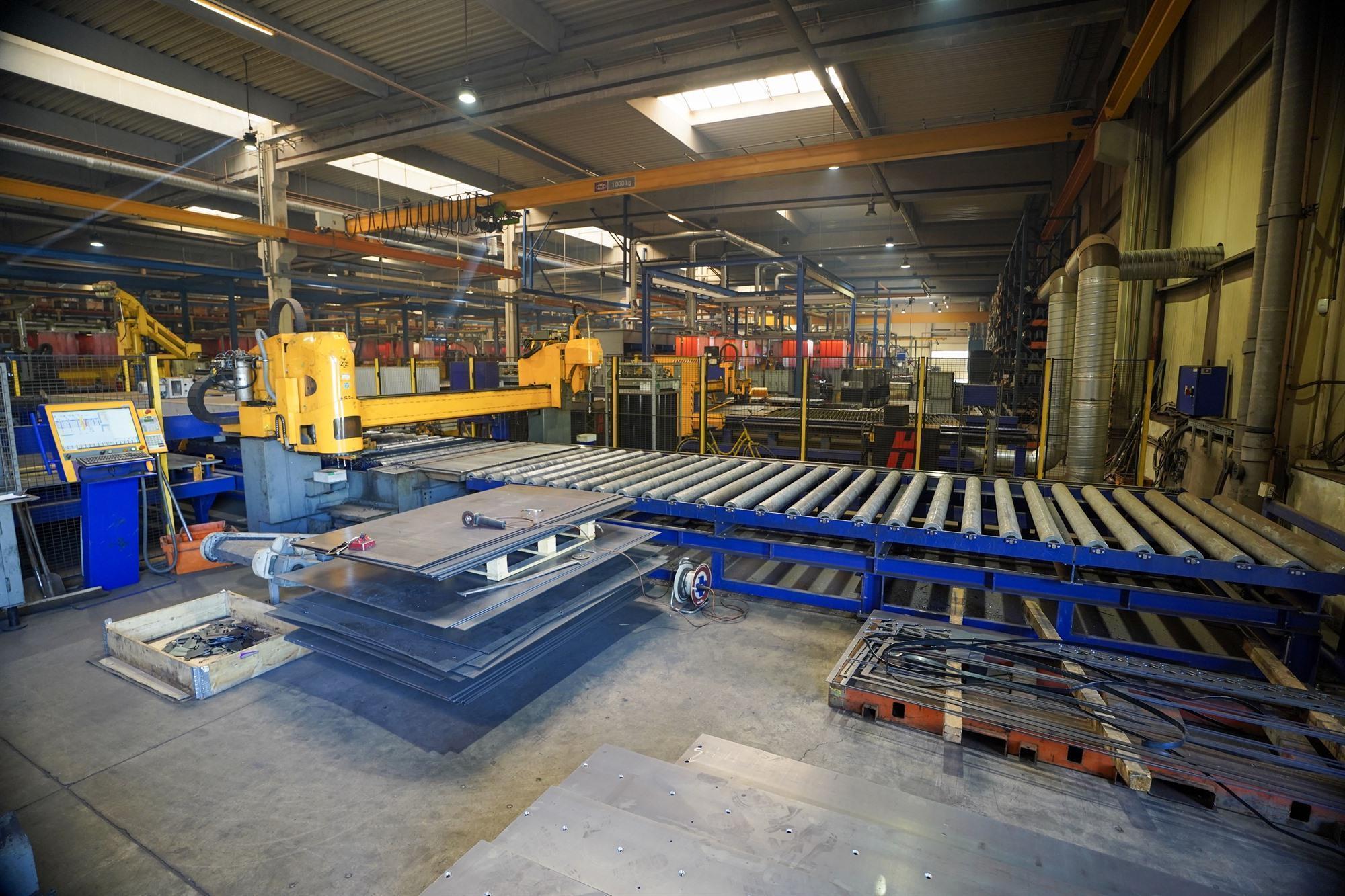

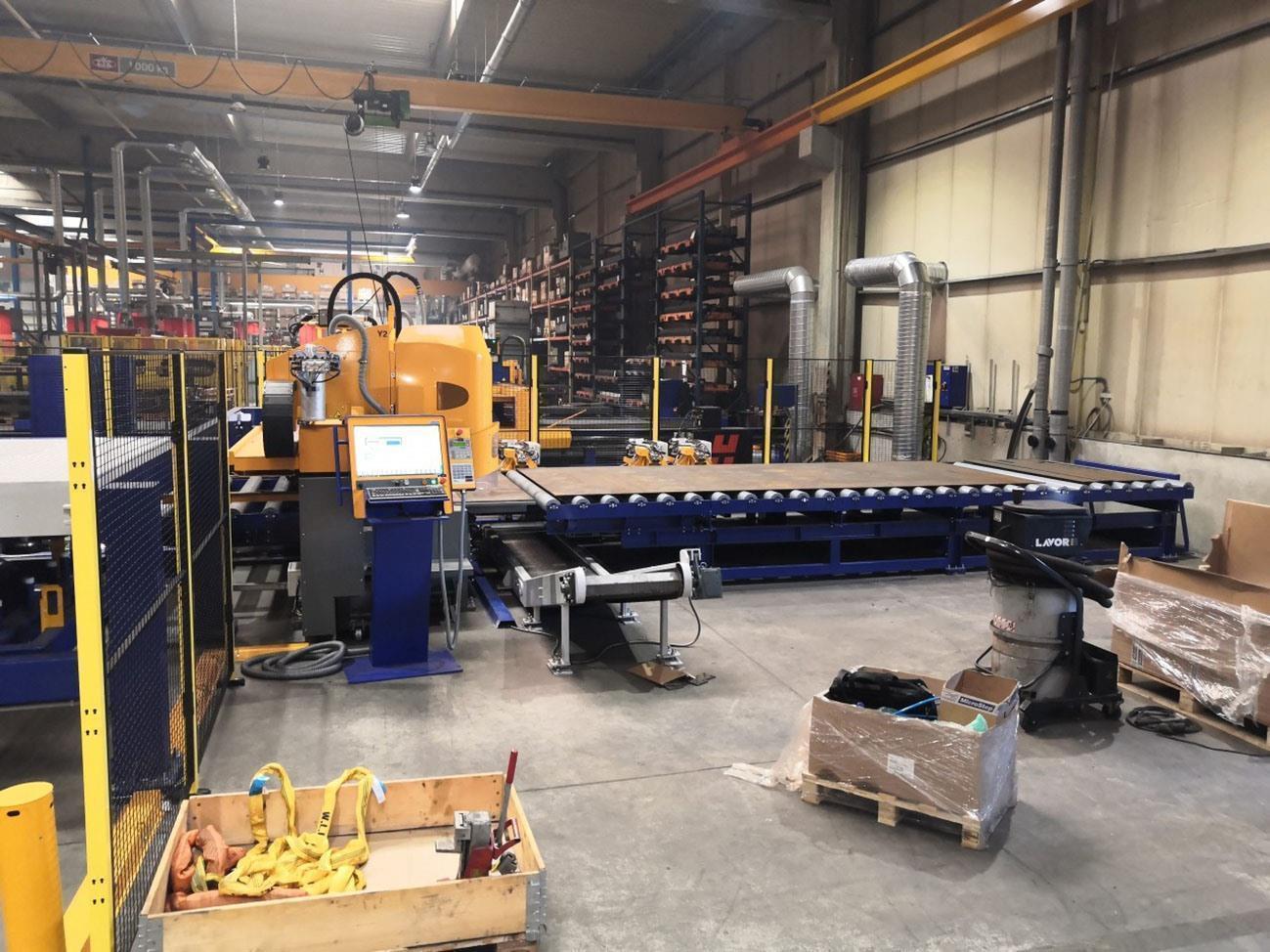

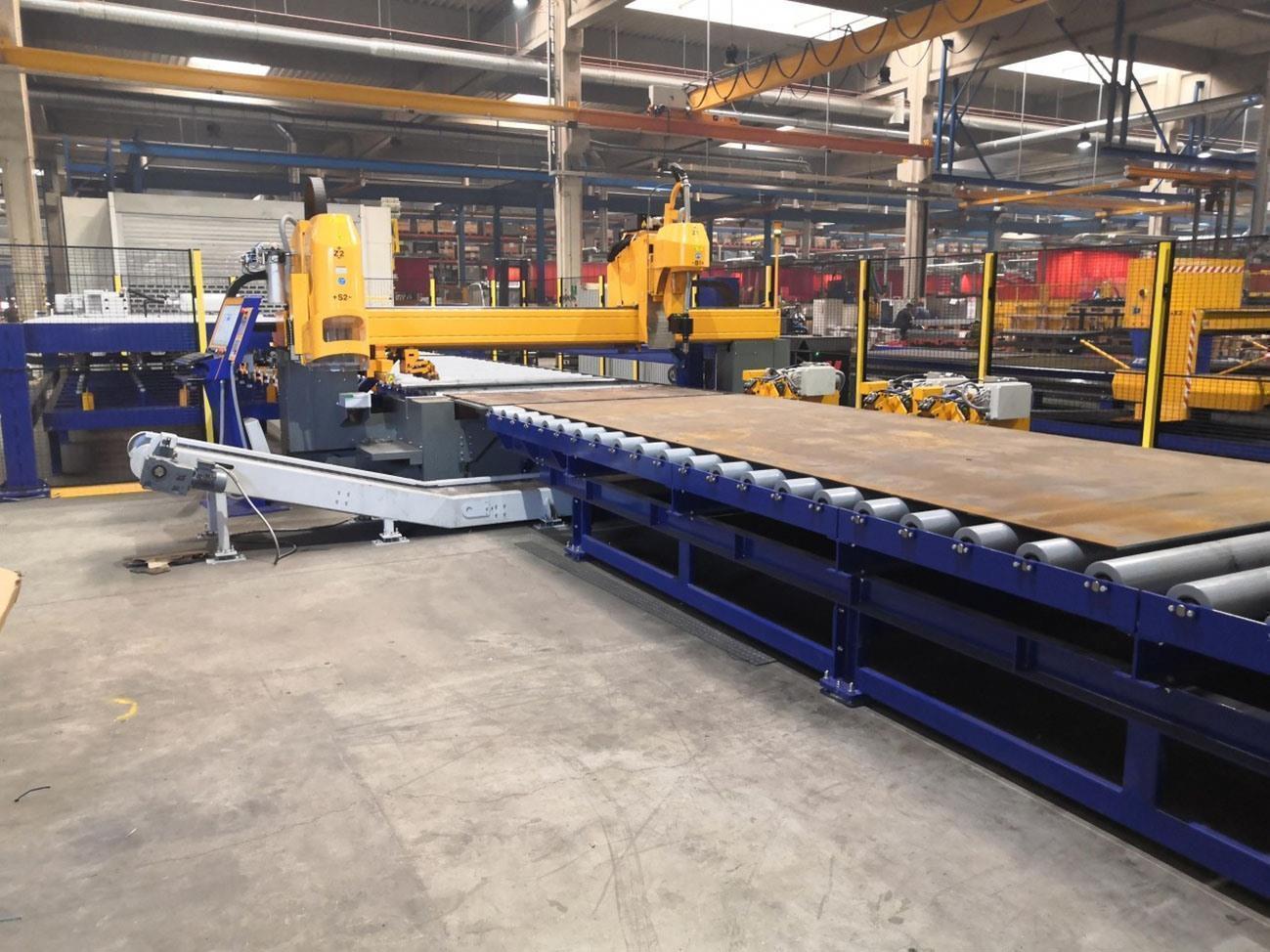

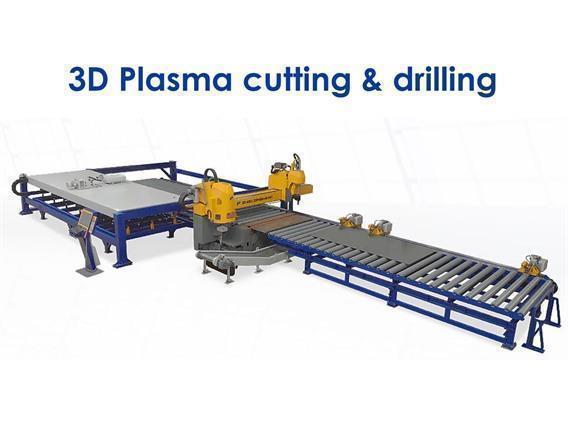

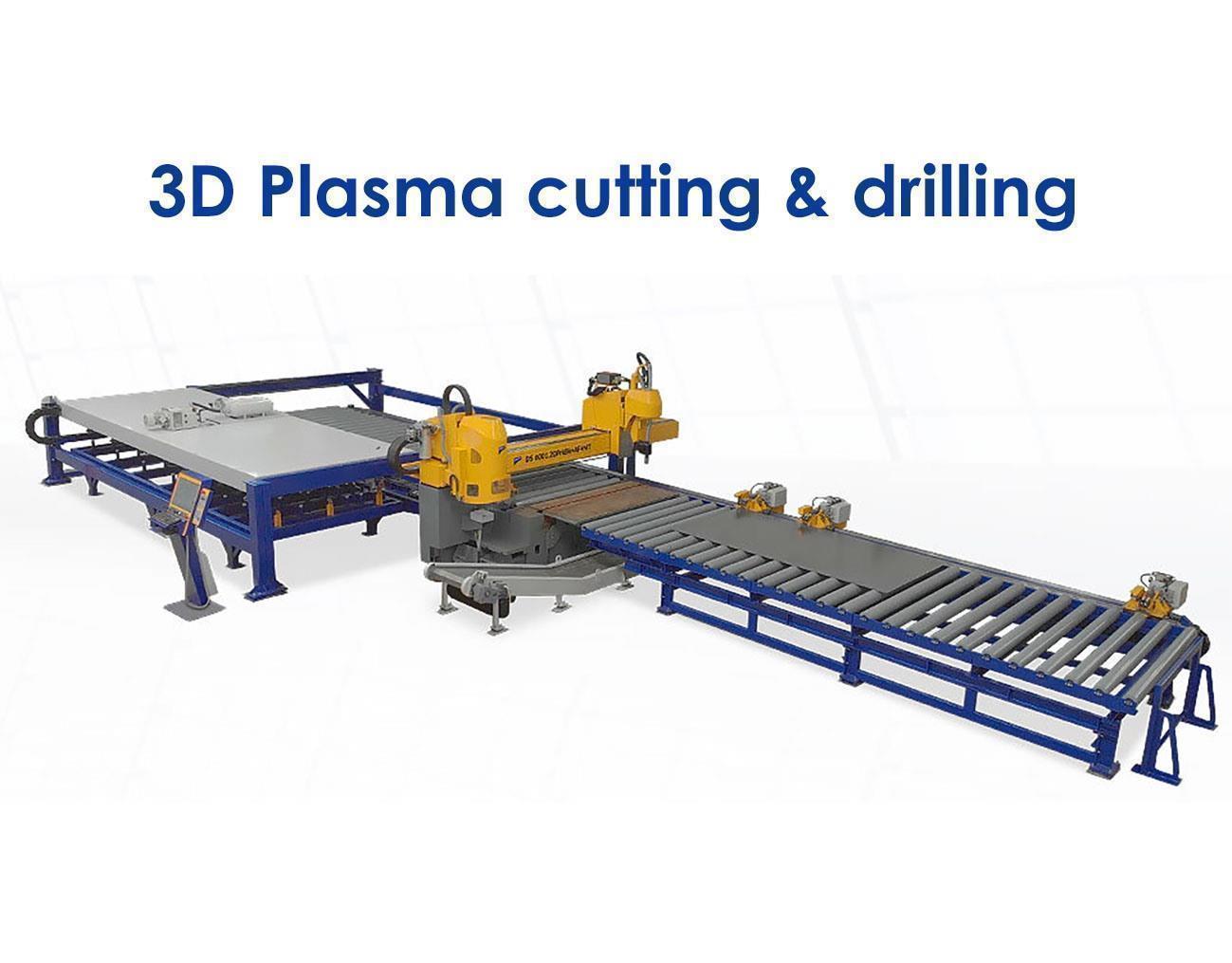

The automated plate processing line DS was designed for high-efficiency drilling and plasma cutting with the possibilities of automatic plate feeding and automatic part sorting on output. The machine is dedicated to heavy-duty structural steel applications such as production of high-precision fittings, gussets and end plates.
Type: DS 6001.20P

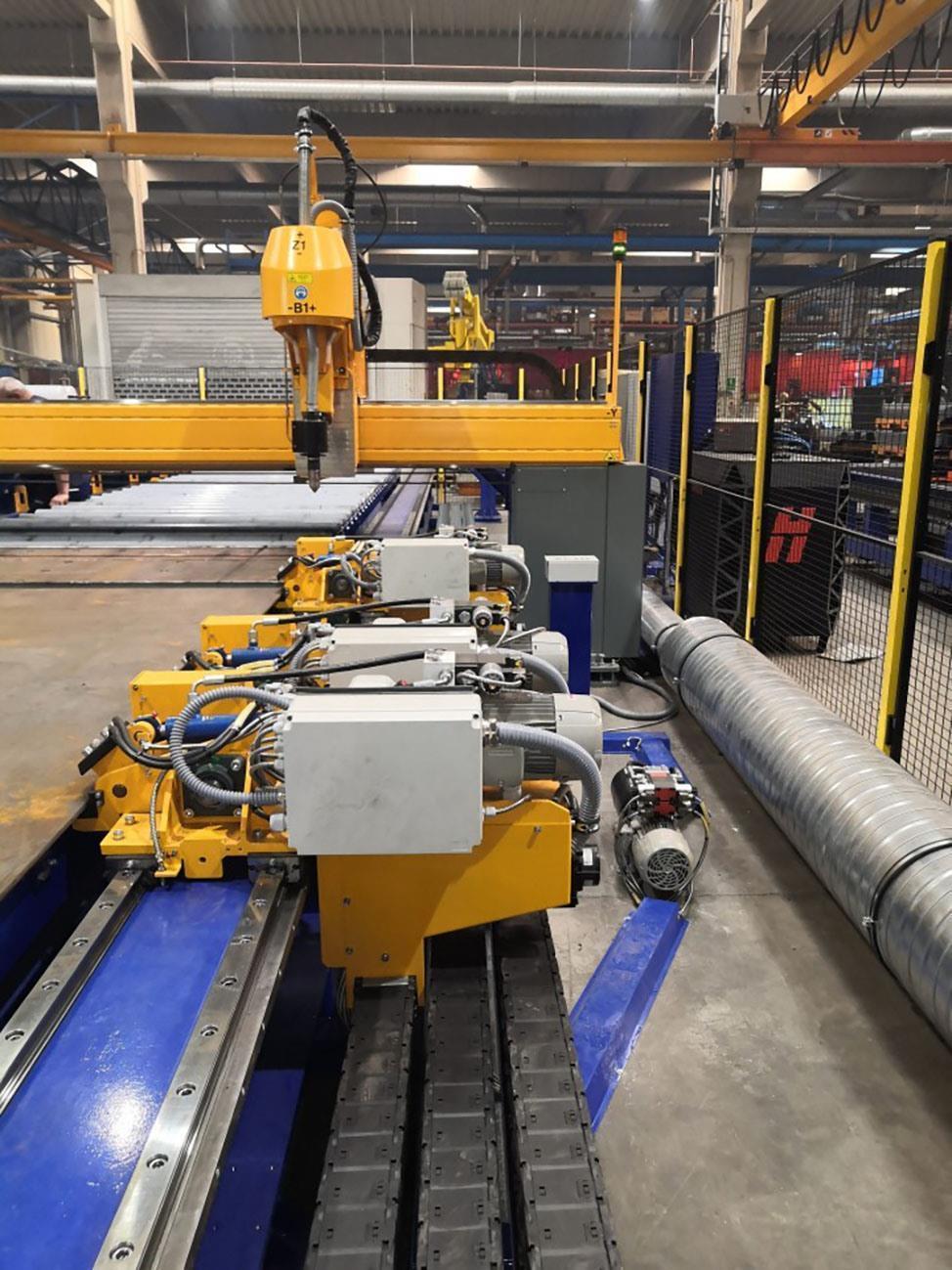

Plasma cutting:

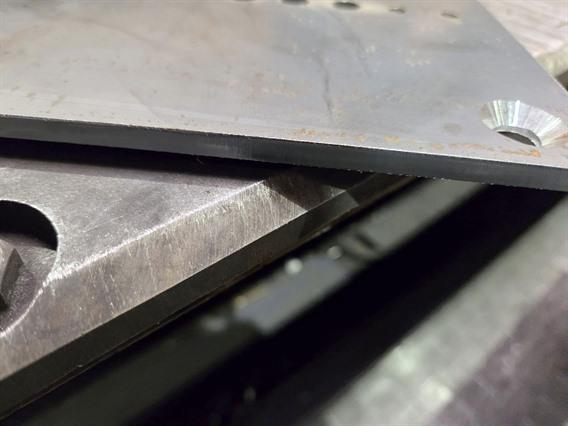

- 3D plasma bevelhead for cutting vertically and at an angle up to +-50° (auto calibration)
- Hypertherm XPR 300 (piercing 45 mm / 6 mm straight cuts at 170 amp up to 200 mm/min)
- max sheet size: 6000 x 2000 mm
- material thickness: 3 > 30 mm
- plasma marking
- laser light

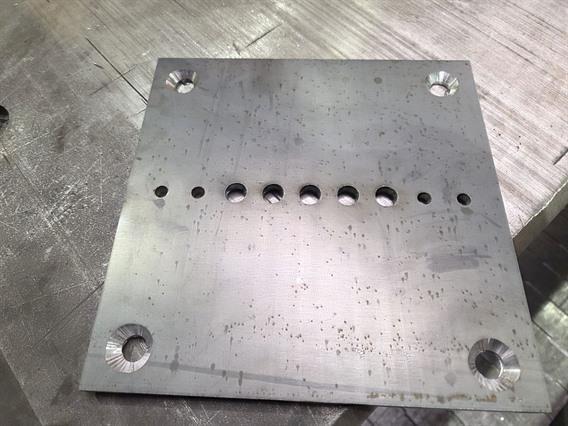

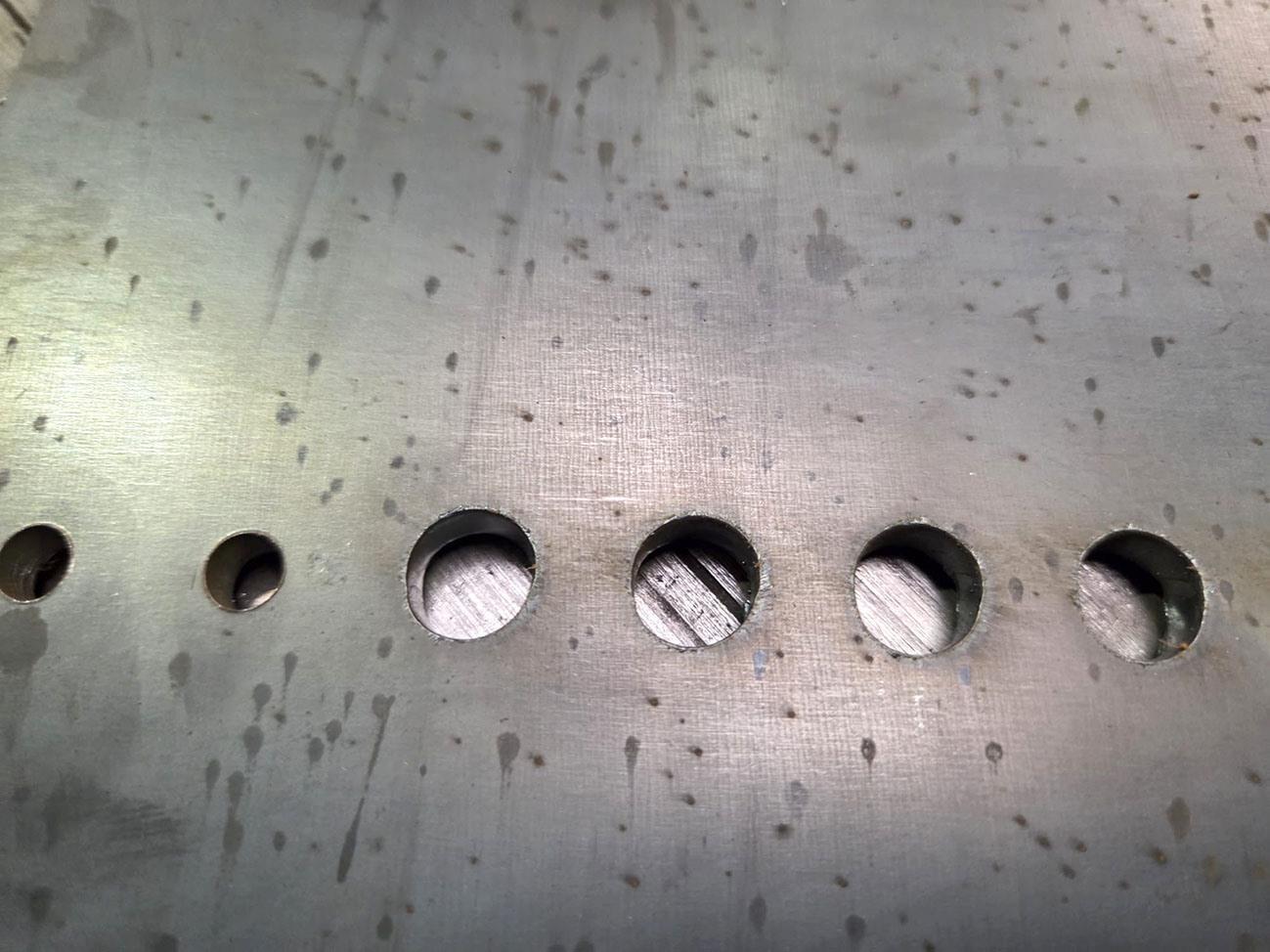

Drilling:
- MG-40 P26 drilling device ISO 40
- drilling range: dia 4 > 40 mm
- thread cutting: M4 > M33
- max thickness: 100 mm
- stroke: 400 mm
- 26 kW on spindle
- max 1829 rpm

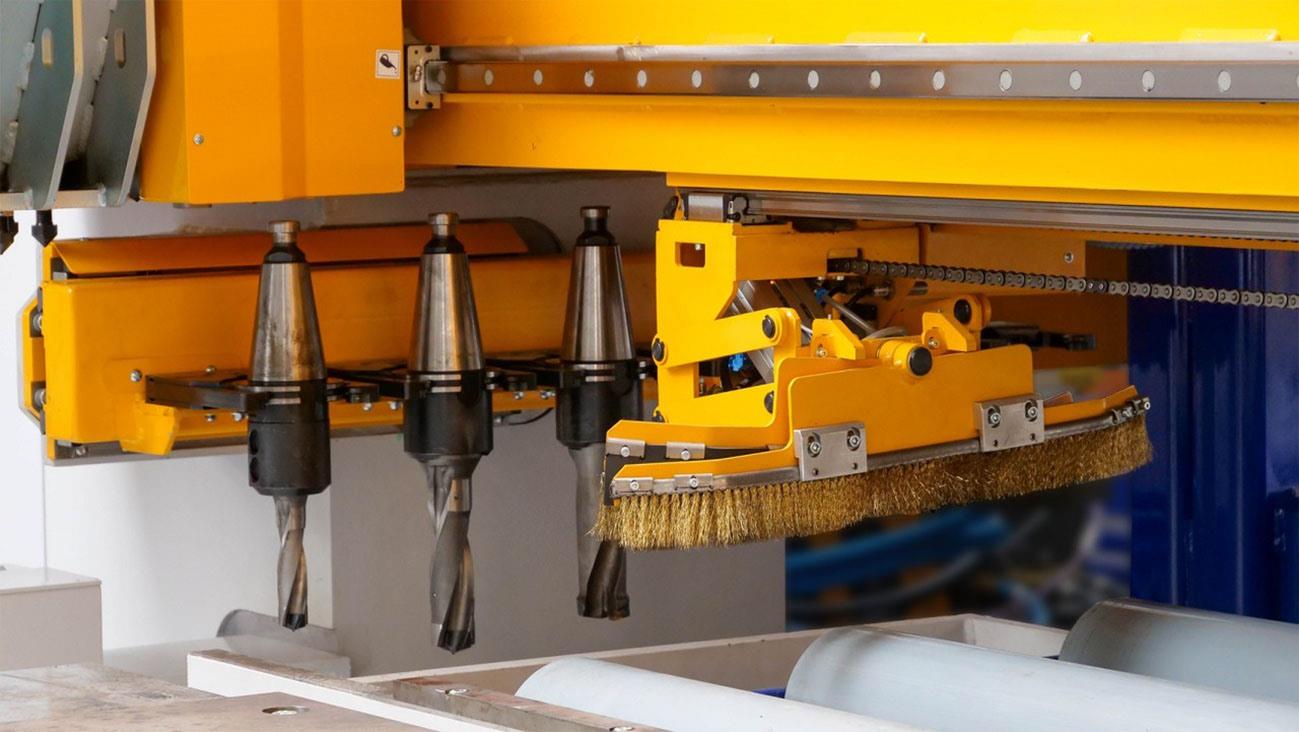

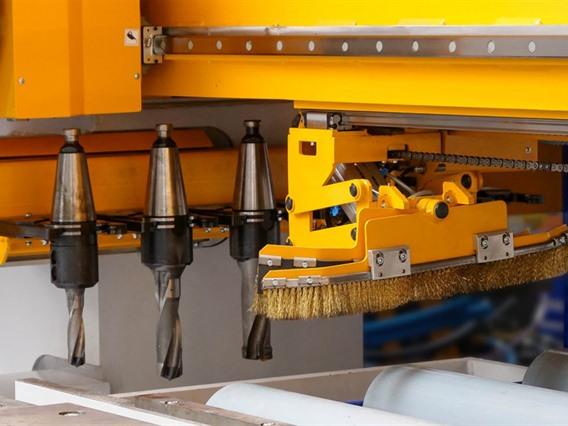

- automatic toolchanger; 8 toolpositions
- external & internal tool cooling

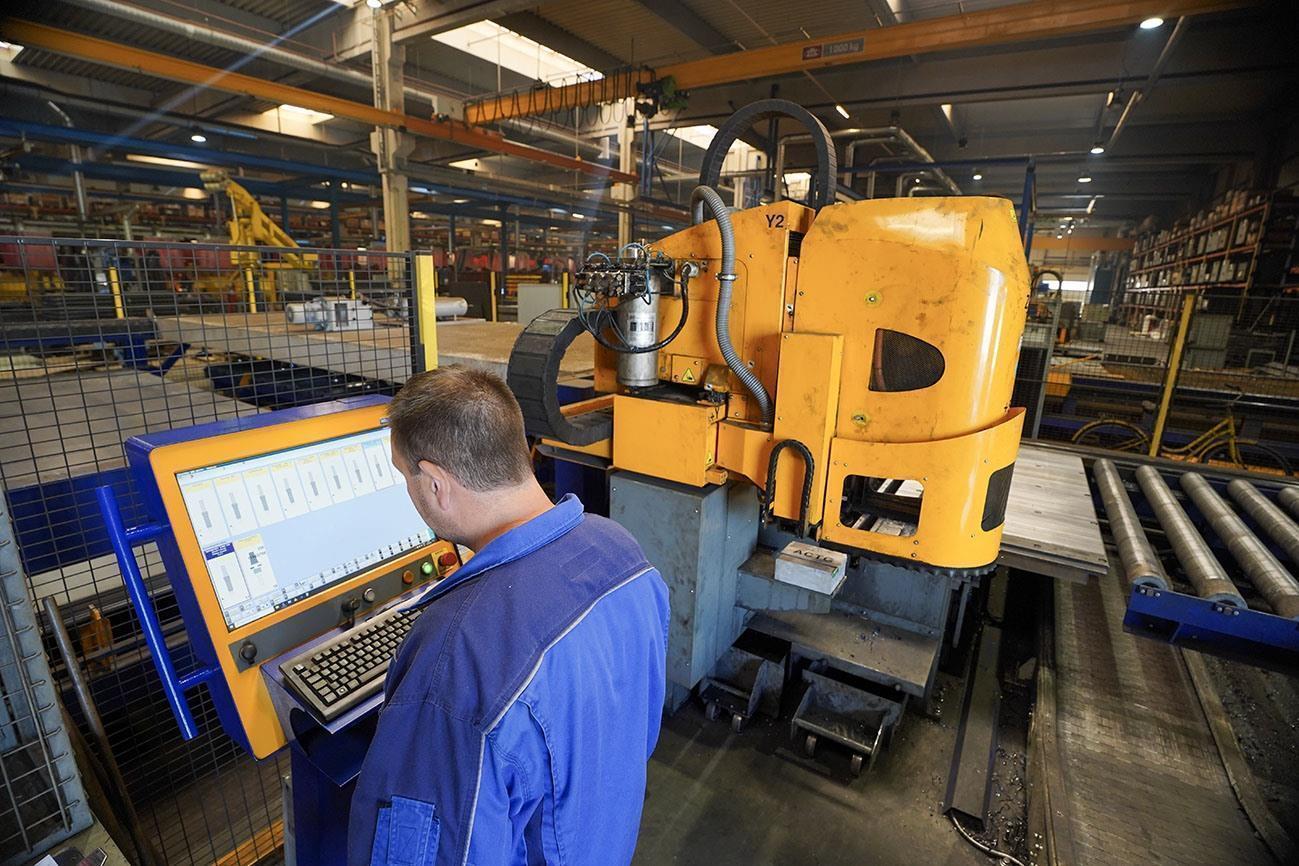

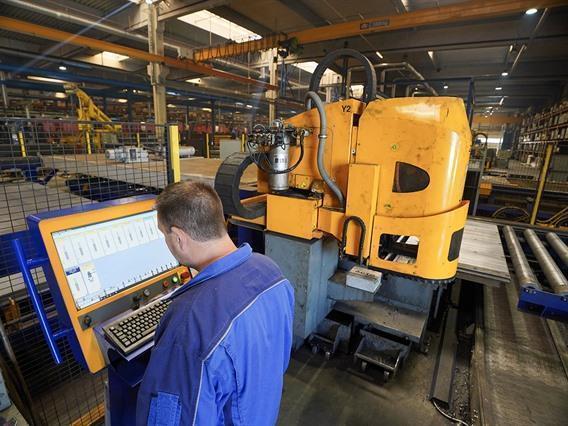

CNC control:
iMSNC system for Windows® 10TM' 64-bit PRO
with integrated network card and USB port

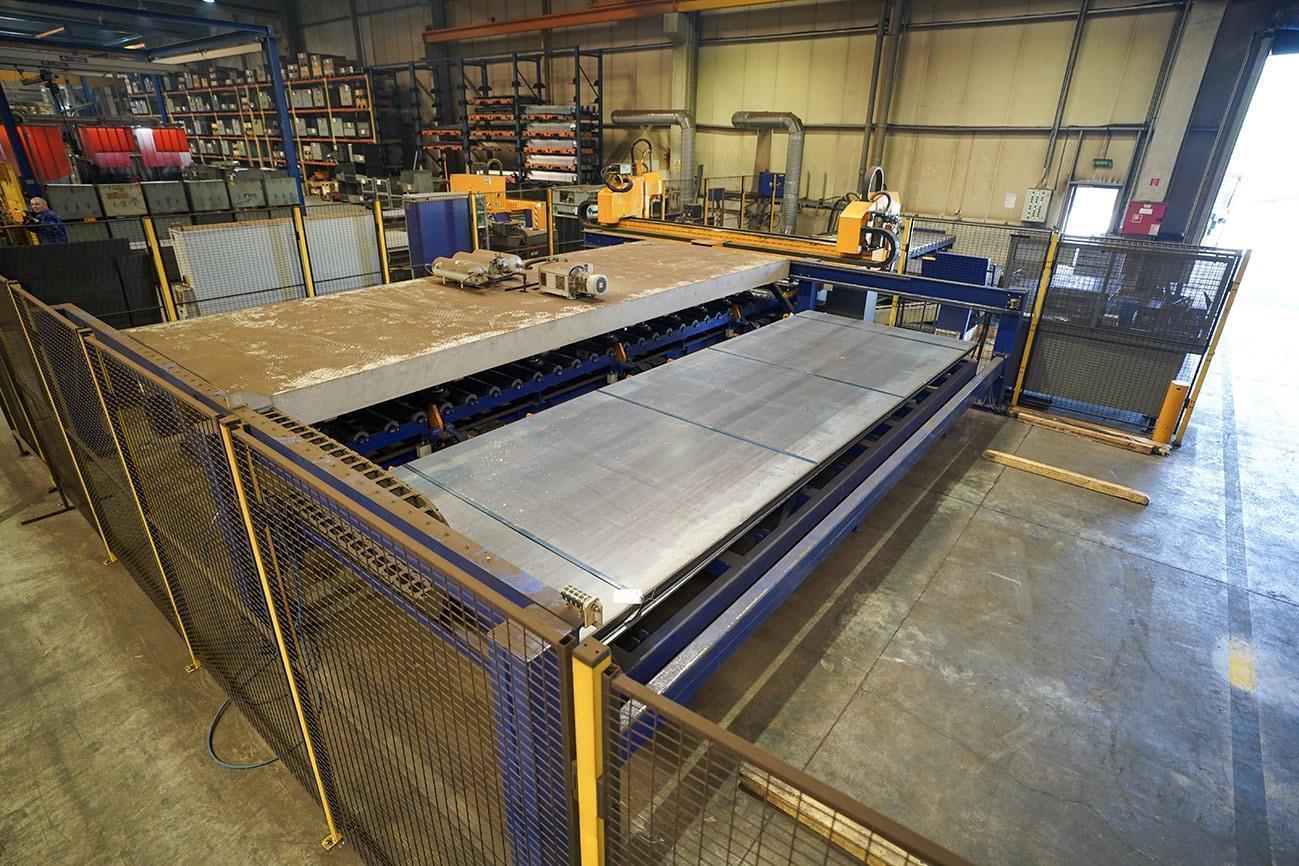

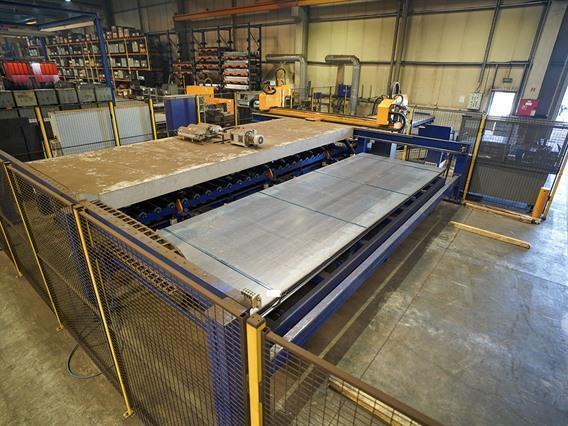

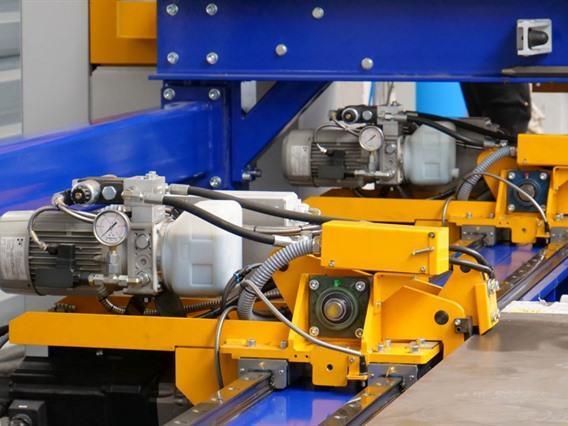

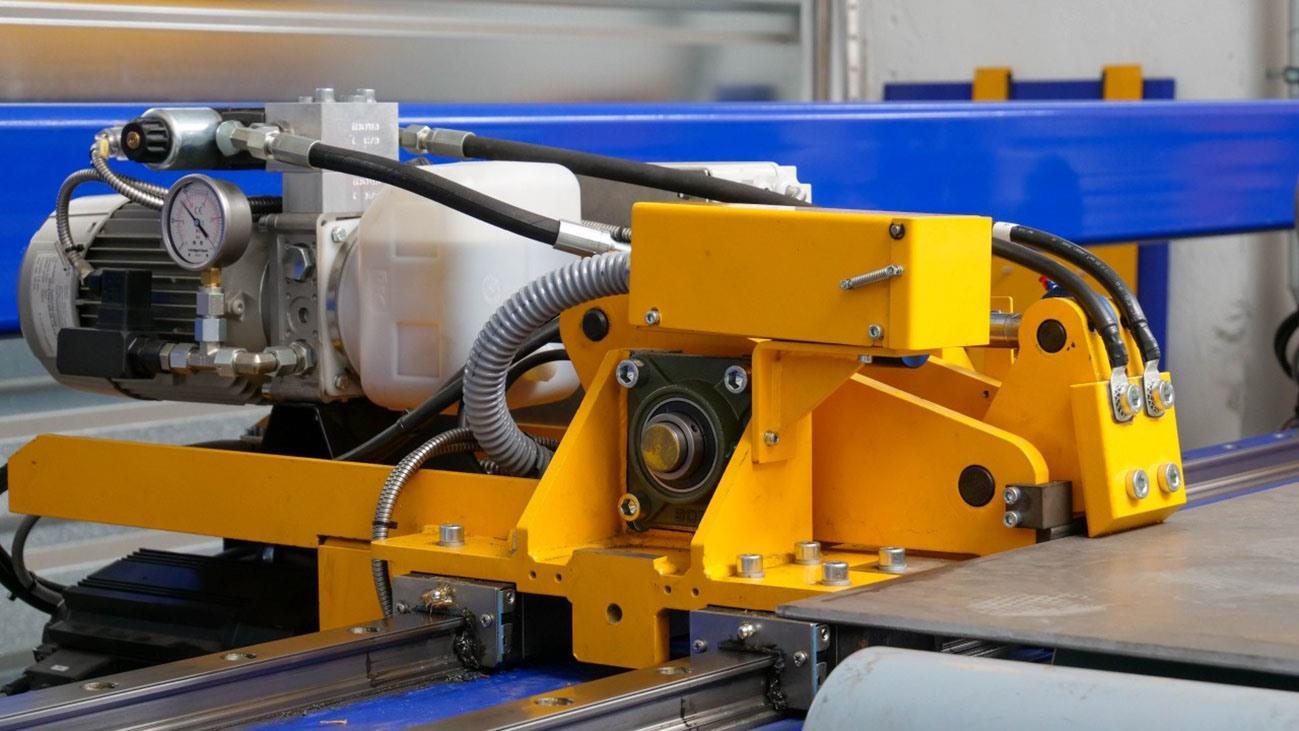

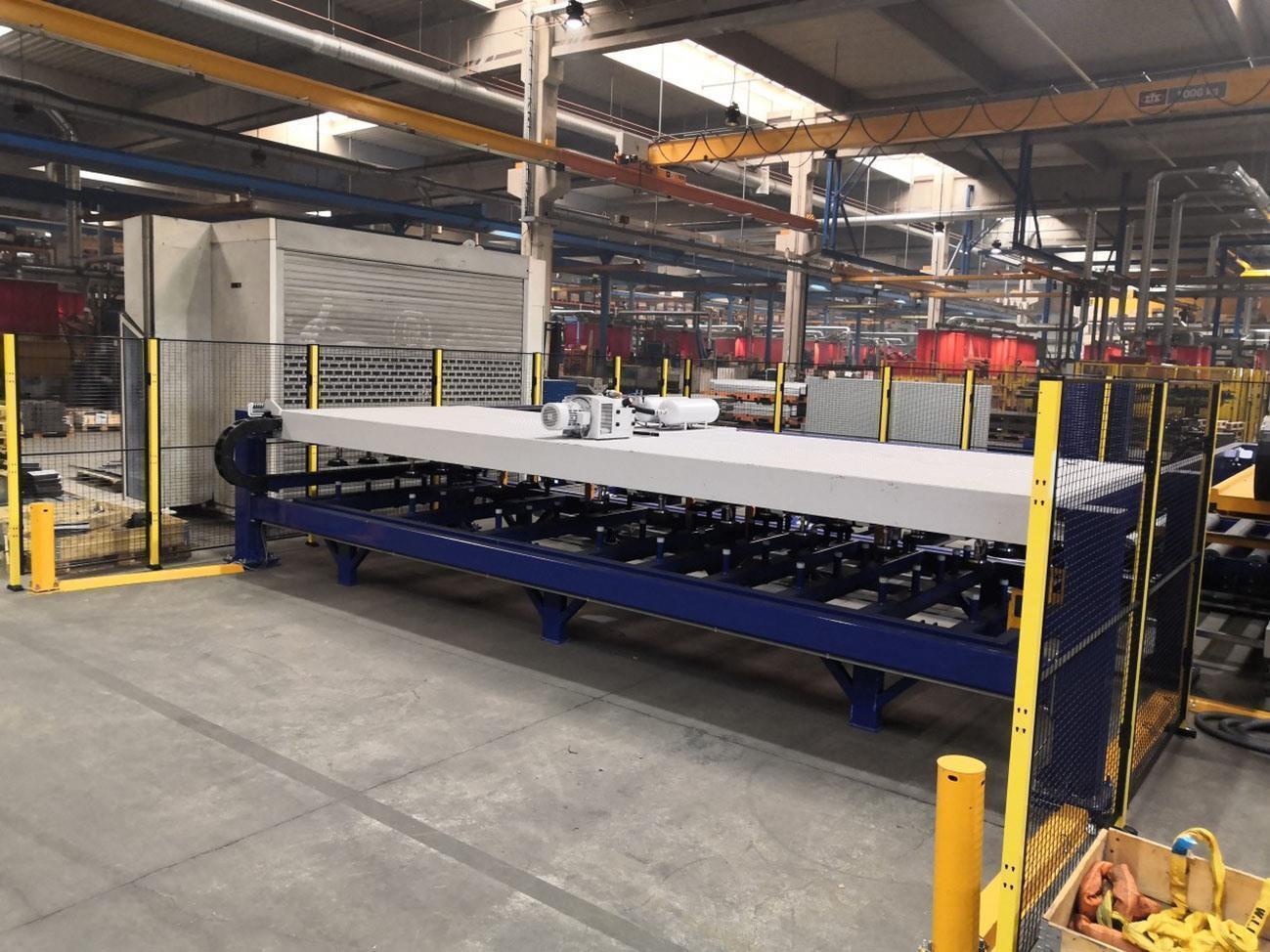

With a vacuum suction system sheets can be loaded onto the cutting table
Total weight: 30 ton

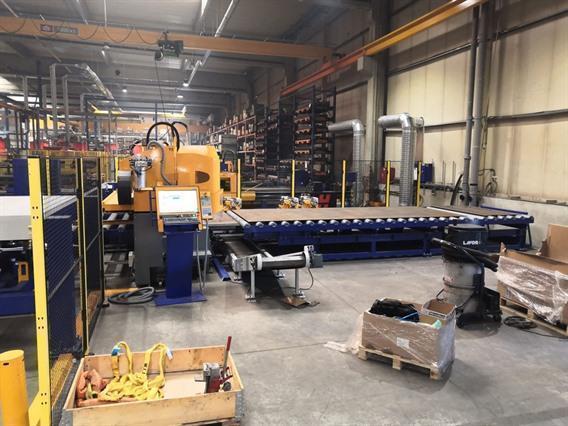

Required space: 16 500 x 7100 mm
- Type/Model: DS automatic process line
- Stocknumber: O.16 14112
- Main category: [O] Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
- Sub category: [O.16] Gas cuttingmachines (gas + plasma)
- Brand: MicroStep
Stocknumber: O.16 14112
Watch video of working machinery
