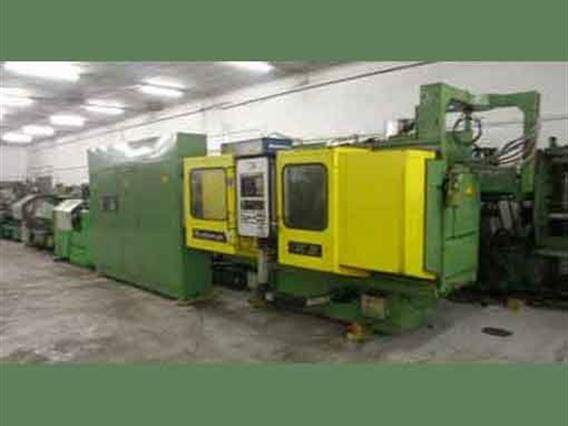

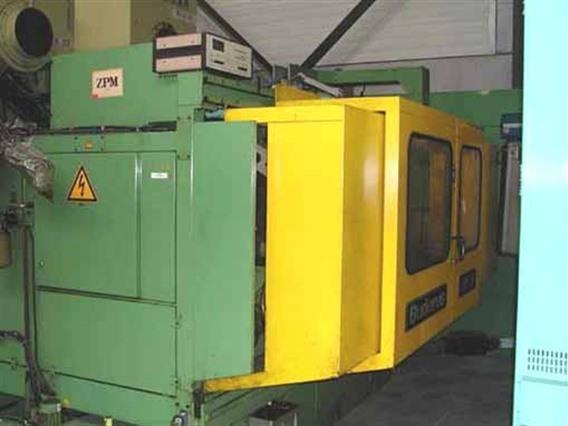

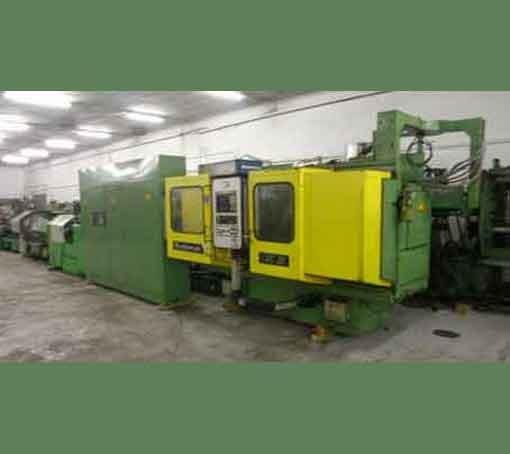

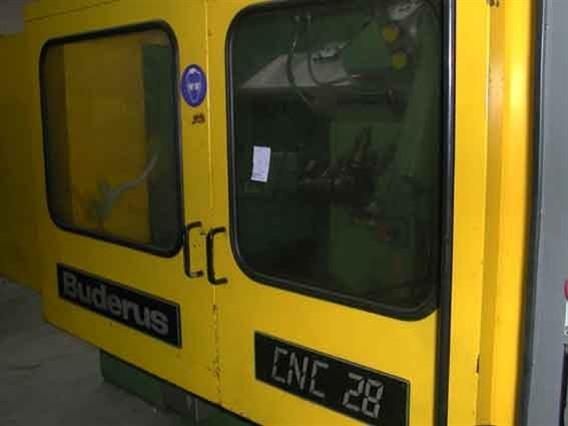

Buderus CNC 28 - X:220 - Y:380mm
Technical information
- EXTERNAL GRINDING*
- Max dia of the workpiece280 mm
- Center height620 mm
- Table travel (X-axis)220 mm
- Support travel (Y-axis)380 mm

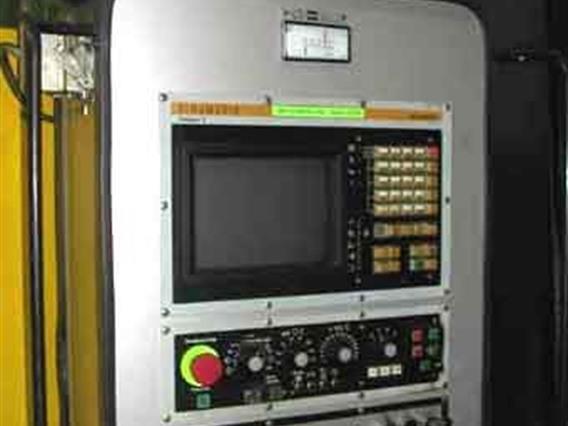

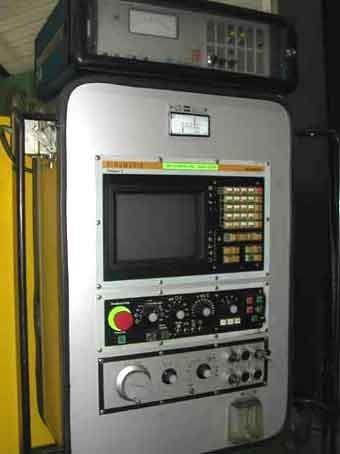

- ControlCNC 6 axes
- Number of rotations grindingwheel0-15 m/min
- Travelspeed0.01 - 10 m/min

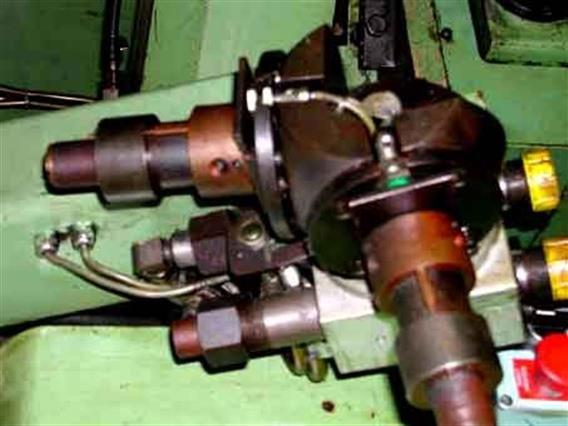

- INTERNAL GRINDING*
- Clamp opening grindingspindle120-170 mm
- Max length200-250 mm
- Saddle travel0.0005-150 mm
- Length6000 mm
- Depth 3500 mm
- Height2500 mm
- Weight6000 kg
- ACCESSORIES+
- coolant pump292 L/1 bar
Additional info
- min/max drilling Ø: 6 - 120 mm
Table movement: 5 -- 500 mm
Max grinding depth: 100 mm
Swing 280 mm
int.dia 6 -120 mm
grind depth 100 mm
angular adjustment 30°
As good as new!
- Type/Model: CNC 28 - X:220 - Y:380mm
- Stocknumber: G.03 3305
- Main category: [G] Grinders
- Sub category: [G.03] Cylindrical grinders
- Brand: Buderus
