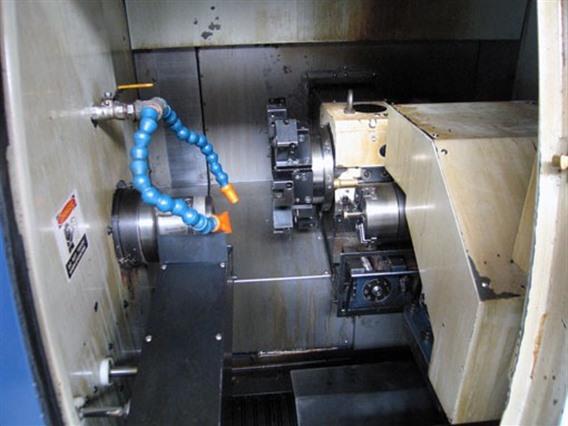

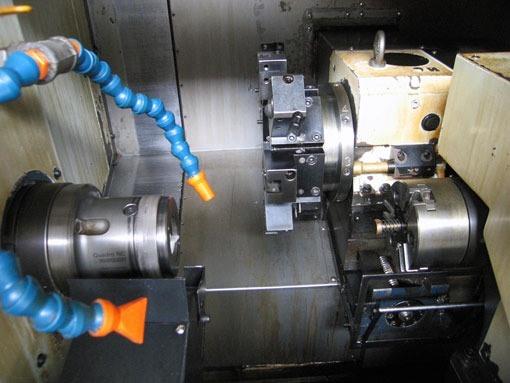

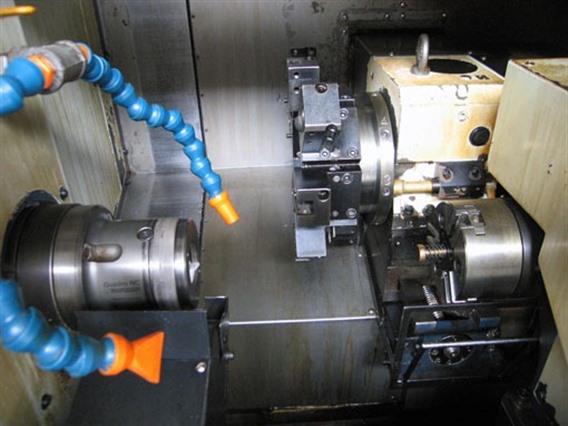

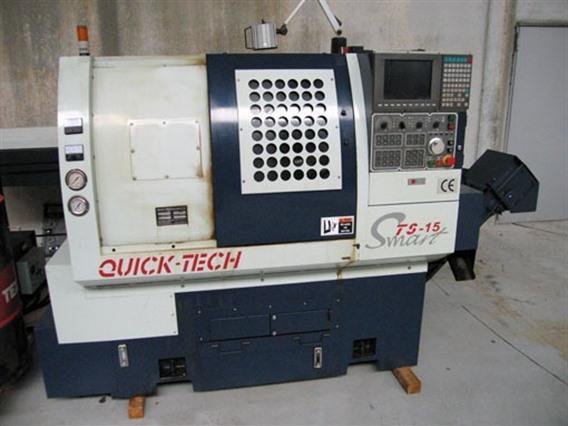

CNC lathes Quick Tech Smart TS-15

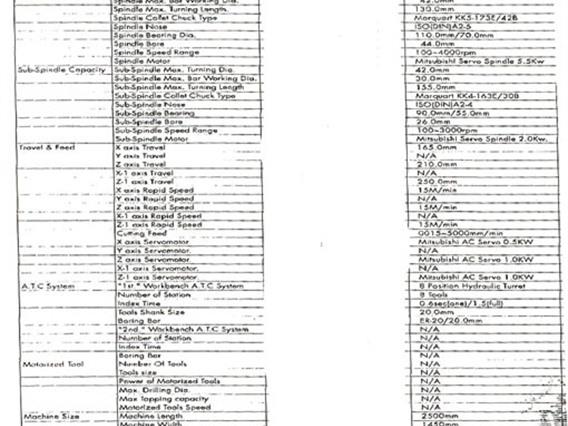

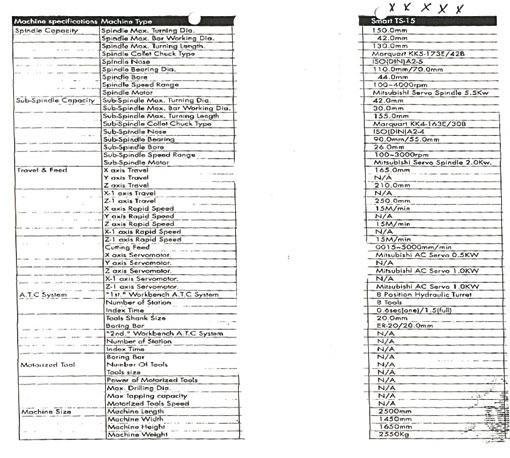

Technical information
- Swing over bed150 mm
- Max longitudinal travel Z-axis210 mm
- Max cross travel X-axis165 mm
- Spindle coneISO A2-5
- Dia of spindle bore44 mm
- Power on the spindle5.5kW
- Number of speeds100 - 4000 rpm

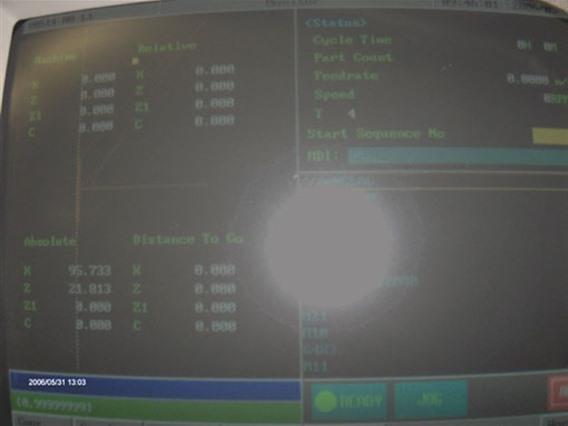

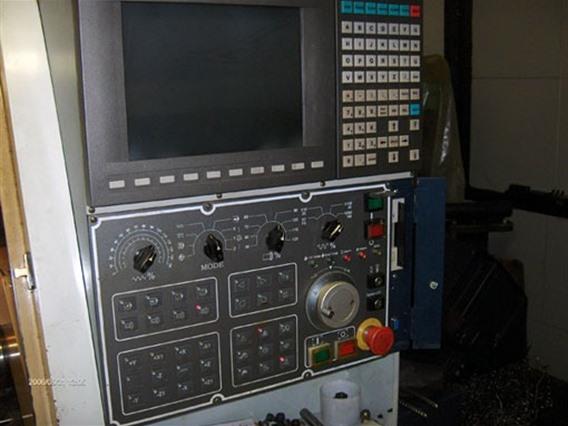

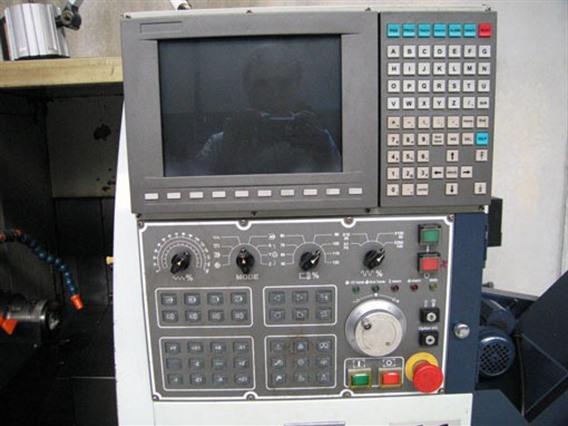

- CommandMitsubishi(=fanuc system)
- Length2500 mm
- Width1450 mm
- Height1650 mm
- Weight2550 kg

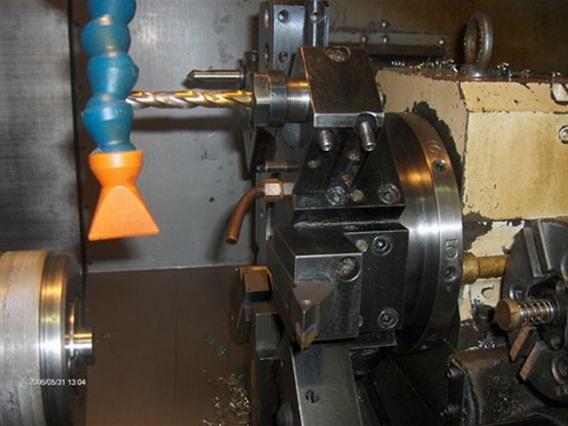

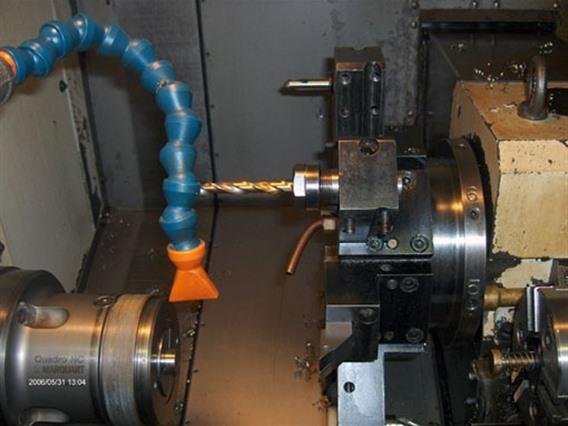

- Number of tools8 Tools
Additional info

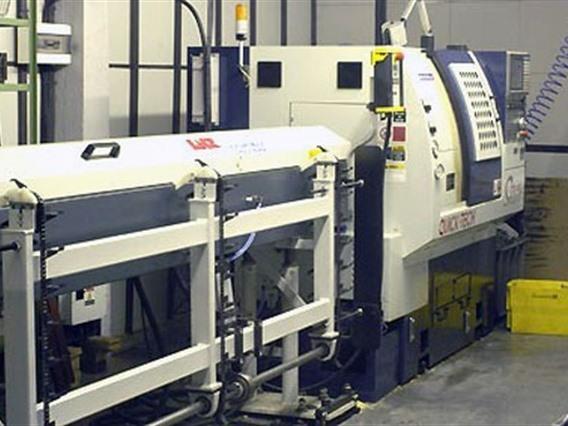

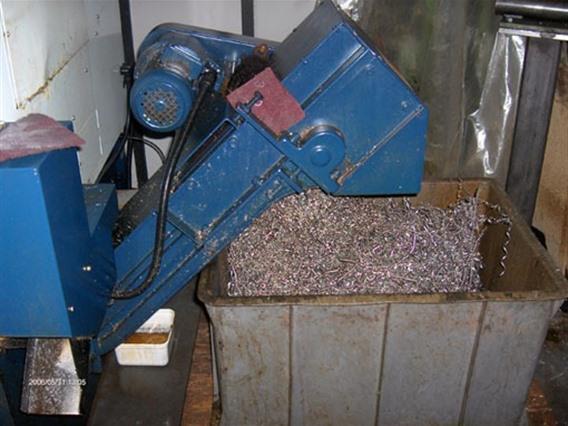

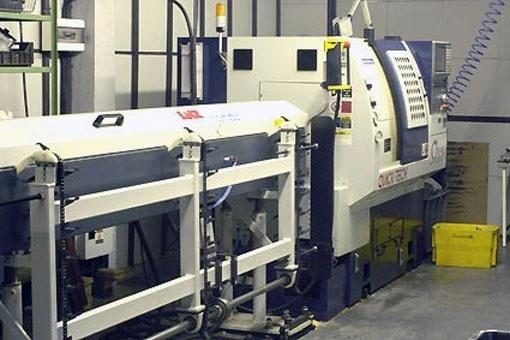

- Complete with LNS Cycle barfeeder & part belt
Subspindle 2 kW - speed range: 100 - 3000rpm
Subspindle bearing: 90 mm/ 55 mm
subspindle turning dia: max 42 mm
subspindle working dia: max 13 mm
subspindle turning lenght: max 155 mm
subspindle motor;Mitsubishi 2.0kW

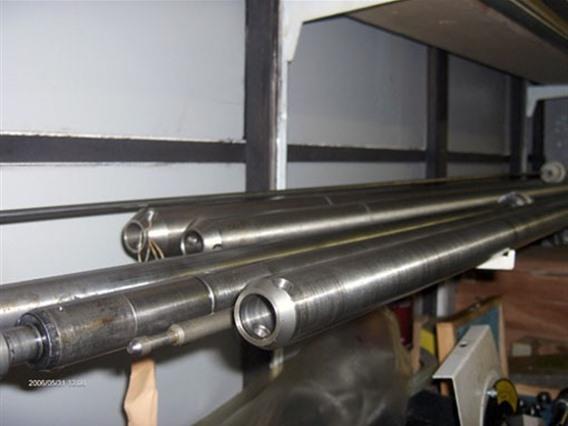

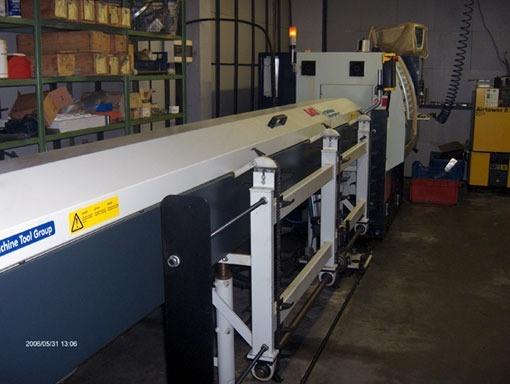

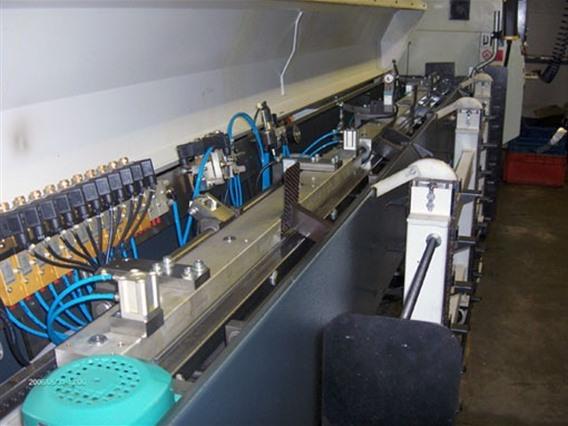

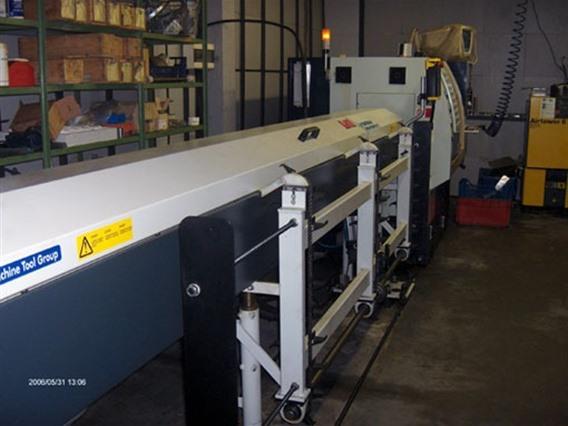

LNS Barfeeder mini-sprint S2;
Auto Load
loads 9 bars
Bars 6 to 45 mm (round)
Lenght of bars: 3270 mm
Measurements of Mini Sprint: L 4060mm x W 550 mm x H 1150 mm
Weight; 1370kg
- Type/Model: Smart TS-15
- Stocknumber: A.07 3444 *08
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Quick Tech
Stocknumber: A.07 3444 *08
