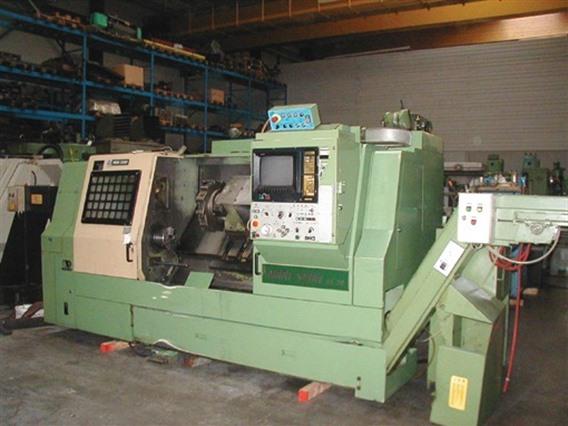

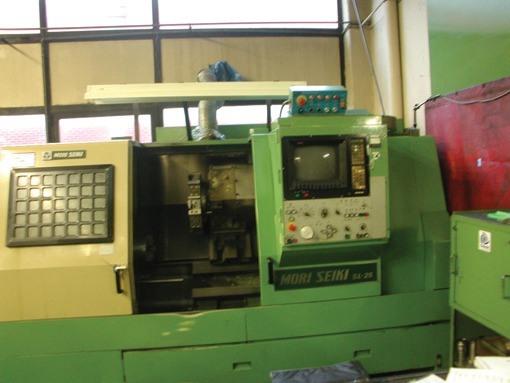

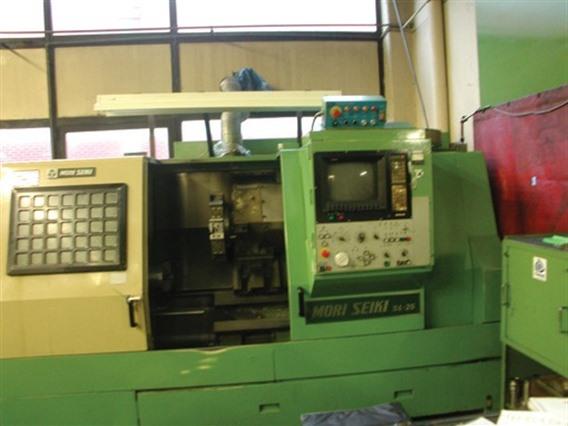

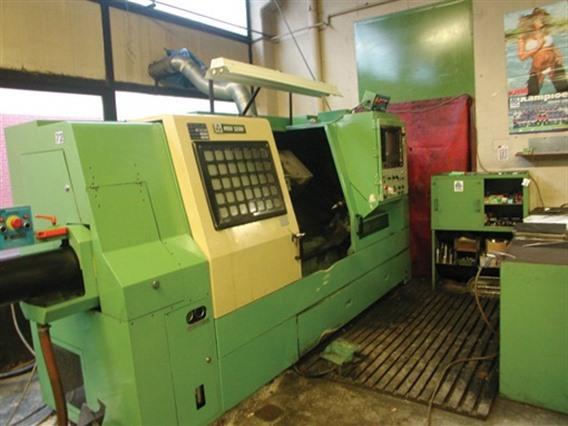

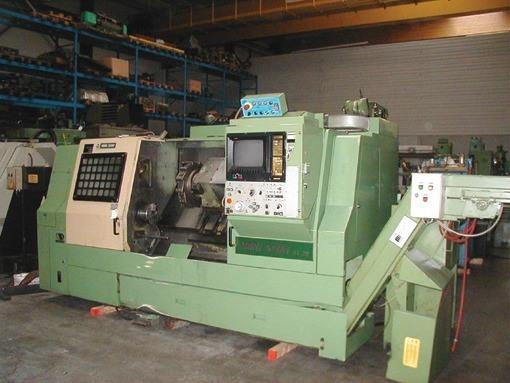

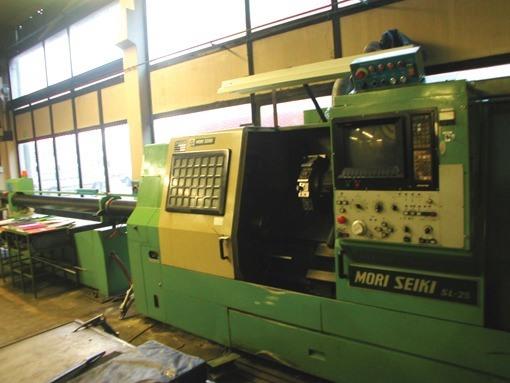

CNC lathes Mori Seiki SL 25 B-1000
Technical information
- Swing over bed520 mm
- Swing over cross-slide350 mm
- Distance centre tot centre1125 mm
- Max longitudinal travel Z-axis1090 mm
- Max cross travel X-axis160 mm
- Spindle coneJIS* A2-6
- Dia of spindle bore80 mm

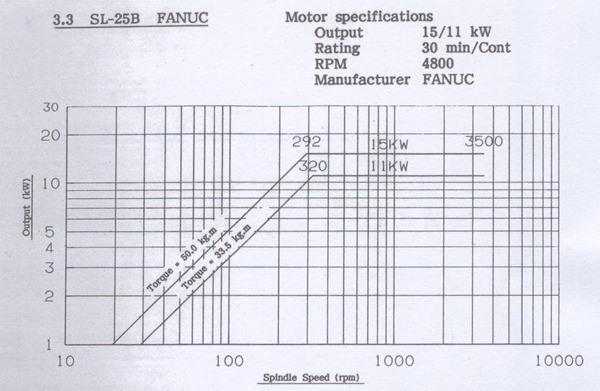

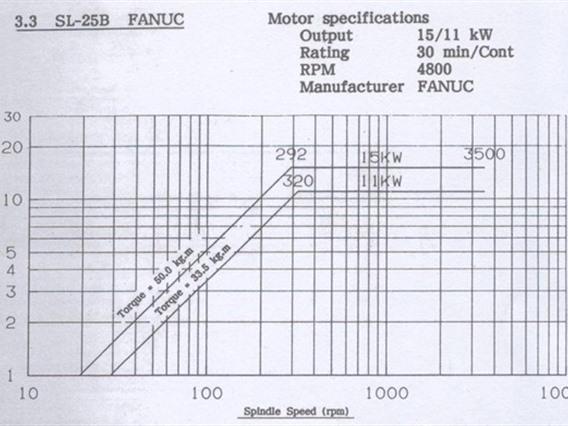

- Power on the spindle11/15 kW
- Number of speeds35-3500 rpm
- CommandFanuc OT
- Total power needed31 kVA
- Current needed380 V
- Length3600 mm
- Width1540 mm
- Height1900 mm
- Weight5500 kg
- ACCESORIES*

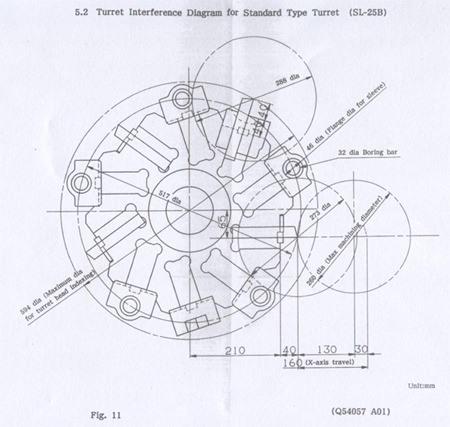

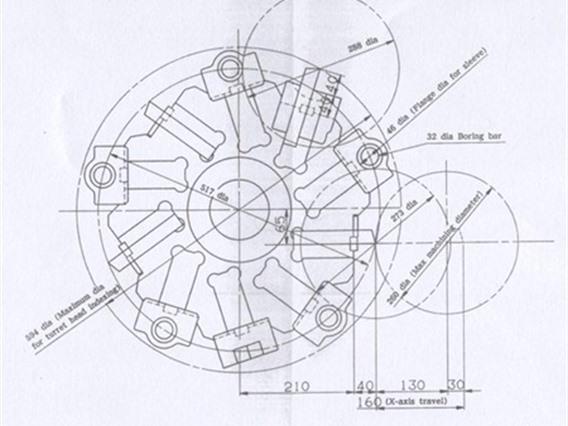

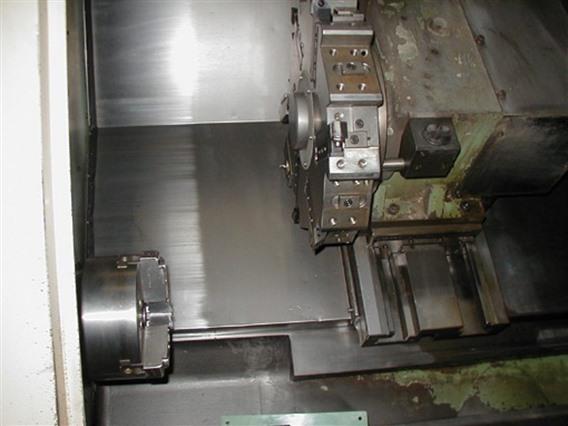

- Toolchanger10 tools
- Number of tools2 kasten
Additional info

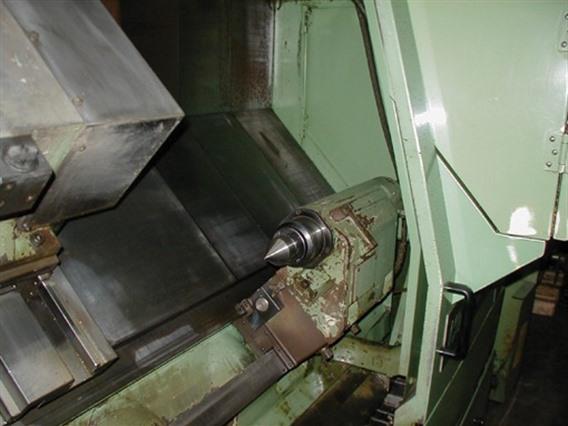

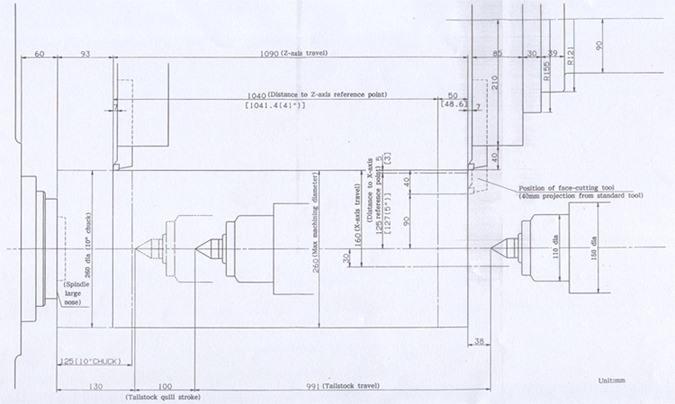

- Max draaidia x L : 260 x 1030 mm - Frontbearing 130 mm - Indexingtime 0,7 sec -- Feedingspeed X, Z : 12000, 15000 mm/min -- TAILSTOCK : travel 990 mm quildia 110 mm - type MT 4 -- stroke 100 mm

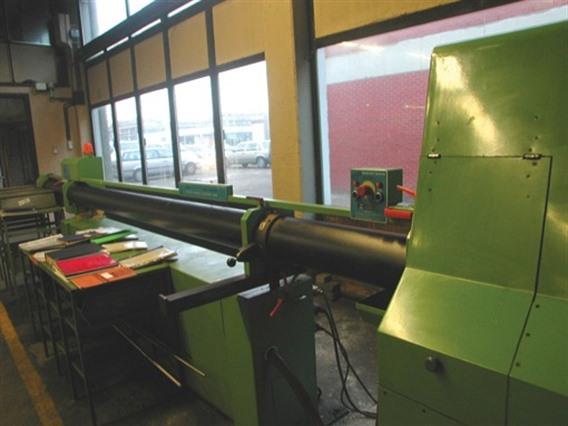

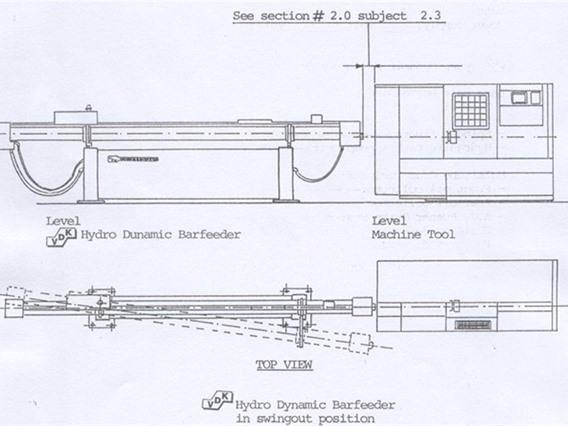

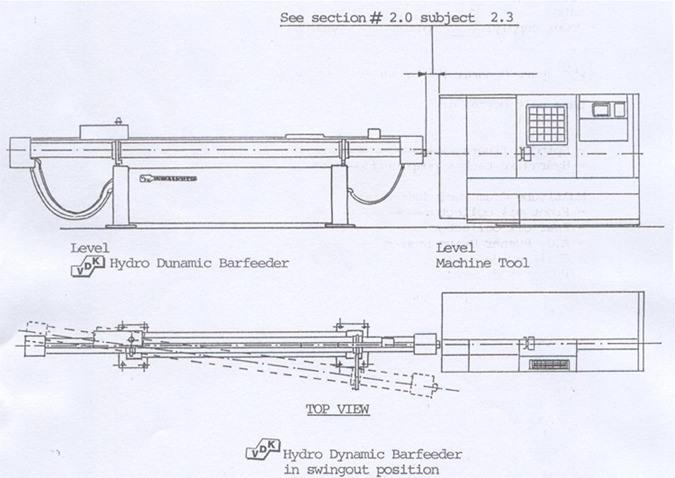

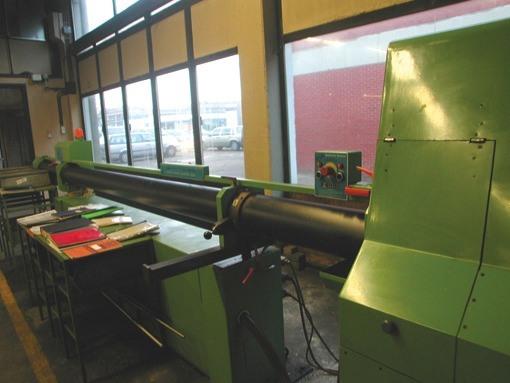

Barfeeder : VDK Hydro dynamic ML
- Type/Model: SL 25 B-1000
- Stocknumber: A.07 2520 *05
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Mori Seiki
