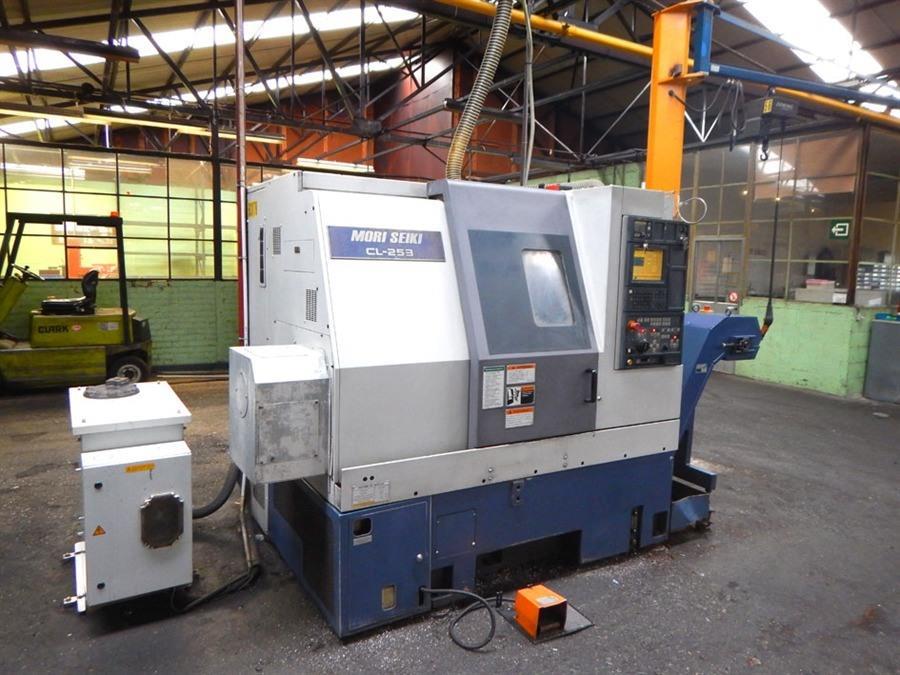

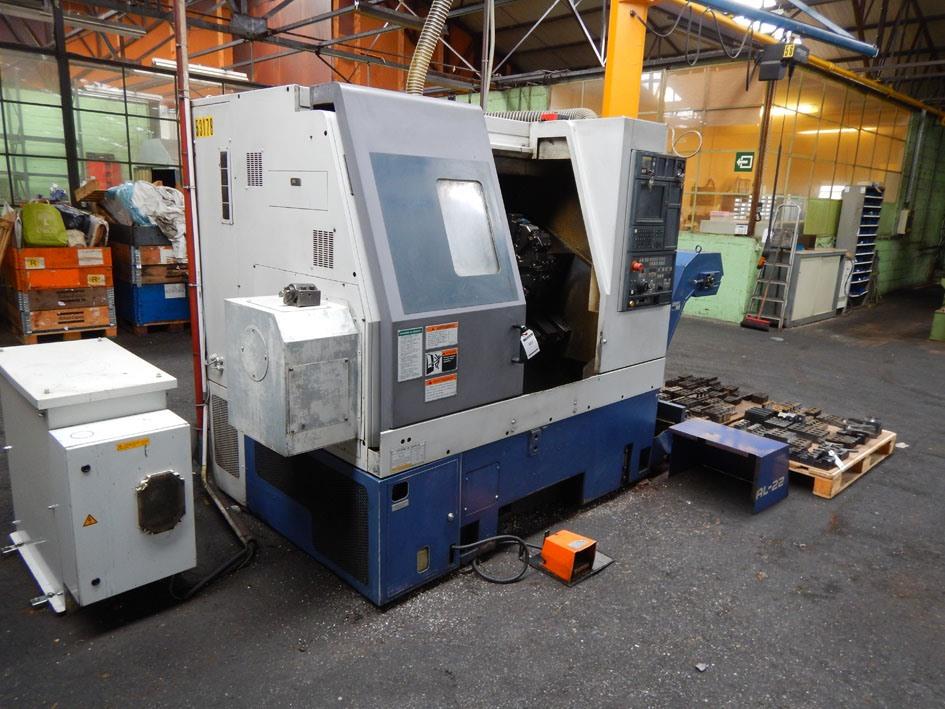

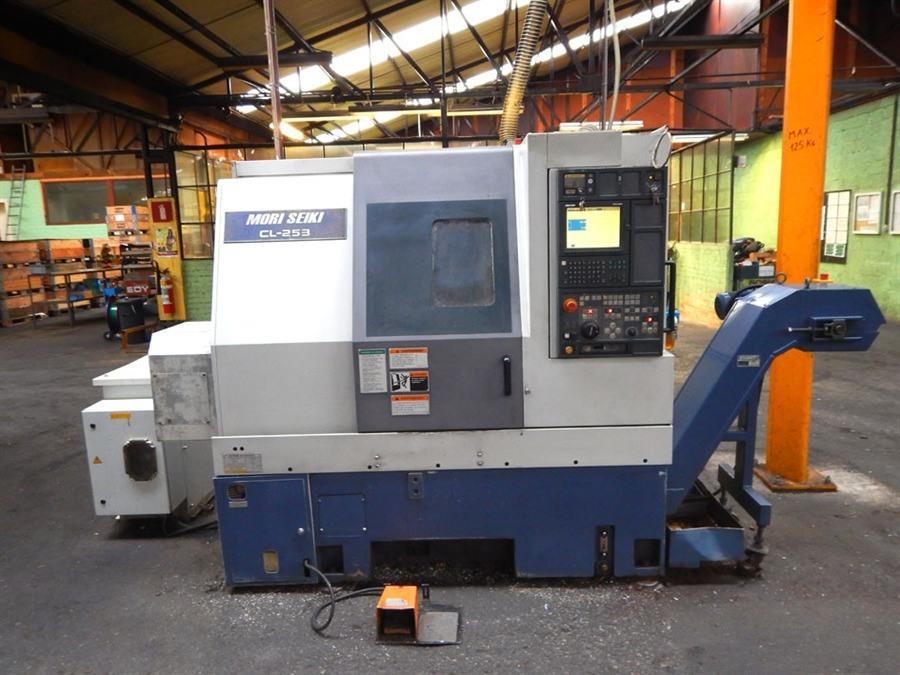

CNC lathes Mori Seiki CL/253A Ø 520 x 480 mm CNC

Technical information

Swing over bed520 mm
Swing over cross-slide410 mm
Distance centre tot centre480 mm
Max longitudinal travel Z-axis500 mm
Max cross travel X-axis260 mm
Spindle coneA2-8
Dia of spindle bore80 mm
Power on the spindle15/11 kW
Number of speeds30 > 3500 rpm

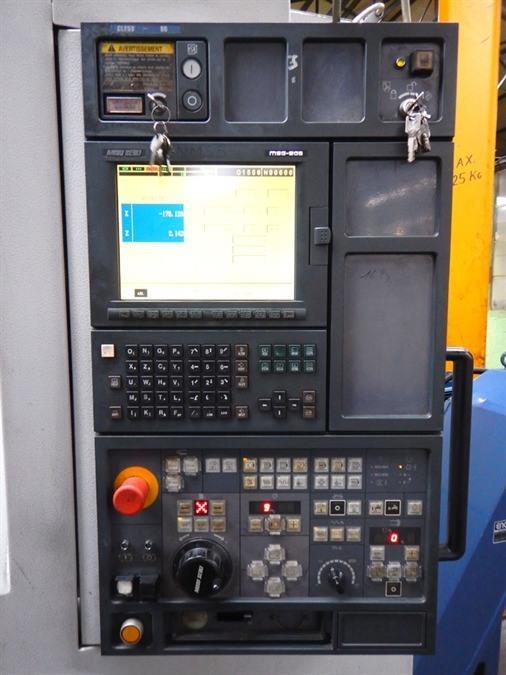

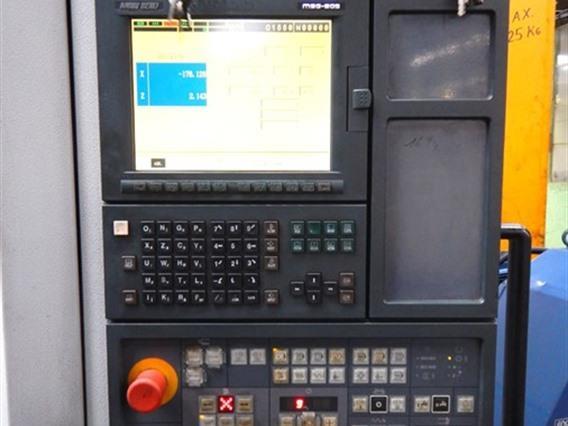

CommandMSG-803
Total power needed24/46 kVa
Length2000 mm
Width1736 mm
Height1955 mm
Weight4,1 ton
Toolchangeryes

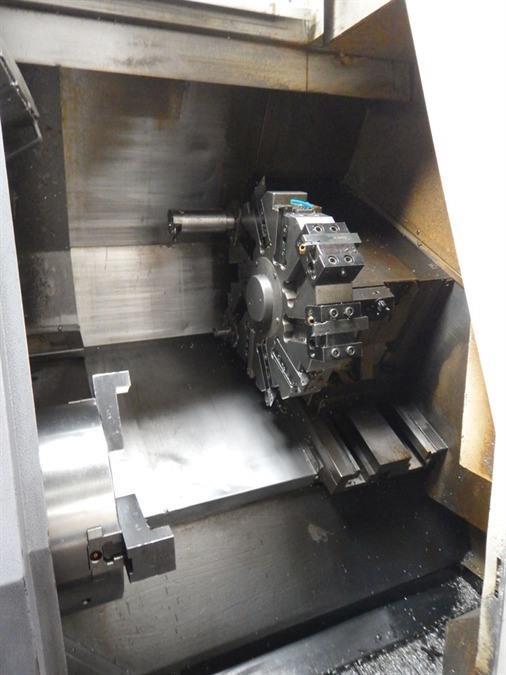

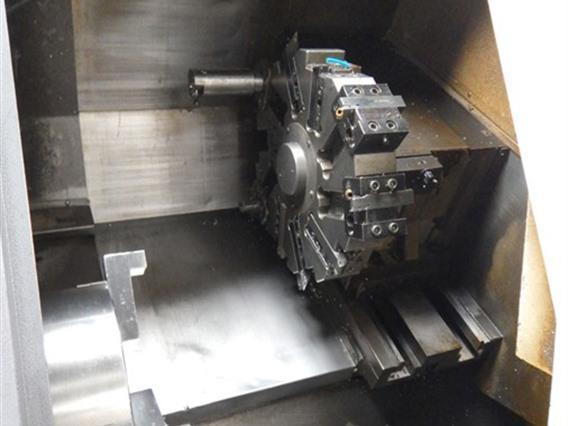

Number of tools10 tools

Additional info

Type: CL/253A

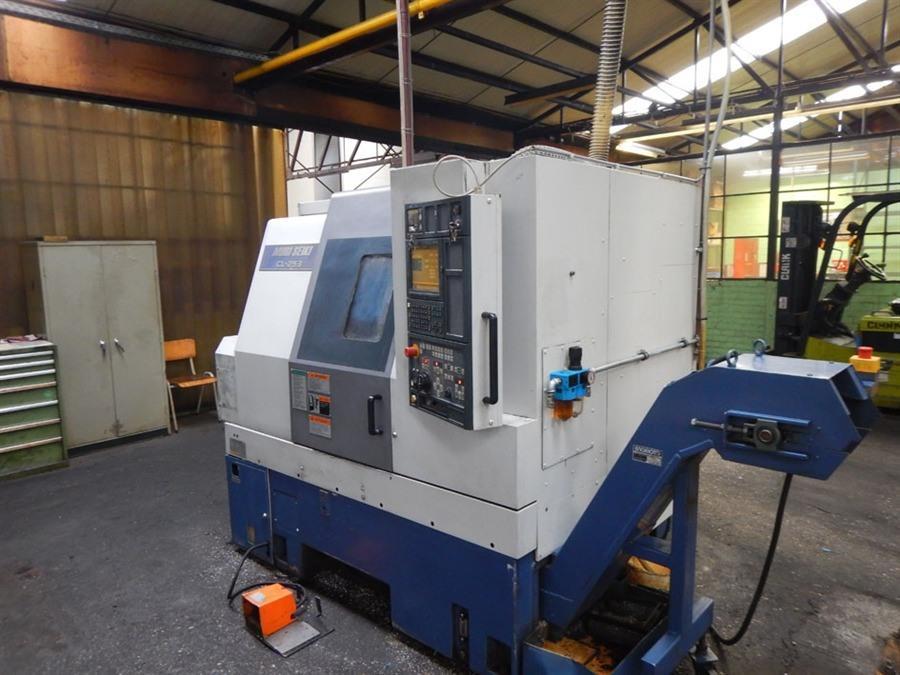

Chipconveyor
Type/Model: CL/253A Ø 520 x 480 mm CNC
Stocknumber: A.07 10104
Main category: [A] Lathes
Sub category: [A.07] CNC lathes
Brand: Mori Seiki

Stocknumber: A.07 10104
