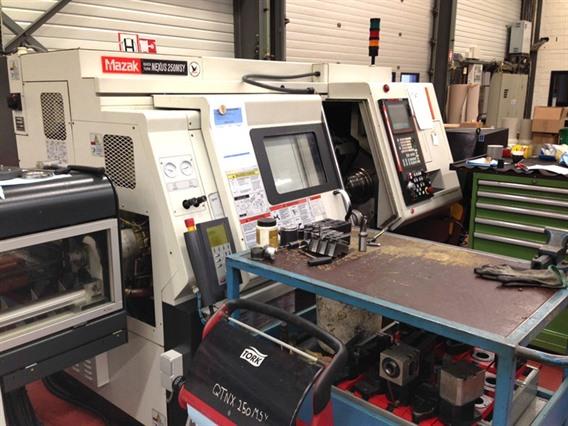

CNC lathes Mazak SQT 250 MSY Ø 675 x 541 mm

Technical information

Swing over bed675 mm
Swing over cross-slide350 mm
Distance centre tot centre541 mm
Max longitudinal travel Z-axis575 mm
Max cross travel X-axis230 mm
Spindle coneA2-8
Dia of spindle bore88 mm
Power on the spindle26 kW
Number of speeds4000 rpm
CommandMazatrol 640T
Total power needed41 kVa
Length2848 mm
Width1865 mm
Height1860 mm
Weight5,8 ton
Toolchangeryes
Number of tools12x

Additional info

26 700 servo hours

3 Double External holders (Spindle1 & Spindle2)

1 External holder for Spindle 1 (OD cutting)

3 Internal holder (for boring bars - ID Cutting)

1 Live Tool Axial (left)

1 Live Tool Radial

1 Blade cut-off holder (oriented to 2nd Spindle)

1 U-drill holder (drill with inserts)

1 Axial holder (Face holder for external tools)

Total 12 holders

With Y-axis: 100 mm

spindlebore of hydraulic chuck: 77 mm

second spindle:

- chuck: 150 mm

- 6000 rpm

- 7,5 kW
Type/Model: Ø 675 x 541 mm
Stocknumber: A.07 8699
Main category: [A] Lathes
Sub category: [A.07] CNC lathes
Brand: Mazak SQT 250 MSY

Stocknumber: A.07 8699

Sold
Sold
Sold
Sold

Download all pictures in ZIP
