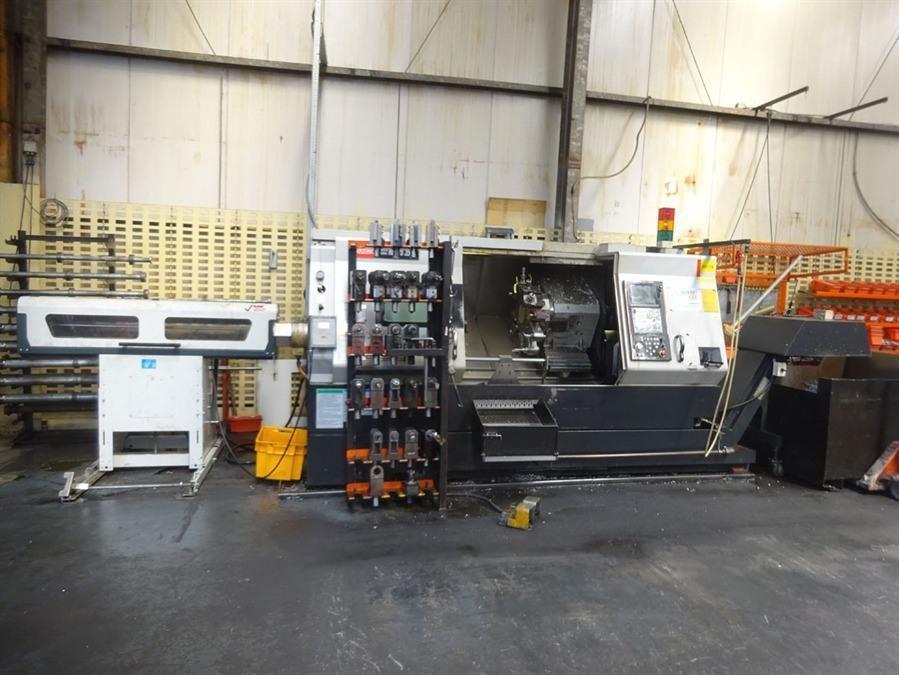

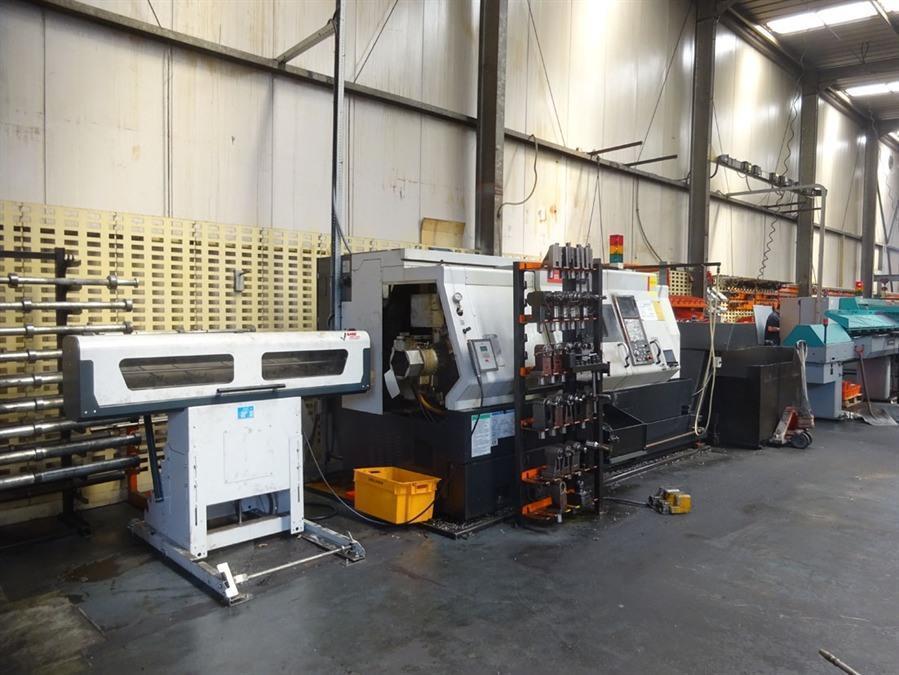

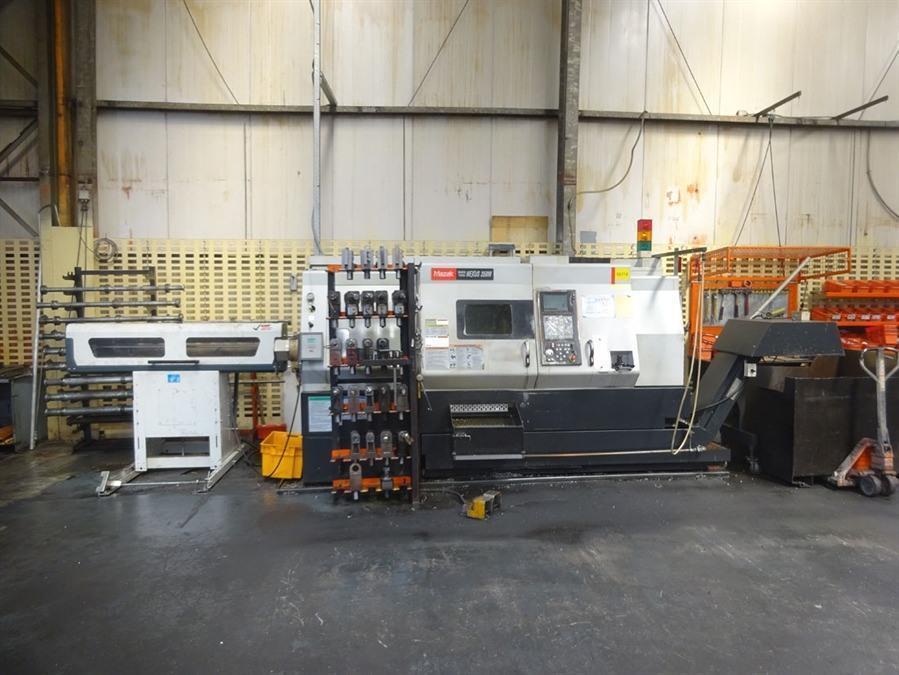

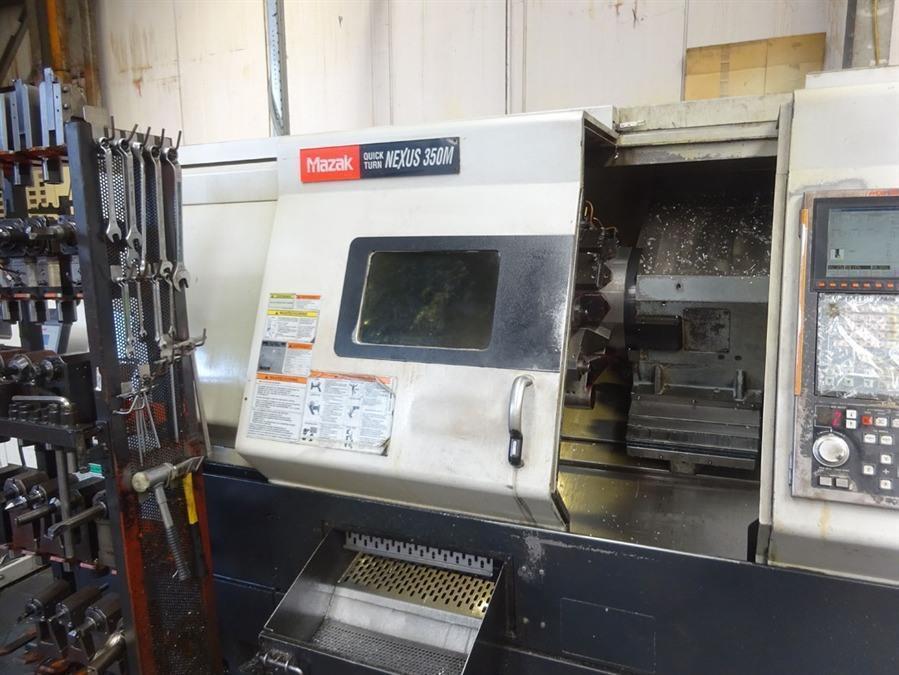

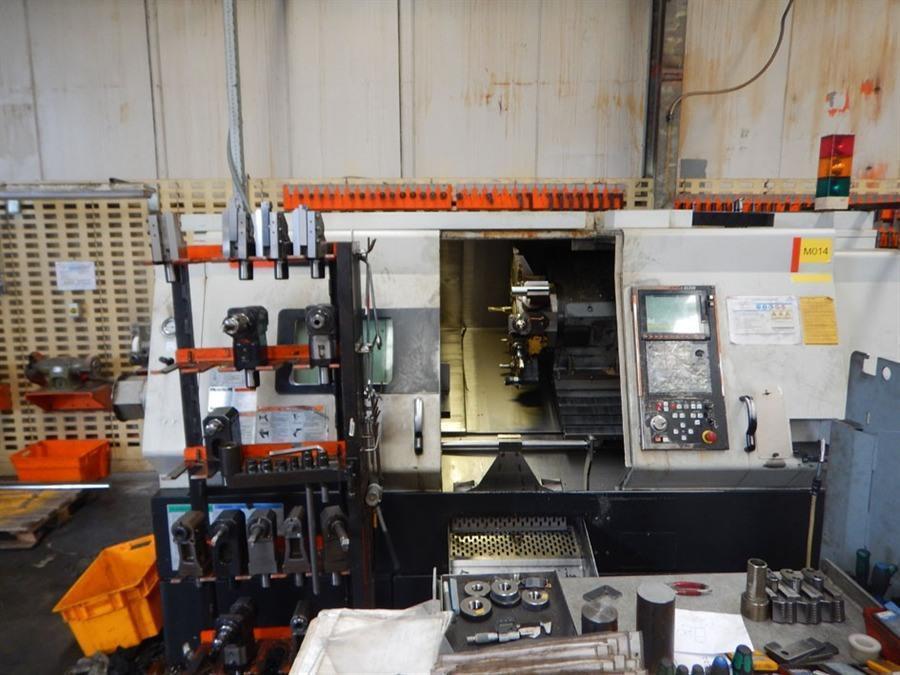

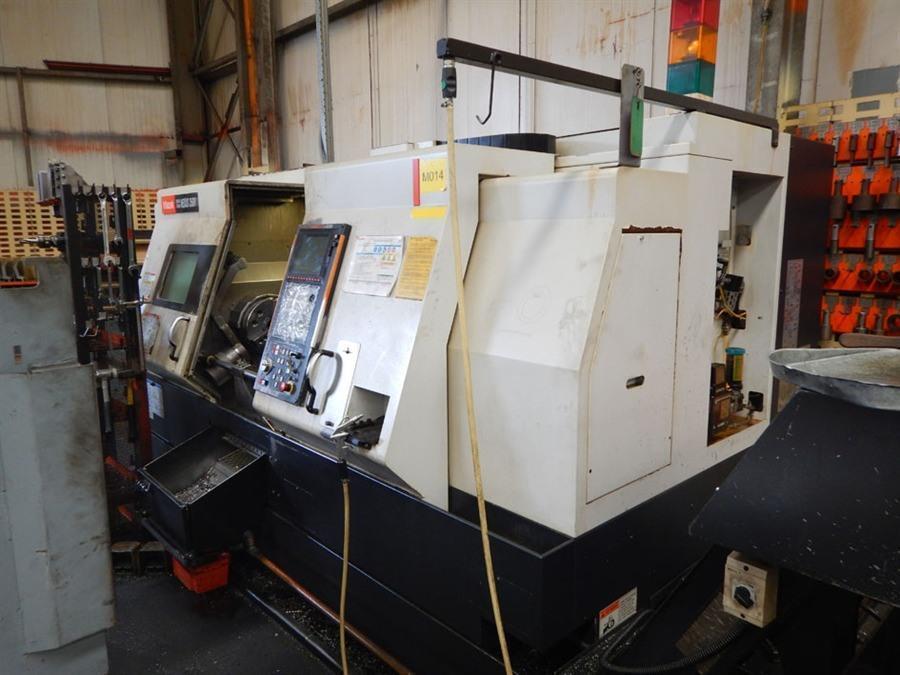

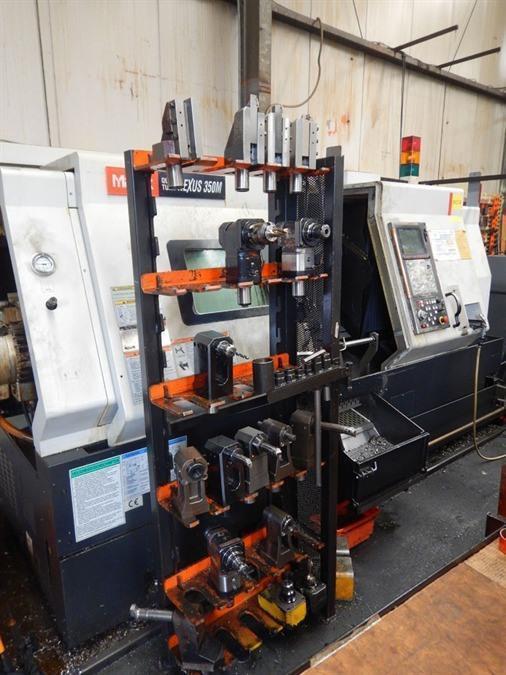

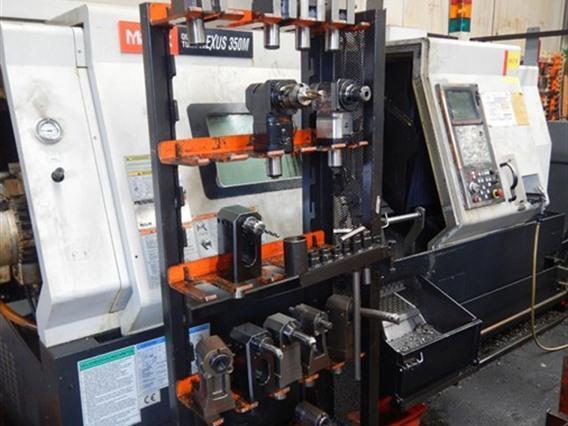

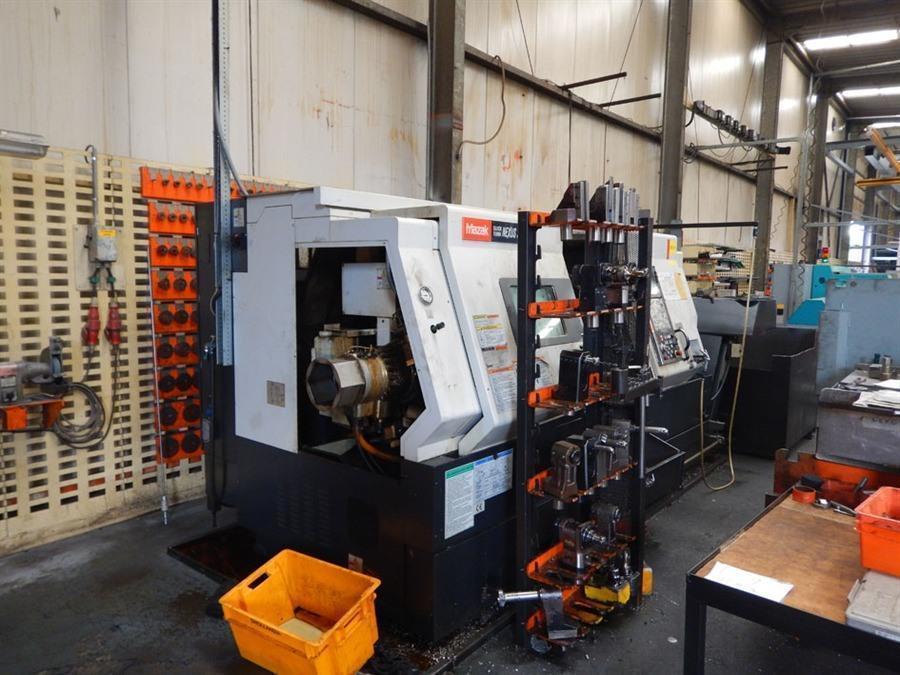

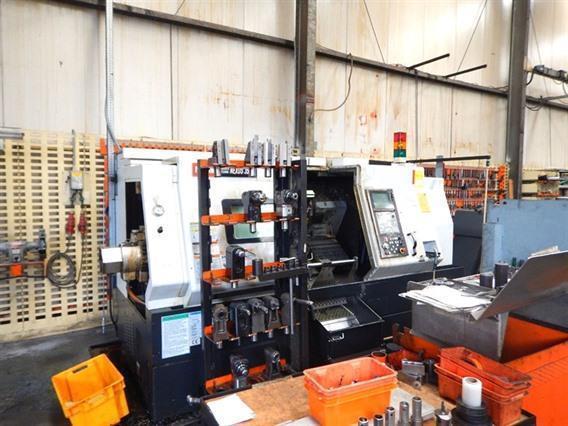

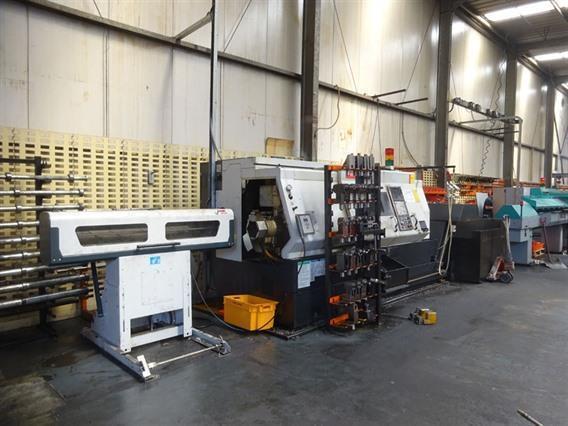

CNC lathes Mazak QT Nexus 350M Ø 750 x 1173 mm
Technical information

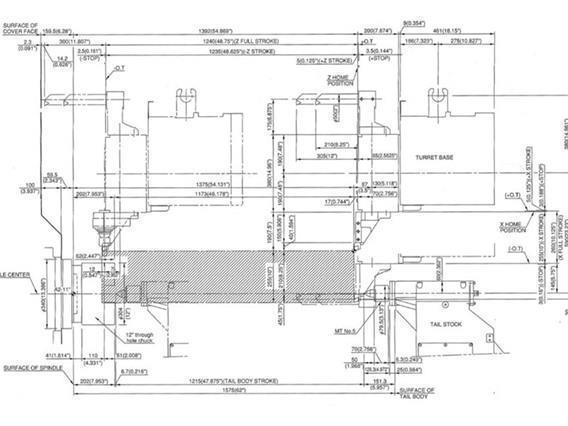

- Swing over bed750 mm
- Swing over cross-slide530 mm
- Distance centre tot centre1173 mm
- Max longitudinal travel Z-axis1240 mm
- Max cross travel X-axis260 mm
- Spindle coneA2-11
- Dia of spindle bore112 mm

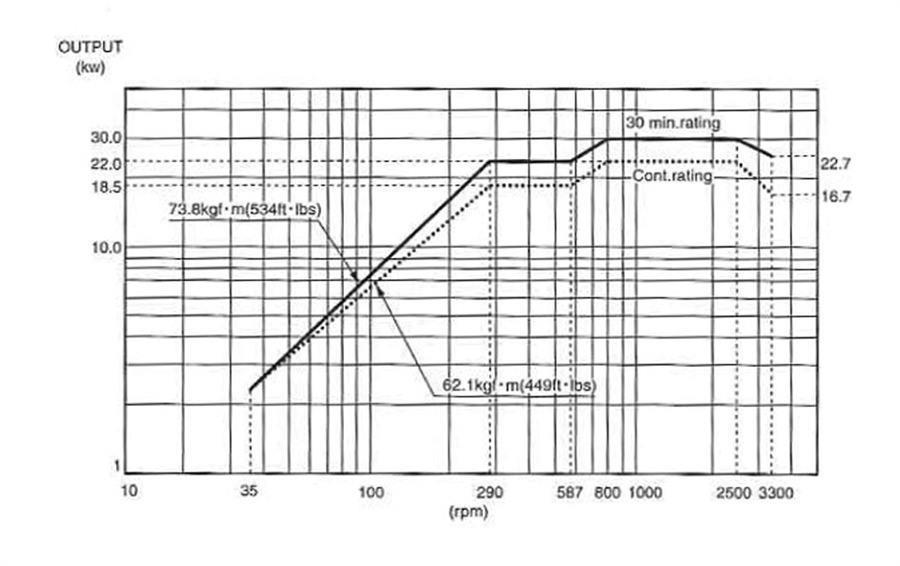

- Power on the spindle22/30 kW
- Number of speeds3300 rpm

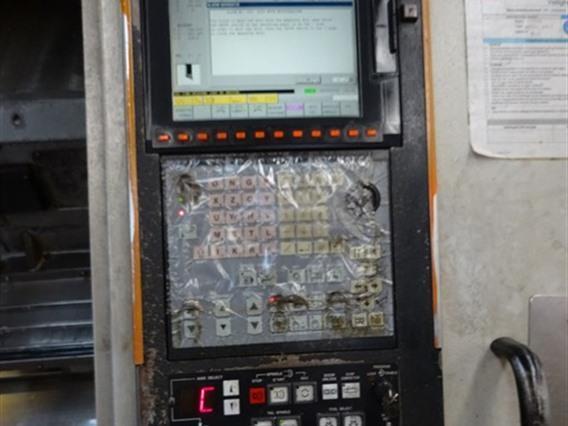

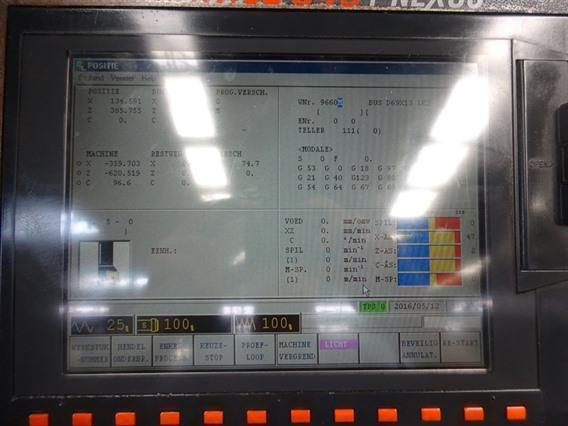

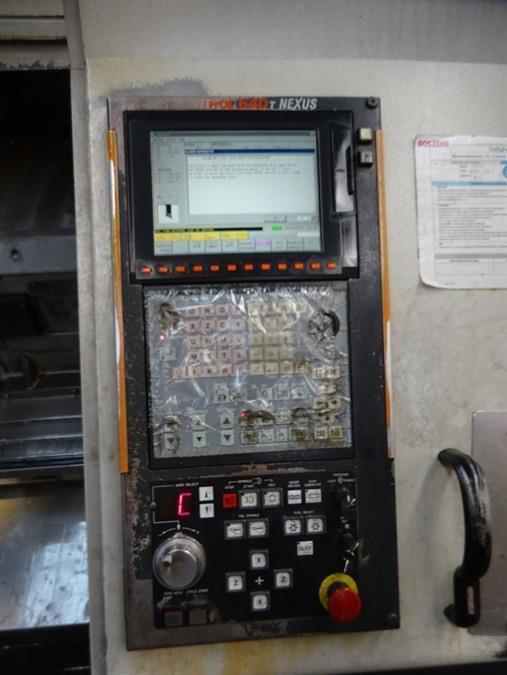

- CommandMazatrol
- Total power needed43,3 kVa
- Length3950 mm
- Width1900 mm
- Height2000 mm
- Weight7,9 ton
- Toolchangeryes

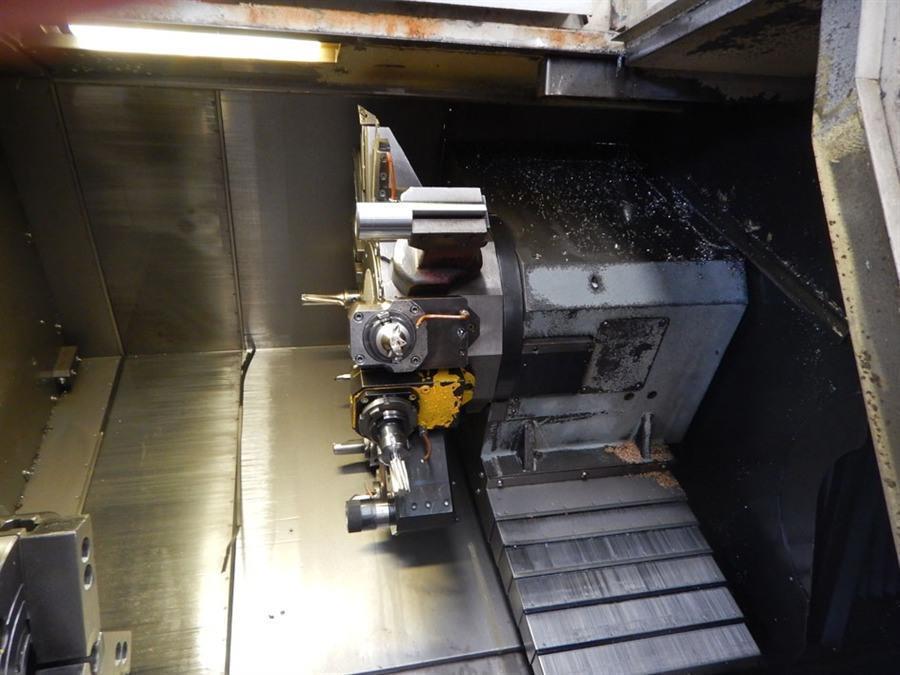

- Number of tools12 tools
Additional info

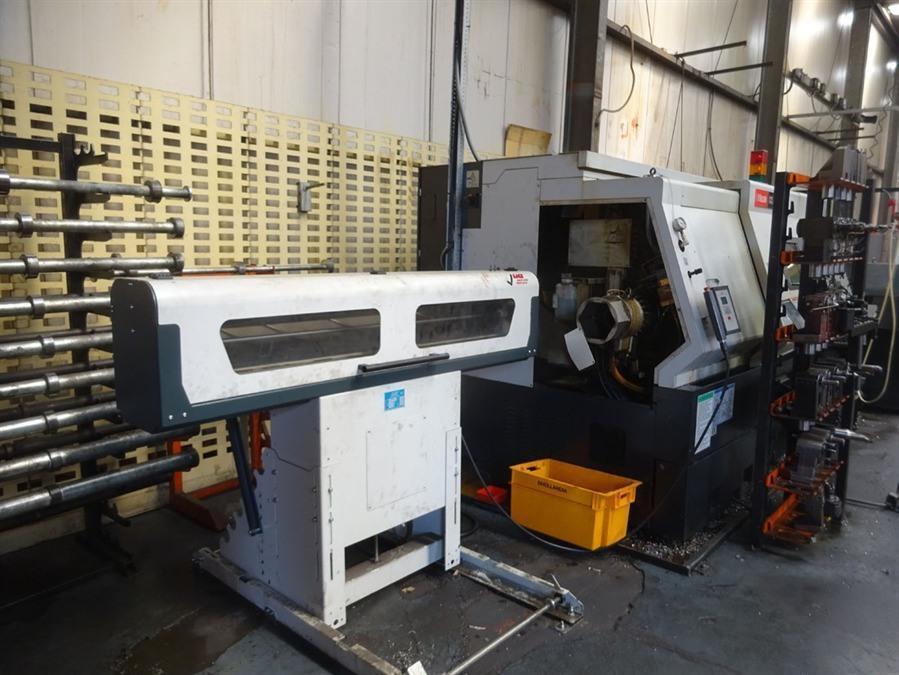

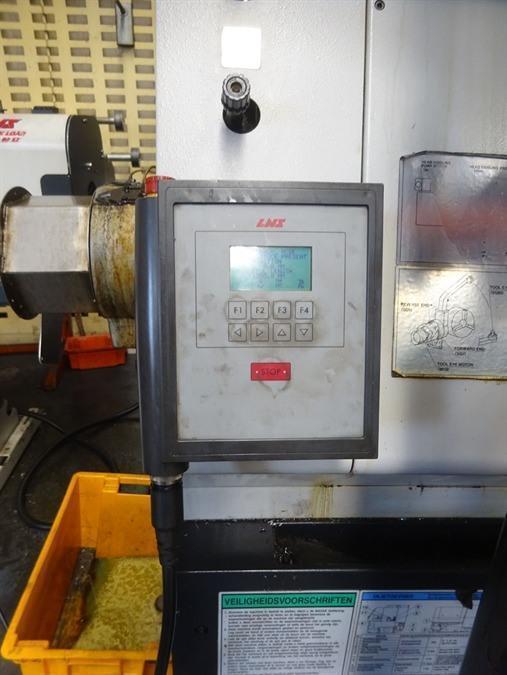

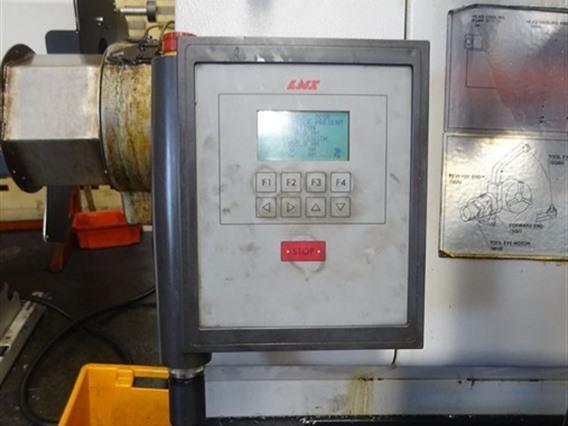

- LNS Barfeeder 1500 mm optional
tools not included
- Type/Model: Ø 750 x 1173 mm
- Stocknumber: A.07 8956
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Mazak QT Nexus 350M
