CNC lathes Mazak Multiplex 620 + barfeeder Ø 390 x 1180 mm

Technical information

Swing over bed390 mm
Swing over cross-slide390 mm
Distance centre tot centre1180 mm
Max longitudinal travel Z-axis430 / 485 mm
Max cross travel X-axis230 mm
Spindle coneA2-6
Dia of spindle bore50 mm
Power on the spindle20 hp
Number of speeds35-4000 rpm
CommandMazatrol T32-6
Chuck200 mm
Toolchangeryes
Number of tools2x 12 tools

Additional info

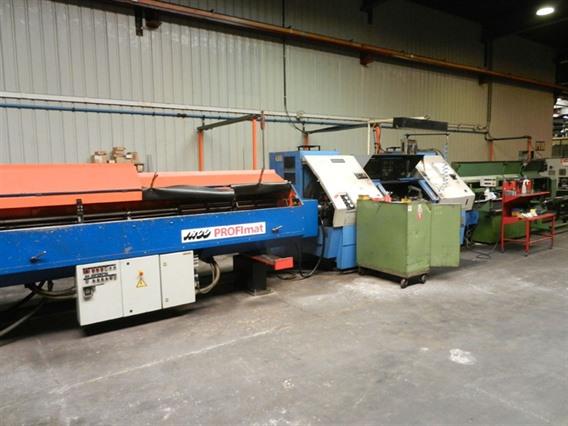

Barfeeder 3000 mm and automatic workpiece ejector
with additional tools
Type/Model: Ø 390 x 1180 mm
Stocknumber: A.07 7971
Main category: [A] Lathes
Sub category: [A.07] CNC lathes
Brand: Mazak Multiplex 620 + barfeeder

Stocknumber: A.07 7971

Sold
Sold
Sold
Sold
Sold
Sold
Sold

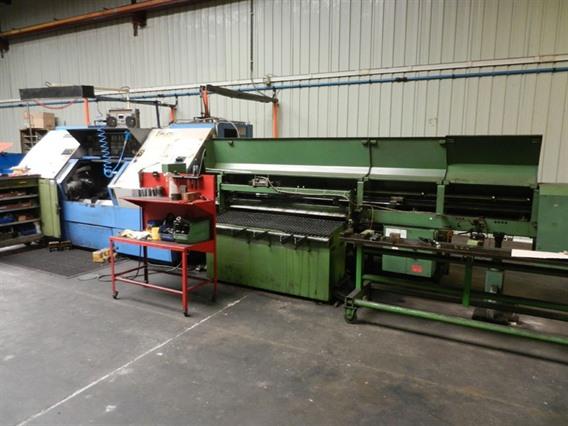

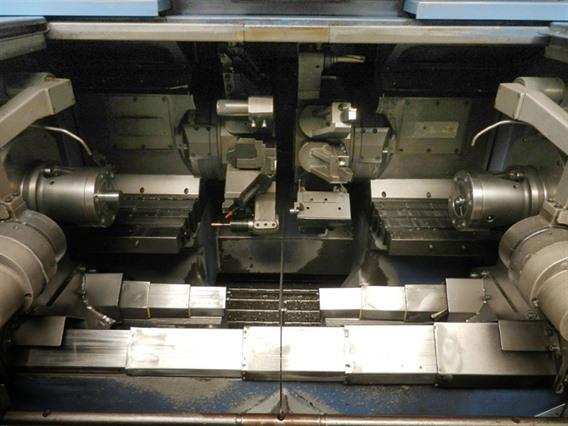

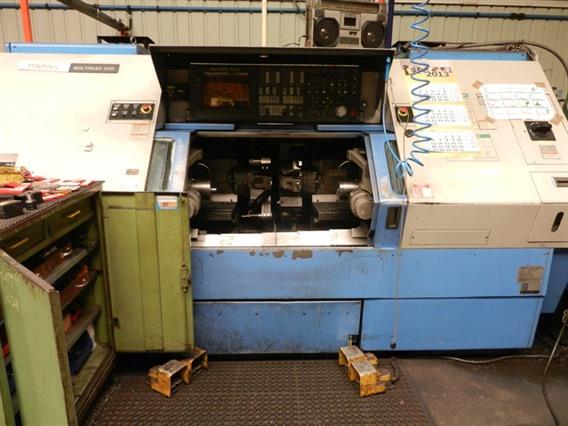

Mazak Multiplex 620 + barfeeder Ø 390 x 1180 mm

Download all pictures in ZIP
