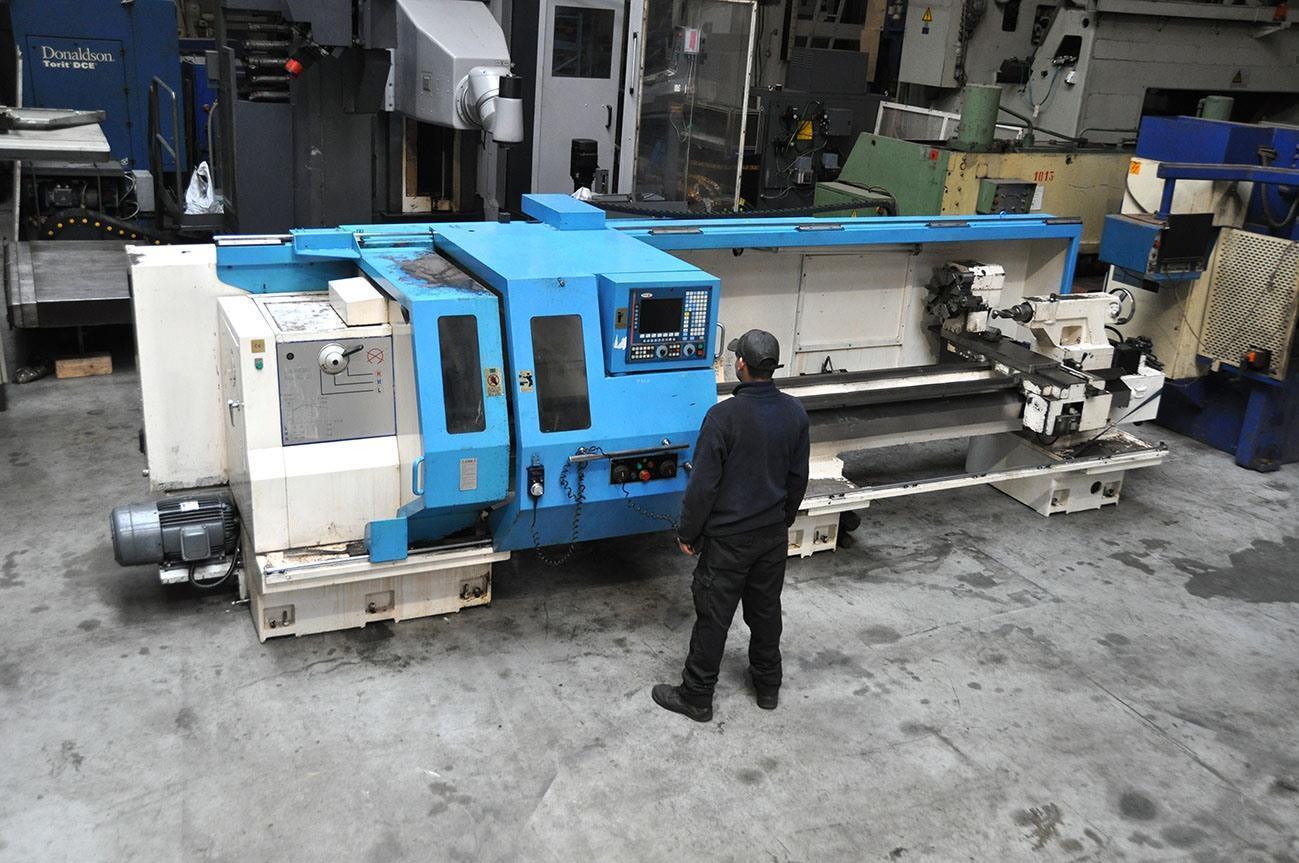

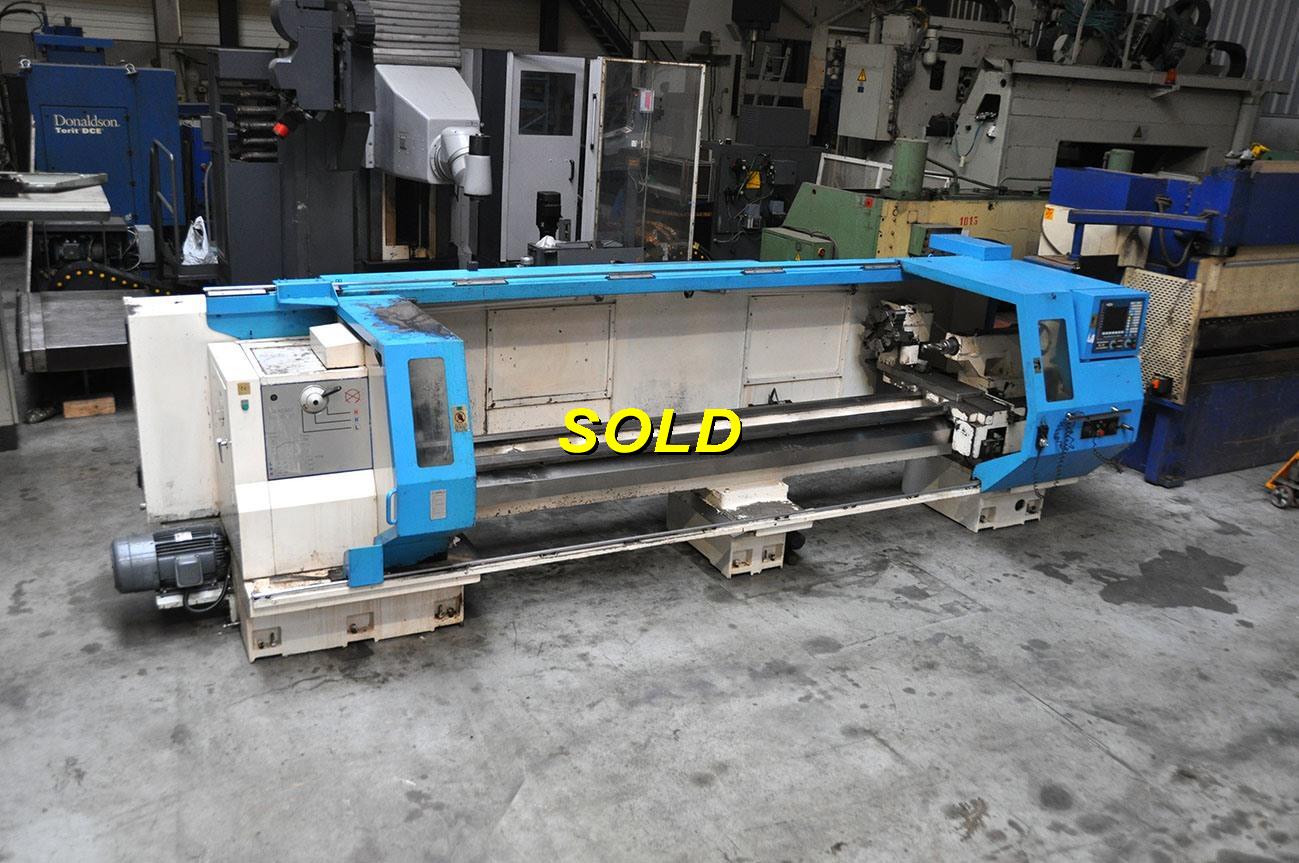

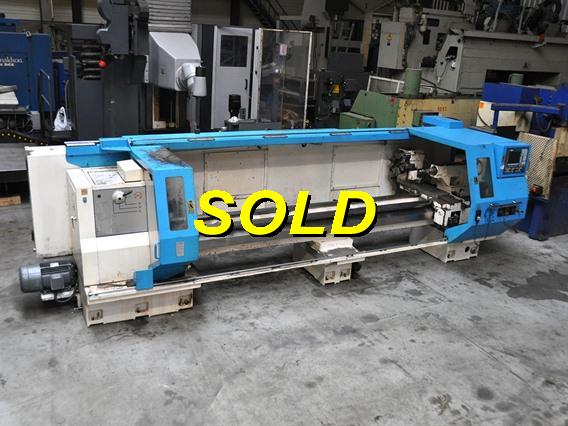

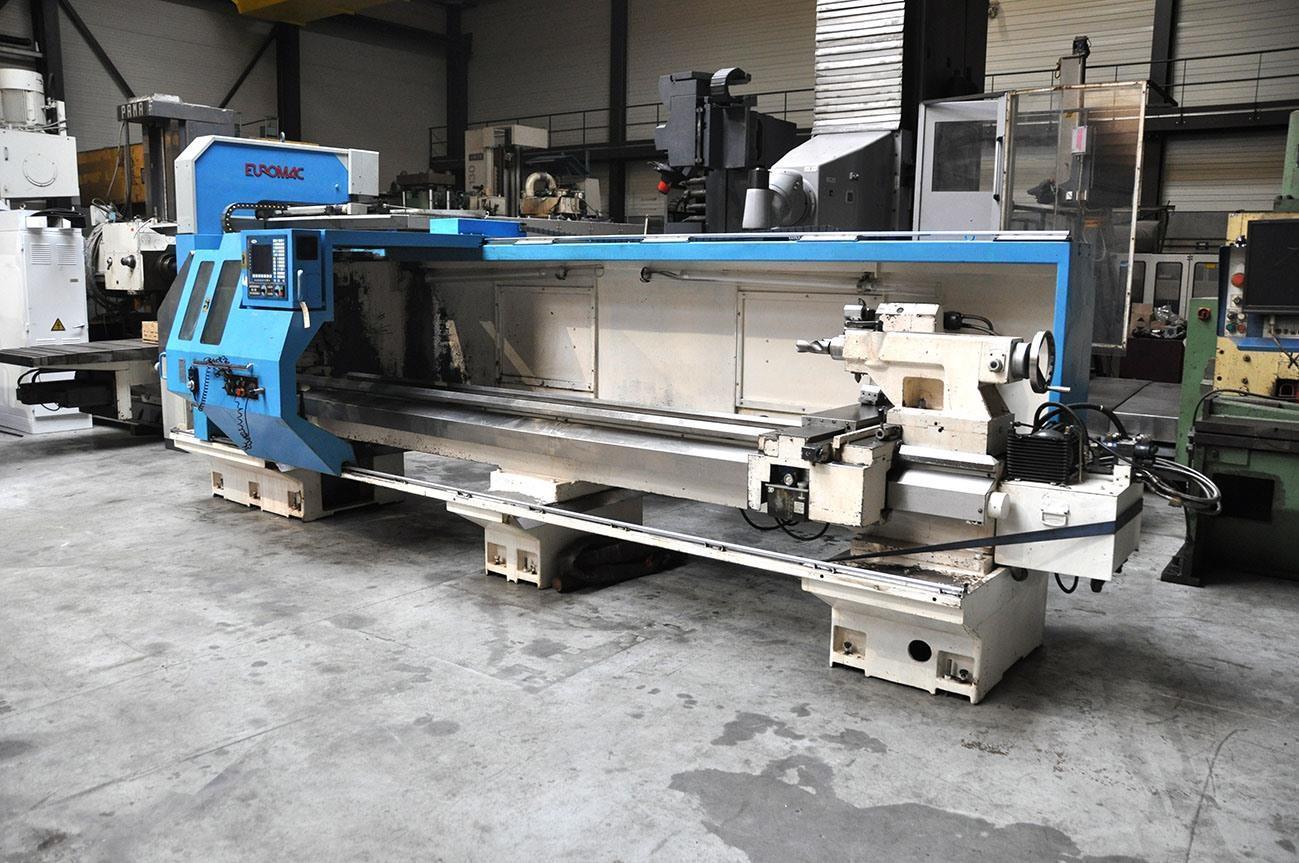

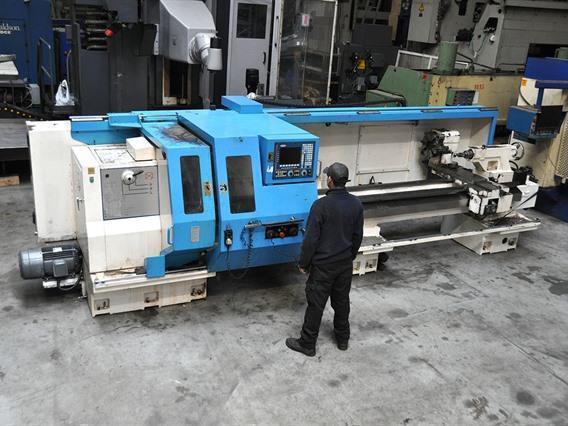

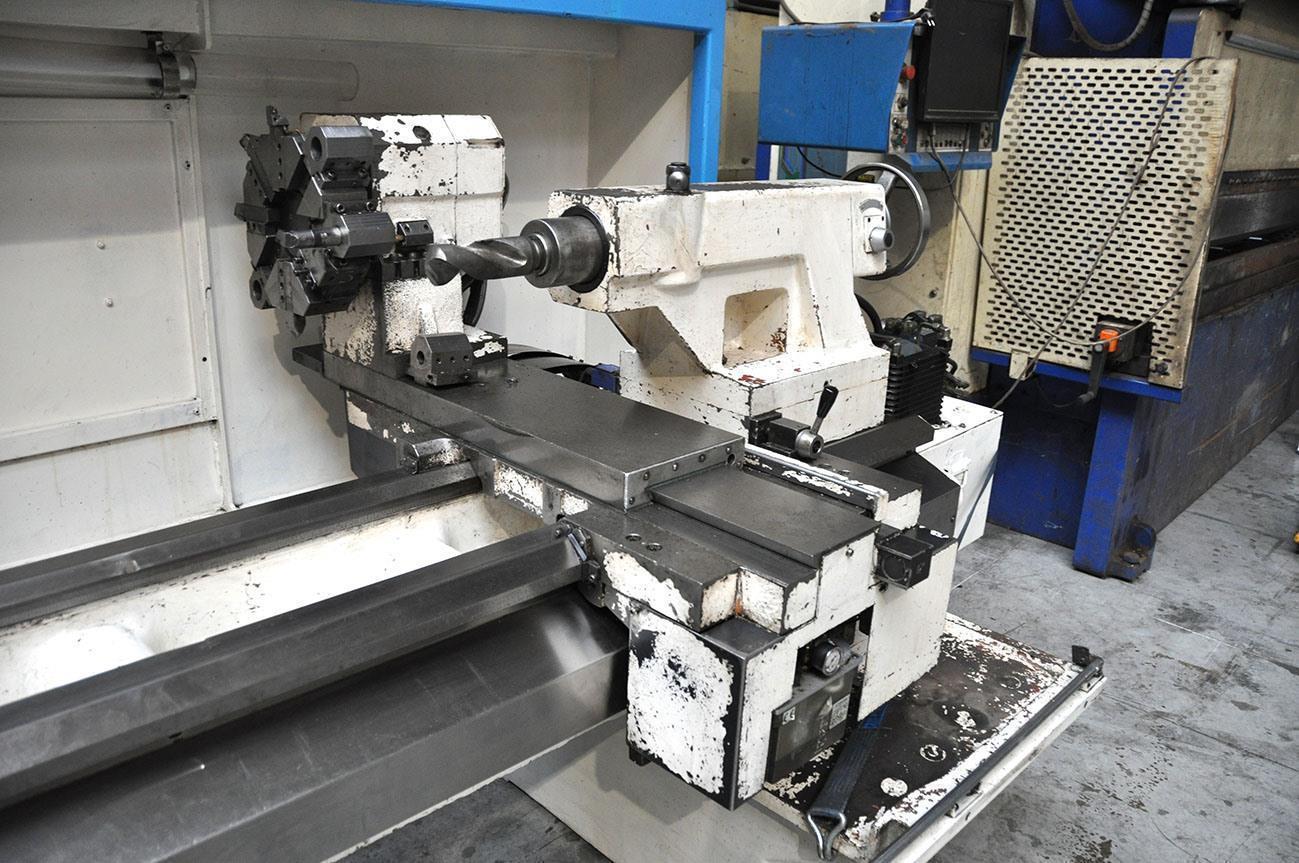

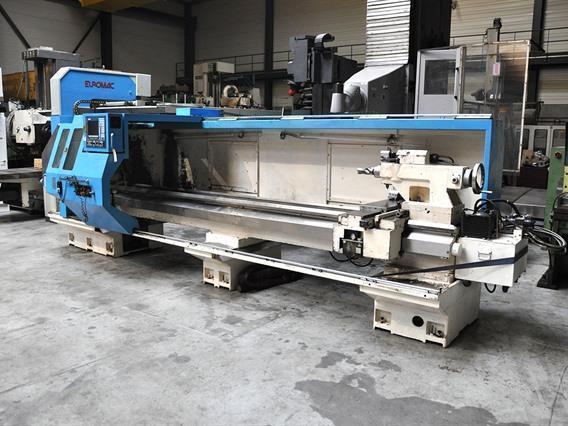

Jesco Jaguar 30160HS Ø 840 x 4100 mm CNC
Technical information

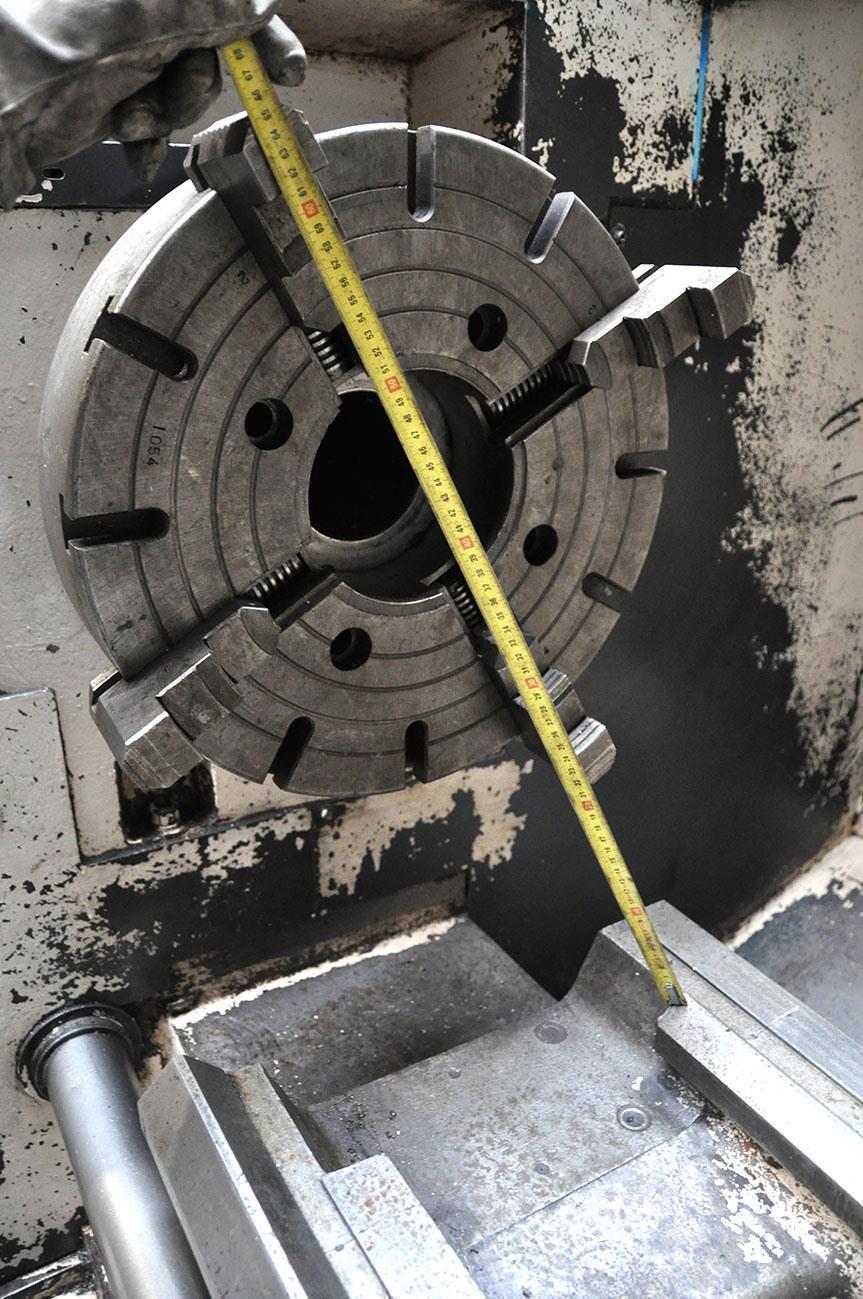

- Swing over bed840 mm
- Swing over cross-slide560 mm
- Distance centre tot centre4100 mm

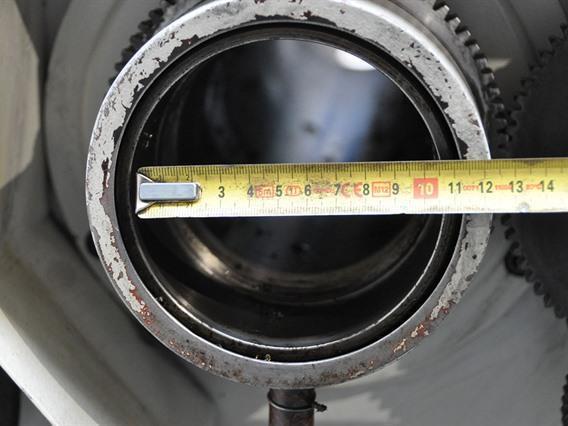

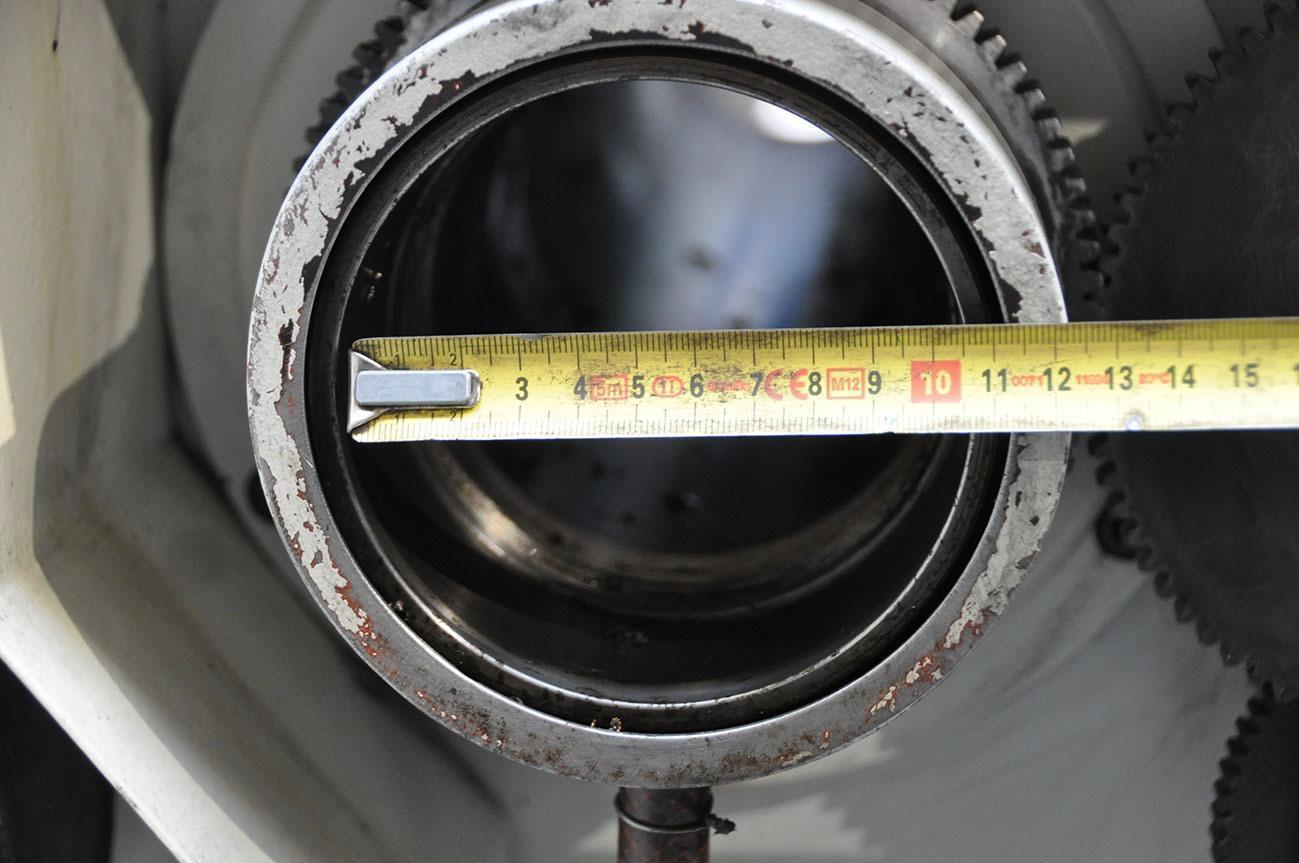

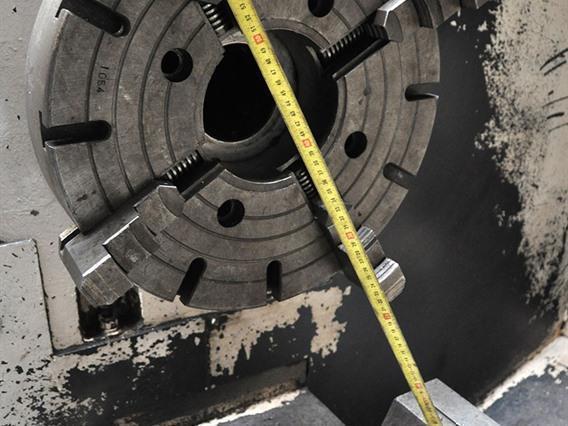

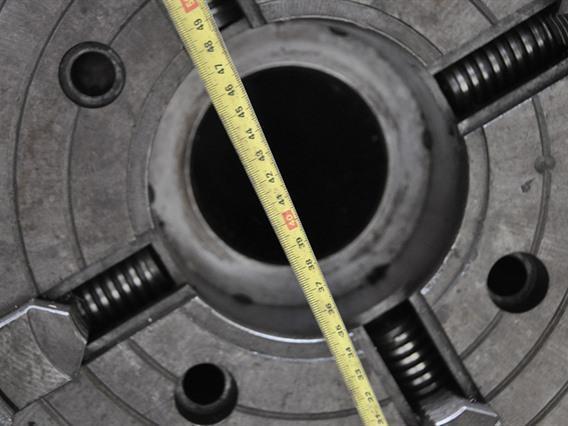

- Dia of spindle bore105 mm
- Power on the spindle15 kW

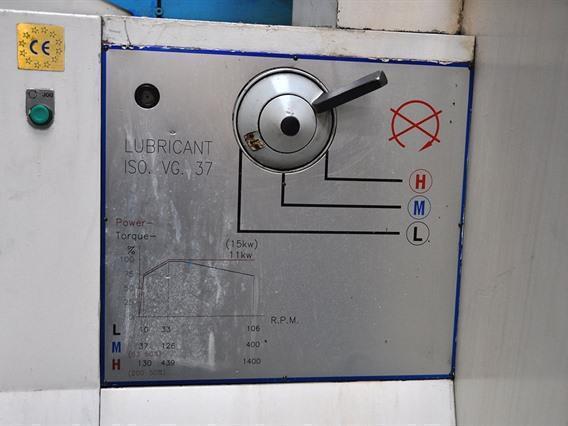

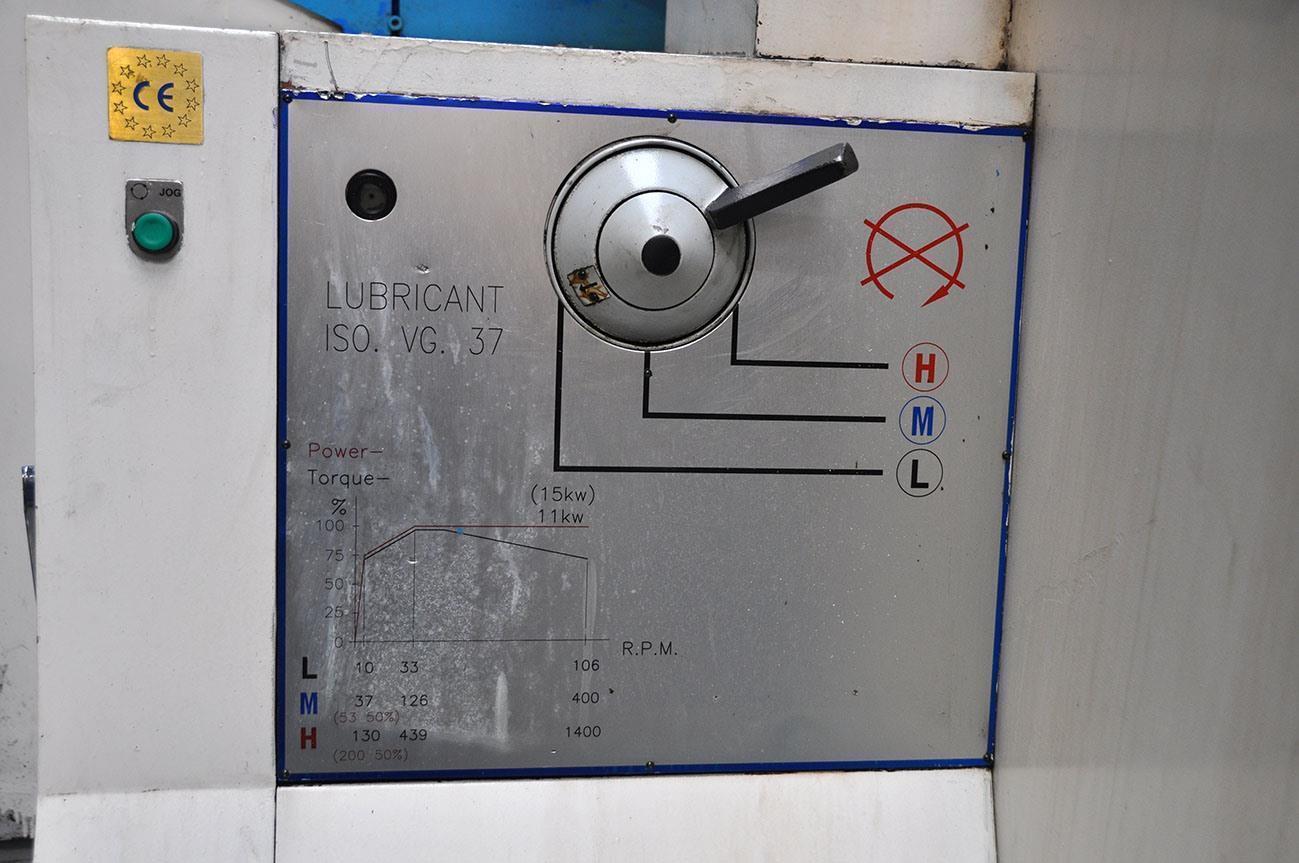

- Number of speeds10 > 1400 rpm

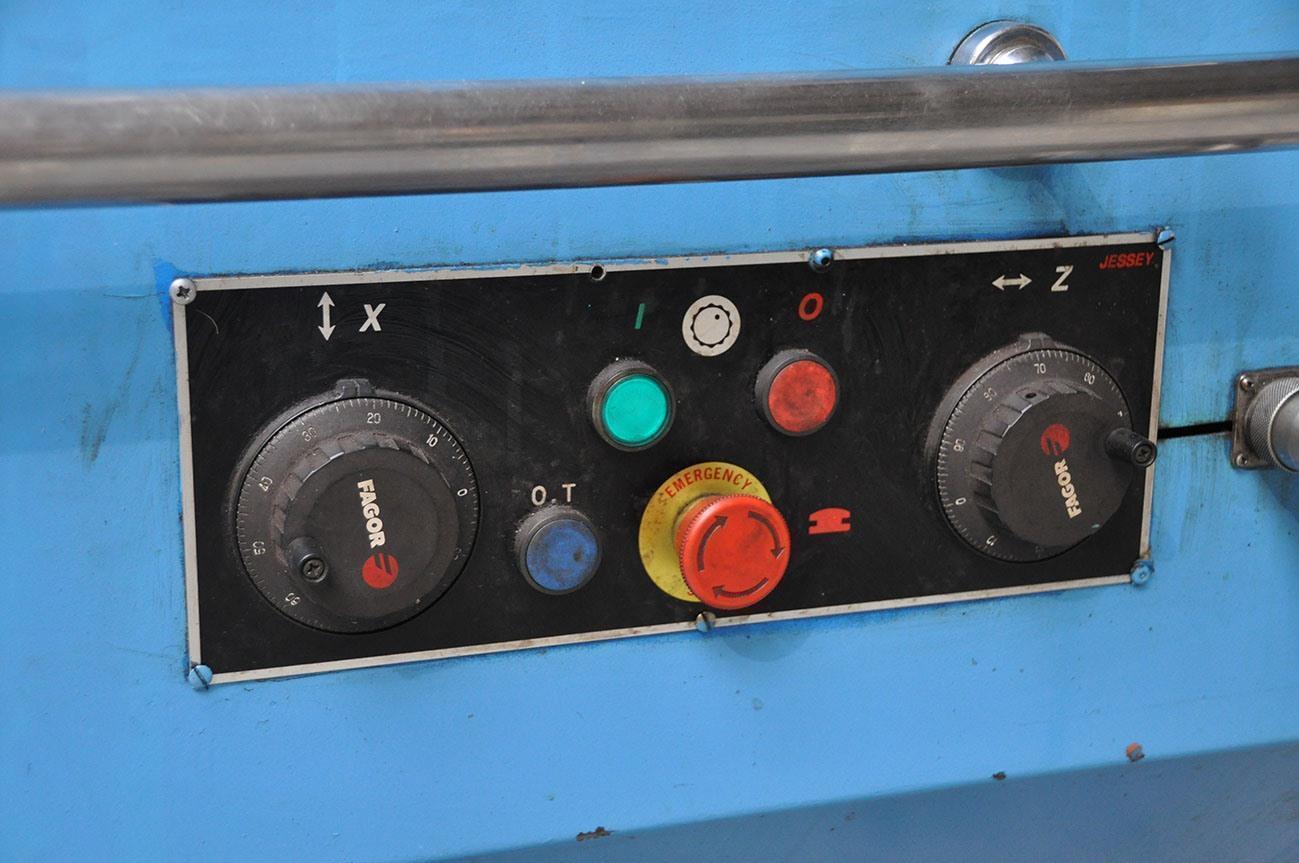

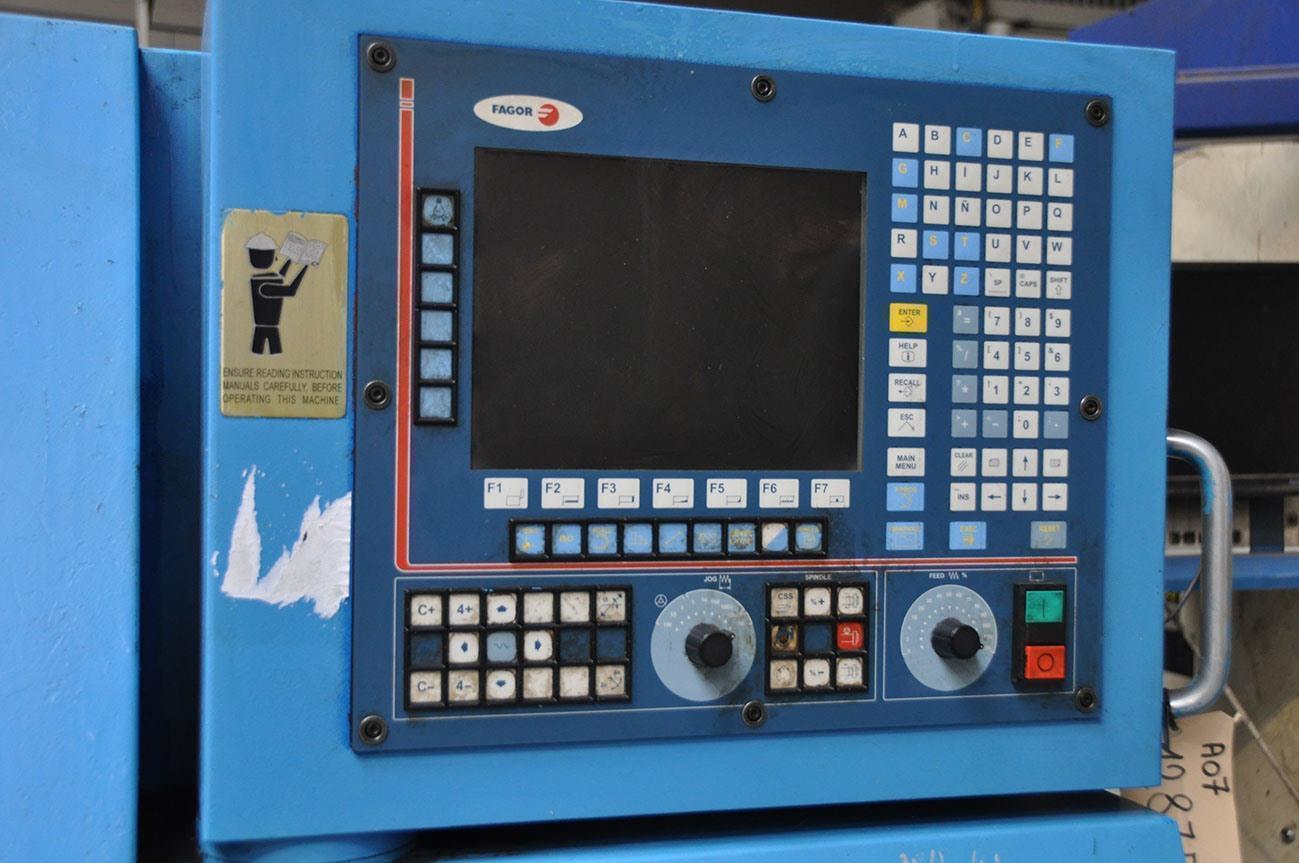

- CommandFagor 8055
- Length6500 mm
- Width2100 mm
- Height2000 mm
- Weight8500 kg

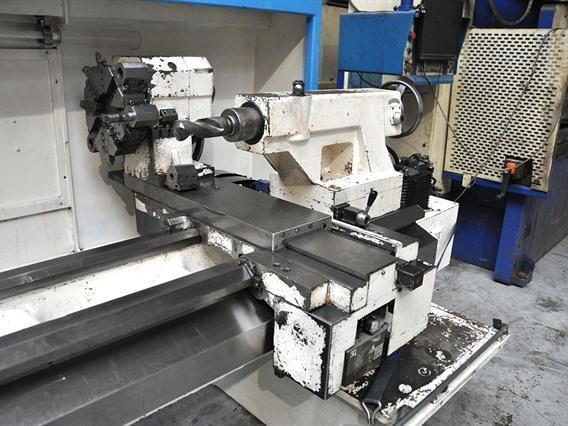

- Toolchangeryes

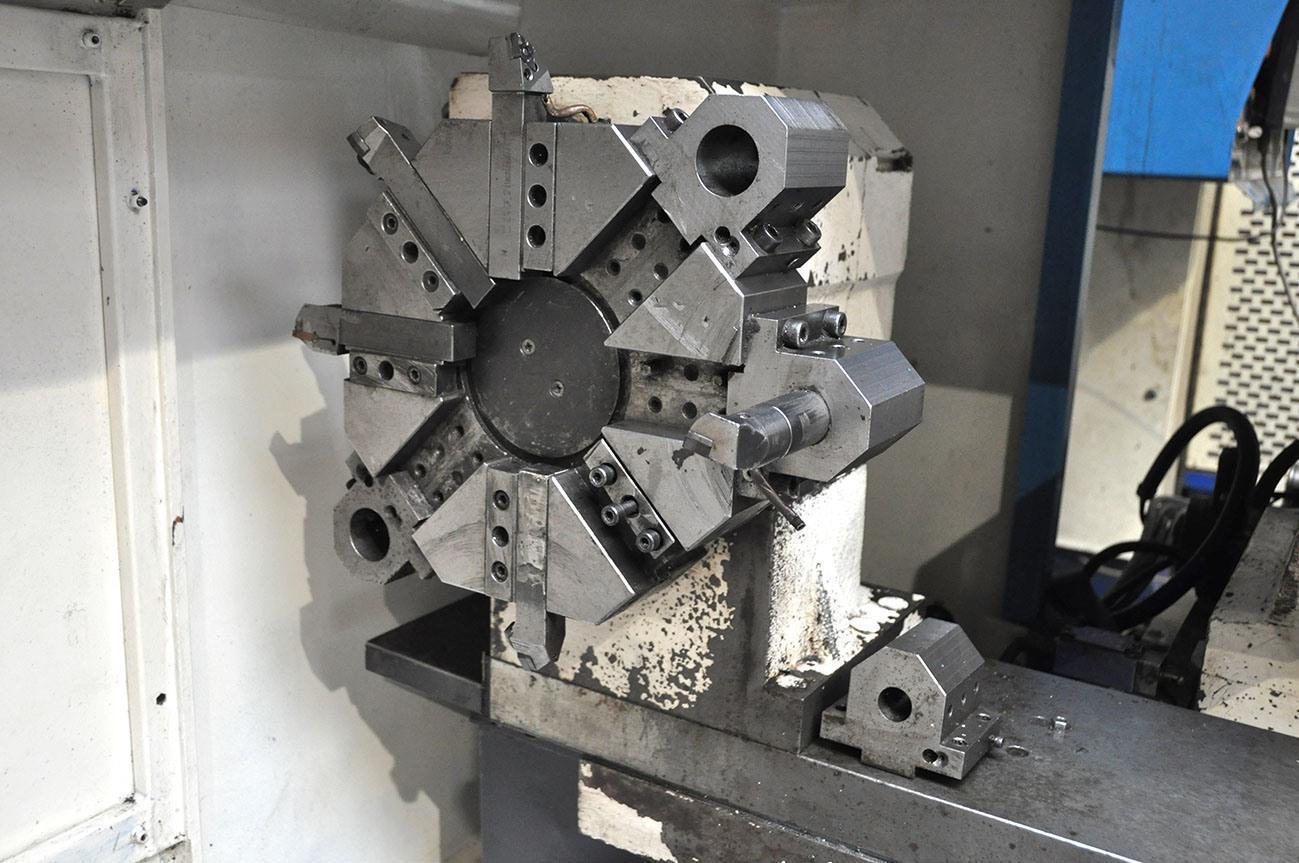

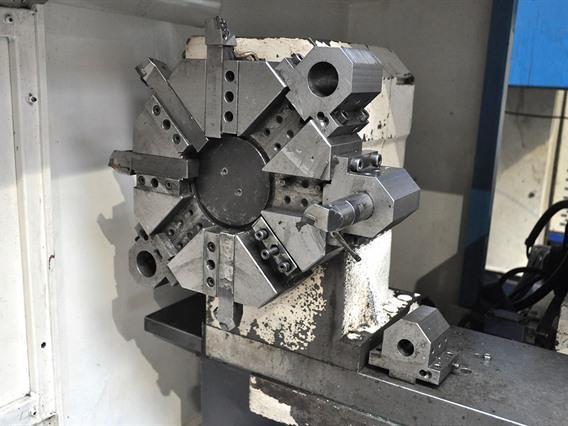

- Number of tools8 positions
Additional info

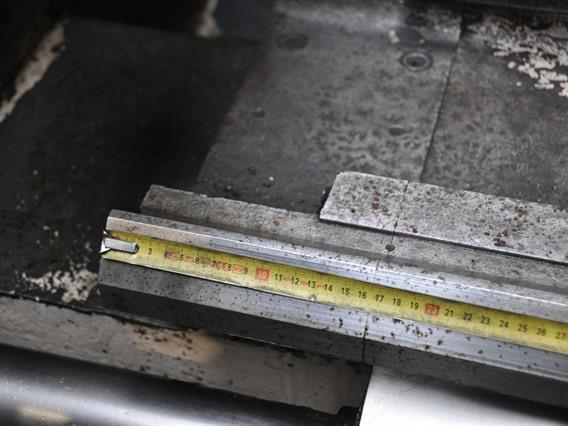

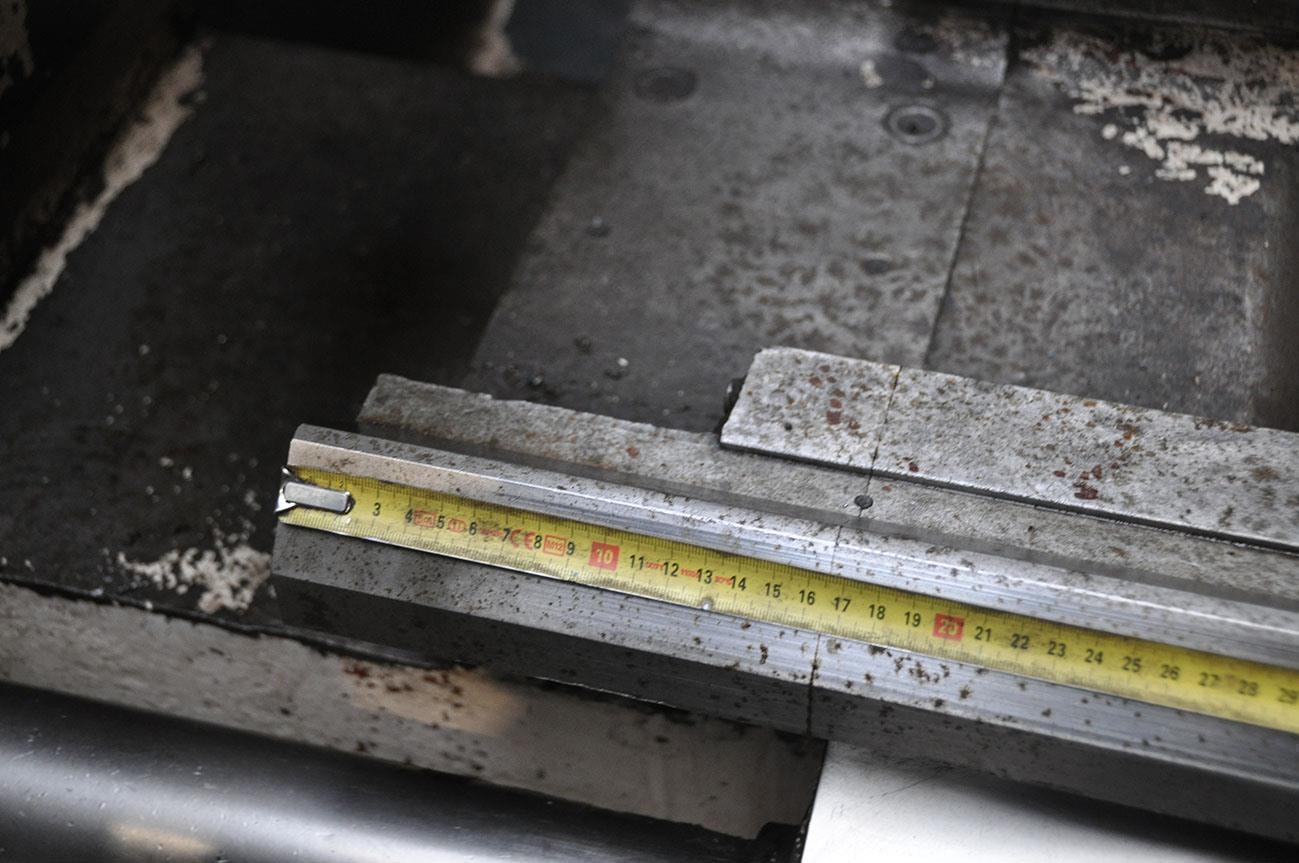

- Swing in gap: 1100 mm (length of gap: 165 mm)

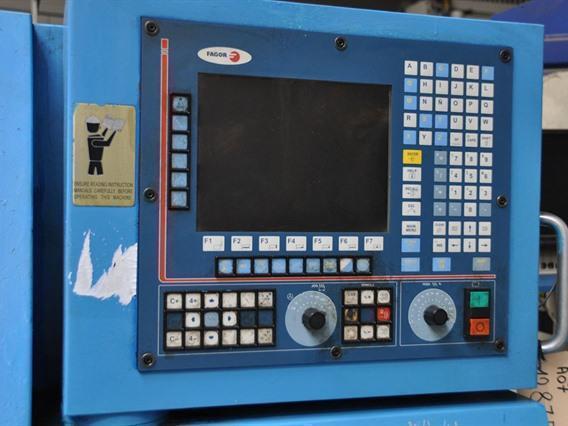

new Fagor 8055 control
- Type/Model: 30160HS Ø 840 x 4100 mm CNC
- Stocknumber: A.07 12875
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Jesco Jaguar
