Gildemeister CTX 420 Linear + barfeeder
Technical information
- Swing over bed680 mm
- Swing over cross-slide565 mm
- Max longitudinal travel Z-axis635 mm
- Max cross travel X-axis260 mm
- Dia of spindle bore68 mm
- Power on the spindle35 kW

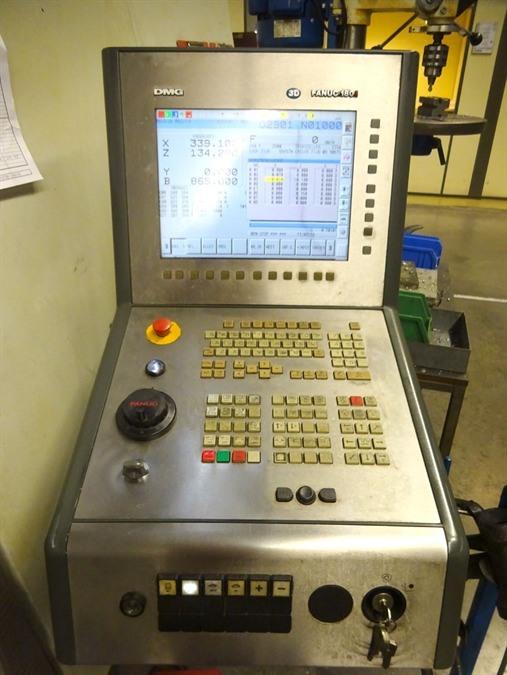

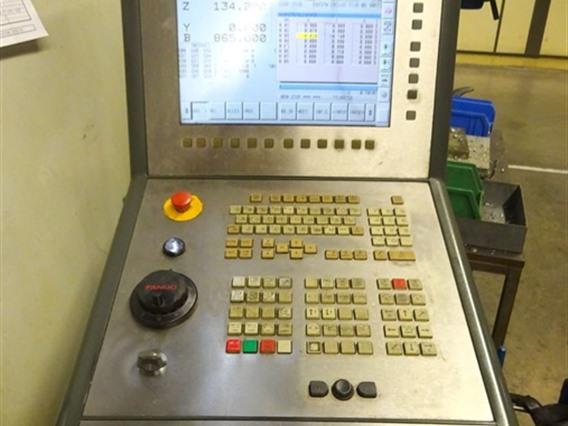

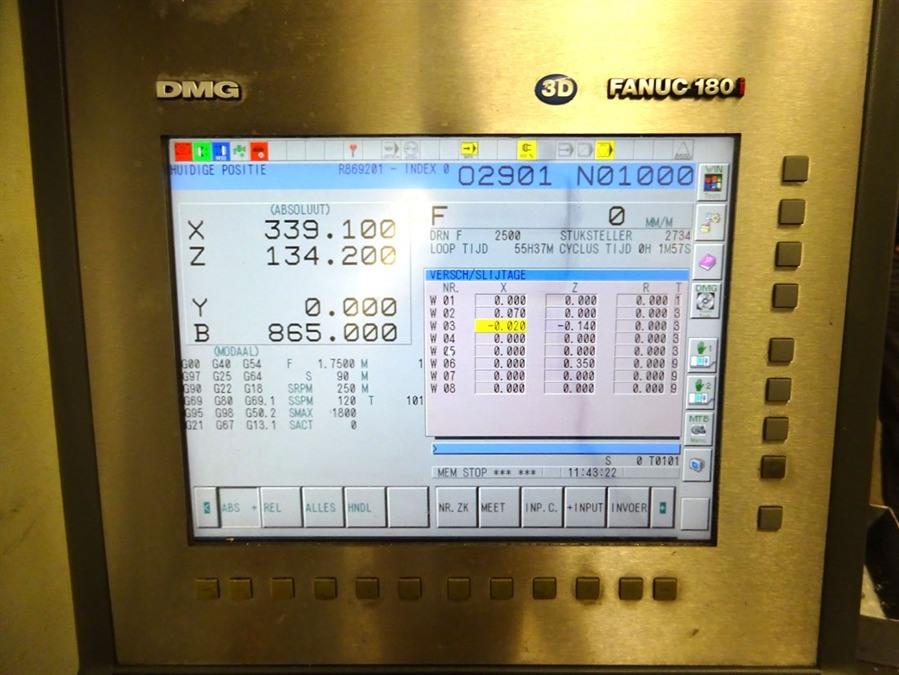

- CommandFanuc
- Current needed400V - 50 kVa
- Length4900 mm
- Width2500 mm
- Height2100 mm
- Weight6,5 ton

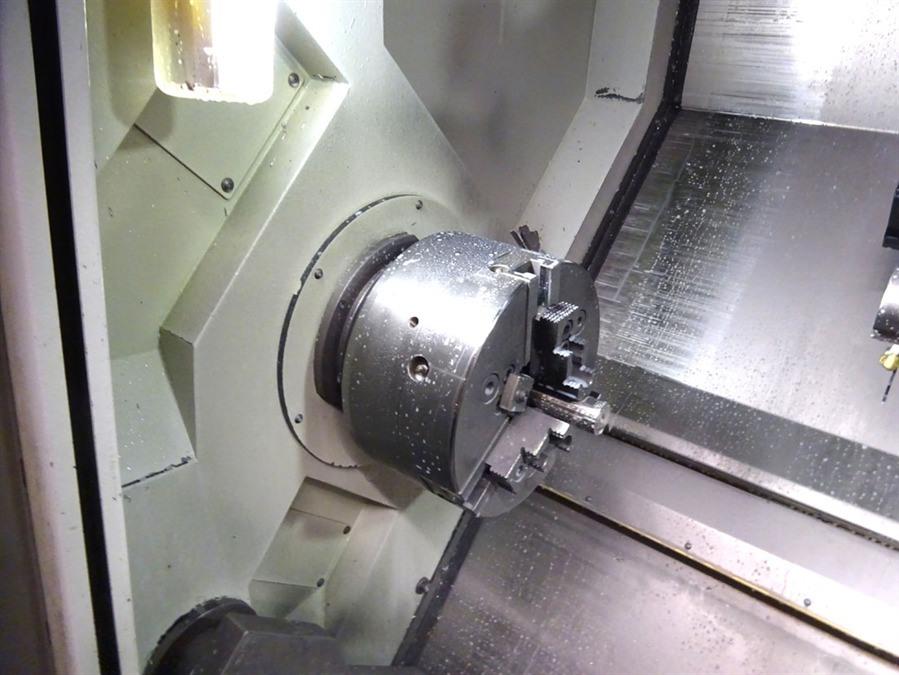

- Chuckdia 200/250 mm
- Toolchangeryes

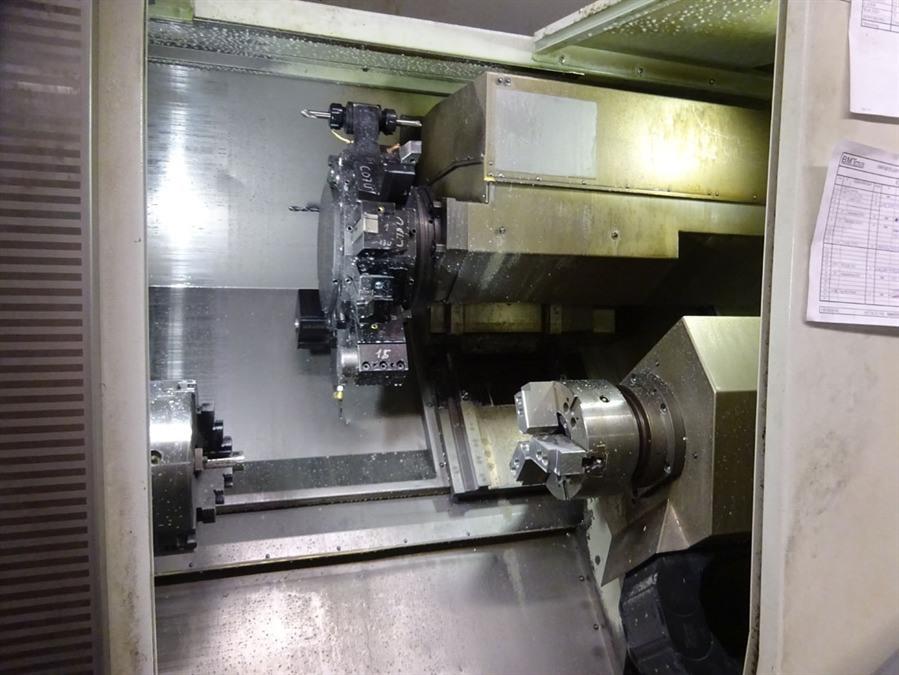

- Number of tools12 driven VDI-tools
Additional info

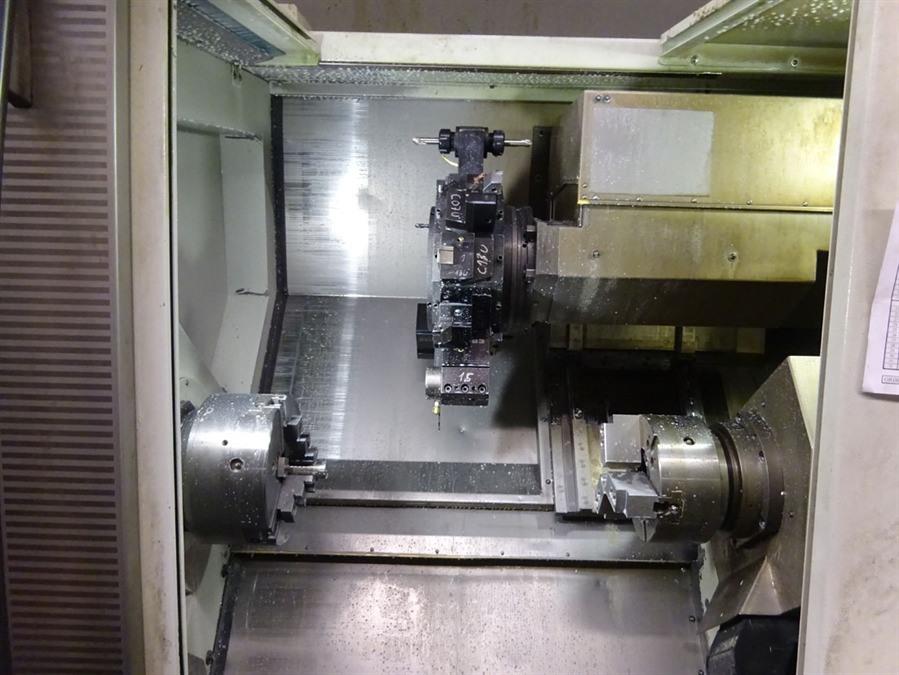

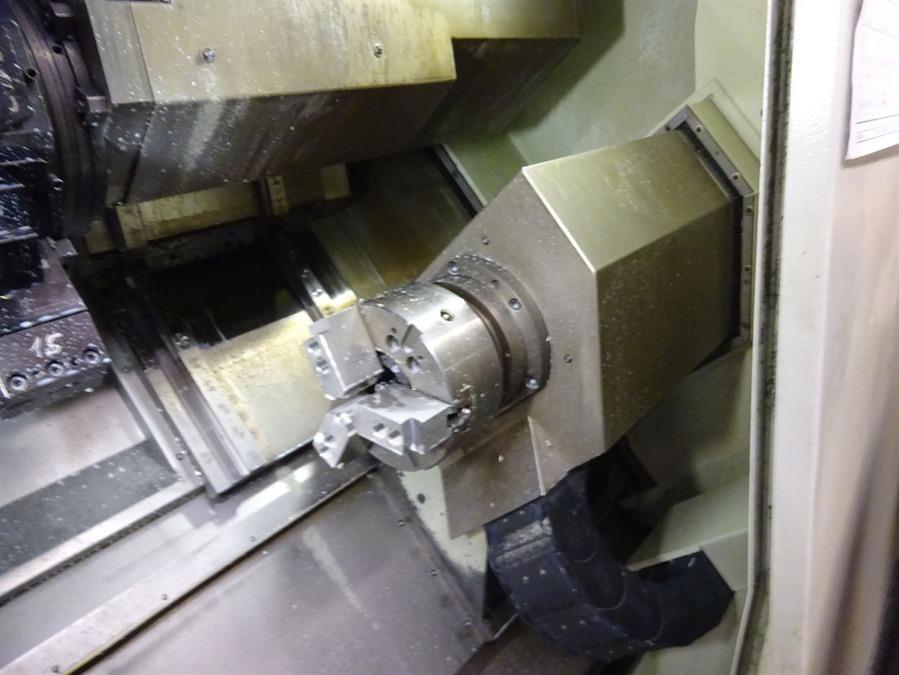

V6 version = with subspindle (C-axis)
Y-axis-travel: 40 mm
High speed linear movement of X-axis

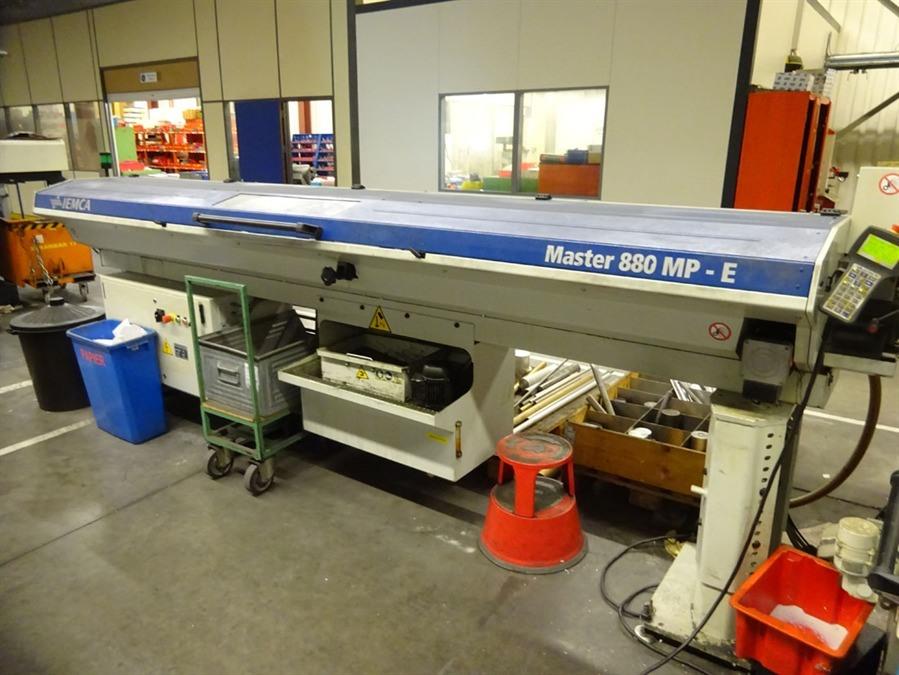

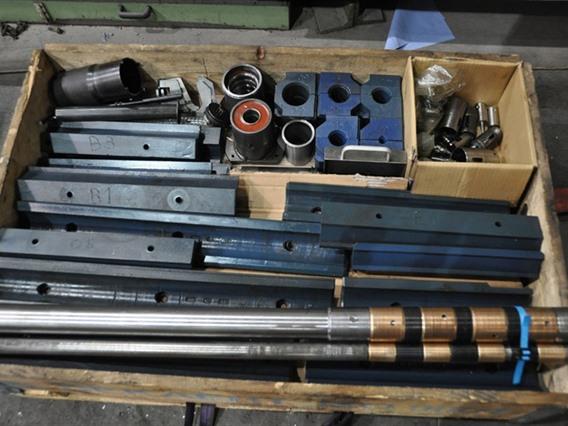

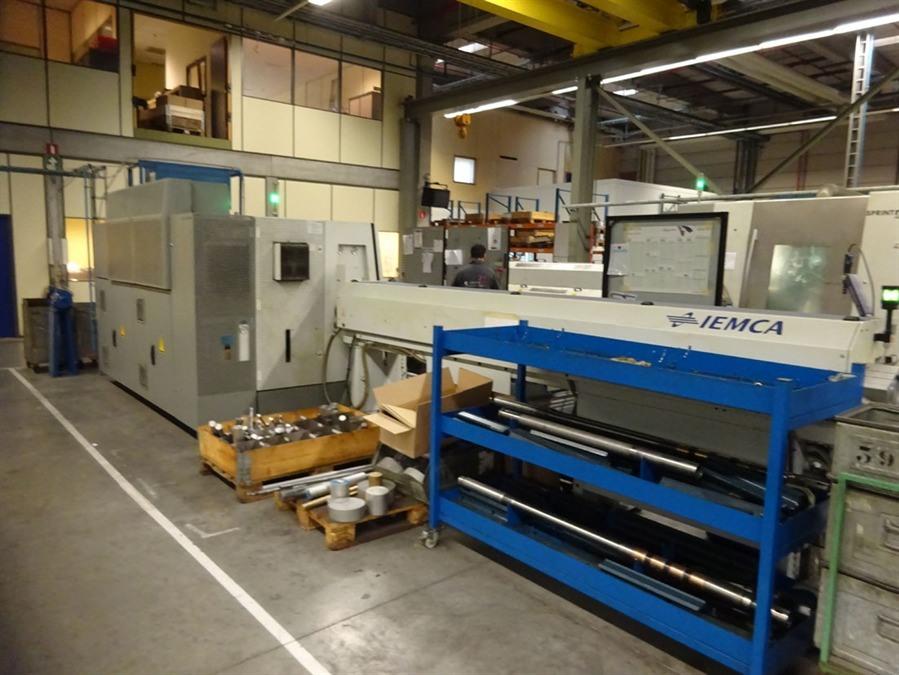

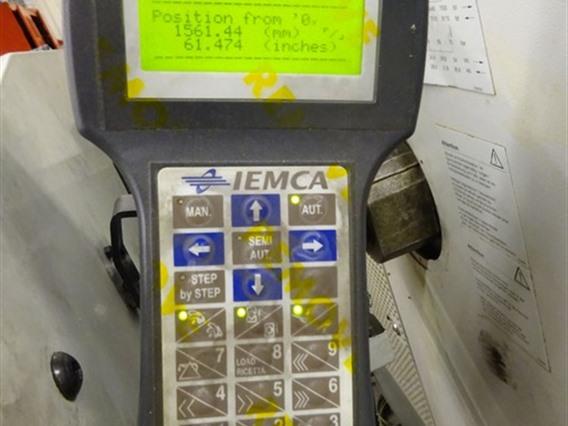

Iemca Master 8800 MP 3 meter barfeeder
Spindle 1: 5000 rpm
Spindle 2: 7000 rpm

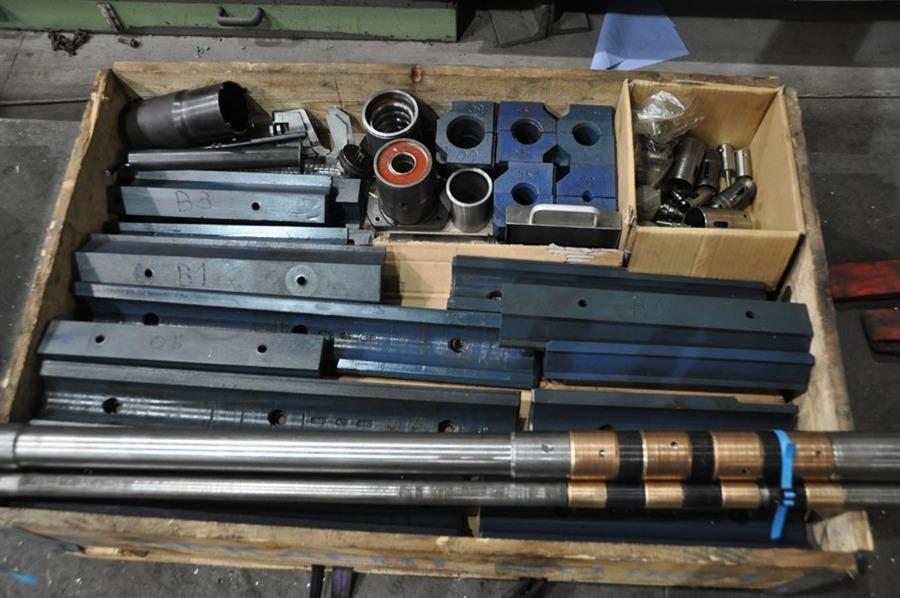

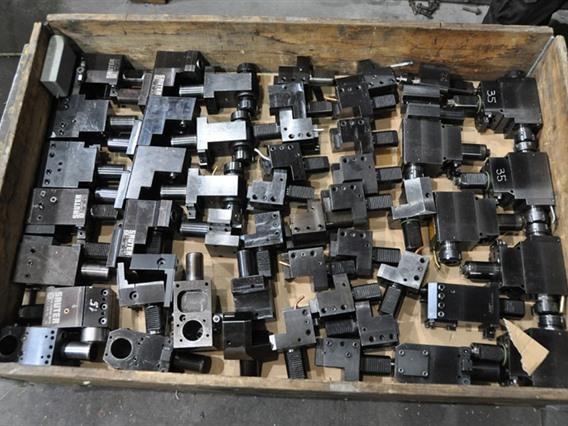

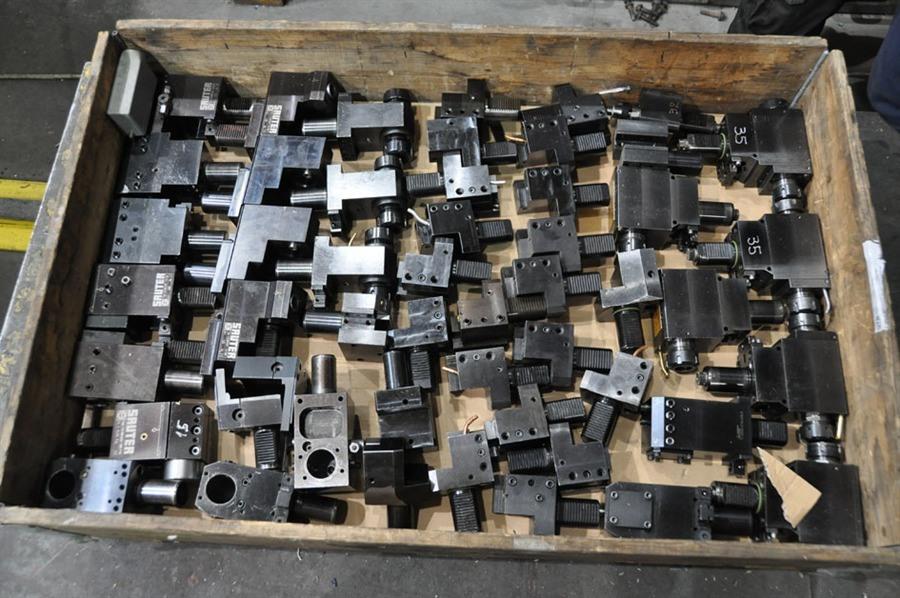

including 49 toolholders, 7 are driven
VDI-tools
- Type/Model: + barfeeder
- Stocknumber: A.07 9125
- Main category: [A] Lathes
- Sub category: [A.07] CNC lathes
- Brand: Gildemeister CTX 420 Linear
