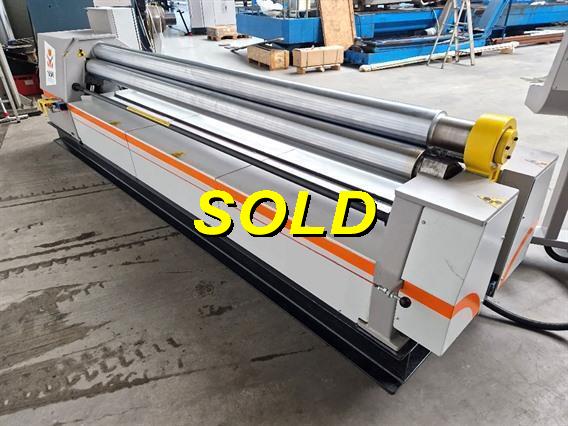

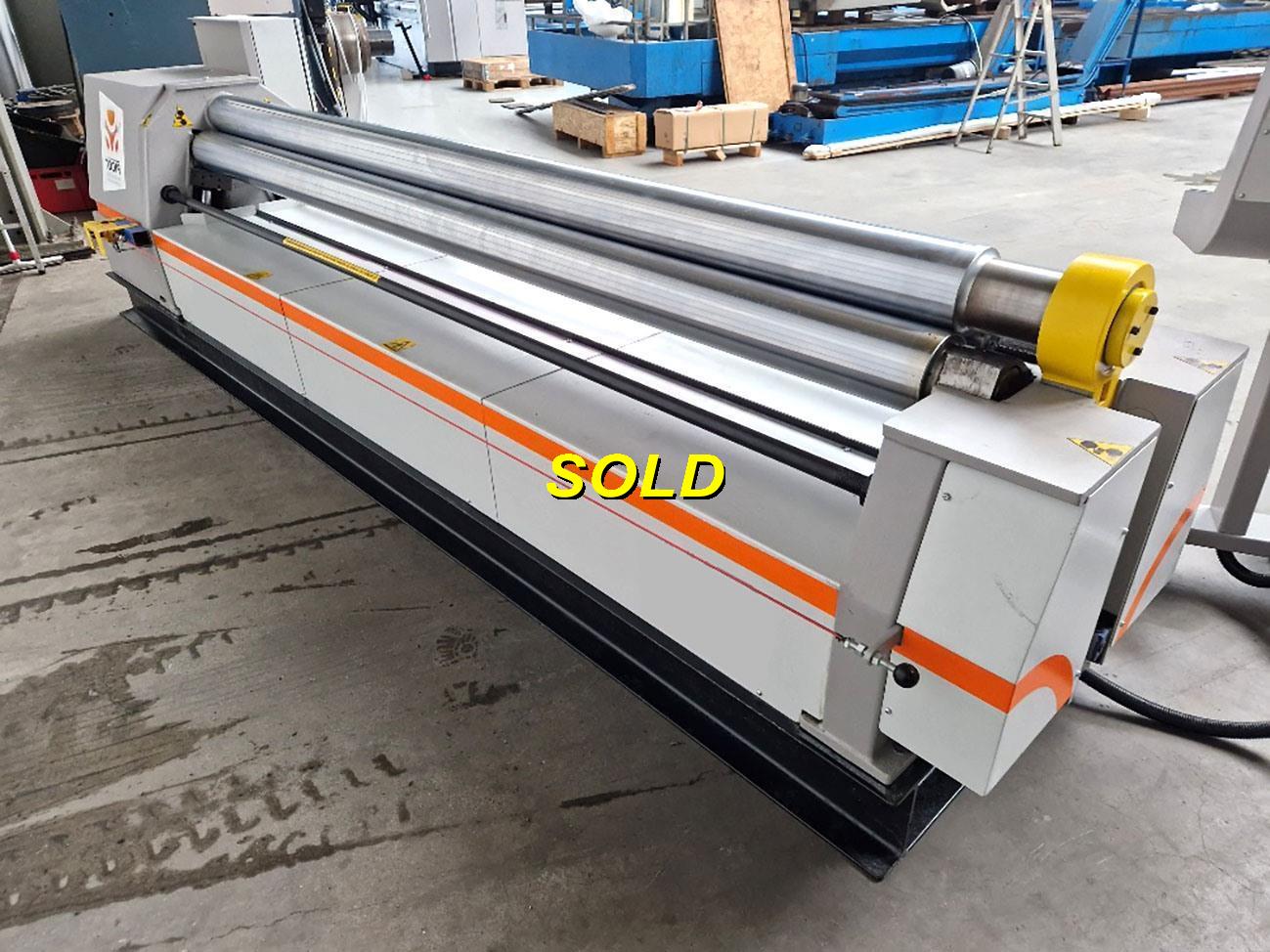

Picot RCS - 4100 x 5 mm CNC
Picot RCS 4100 x 5 mm CNC
Product added to your favorites
» Request a personalised quote
Print
Download
Favorites
Back
Technical information
Number of rolls
3 rolls
Roll capacity cold
4100 x 5 mm
Roll dia upside
205 mm
Driven rolls
3 rolls hydr driven
Power needed
5,5 kW
Additional info

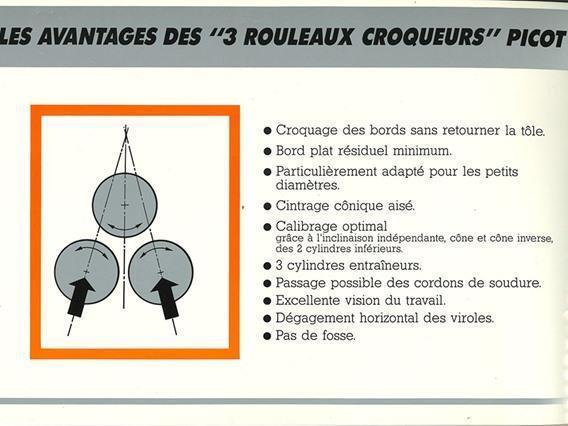

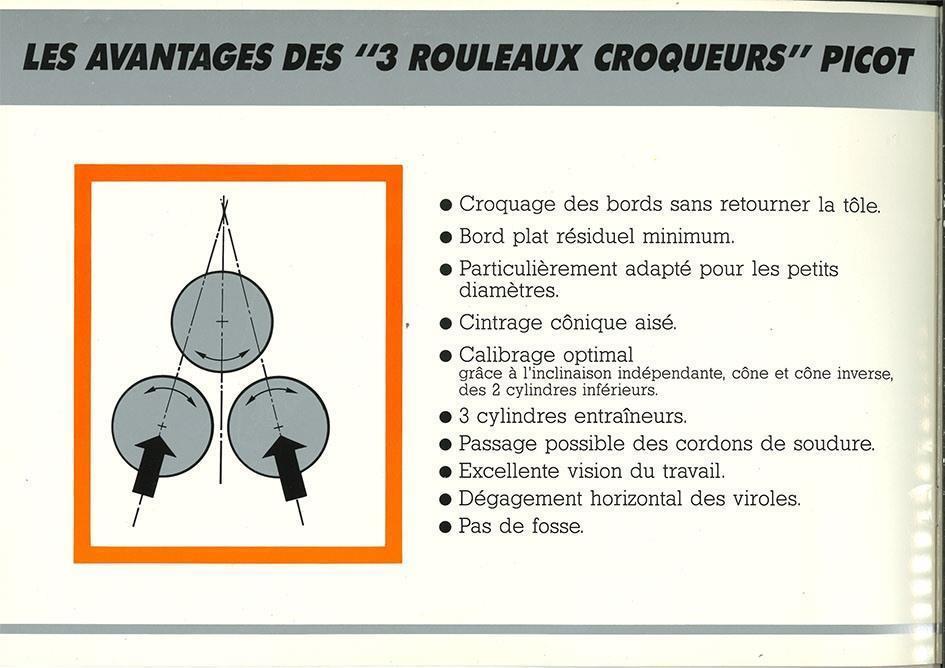

3 driven rolls - no lamination
large opening between rolls
speed and position-synchronised rolls

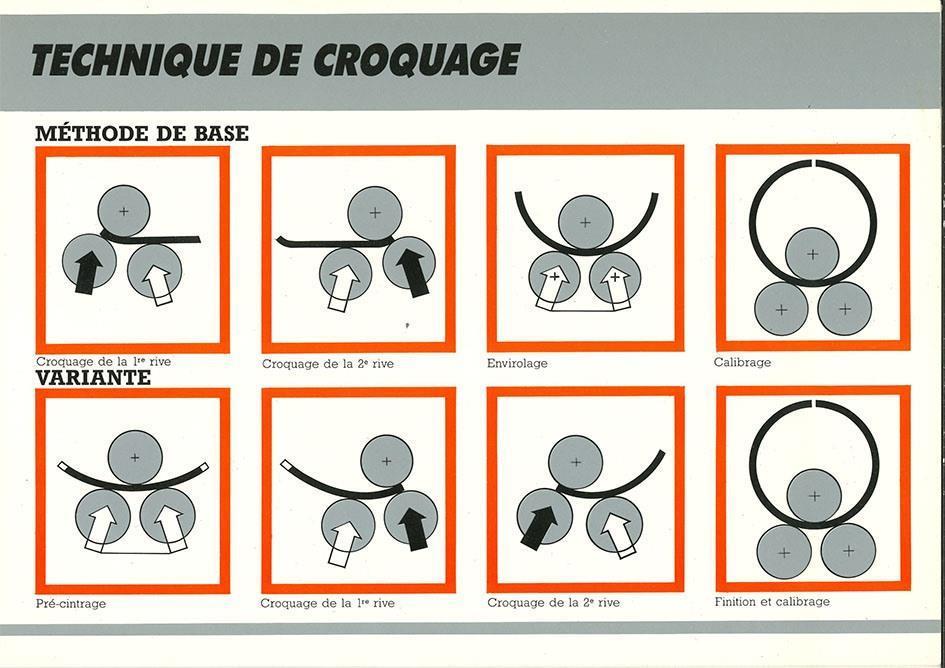

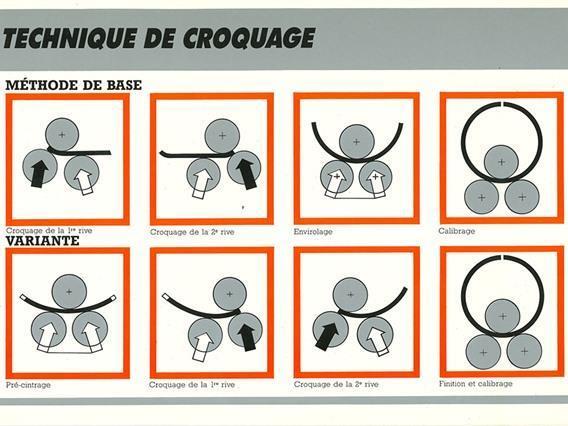

Prebends edges with no turning around of the plate

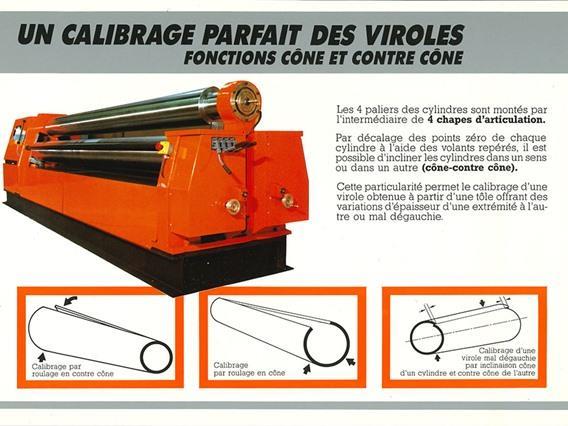

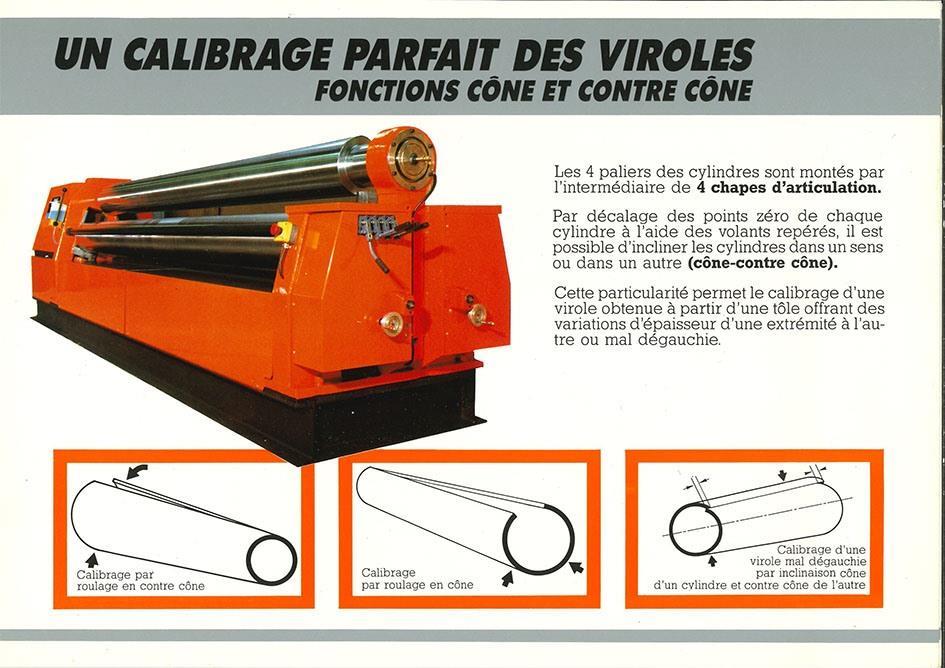

conical bending (easy calibration)

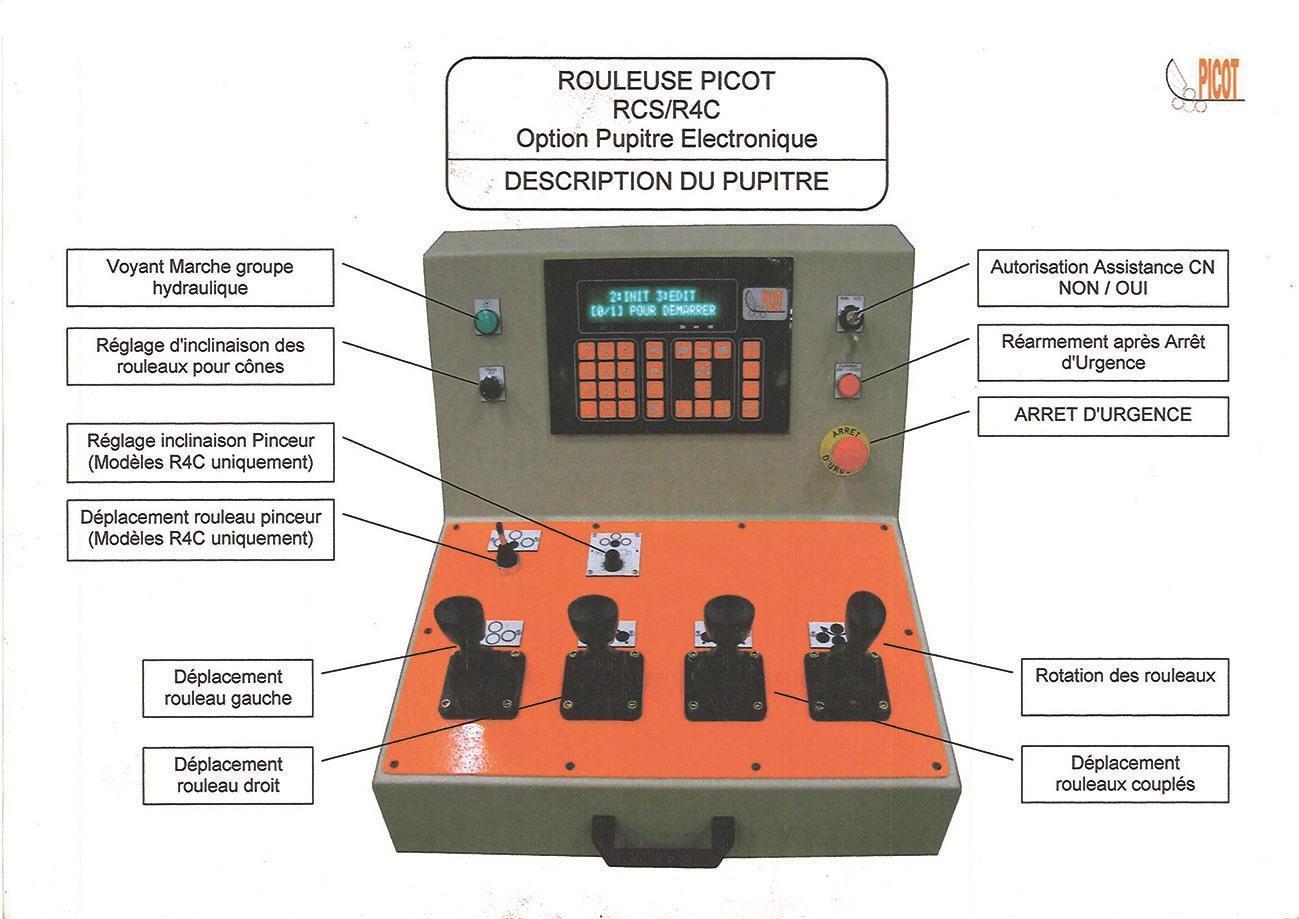

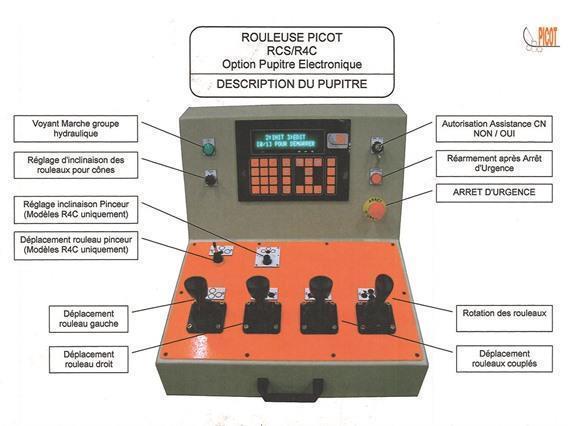

Picot CNC control
hydraulic control system
- no slip on workpiece (= no damage)
- ideal for rolling small diameters
- welded workpiece can be rolled aswell
Type/Model:
4100 x 5 mm CNC
Stocknumber:
O.06 14164
Main category:
[O]
Press brakes, Bending machines, Straightening machines, Punching machines, Laser cutting machines & Flamecutting machines and Roll forminglines
Sub category:
[O.06]
Bending rolls
Brand:
Picot RCS
» Request a personalised quote
Stocknumber: O.06 14164
