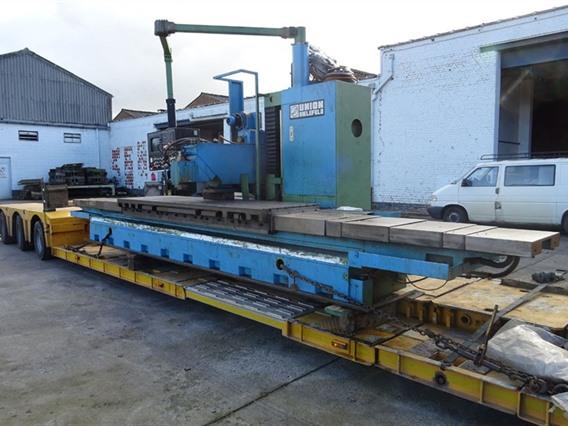

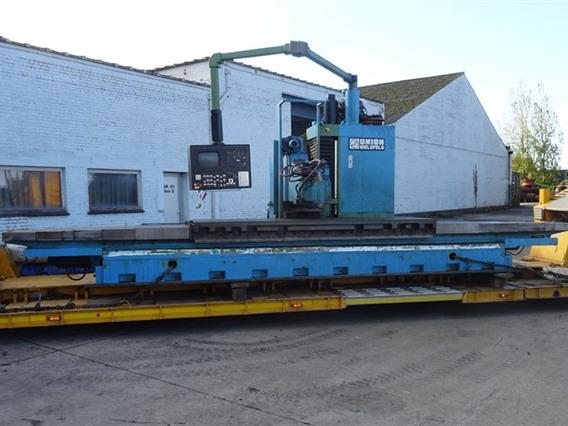

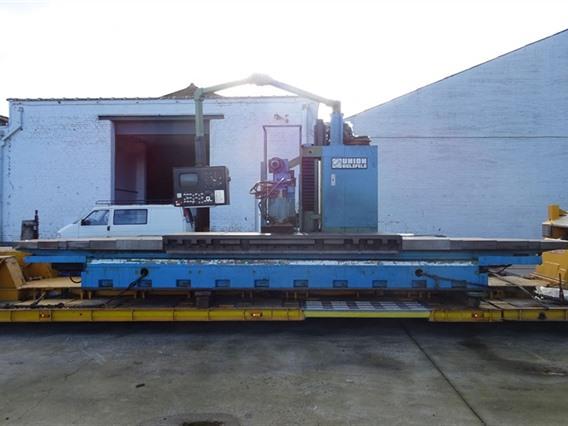

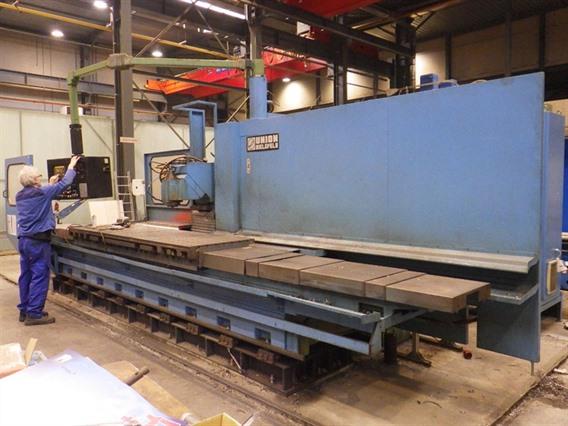

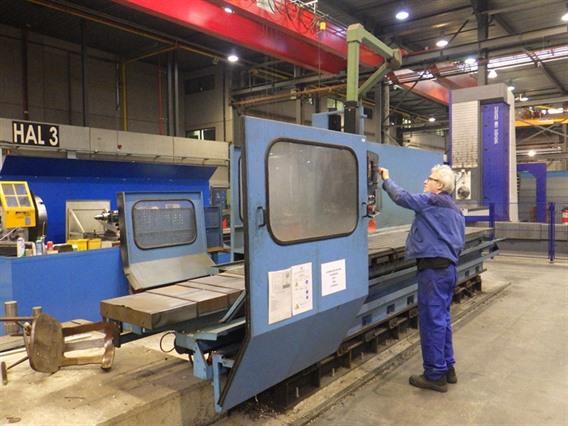

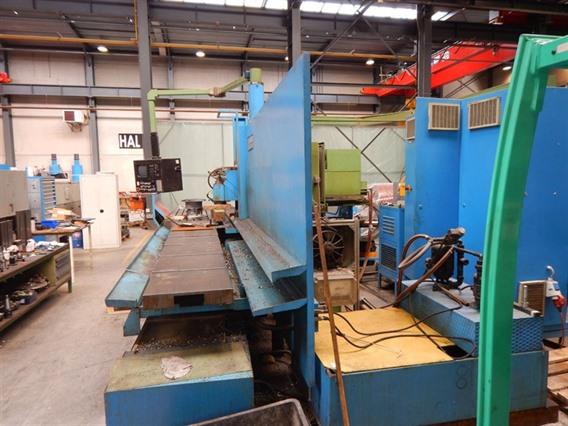

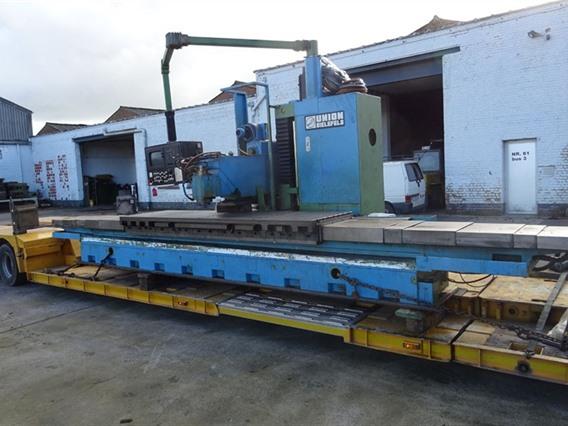

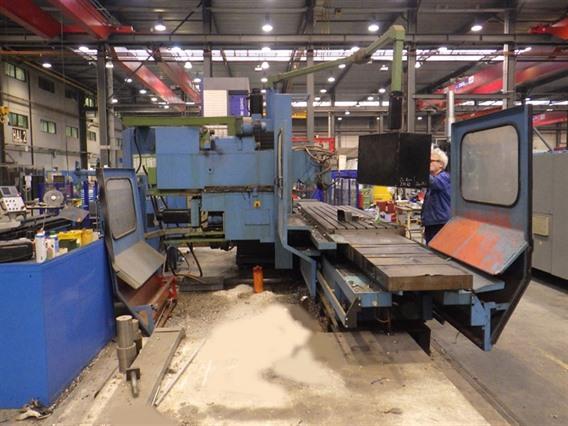

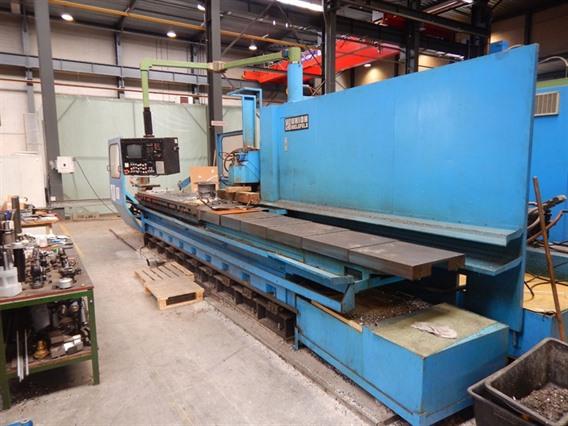

Union X: 2800 - Y: 700 - Z: 750 mm CNC

Product added to your favorites

» Request a personalised quote

Technical information

Longitudinal travel X-axe2800 mm
Cross travel Y-axe700 mm
Travel Z-axe750 mm
Dimensions clamping space- table3000 x 800 mm
Power on spindle20 kW
Admission in millinghead (ISO)ISO 50
Max speedrange100 > 4400 rpm

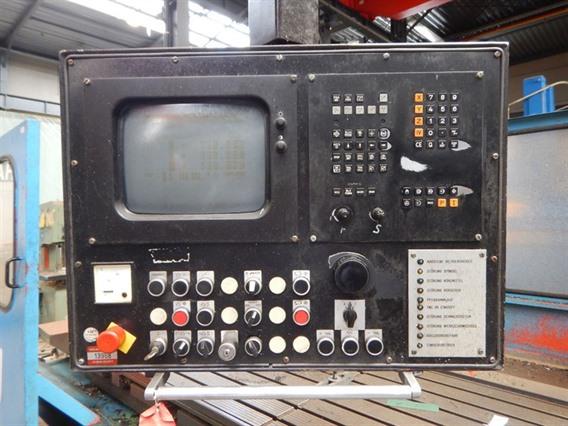

ControlHeidenhain TNC 355
Power needed (KVA)50 kW
Length 7400 mm
Depth4000 mm
Height2700 mm
Weight15 ton

Additional info

Type: BF400U
Type/Model: X: 2800 - Y: 700 - Z: 750 mm CNC
Stocknumber: B.03 9952
Main category: [B] Milling machines
Sub category: [B.03] Bed milling machines with moving table & CNC
Brand: Union

» Request a personalised quote

Stocknumber: B.03 9952
