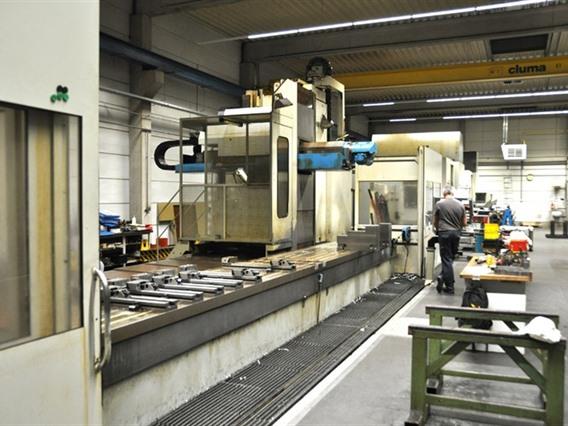

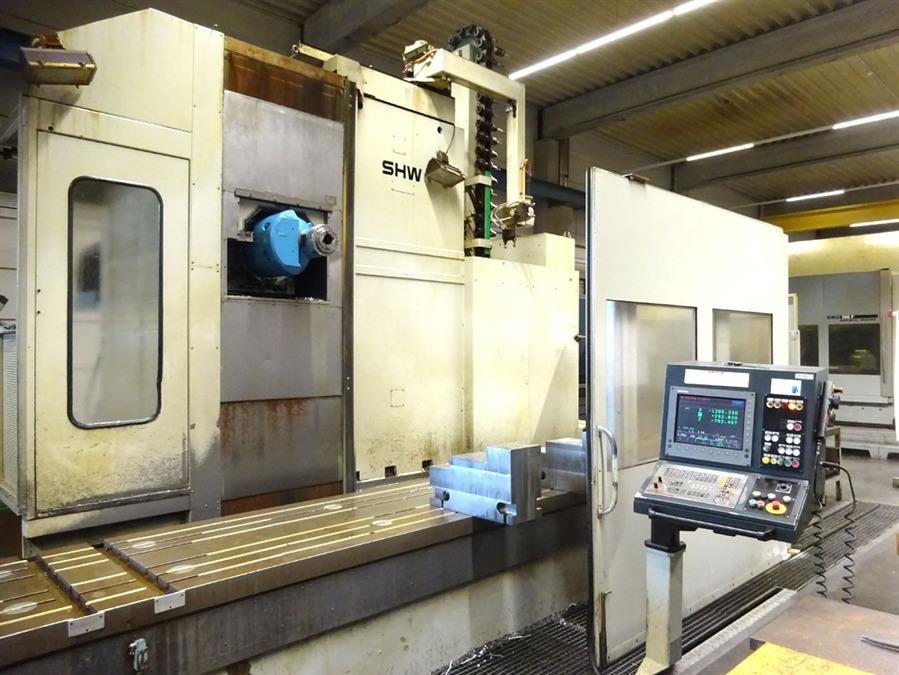

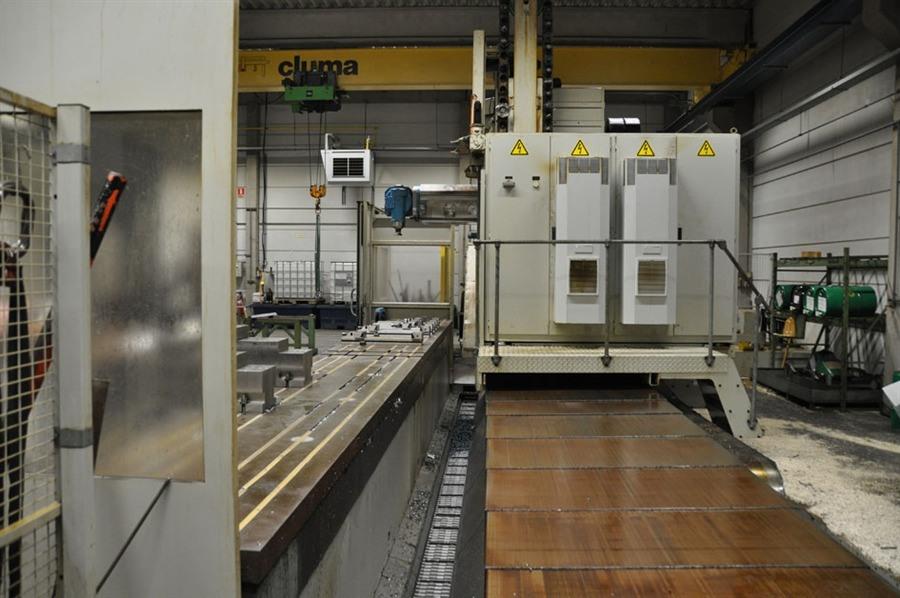

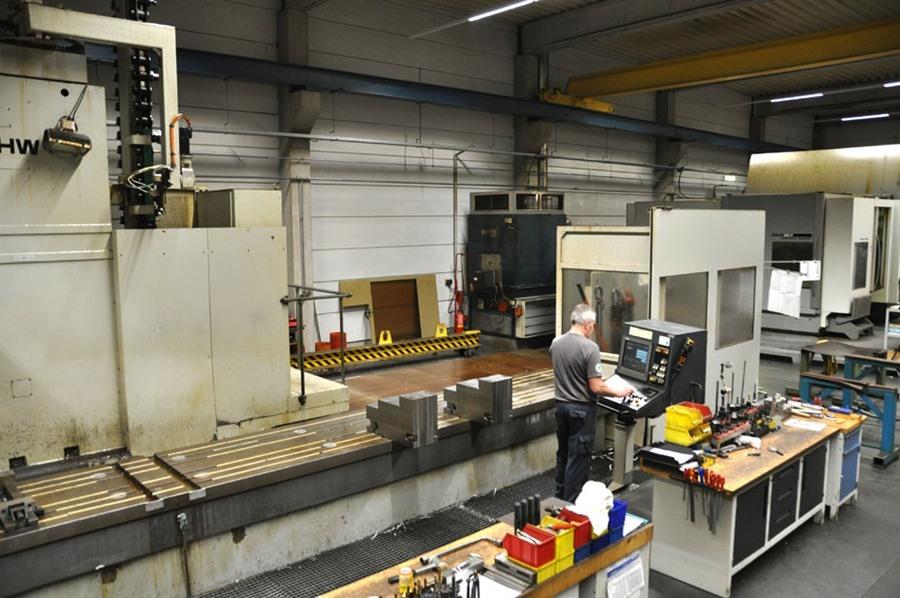

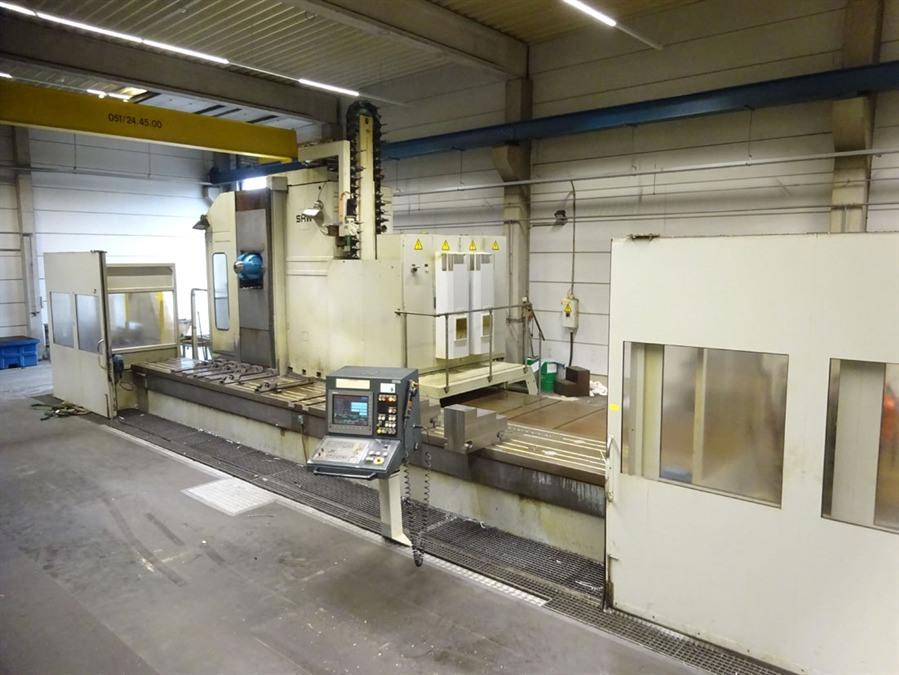

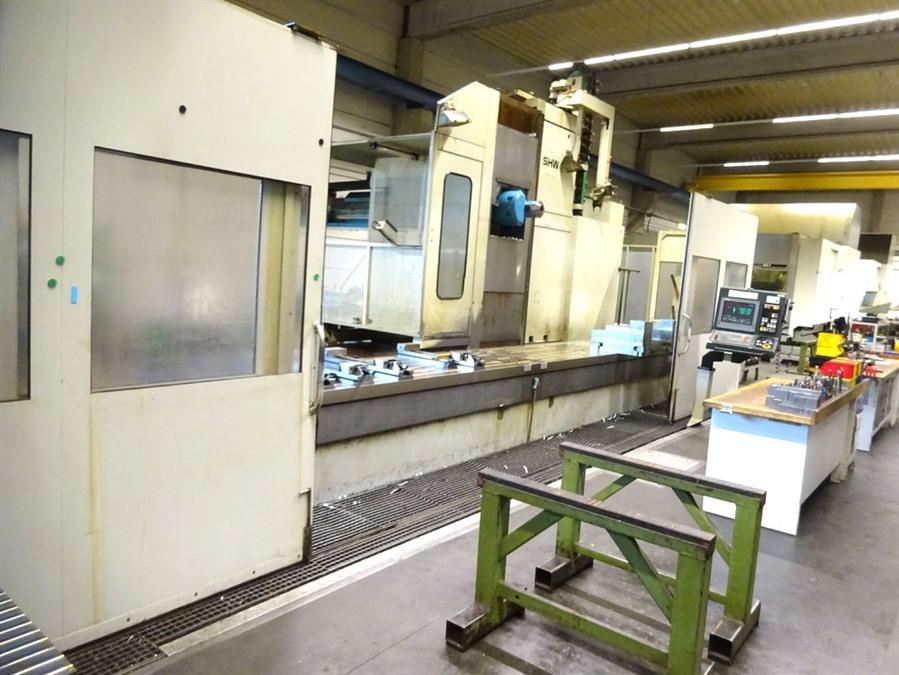

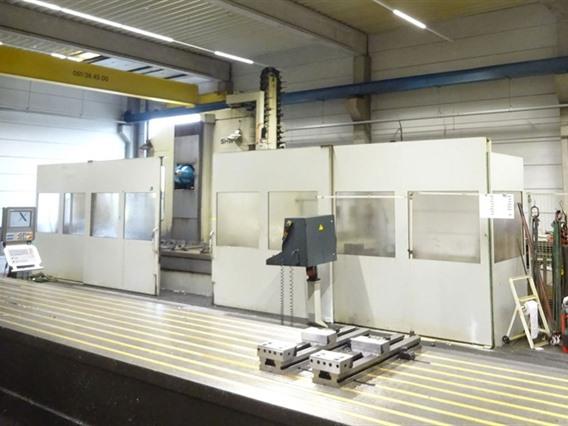

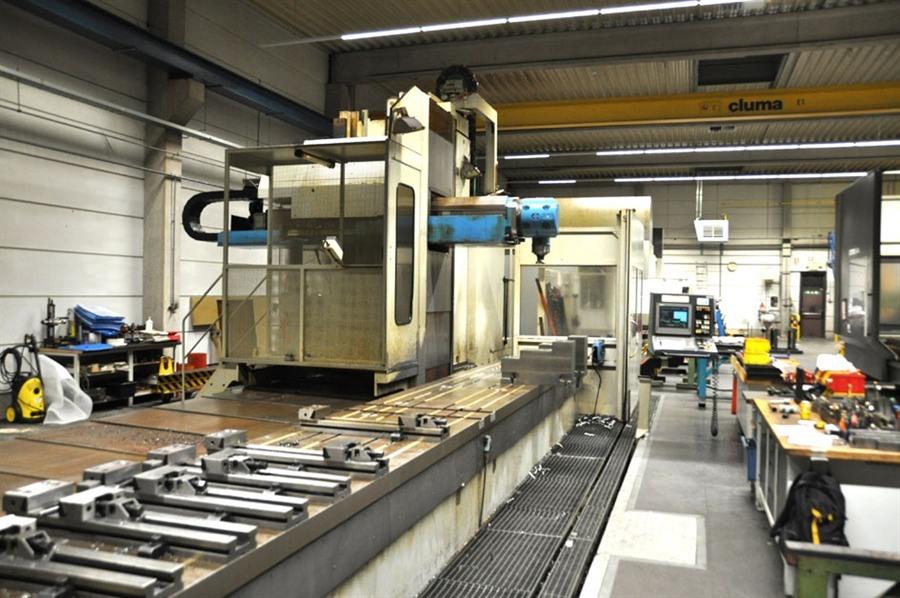

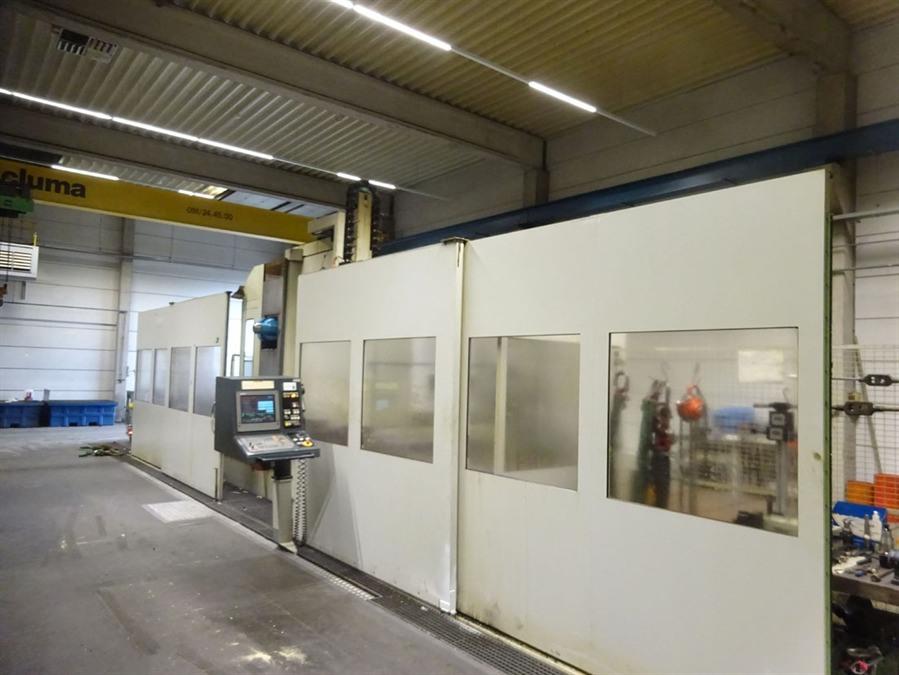

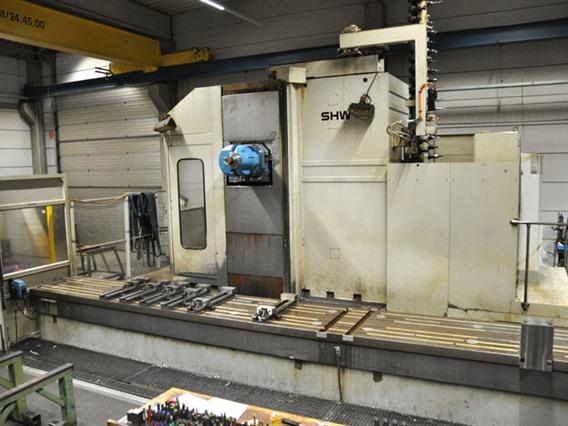

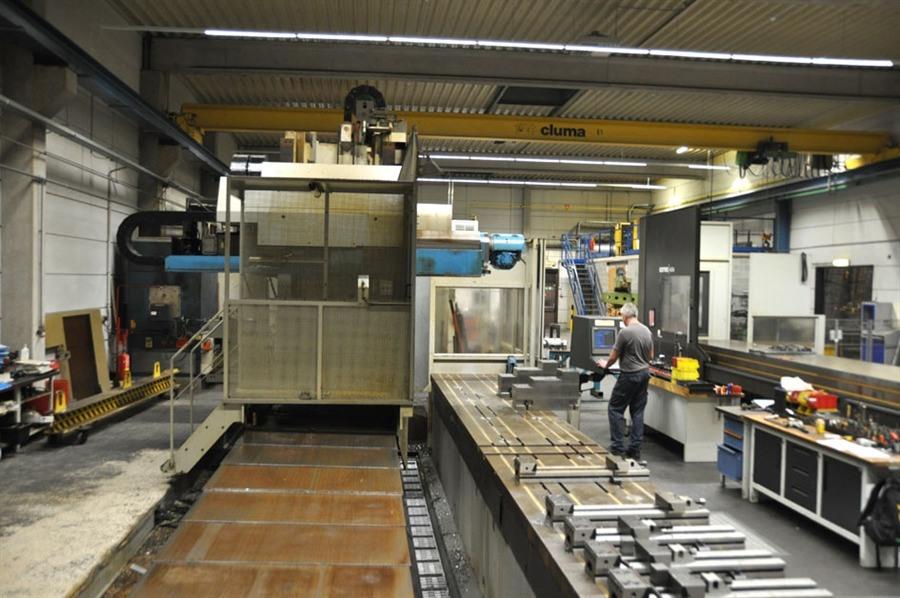

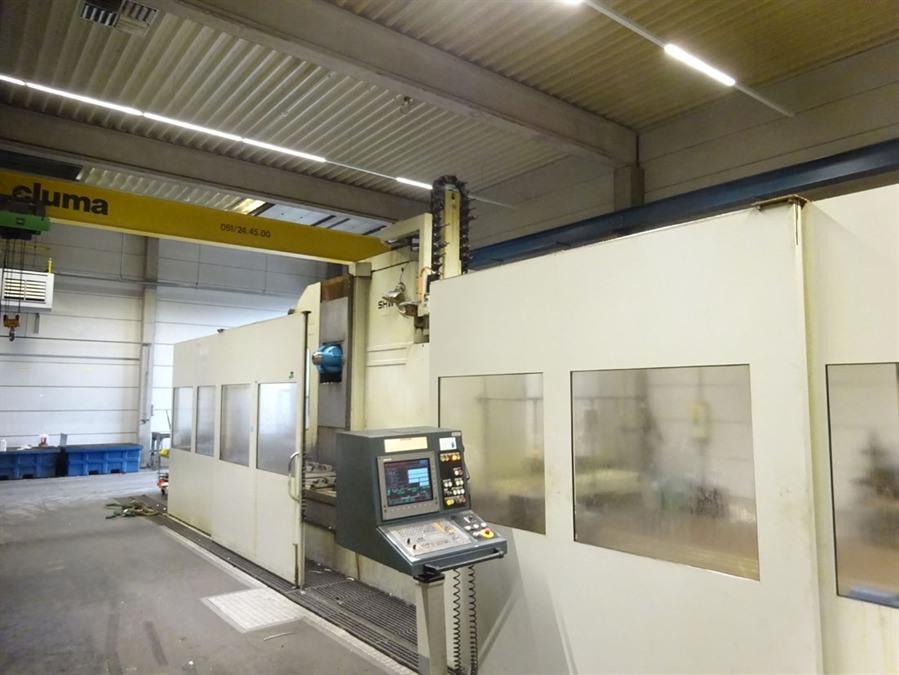

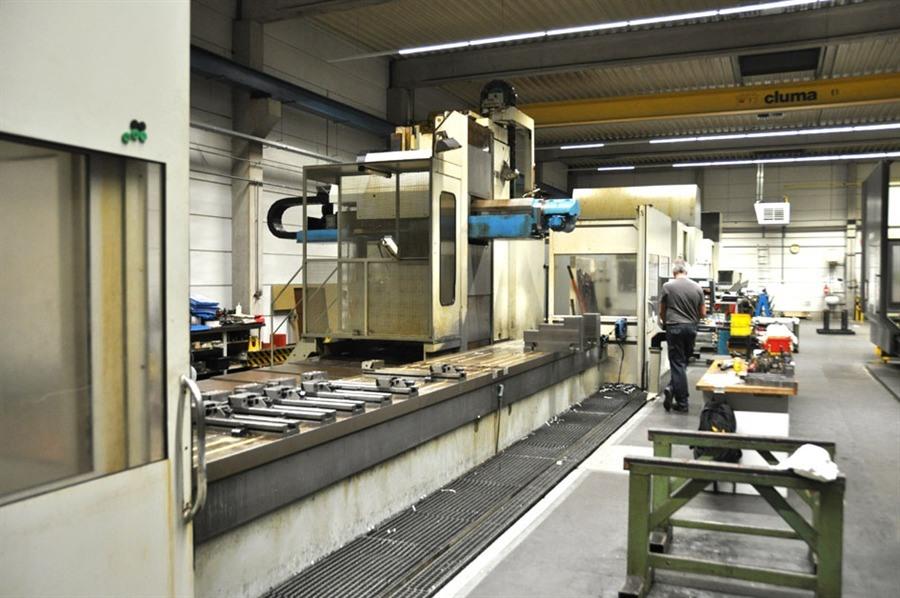

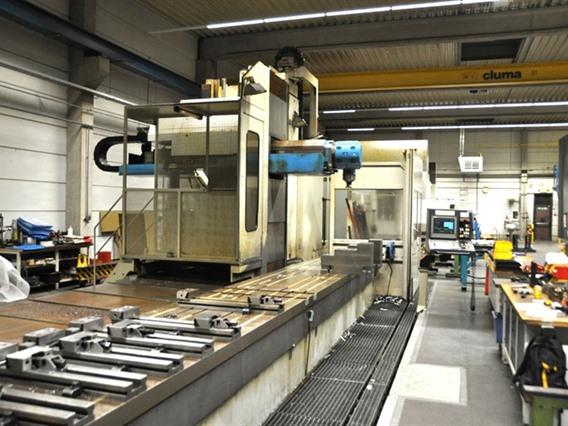

SHW UFZ 6L X: 8000 - Y: 1600 - Z: 1500mm CNC

Technical information

  • Longitudinal travel X-axe8000 mm
  • Crosstravel Y -axe1600 mm
  • Travel Z-axe (Height)1500 mm

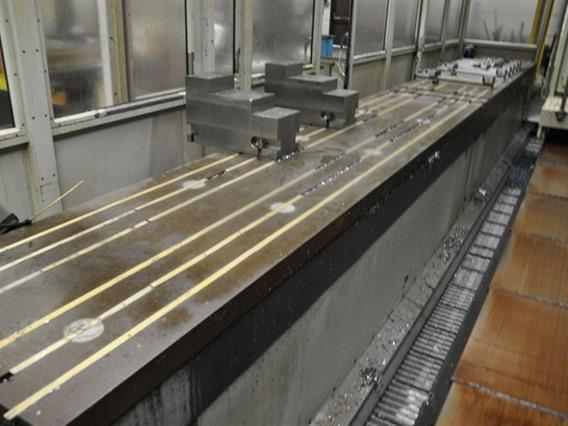

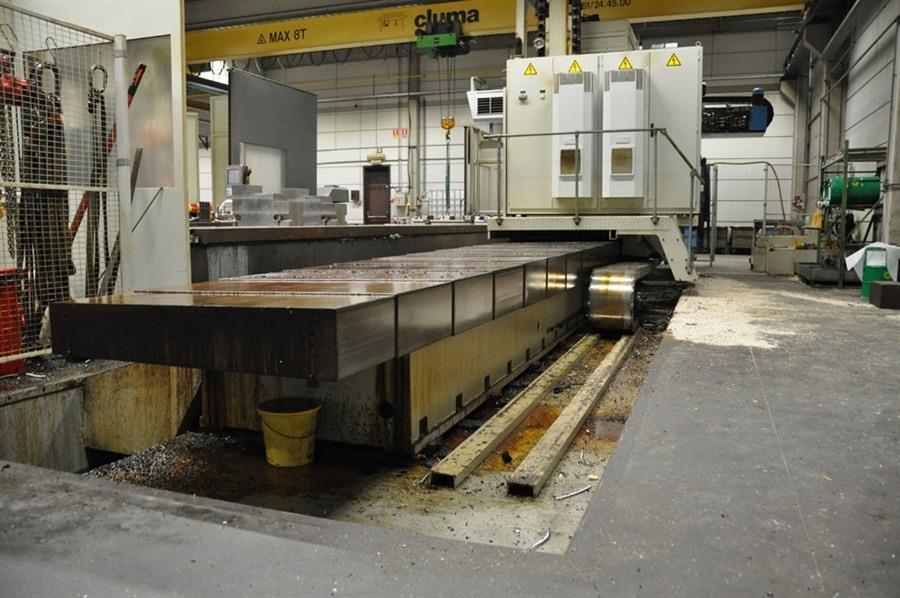

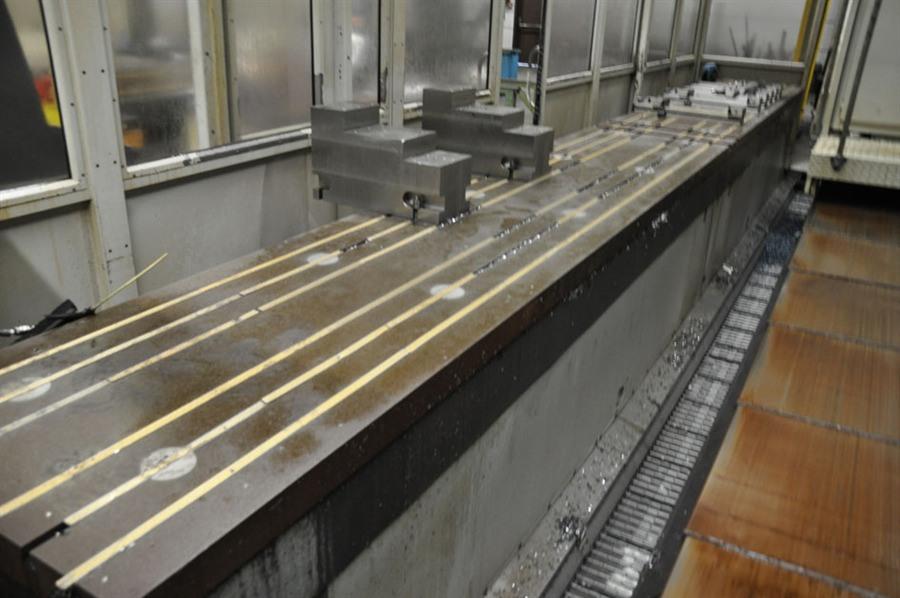

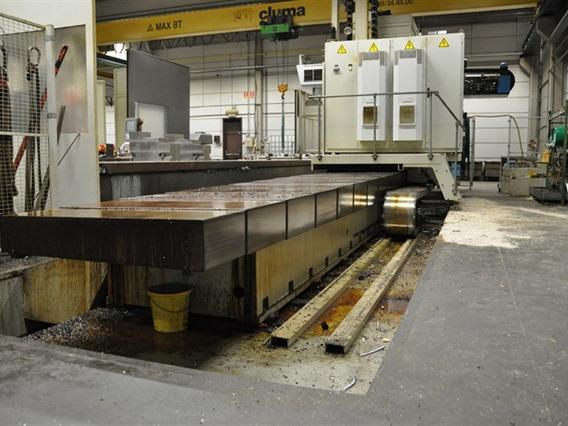

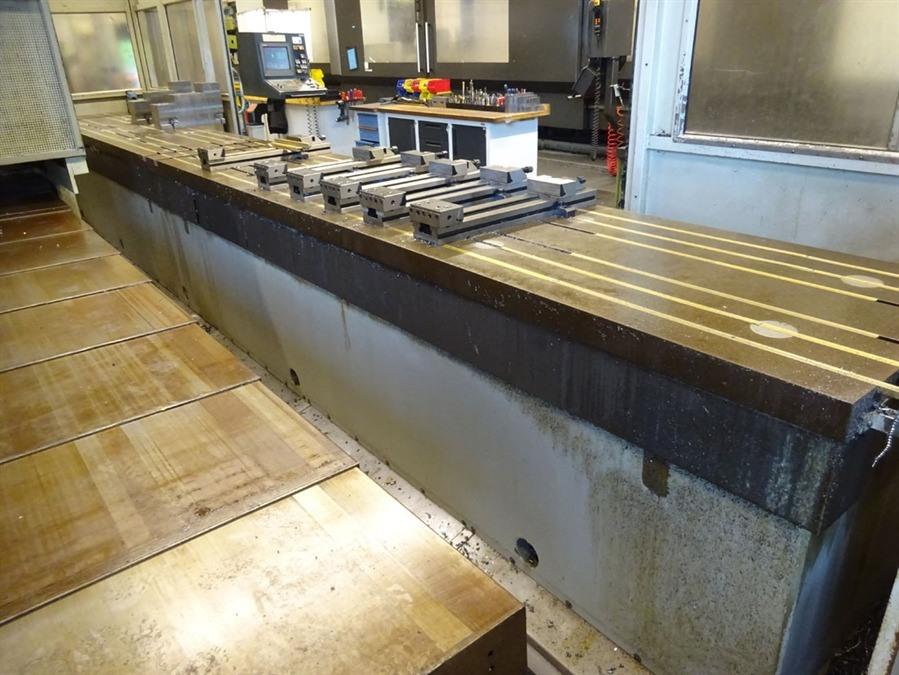

  • Dimensions clamping space - table10 000 x 1000 mm

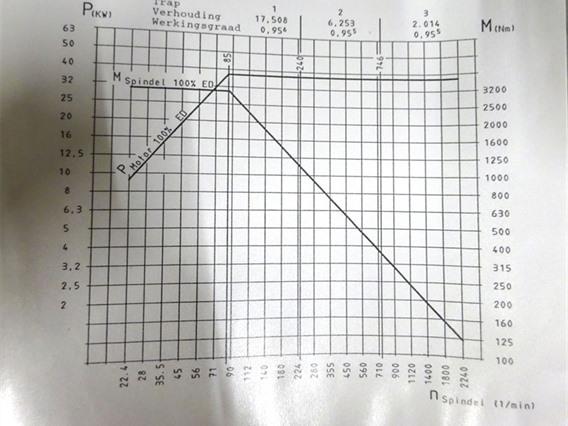

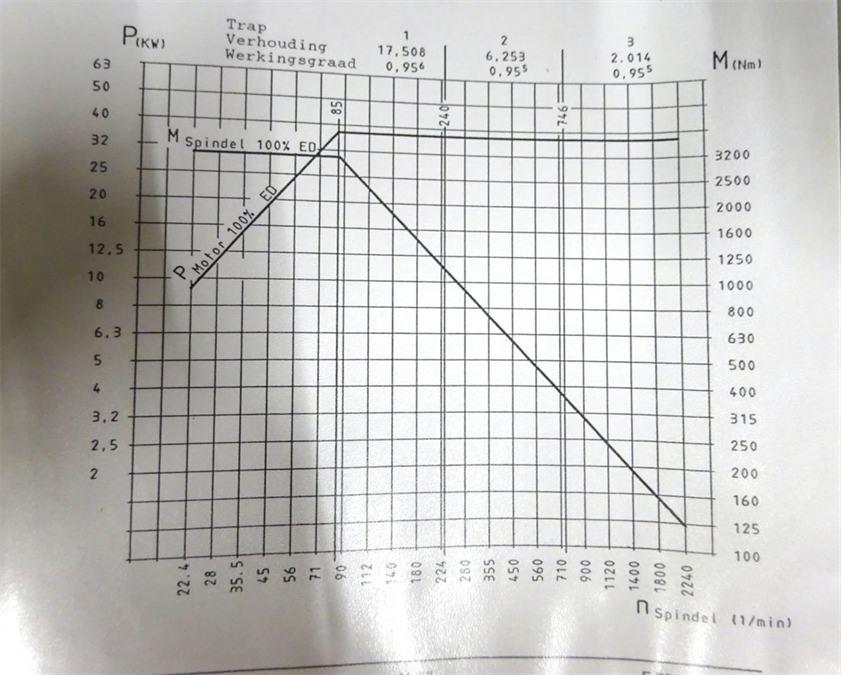

  • Power on spindle46 kW
  • Admission in millingheadspindle (ISO)ISO 50
  • Max speedrange22 > 2800 rpm

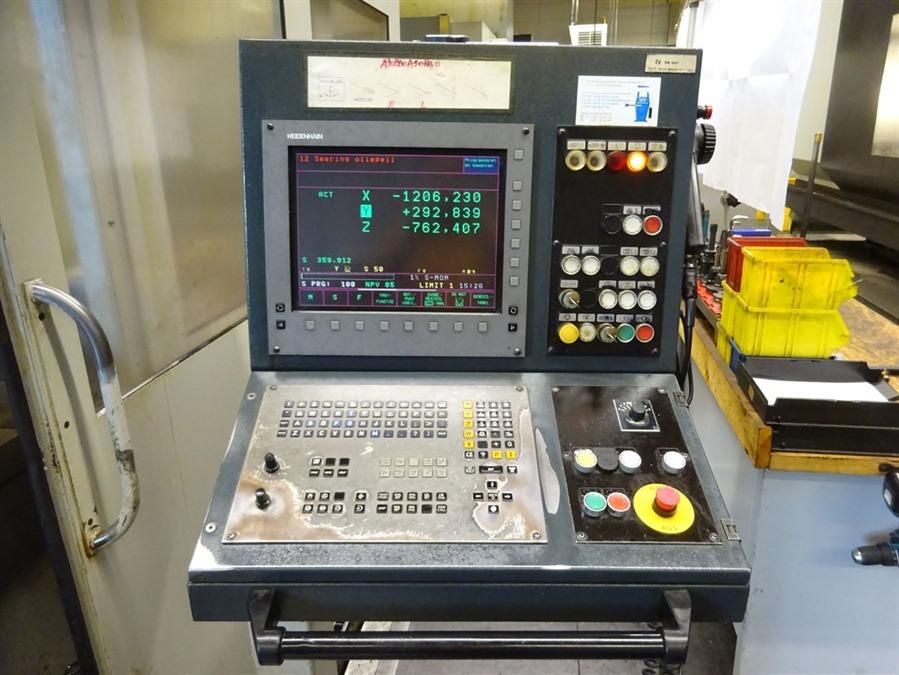

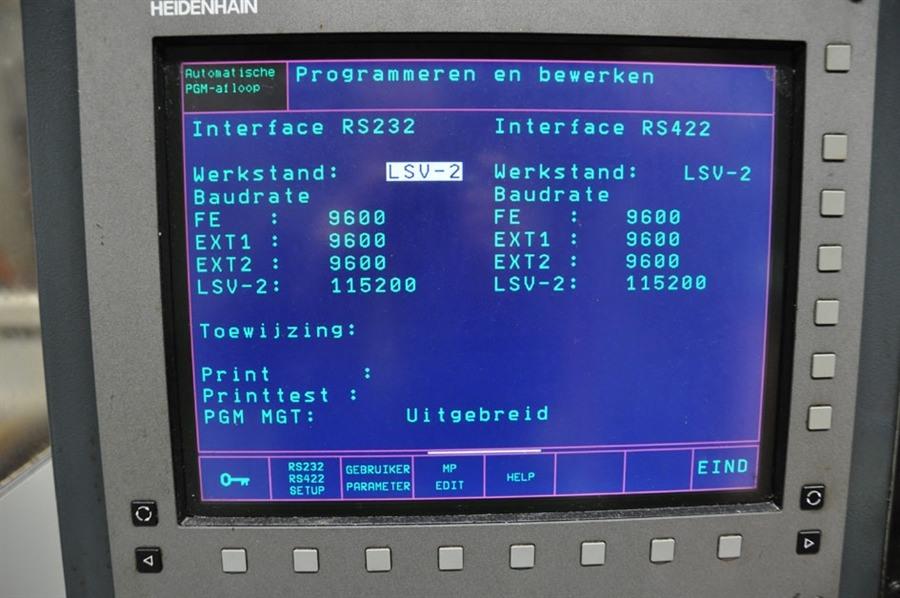

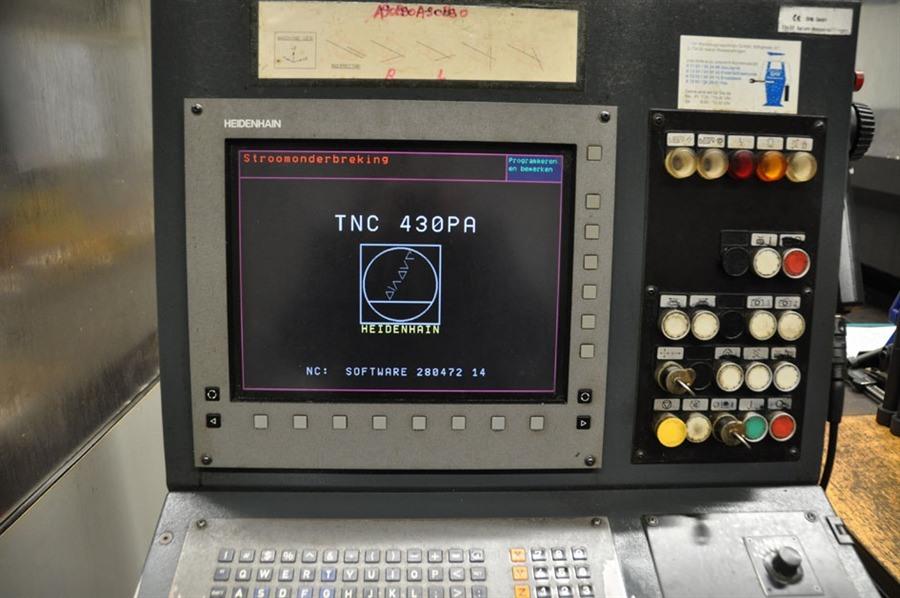

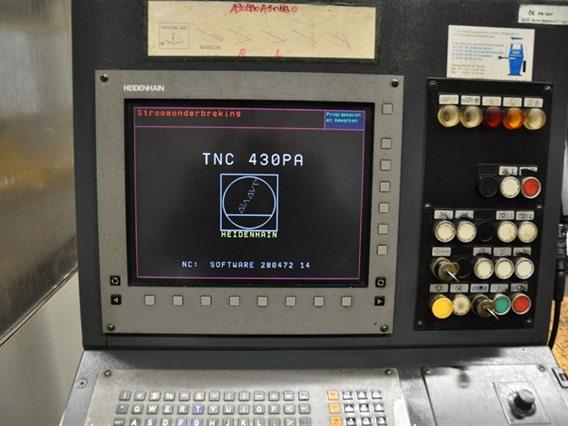

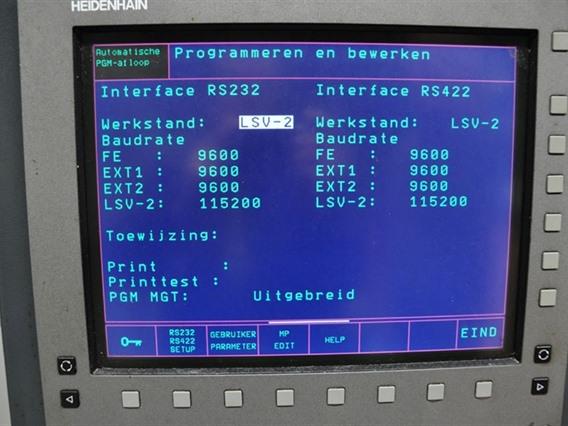

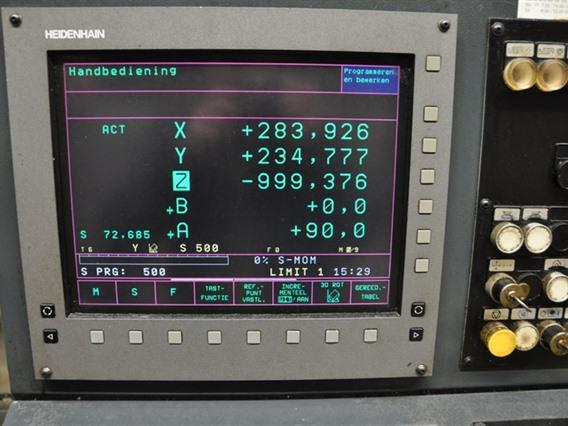

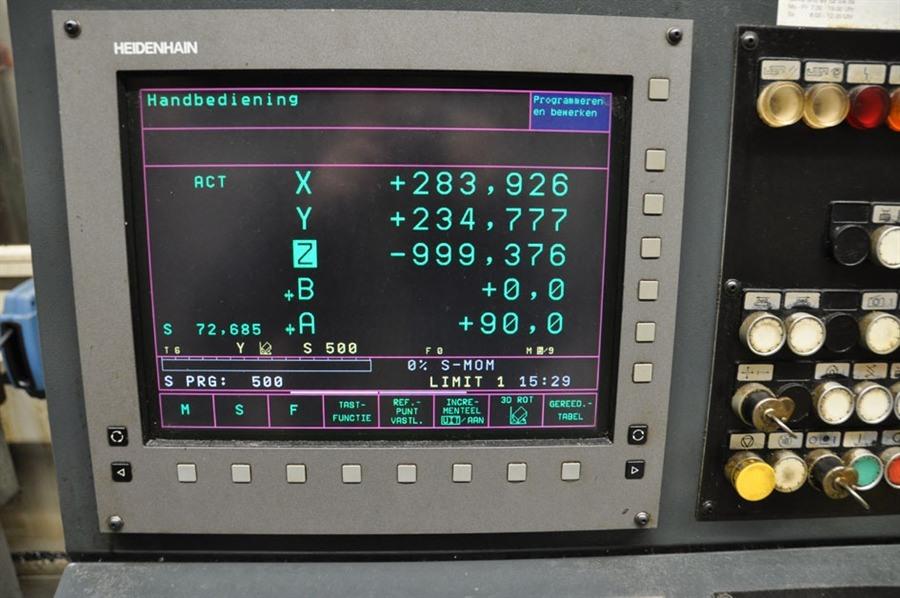

  • ControlHeidenhain 430PA
  • Power needed75 kVa
  • Length 17 000 mm
  • Depth 7600 mm
  • Height5250 mm
  • Weight41 ton
  • Coolant pumpyes

Additional info

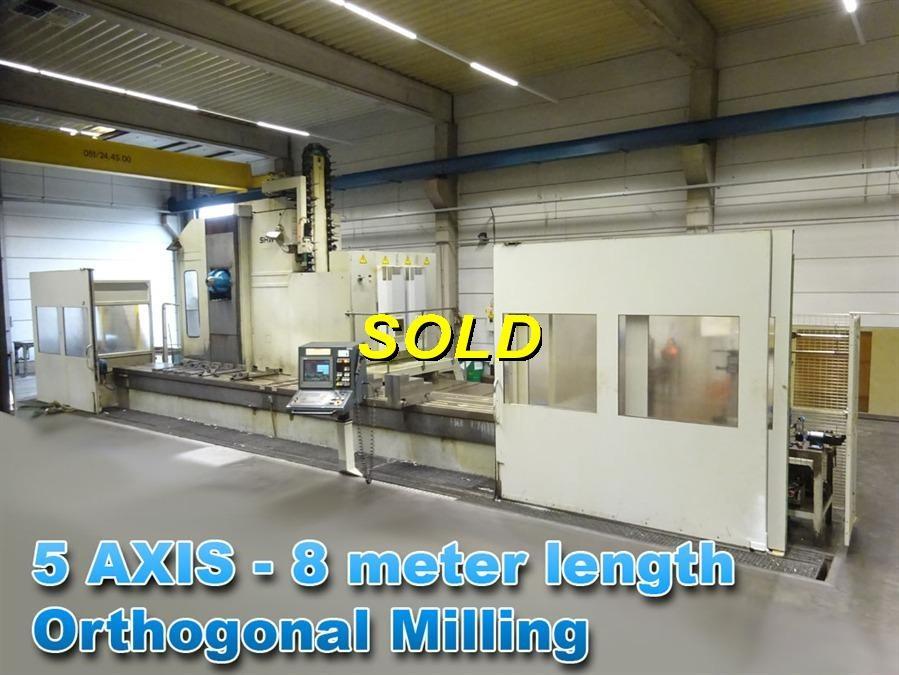

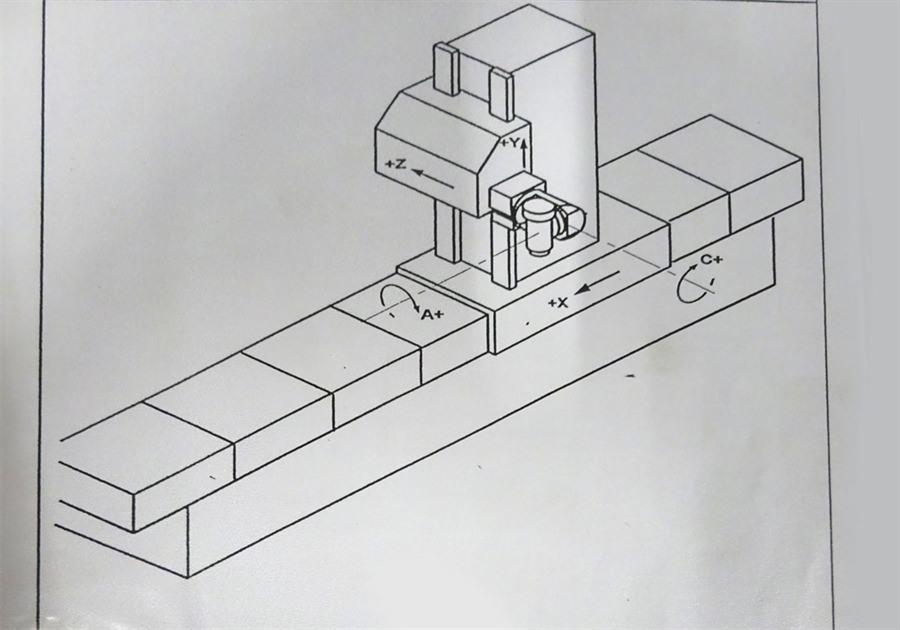

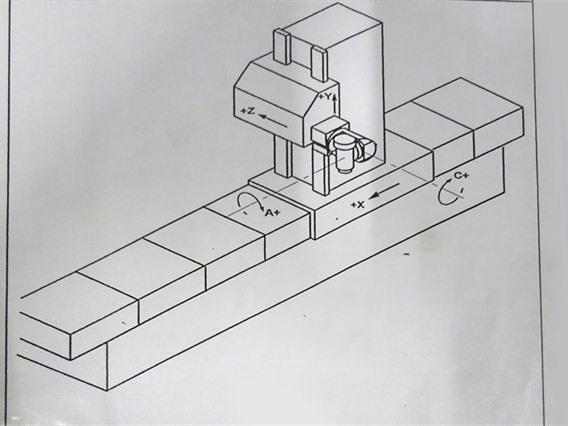

  • 5 axis machine - can be used as bedmilling or as floormilling machine

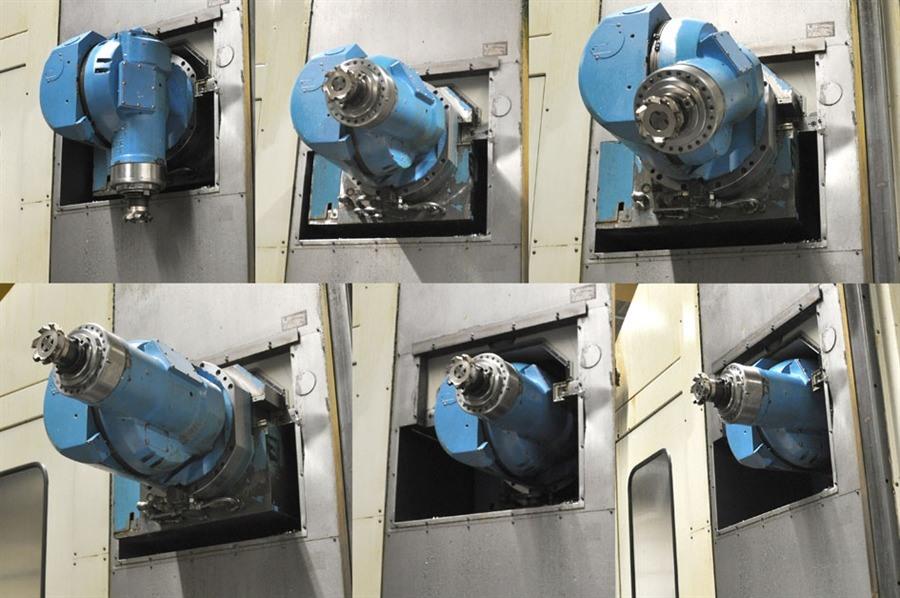

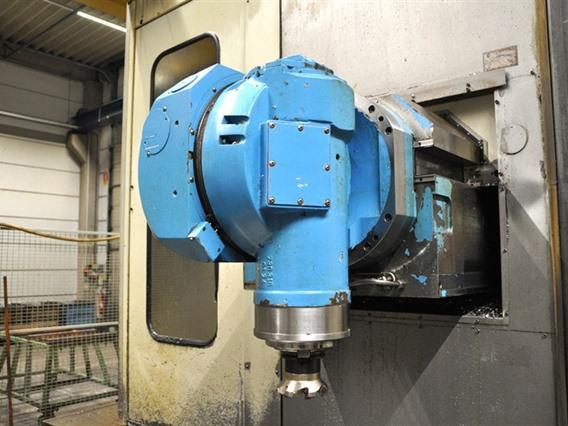

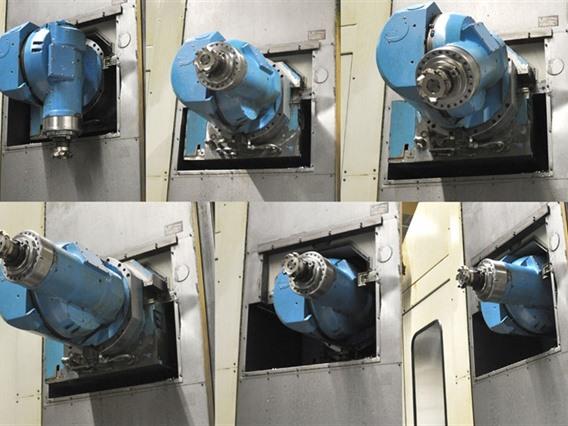

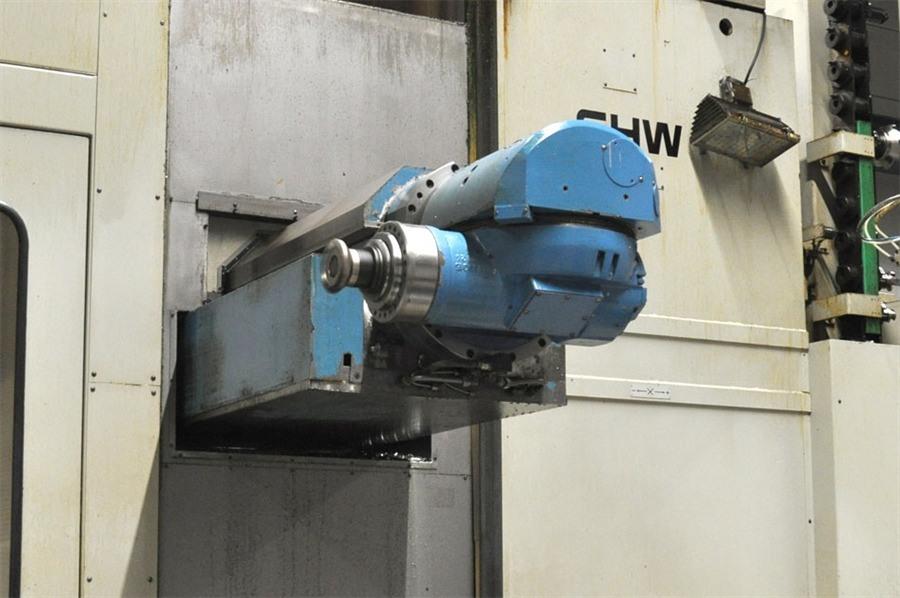

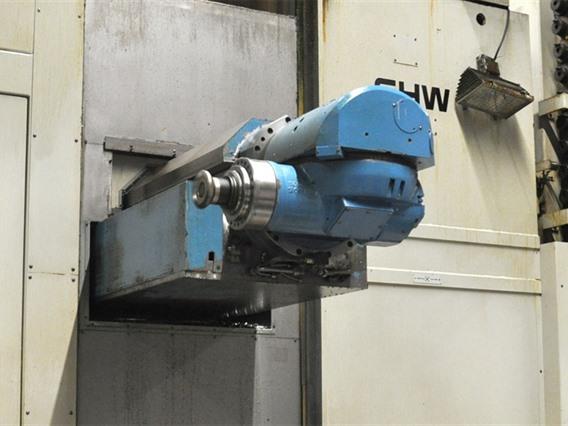

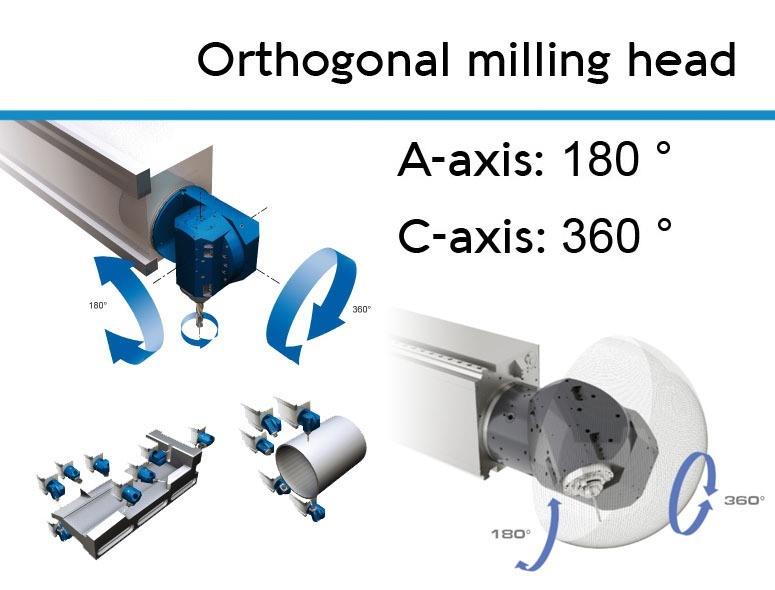

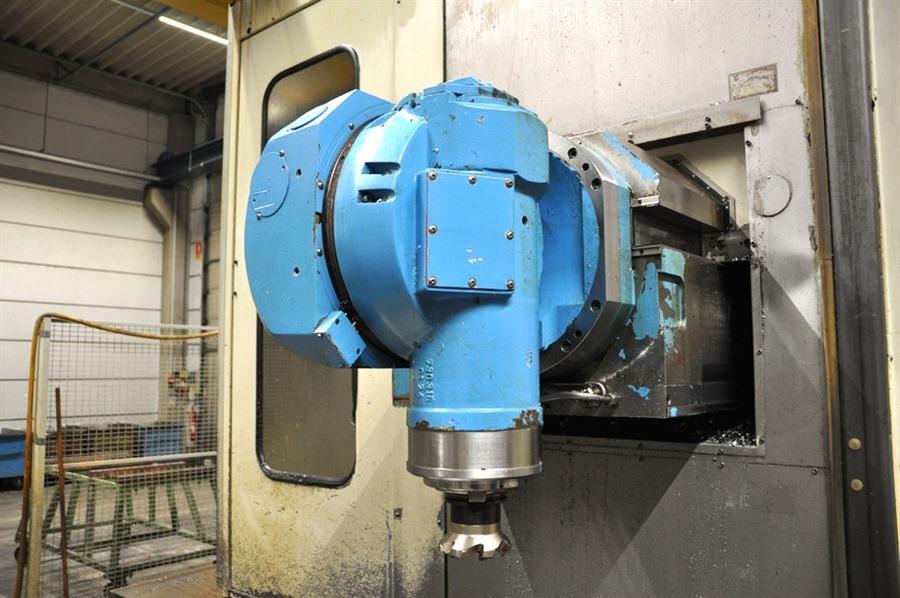

    Orthogonal milling head:
    A & C-axis CNC indexing - 64 800 machining positions
    Workpiece can be machined on 4 sides!


    Z-axis horizontal: 1500 mm
    Z-axis vertical: 1200 mm
    Hydrostatic blocs
    High pressure cooling through spindle

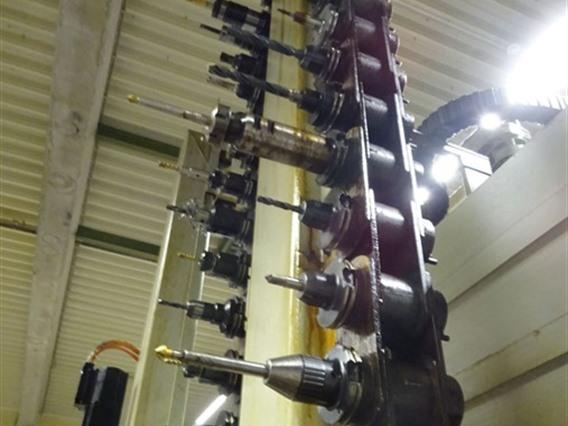

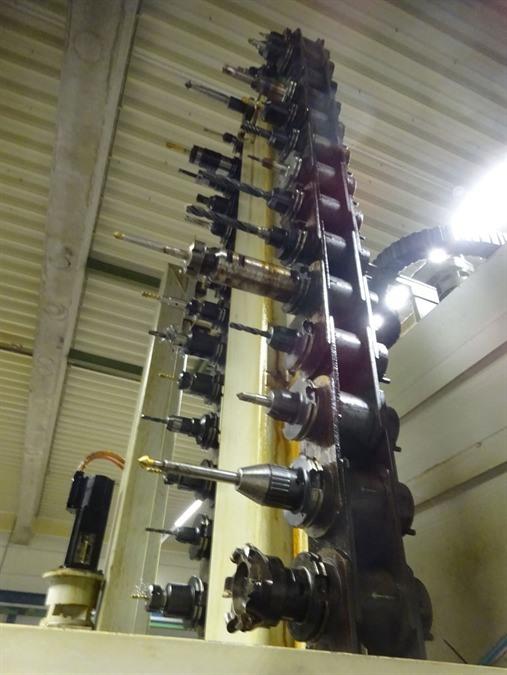

    Toolchanger with 66 positions
    Chipconveyor
    Displacement speed X/Y/Z: 12 000 mm/min
    ---------------------------------------------------------
    Фрезерный станок - 5 управляемых координат.
    Ортогональная голова
    Координаты A и C индексируются при помощи ЧПУ. Позиции: 64 800
    Заготовка может быть обработана с 4х сторон.


    Горизонатально положение оси Z: 1500 мм
    Вертикальное положение оси Z: 1200 мм
    Гидростатический стол
    СОЖ высокого давления через шпиндель
    Револьверный магазин: 66 позиций
    Транспортрет для удаления стружки
    Скорость перемещения по координатам XYZ: 12 000 мм/мин


  • Type/Model: X: 8000 - Y: 1600 - Z: 1500mm CNC
  • Stocknumber: B.04 9150
  • Main category: [B] Milling machines
  • Sub category: [B.04] Bed milling machine with moving column & CNC
  • Brand: SHW UFZ 6L

Stocknumber: B.04 9150
