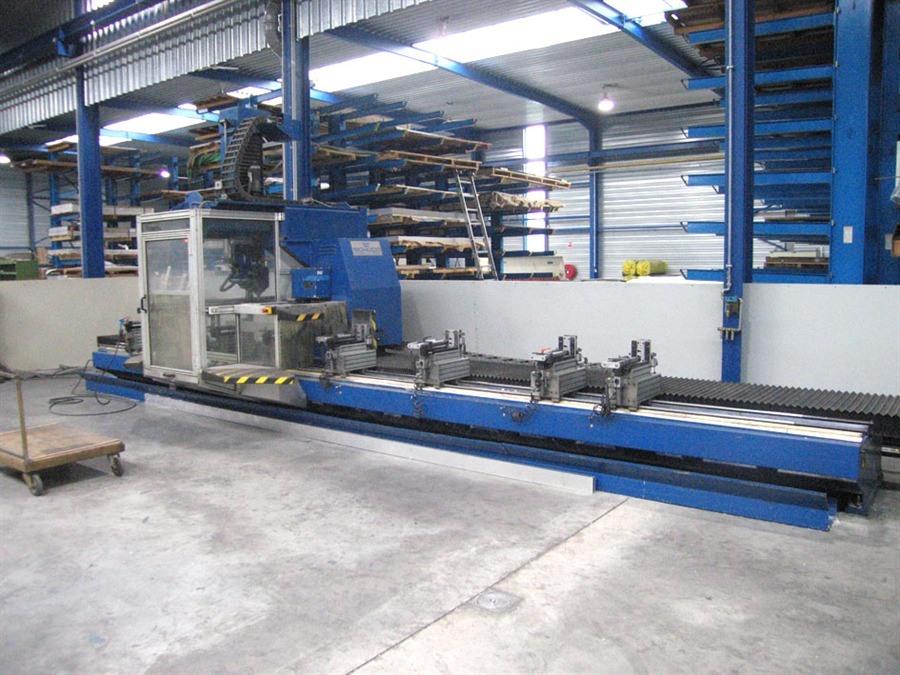

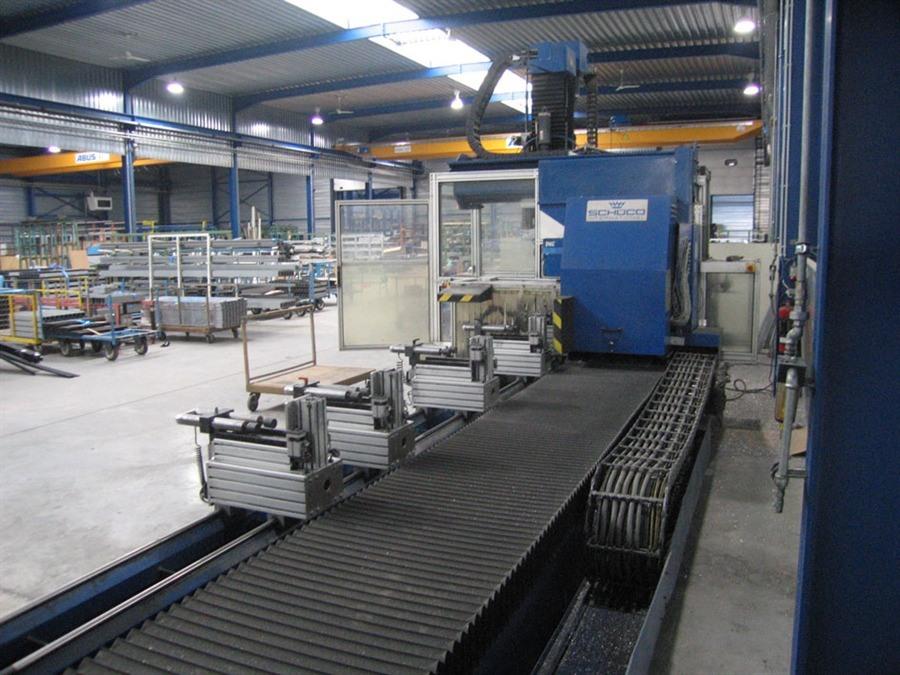

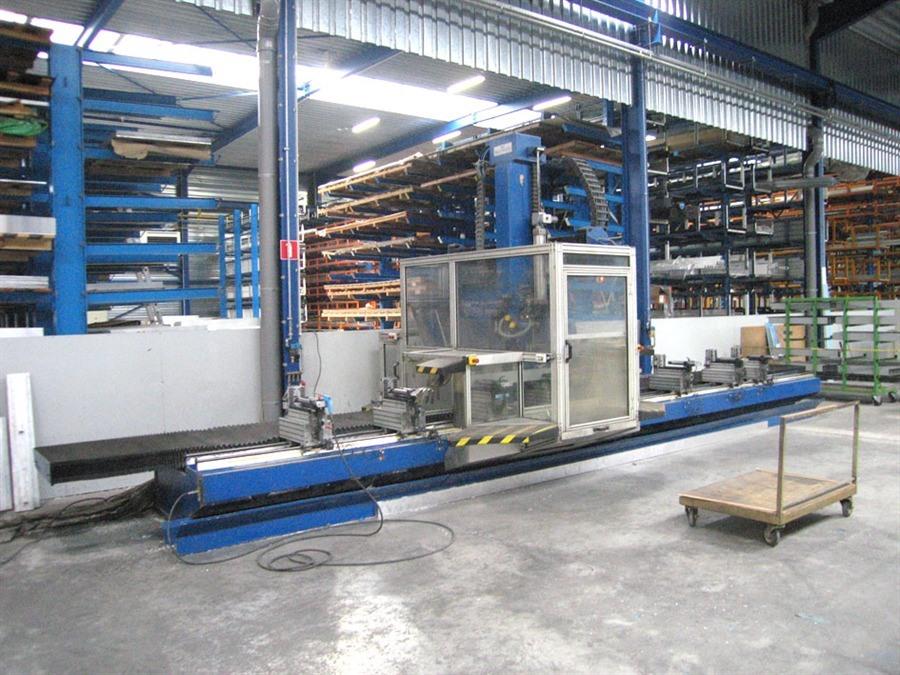

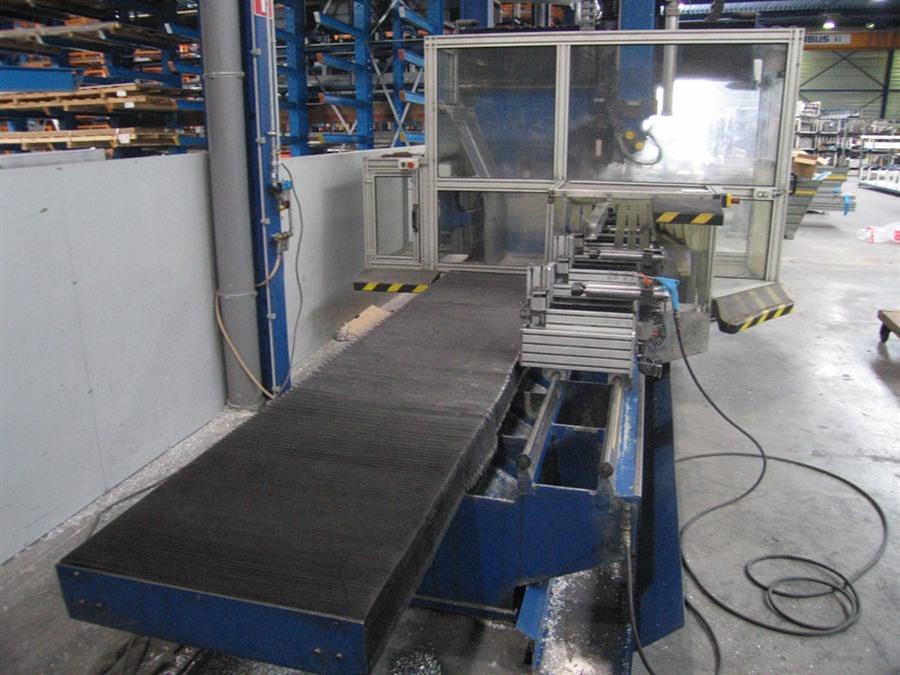

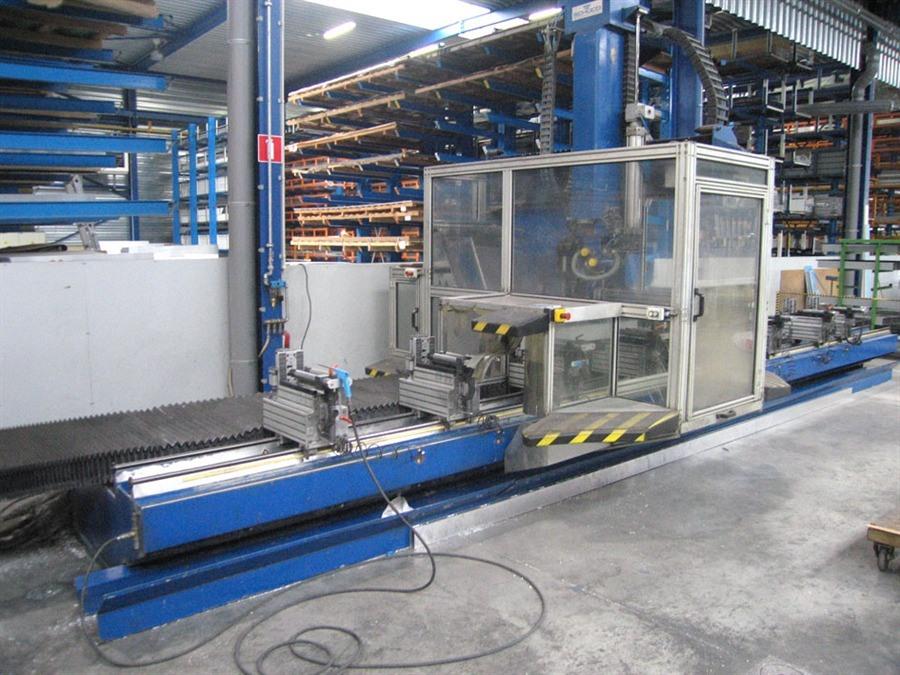

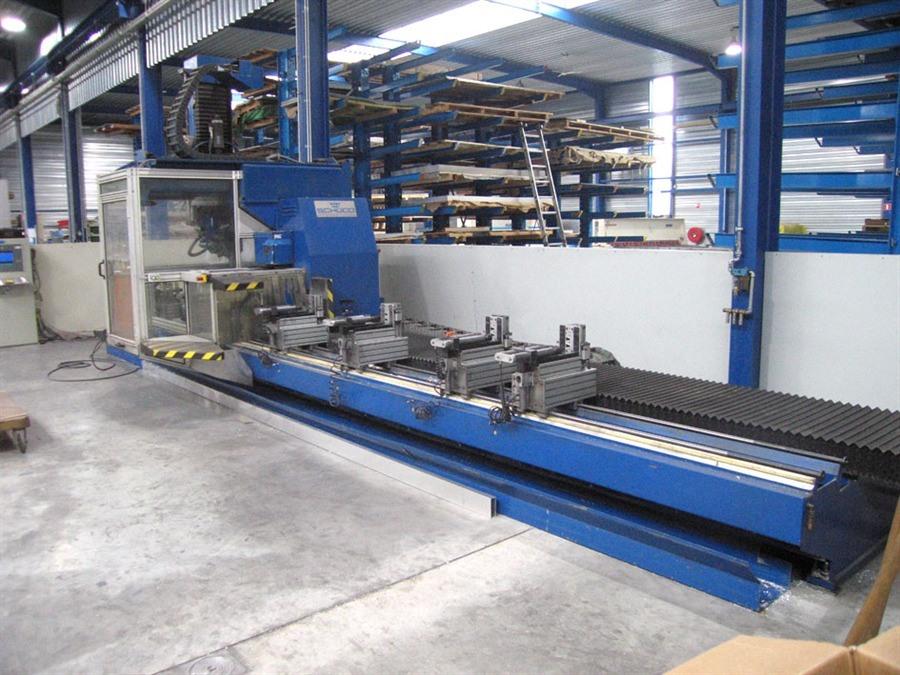

Schüco Droop & Rein PBZ CNC 5 axes
Technical information
- Longitudinal travel X-axe8500 mm
- Crosstravel Y -axe600 mm
- Travel Z-axe (Height)650 mm

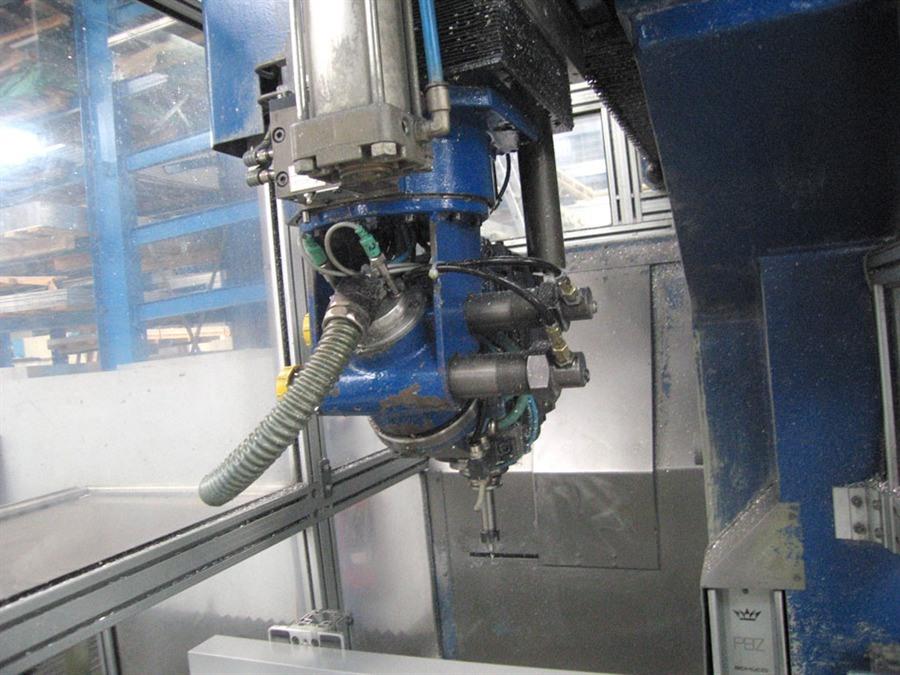

- Type of millingheaduniversal
- Admission in millingheadspindle (ISO)BT 30
- Universal (2x 360°)2 x 360°
- Max speedrange24 000 rpm

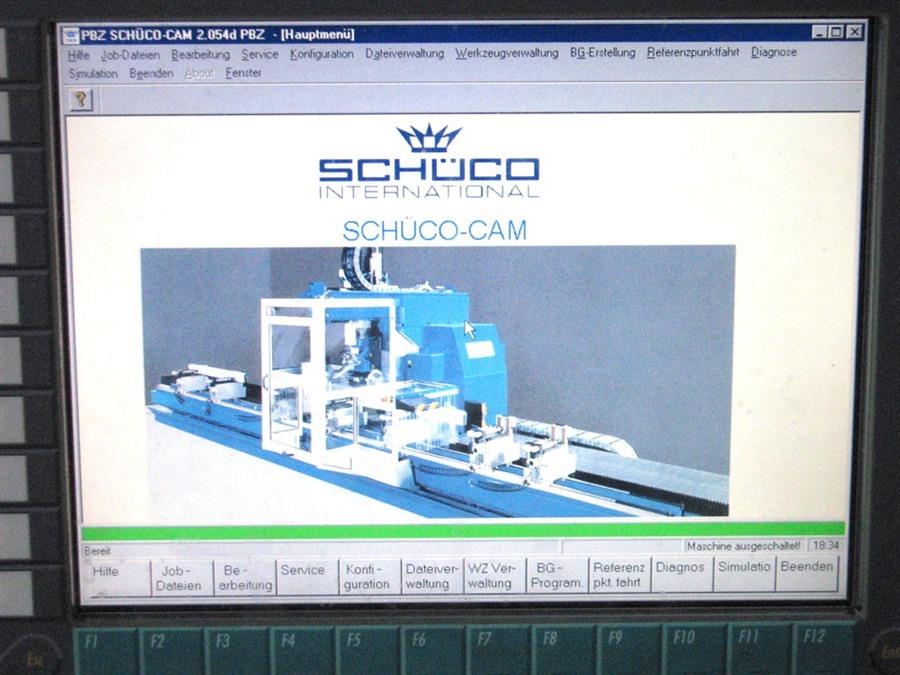

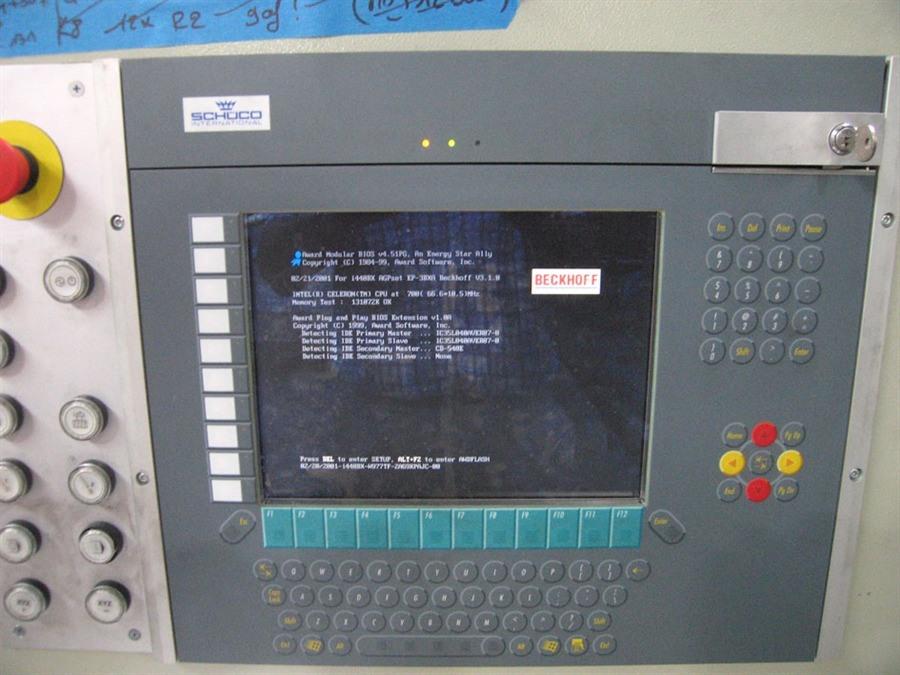

- ControlSiemens
- Length 10 700 mm
- Depth 2700 mm
- Height3100 mm

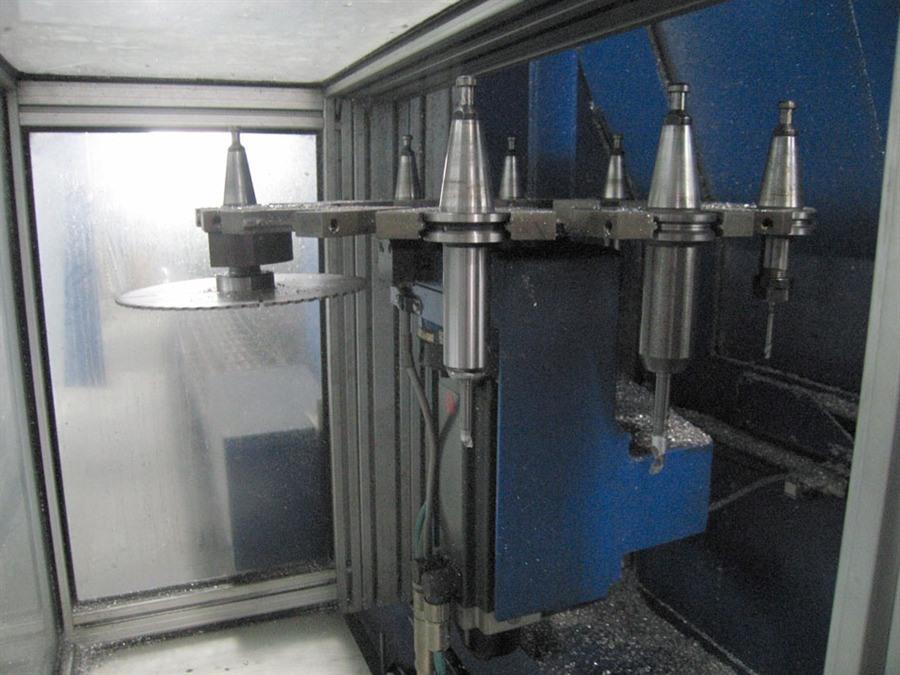

- ACCESSORIES & TOOLING12 tools
Additional info
- 5 axes
ideally suited for processing alu profiles, max dimension 350 x 280 mm
max 24 000 rpm
--------------------------------------------------
5 координатный станок для фрезеровки, сверления и нарезки резьбы в профилях.
Размеры профилей: 350 х 280 мм
Макс скорость: 24 000 об/мин
- Type/Model: PBZ CNC 5 axes
- Stocknumber: B.04 8877
- Main category: [B] Milling machines
- Sub category: [B.04] Bed milling machine with moving column & CNC
- Brand: Schüco Droop & Rein
