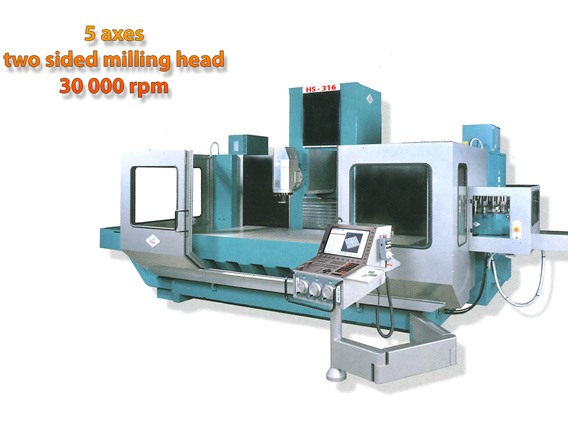

OMV/Parpas HS 316 X: 1600 - Y: 1000 - Z: 800 mm CNC
Technical information

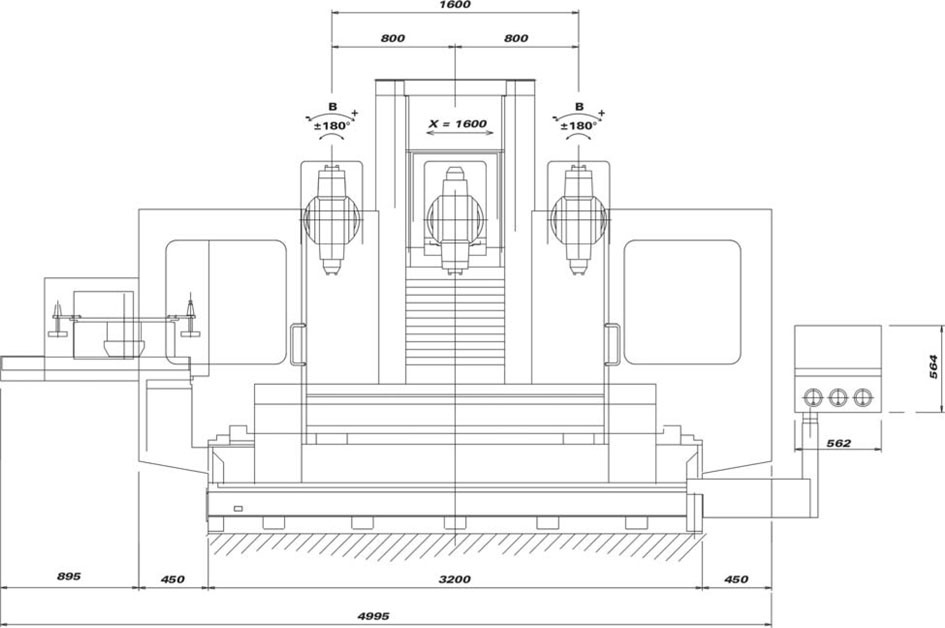

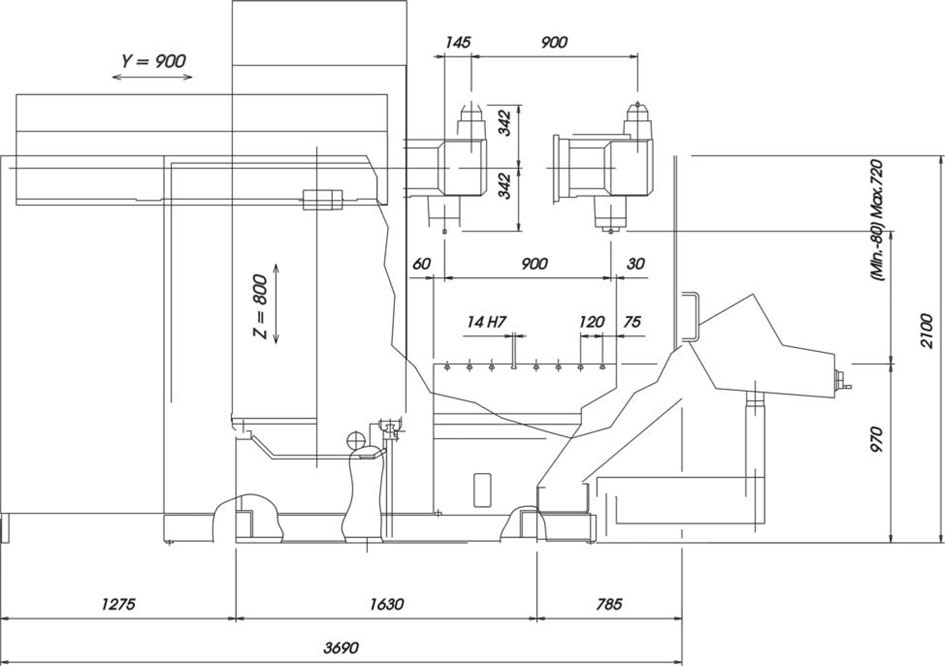

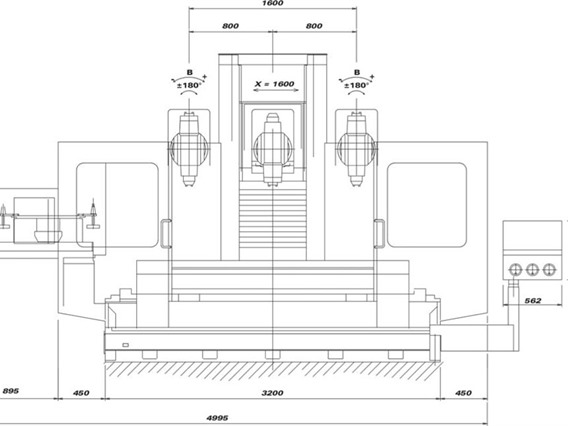

- Longitudinal travel X-axe1600 mm

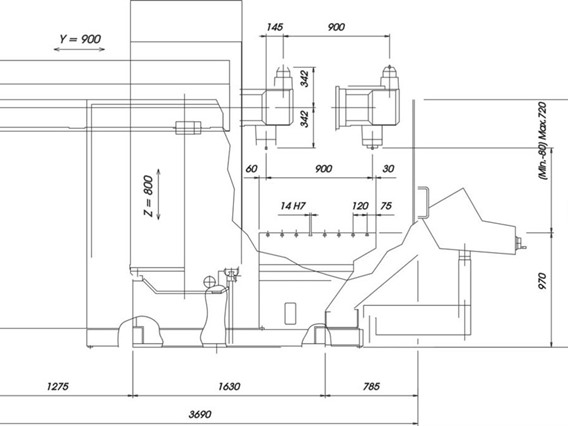

- Crosstravel Y -axeheight 900 mm
- Travel Z-axe (Height)800 mm

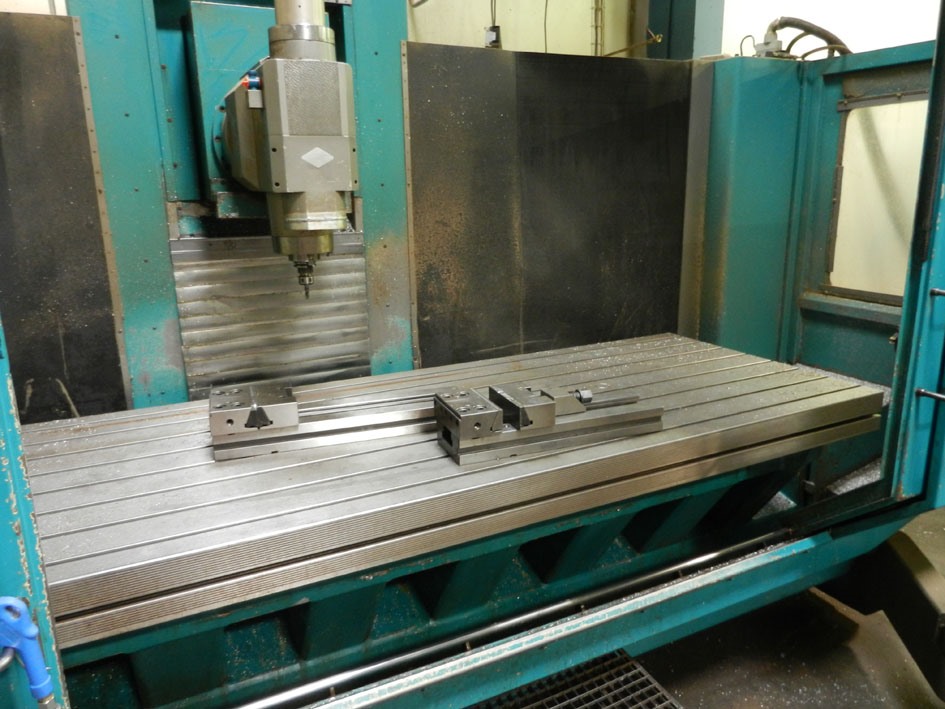

- Dimensions clamping space - table2600 x 1000 mm
- Power on spindle15 kW
- Admission in millingheadspindle (ISO)ISO 40 & ISO 30

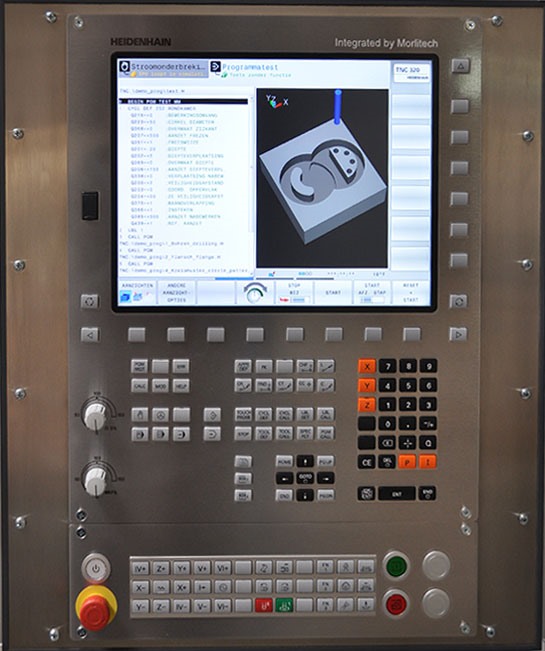

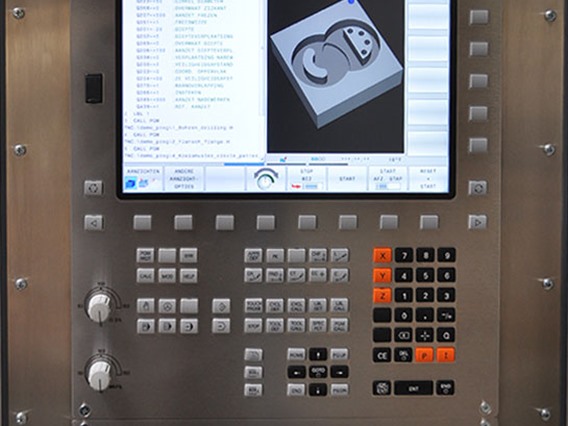

- ControlHeidenhain 320
- Length 4255 mm
- Depth 3745 mm
- Height3315 mm
- Weight17,5 ton
Additional info

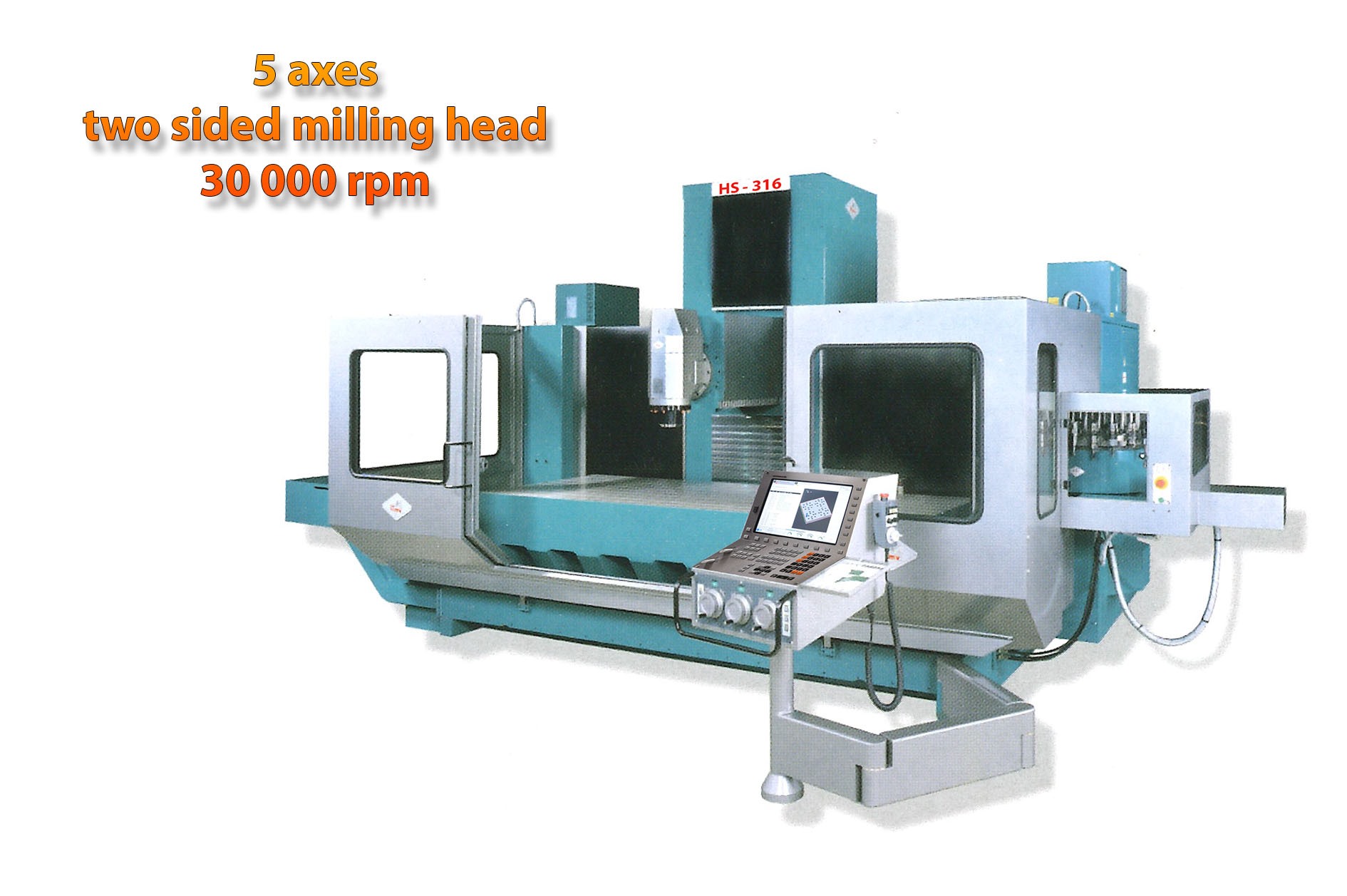

5 axes simultaneous

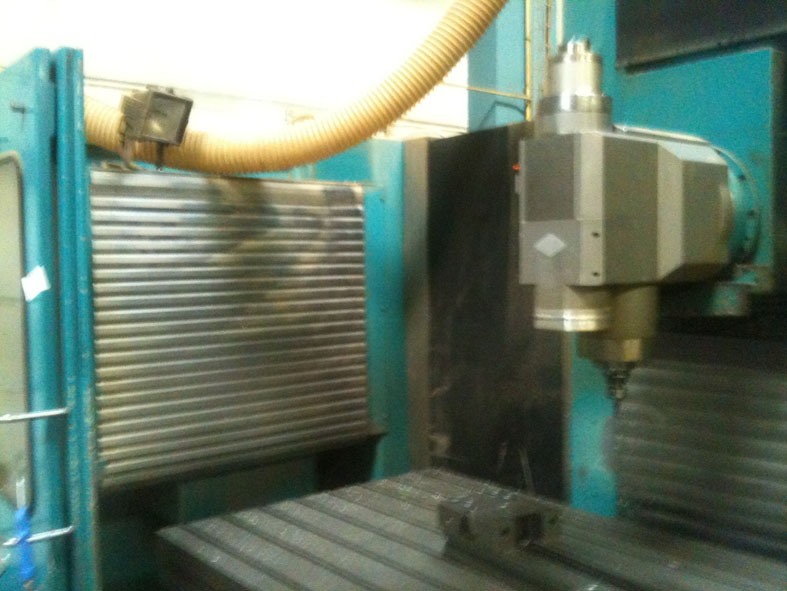

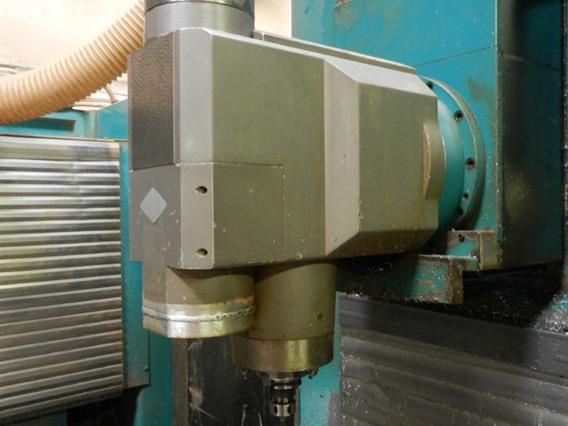

2 milling heads:

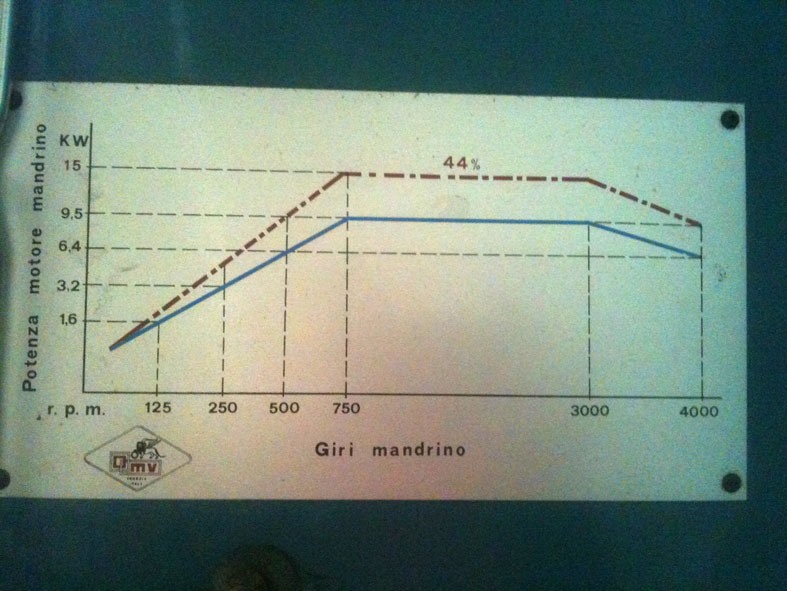

- ISO 40 > 4000 rpm > 15 kW
- ISO 30 > 30 000 rpm > 7 kW
- left & right 180° continuous

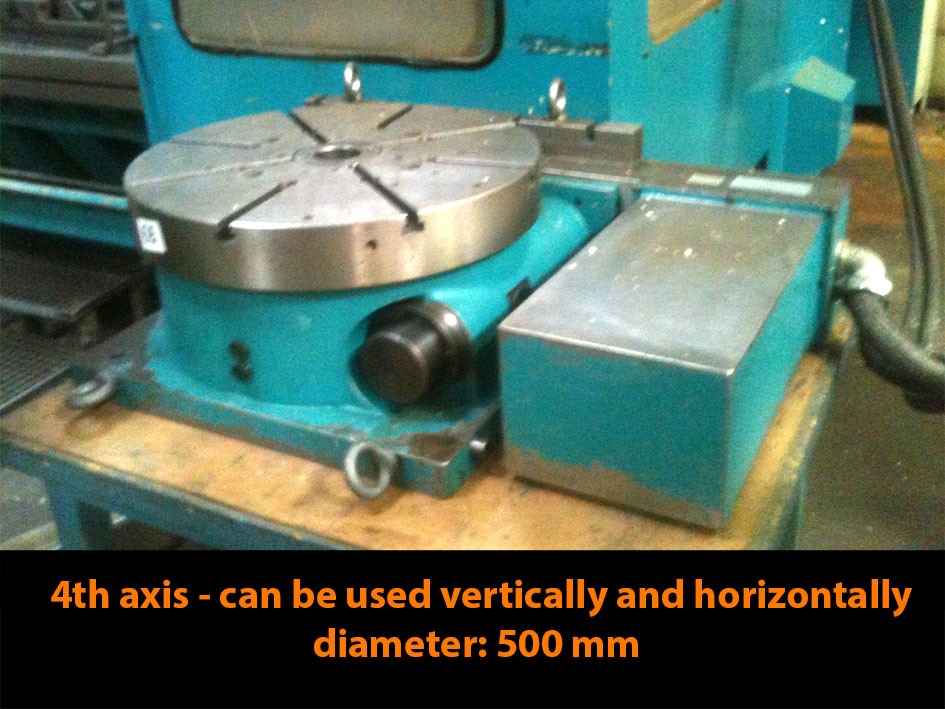

4th axis included: CNC turntable (dia 500mm)
max weight on table: 3 ton

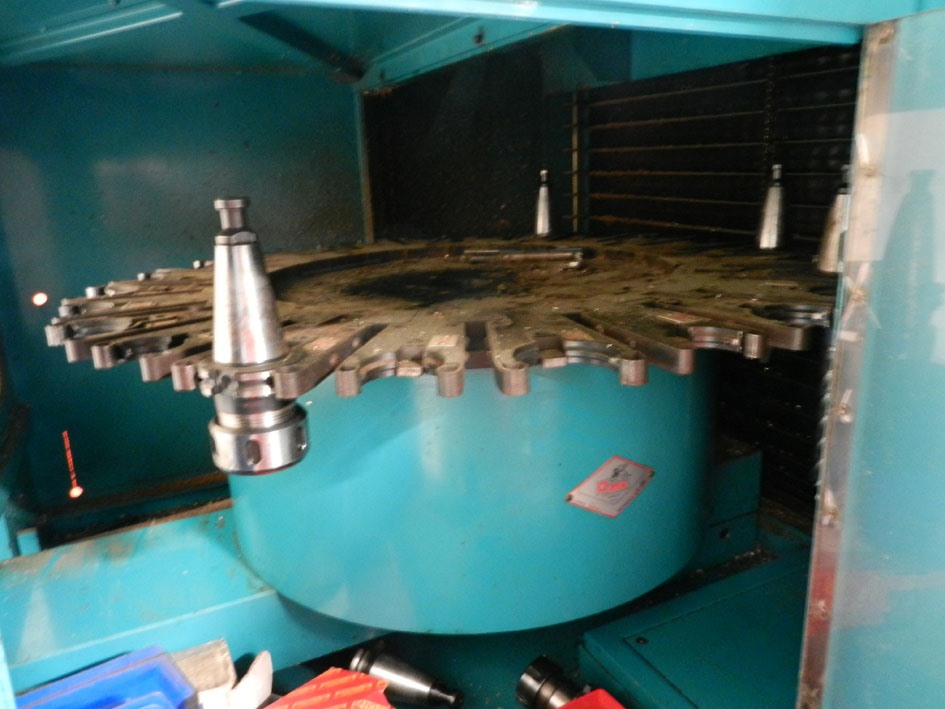

24 tools
- Type/Model: X: 1600 - Y: 1000 - Z: 800 mm CNC
- Stocknumber: B.04 10827
- Main category: [B] Milling machines
- Sub category: [B.04] Bed milling machine with moving column & CNC
- Brand: OMV/Parpas HS 316
