Giddings & Lewis 6 axes X: 24 000 - Y: 2133 - Z: 4572 mm CNC

Technical information

  • Longitudinal travel X-axe24 000 mm
  • Crosstravel Y -axe2133 mm
  • Travel Z-axe (Height)4572 mm
  • Power on spindle85 HP / 65 kW
  • Admission in millingheadspindle (ISO)ISO 60 (dia 254 mm)
  • Max speedrange1,5 > 1200 rpm
  • ControlHeidenhain

Additional info

  • Type: 65-P10-CF

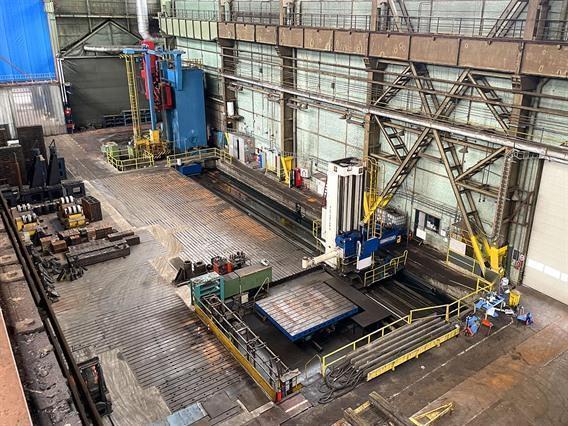

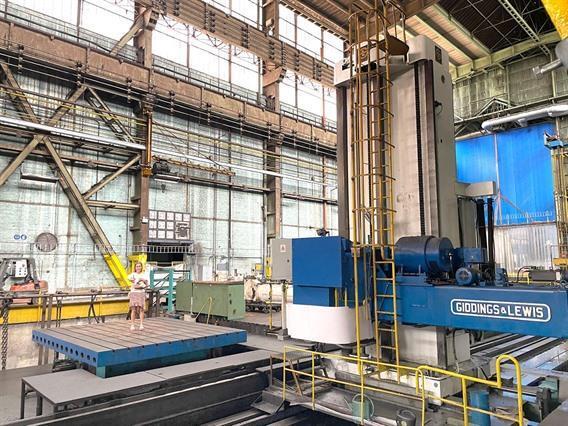

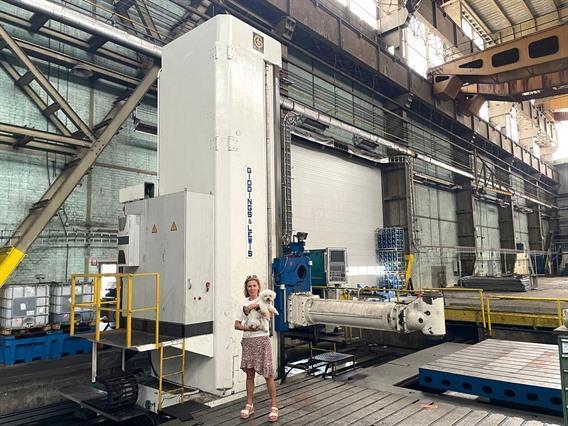

    Heavy duty milling & boring machine
    Longitudinal X-travel of column: 24 meter

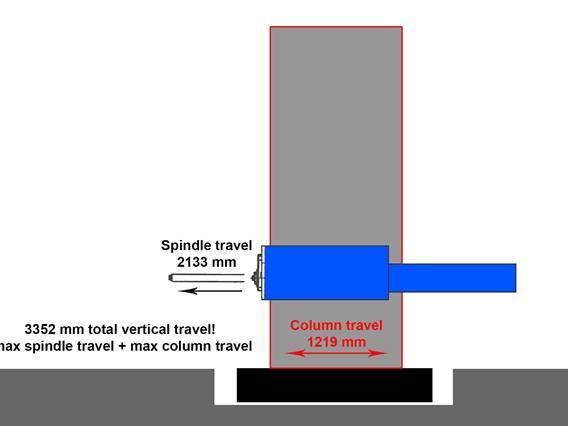

    Cross Z-travel of spindle-dia: 254 mm - travel: 2133 mm
    incl adaptor ISO-60 to ISO-50

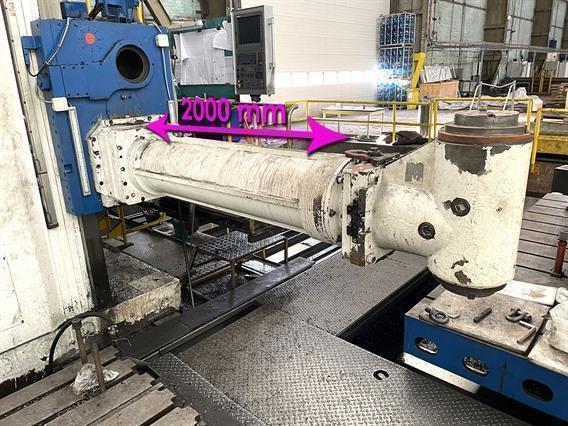

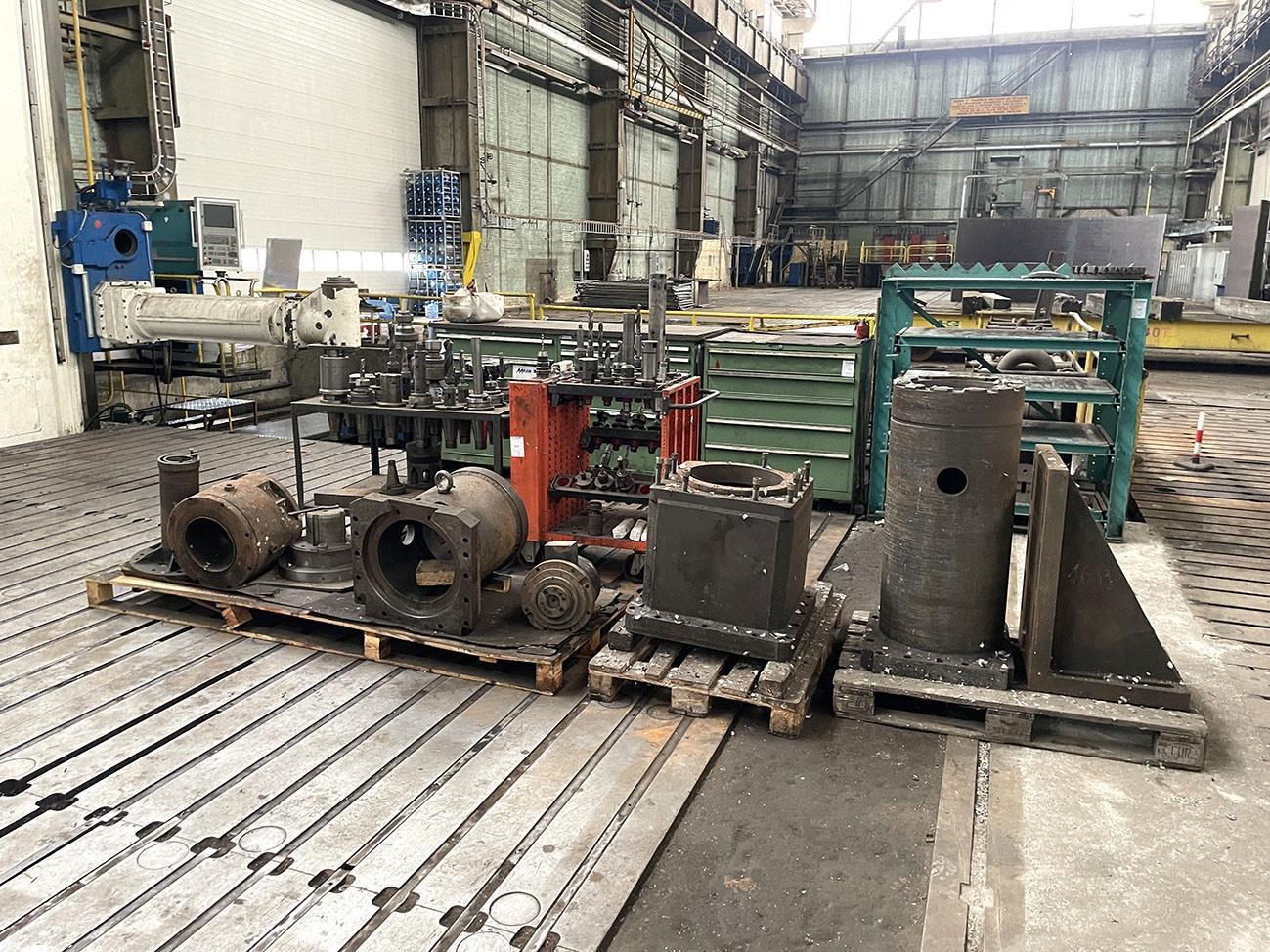

    incl many different extensions for spindle & milling heads

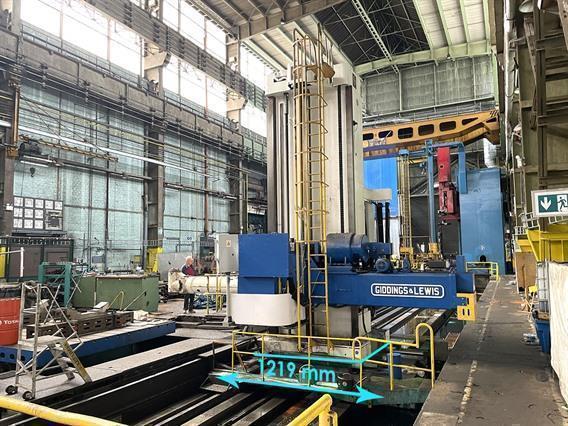

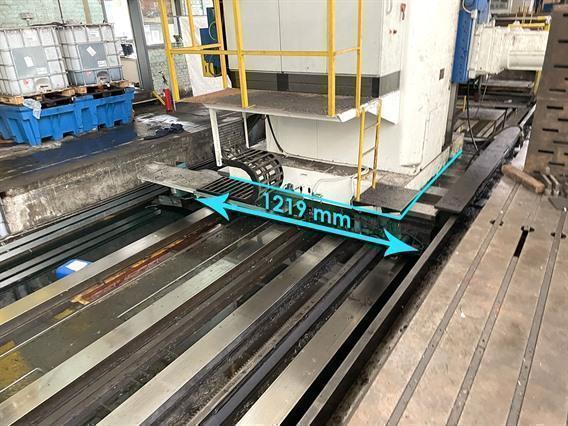

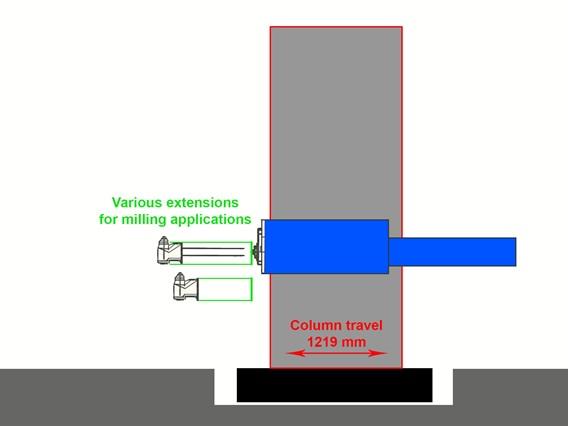

    Cross W-travel of column: 1219 mm
    Vertical Y-travel of column: 4572 mm
    Weight of machine + turntable: 200 ton

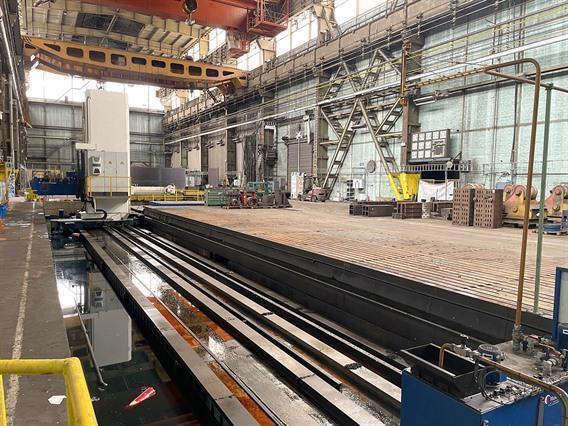

    4 hardened guides
    integrated lubrification

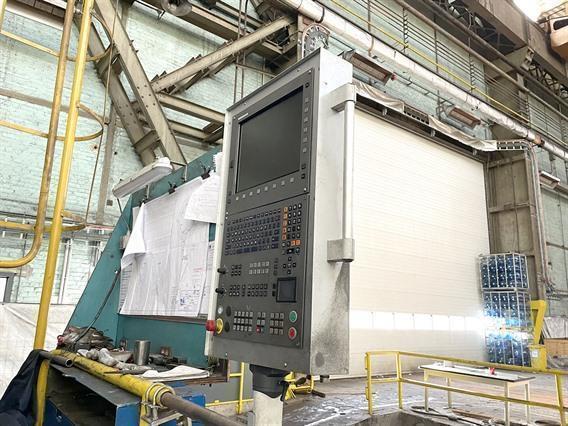

    Heidenhain CNC-control

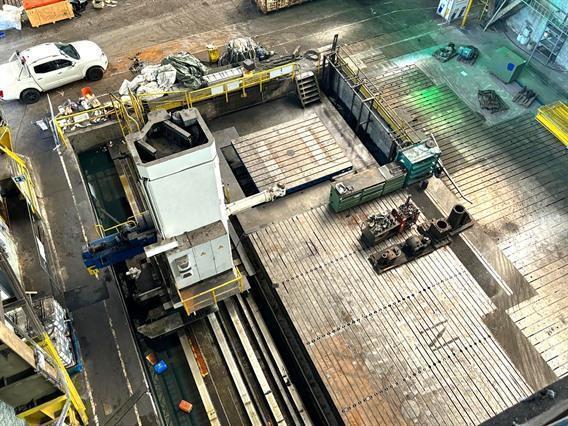

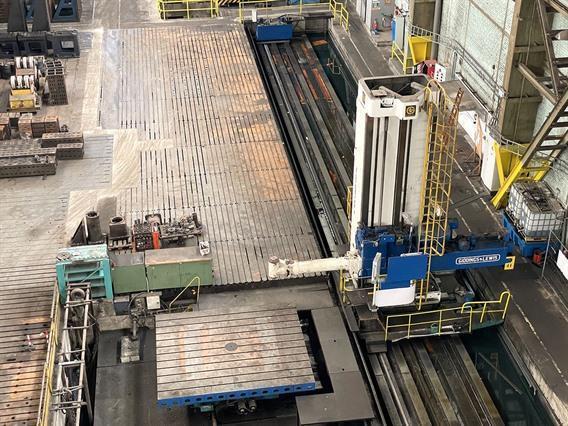

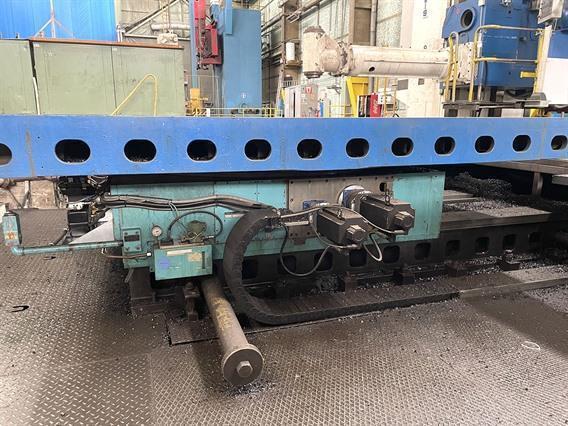

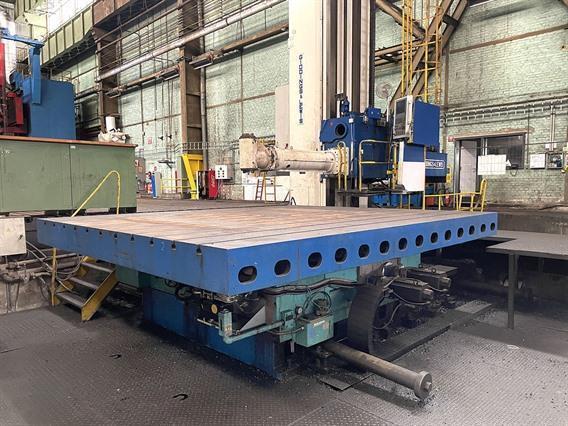

    CNC Turntable continuous: 4500 x 3500 mm
    Max 60 ton on table

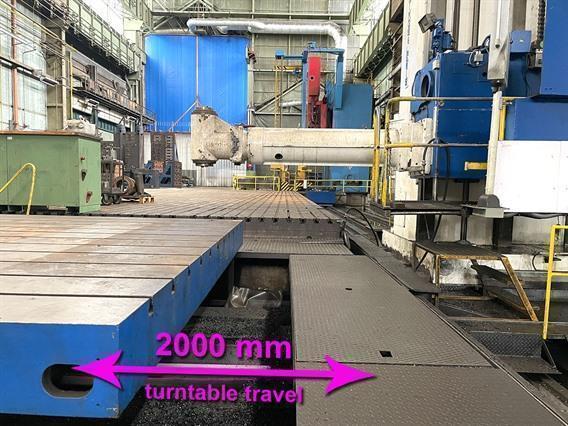

    Cross travel of table: 2000 mm

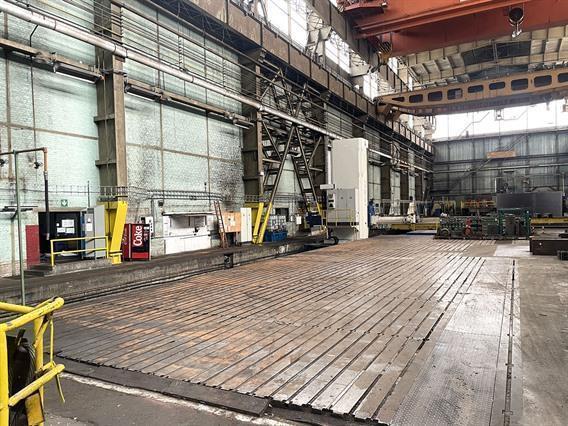

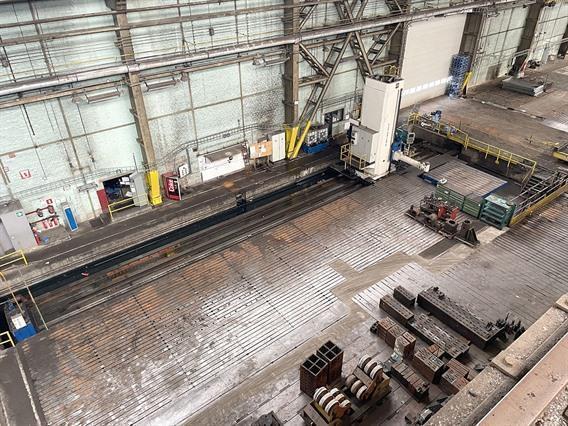

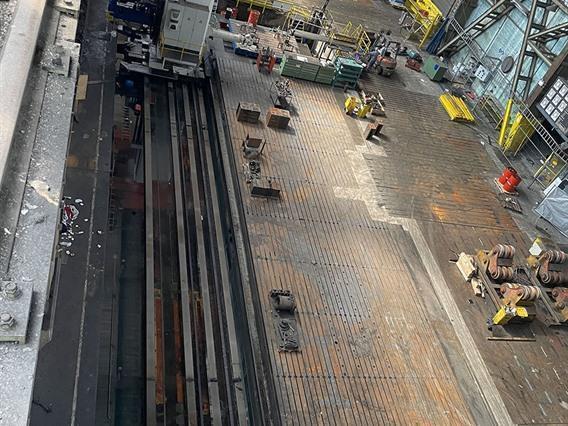

    Surface area t-slot tables: 25 000 x 6,900 mm
    Weight of t-slot tables: 180 ton


  • Type/Model: 6 axes X: 24 000 - Y: 2133 - Z: 4572 mm CNC
  • Stocknumber: B.04 14151
  • Main category: [B] Milling machines
  • Sub category: [B.04] Bed milling machine with moving column & CNC
  • Brand: Giddings & Lewis

Stocknumber: B.04 14151
