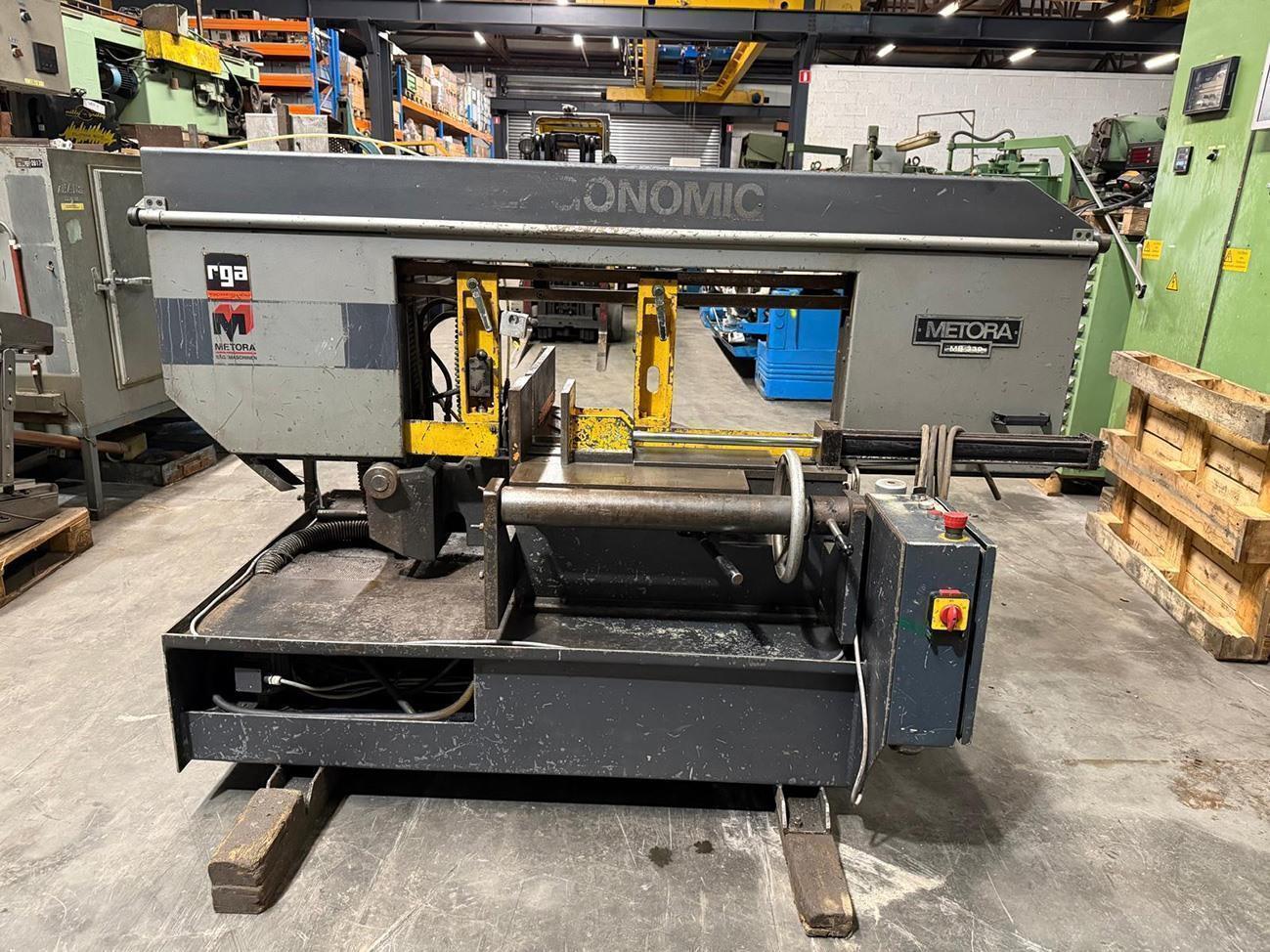

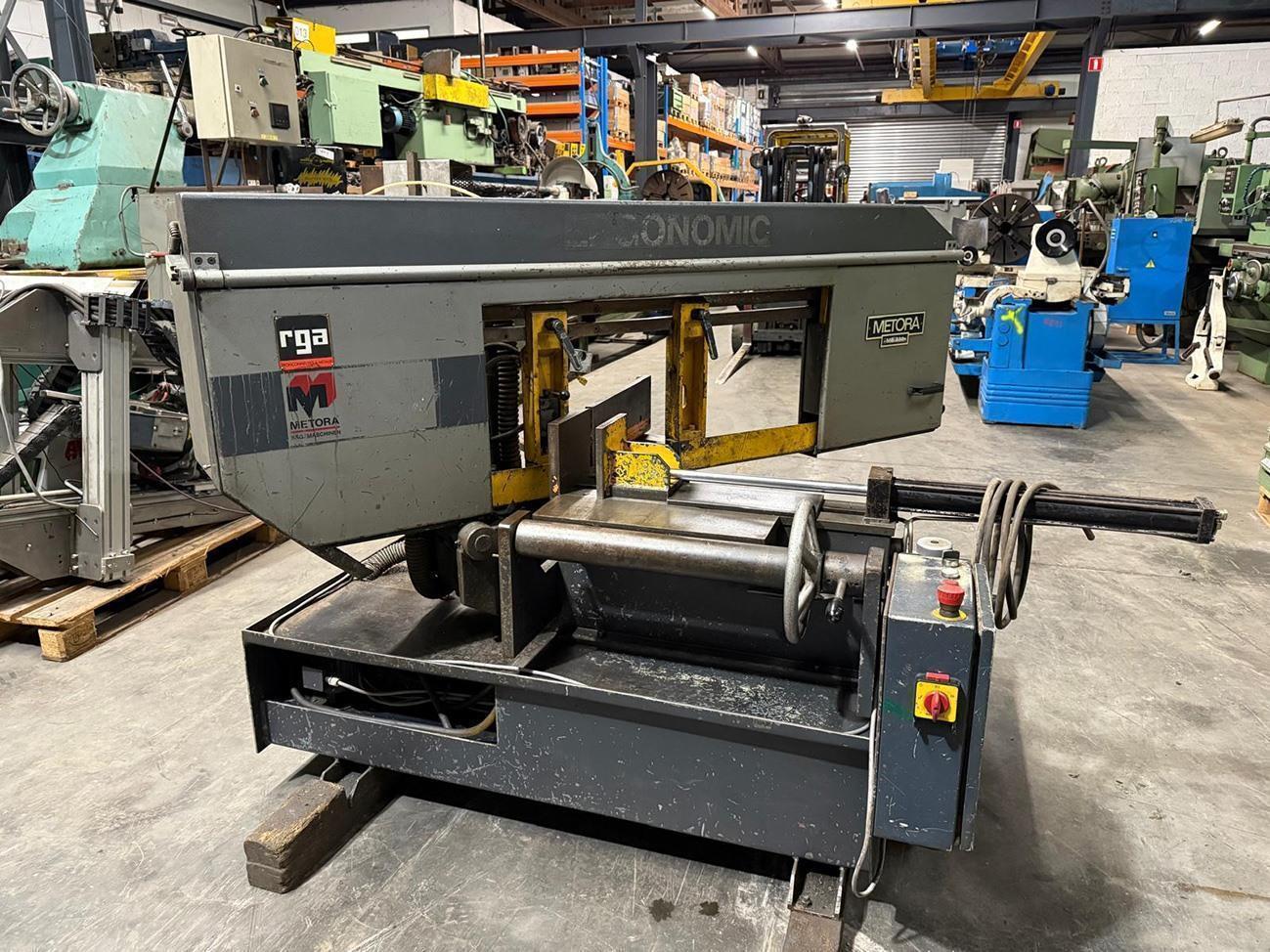

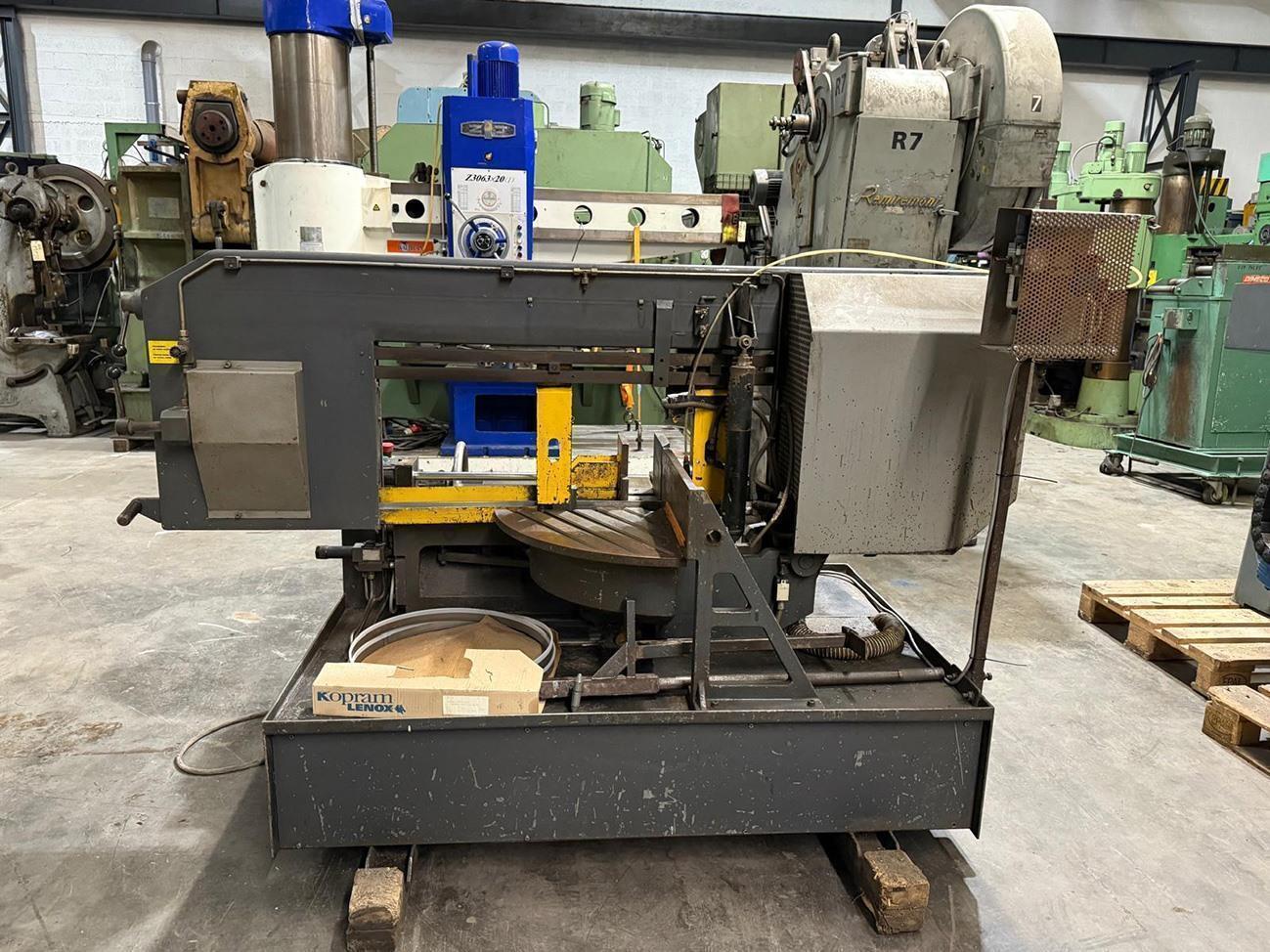

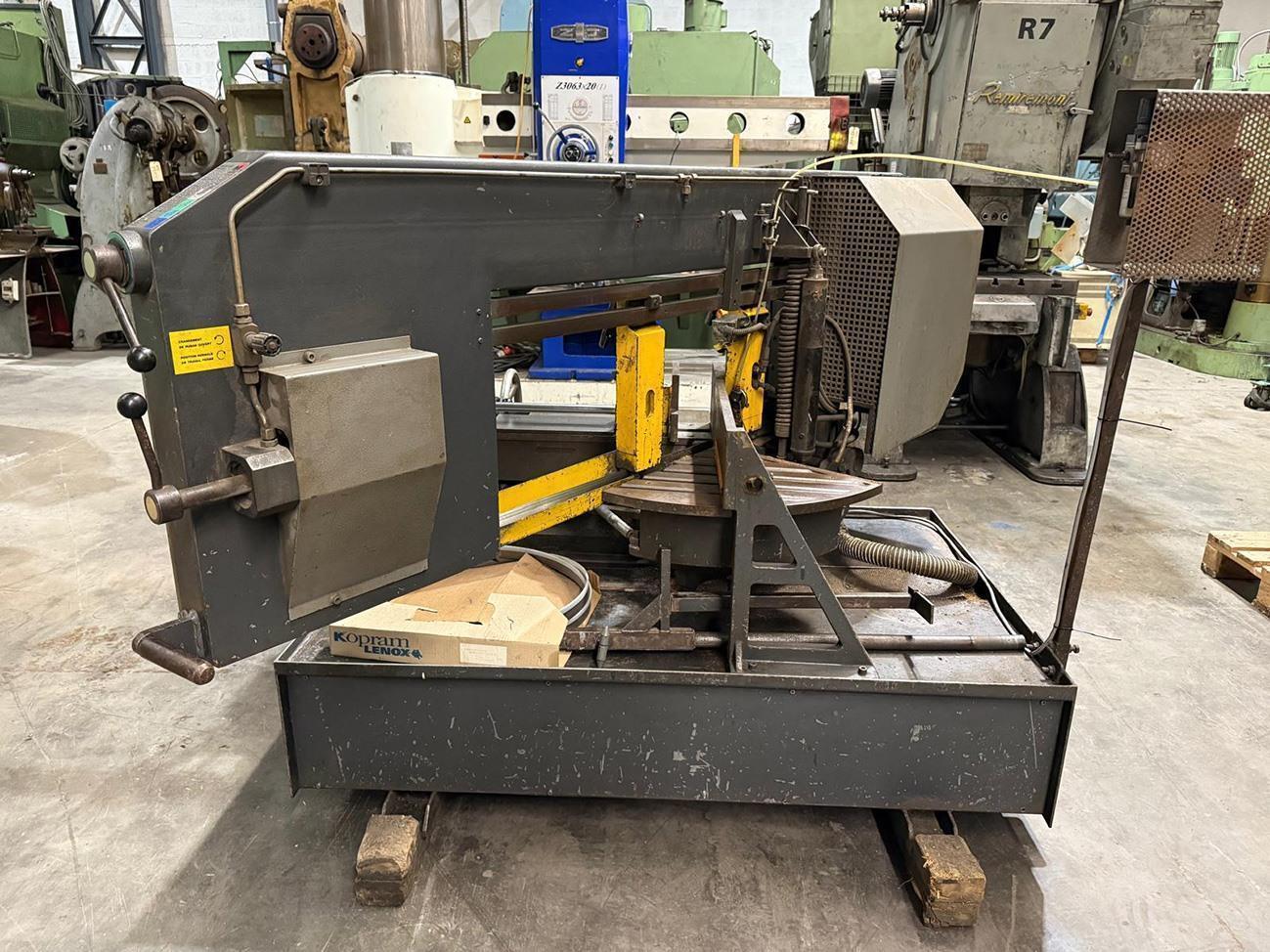

Band sawing machines Metora MB330
Technical information
- Depth of throat520 mm

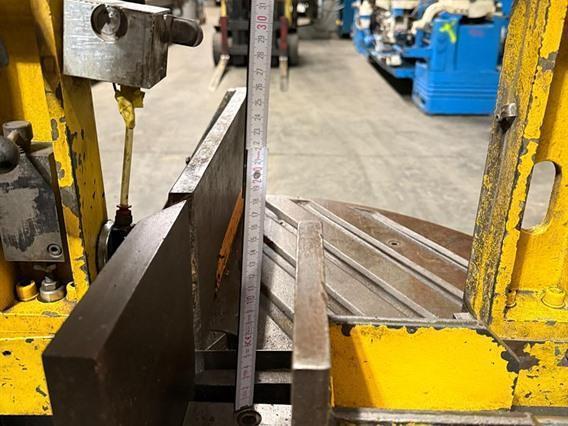

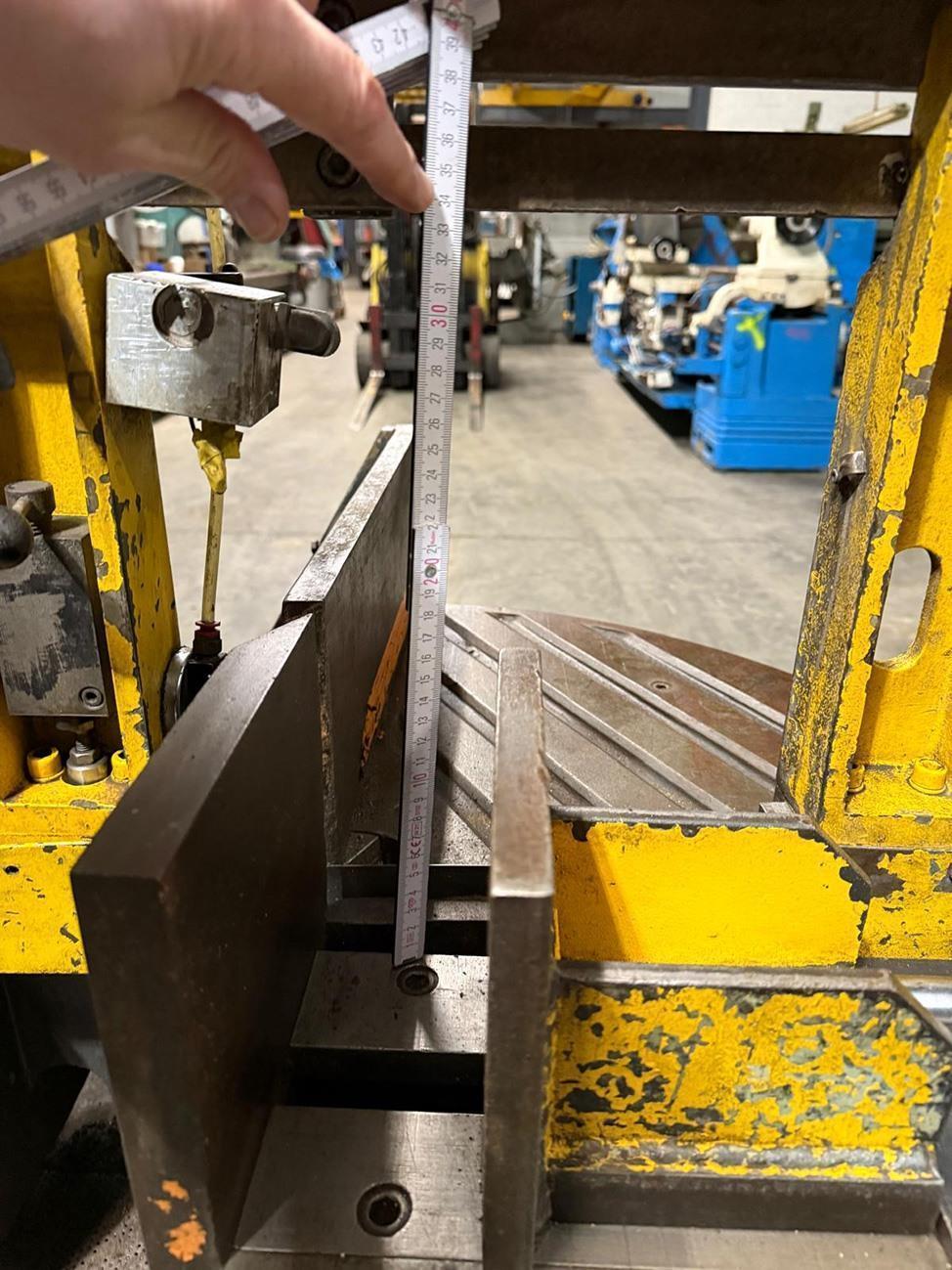

- Max height of workpiece320 mm
- Sawspeed16 > 96 m/min
- Length of band saw4600 x 32 x 1,1 mm
- Power needed1,5 kW
- Length 2200 mm
- Depth 1400 mm
- Height1400 mm
- Weight780 kg
Additional info

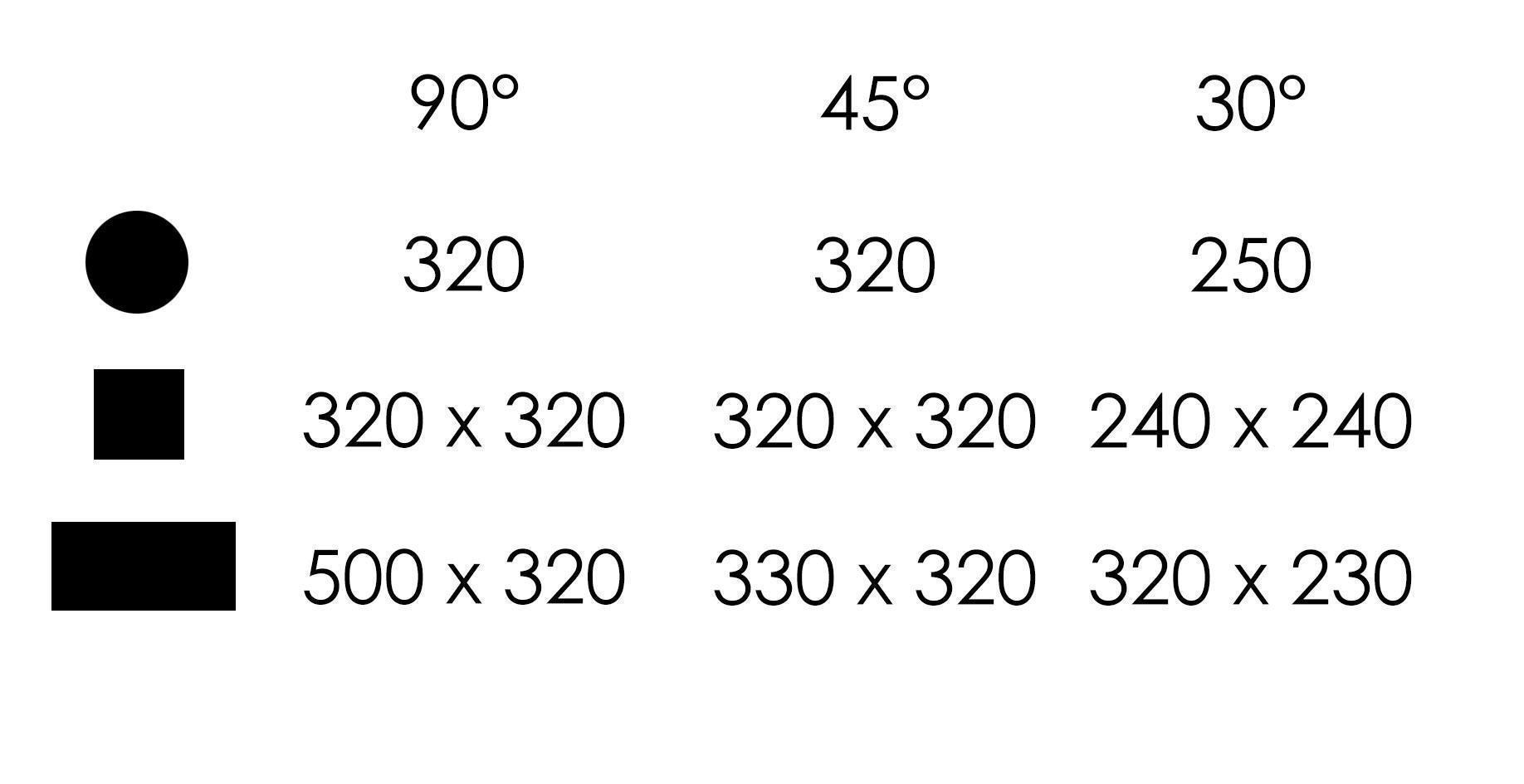

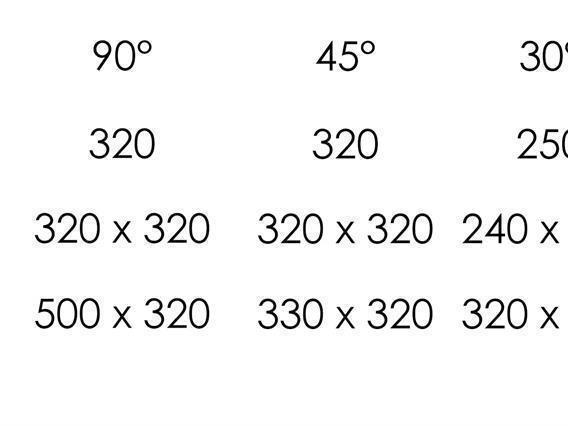

Cutting range:

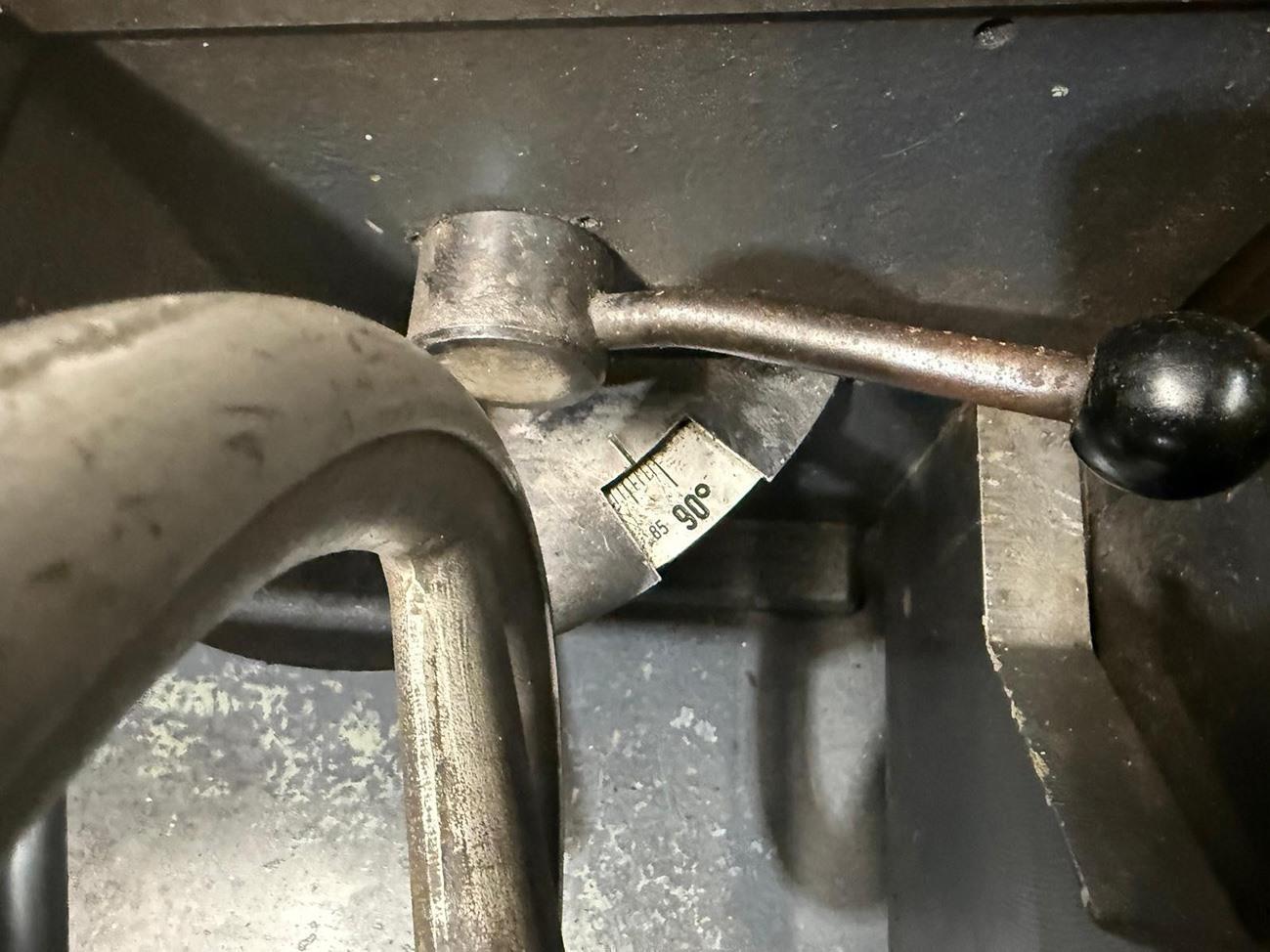

Round 90° and 45° - 320 mm / 30° - 250 mm
Square 90° and 45° - 320 x 320 mm / 30° - 240 x 240 mm
Max. profiles 90° - 500 x 320 mm / 45° - 330 x 320 mm / 30° - 320 x 230 mm
- Saw frame in torsion-free steel construction
- Integrated coolant and hydraulic tank

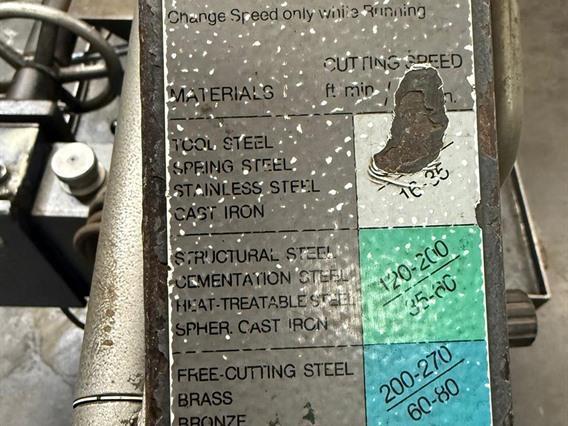

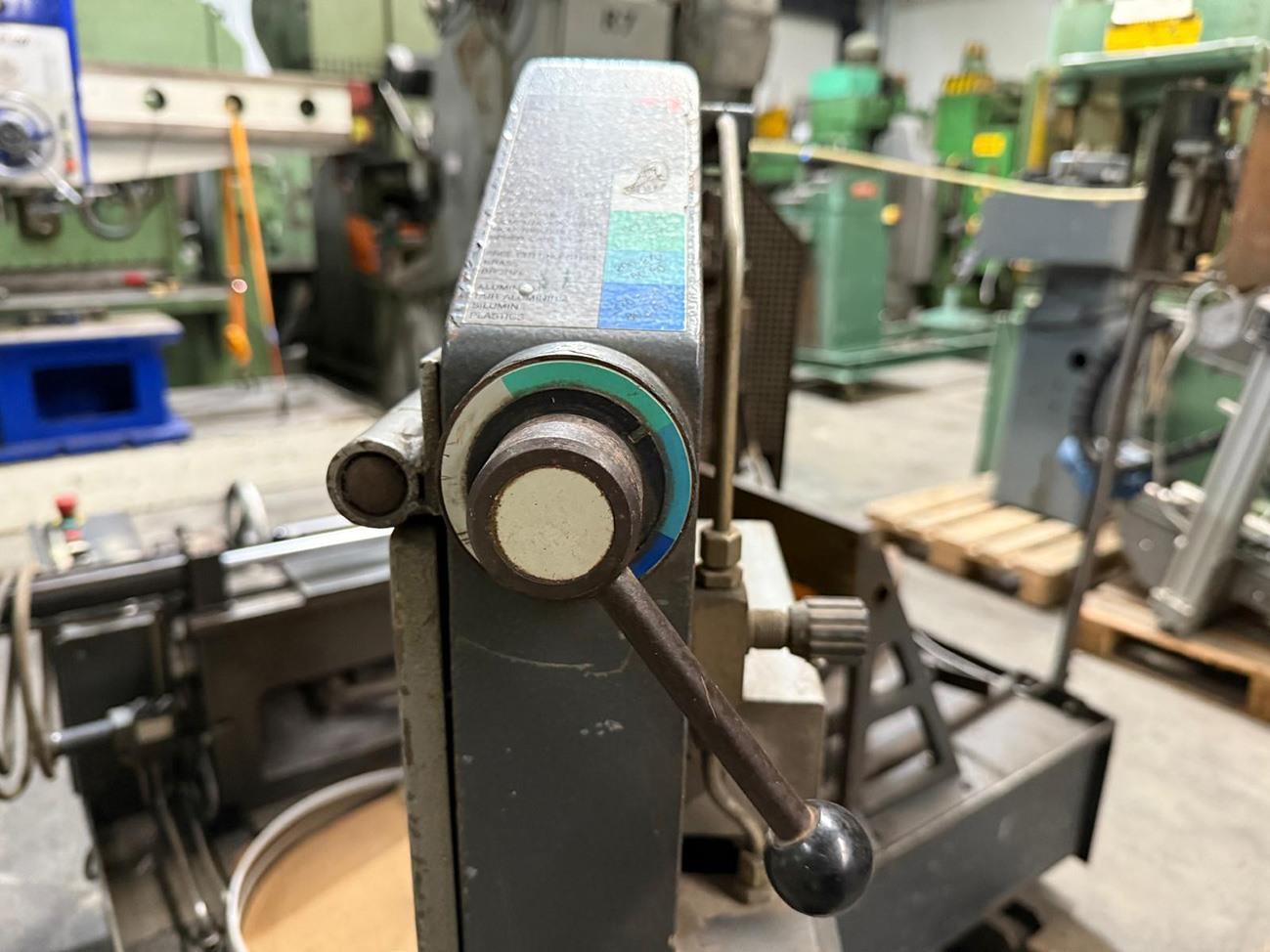

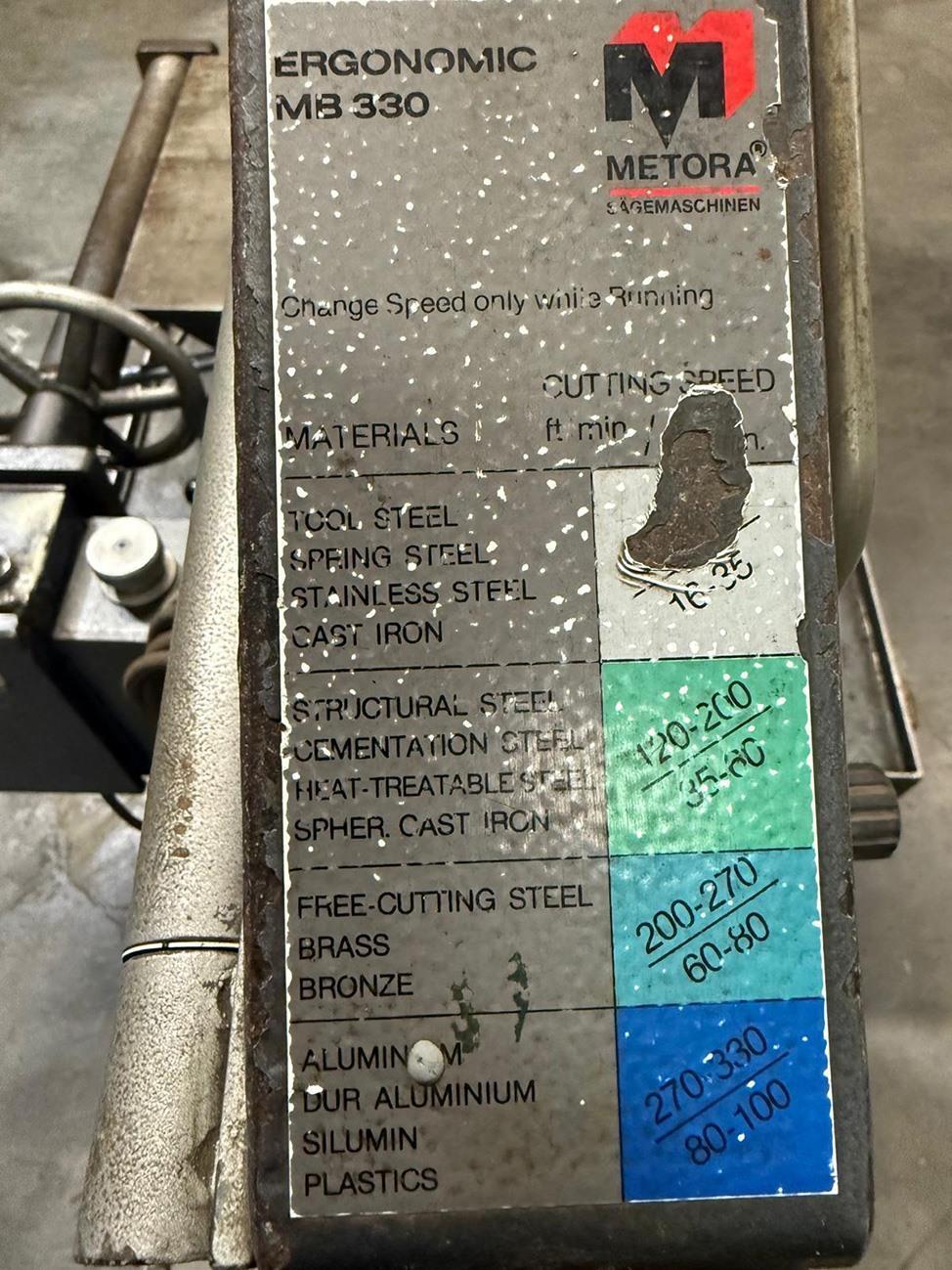

- Continuous cutting speed regulation on the control panel
- Hydraulic controlled cutting feed adjustable on the control panel
- Automatic hydraulic cutting pressure regulation through band back control
- Carbide-tipped saw band guides combined with ball bearings

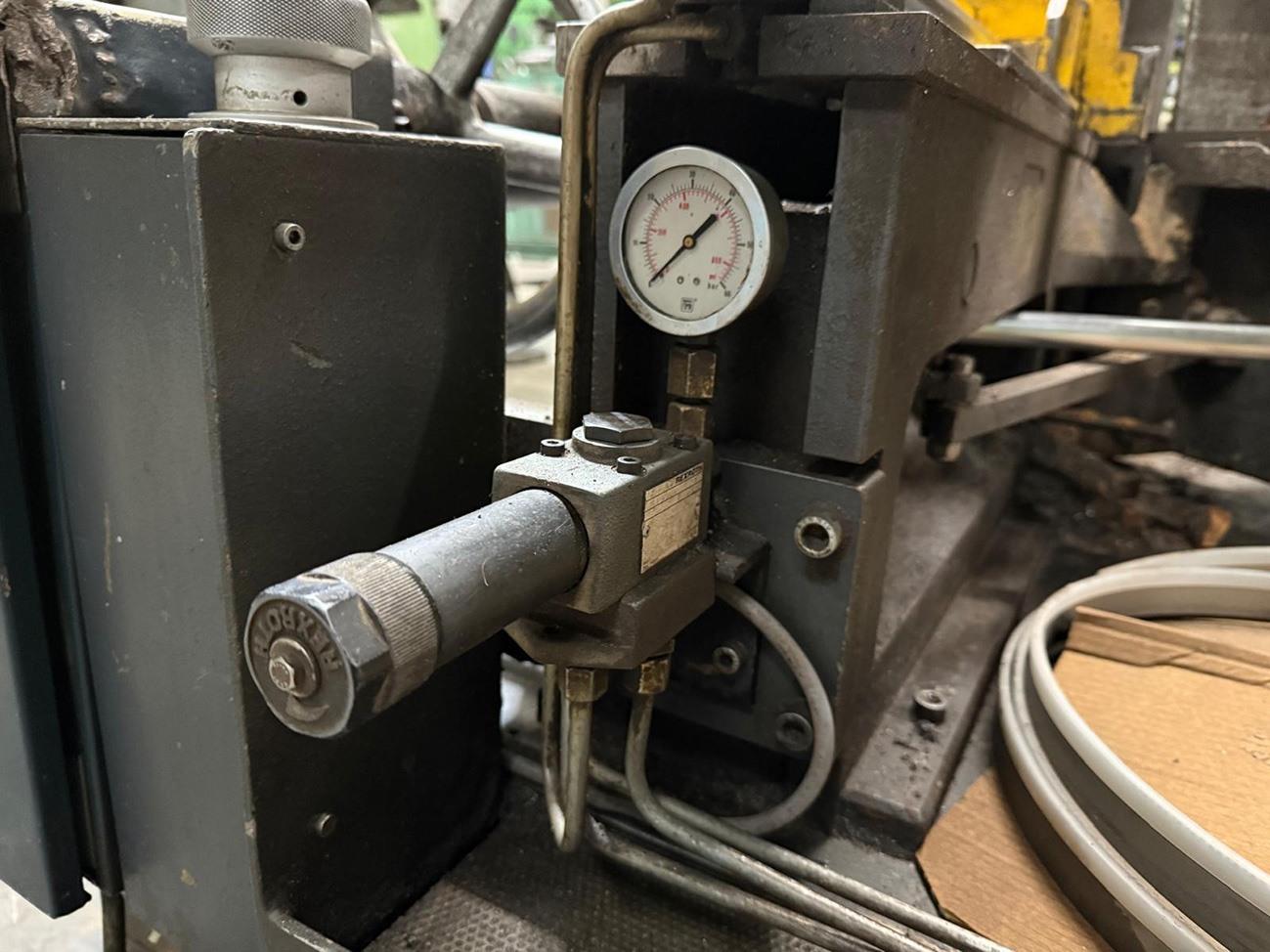

- Band tensioning device with control gauge
- Type/Model: MB330
- Stocknumber: L.03 15580
- Main category: [L] Sawing machines, Filing machines & Cutting-off machines
- Sub category: [L.03] Band sawing machines
- Brand: Metora
