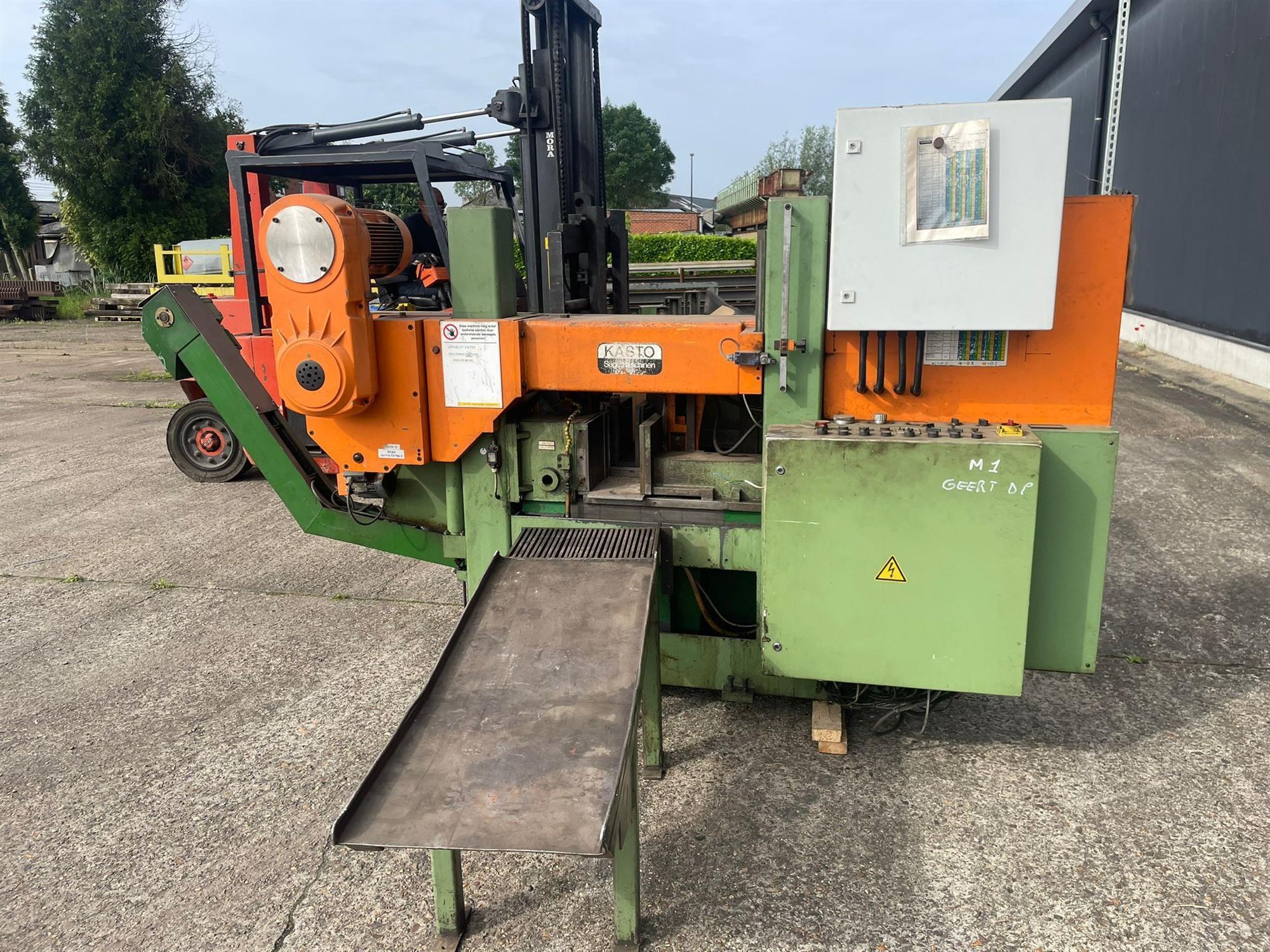

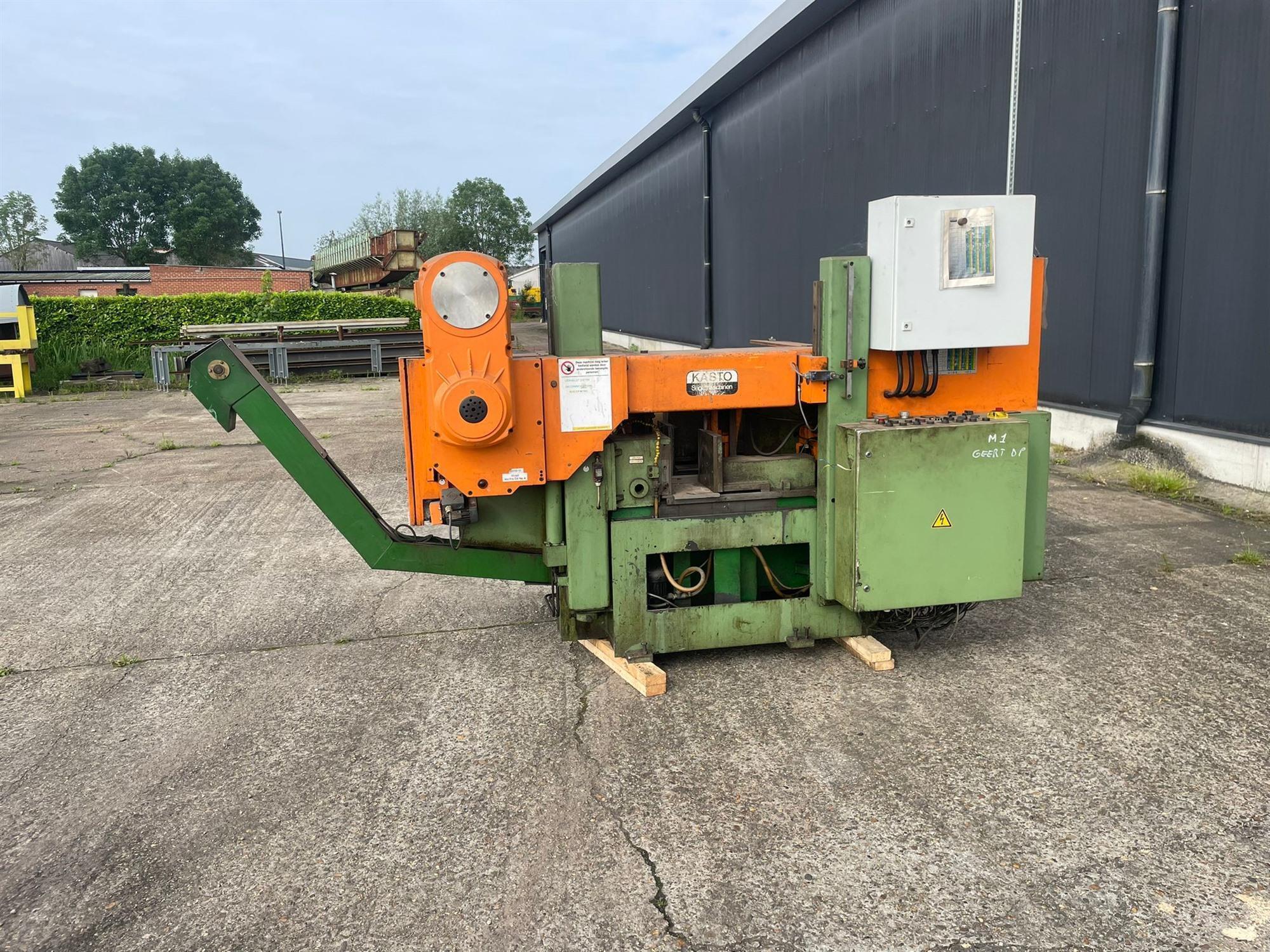

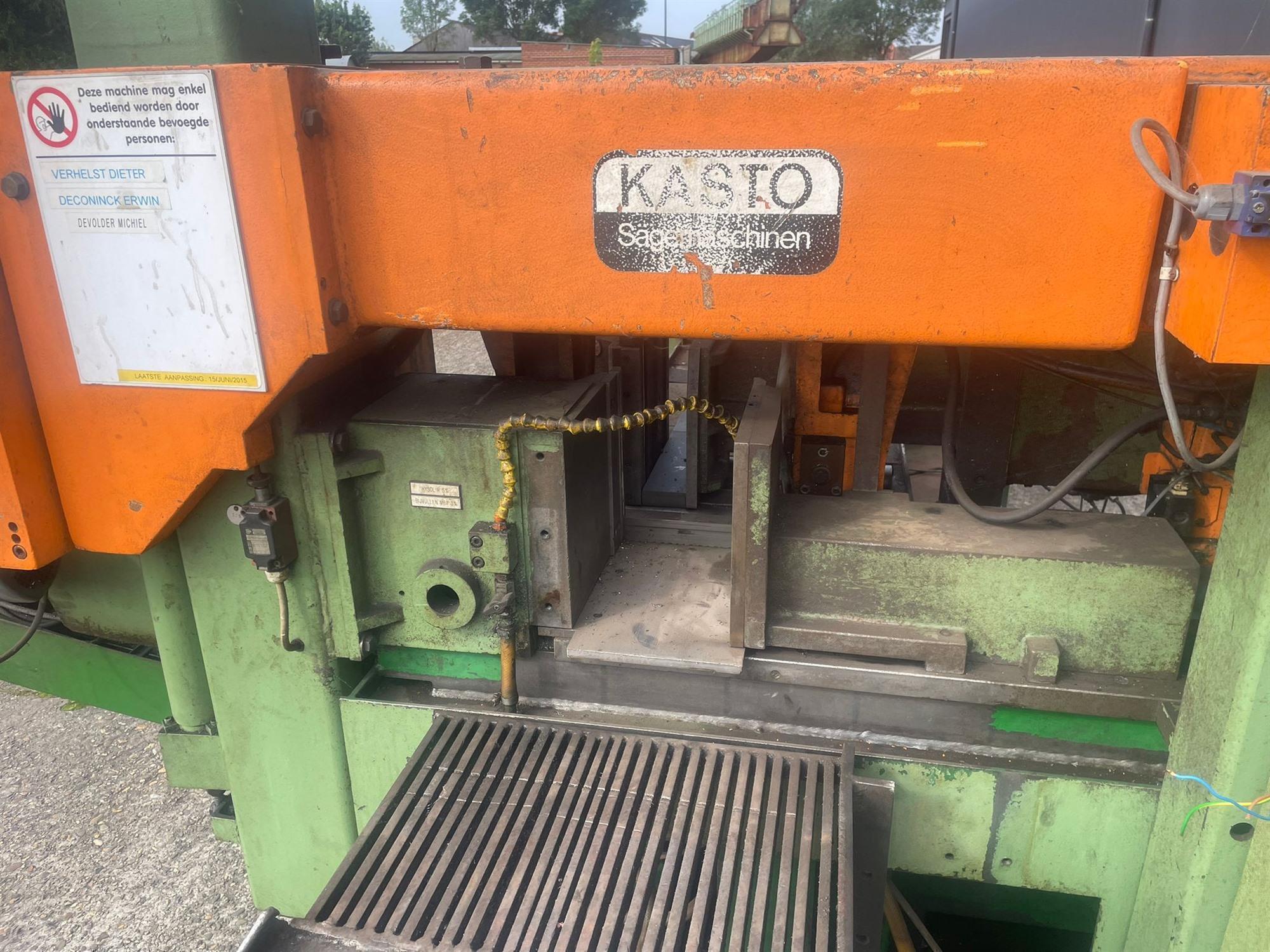

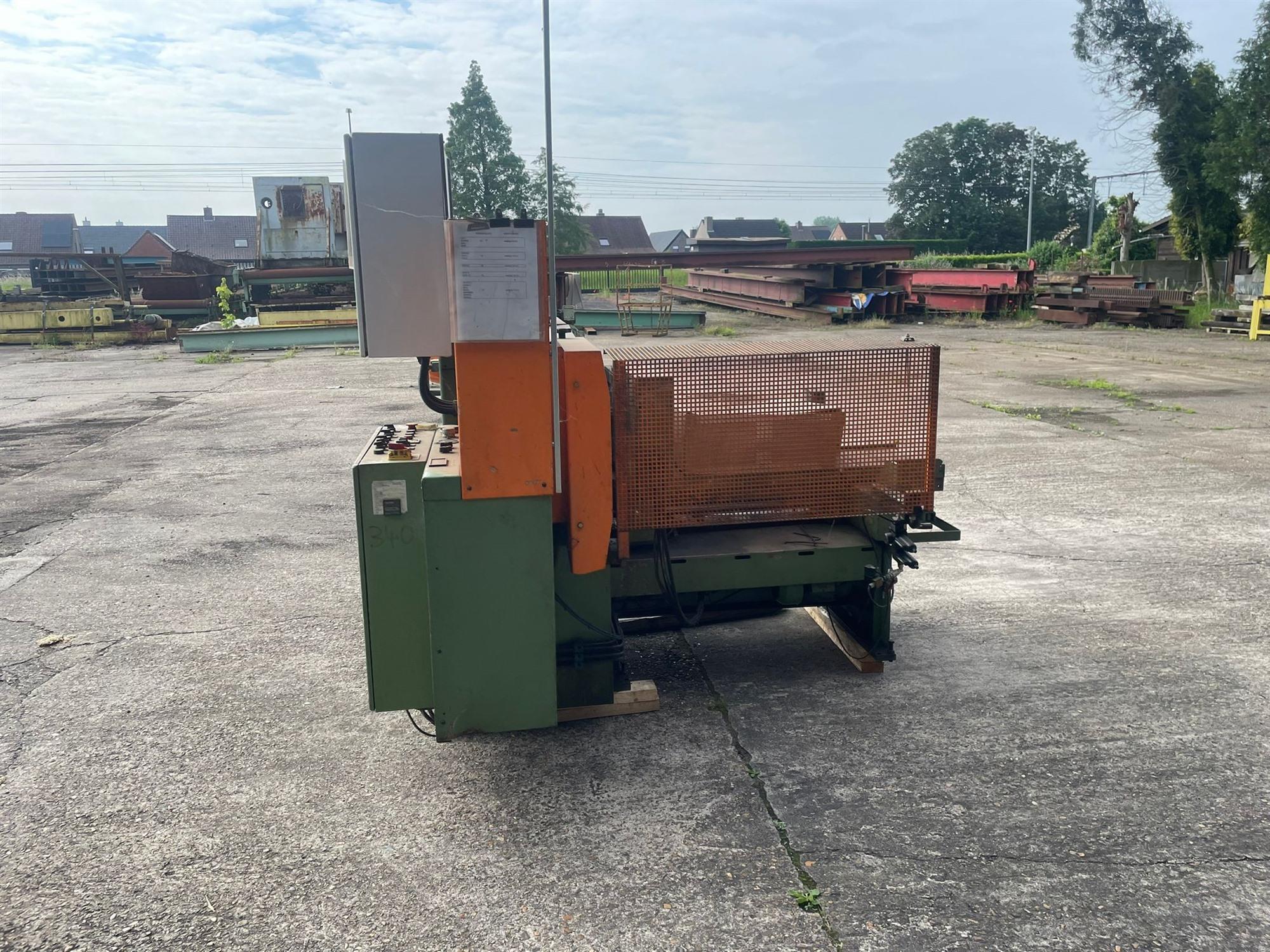

Band sawing machines Kasto HBA 360

Product added to your favorites

» Request a personalised quote

Technical information

Depth of throat360 mm
Max height of workpiece360 mm
Sawspeed20-130 m/min
Length of band saw5334 x 38 x 1.3 mm
Power needed8.0 kW
Length 2400 mm
Depth 2900 mm
Height1800 mm
Weight2 ton

Additional info

single cut and automatic possible
hydr. saw band tensioning
chipconveyor inclusive

clamping force regulation of the vices via handwheel
material end switch-off
material multiple feed (up to 9x) max. 5400mm
Remaining piece length min. 10mm in single cut and 80mm in automatic mode
material single feed max. 600mm

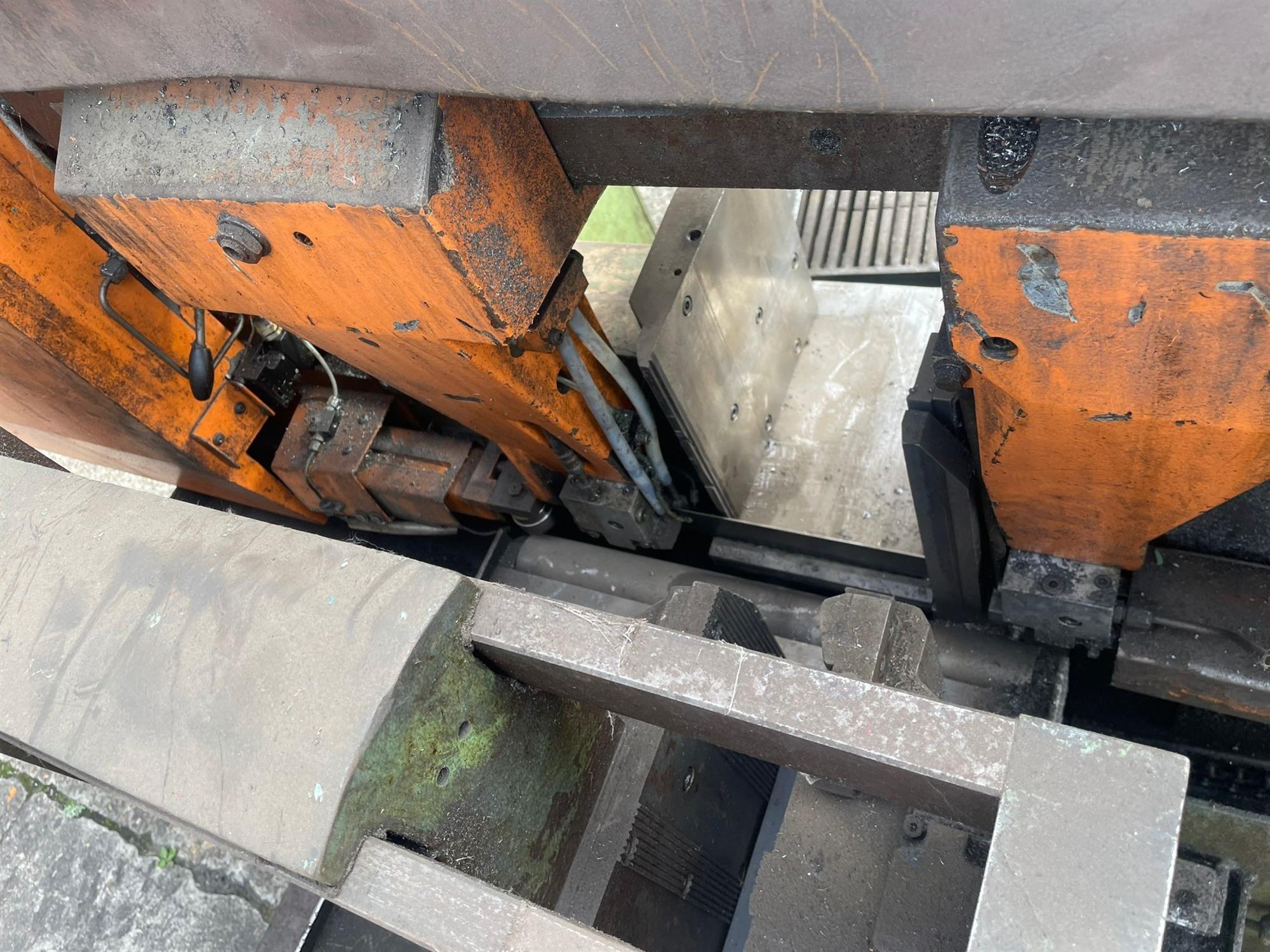

clamping jaws 460 x 250mm, hydraulic
piece counter
Coolant tank integrated in machine column approx. 90 liters incl. coolant pump 30l/min.
chip clearing brush

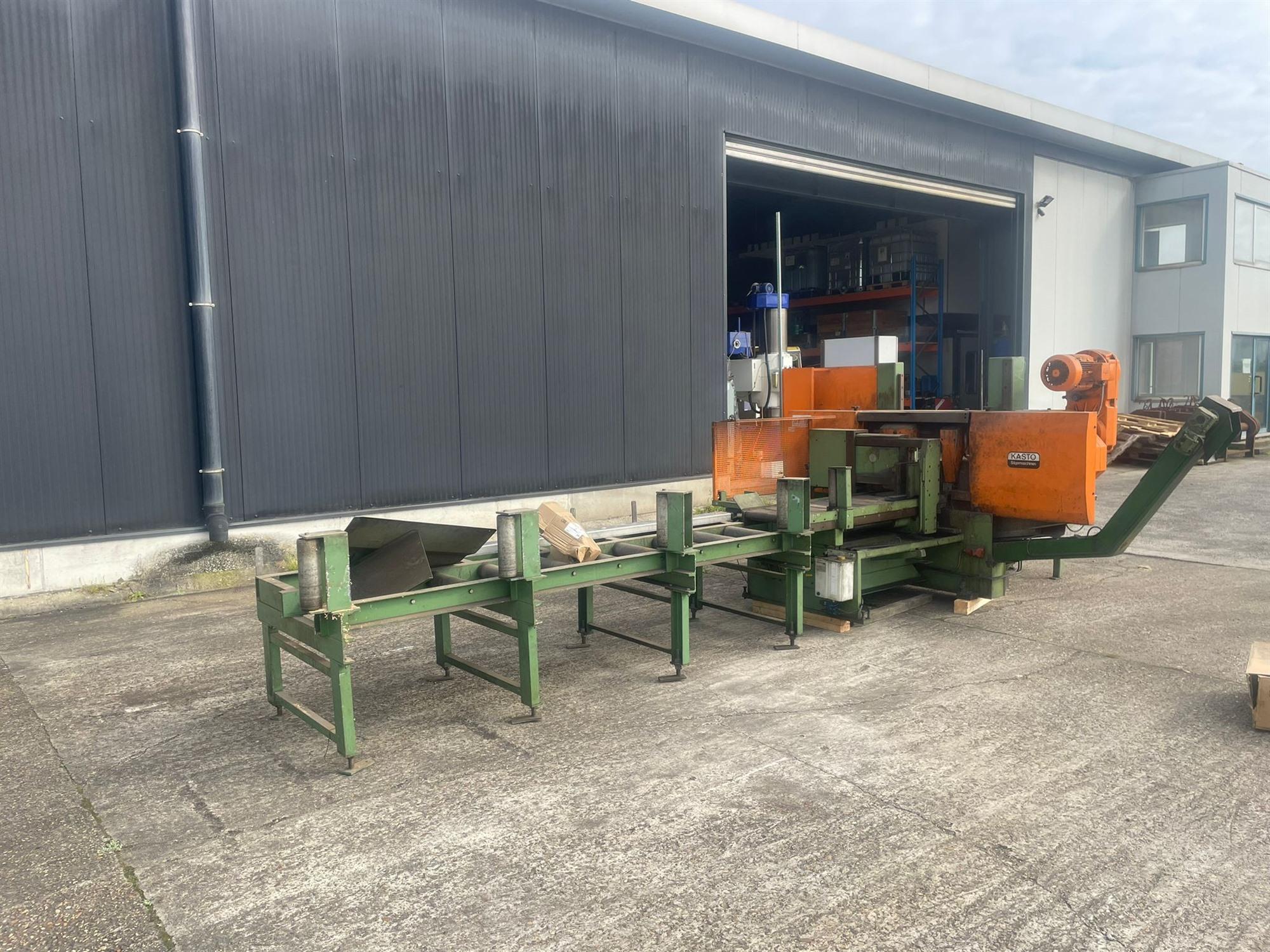

feeding track 1550 x 500mm with feeding jaws 250 x 250mm hydraulic
Type/Model: HBA 360
Stocknumber: L.03 14132
Main category: [L] Sawing machines, Filing machines & Cutting-off machines
Sub category: [L.03] Band sawing machines
Brand: Kasto
