Friggi heavy duty 660 x 700 mm CNC

Technical information

  • Depth of throat660 mm
  • Max height of workpiece700 mm
  • Sawspeed10 > 120 m/min
  • Length of band saw8660 x 67 x 1,6 mm
  • Power needed27 kW (58 amp)
  • Length 4500 mm
  • Depth 1950 mm
  • Height3340 mm
  • Weight8,5 ton (only machine)

Additional info

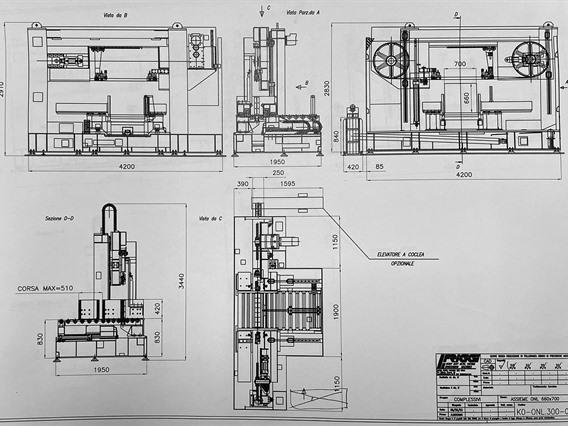

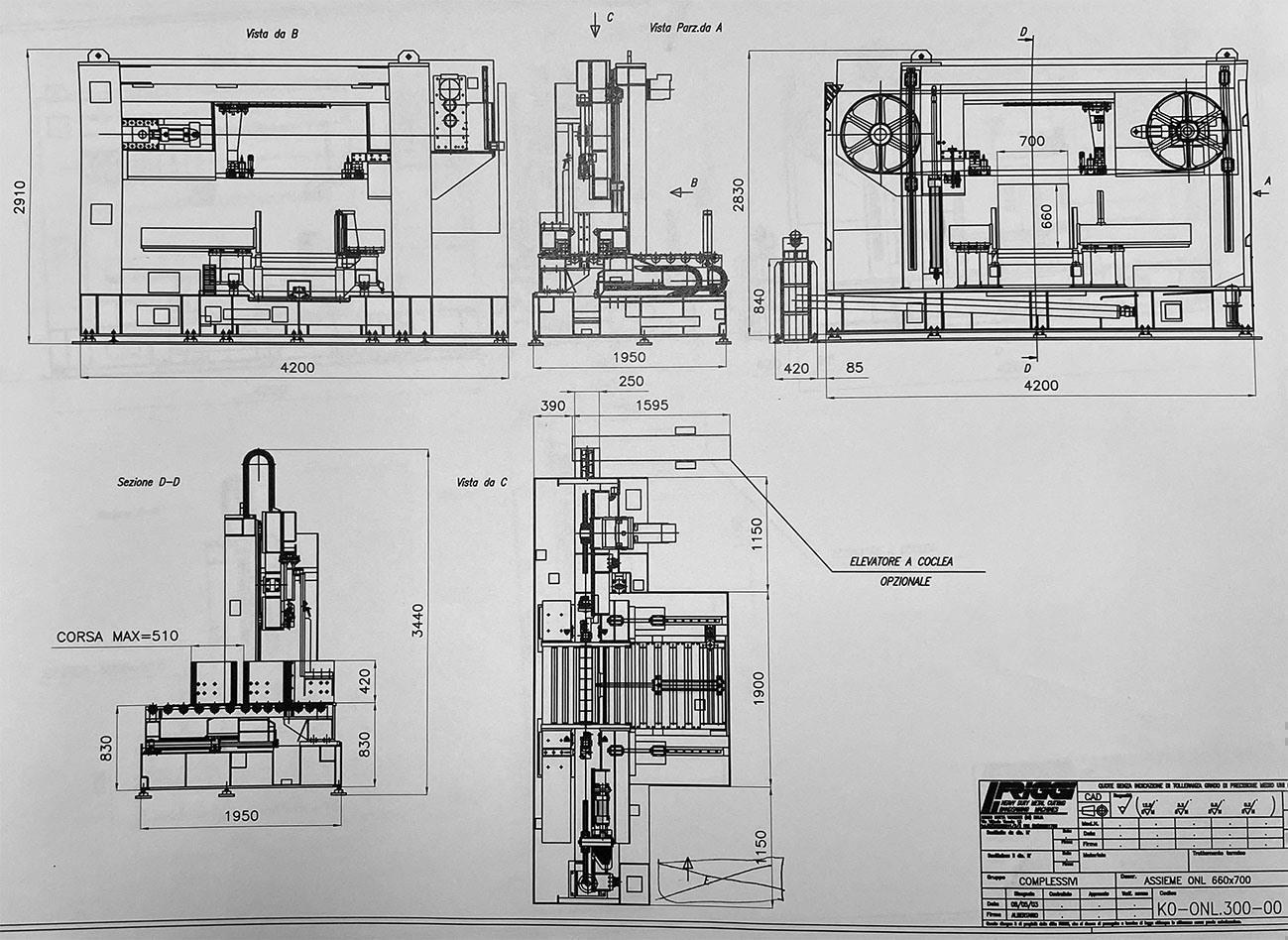

  • Type: ONL 660x700 ACN

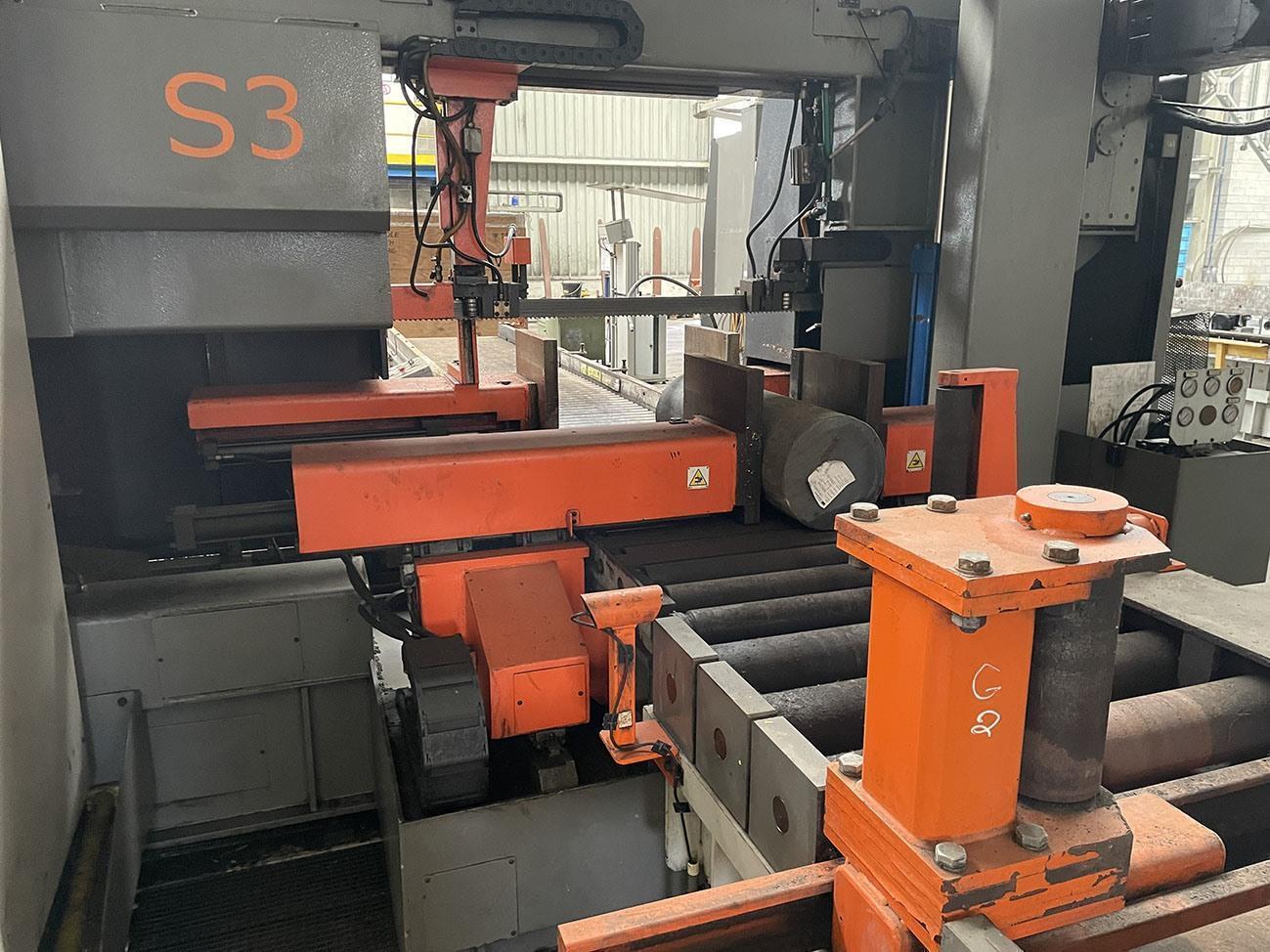

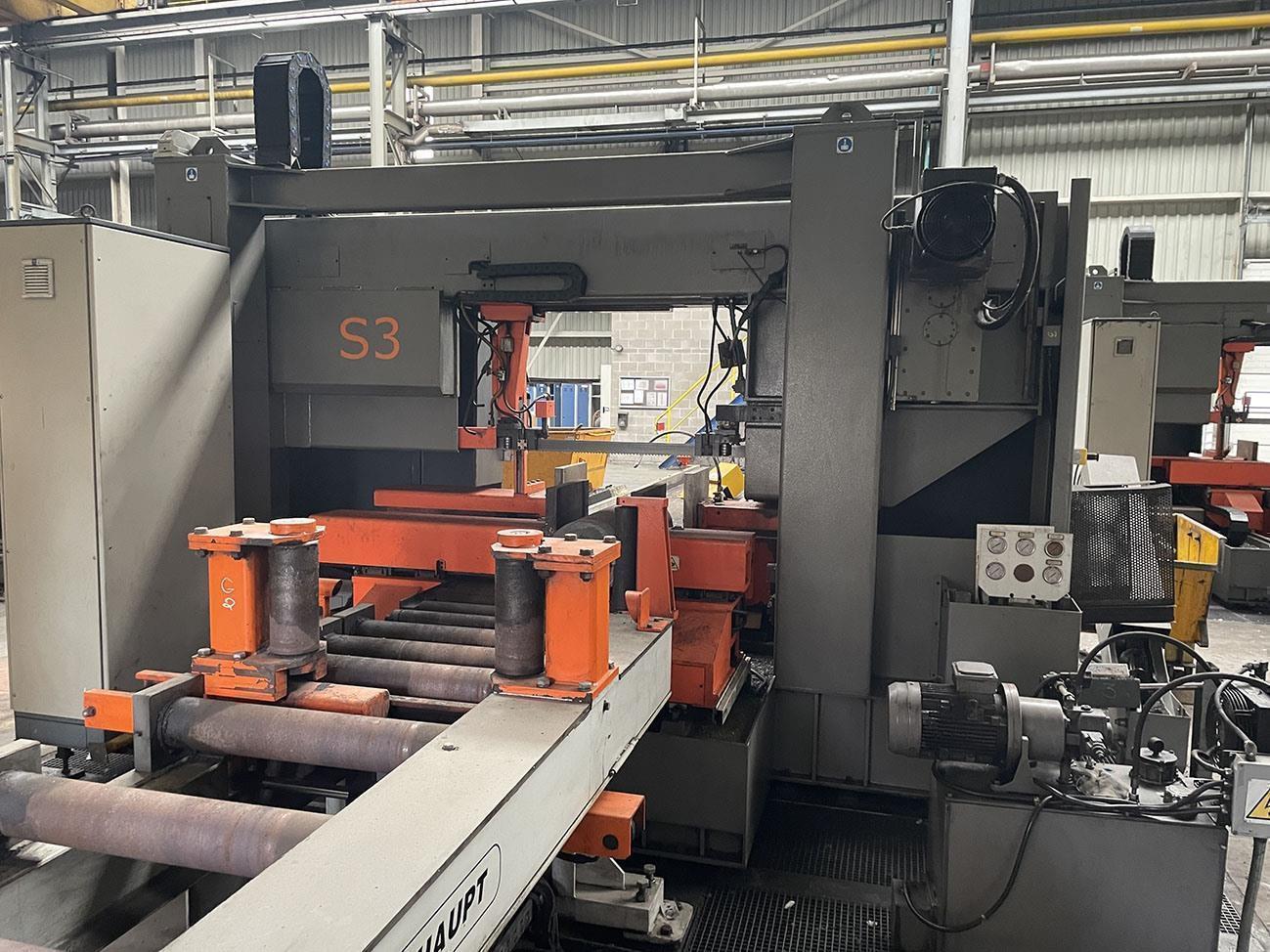

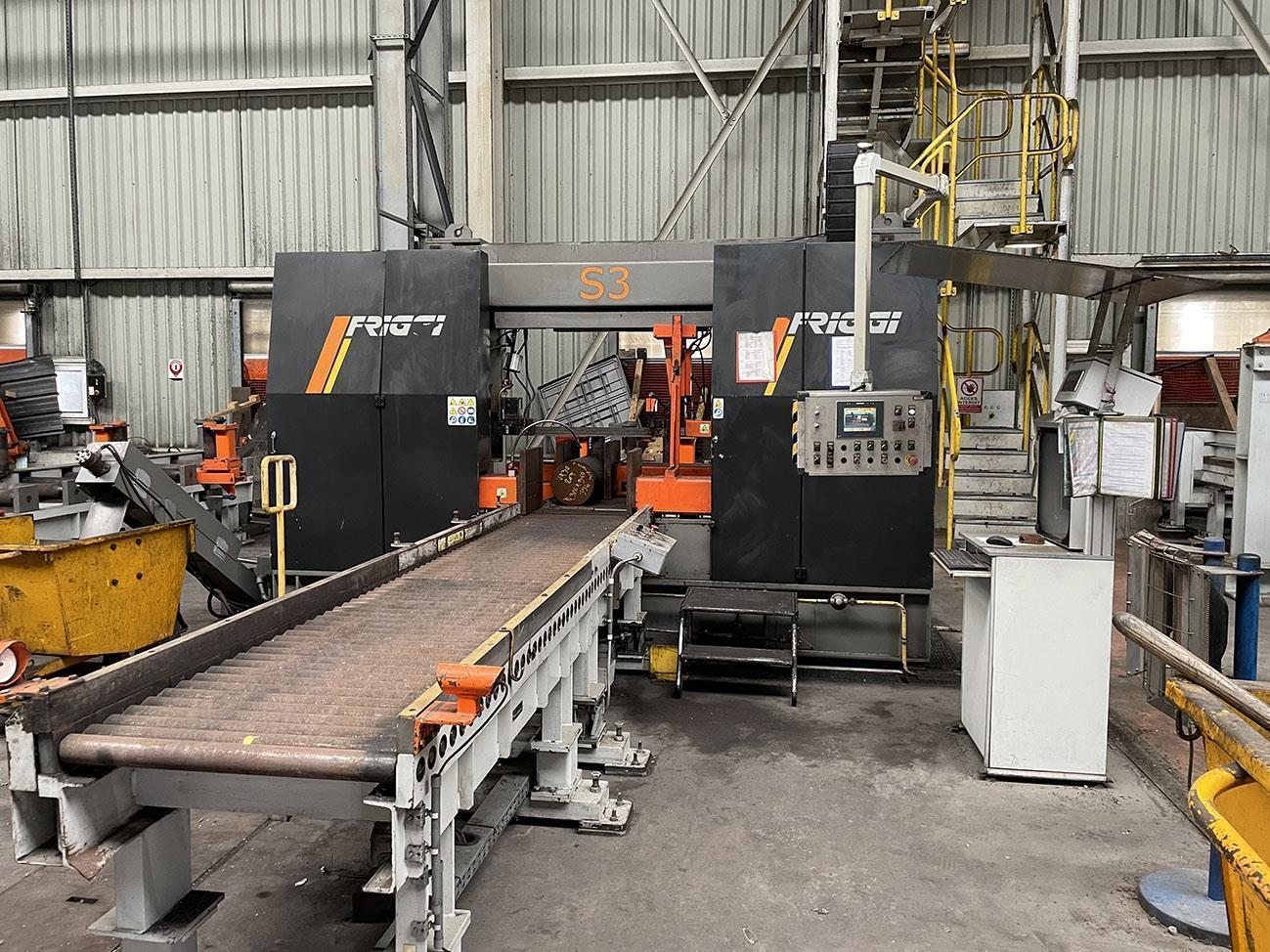

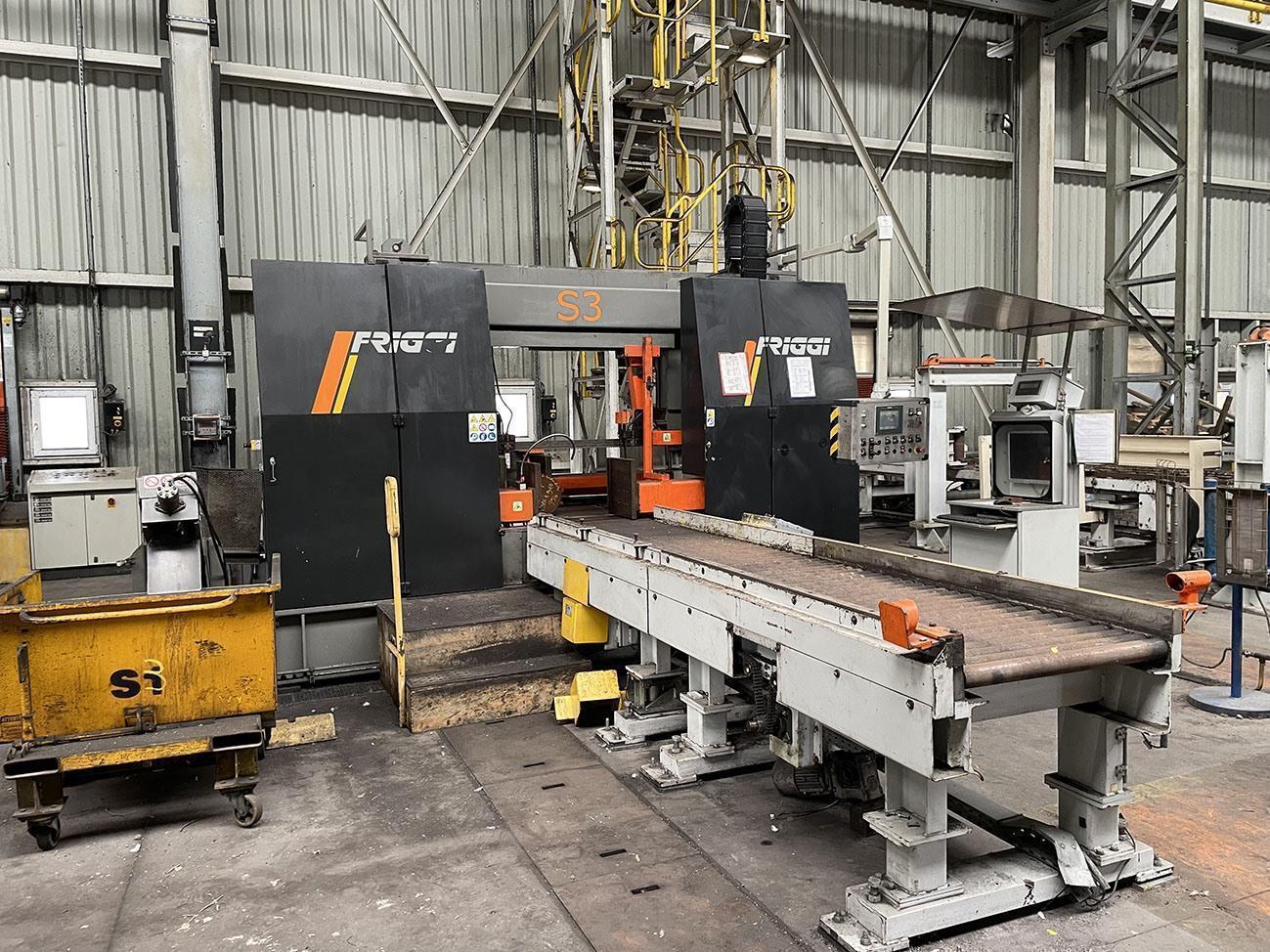

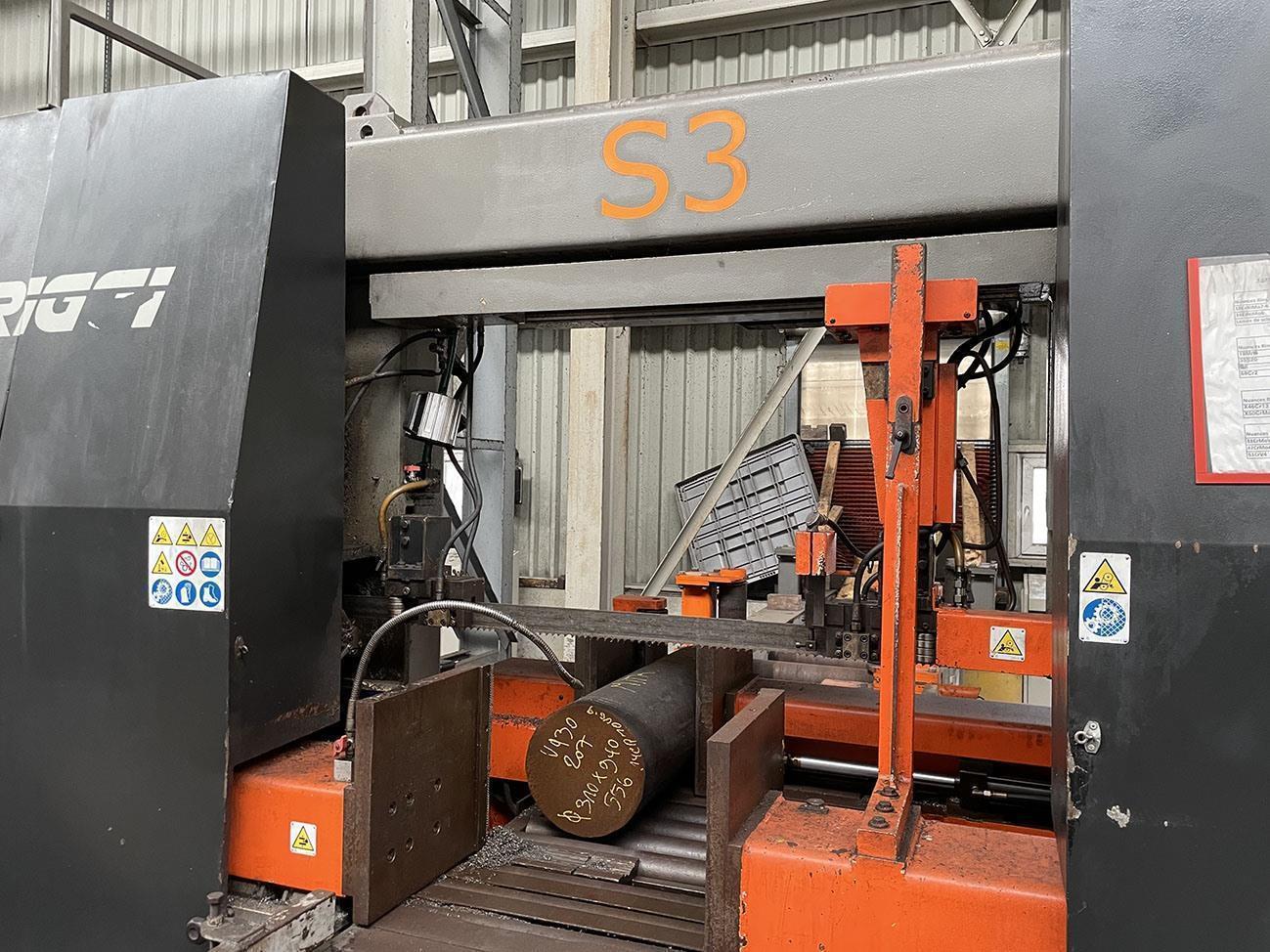

    Heavy duty double column bandsaw specific for high-alloy steels

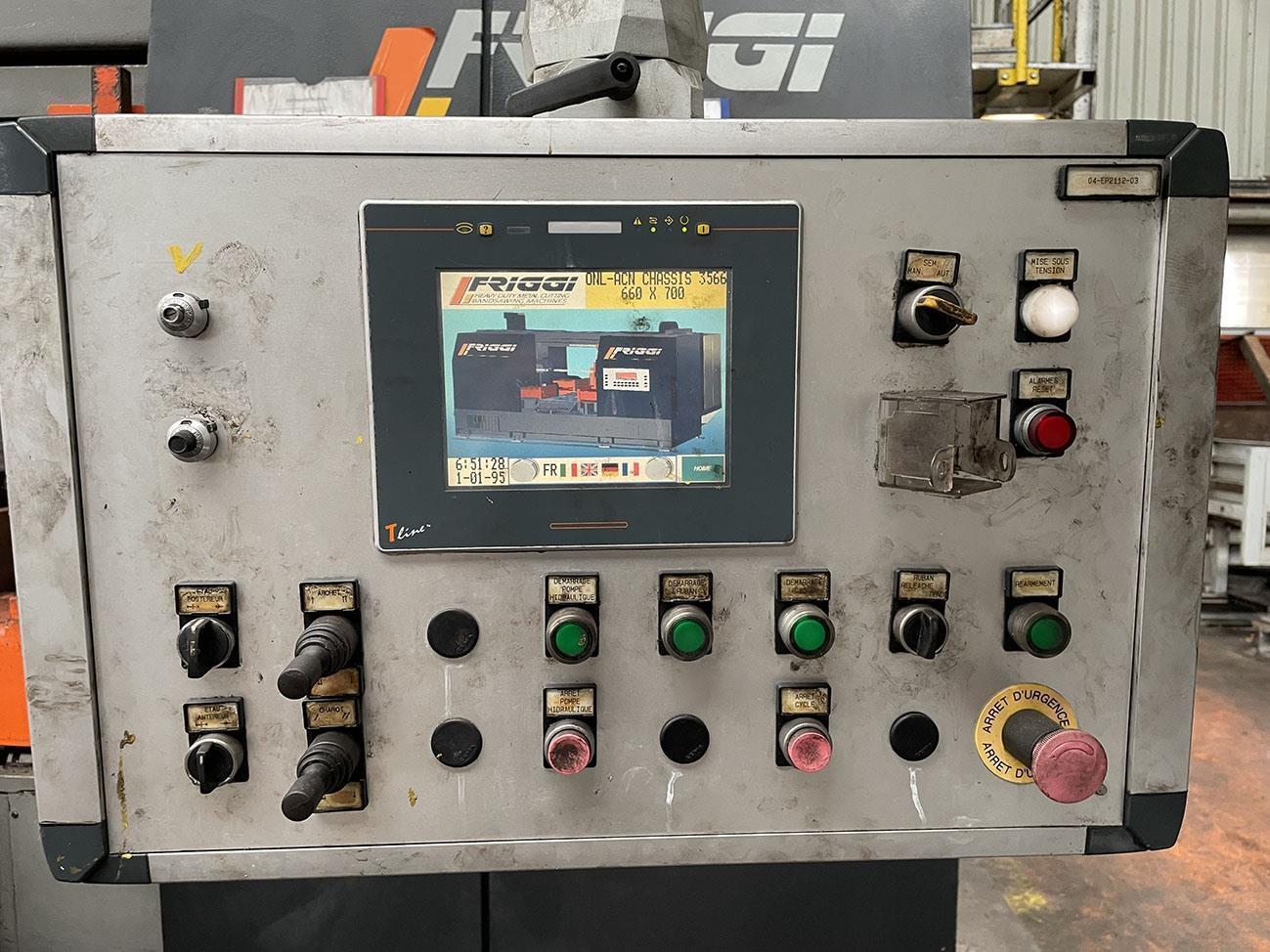

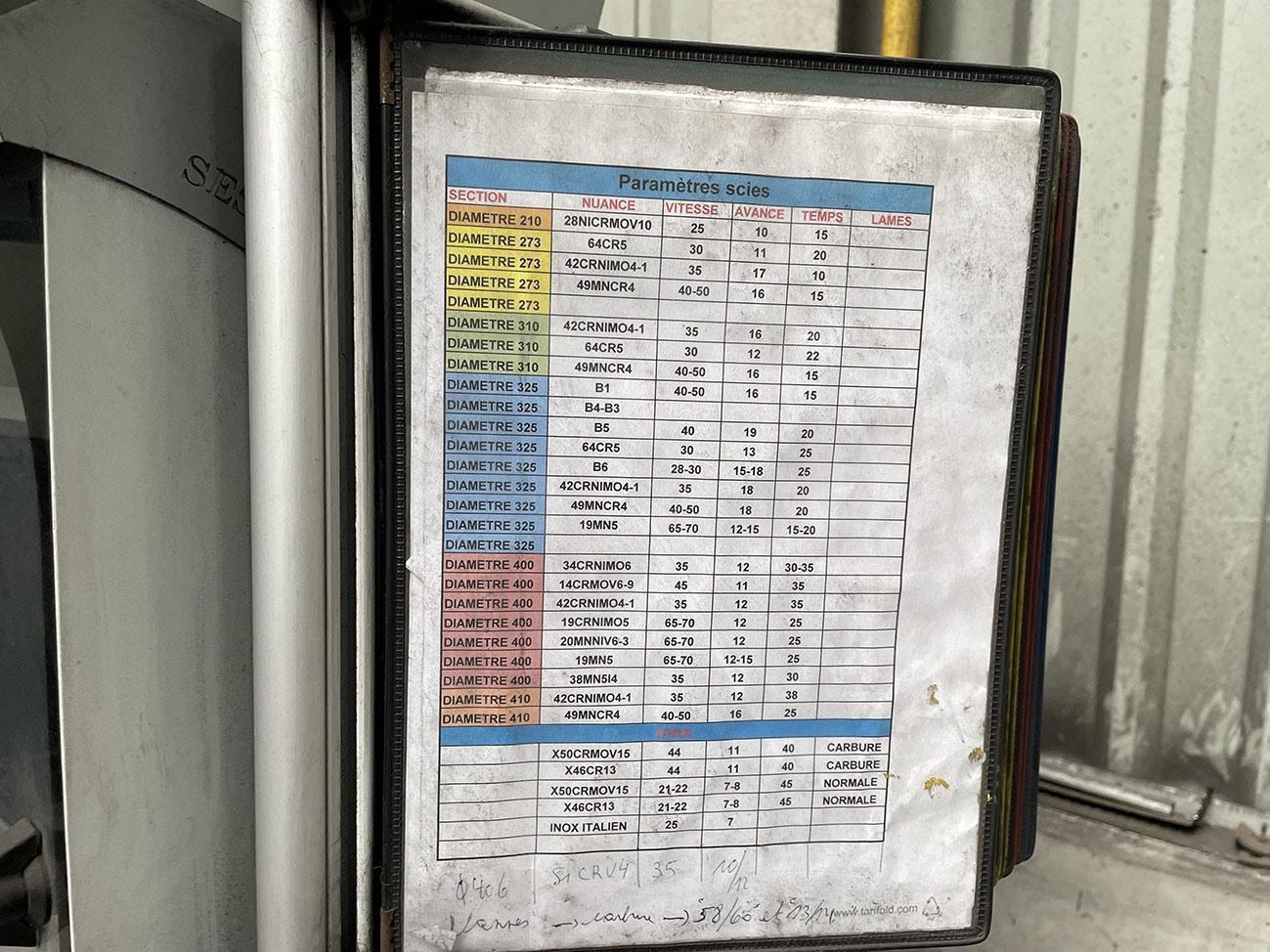

    CNC touch control with saw parameters for various types of high-alloy steels
    cap round: dia 660 mm
    cap square: 660 x 700 mm
    bundle cap: 555 x 700 mm
    autofeed with stroke of 500 mm (with unlimited repositioning)
    sawing power: 18,5 kW
    the in-feed and sawing speeds are frecquency controlled
    enlarged height of sawblade: 67 mm

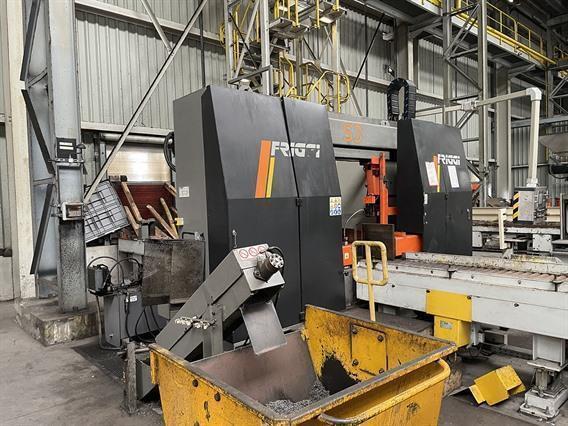

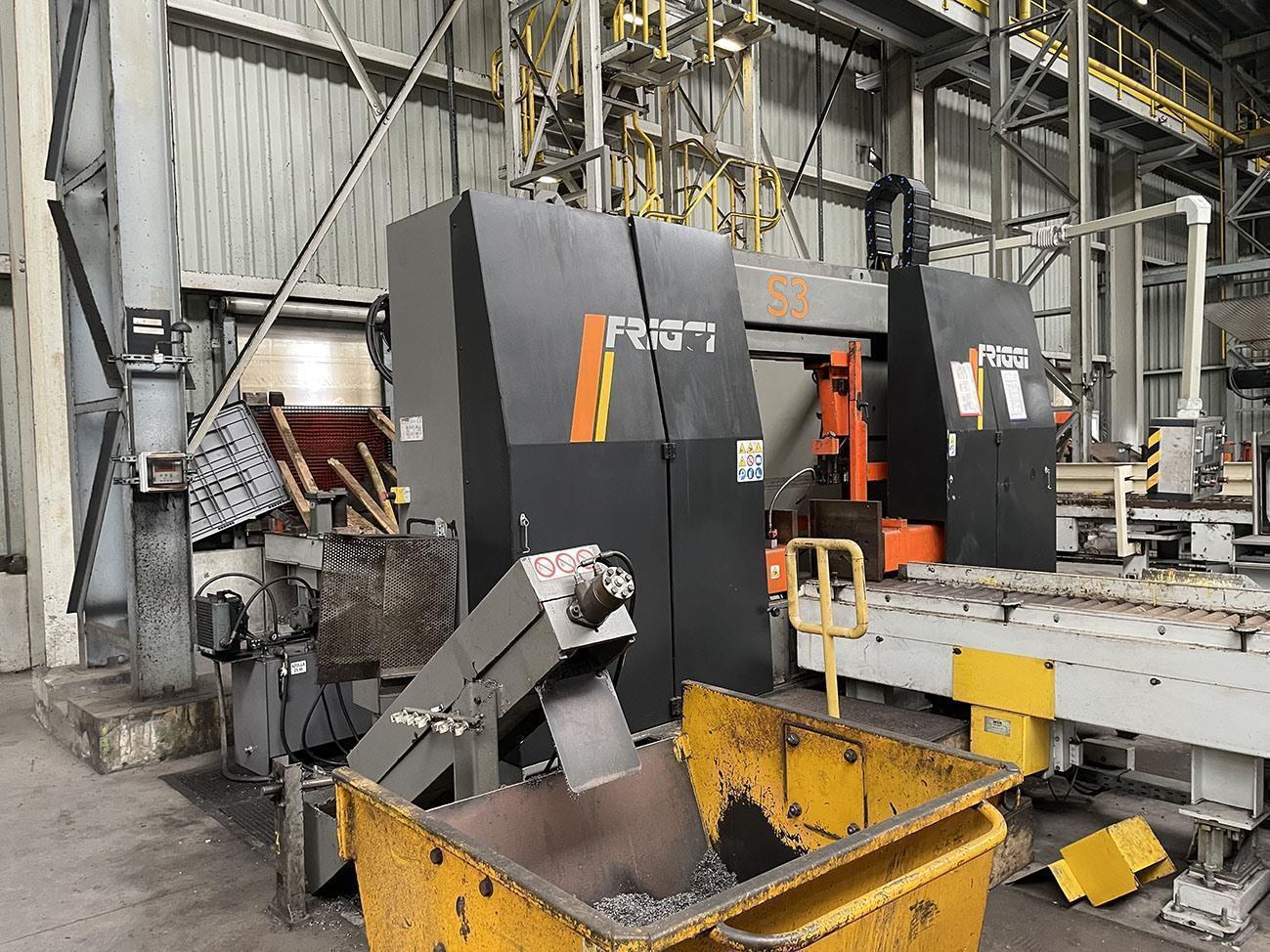

    chipconveyor

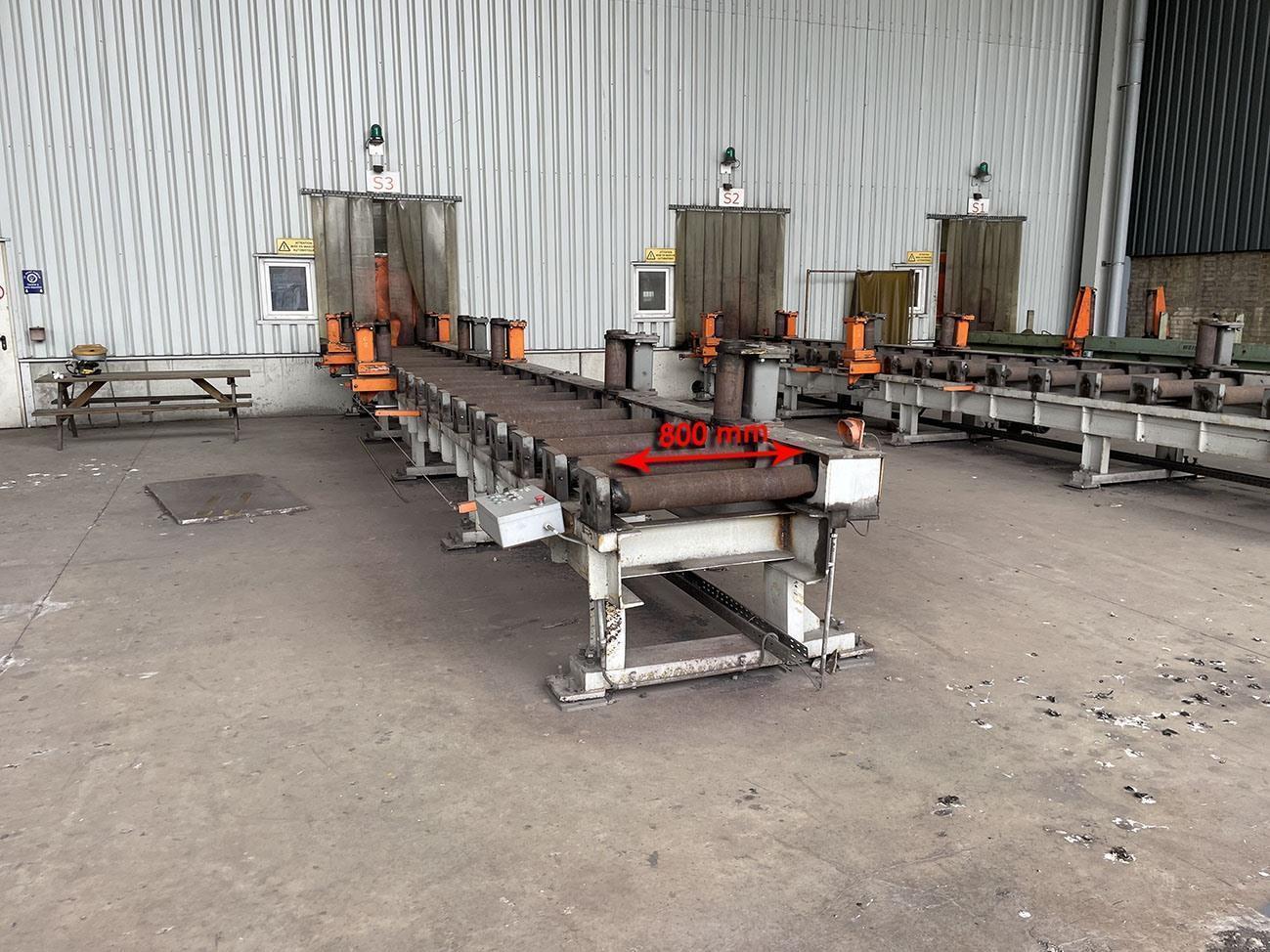

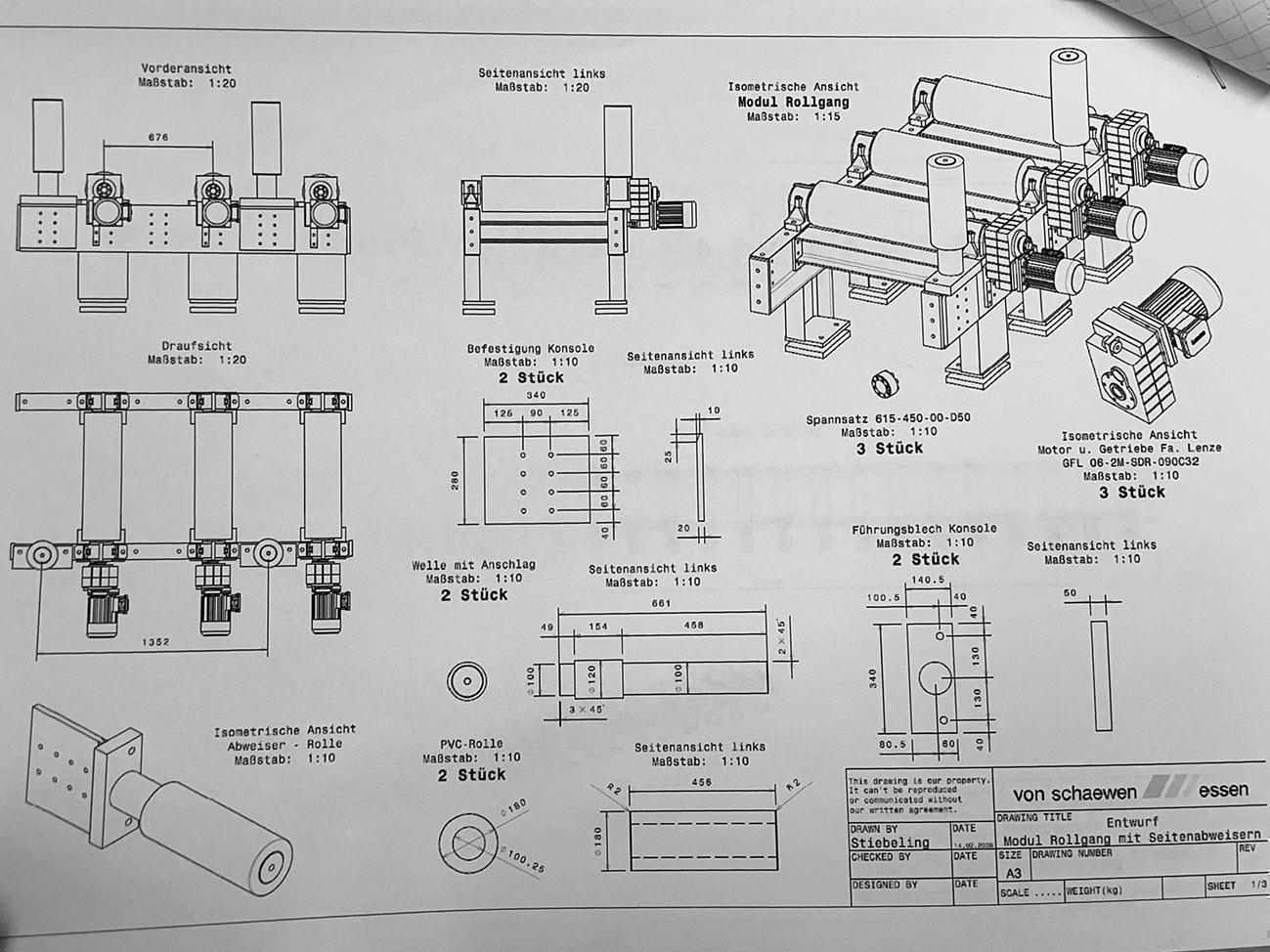

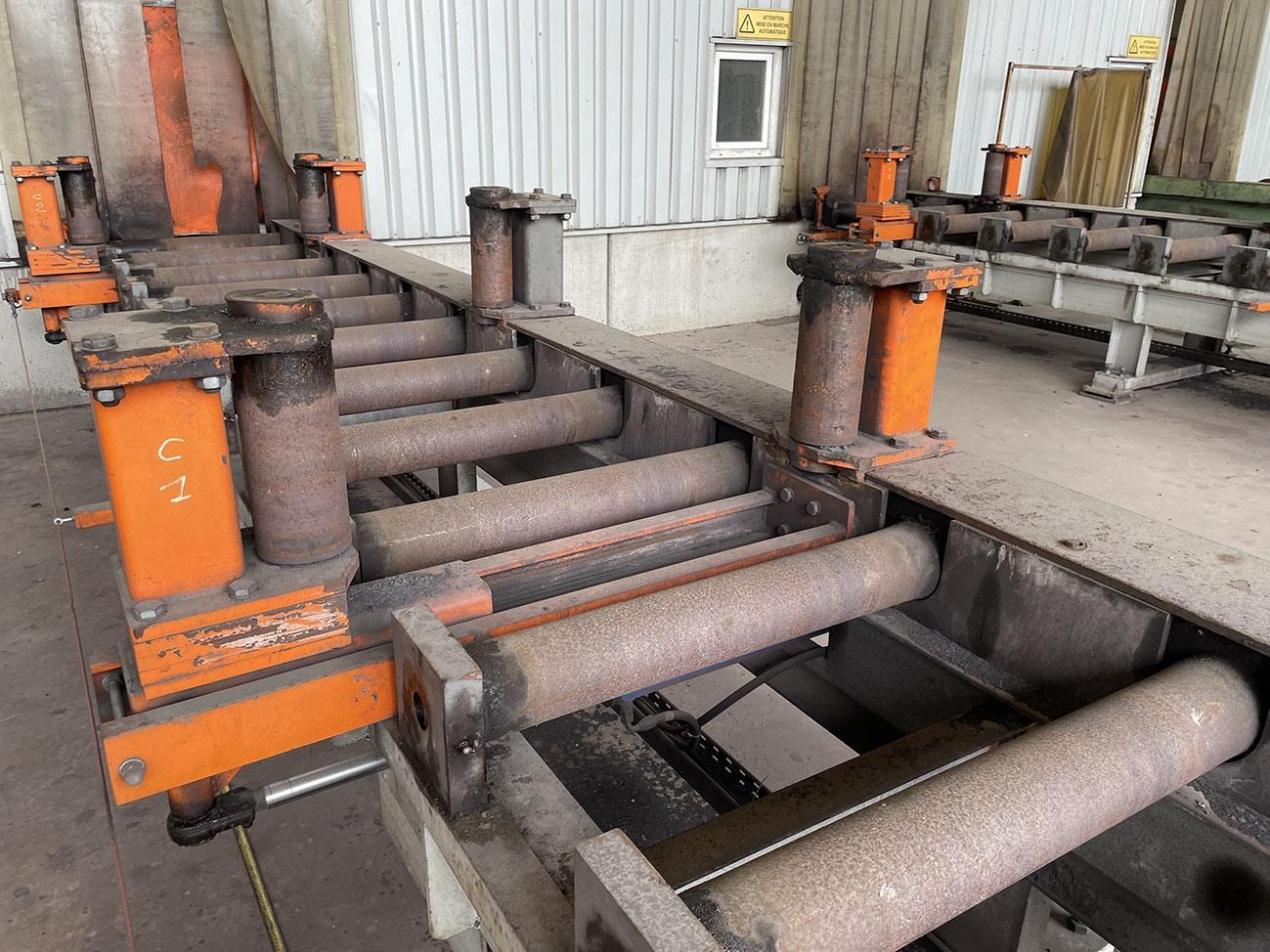

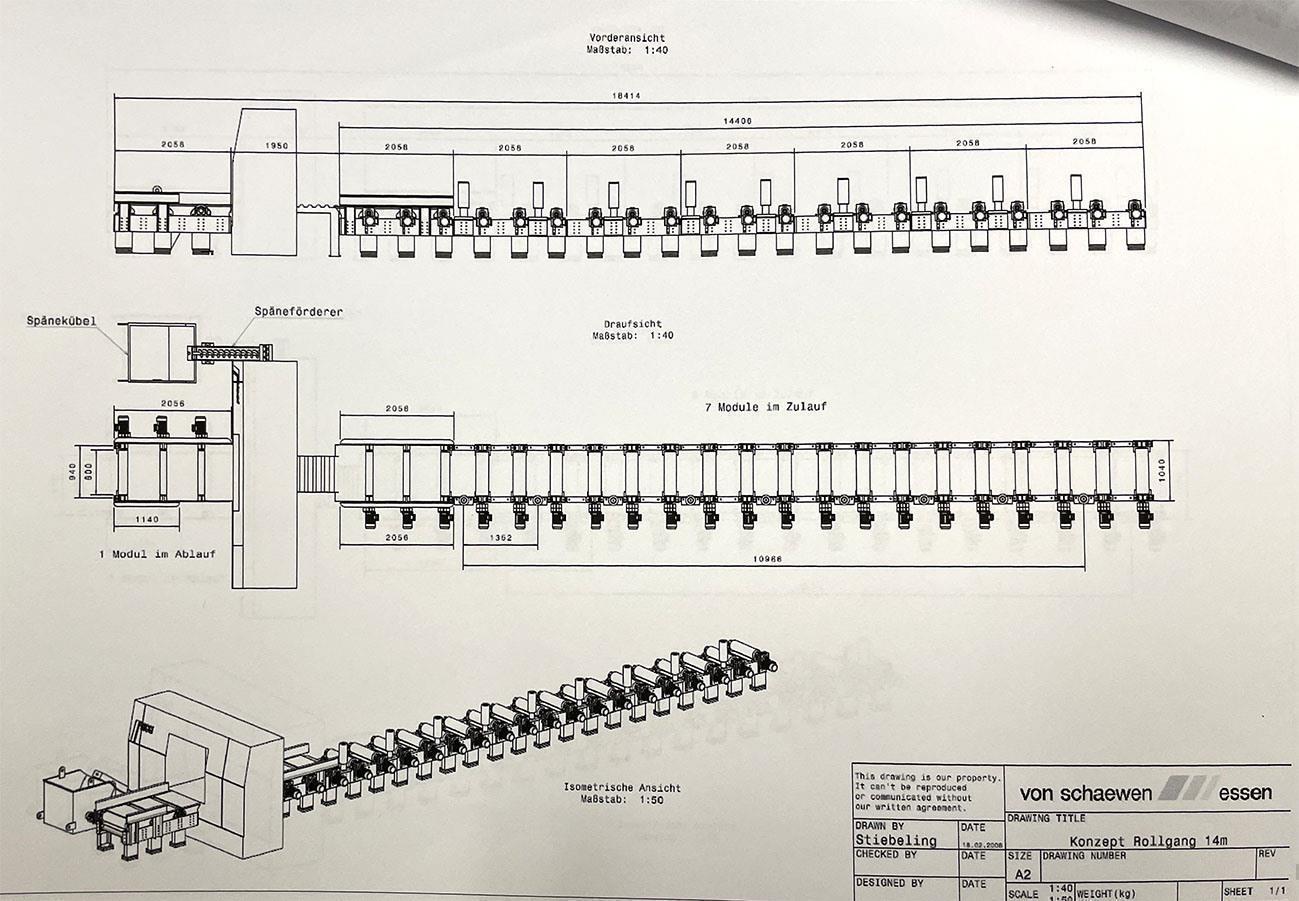

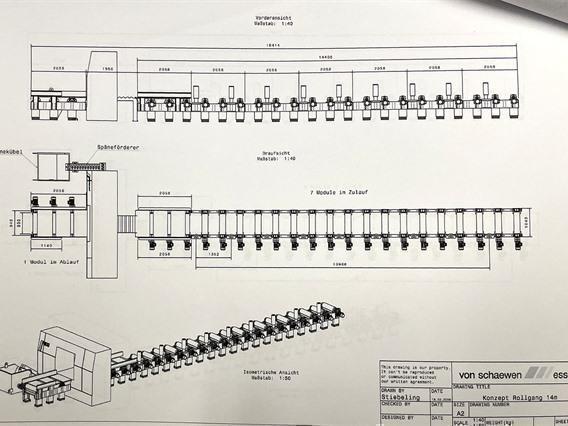

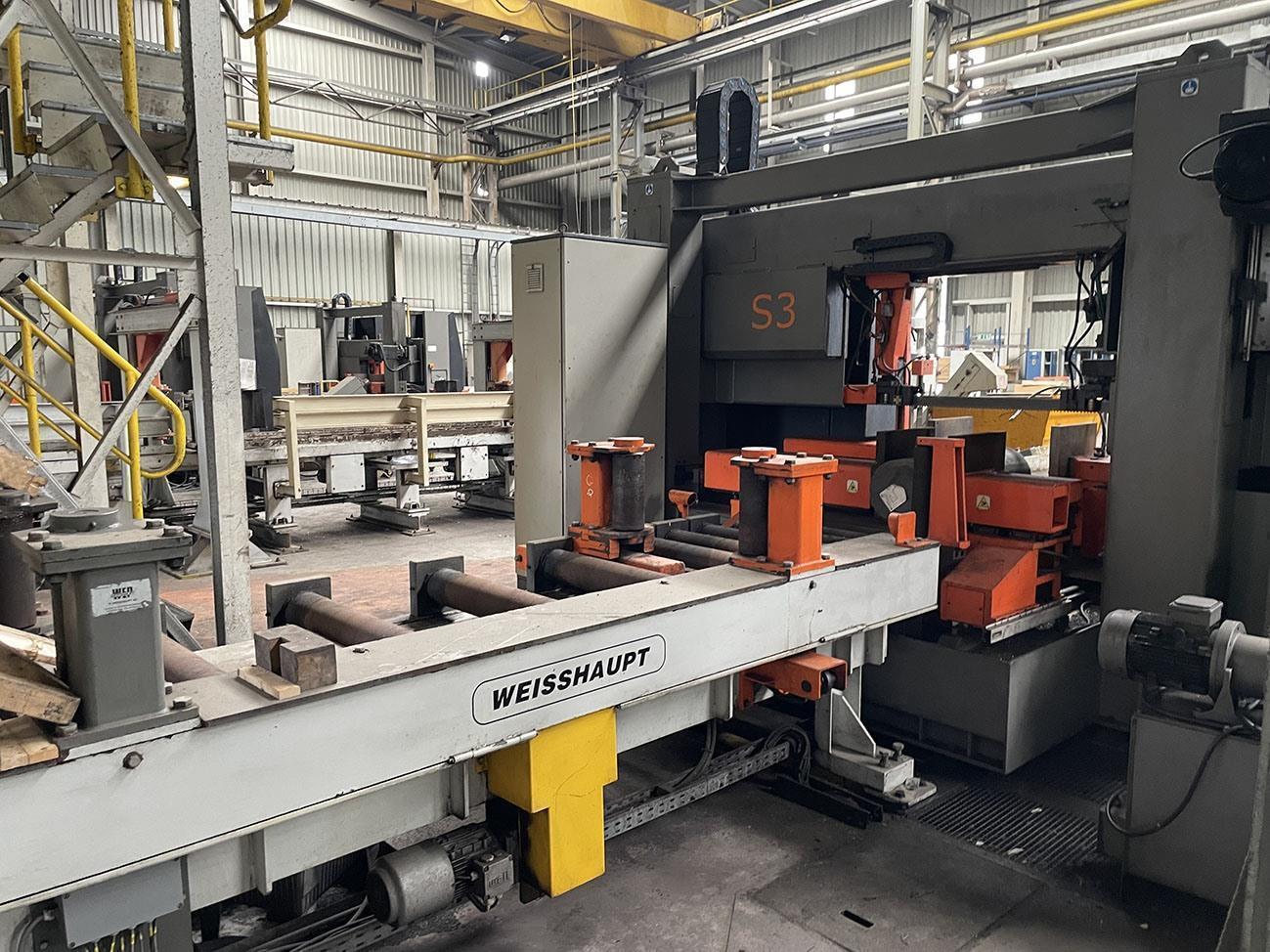

    equipped with fully motorized Weisshaupt rollerconveyors:

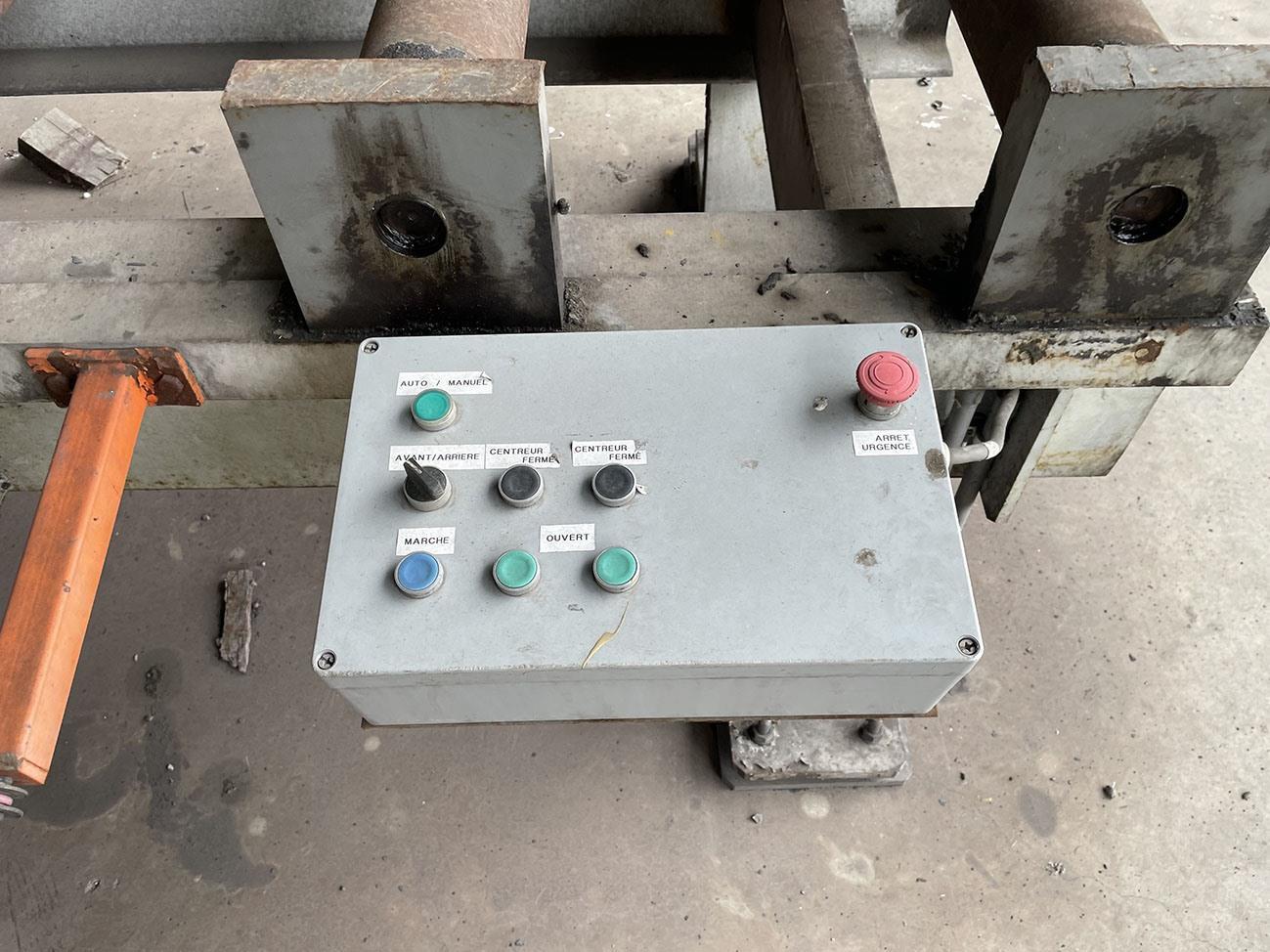

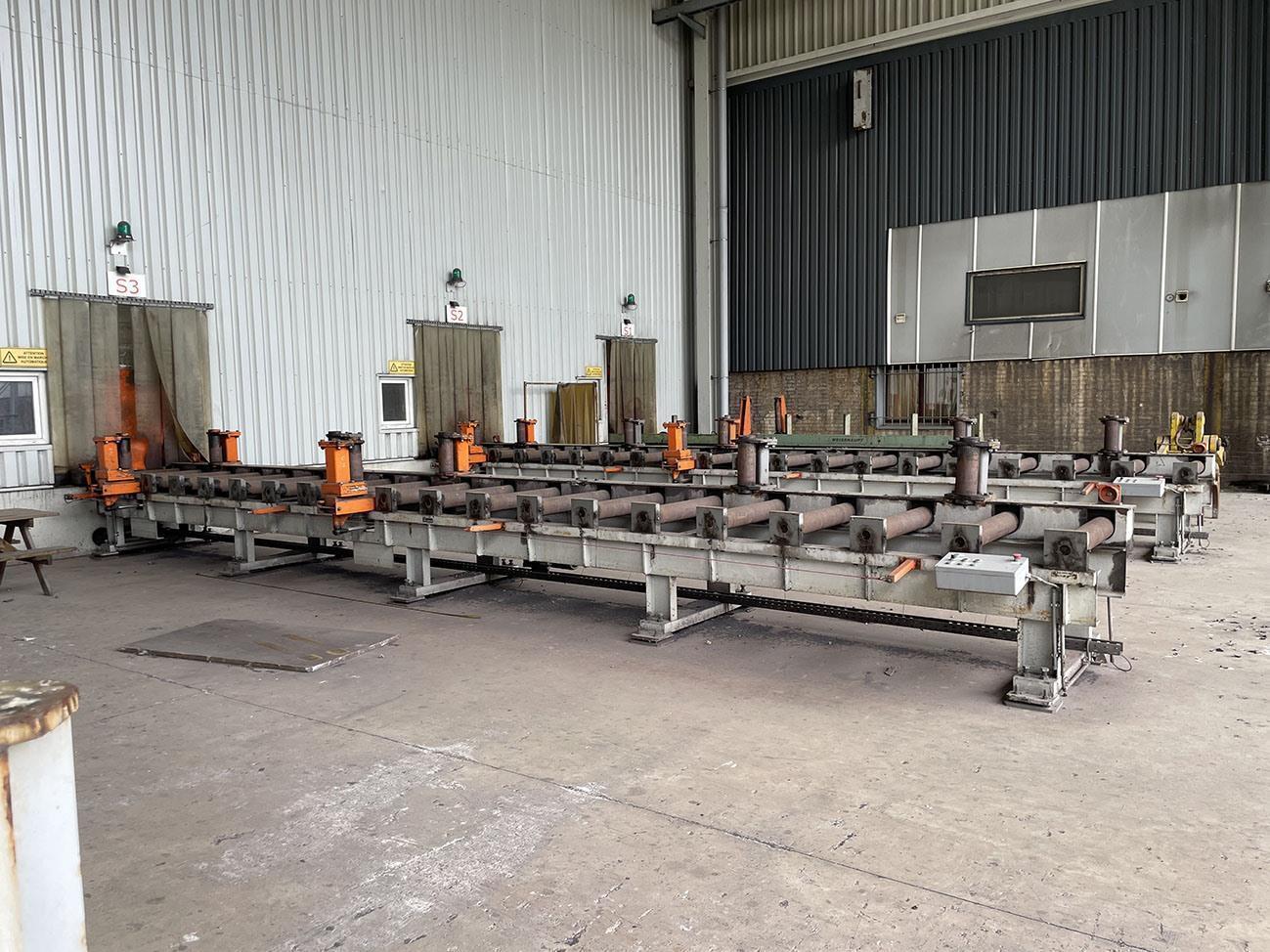

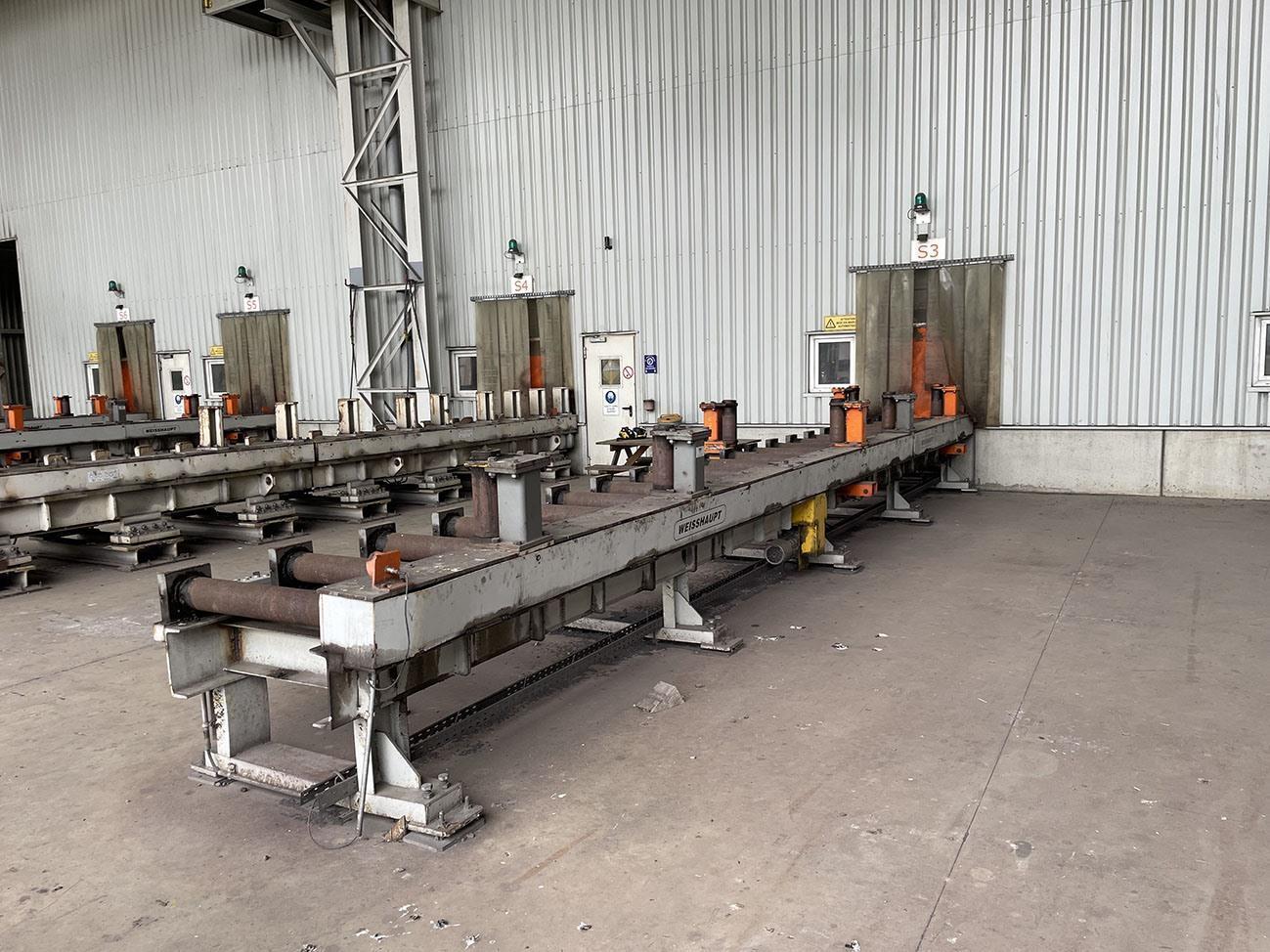

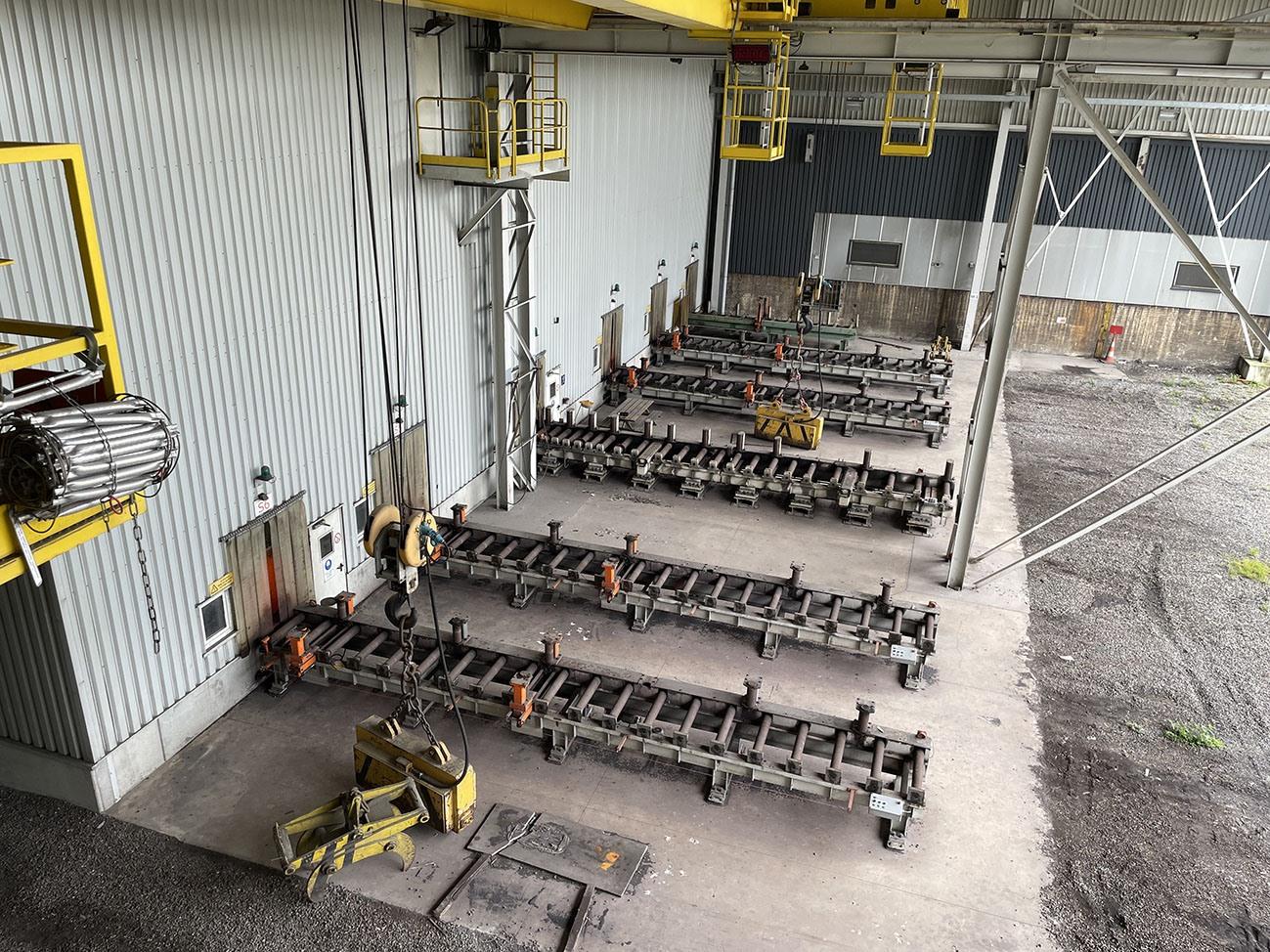

    - 10,3 meter in-feed rollerconveyor (outside) with 2 hydraulic clamps for aligning workpiece

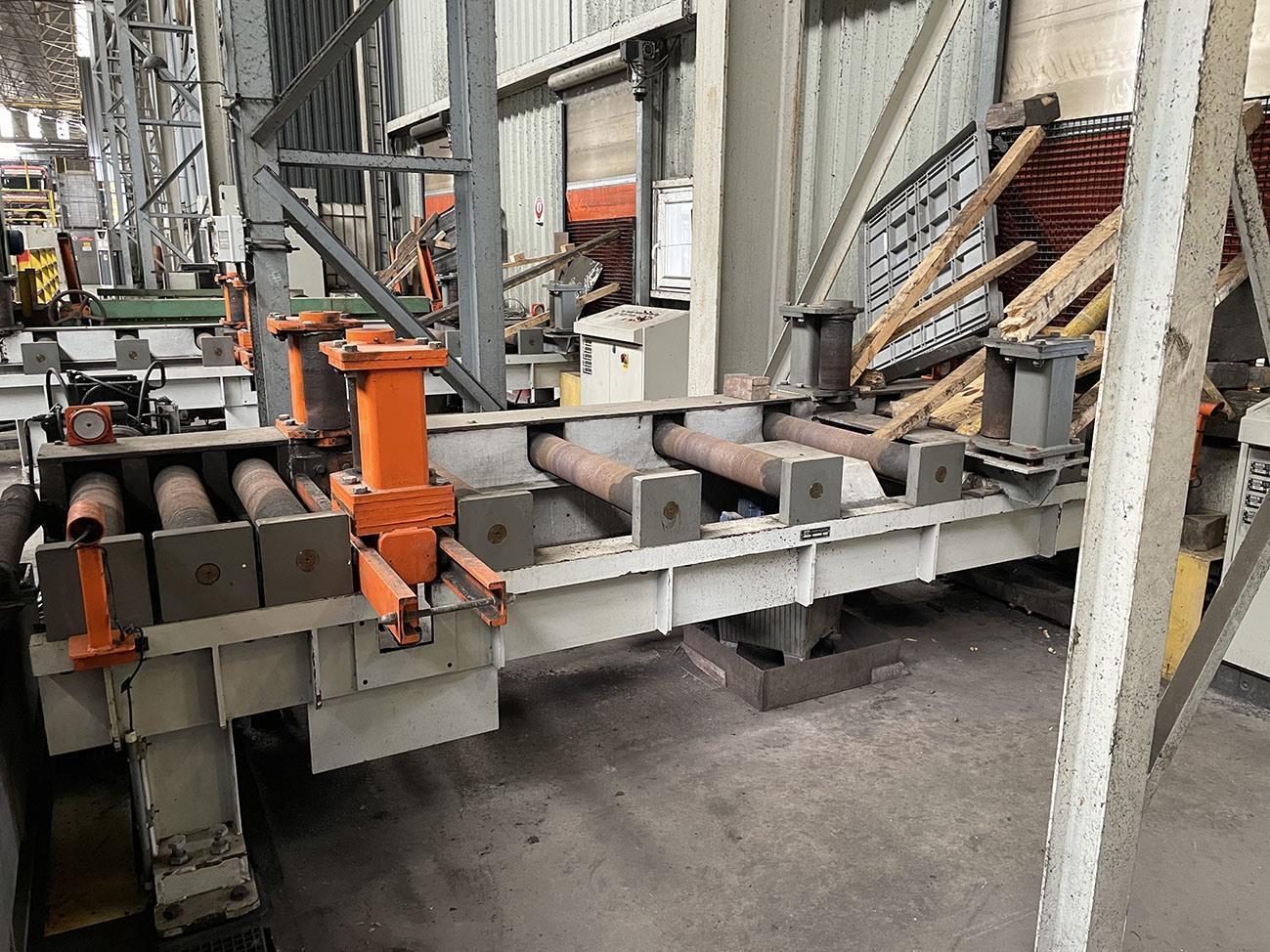

    - 4 meter in-feed rollerconveyor (inside) with 2 hydraulic clamps for aligning workpiece
    - max workpiece width: 800 mm
    - each roll is motorized
    - cap of one roll is 4 ton

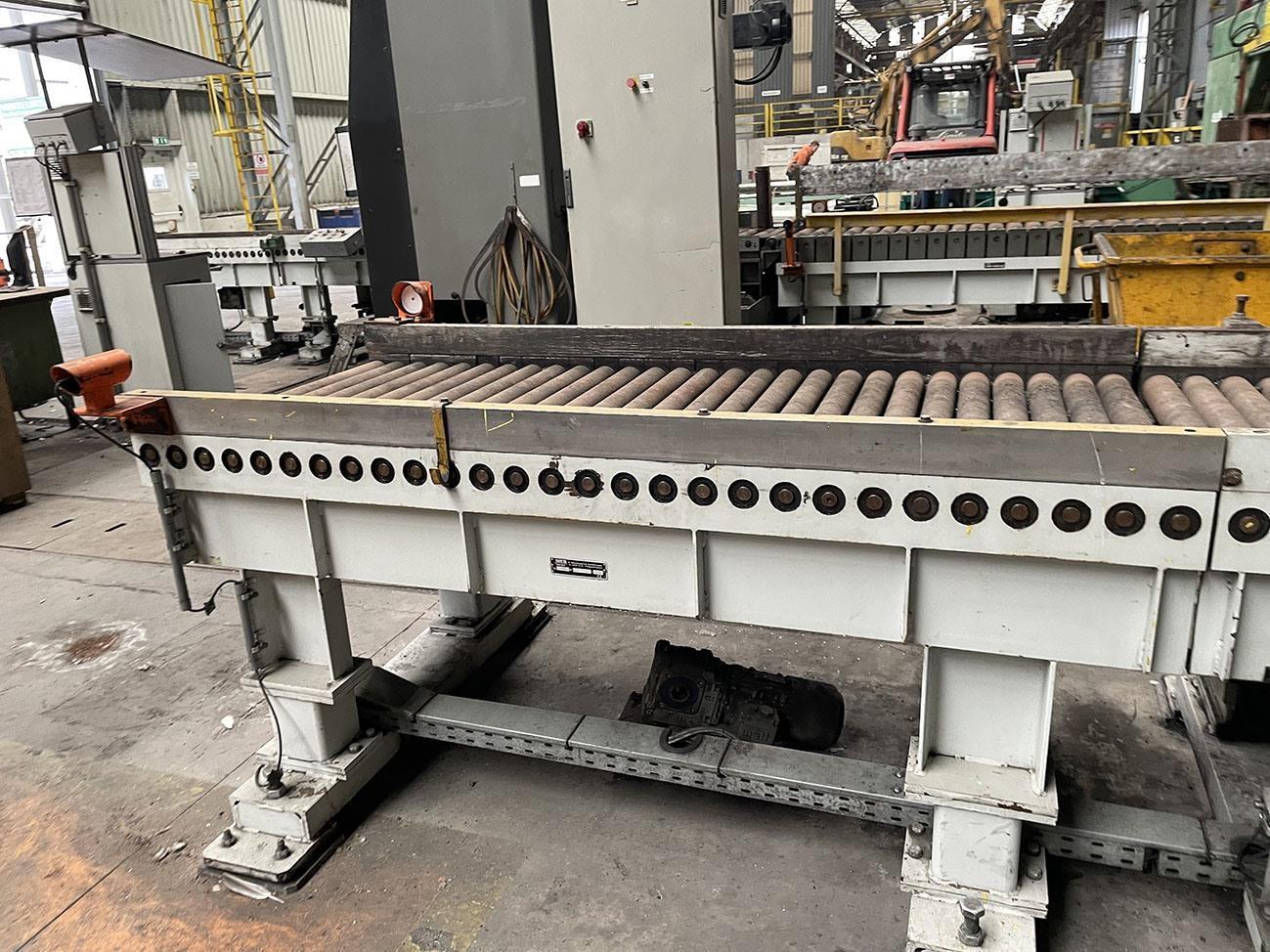

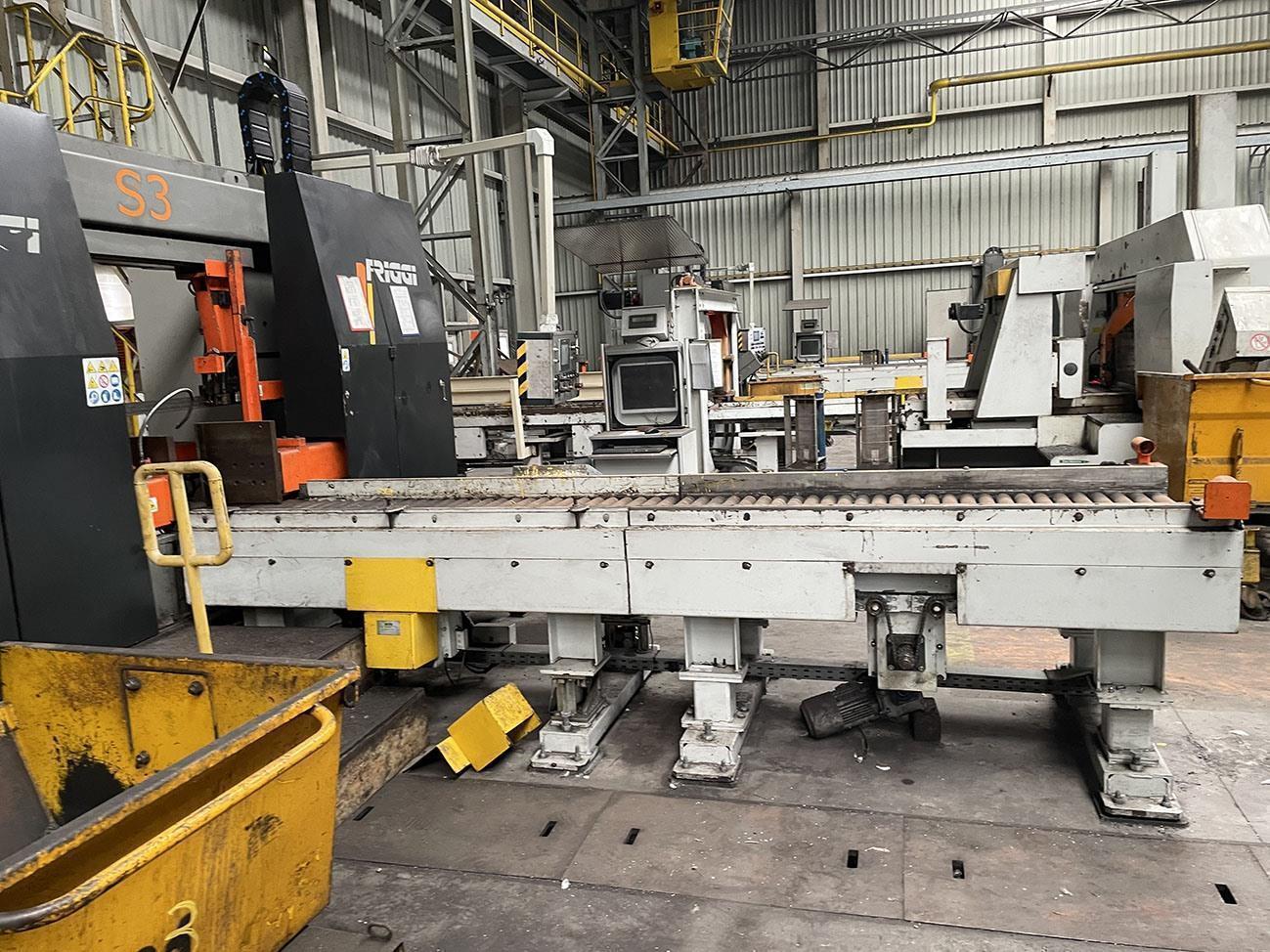

    - 4 meter out-feed rollerconveyor:

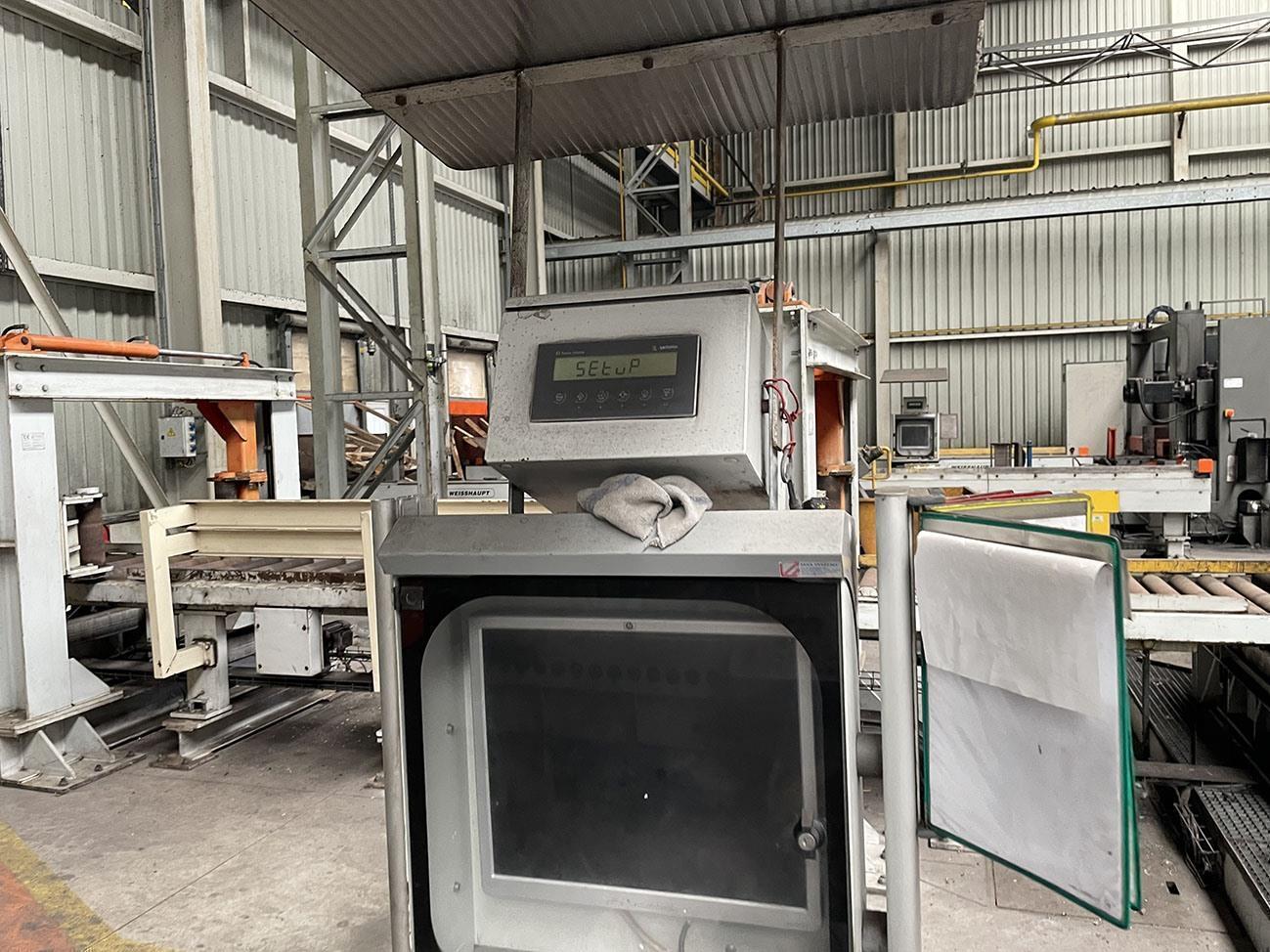

    > one rollerconveyor is equipped with scales to weigh workpiece after cutting (Sartorius system)


  • Type/Model: heavy duty 660 x 700 mm CNC
  • Stocknumber: L.03 14048
  • Main category: [L] Sawing machines, Filing machines & Cutting-off machines
  • Sub category: [L.03] Band sawing machines
  • Brand: Friggi

Stocknumber: L.03 14048

Watch video of working machinery
