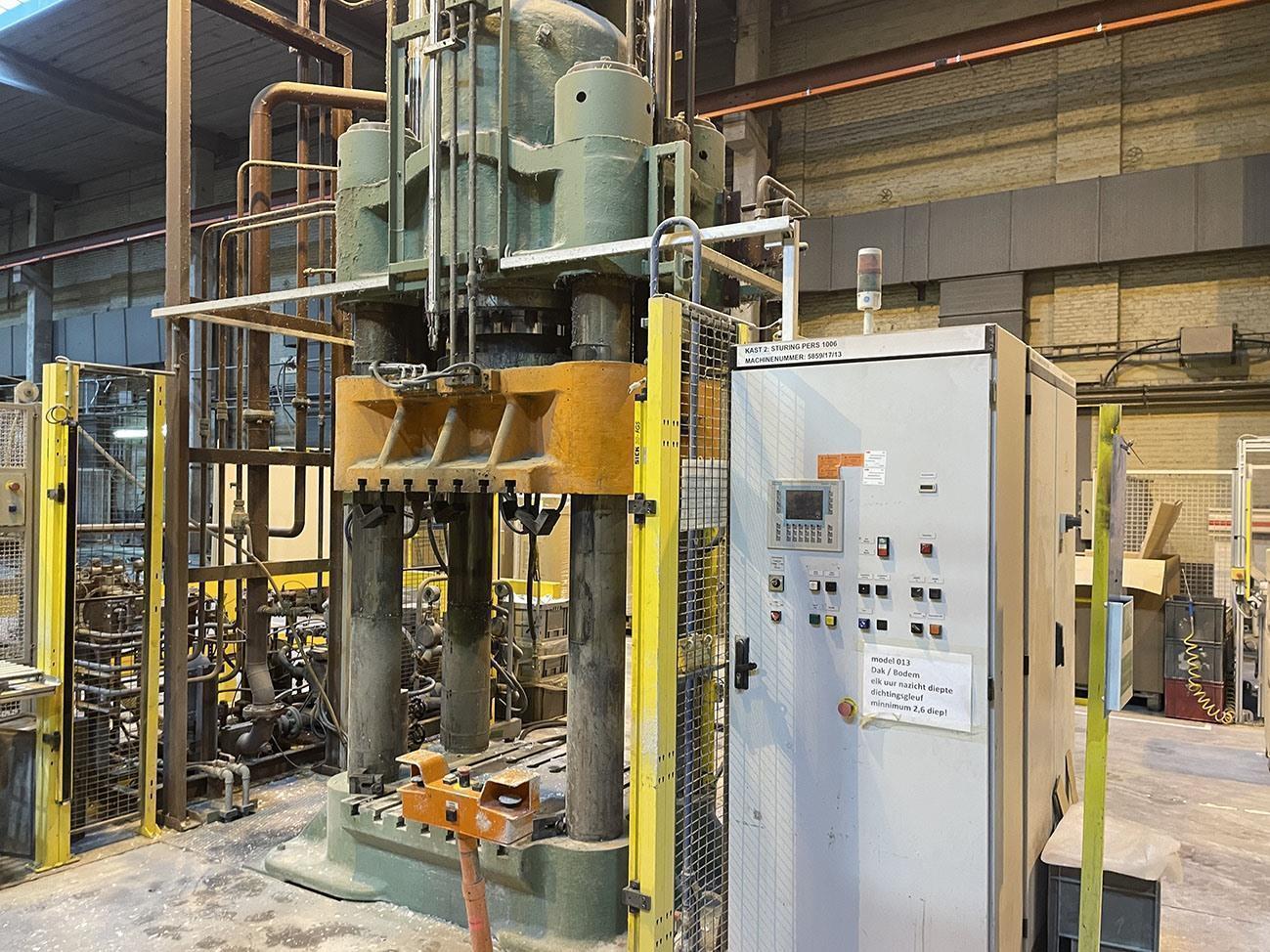

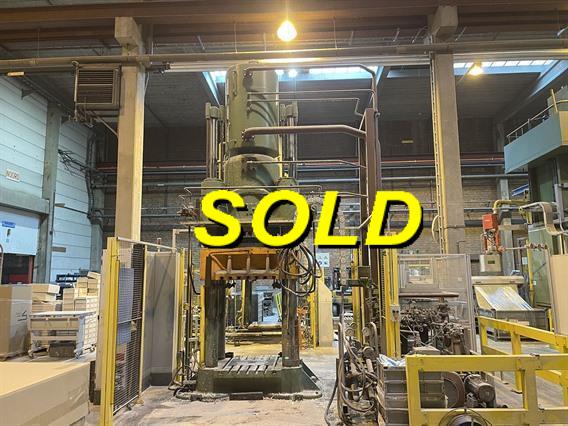

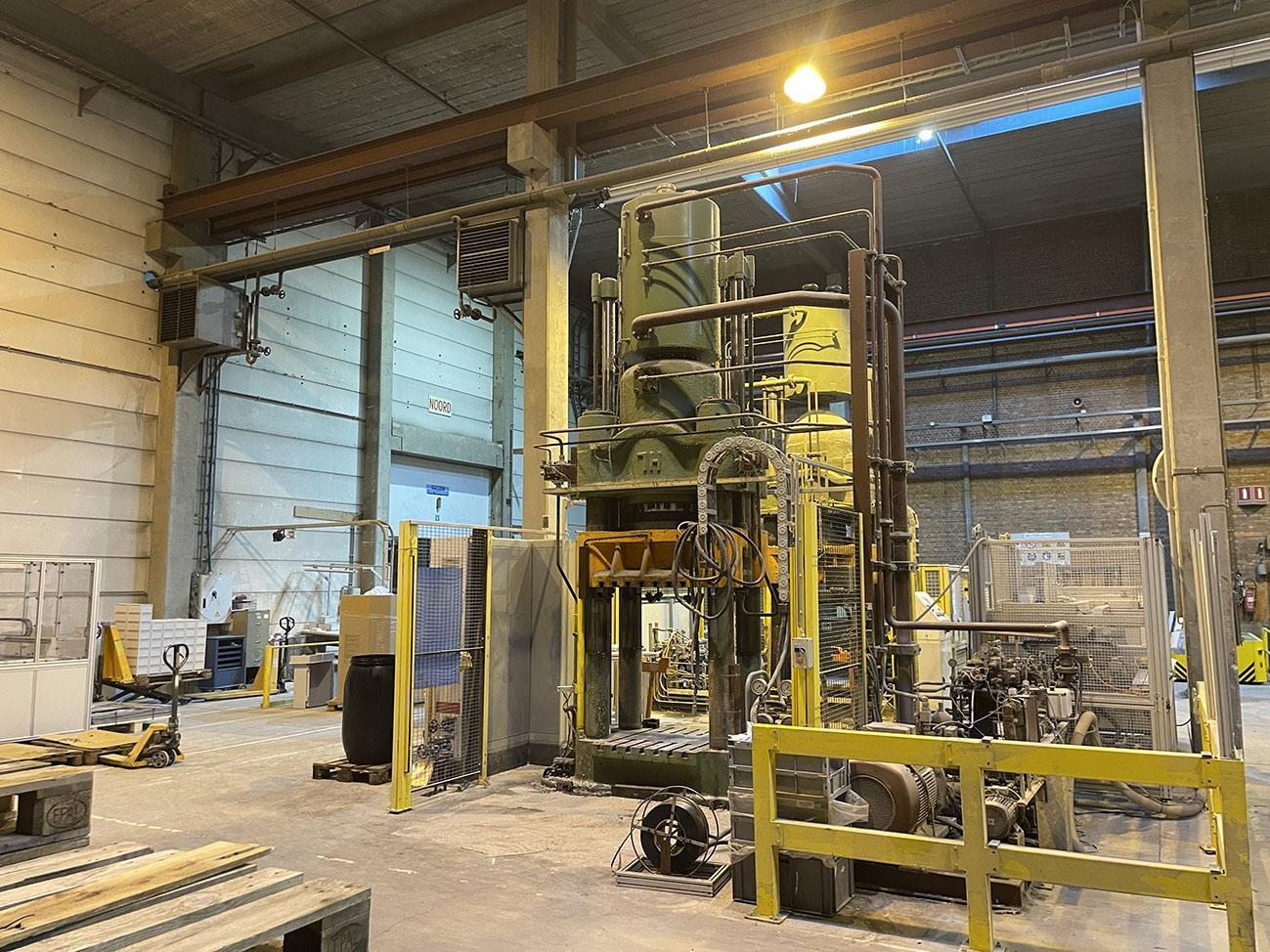

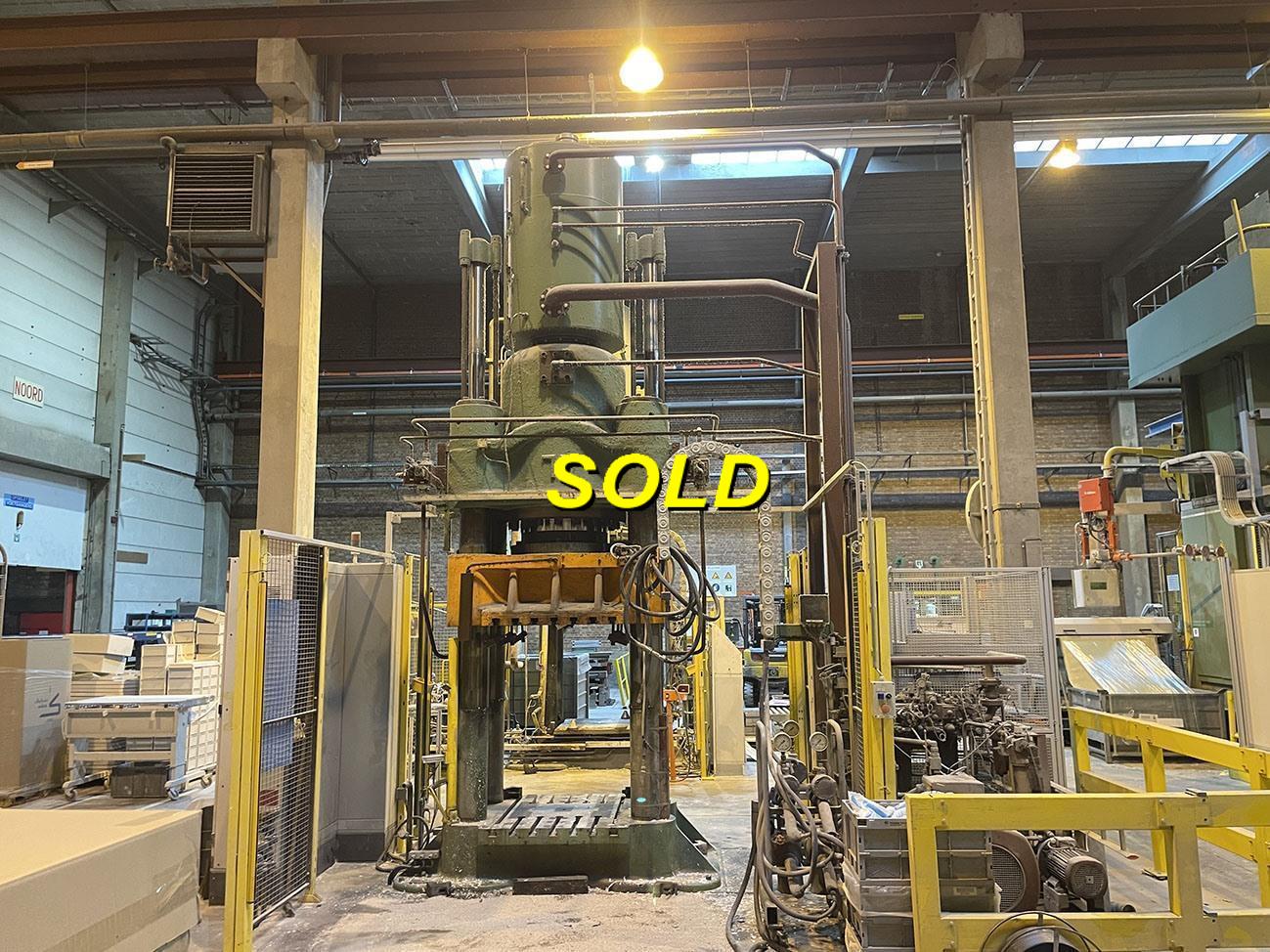

HL 1000 ton 4 column press
Technical information
- Capacity1000 ton
- Passage between uprights1000 mm
- Max ram adjustment800 mm
- Distance between table -- ram1400 mm
- Table area1200 x 1000 mm
- Electric motor (power)55 kW
- Length 1500 mm
- Depth 1500 mm
- Height5500 mm
- Weight25 ton
Additional info

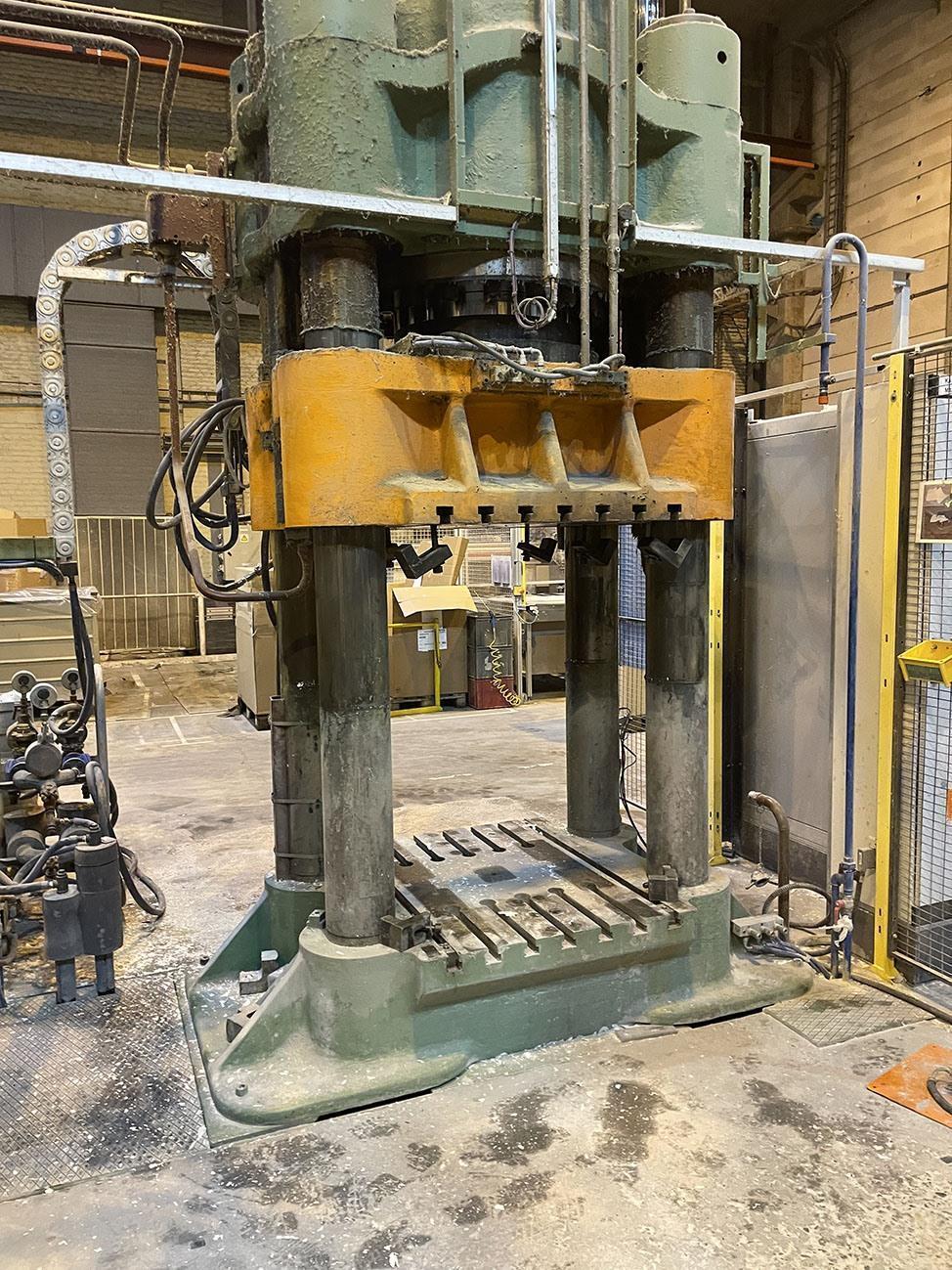

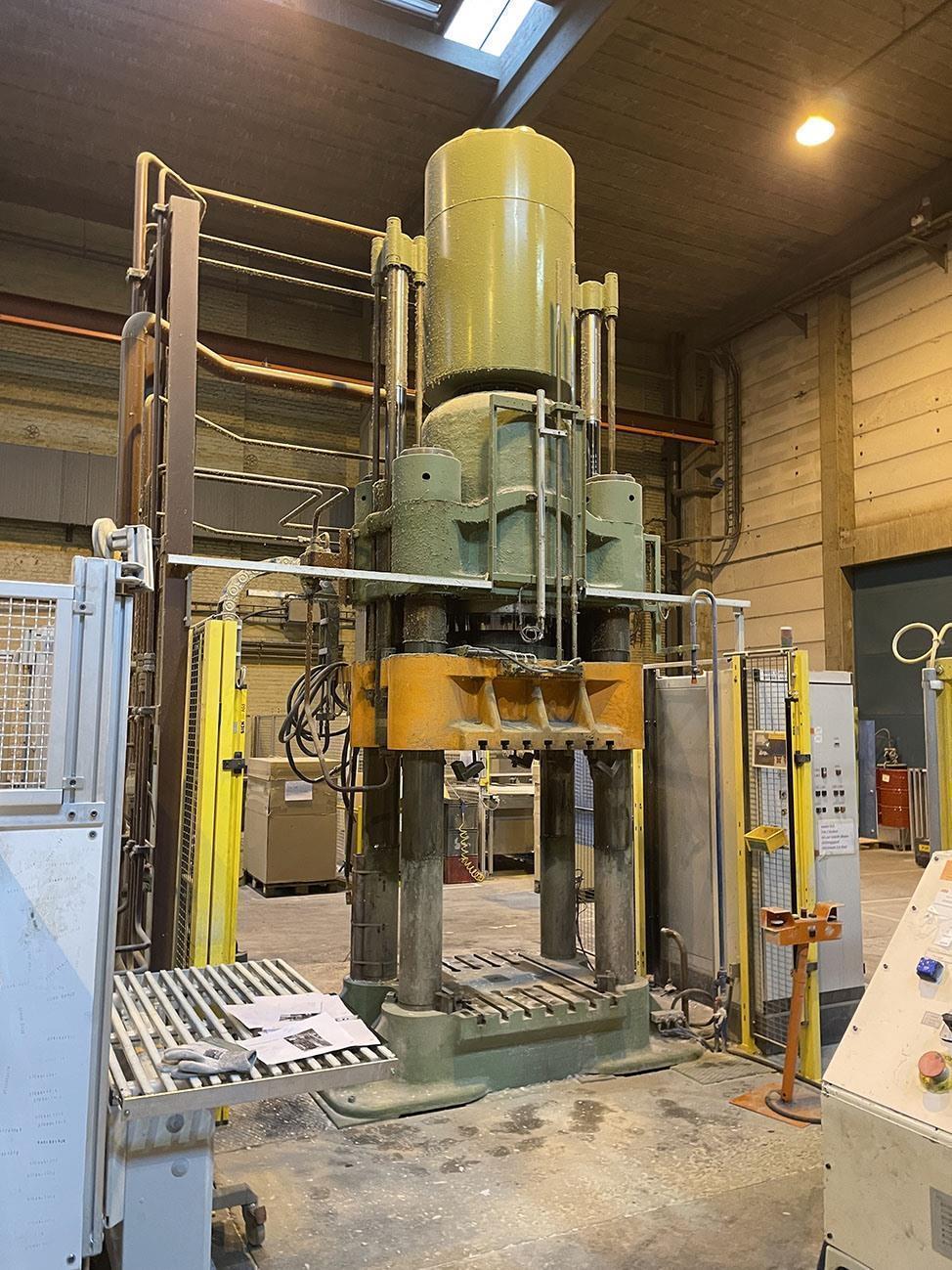

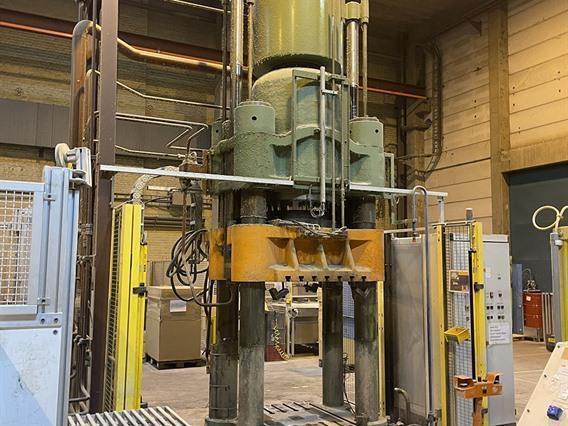

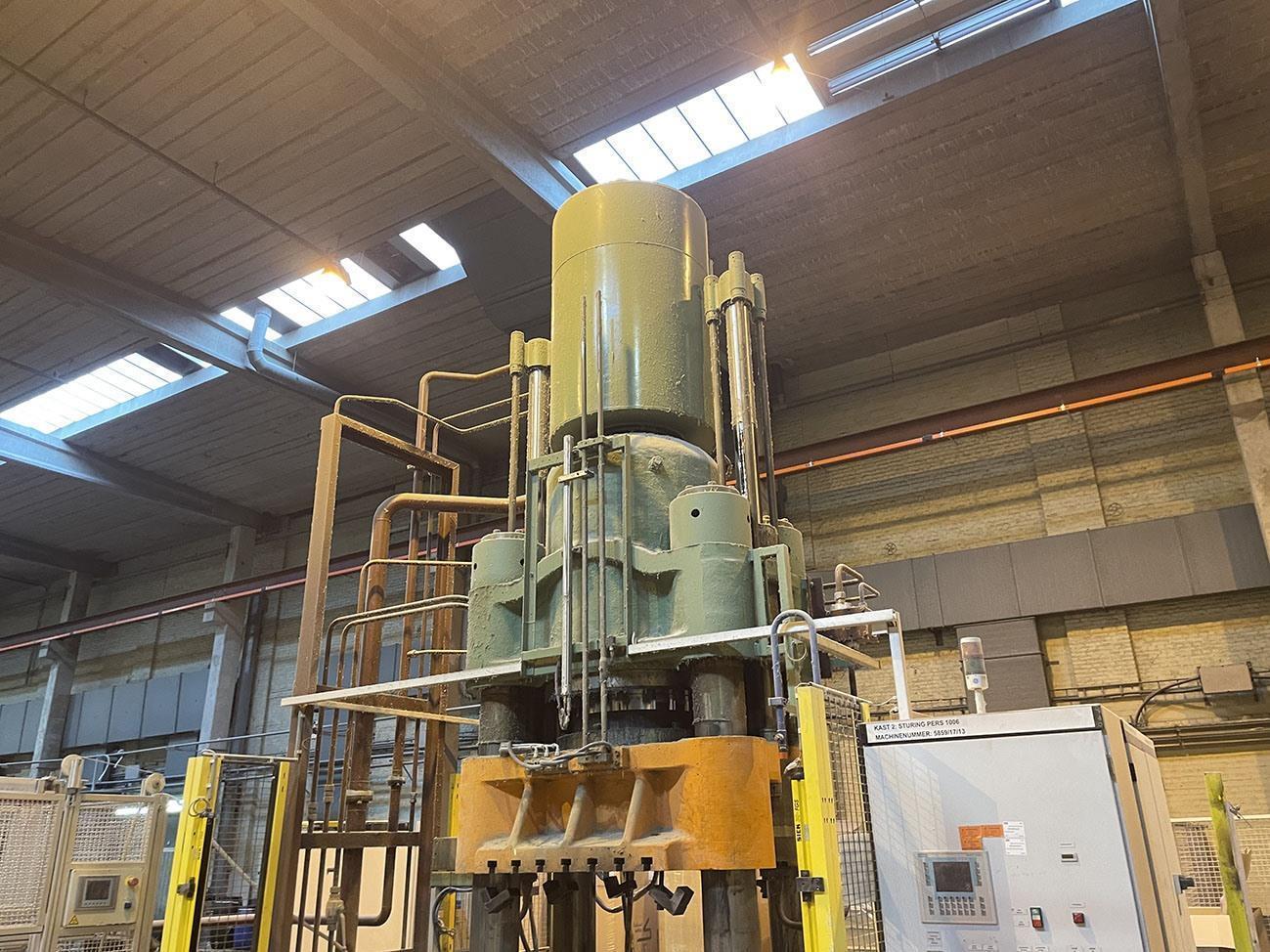

4 column hydraulic press
high closing speed
ideal for composite projects
press can remain under pressure for a long period of time
one main hydraulic single acting piston (diameter 660 mm)
two smaller pistons to retract the stamp
heating can used as an option (on/off)
is installed on top of ground!

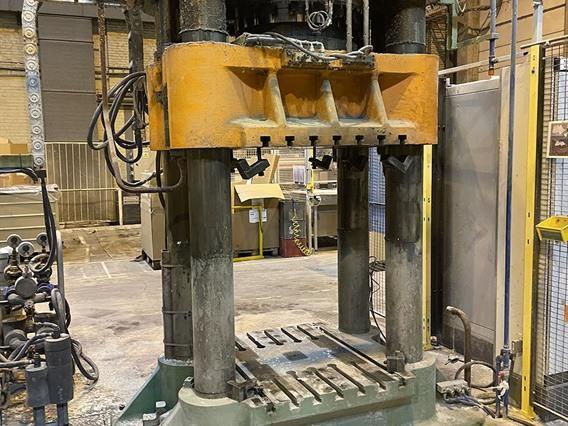

hole in table for counterpressure (stroke 200 mm)

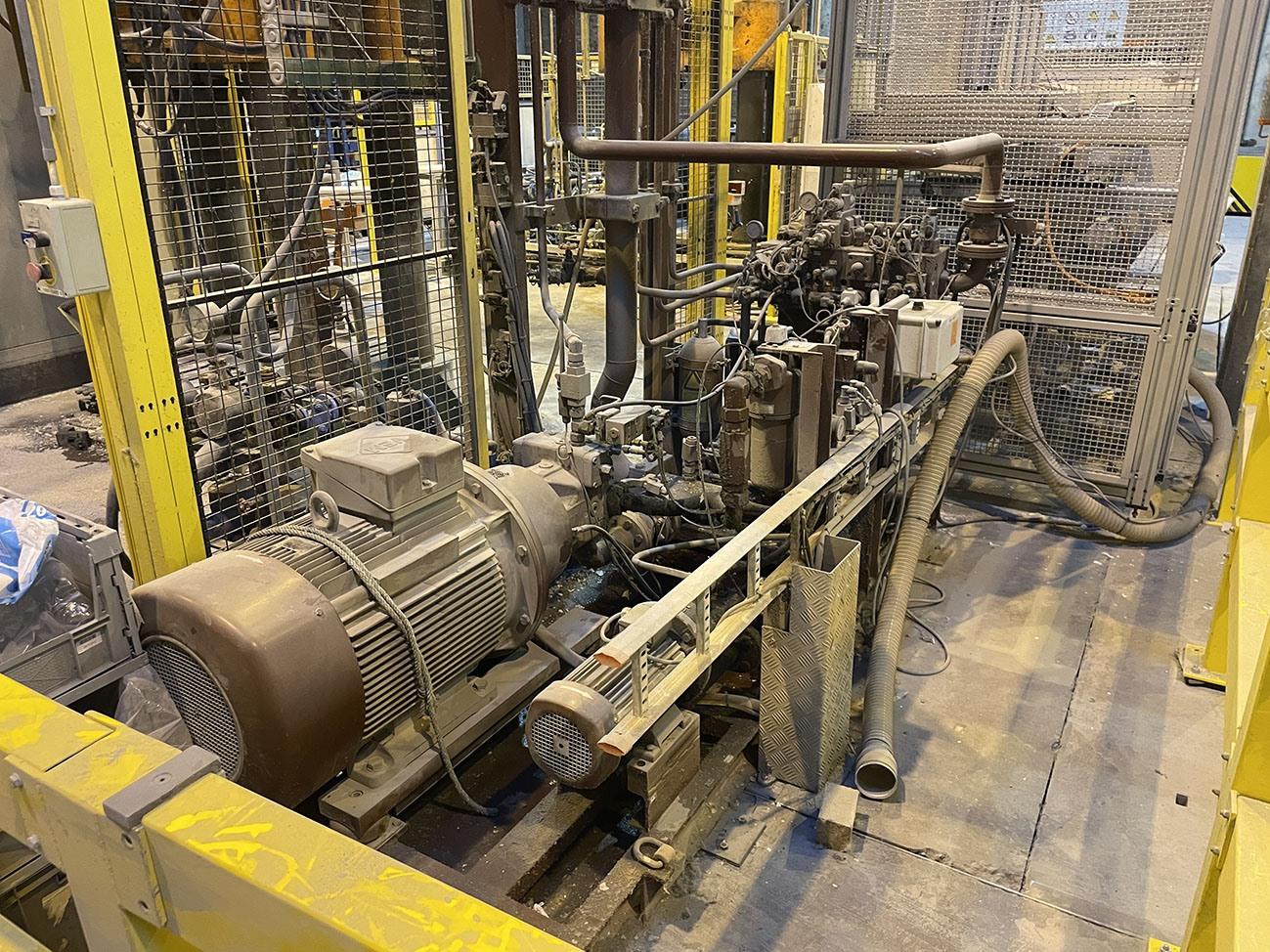

Rexroth hydraulic unit 300 bar operating pressure
Video: https://www.youtube.com/shorts/j7L9oIXLSpU
- Type/Model: 1000 ton 4 column press
- Stocknumber: M.06 14017
- Main category: [M] Hydraulic presses
- Sub category: [M.06] 4 column single action presses
- Brand: HL
