Waargerecht- bearbeitungszentren & CNC Starrag Heckert X: 2800 - Y: 2100 - Z: 1900 mm
Technische Informationen

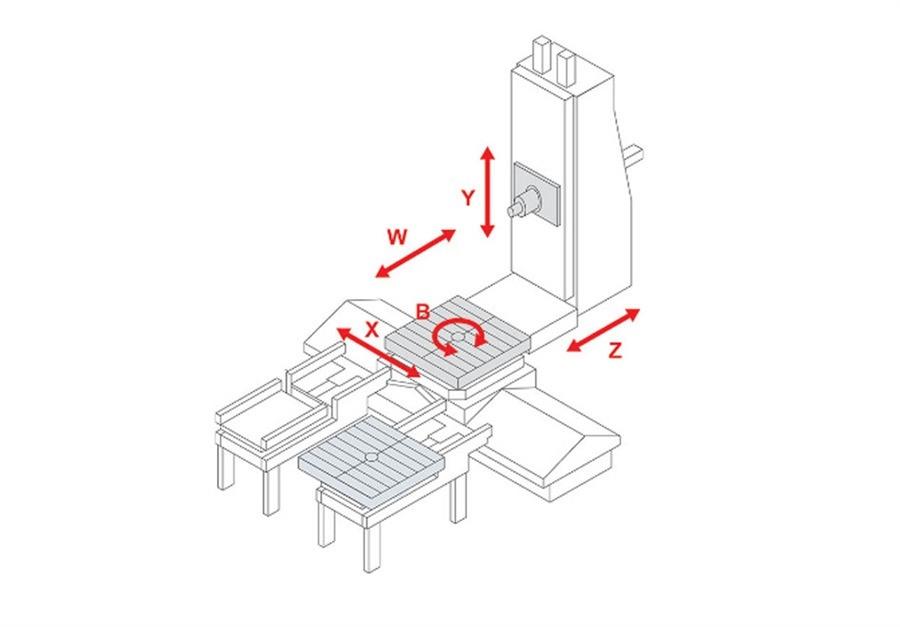

- Vorschuss im längsrichtung tisch X-achse2800 mm
- Vorschuss im querrichtung kopf Y-achse2100 mm
- Kopfverstellung im hôhe Z-achse1900 mm
- Abmessungen tisch1600 x 1250 mm
- Max gewicht auf dem tisch8 ton
- Spindelaufnahme (ISO)ISO 50
- Leistung auf spindel50 kW

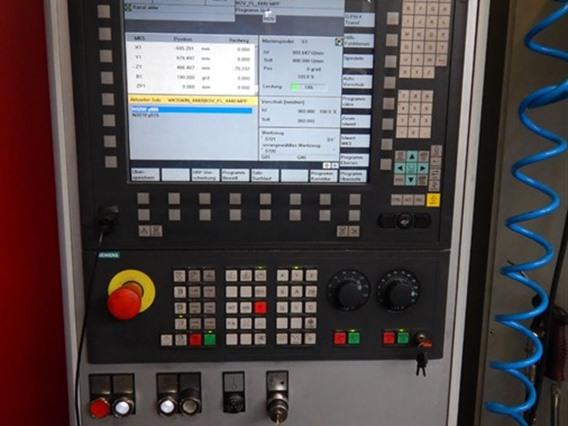

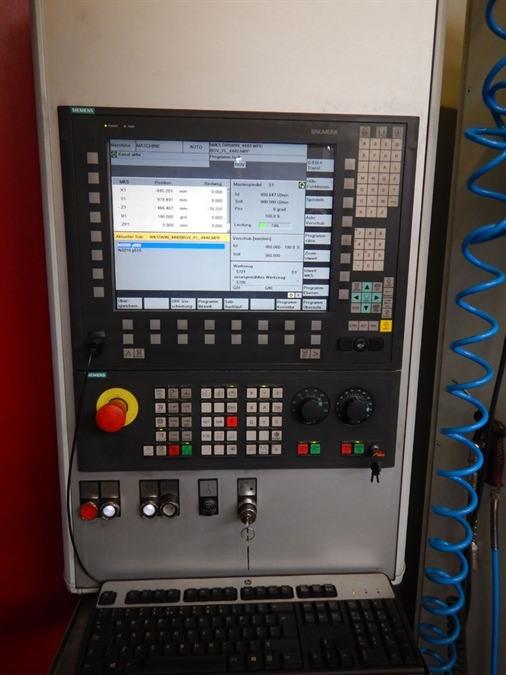

- Steuering (type)Siemens

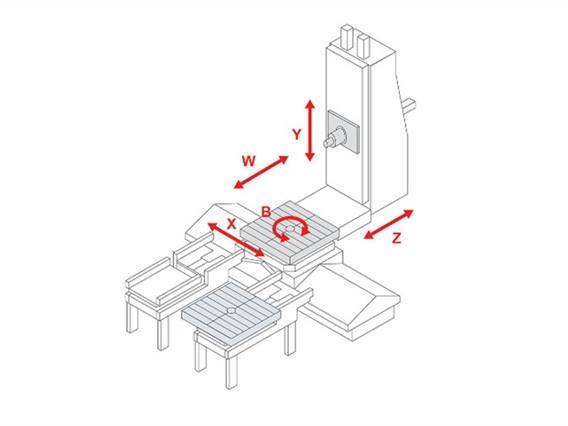

- Achsen anzahl5 axis simultaneous
- Werkzeugwechsler240 positions
- Tourenzahl (von X bis Y rpm)4000 rpm
- Anzahl palette2x
- Gewicht35 ton
- Külh-systeemyes
Zusätzliche Informationen

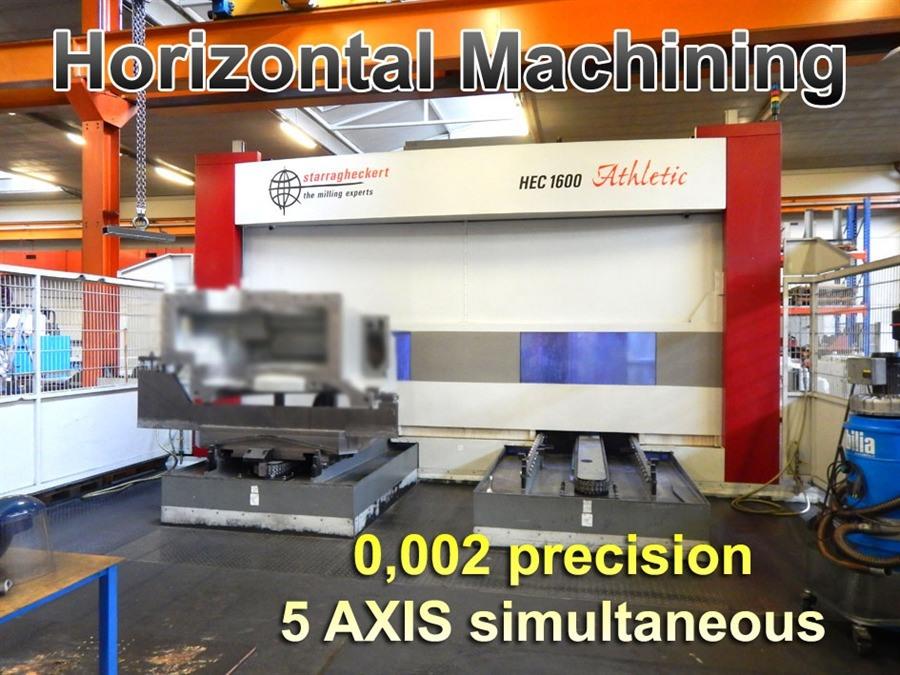

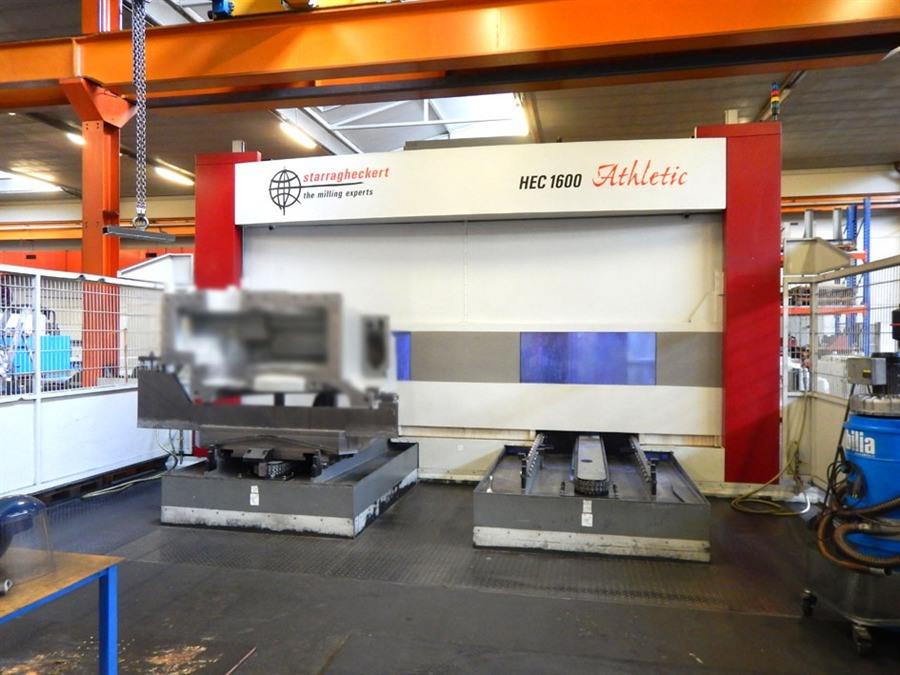

- Type: HEC 1600 Athletic
>> Top quality 5 axis simultaneous high precision machining
>> 0,002 micron precision!!
>> Both frame and foundation are equipped with cooling to avoid expansion through heat.
>> Machine still under power

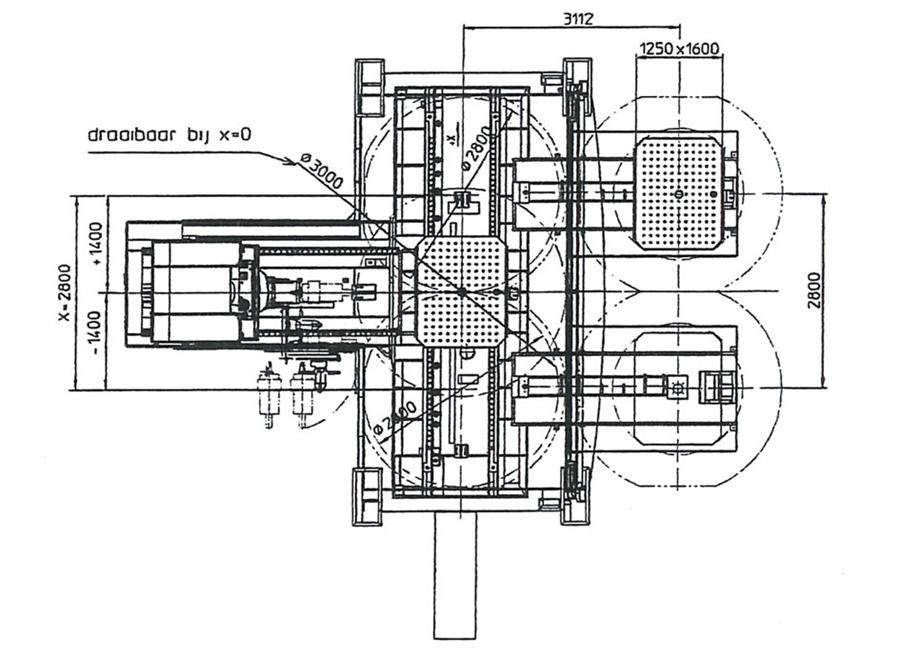

2 pallets
Palletsize: 1600 x 1250 mm (max 8 ton)
360° turnable continuous
Max workpiece: dia 3000 mm

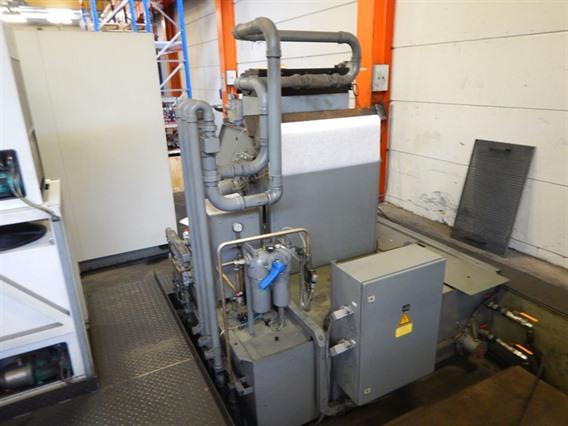

High pressure cooling through spindle (50 bar)
Spindledia: 150 mm
Spindlemovement: 750 mm (W-axis)
Toolchanger with 240 positions

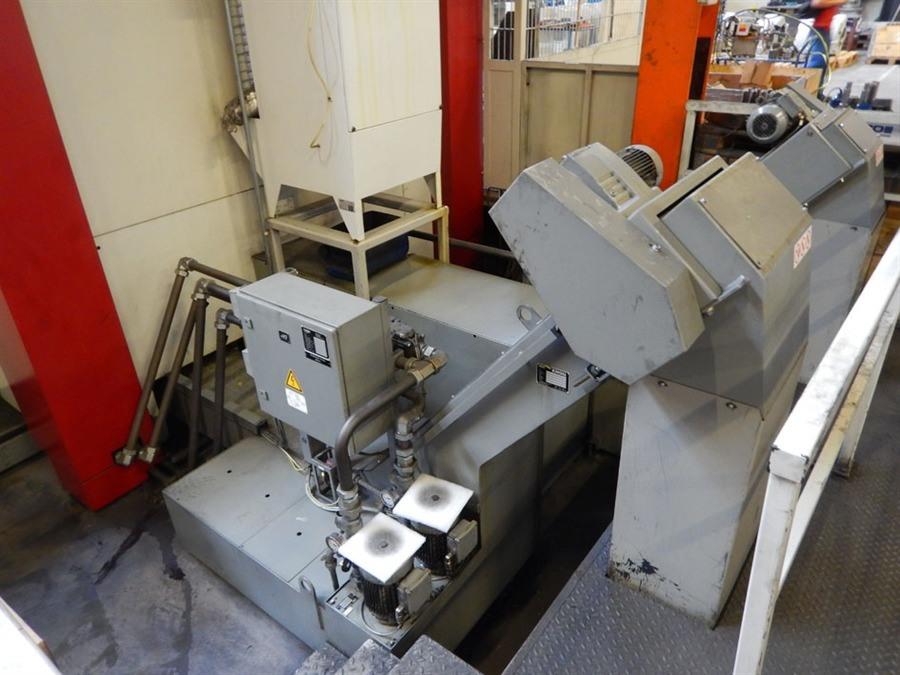

2 Chipconveyors
New price was 1,3 million euro
- Typ/Modell: X: 2800 - Y: 2100 - Z: 1900 mm
- Stocknummer: D.02 9897
- Hauptkategorie: [D] Bearbeitungszentren
- Unterkategorie: [D.02] Waargerecht- bearbeitungszentren & CNC
- Markenname: Starrag Heckert
