Tieflochbohrmaschinen Degen deephole drilling CNC
Technische Informationen
- Max bohrlange1150 mm
- Max bohrweite4 - 32 mm
- Geschwindigkeit1 > 5000 rpm
- Leistung auf bohrspindel10 kW
- Länge4000 mm
- Breite 3500 mm
- Höhe2430 mm
- Gewicht5,5 ton
Zusätzliche Informationen

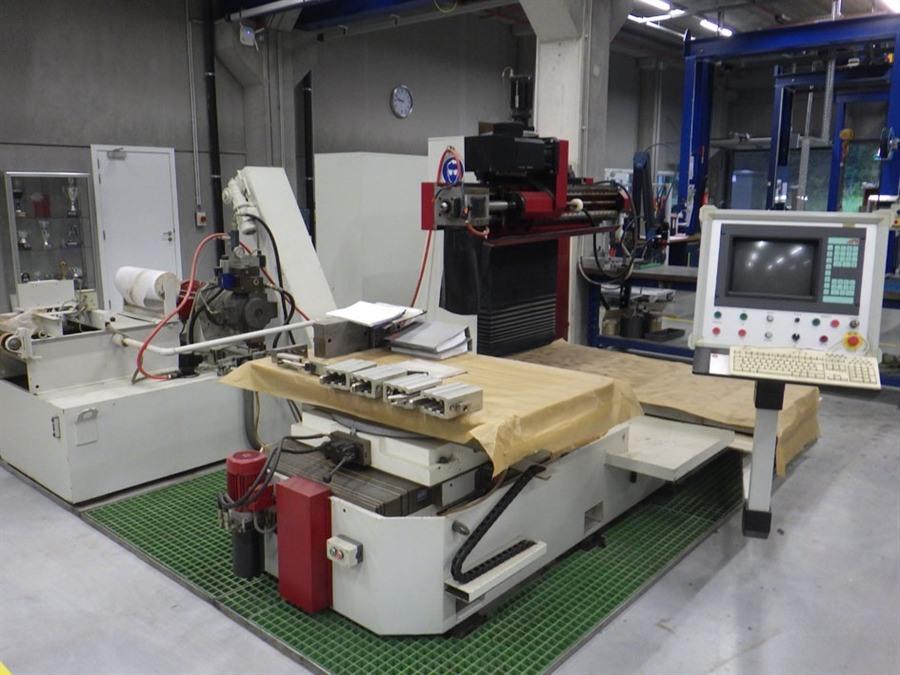

Type: UTB 600E

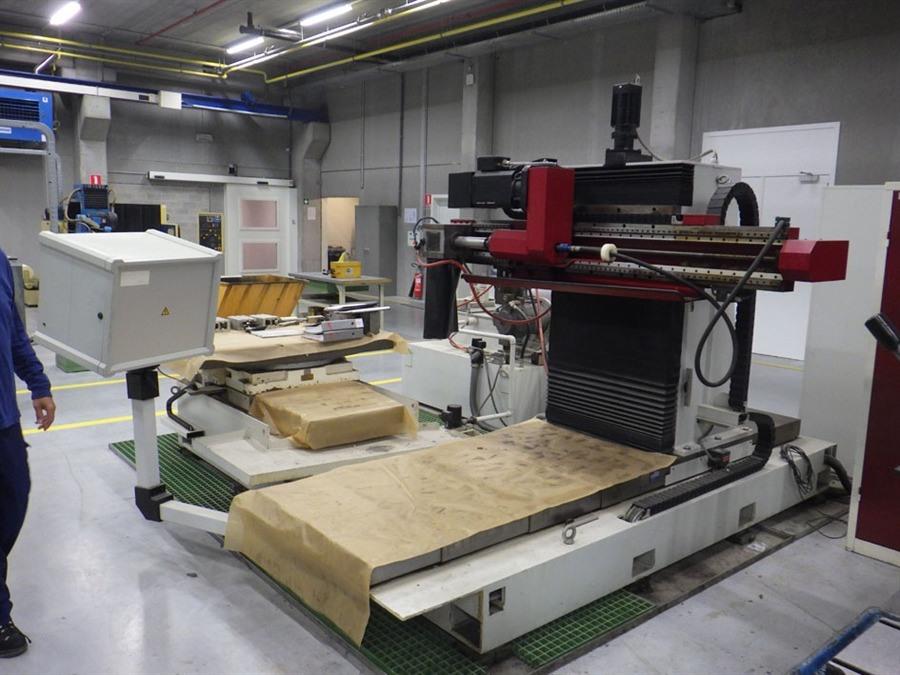

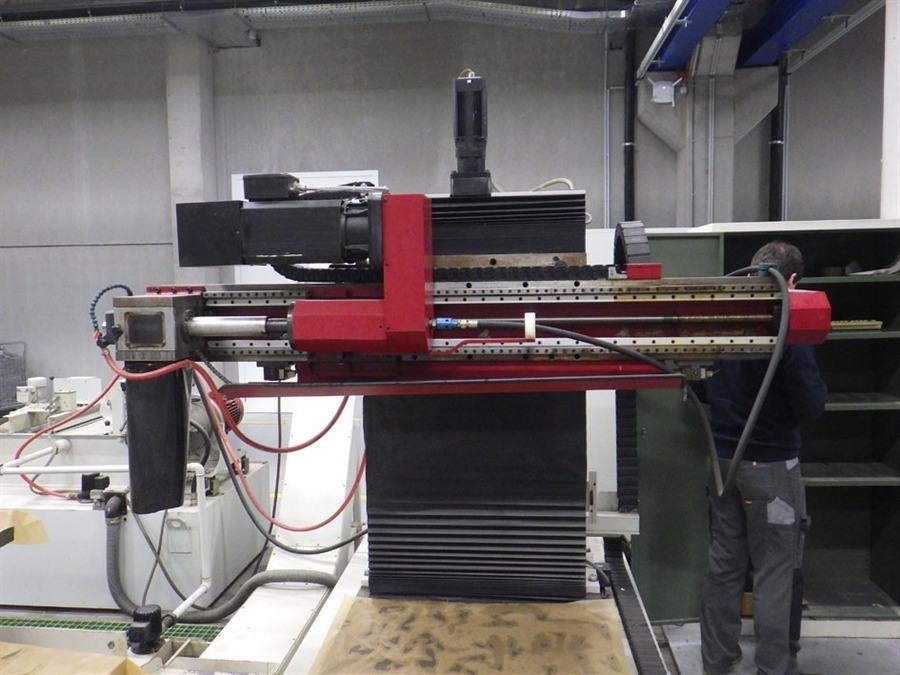

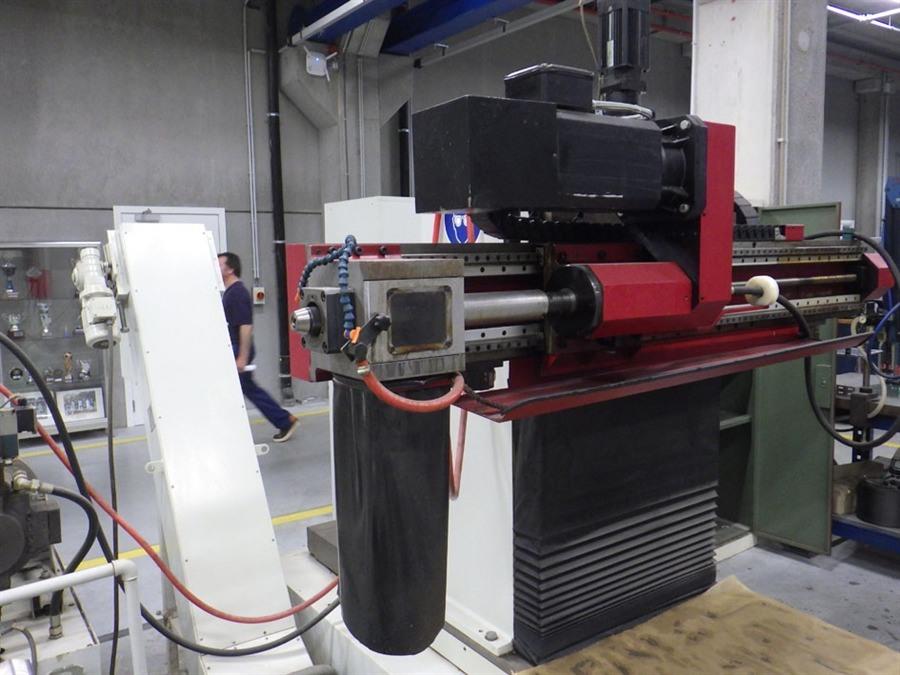

Universal CNC deepdrilling machine / CNC deephole drilling machine - 4 axes (X/Y/Z/W)
Feeding both automatic and manual with digital readout
Automatic threading possibility

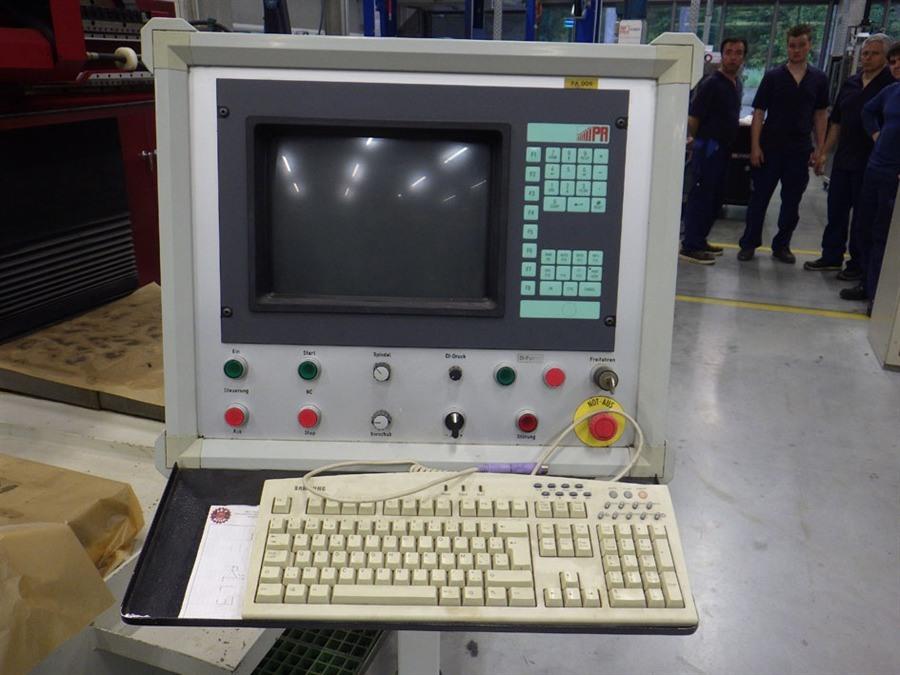

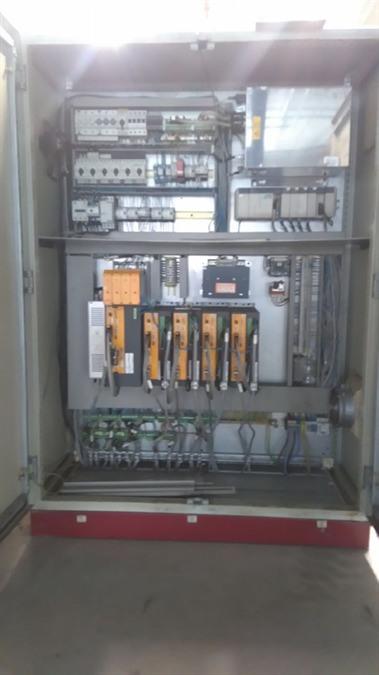

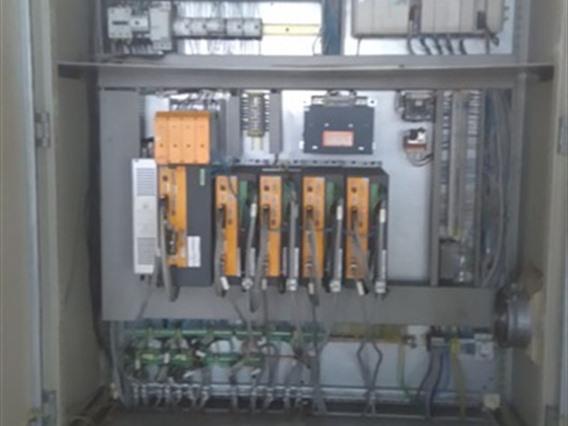

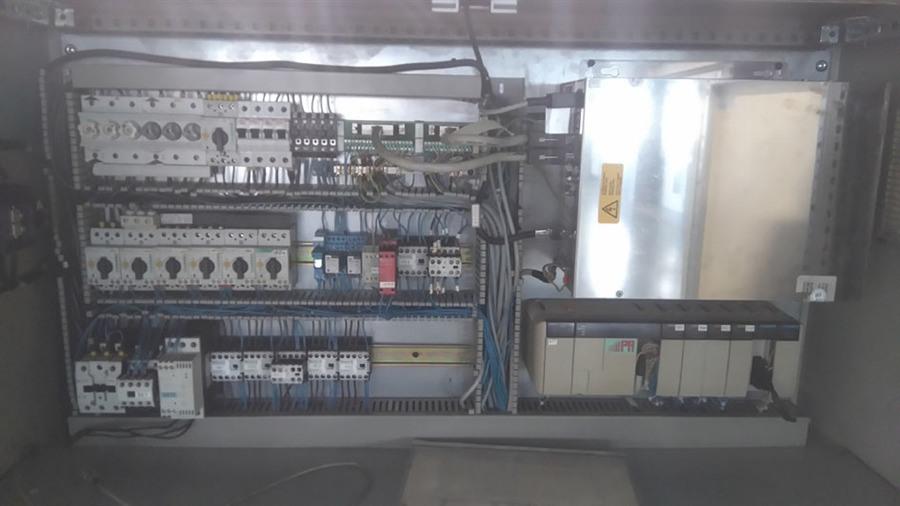

Control: PA 8000
Drilling depth: 1150 mm
Horizontal column displacement: 1200 mm
Vertical desplacement: 650 mm

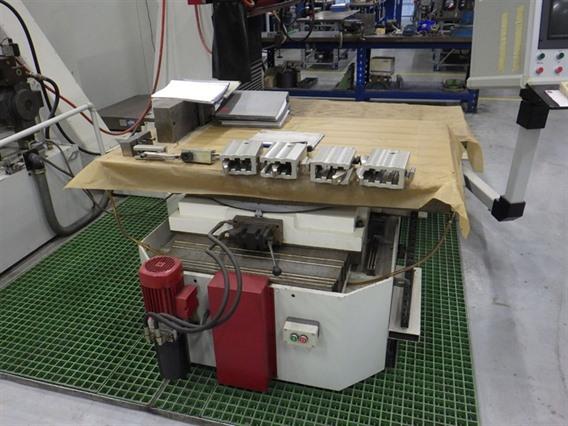

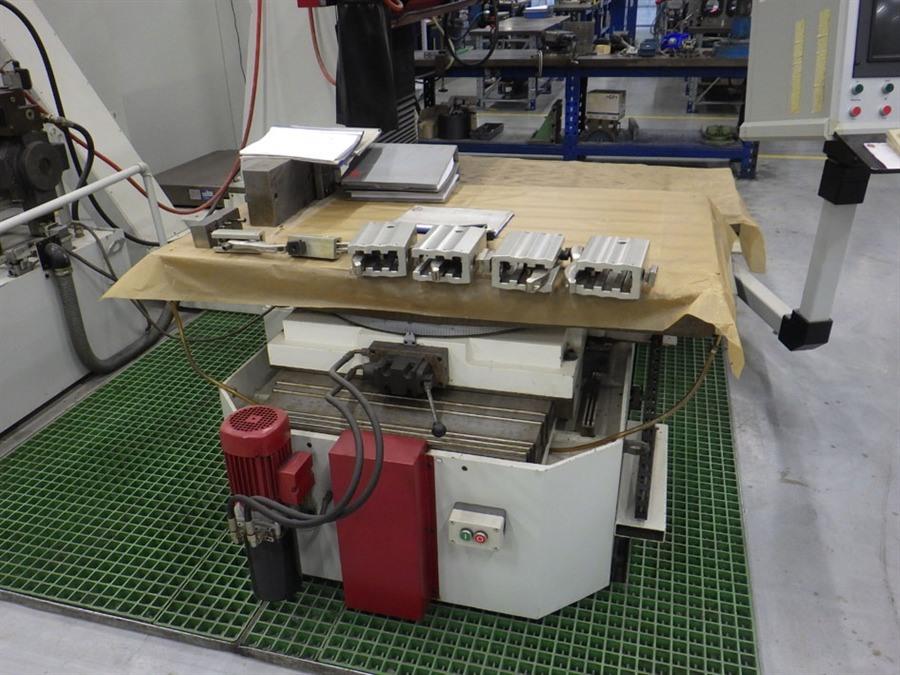

Mobile turntable dimensions: 800 x 1400 mm
Turntable displacement: 550 mm
Drilling unit vertically adjustable: 300 mm
Max swivelling angle: +/- 20°
MK2 spindle
10 kW on spindle - 5000 rpm
Rapid traverse: 1200 mm/min
Auto feeding: 1 > 120 mm/min

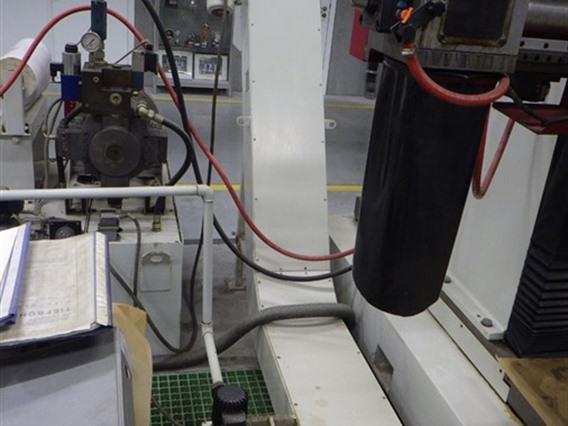

High pressure cooling

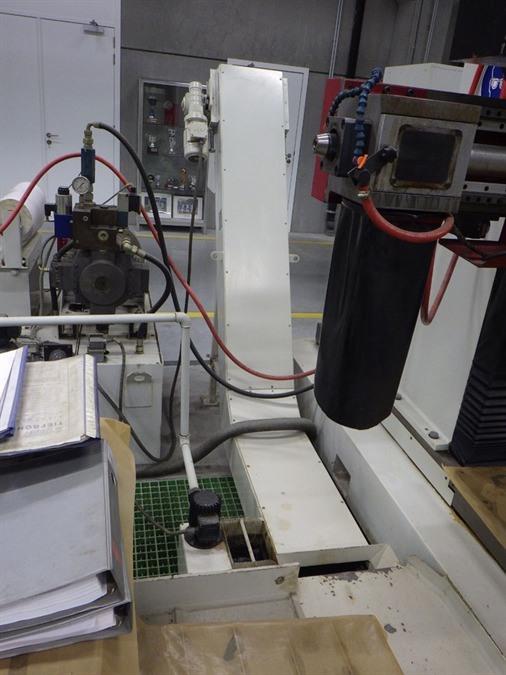

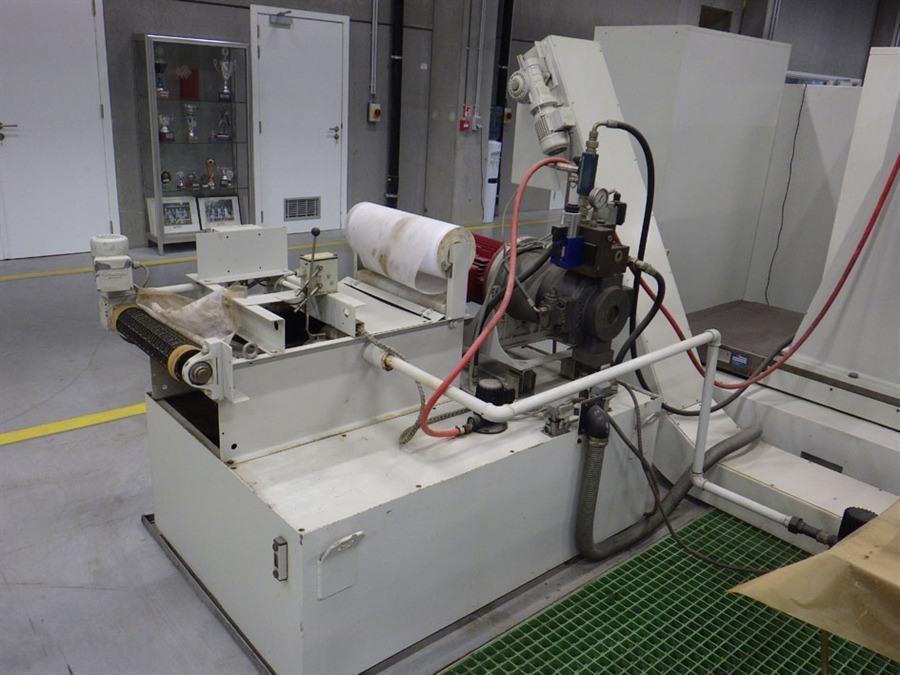

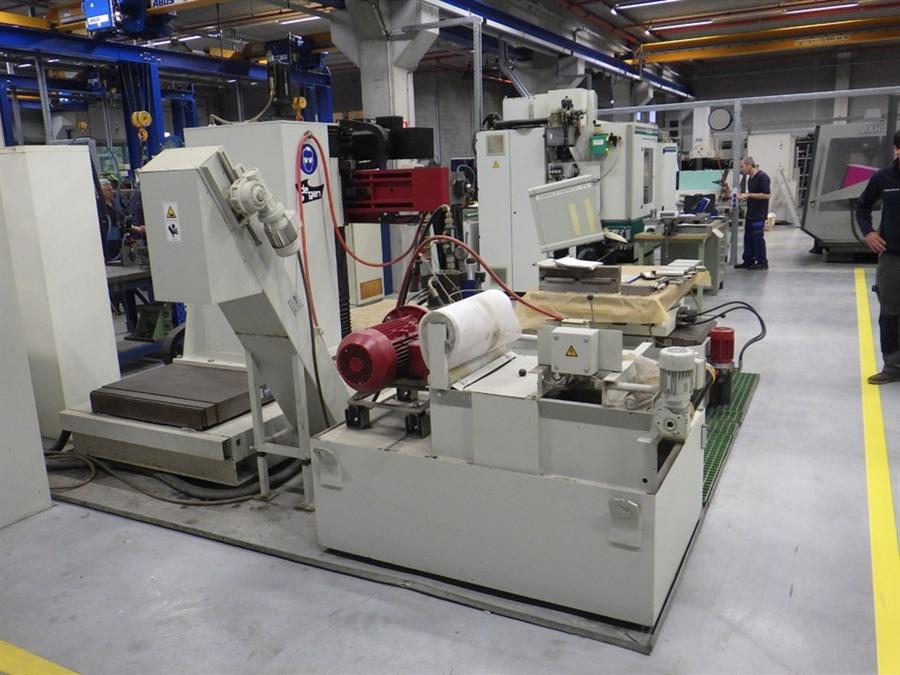

Filter band system

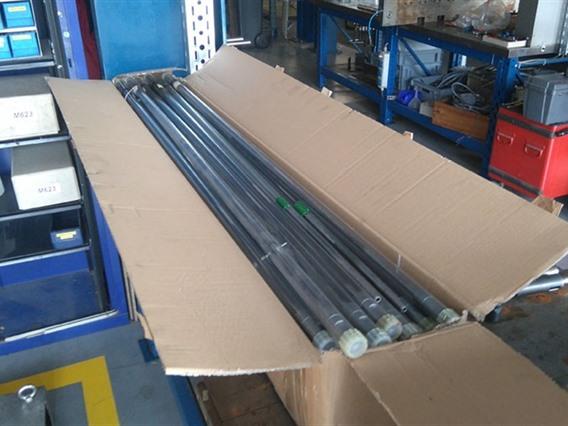

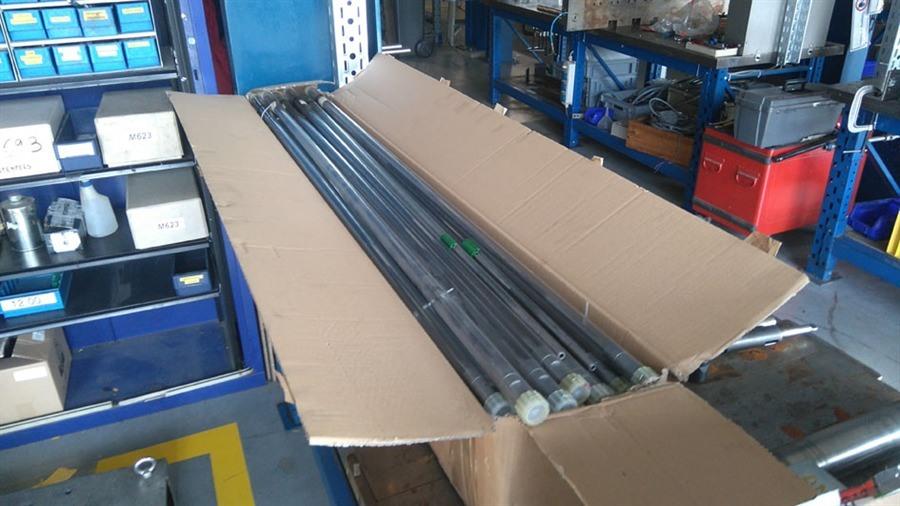

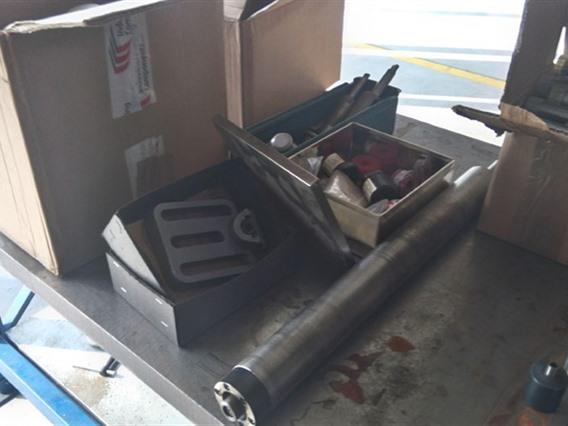

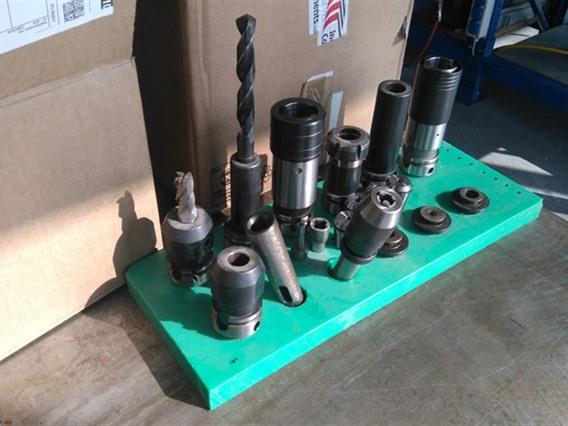

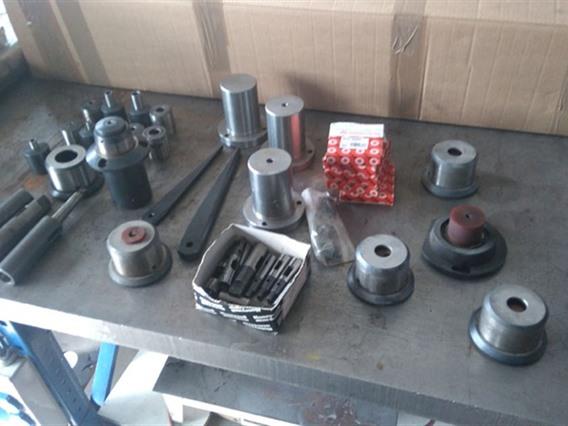

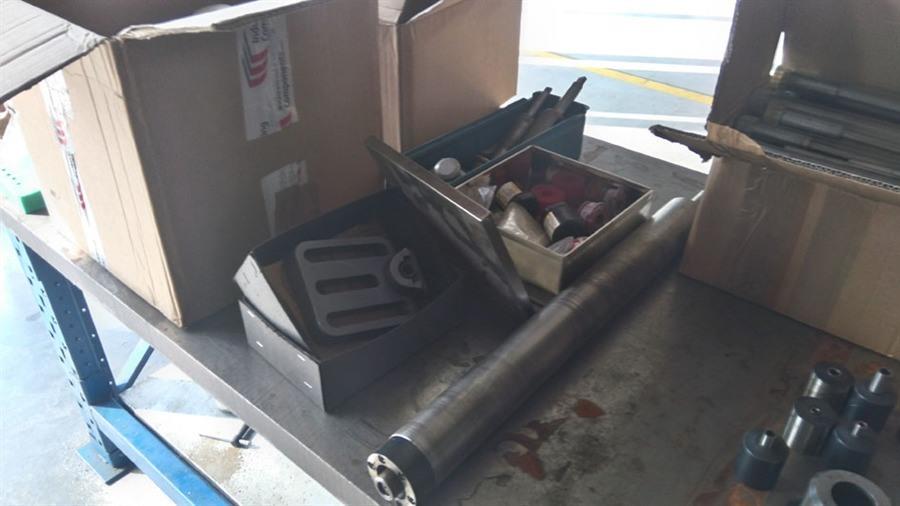

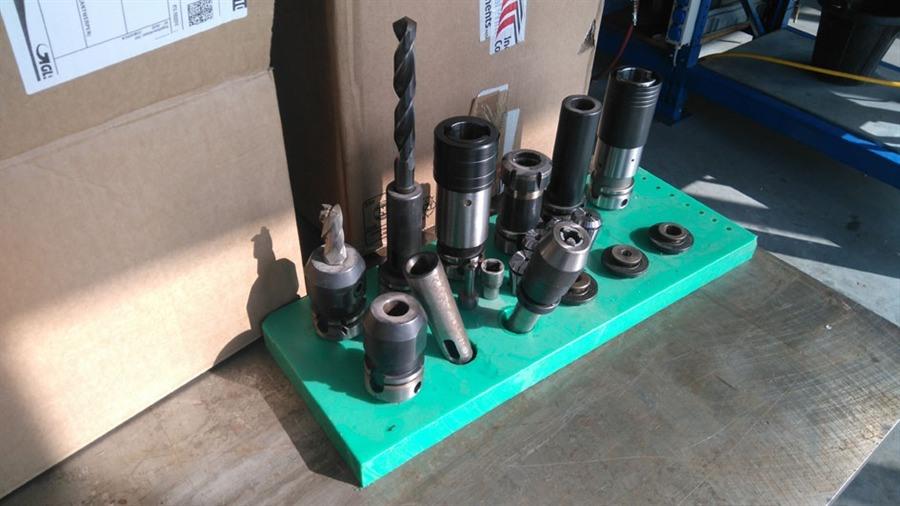

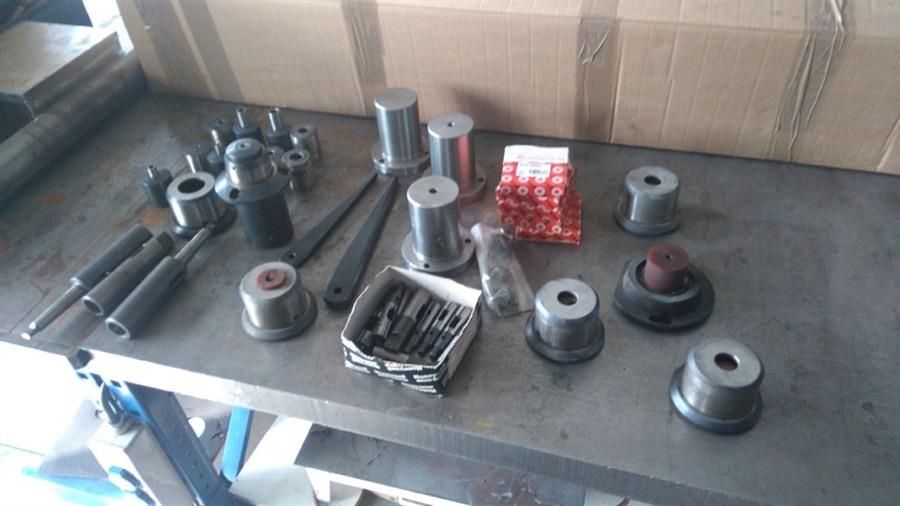

Tooling included NEW!
+- 50 pieces
Lenght of tooling 1500 mm
- Typ/Modell: deephole drilling CNC
- Stocknummer: C.10 9367
- Hauptkategorie: [C] Bohrmaschinen
- Unterkategorie: [C.10] Tieflochbohrmaschinen
- Markenname: Degen
