Trumpf - Kuka YAG laser beam welding - Robot
Auslauf
Technische Informationen
- SteueringKRC2
- Achsen anzahl6 axes

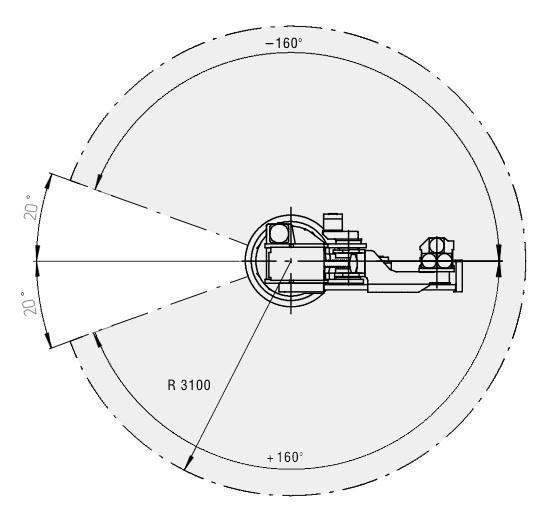

- ArbeitsraumRadius 3000 mm
Zusätzliche Informationen
- THE ROBOT LASERWELDING
---Exist of---

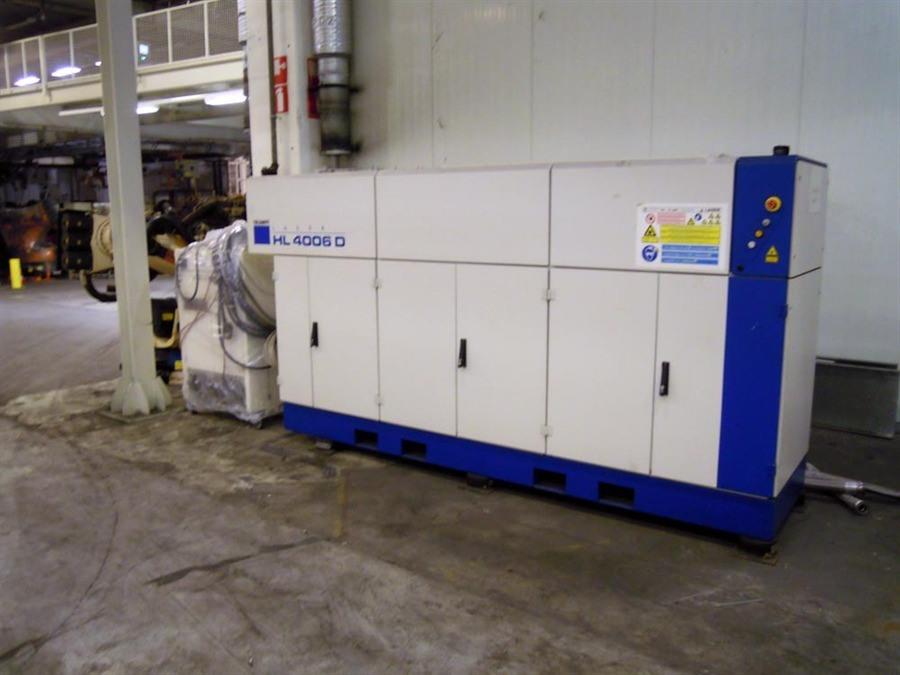

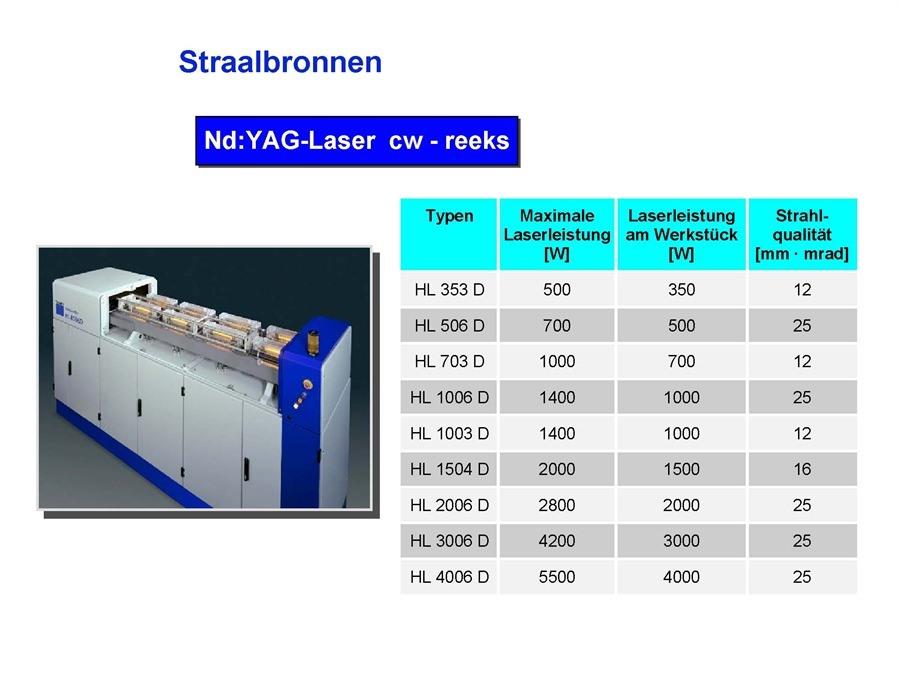

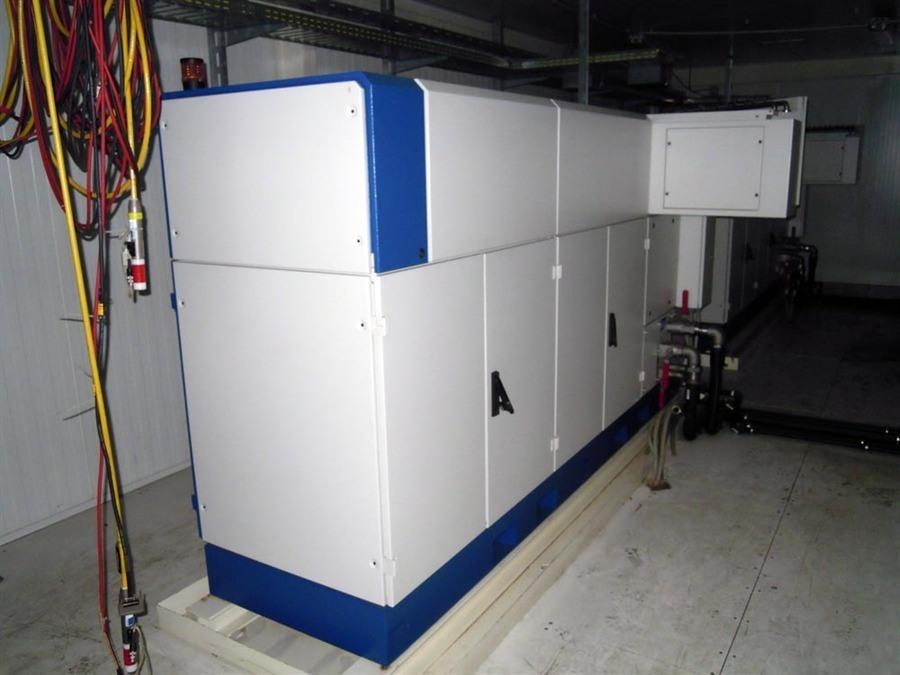

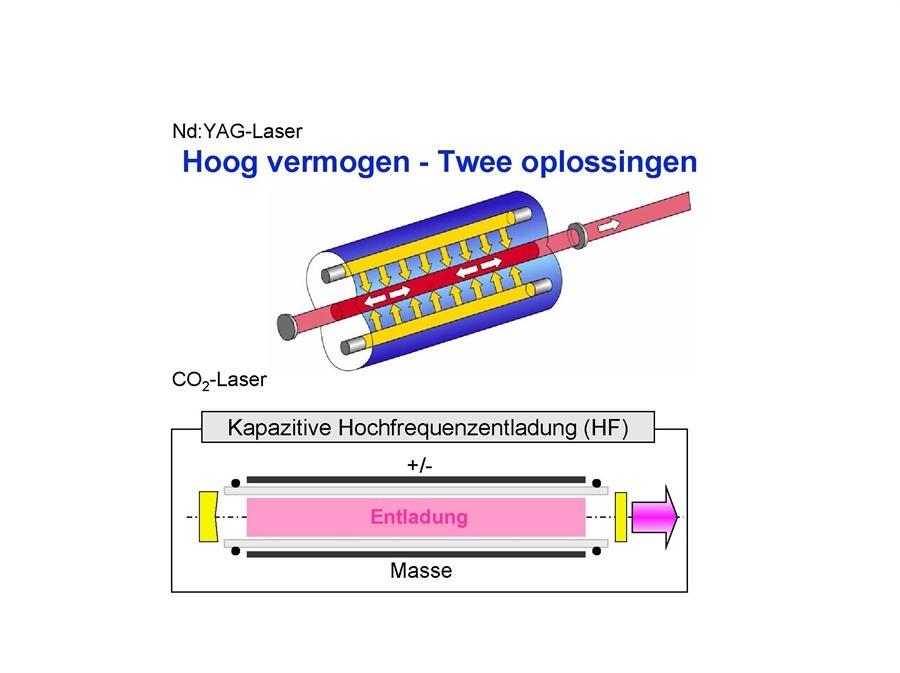

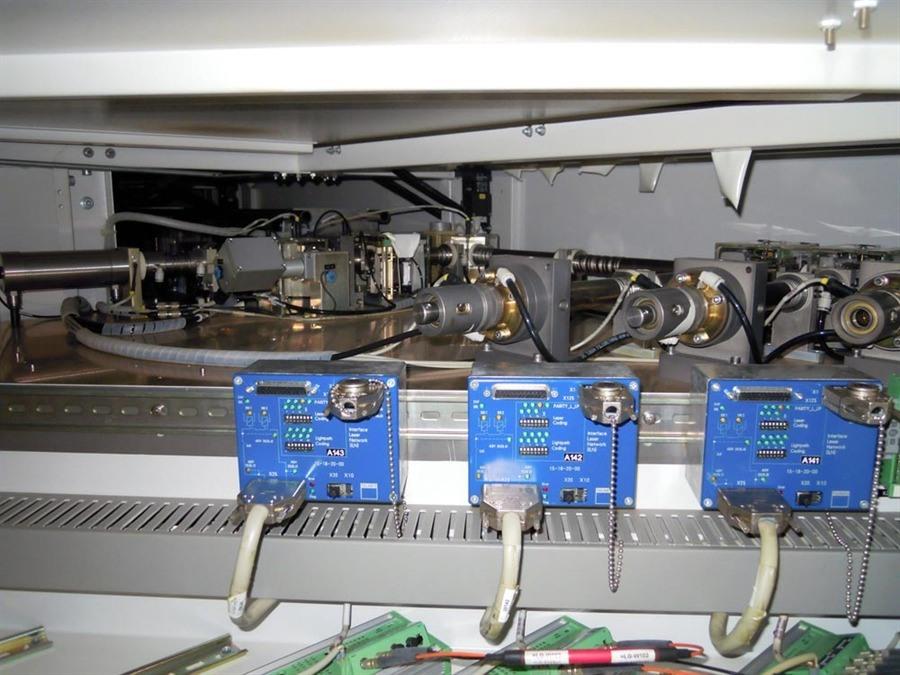

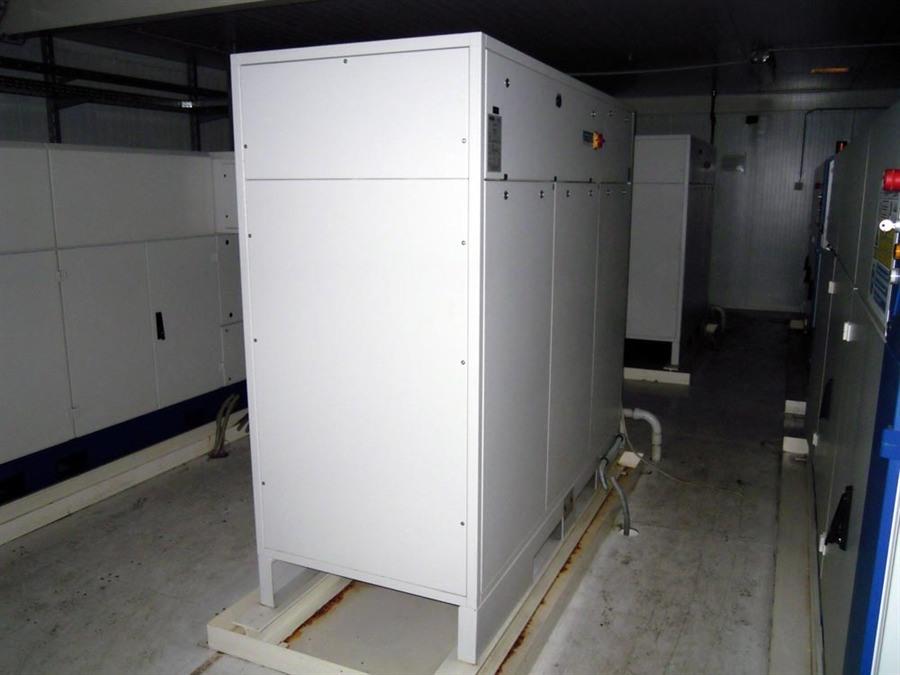

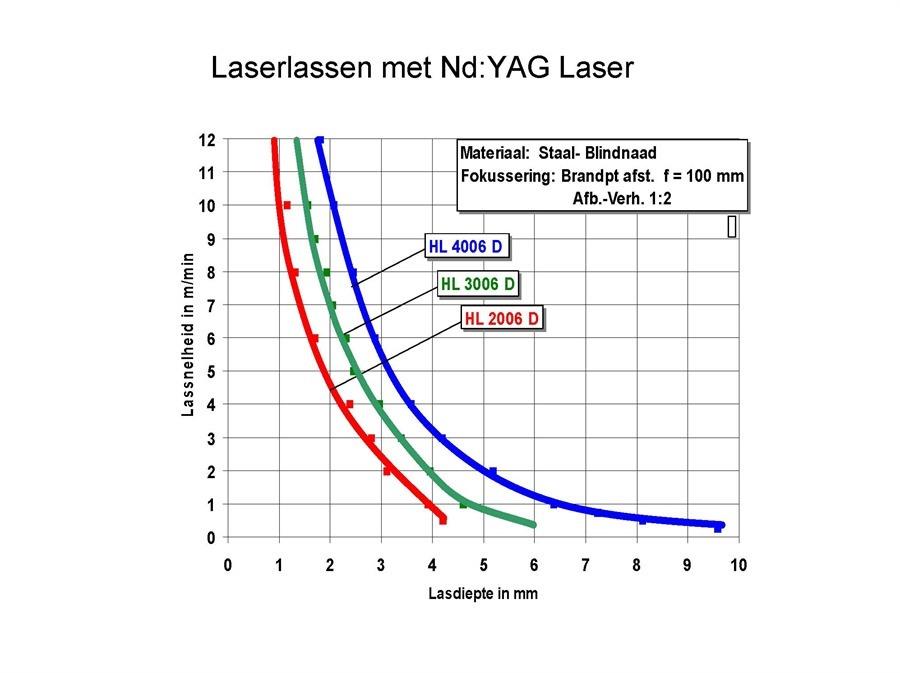

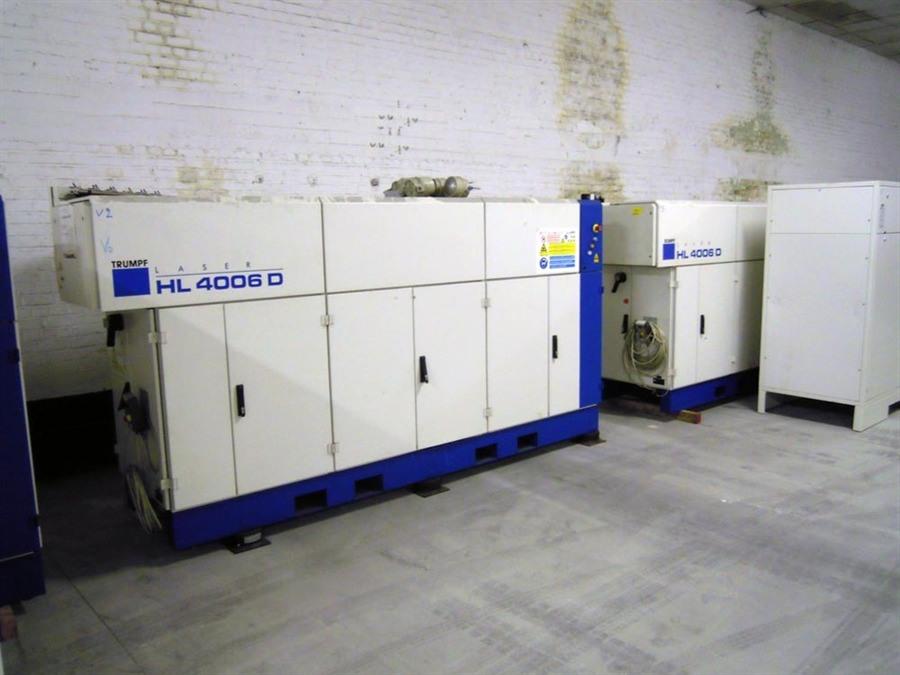

1. - Trumpf HL 4006 YAH-laser.
- Resonator max.cap: 4000W

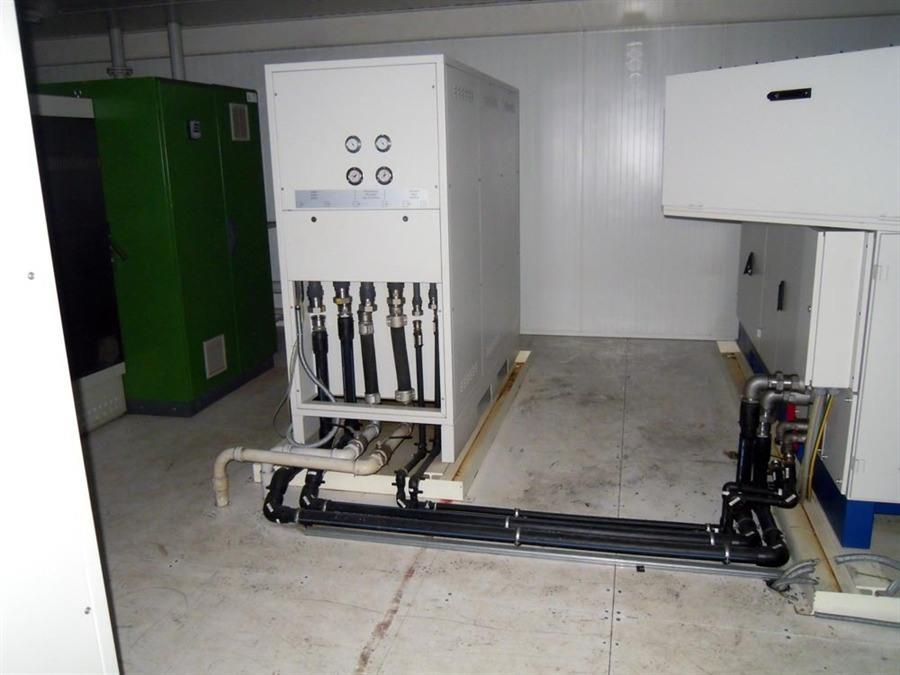

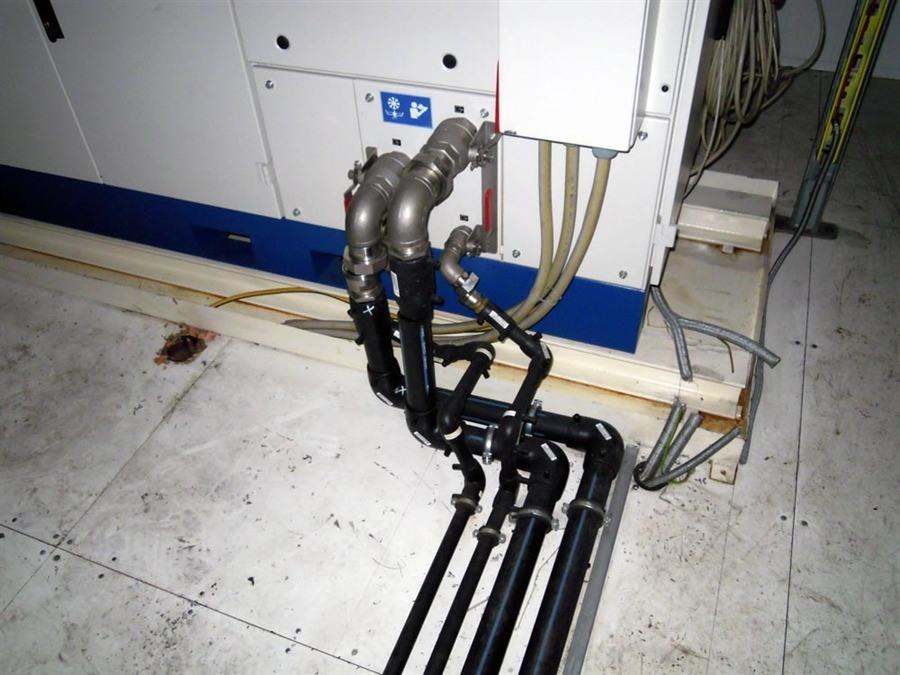

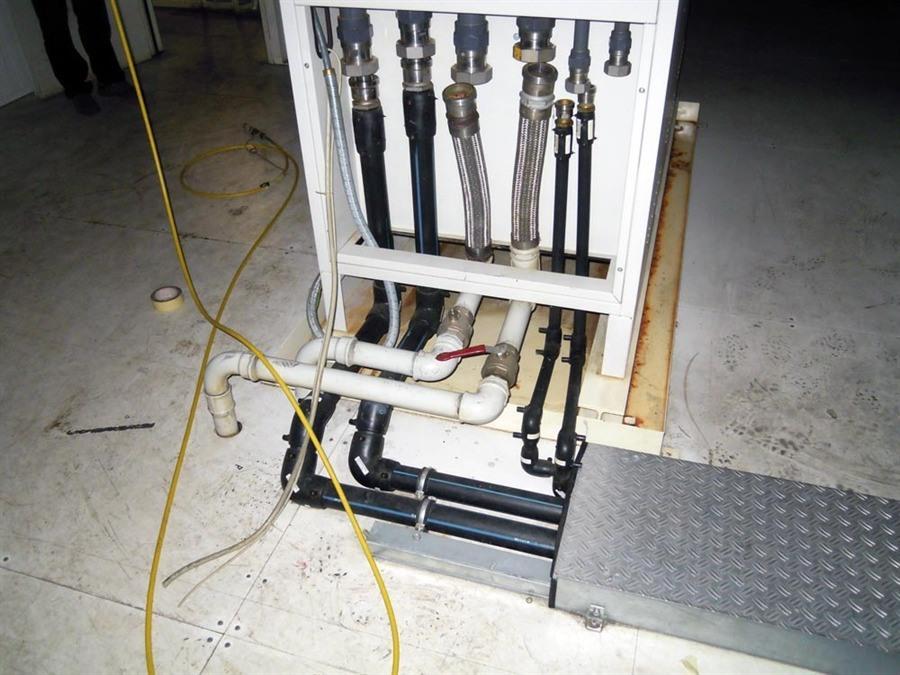

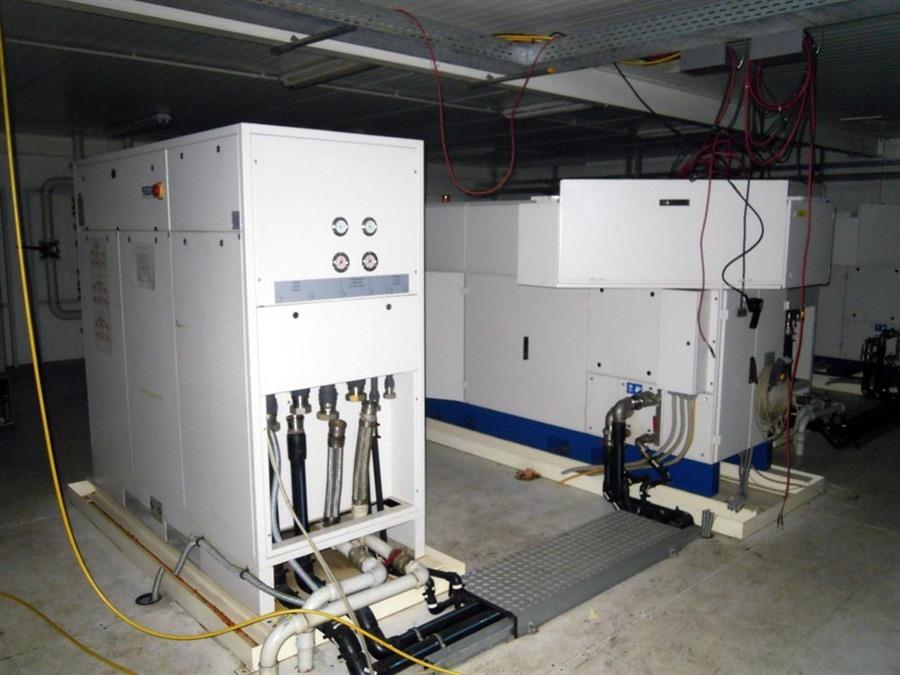

2. - Chiller Riedl for Resonator and Cooling

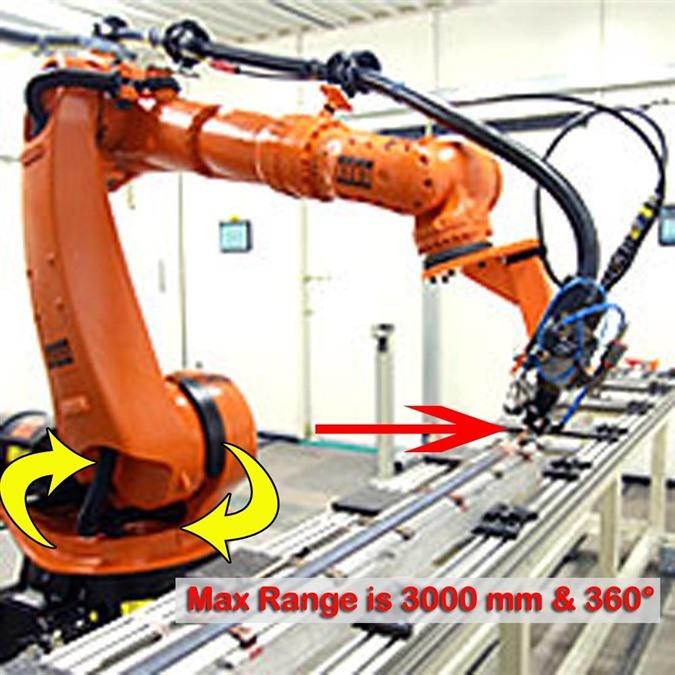

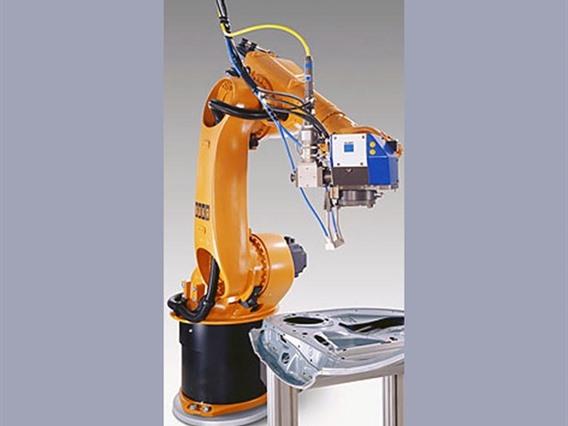

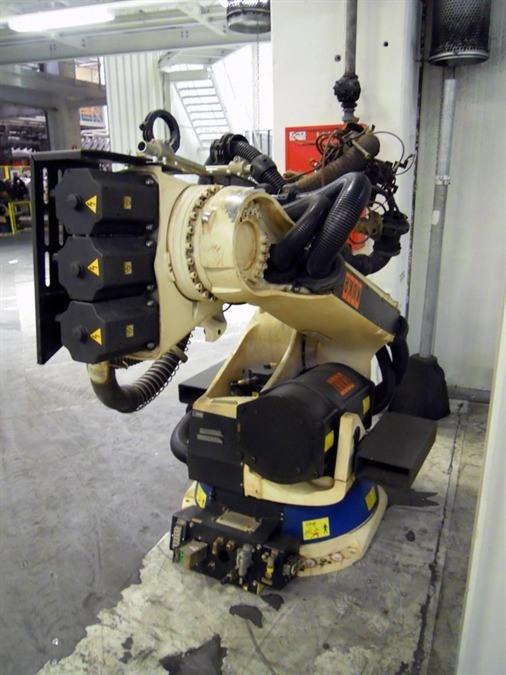

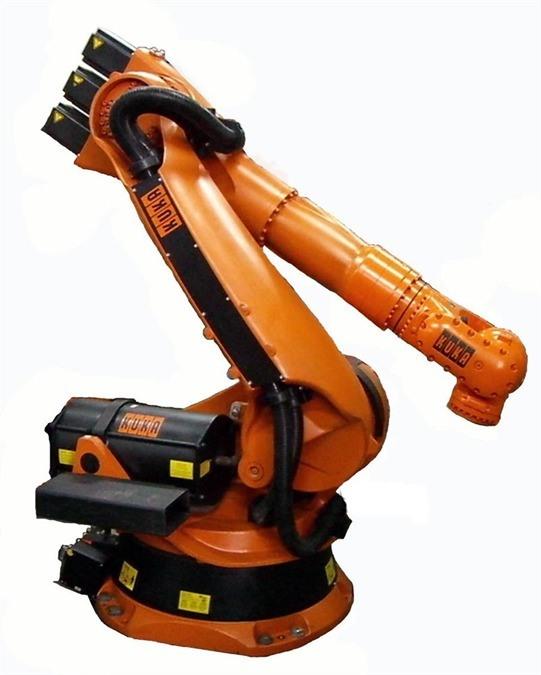

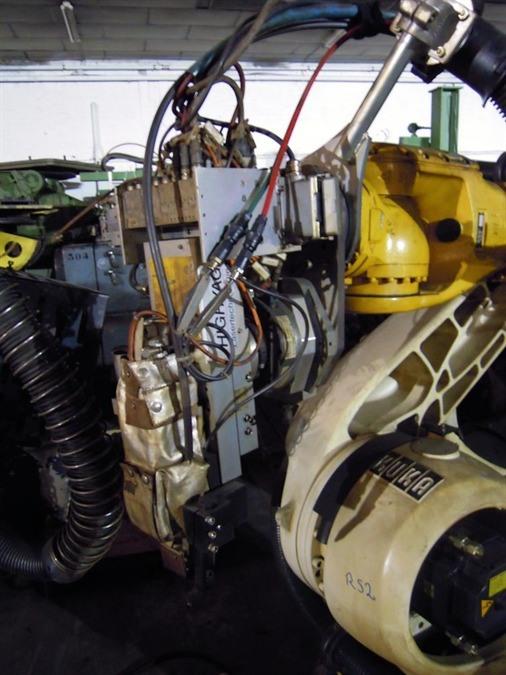

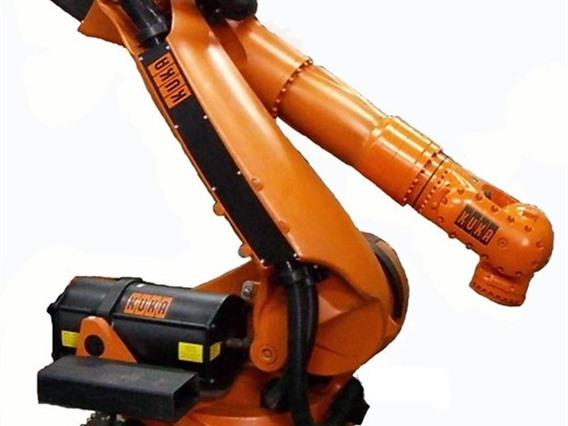

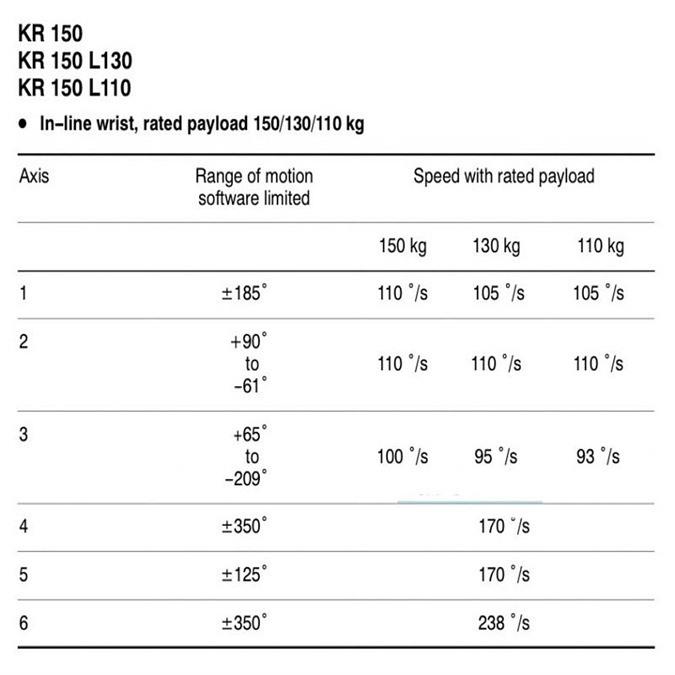

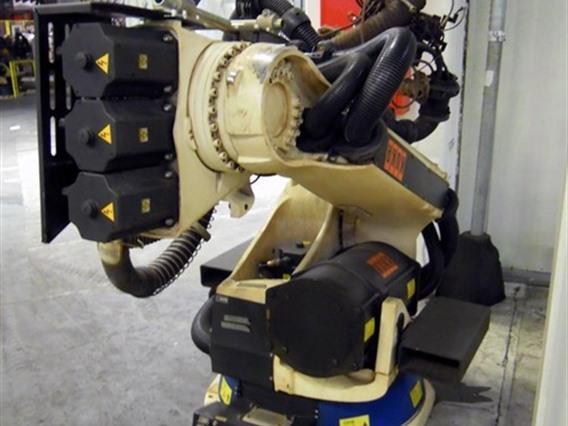

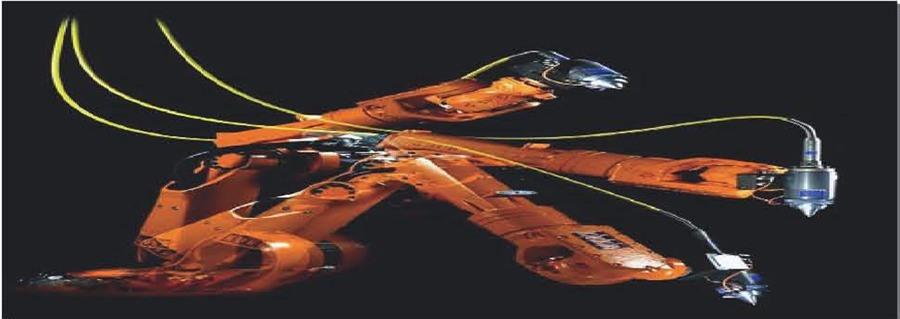

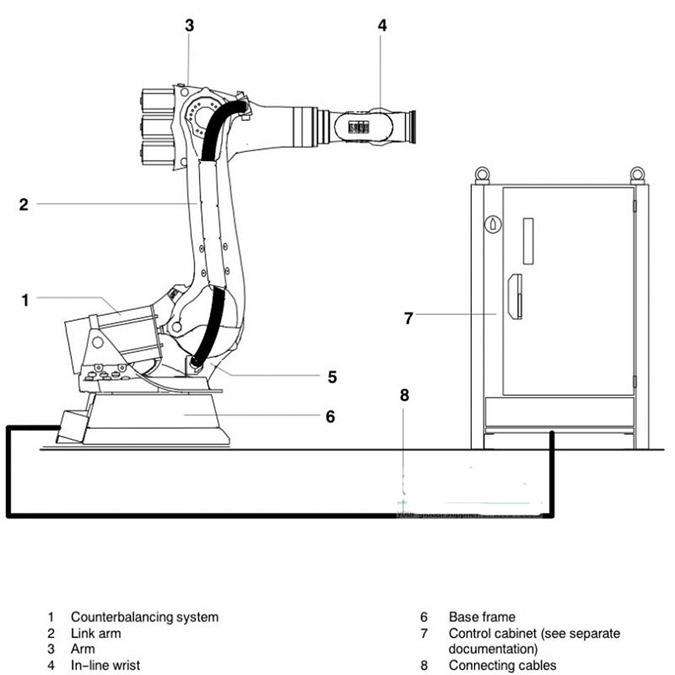

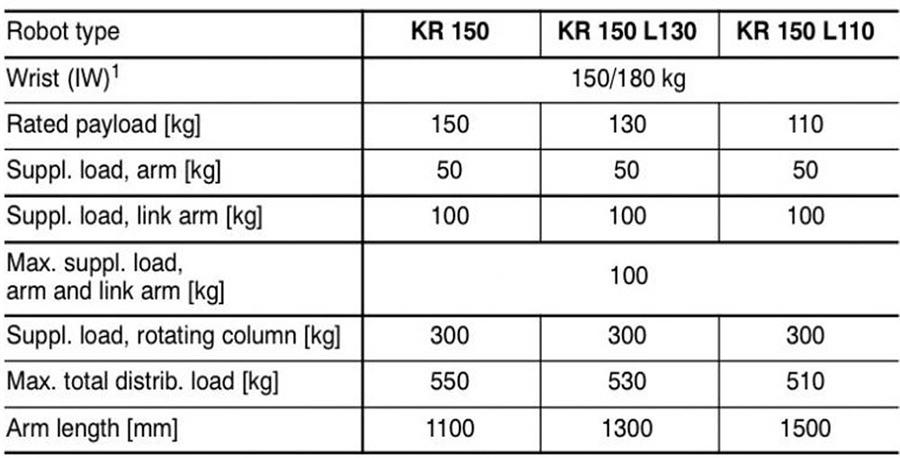

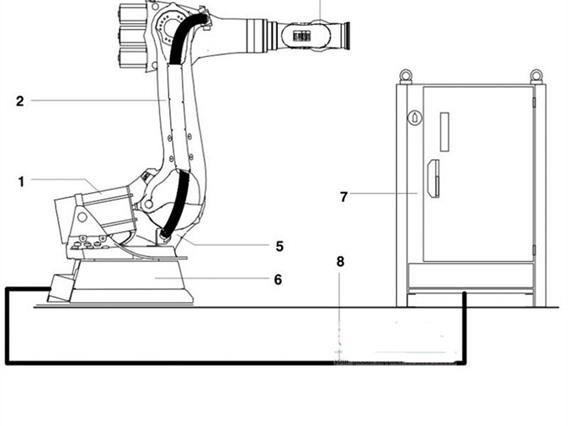

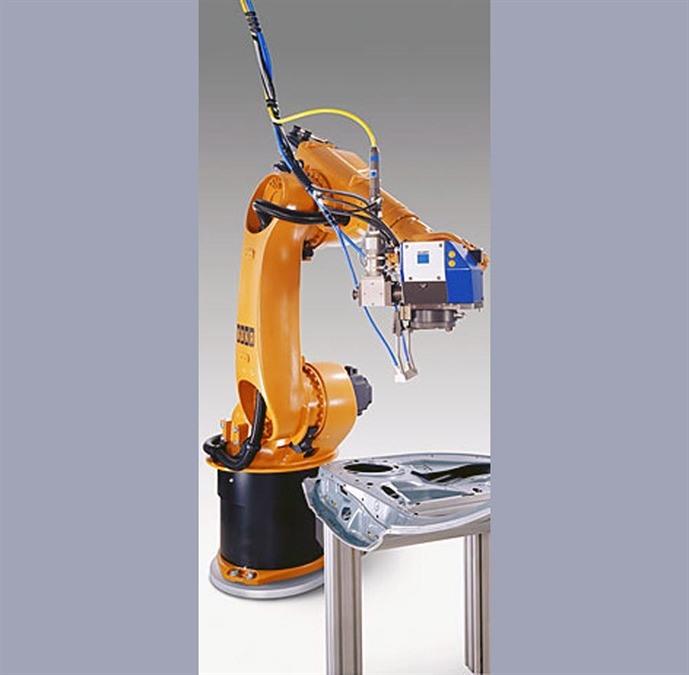

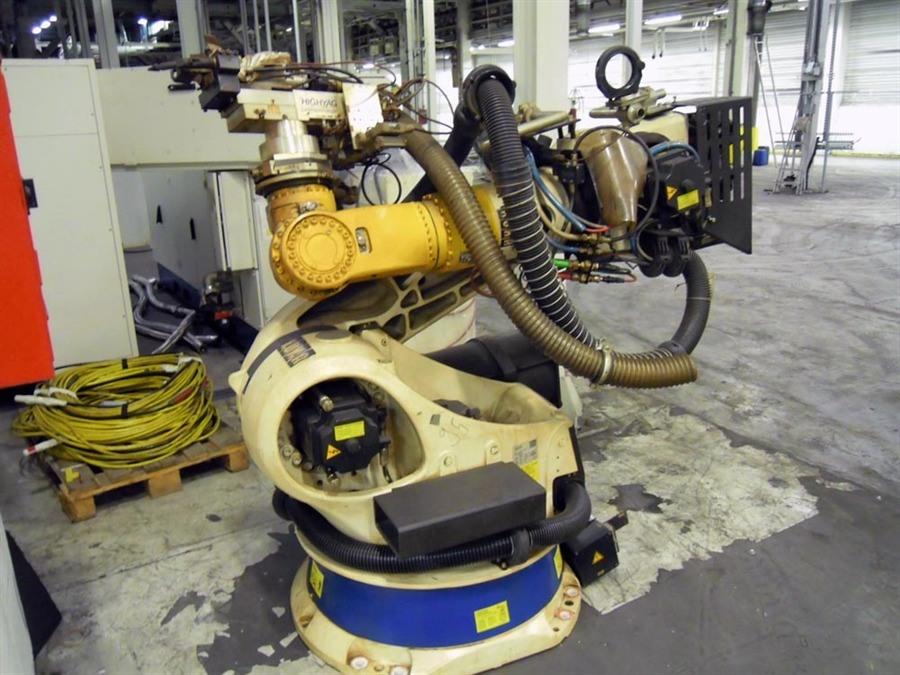

3. - Kuka Robot: type KR 150

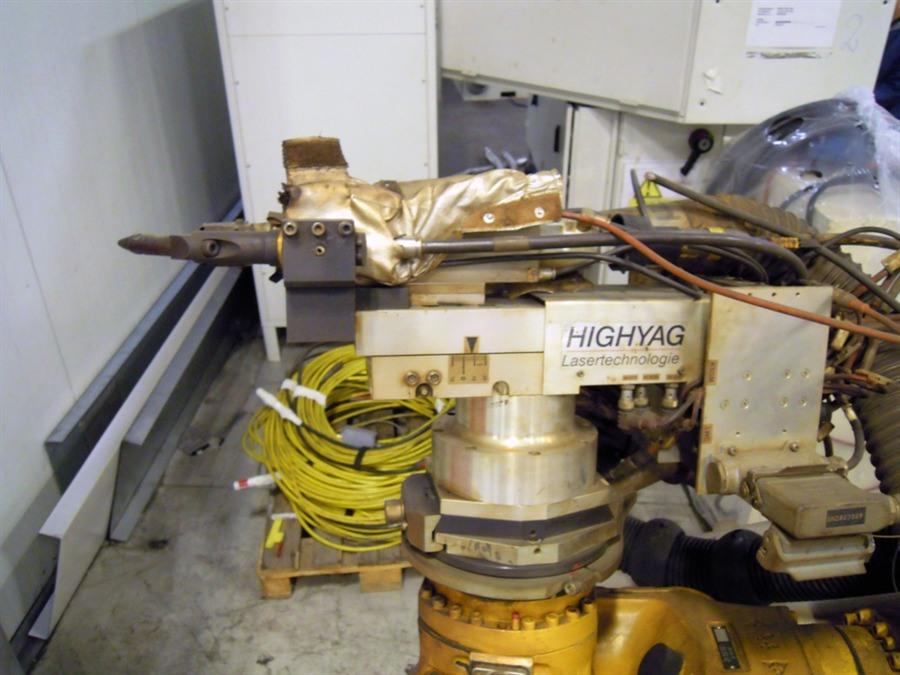

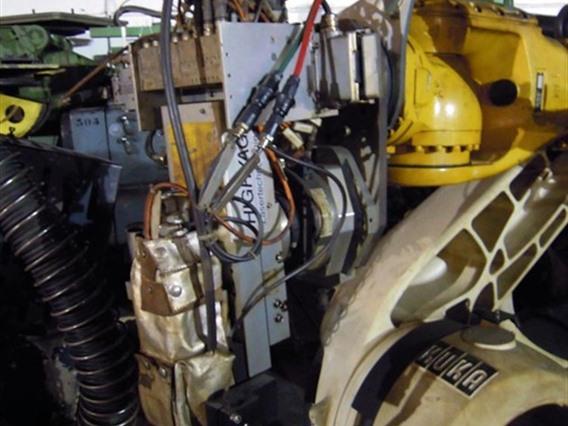

- 6 AXES with HighYAG laserwelding / cutting head

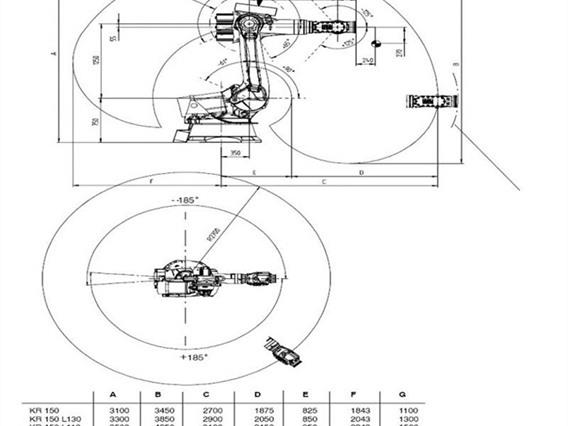

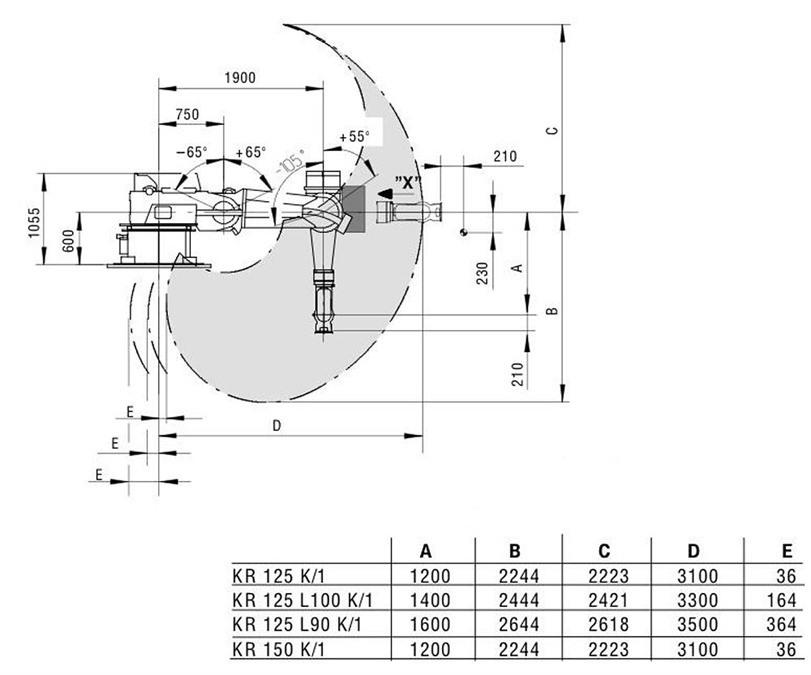

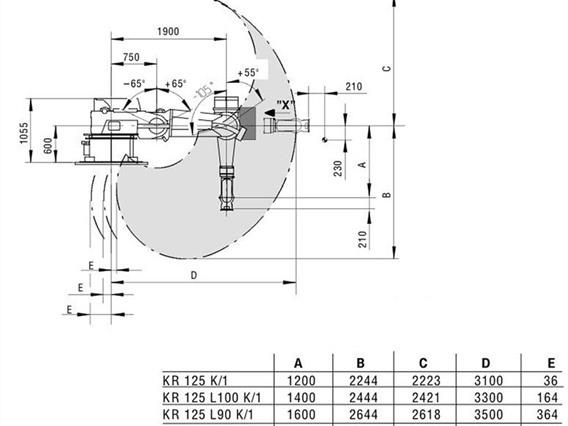

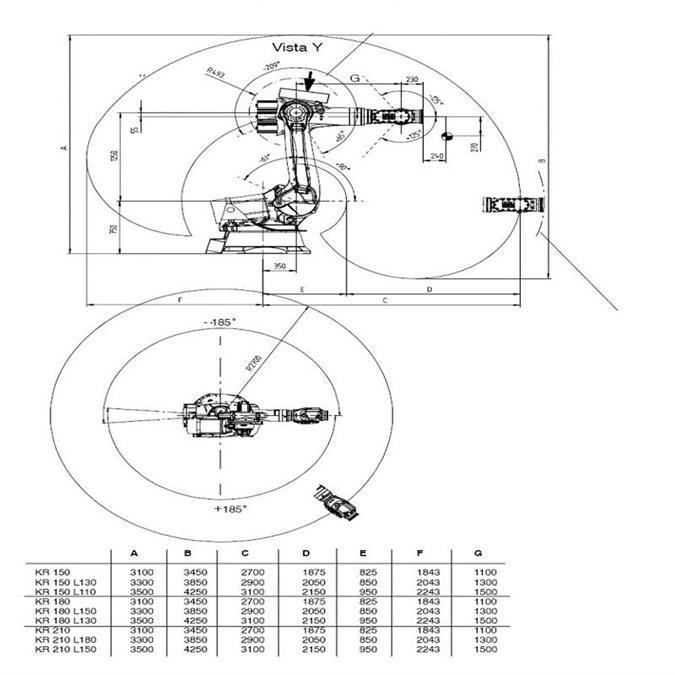

- Max workrange 3000 mm equipped with HIGHYAG laser welding cutting head.

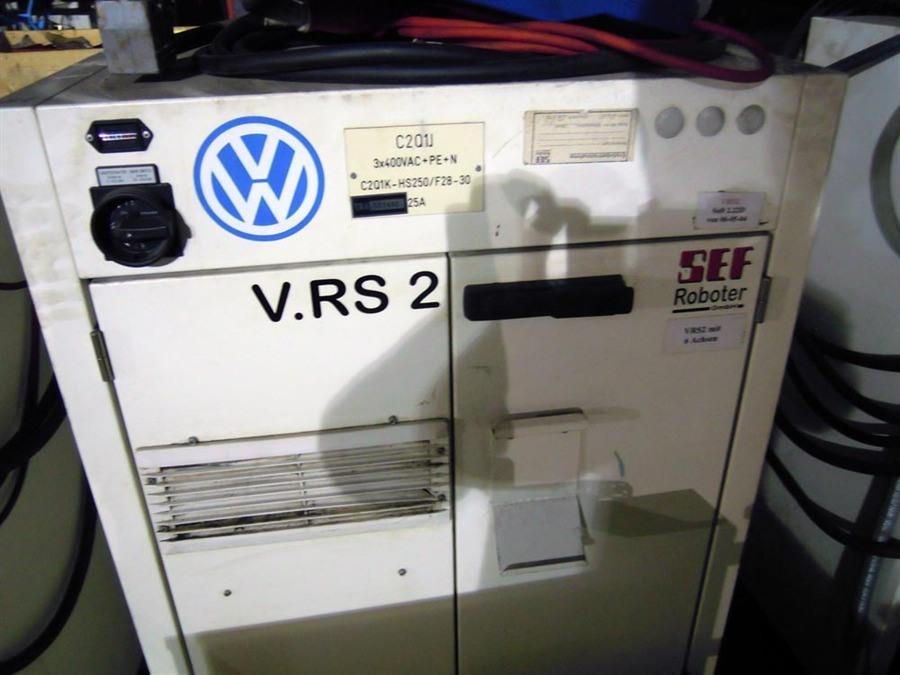

4. - SEF-Roboter VRS 2
- Controlbox with handcontrol/joystick for KUKA-Robot

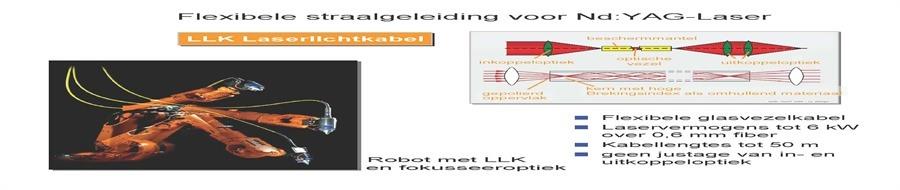

5. - 30 meter optical Fiber cable with connections for copeling resonator mounted on the YAG Robot-laserhead
6. - Optional 7th axis transversal movement of the robot 2000mm available
Example of the welding speed: steelplate 0.7 x 0.7mm = 100 mm/sec.
7. - The trumpf resonator feeds the laser by glassfiber cable up to 30m lenght max.
In use 2004, nearly new condition.
(original new price: +700000€ laserwelding + robot)
- Typ/Modell: YAG laser beam welding - Robot
- Stocknummer: V.03 6282
- Hauptkategorie: [V] Schweissrolstellungen, Manipulatoren, Robotik, Schweisskranen & Schweissbanken
- Unterkategorie: [V.03] Schweissroboter
- Markenname: Trumpf - Kuka
Stocknummer: V.03 6282
