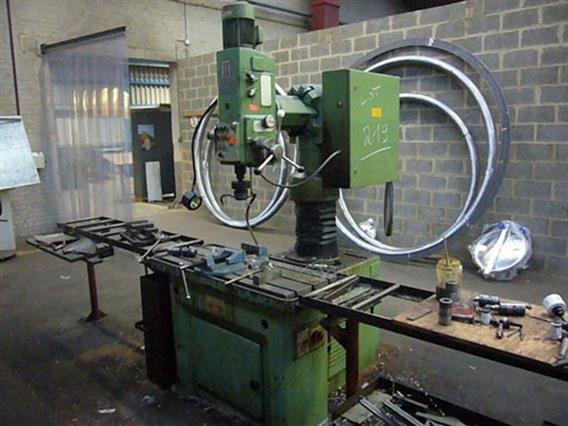

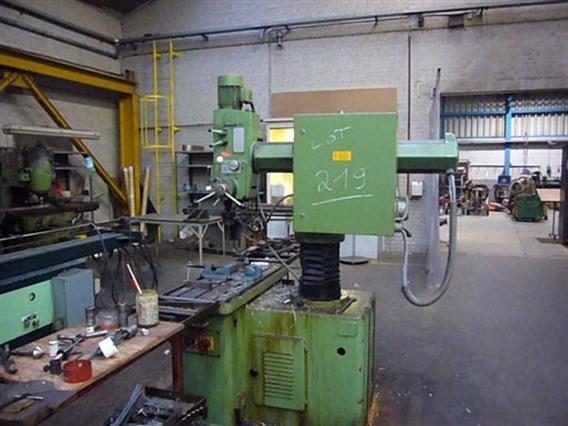

Radial-bohrmaschinen Donau DR 23

Der Produkt ist zu Ihren Favoriten hinzugefügt

Technische Informationen

Bohrspindel aufnahme (morse)MK 3
Max bohrleistungM20
Abmess. grondflach (1) Tisch (2)(1) 1000 x 1400 mm
Vorschub im längsrichtung bohrkopf (X-achse)135 mm
Höhe verstellung arm (Y-achse)450 mm
AUSLADUNG BOHRSPINDEL920 mm
Min abstand ständer -- bohrspindel (X)220 mm
Max abstand ständer -- bohrspindel (X)670 mm
Geschwindigkeiten70->1550 rpm
Leistung auf hauptantriebswelle1,8 kW
Spannung380 V
Gewicht1380 kg
Külh-systeemyes

Zusätzliche Informationen

Fast Radial Table: 500 x 1200 mm
Typ/Modell: DR 23
Stocknummer: C.02 3649 *08
Hauptkategorie: [C] Bohrmaschinen
Unterkategorie: [C.02] Radial-bohrmaschinen
Markenname: Donau

Stocknummer: C.02 3649 *08

Verkauft
Verkauft
Verkauft
