Waldrich-Coburg N°3 - heavy duty portal&gantry milling

Portal frasmaschinen & Gantry-frasmaschinen Waldrich-Coburg N°3 heavy duty portal&gantry milling

Der Produkt ist zu Ihren Favoriten hinzugefügt

Technische Informationen

Durchgang zwischen ständer3300 mm
Vorschub im längsrichtung X-achse6250 mm
Vorschub im querrichtung Y-achse4600 mm
Vorschub im höhe Z-achse1500 mm
Abmessungen aufspanflache-tisch5200 x 2600 mm
Max höhe werkstück1950 mm
Leistung auf spindel44 kW
Fräsekopf typeISO 90
SteuerungAllen Bradley
ZUBEHÖRyes
Gerätschaftswechelhalteryes

Zusätzliche Informationen

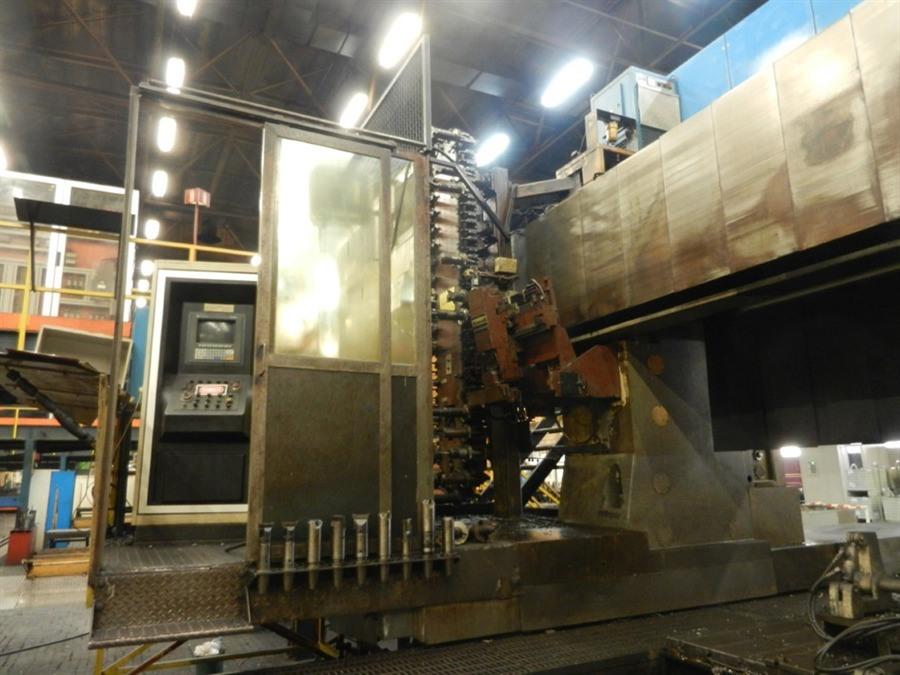

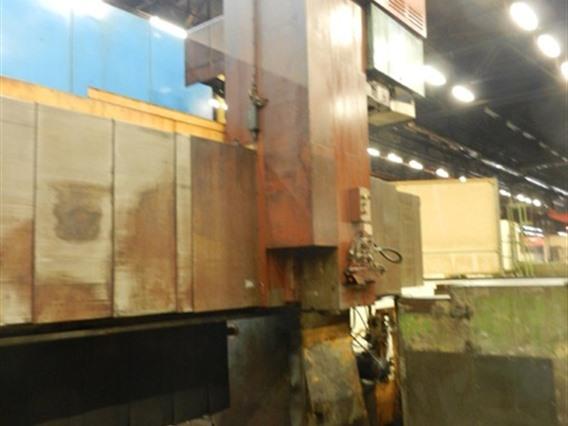

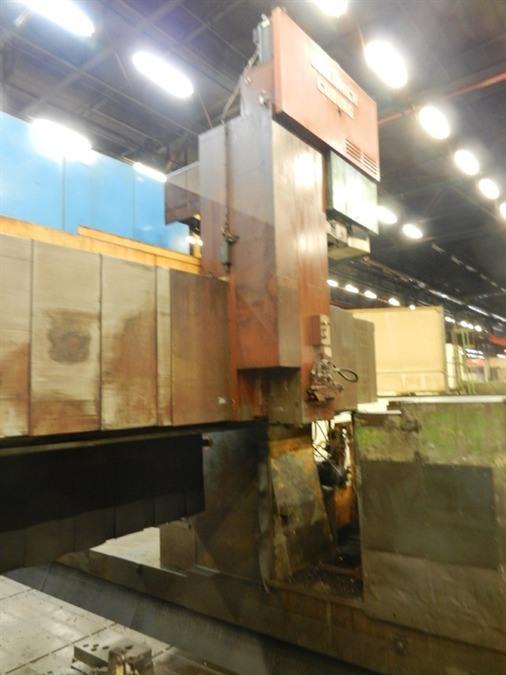

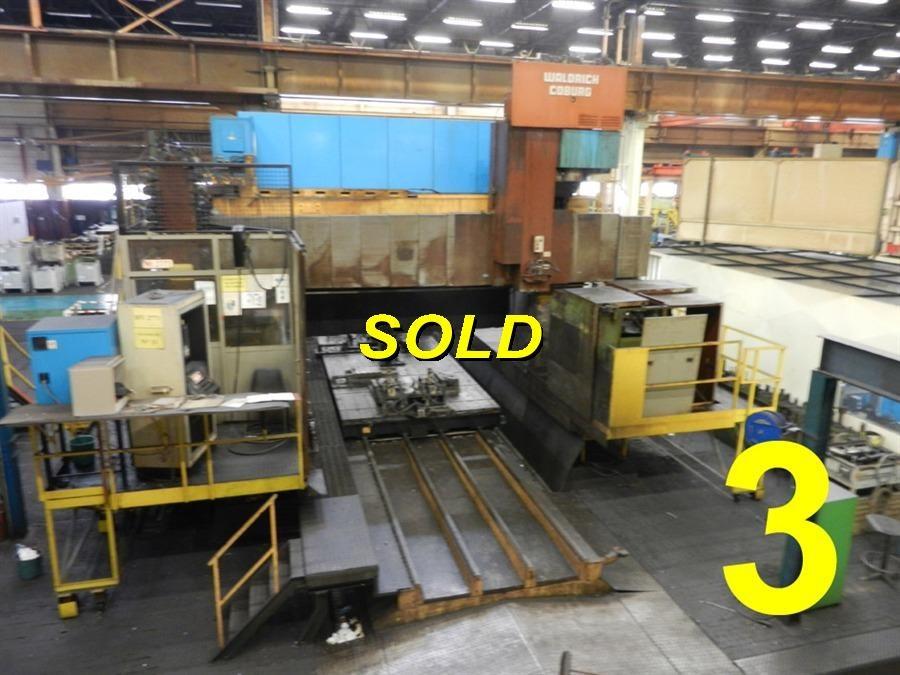

movable portal with fixed table
spindledia: 170 mm

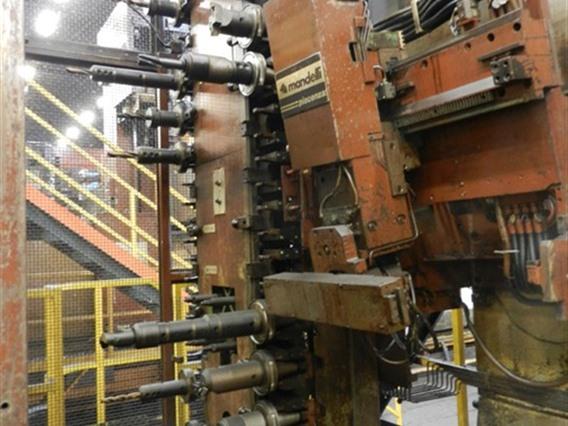

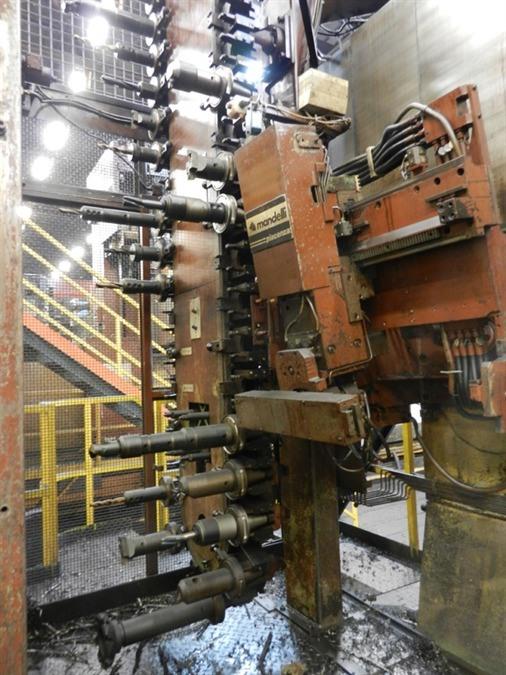

toolstorage > 2 parts:

1) pick and place toolstorage of ISO 90 for vertical spindle - 30 tools

2 ) classic toolstorage of ISO 60 - 46 tools

max weight on table: 50 ton

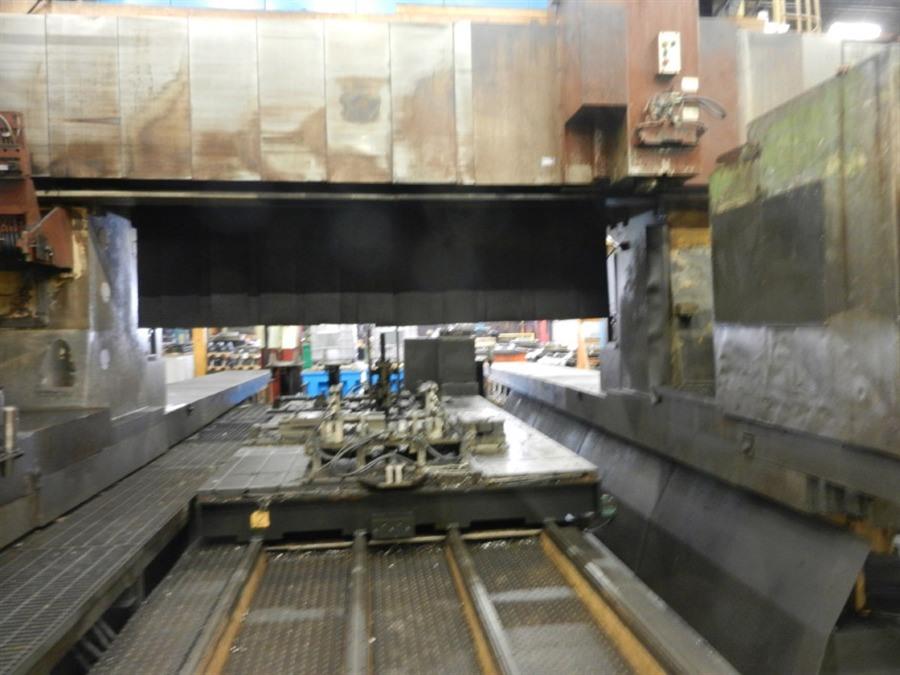

automatic table pallet changing (2 tables)

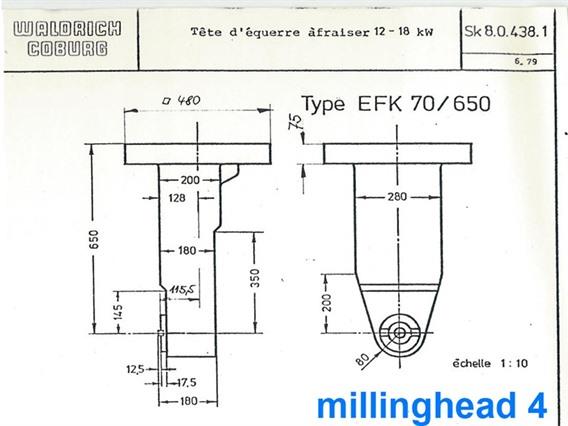

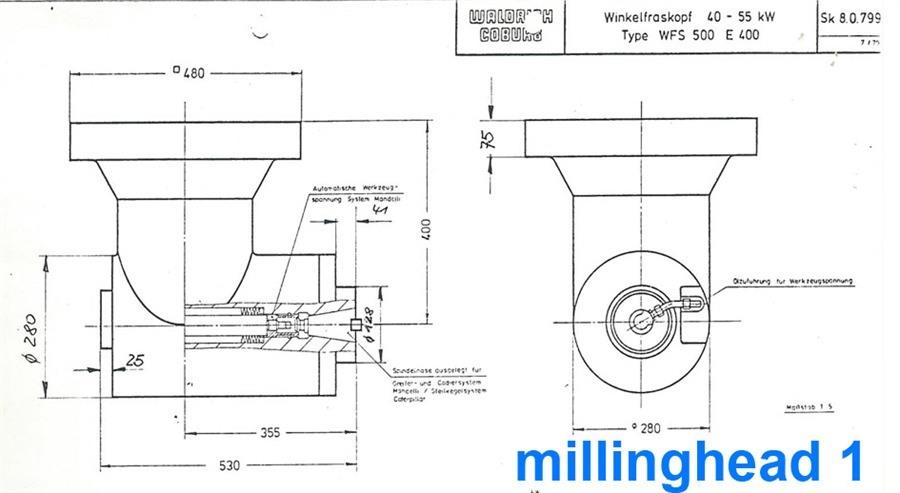

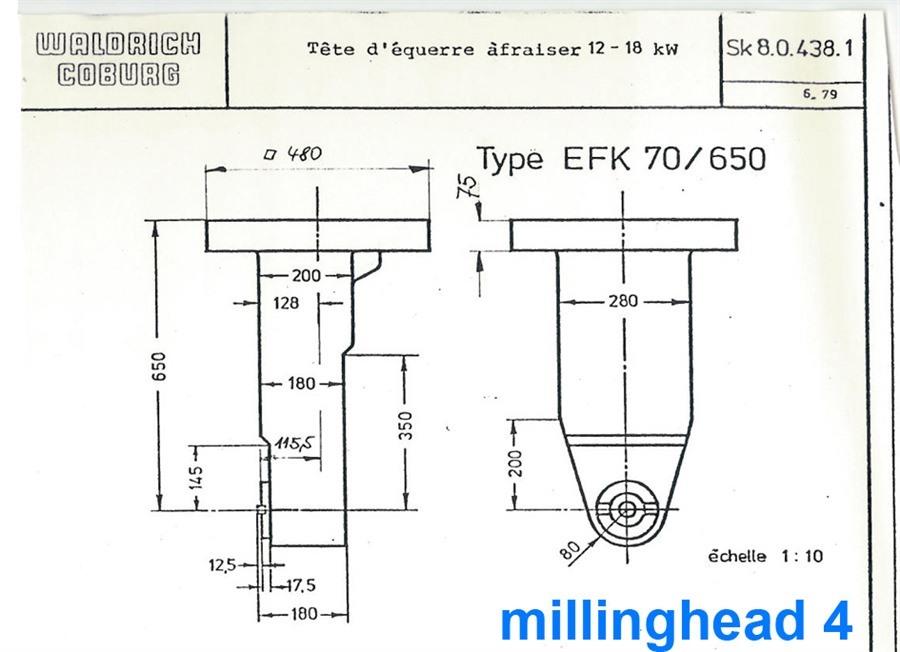

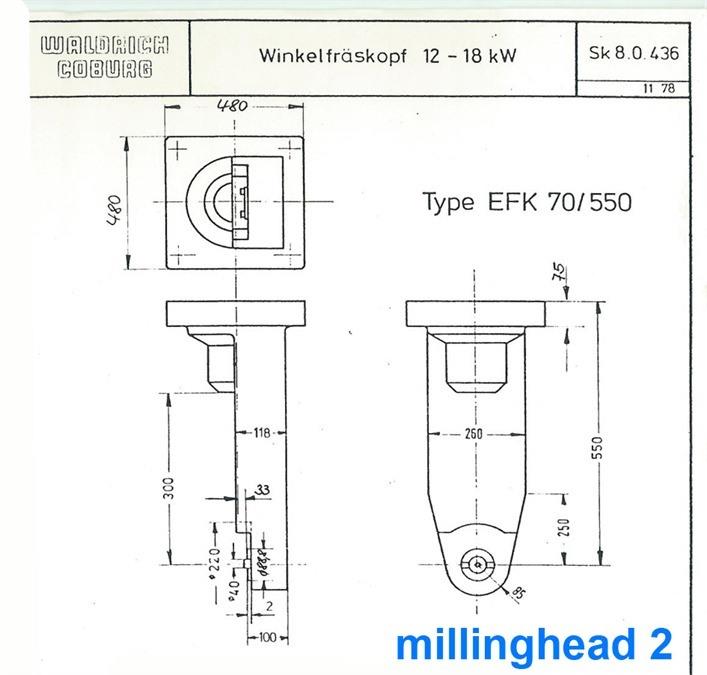

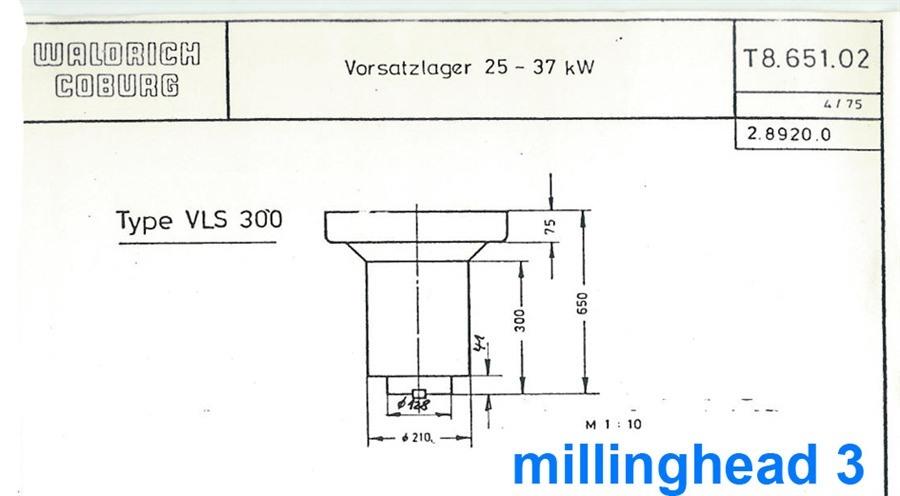

automatic changing of 4 different millingheads (full indexing) + 4 in reserve

full hydrostatic guidingsystem

Optional:

automatic loading trolley for supplying the 3 Waldrich-Coburg machines and 2 Burkhardt-Weber machines
Typ/Modell: heavy duty portal&gantry milling
Stocknummer: B.06 7558
Hauptkategorie: [B] Frasmaschinen
Unterkategorie: [B.06] Portal frasmaschinen & Gantry-frasmaschinen
Markenname: Waldrich-Coburg N°3

Stocknummer: B.06 7558
