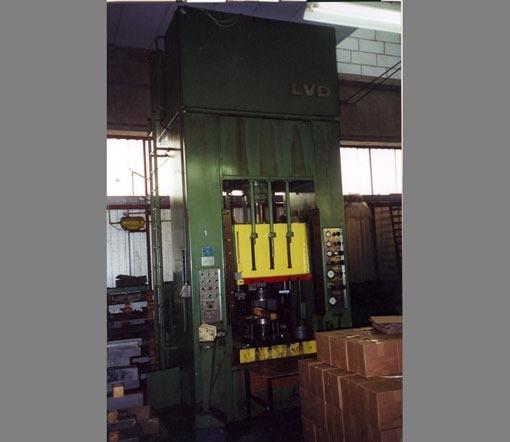

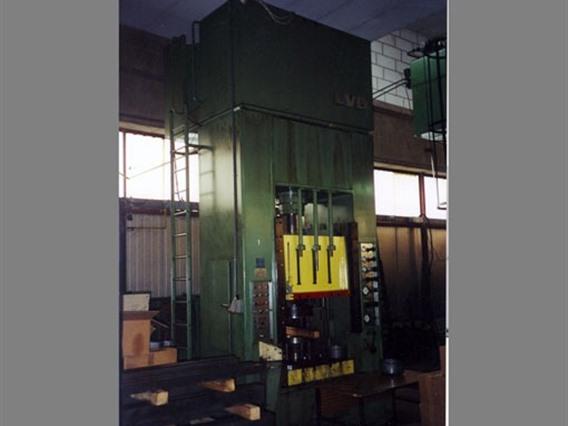

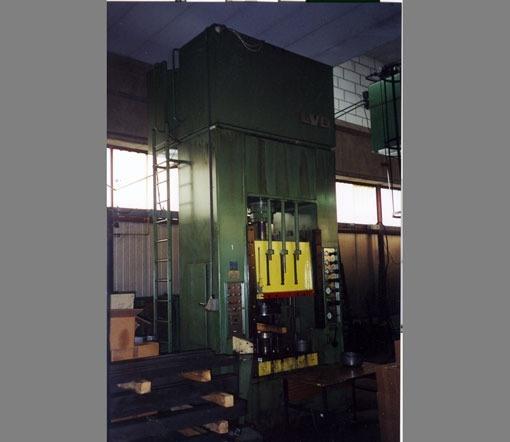

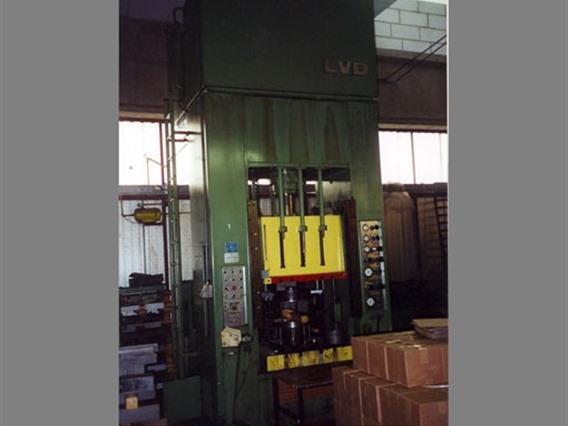

Mobile Richtpressen LVD EMF-OM 100 ton

Der Produkt ist zu Ihren Favoriten hinzugefügt

Technische Informationen

Kapazität100 Ton
Max einstellbarem Hub600 mm
Geschwindigkeit300 mm/sec
Pressgeschwindigkeit30 mm/sec
Zurücklaufschnelligkeit200 mm/sec
Höhe zwischen Tisch - Stössel900 mm
Tischgröße1000 x 900 mm
Stamp Größe800 x 650 mm
Max. Gegendruck Stössel (max Kappe)40 Ton
Motorleistung22 kW
Netz380V
Länge L - R2080 mm
Weite F - R1700 MM
Höhe (gesamt)4970 mm
Gewicht11 ton

Zusätzliche Informationen

Motor 22kW
Typ/Modell: 100 ton
Stocknummer: M.05 3438
Hauptkategorie: [M] Pressen mit Hydraulischem Antrieb
Unterkategorie: [M.05] Mobile Richtpressen
Markenname: LVD EMF-OM

Stocknummer: M.05 3438
