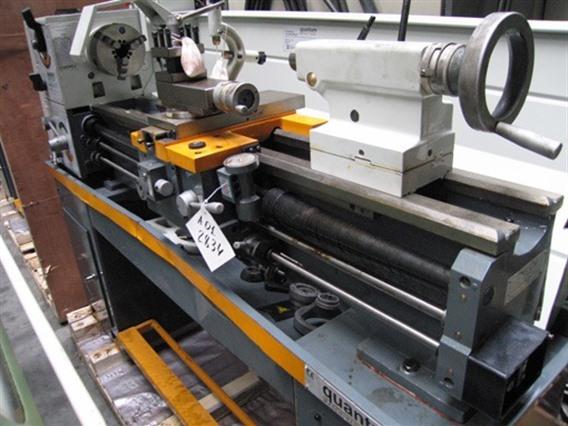

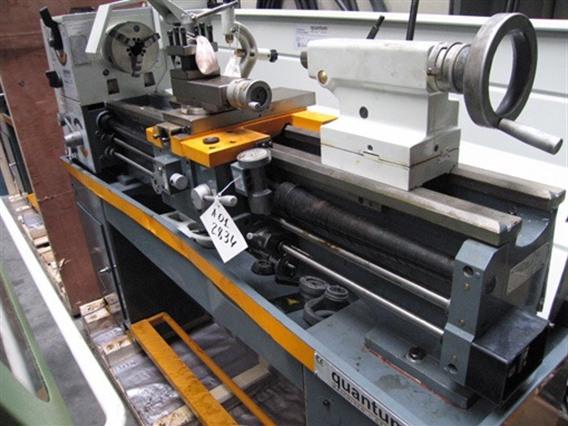

Quantum D330 x 1000SG

Der Produkt ist zu Ihren Favoriten hinzugefügt

Technische Informationen

Spitzenweite1000 mm
Max Drehdurchmesser330 mm
Max Drehdurchmeser über Querschlitten198 mm
Max Drehdurchmesser bei Betaussparung476 mm
Spindelbohrung38 mm
Länge L -- R1960 mm
Breite V -- R750 mm
Höhe1500 mm
Gewicht600 kg netto
Lünetten (fest) +

Zusätzliche Informationen

TECHNISCHE GEGEVENS Draaidia 330 mm Afstand tussen de centers 1000 mm Opening draaias 38 mm Asconus MK 5 Conus achterste draaibankkop MK 3 Spilhouder ASA D 1 - 4" Toerental spil, 18 stappen 70 - 2000 U/min Aanvoer-dwarsvoeding 0.033 - 0.933 mm/U Spoed-metrisch 0.4 -7 mm Spoed - inch 4 - 56 Gg./Z Leiassrijging 3 mm Bovenslede-slag 68 mm Dwarsslede-slag 160 mm Spil van de losse kop-slag 95 mm Motervermogen 400V /50 Hz 1.5 kW Geluidsniveau minder dan 75 dB
Typ/Modell: D330 x 1000SG
Stocknummer: A.01 2834 *05
Hauptkategorie: [A] Drehmaschinen
Unterkategorie: [A.01] Leitmaschinen & zugspindeldrehmaschinen
Markenname: Quantum

Stocknummer: A.01 2834 *05

Verkauft
Verkauft
