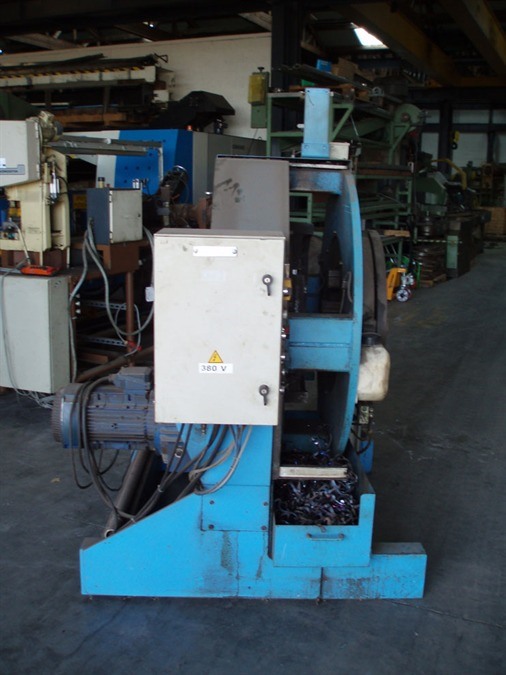

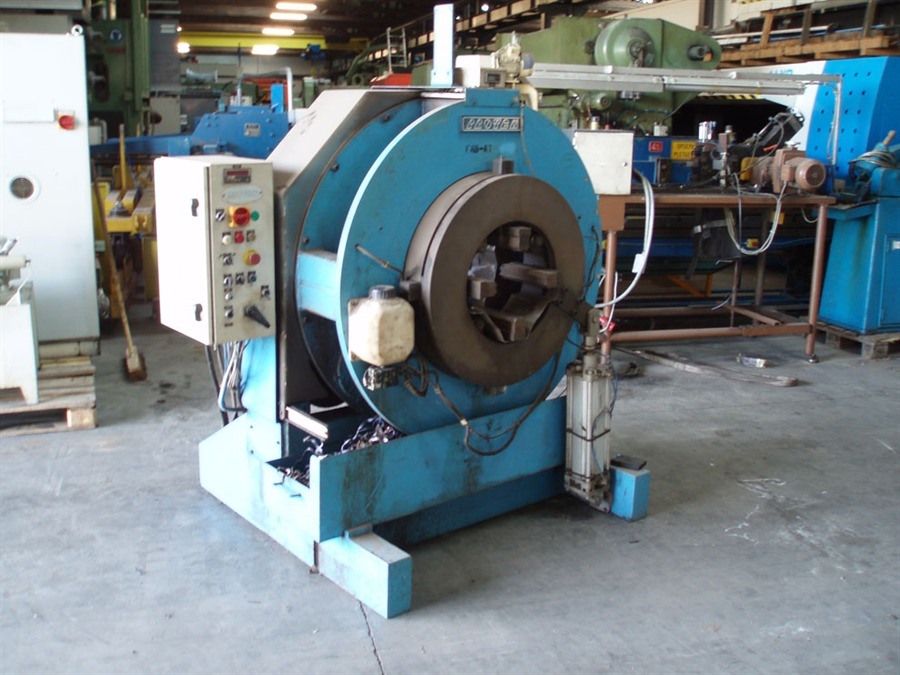

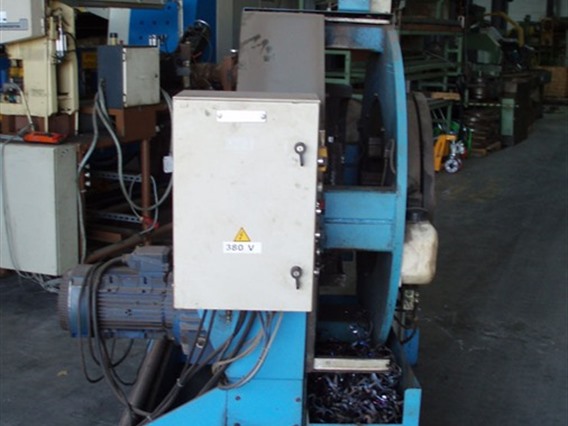

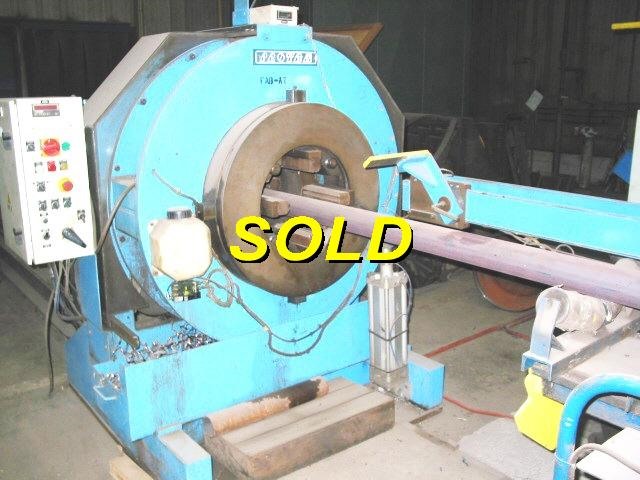

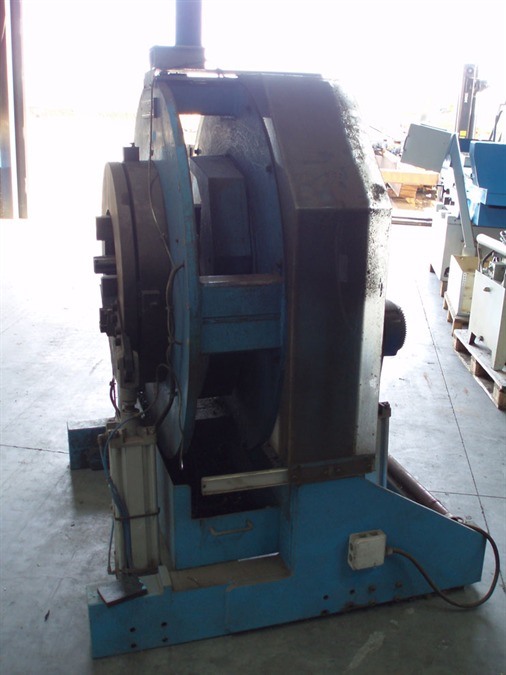

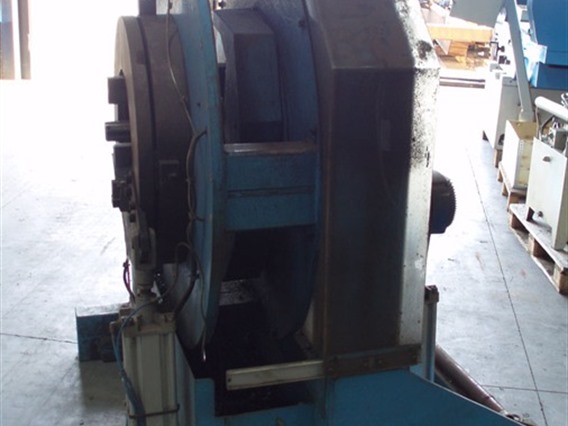

Protem CCT6-12 Tube cutting & bevelling
Zusätzliche Informationen
- - suited for cutting/bevelling tube with exterior dia: 168 - 323 mm steel/inox
- machine has been customized to suit tubes with an exterior dia of 76mm

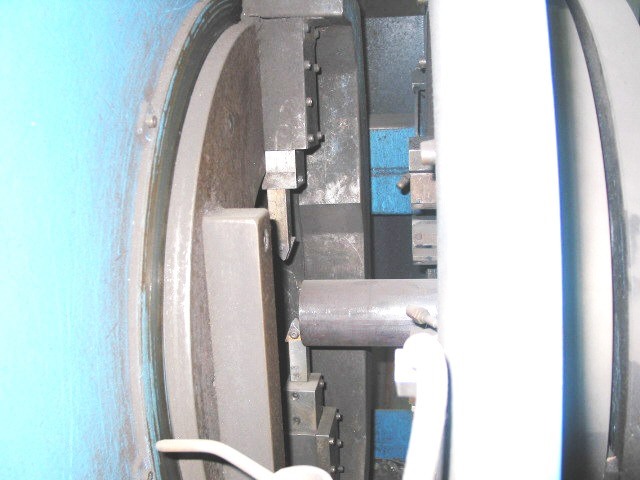

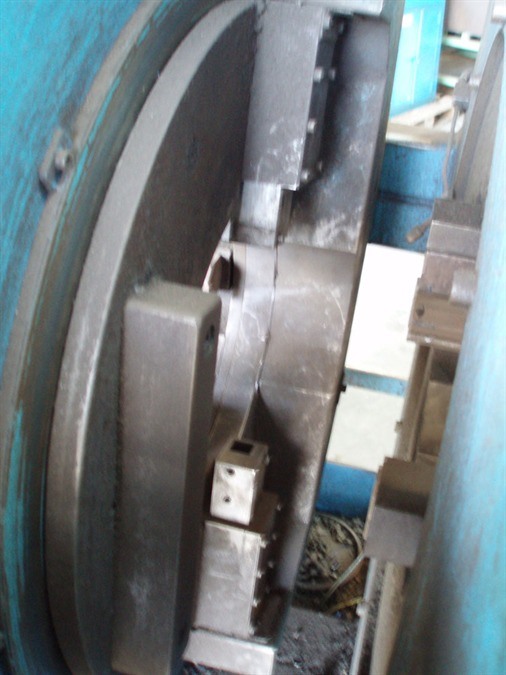

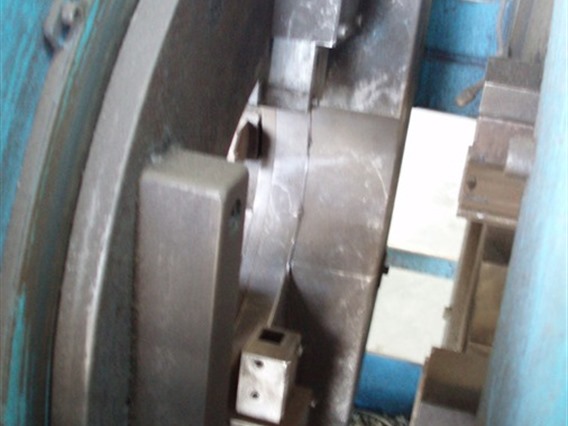

- 2 clawplates with hydraulic clamping
- rotation machining: 9,2kW - 23/140 rpm
machine dimensions: 2000 x 1350 x 1700 mm - 1900 kg

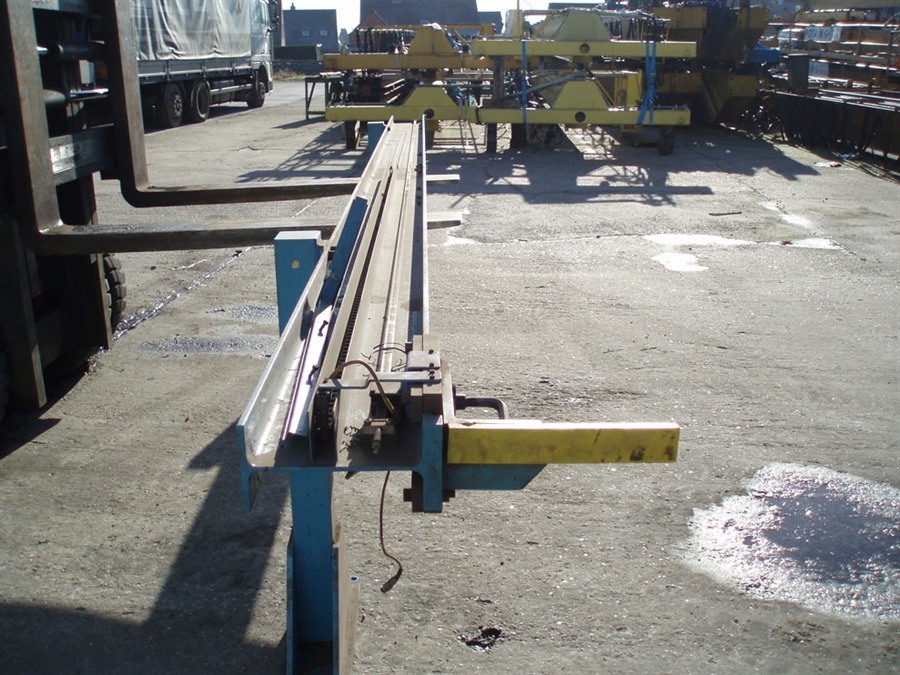

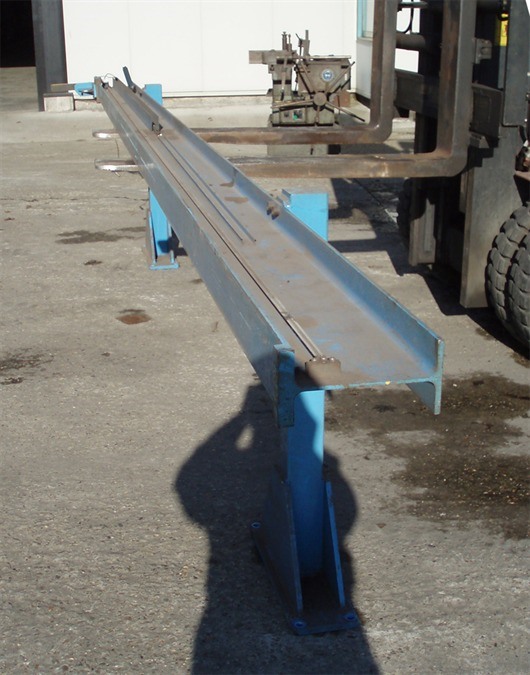

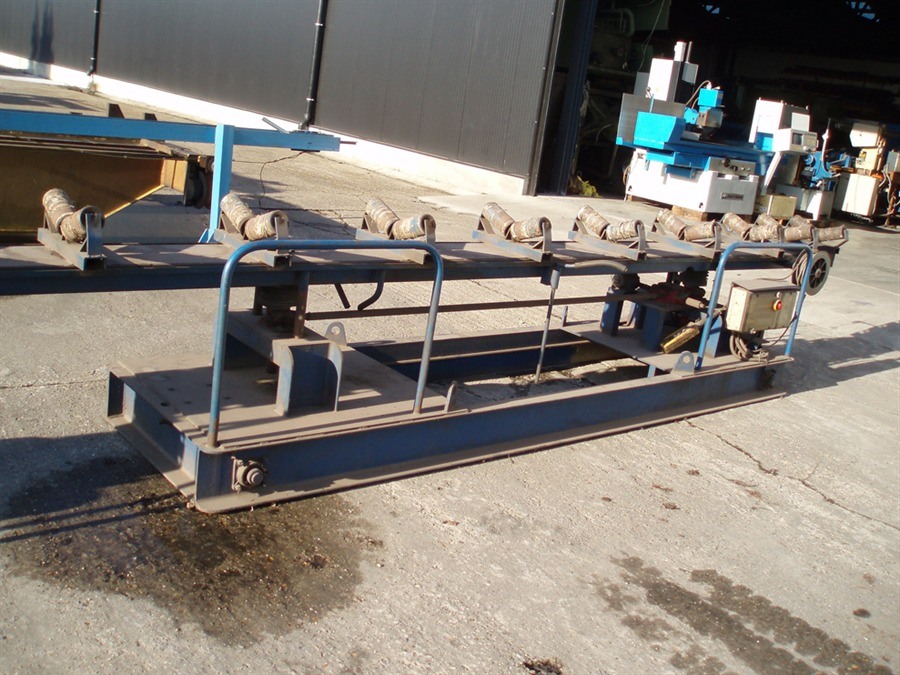

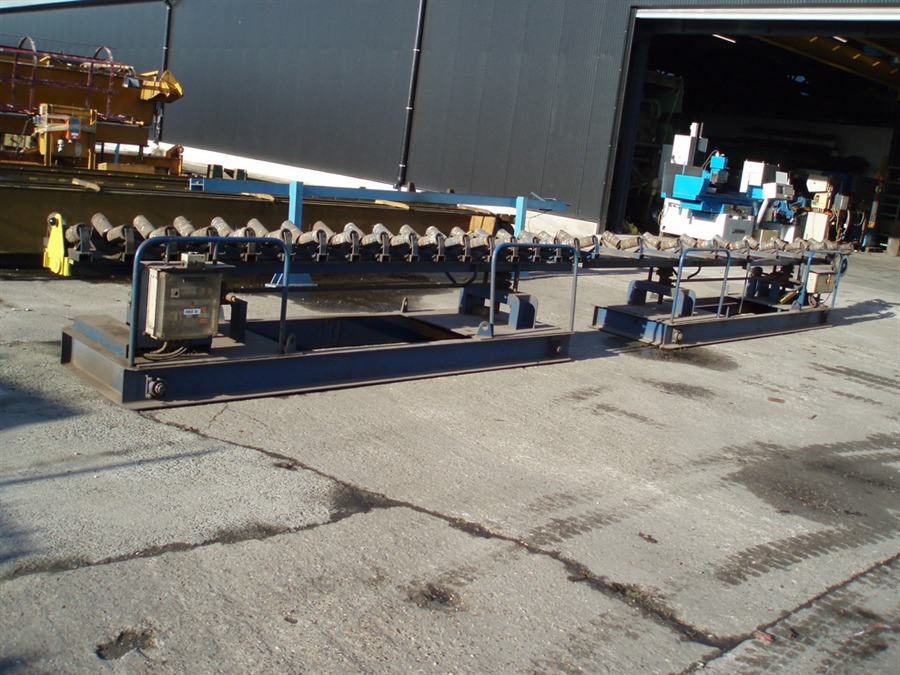

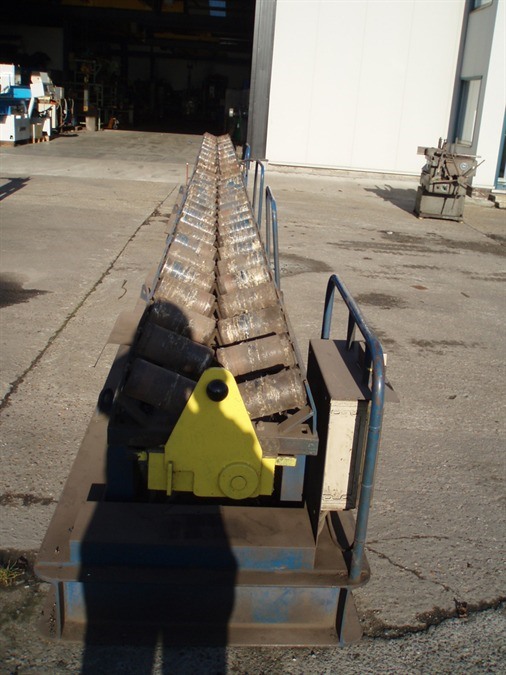

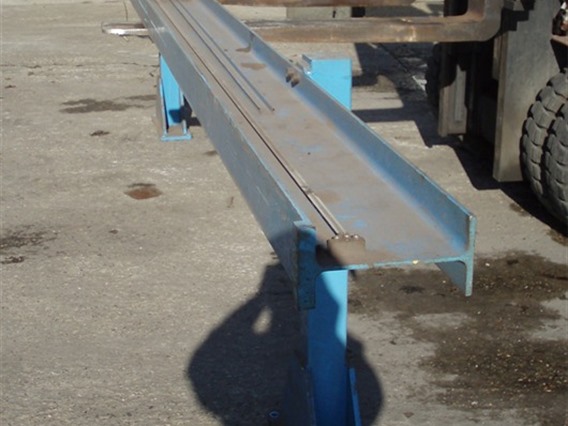

measuring beam dimensions: 6000 x 1130 x 400 mm - 300 kg
example: tube dia 323 mm, thickness 21 mm steel
> 8 min for cutting and double bevelling at 37°5
- Typ/Modell: Tube cutting & bevelling
- Stocknummer: A.01 7182
- Hauptkategorie: [A] Drehmaschinen
- Unterkategorie: [A.01] Leitmaschinen & zugspindeldrehmaschinen
- Markenname: Protem CCT6-12
