Complete Production plant for making seamless rolled rings
Zusätzliche Informationen

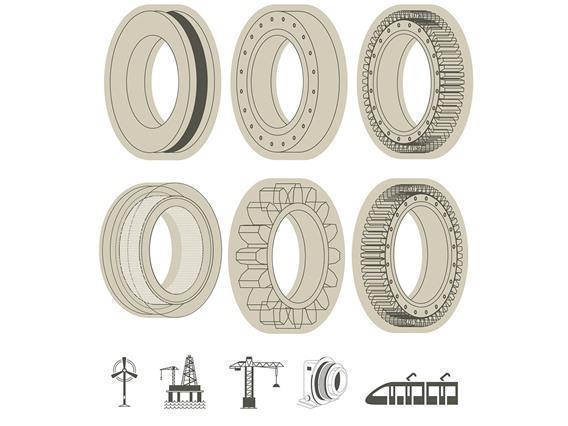

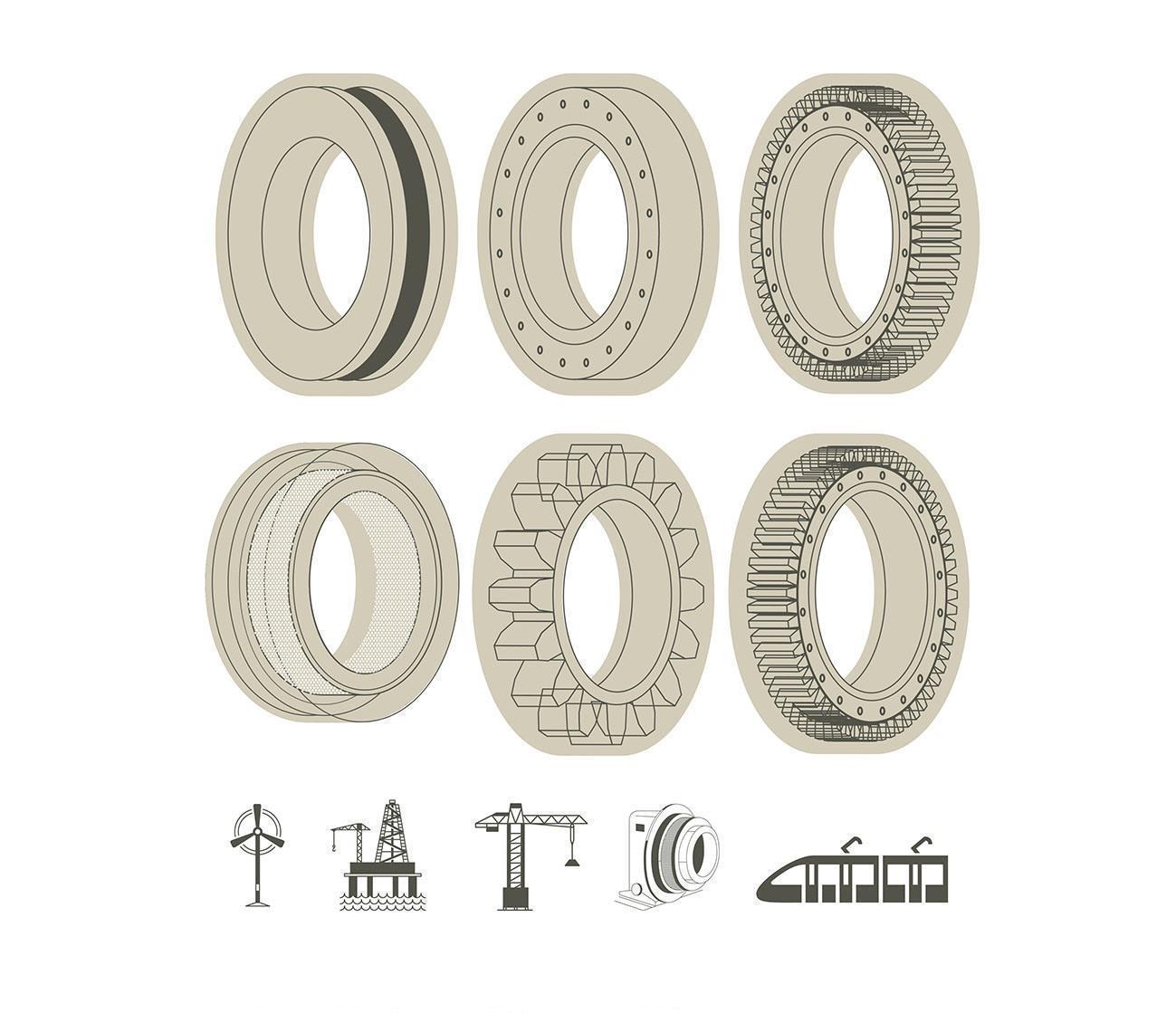

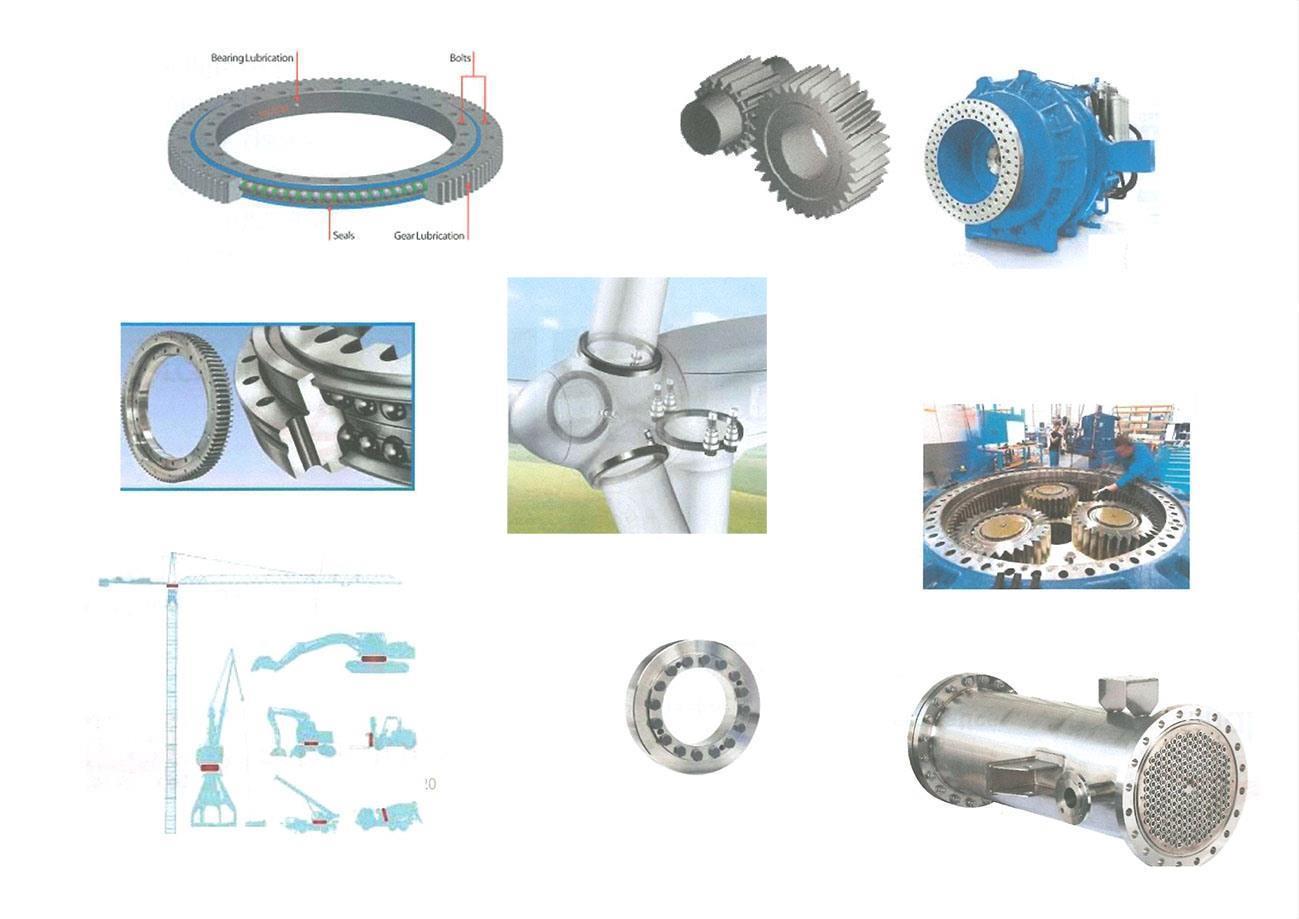

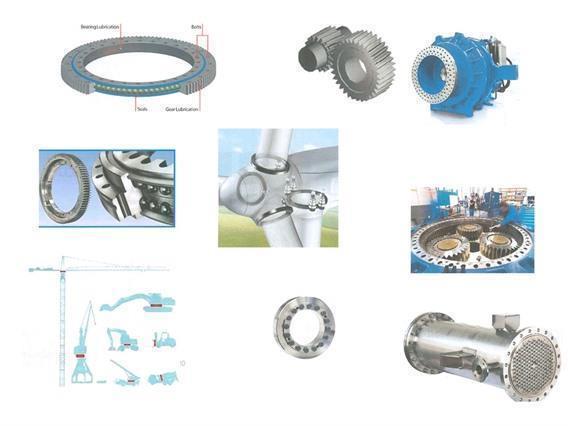

- Applications for such rings: transmissions
/ slewing rings / flanges / bearings / gears / couplings / railway vehicles /
wind turbines
Workforce: 90
production capacity: +- 30 000 ton/year

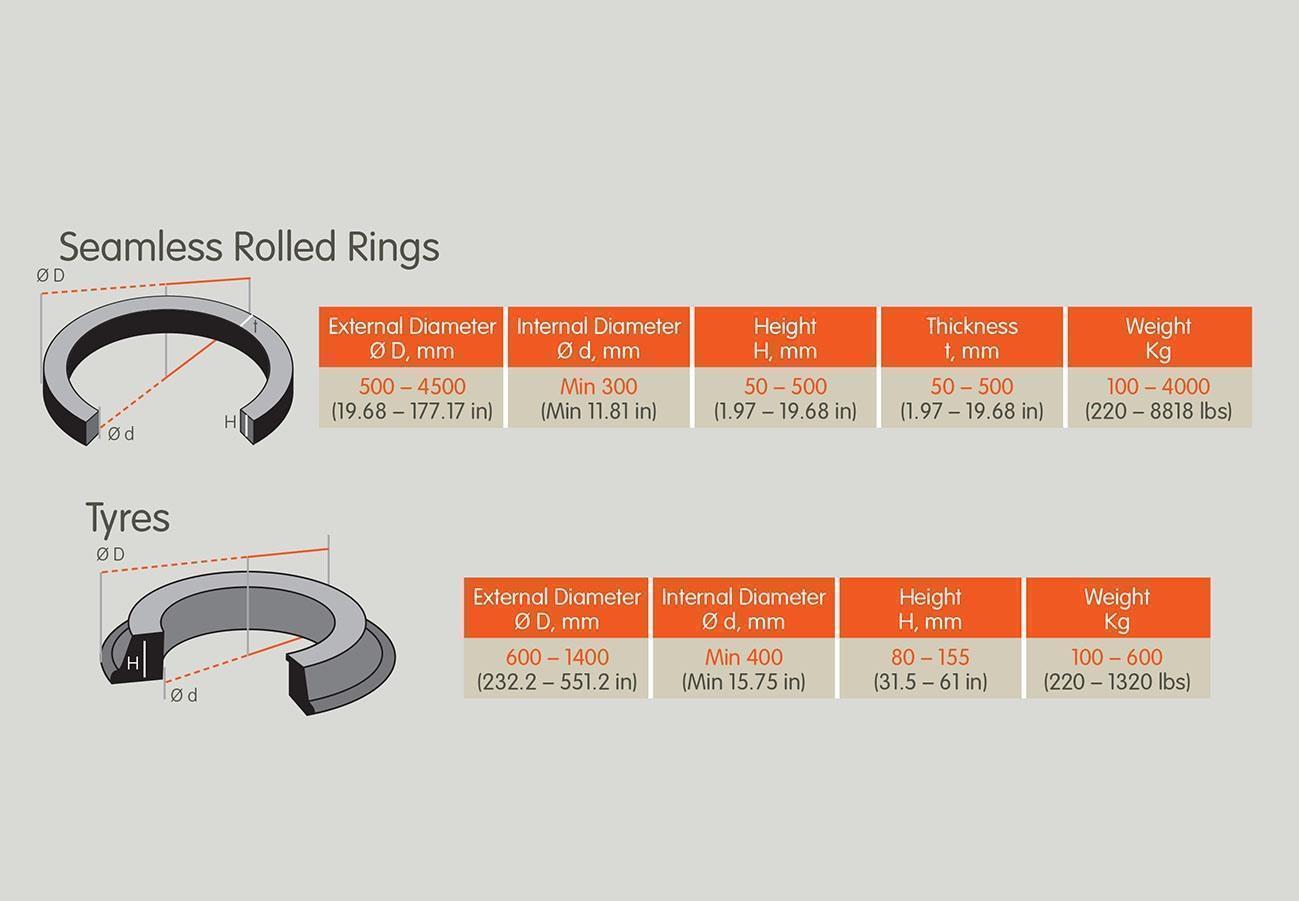

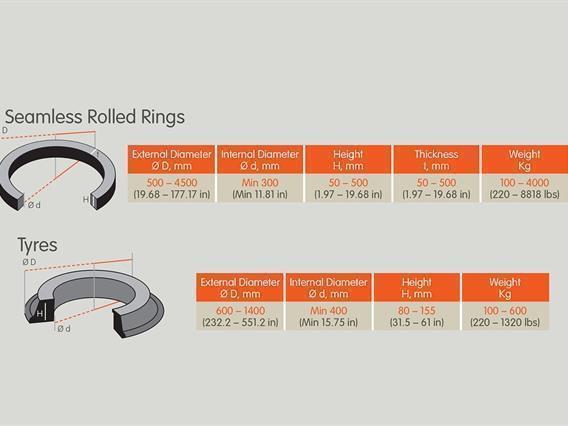

Min/max outside dia: 500 > 4500
mm
Min/max thickness: 50 > 500 mm
Min/max height: 50 > 600 mm
Min/max weight: 100 > 4500 kg

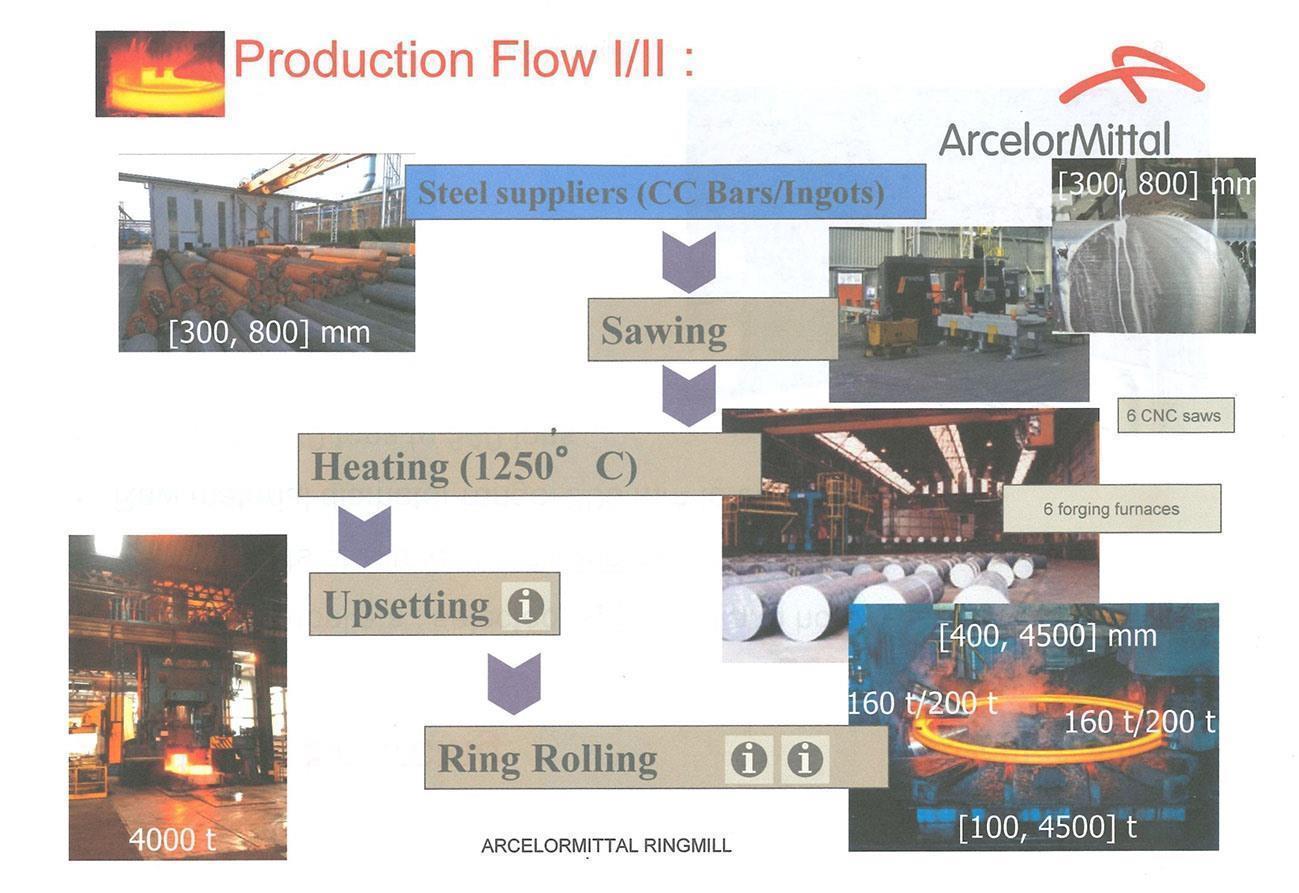

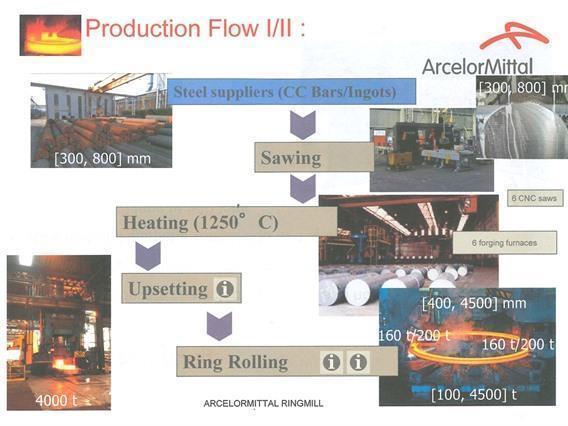

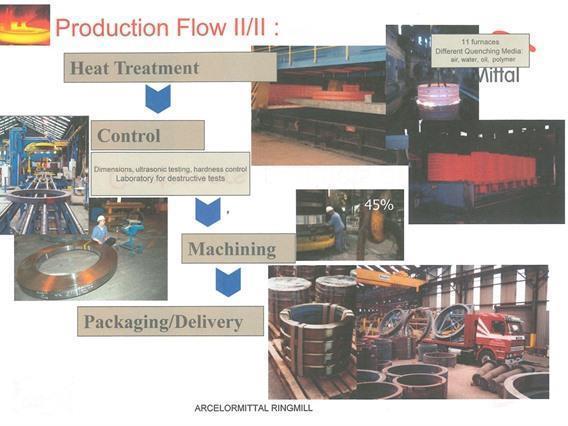

Production process:
1 – sawing of bars/ingots with CNC bandsaw
2 – heating 1250° with forging furnace
3 – upsetting with 4000 ton forging press

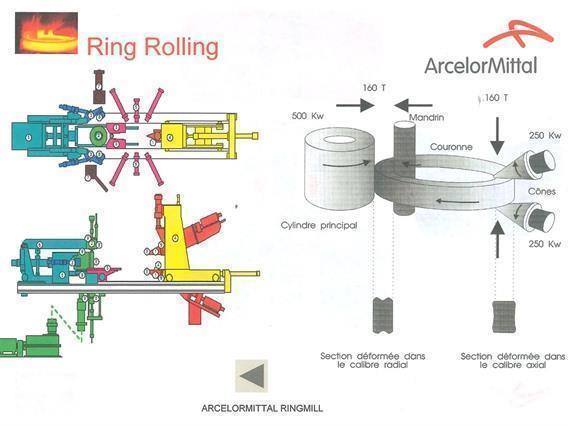

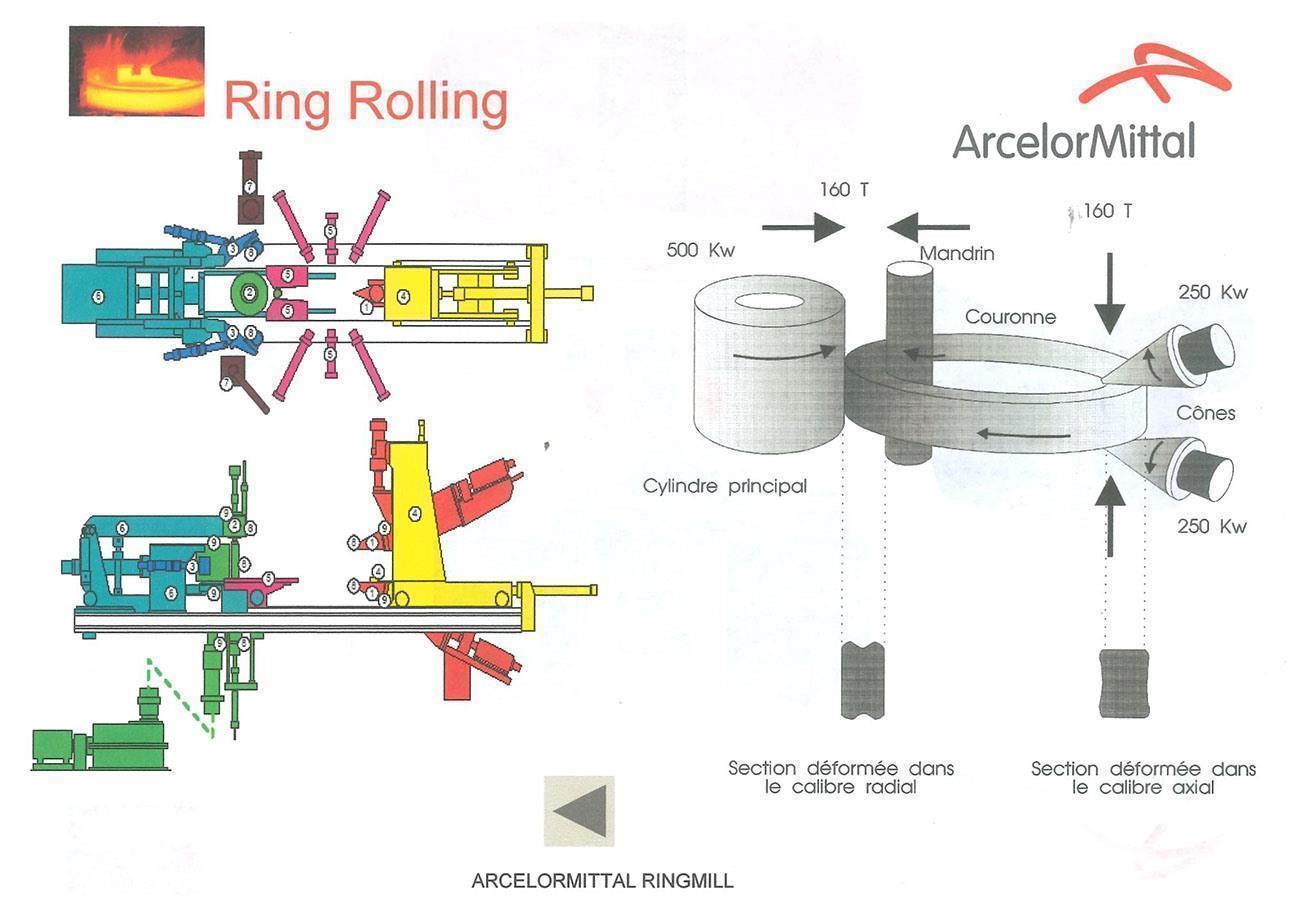

4 – ring rolling

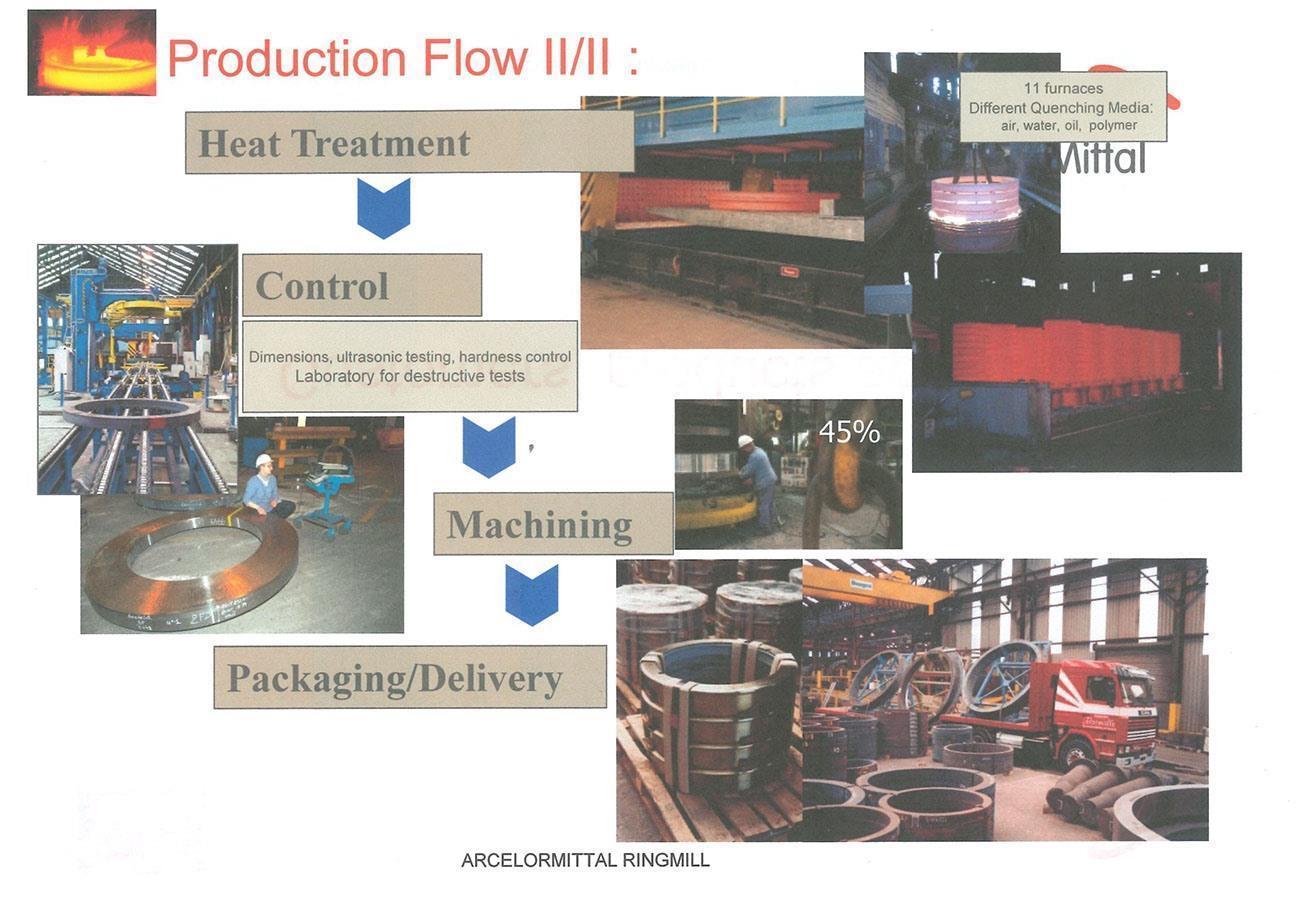

5 – heat treatment
6 – machining

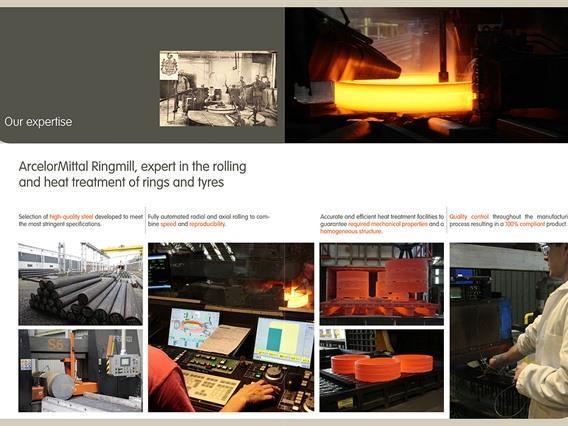

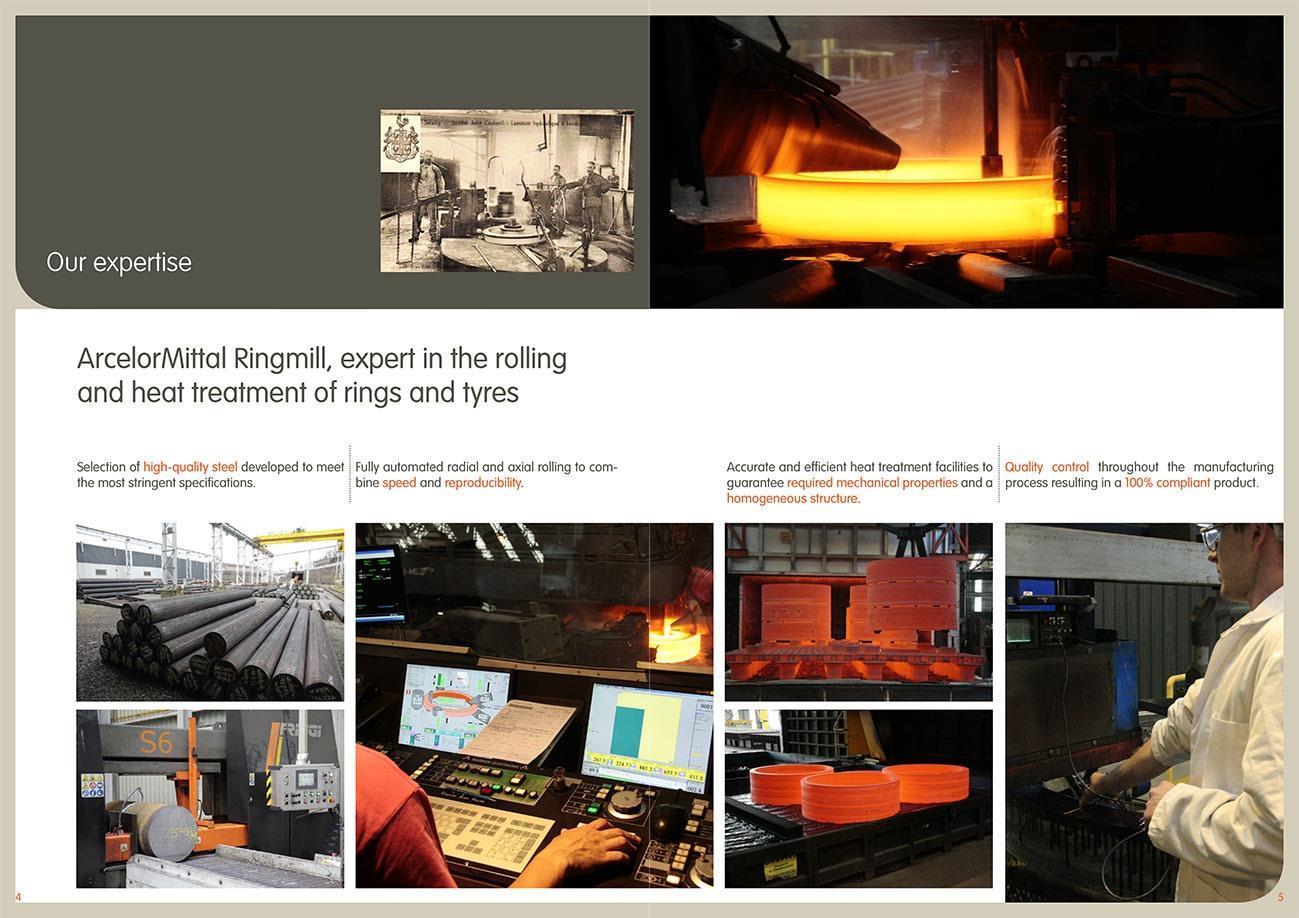

Equipment consists out of:
6 heavy duty Friggi & Kasto CNC bandsawing machines
6 forging furnaces
4000 ton SMS forging press
SMS Ring rolling machine
Glama & Dangodienenthal forging manipulators
11 furnaces for different quenching media (air, water, oil, polymer)
- Typ/Modell: for making seamless rolled rings
- Stocknummer: Z.02 13127
- Hauptkategorie: [Z] Komplettes installationen / Transportmitteln, rollbruecken & hebezeuge / Kompressoren & aggregaten / Warmeluft heitzung
- Unterkategorie: [Z.02] Komplette Business zu verkaufen
- Markenname: Complete Production plant
