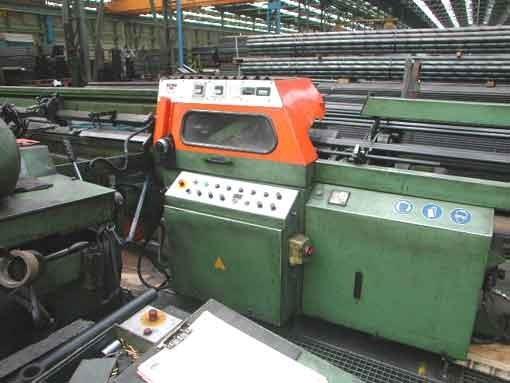

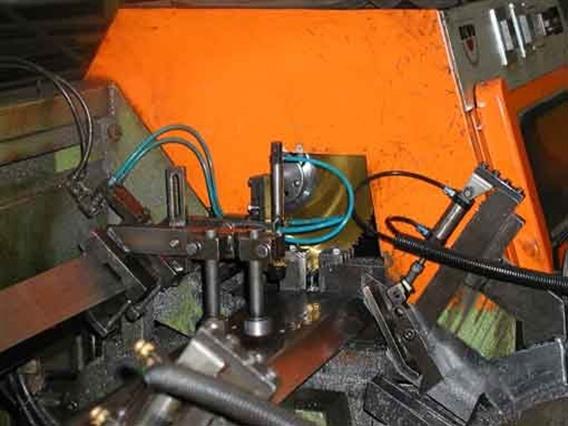

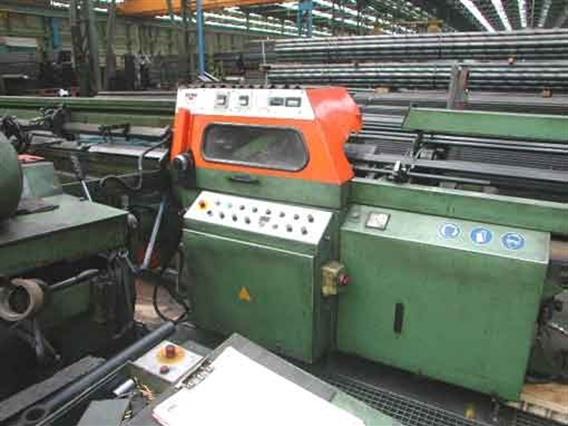

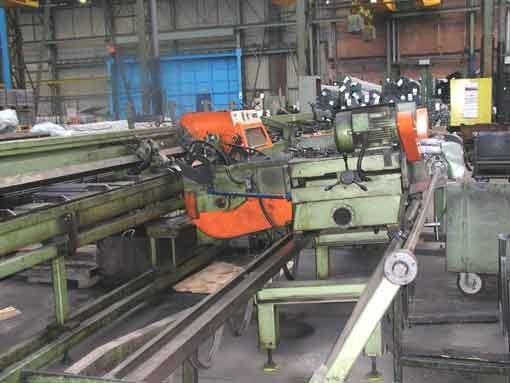

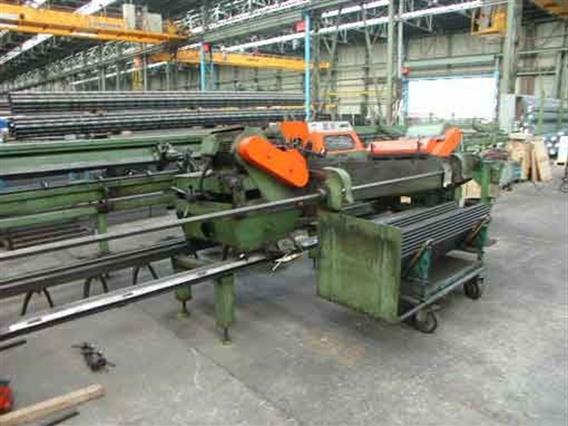

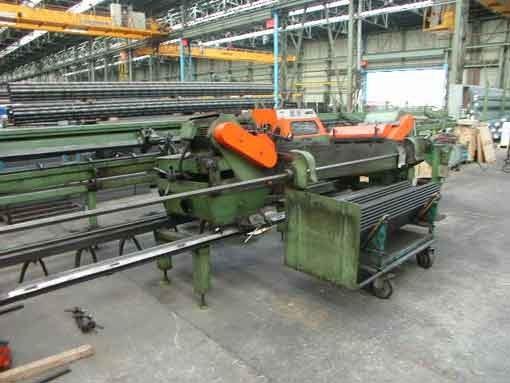

Bewo BCH-90 zaagstraat

Der Produkt ist zu Ihren Favoriten hinzugefügt

Technische Informationen

Durchmesser saegeblatt325 mm

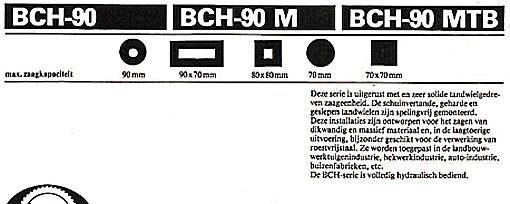

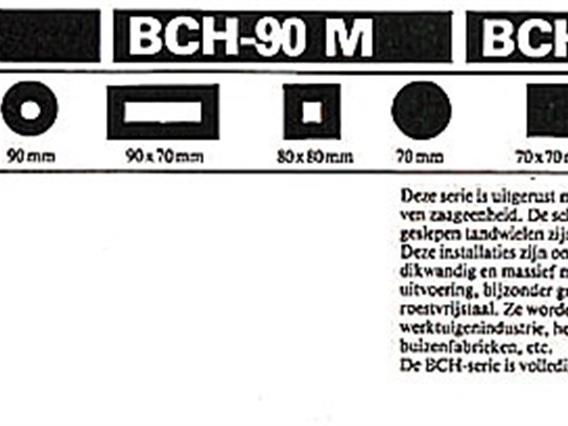

Max durchmesser werkstück bei 90°90 mm
Länge L -- R8000 mm

Zusätzliche Informationen

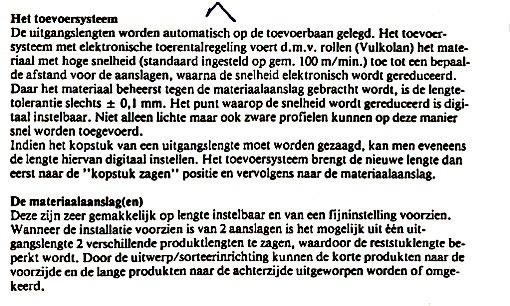

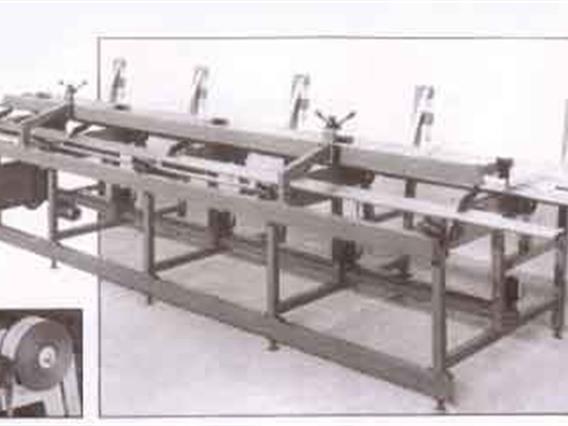

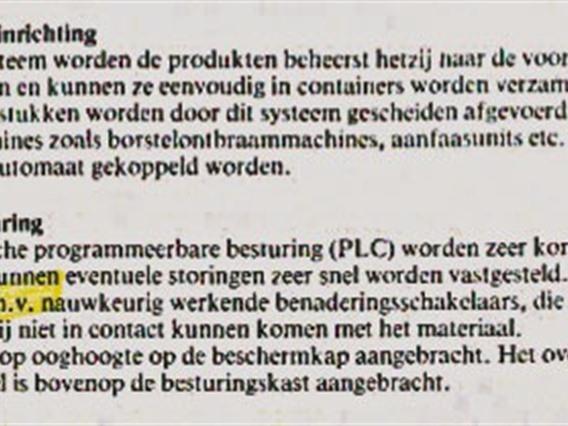

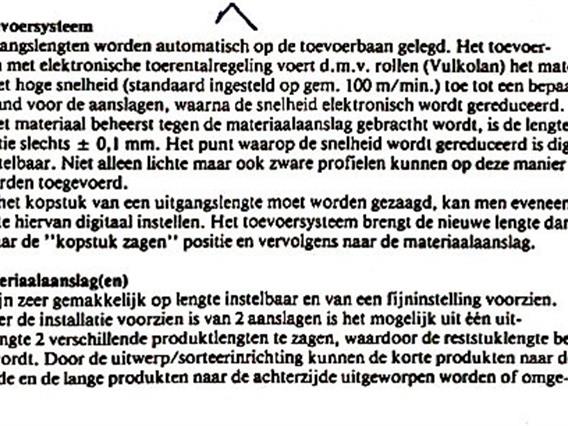

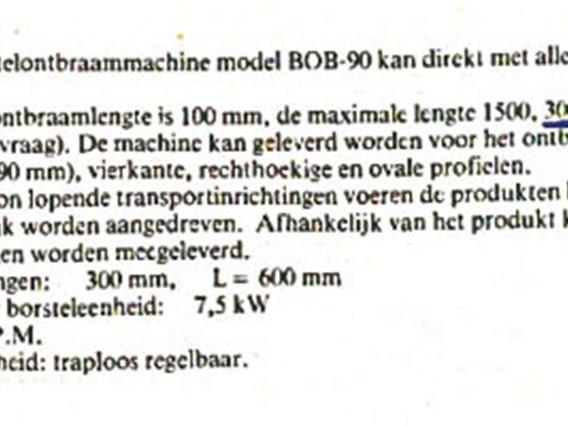

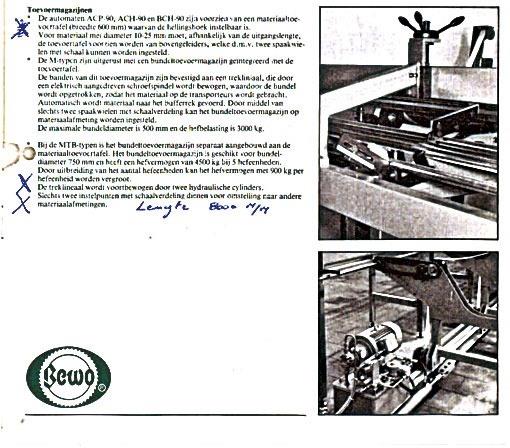

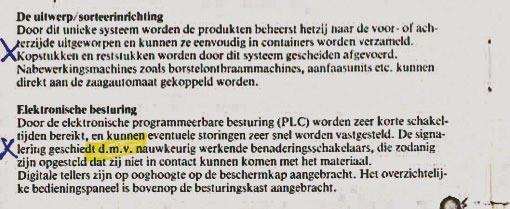

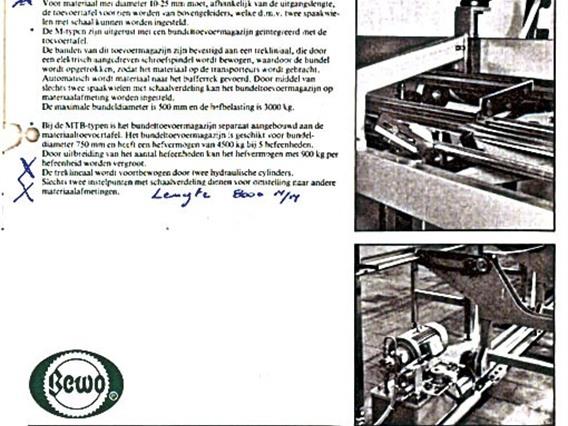

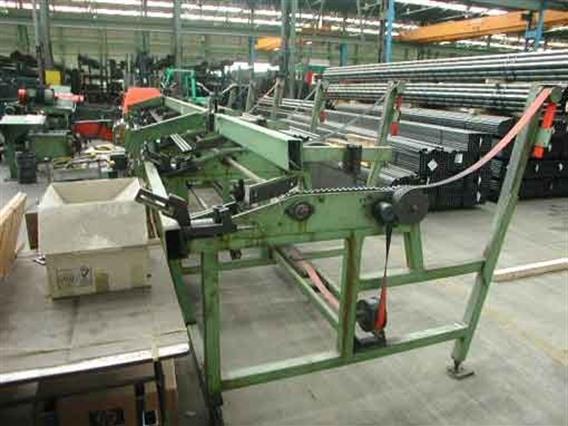

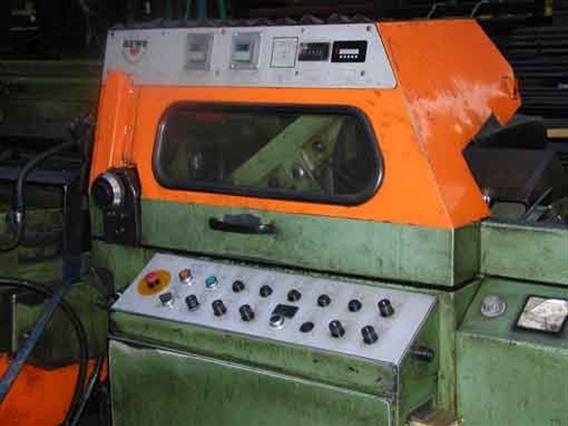

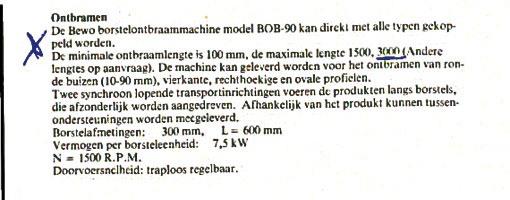

Automatic barfeeder 8000 mm (for barbundles) - Evacuation 5000 mm coupled to automatic abrasiveband grinding machine on both sides: 3200 rpm *Deburring: Min deburring lenght is 100 mm, max lenght 3000 mm. 2 synchronous running conveyors take the products along brushes, whom are operated separately. Dimensions of the brushes: 300 mm, L -600mm, Capacity by brush entity: 7.5 kW, N = 1500 rpm. Transit speed is adjustable. *barfeeder storage: Separately built on the loading table. The barfeeder is suitable for bundles to 750 mm and has lifting capacity of 4500 kg at 5 lifting units. Through extension of the quantity lifting units the lifting capacity can be highered by 900 kg per unit, L - 8000 mm. *Electronic Control: Short link times are achieved by the electronic PLC control, possible jammings can be determined quickly. the signals are coming through precise working proximity sensors, Placed in such way that they can't contact the materials. The digital counters are mounted at eye
Typ/Modell: BCH-90 zaagstraat
Stocknummer: L.02 2260 *08
Hauptkategorie: [L] Sagemaschinen, Feilmaschinen & Abstechmaschinen
Unterkategorie: [L.02] Kaltkreissagemaschinen
Markenname: Bewo

Stocknummer: L.02 2260 *08

Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft
Verkauft

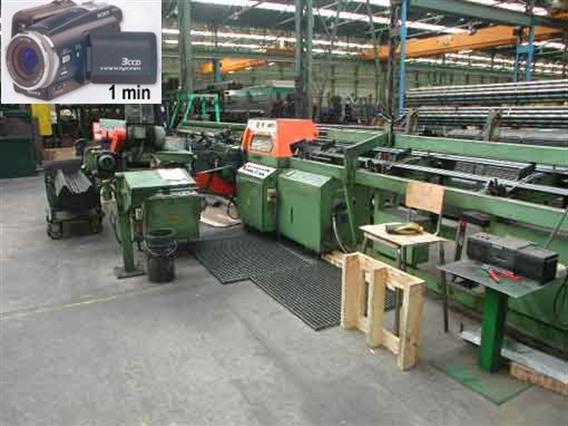

Video von Maschinen
