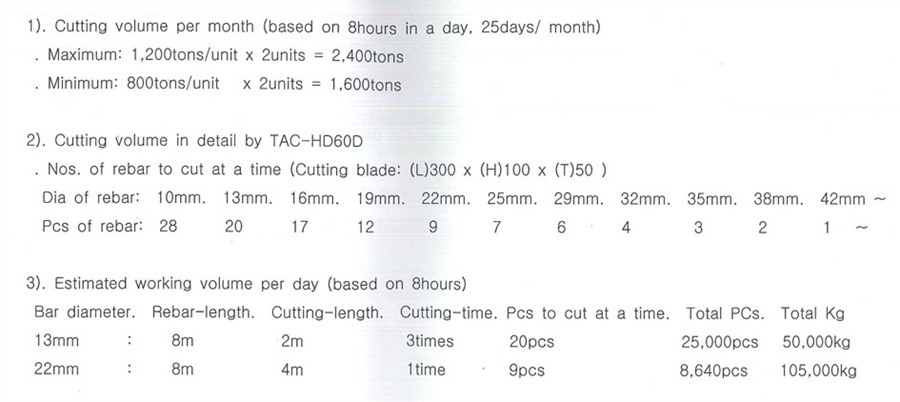

- max volume capacity: 1200 ton/month
Korean Quality!

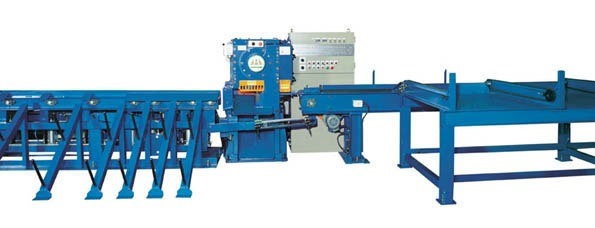

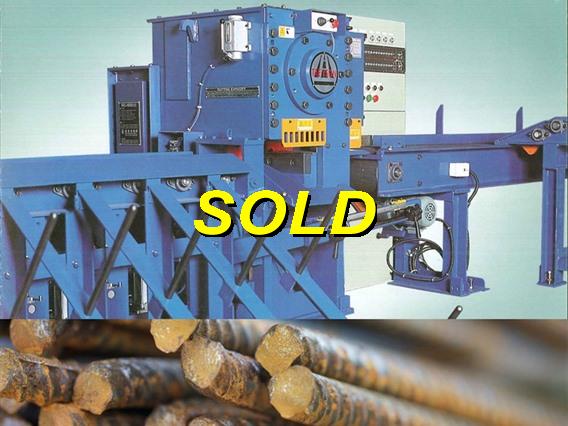

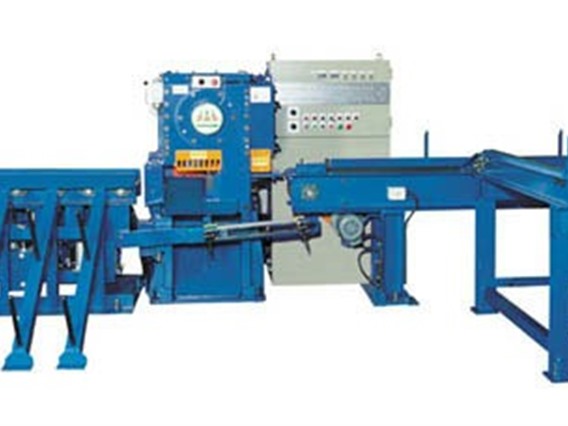

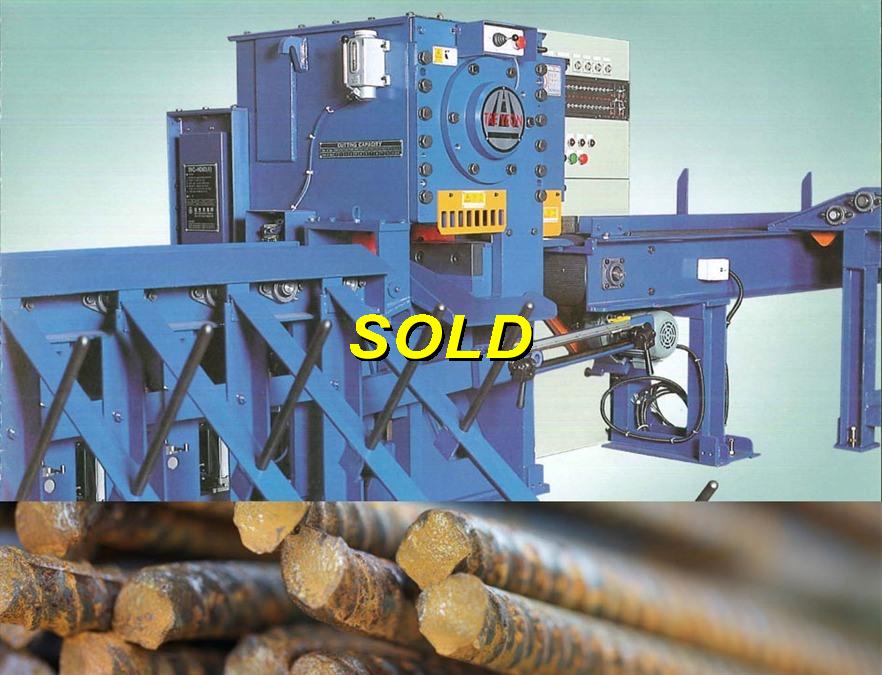

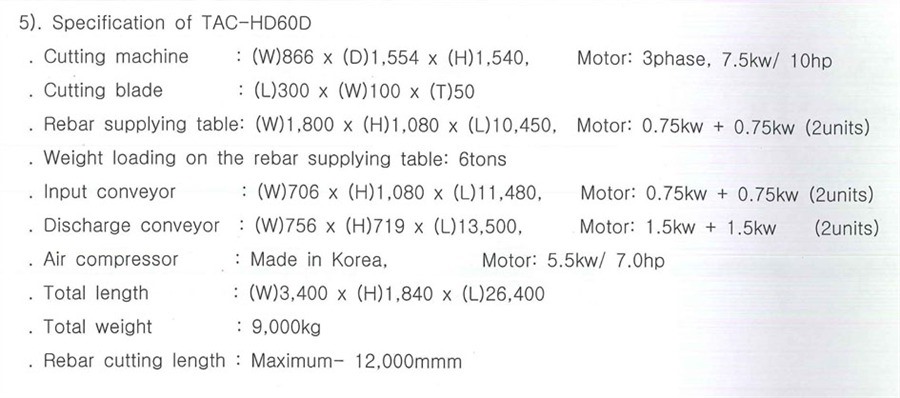

1. Cutting machine TAC-HD60(A)

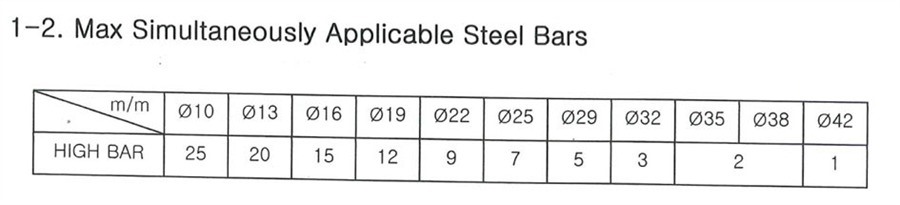

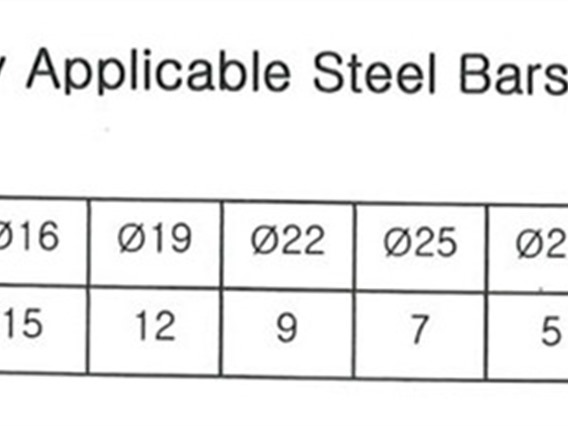

> cuttingcap: up to HD42 mm
> blade dimensions: 50 T x 100 W x 300 L
> 26 rpm - 7,5kW
> dimensions: 866 W x 1540 H x 1554 mm D
> weight: 3500 kg
2. Supply table
> speed: 7,3m/min - 0,75 kW
> dimensions: 1800 W x 1080 H x 10450 mm L
3. Delivery conveyor (rollers)
> speed: 53,6m/min - 0,75 kW
> dimensions: 706 W x 1080 H x 11480 mm L
4. Discharge conveyor (rollers & chain)
> 53,6m/min - 1,5kW
> dimensions: 756 W x 719 H x 13500 mm L
5. Measuring system
> left or right discharge selectable
6. Stacker
> consisting of double layer stacker

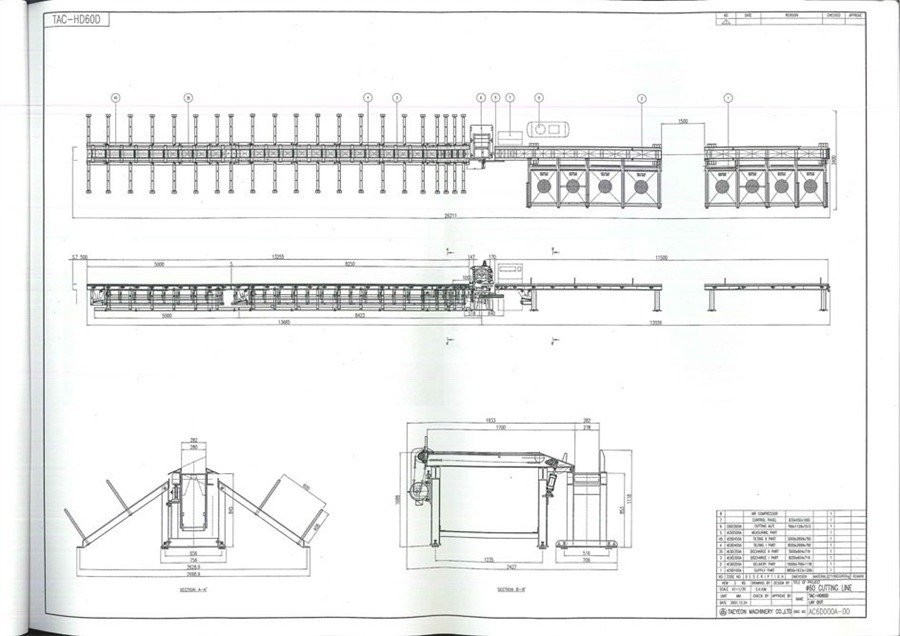

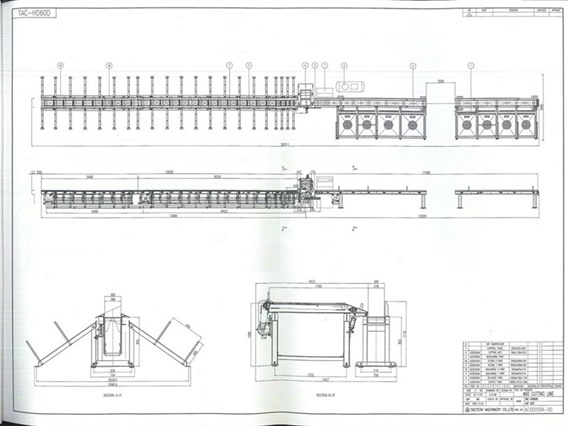

Total dimensions: 3400 W x 1840 H x 26 400 mm L
Total weight: 9 ton
Additional equipment:
for rebar wires - pour barres d'armature - fur Bewehrungsstahl
