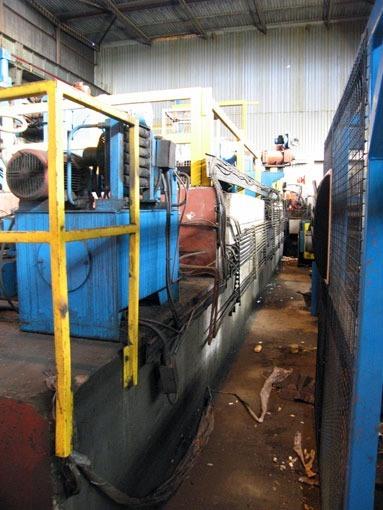

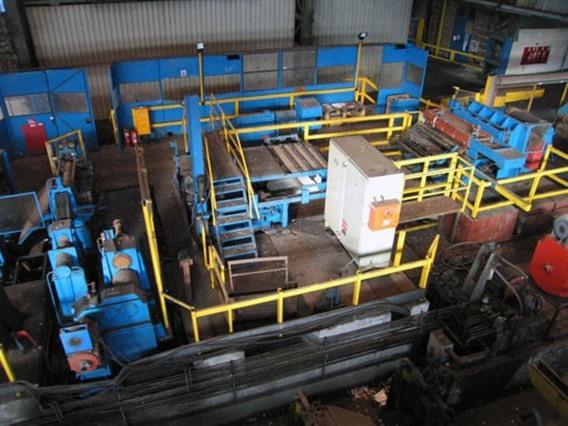

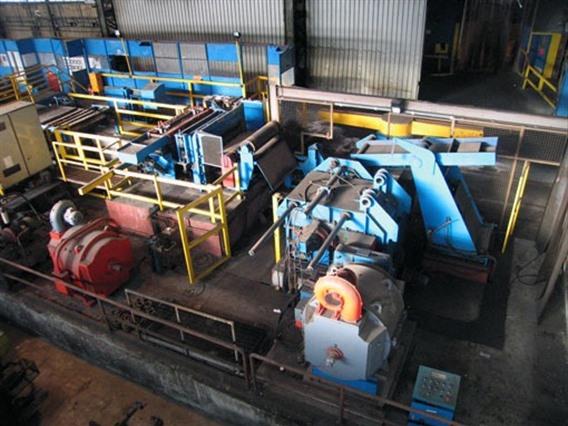

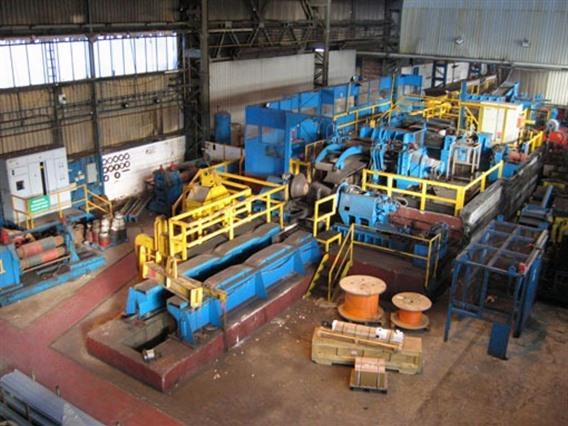

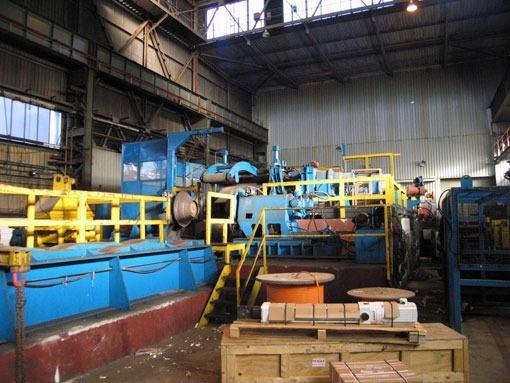

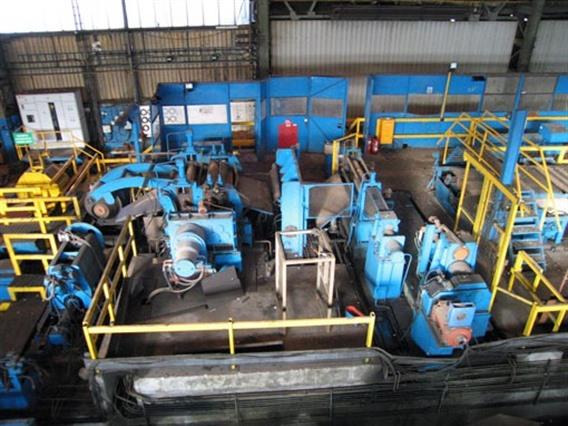

Durmech Heavy Duty Cold strip slitting line

Technische Informationen

  • Operation moduscold strip
  • Blechdicke x weite 1500 x 10 mm
  • Max gewicht25 Ton
  • Schnitt- oder sage-installationYes
  • Kapazität10 mm

Zusätzliche Informationen

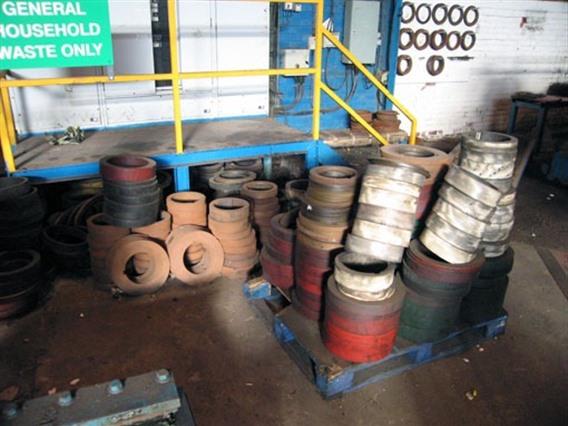

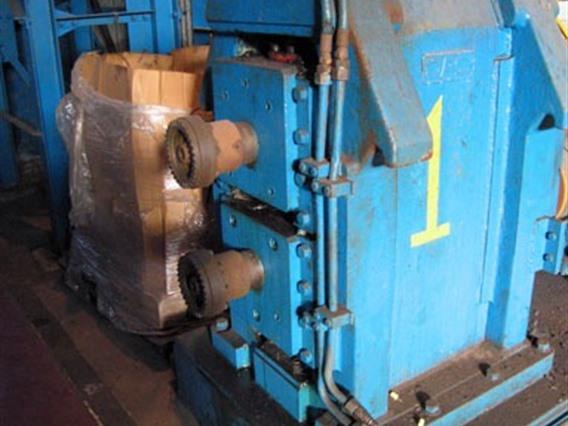

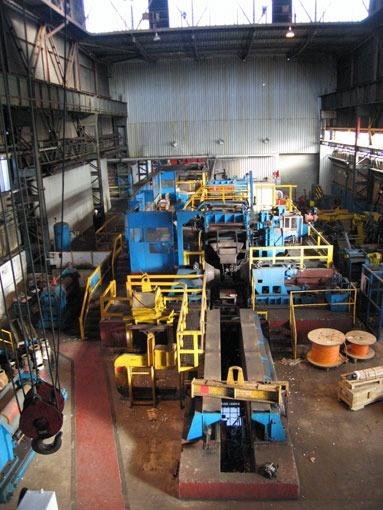

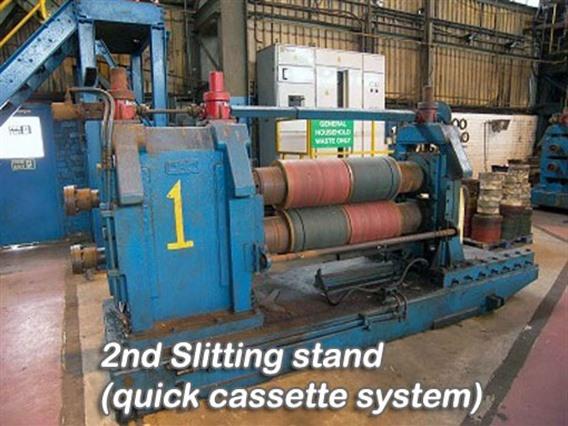

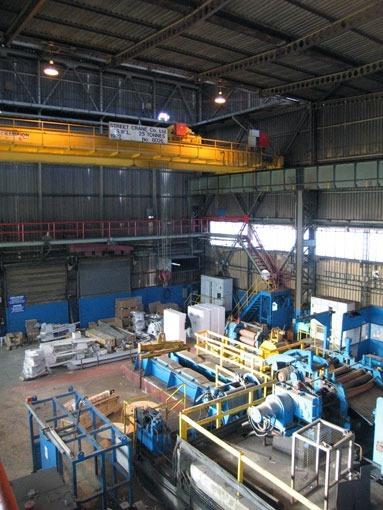

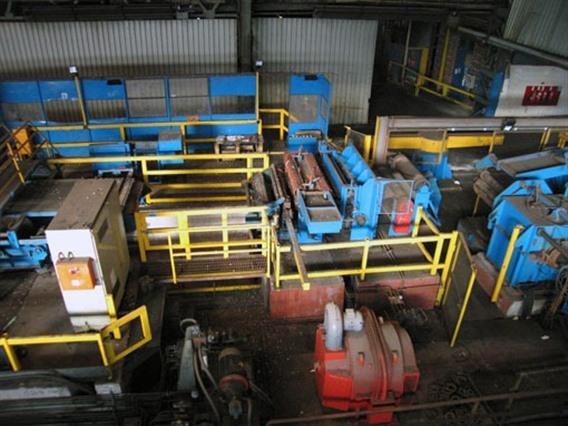

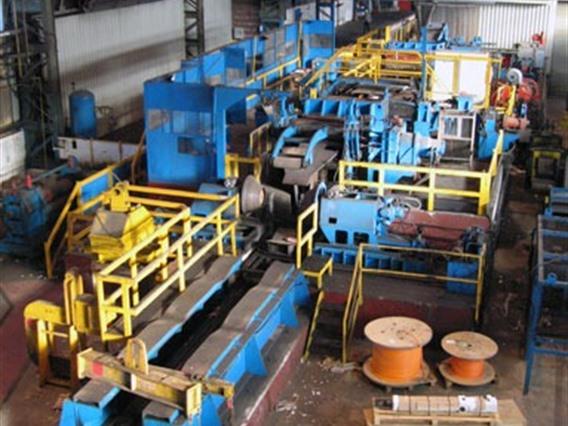

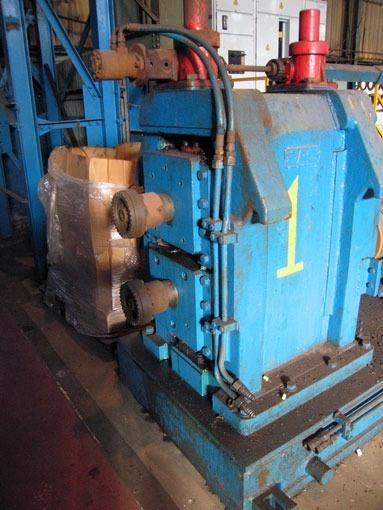

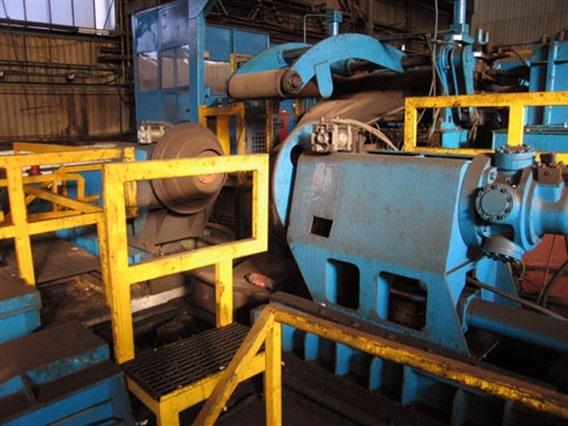

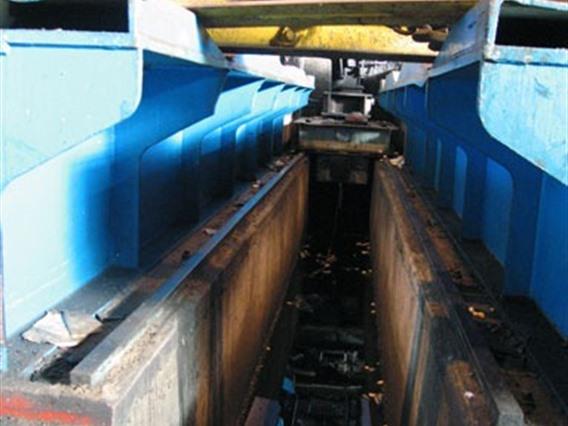

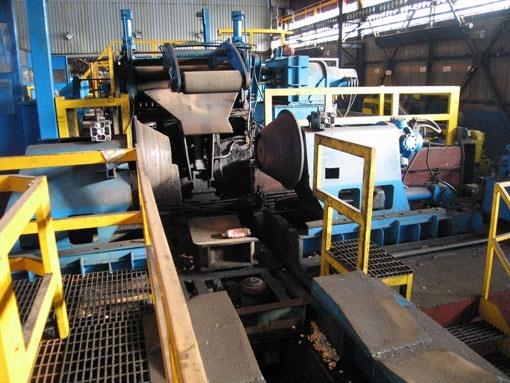

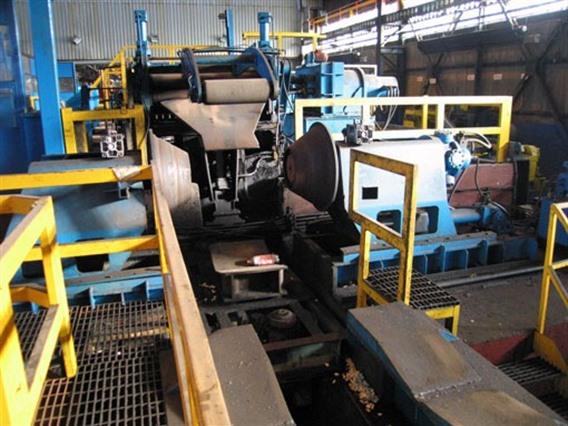

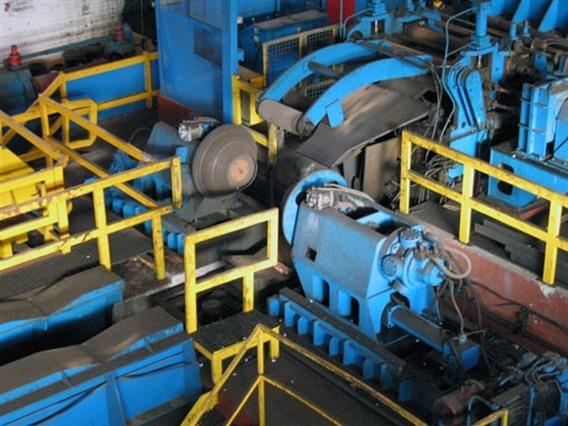

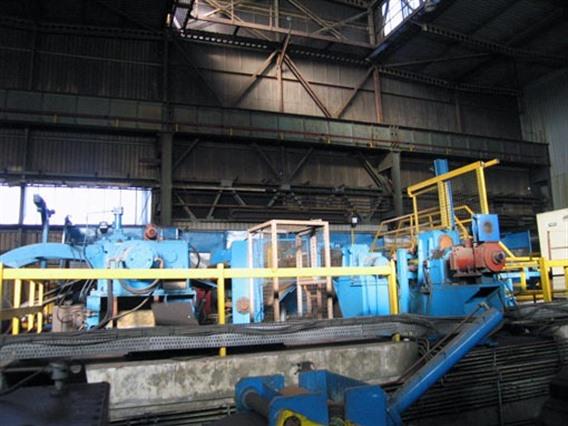

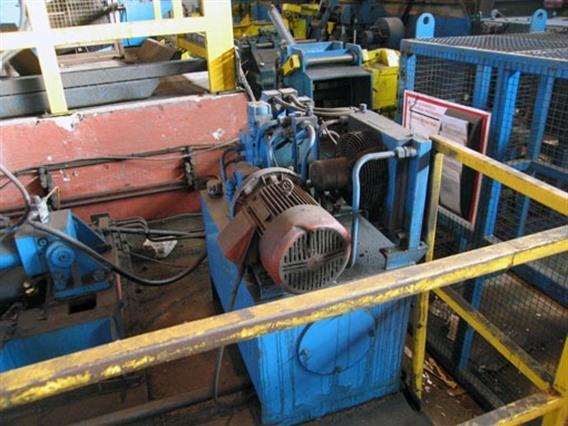

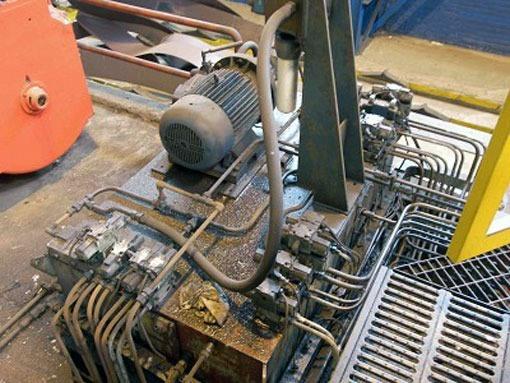

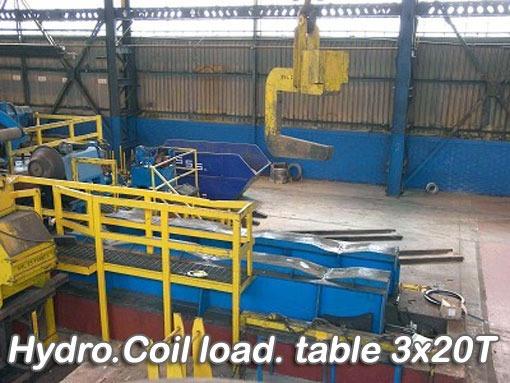

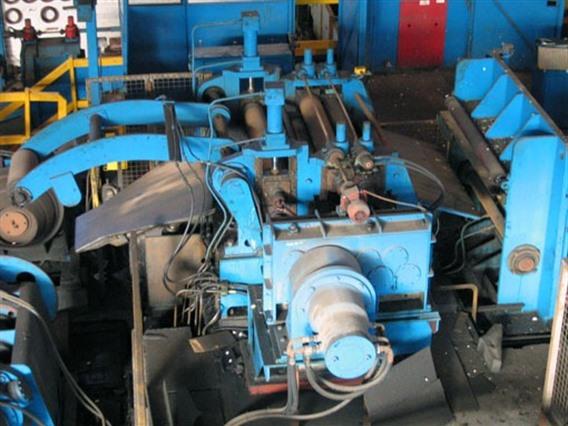

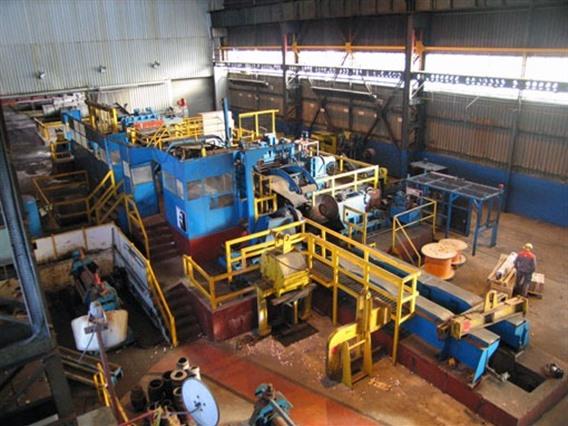

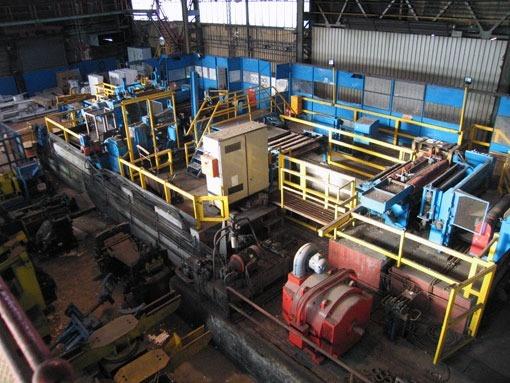

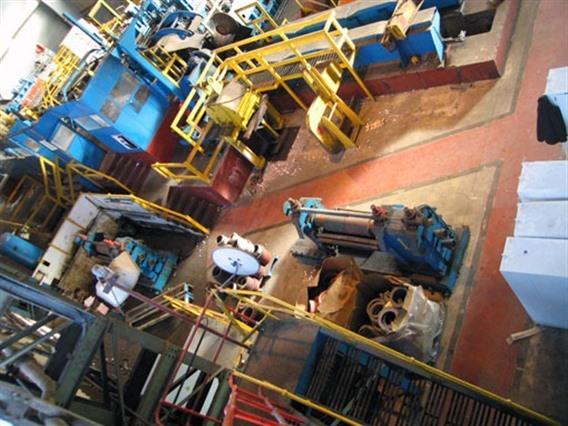

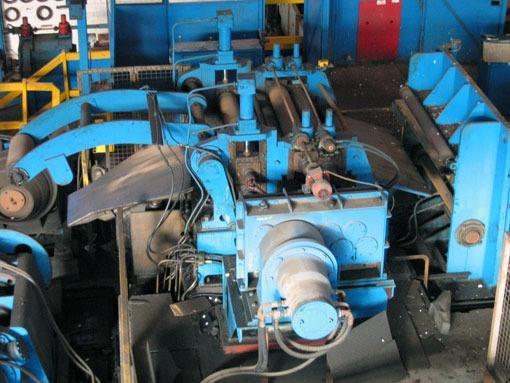

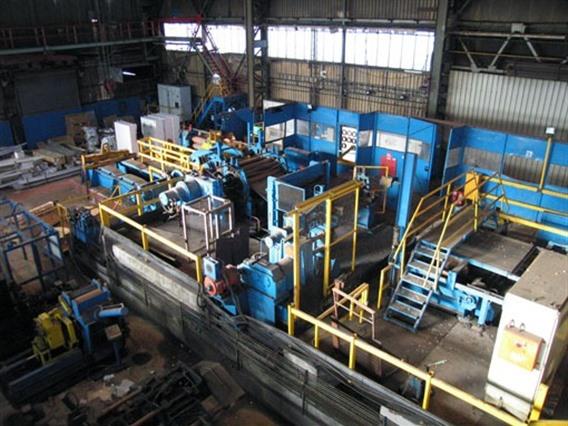

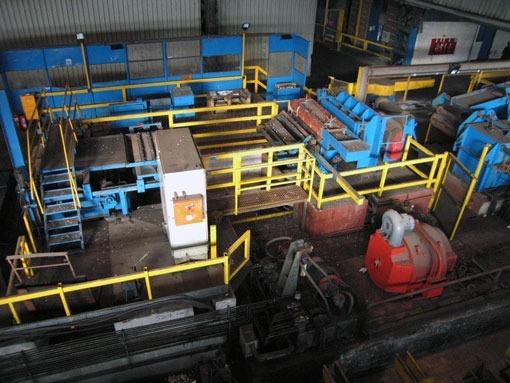

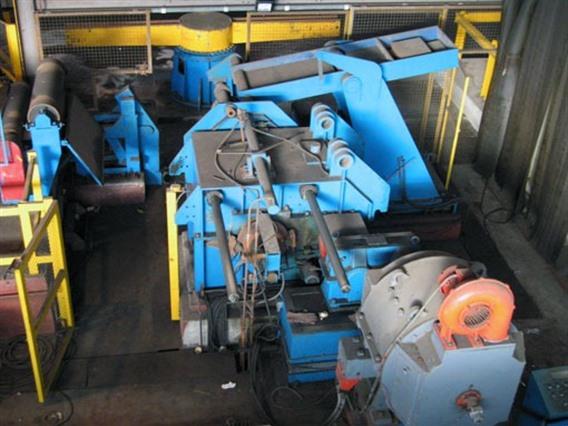

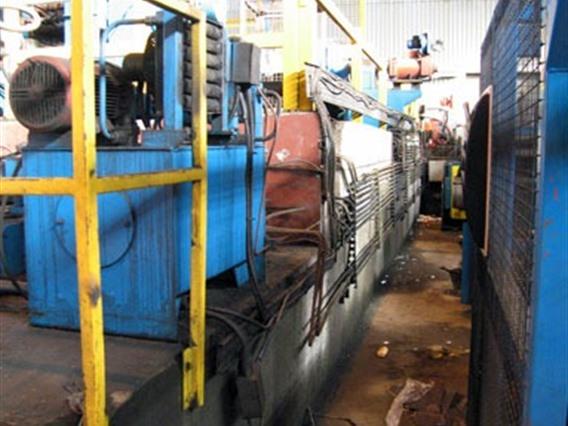

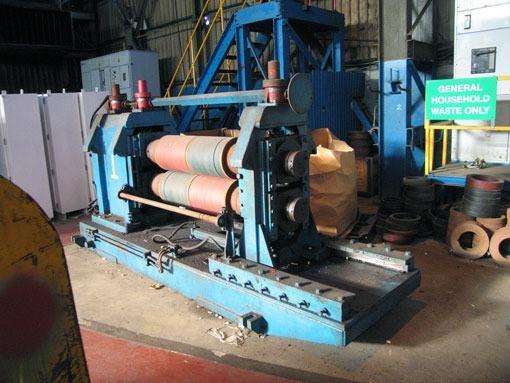

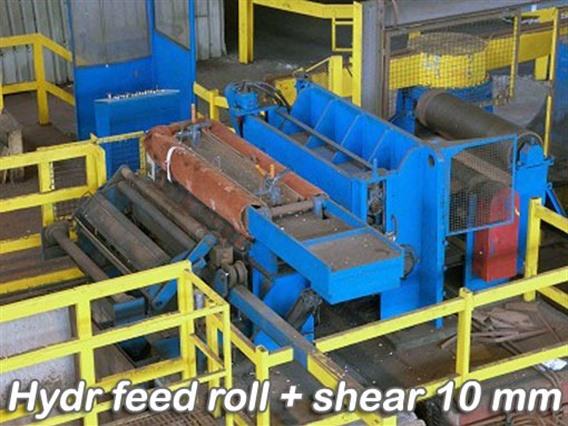

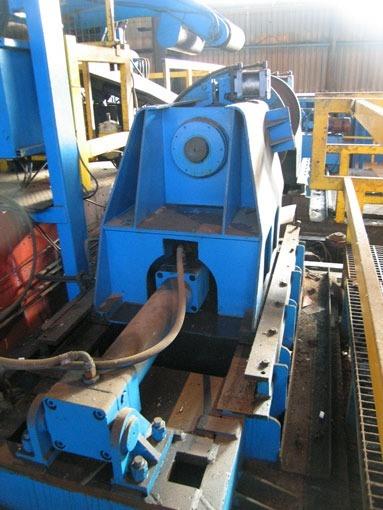

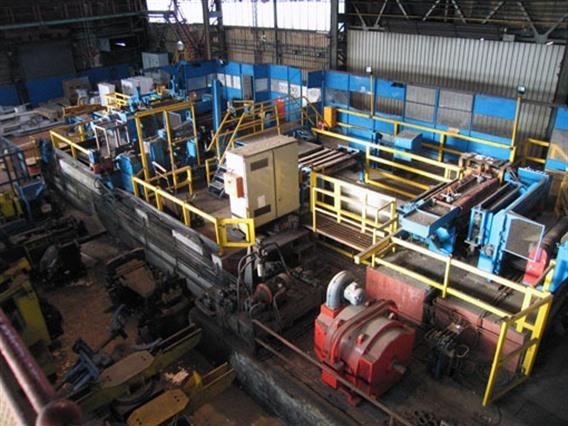

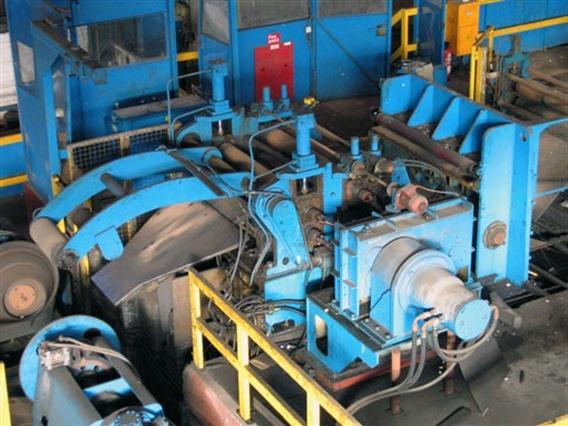

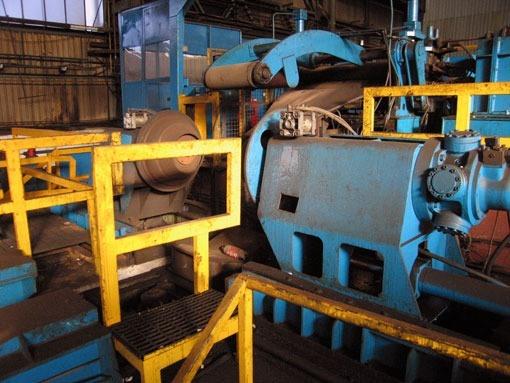

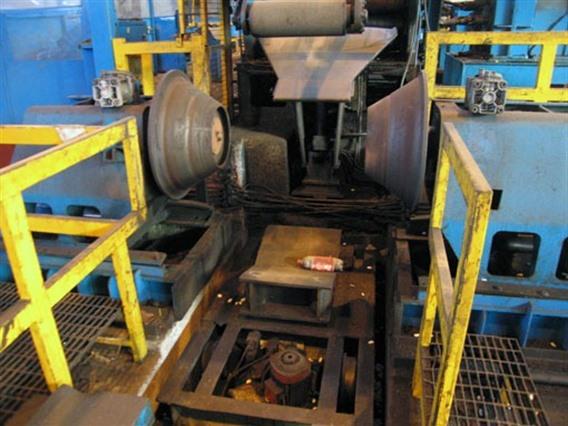

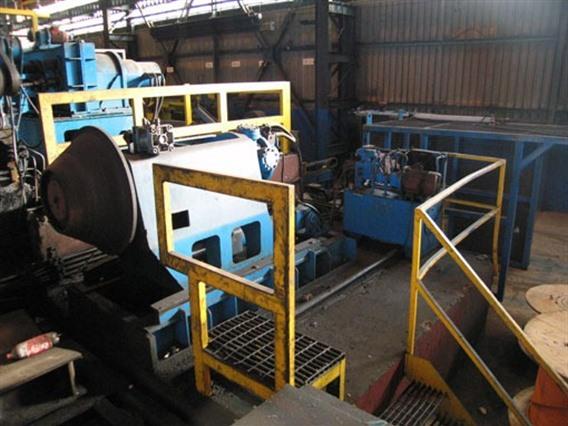

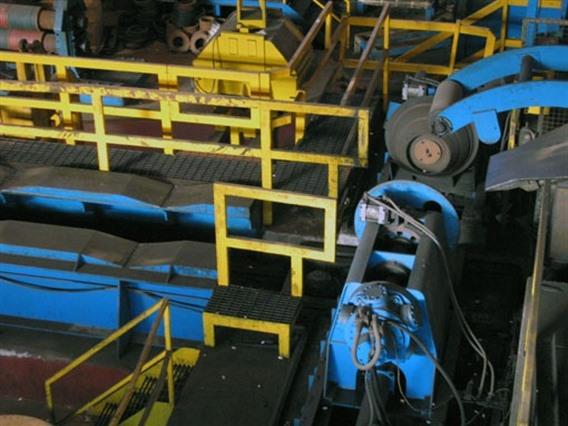

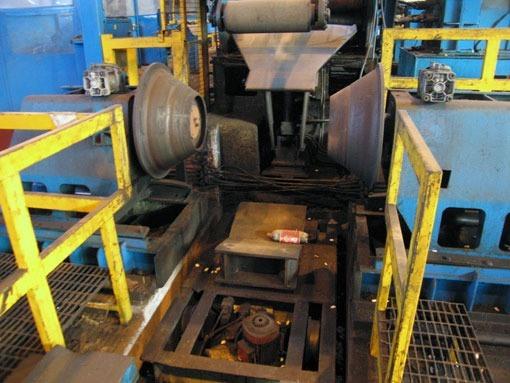

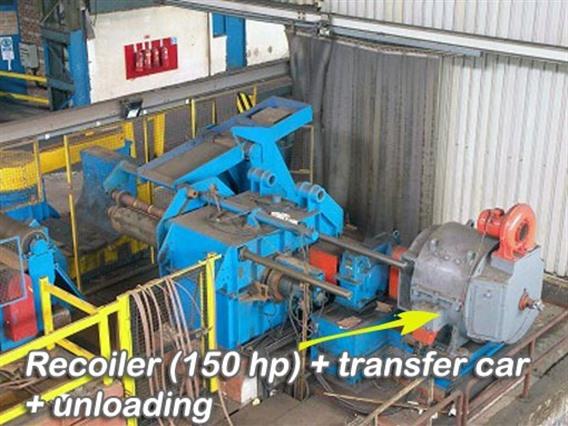

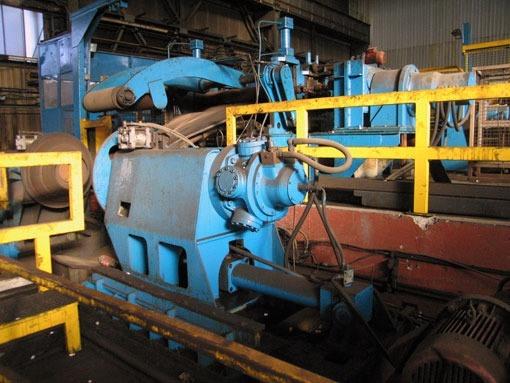

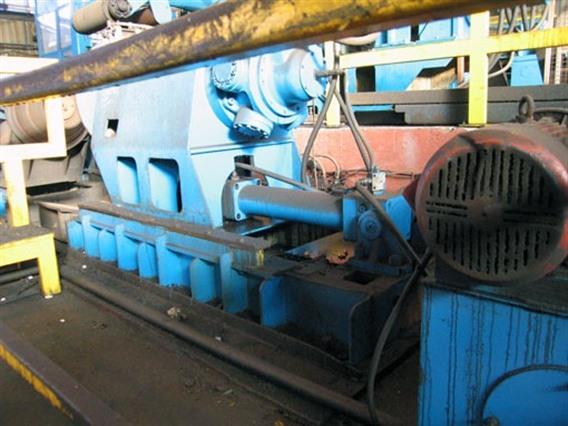

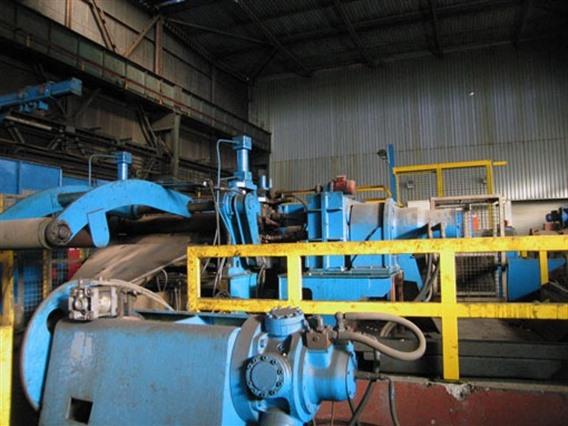

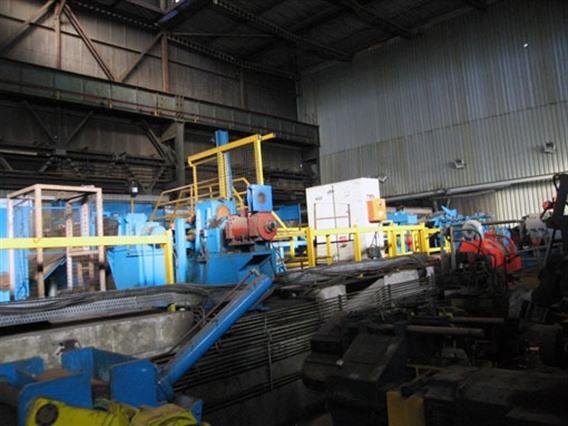

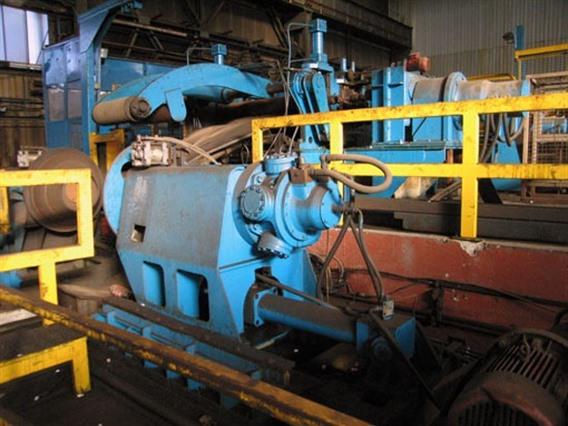

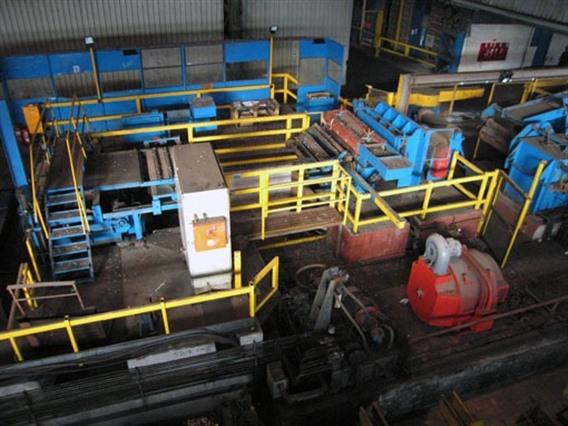

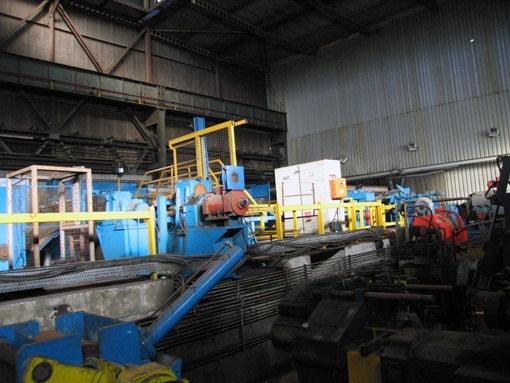

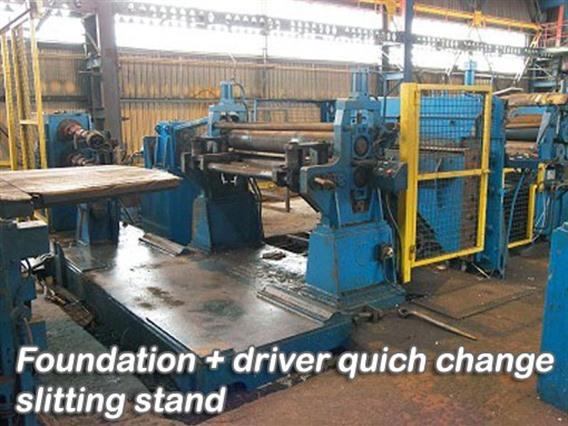

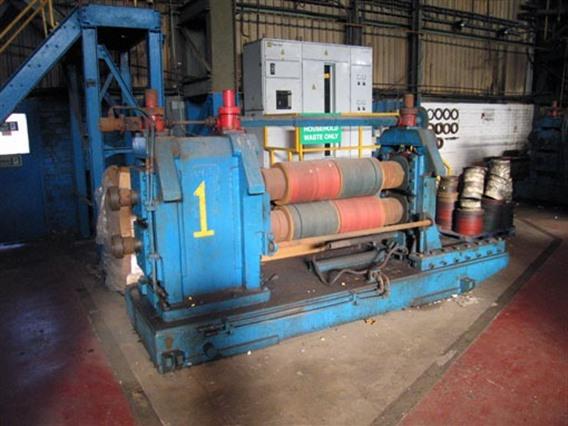

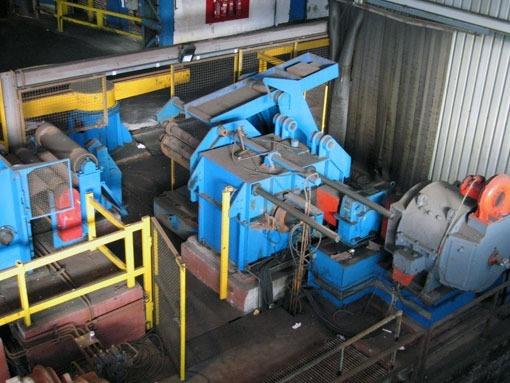

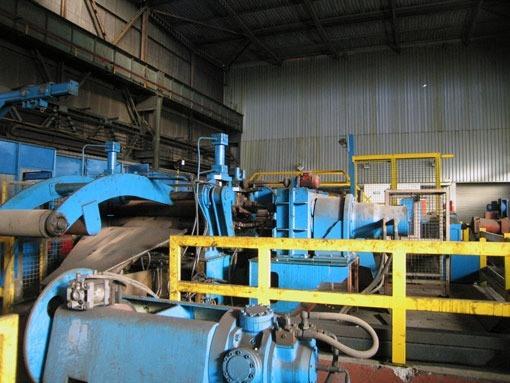

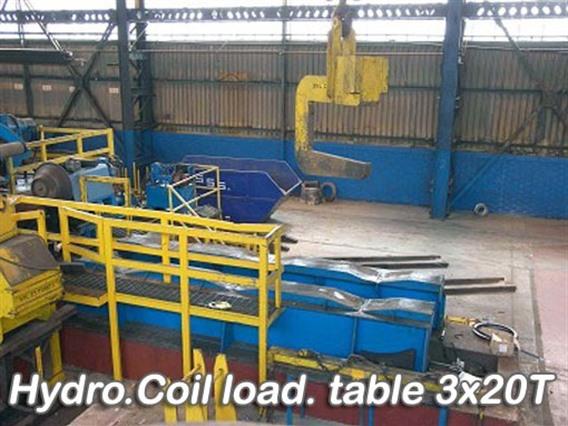

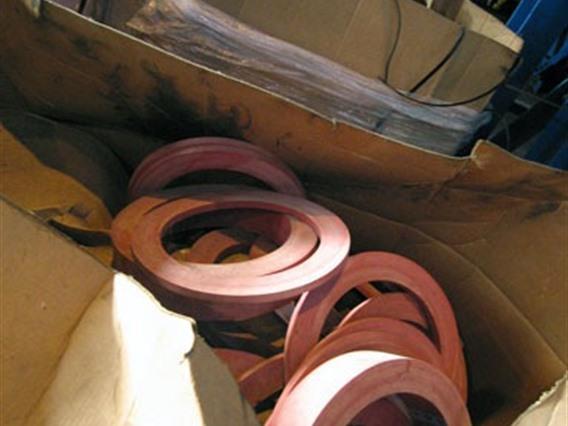

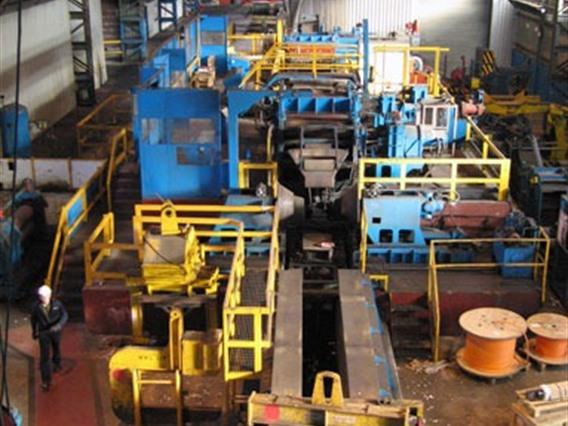

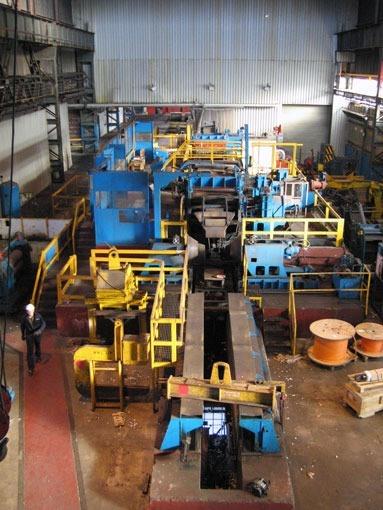

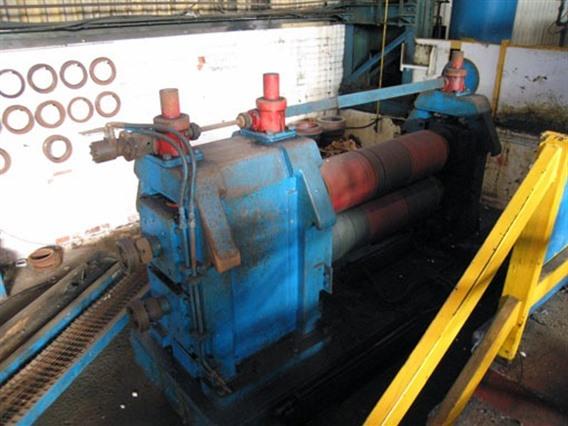

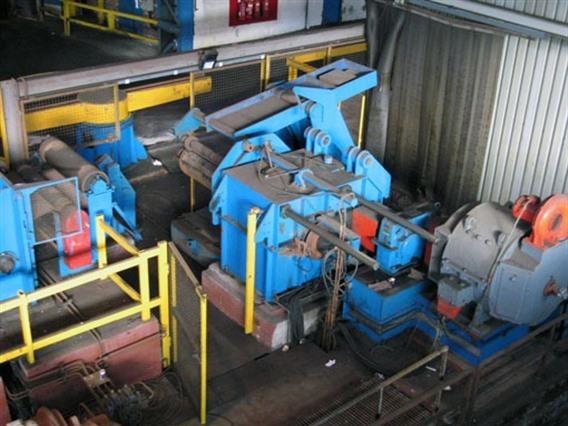

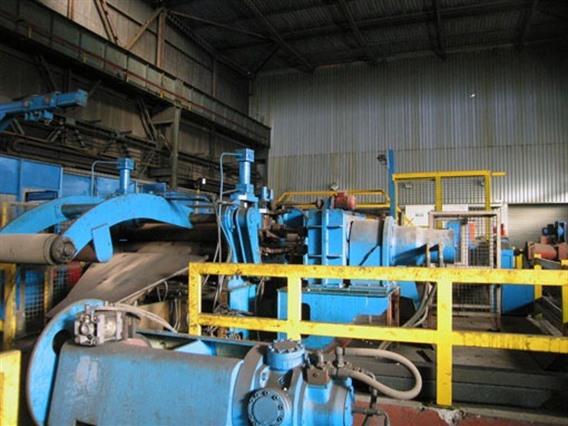

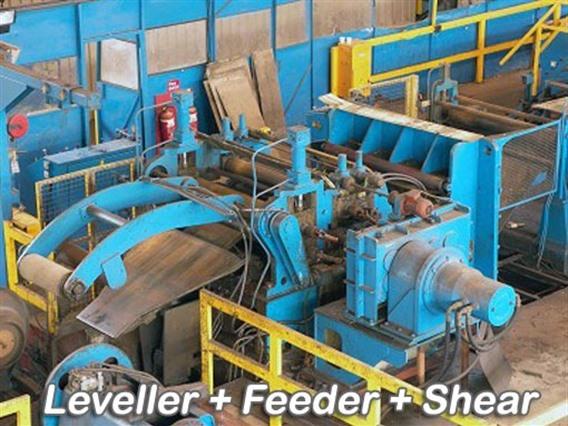

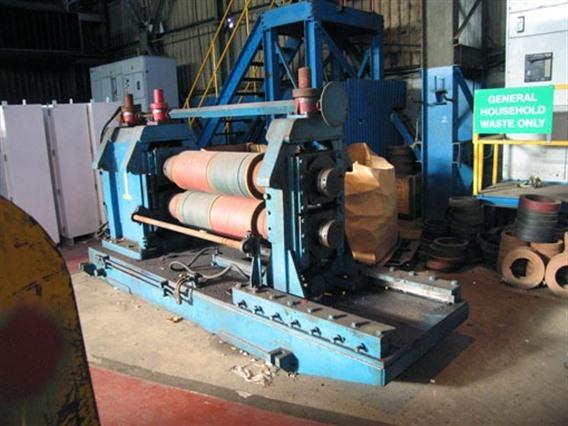

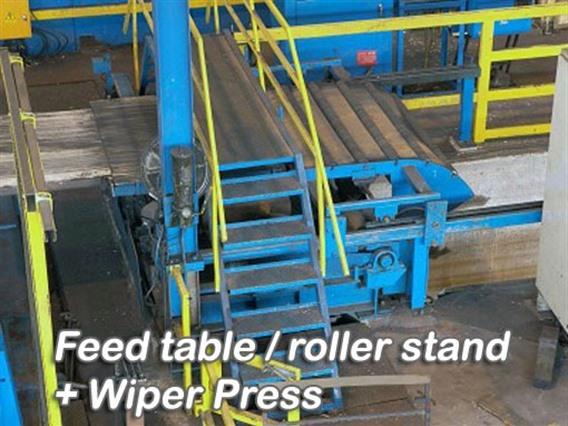

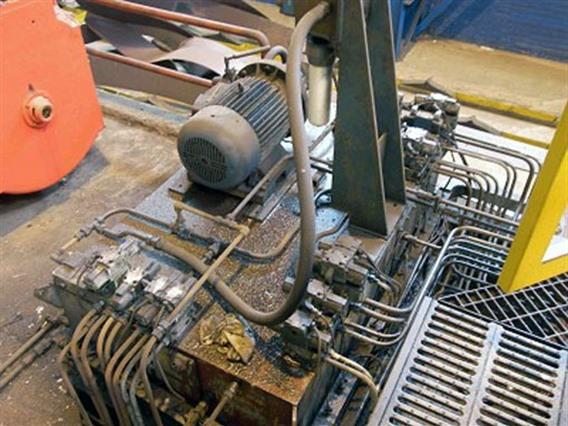

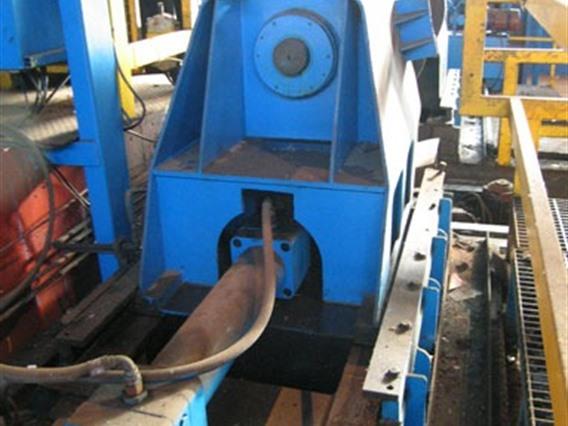

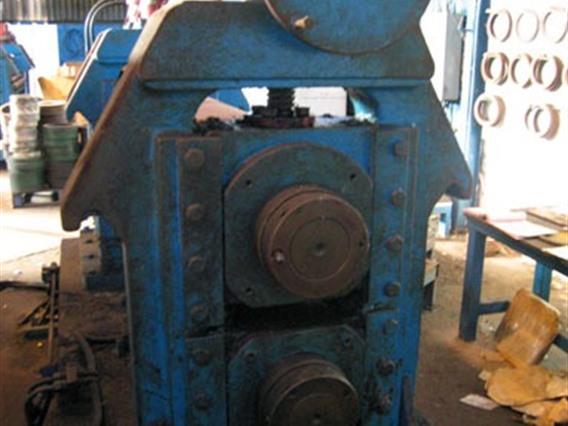

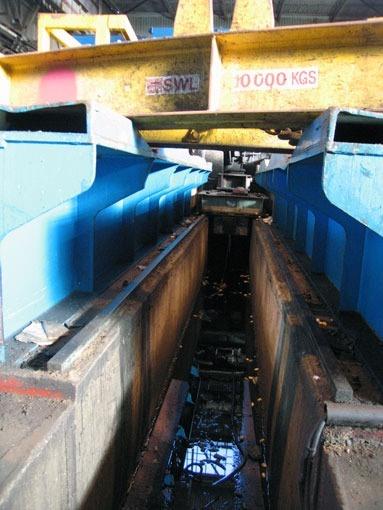

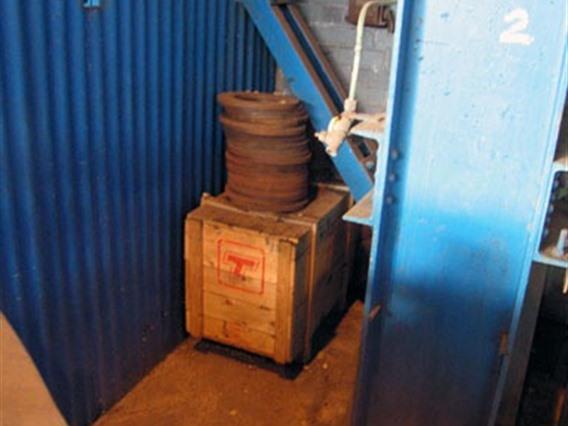

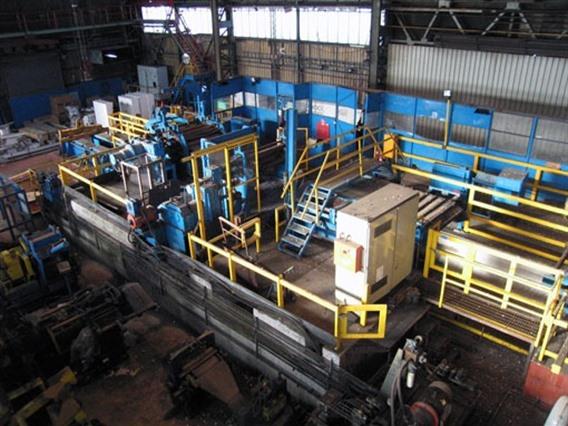

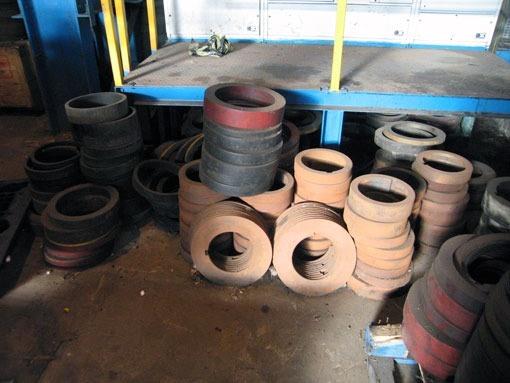

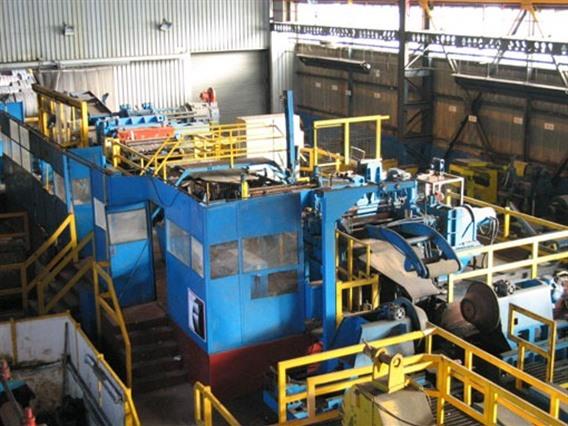

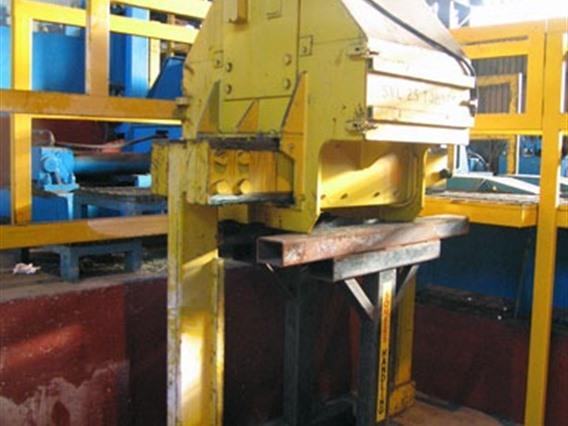

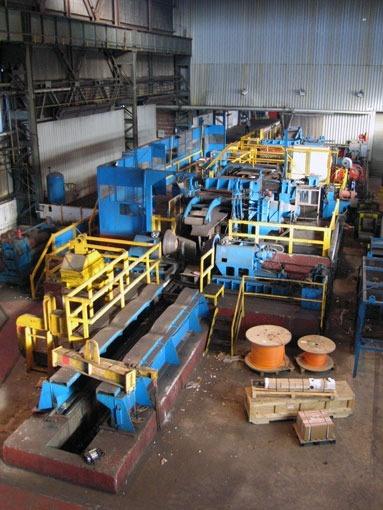

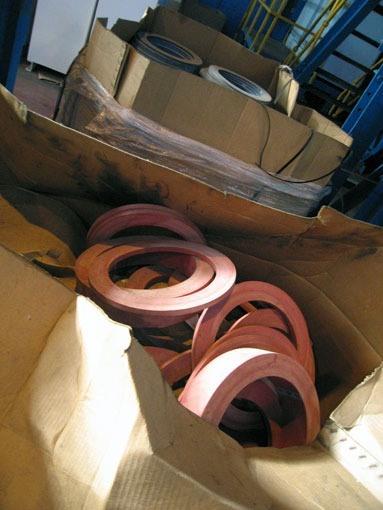

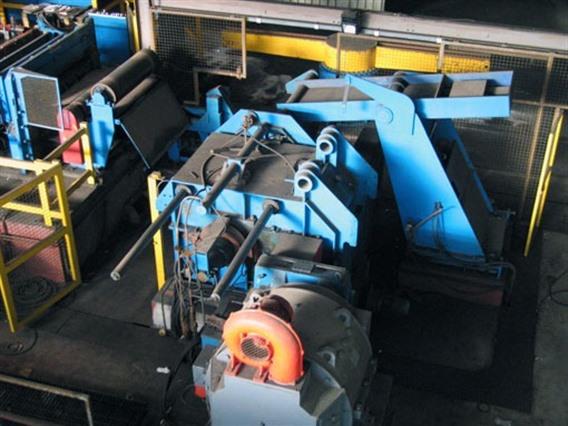

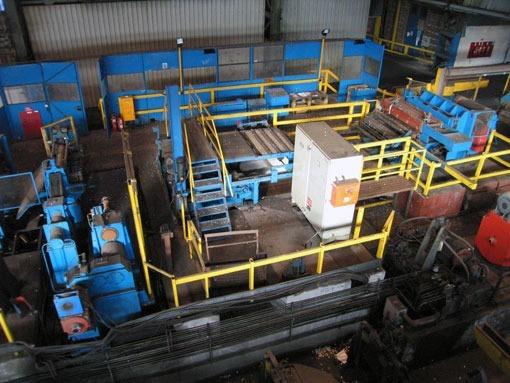

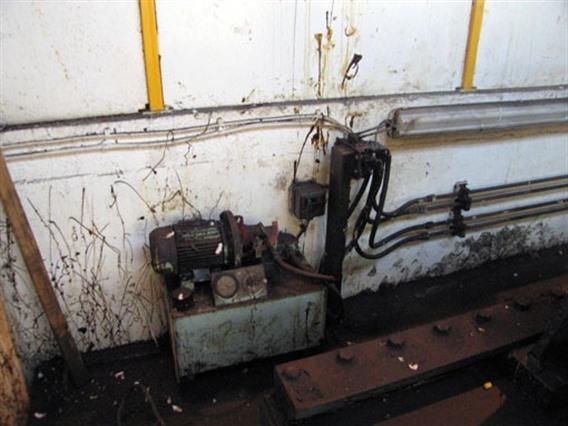

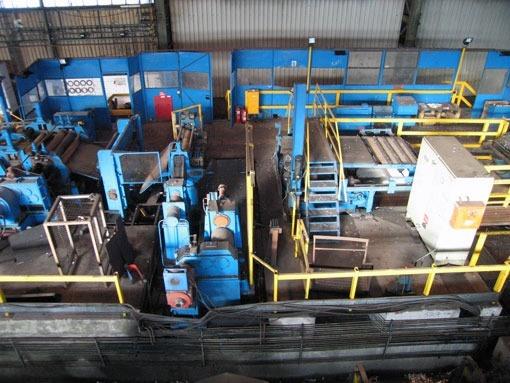

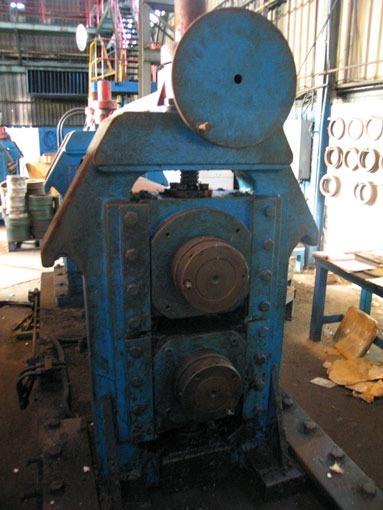

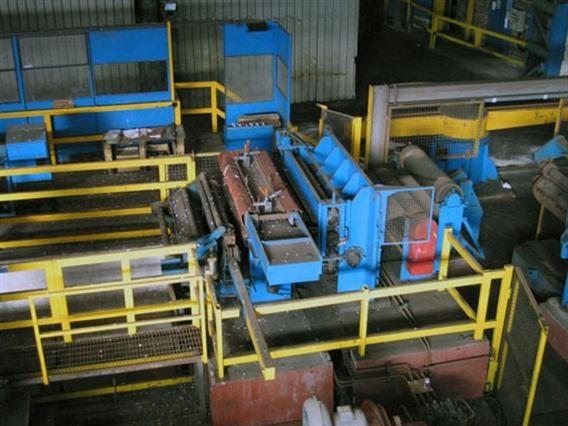

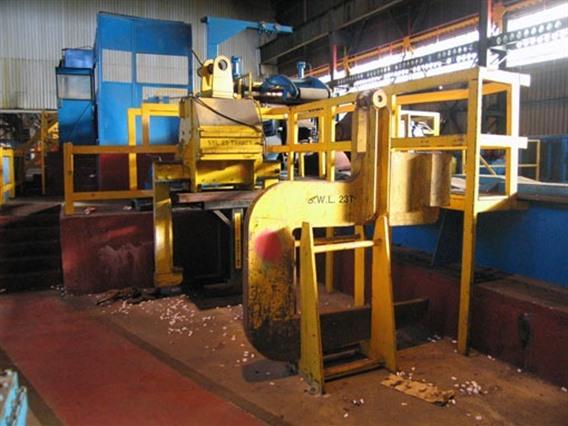

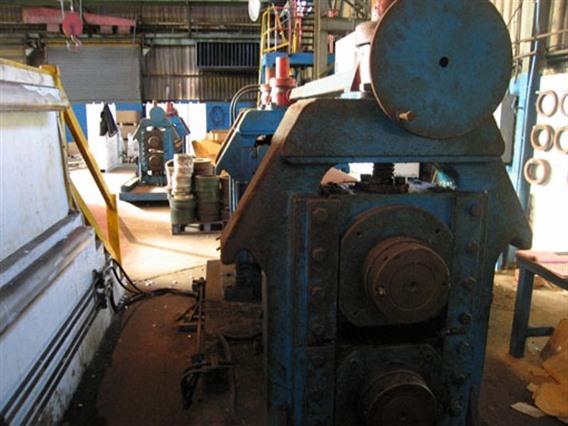

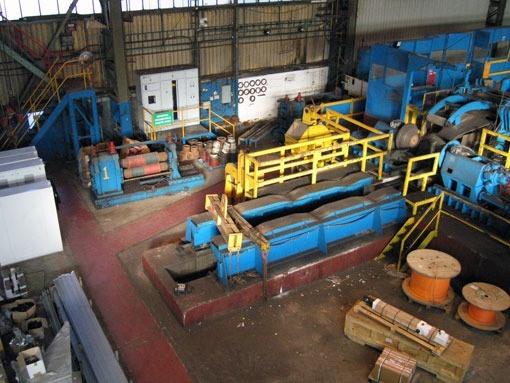

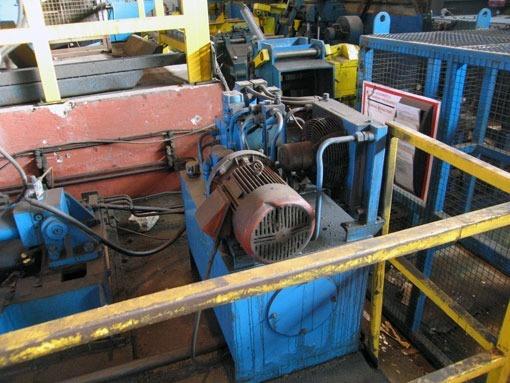

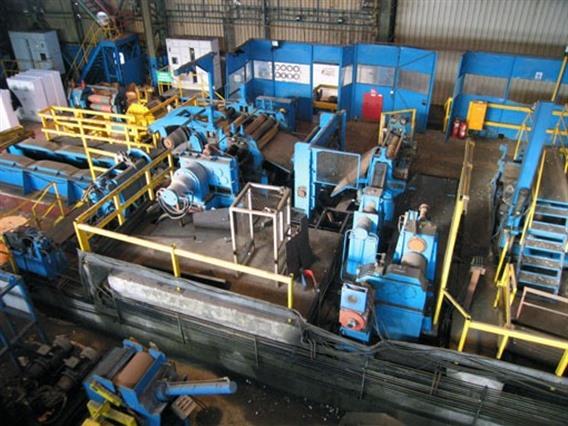

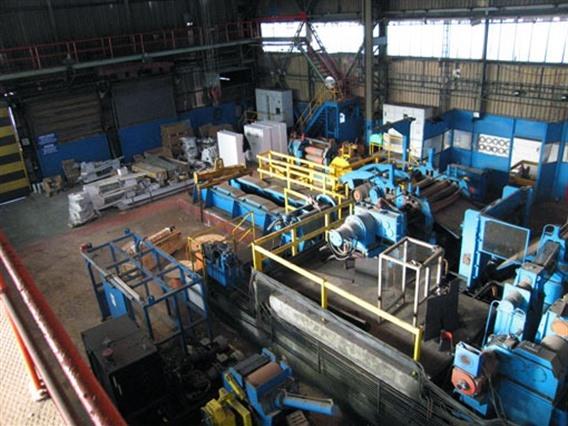

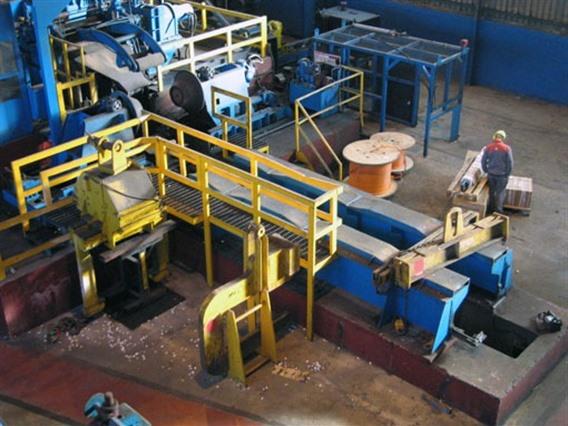

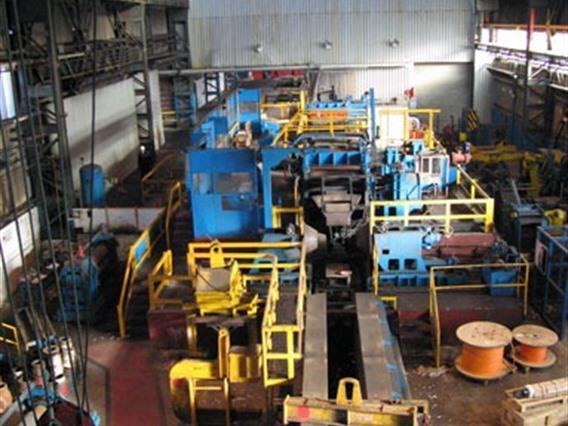

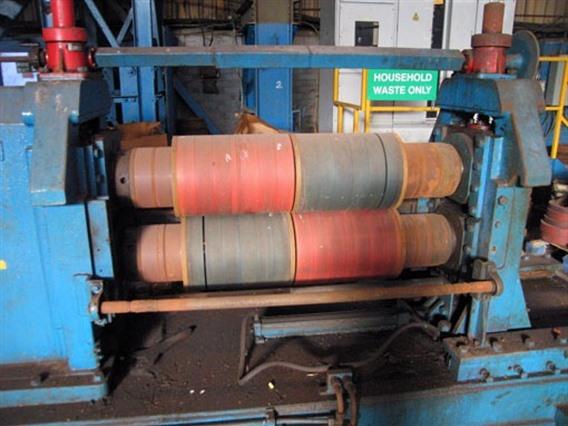

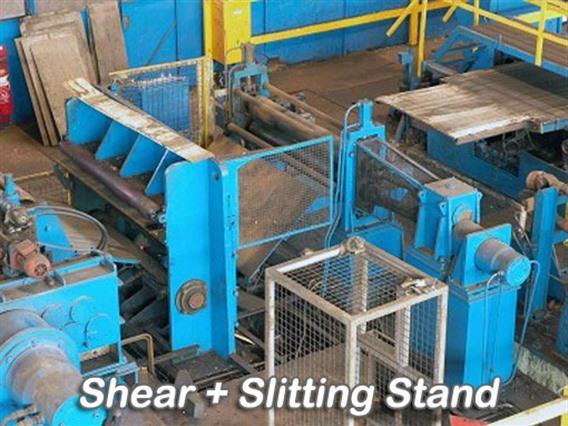

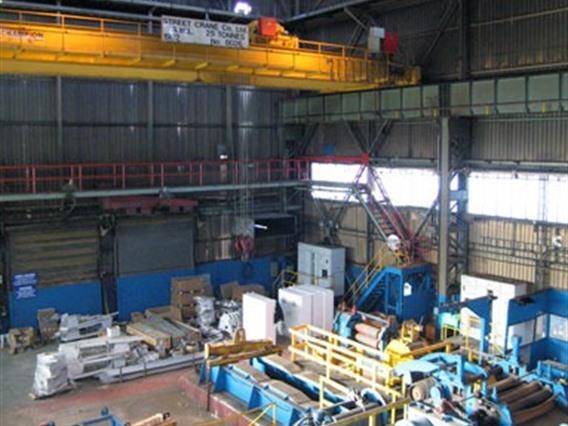

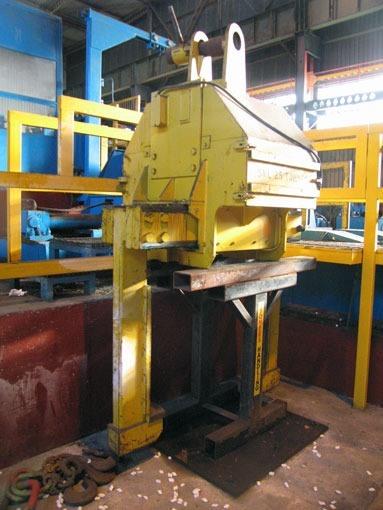

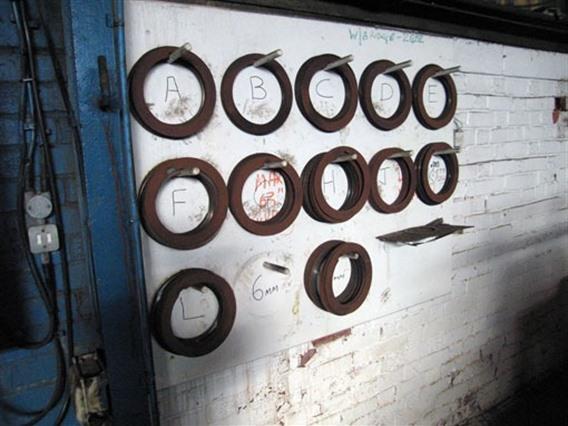

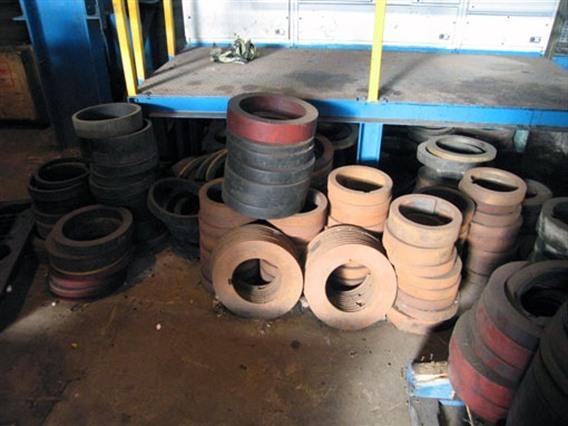

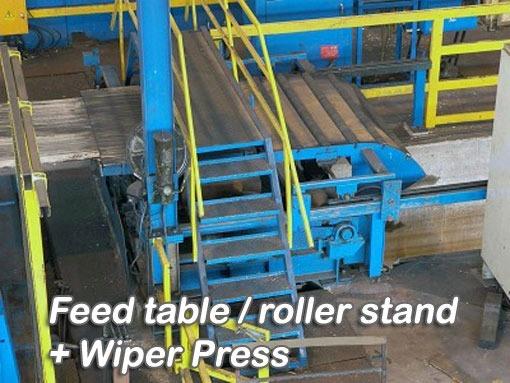

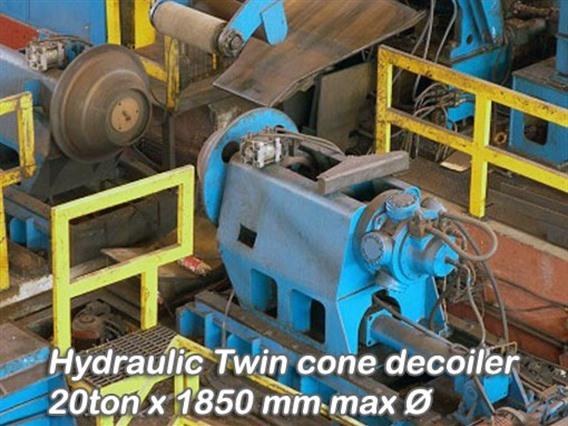

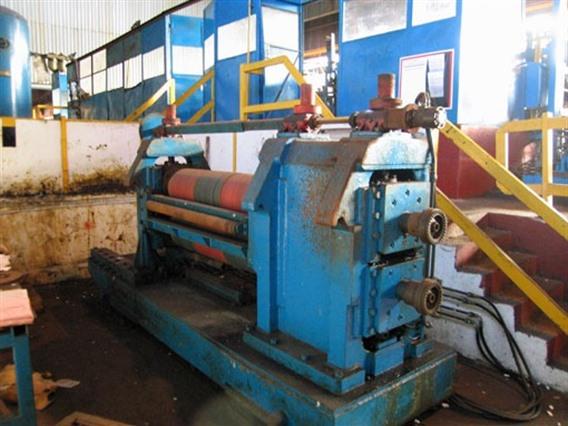

  • Cold strip slitting machine - Installed 1997 1500 mm x 10 mm max comprising (St 37) 3 position coil loading table with hydraulic coil transfer car Hydraulic twin cone uncoiler with peeler and snubber roll Max coil weight 25 tonnes, 2000 mm max O.D. Feed and levelling roll stand (5 rolls Ø 200mm) DAC hydraulic shear (10 mm max) Slitting stand with feed rolls and slitter guides, 2 removable slitting stands (quick change) with driven arbors, shimless tooling system for 15 mm to 12.5 mm wide tools Max slitting speed 75m/min 2 scrap balers with twin cone coilers and scrap discharge conveyor (hydraulic opening) Loop pit or feed table, feed roller stand with cutting Shear 1500x10mm Hydraulic feed rolls and shear (10 mm) Two roll feed and hydraulic positioning table 20" recoiling mandrel with 150 HP drive (and spare motor), push off unit transfer car and unloading Capstan Hydraulic power pack Slithead: 30 kW (400V) Decoiler + Straightener ( hydraulic Driven): 50 kW (400V)

  • Typ/Modell: Cold strip slitting line
  • Stocknummer: O.27 4330
  • Hauptkategorie: [O] Abkantpressen, Walzmaschinen, Richtmaschinen, Lasermaschinen und Brennschneidmaschinen, Stanzmaschinen & Profilierungsanlagen
  • Unterkategorie: [O.27] Abwickel- + / oder Profielstrassen
  • Markenname: Durmech Heavy Duty

Stocknummer: O.27 4330
